Sayfa 5-20 - Isuzu EPC

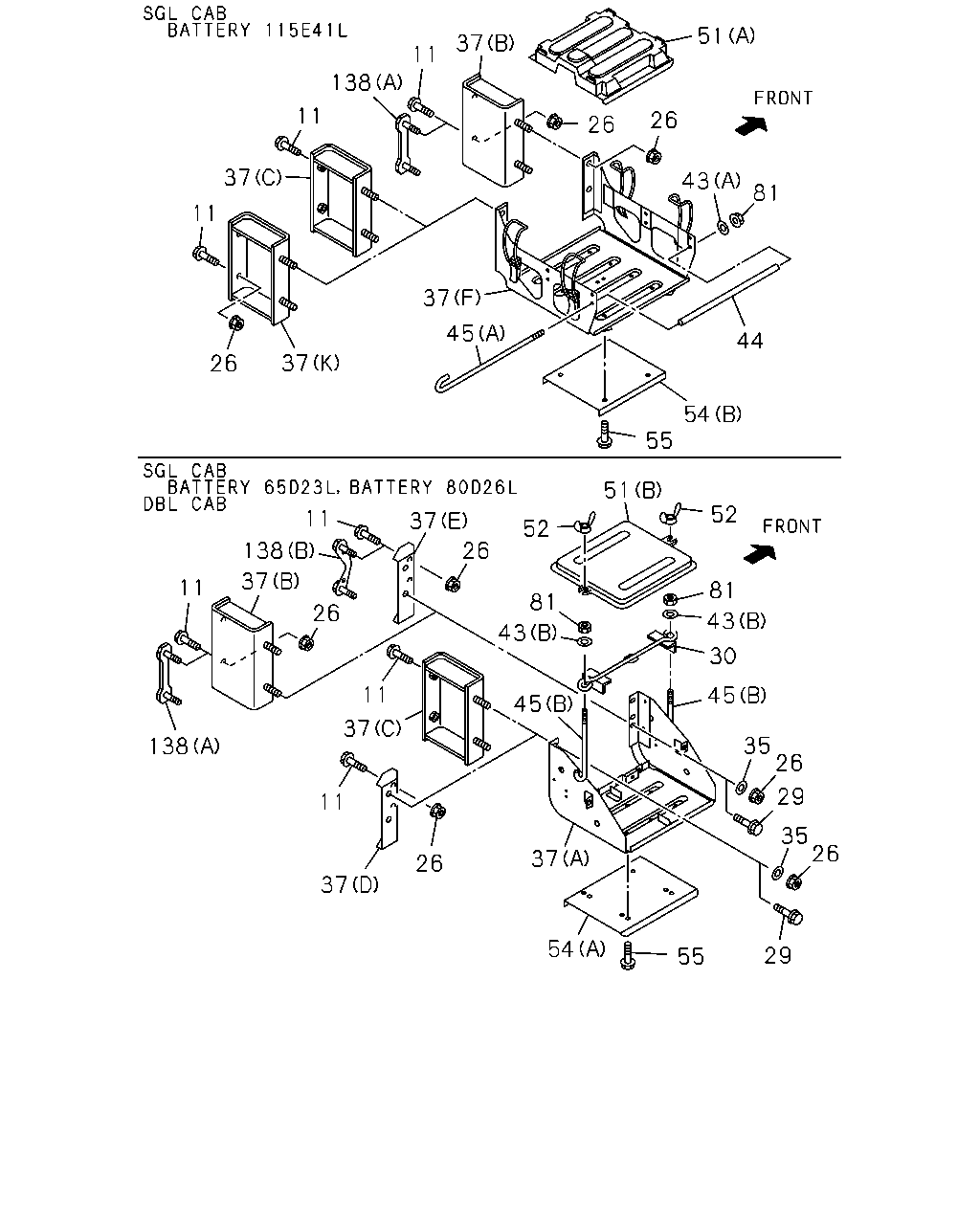

5-20 — BATTERY CARRIER (#66752) — 201 parça

138 11 37 11 37 11 26 37 37 45 26 26 51 43 81 44 54 55 52 51 52 37 11 138 11 138 37 26 11 37 11 37 26 37 45 43 81 26 81 43 30 45 35 26 29 35 26 29 55 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT FIX REARWARD INNER SINGLE TIRE<YK3> M14X35	0-20851-435-0	04	1	1003-1009	●
11	BOLT; BRKT FIX WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> M14X35	0-20851-435-0	04	1	1010-	●
11	BOLT; BRKT FIX REARWARD INNER SINGLE TIRE<YK3> M14X35	0-20851-435-0	04	1	1010-	●
11	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	04	1	0812-1002	●
11	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> M10X35 FLANGE	0-28651-035-0	04	1	1003-1009	●
11	BOLT; BRKT FIX WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> M10X35 FLANGE	0-28651-035-0	04	1	1010-	●
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	04	1	0801-0804		●
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	04	1	0712-0712	●	●
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	02	1	0801-0804	●
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	02	1	0805-0811	●	●
11	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> M10X35 FLANGE	0-28651-035-0	02	1	0812-1002	●
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	02	1	0812-1002		●
11	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> DOUBLE TIRE REARWARD<SR6> M10X35 FLANGE	0-28651-035-0	02	1	1003-	●
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	02	1	1003-		●
26	NUT; BRKT BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> REARWARD INNER SINGLE TIRE<YK3> M14	0-91110-514-0	04	1	1003-1009	●
26	NUT; BRKT WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M14	0-91110-514-0	04	1	1010-	●
26	NUT; BRKT BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> REARWARD INNER SINGLE TIRE<YK3> M14	0-91110-514-0	04	1	1010-	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0712-1002	●
26	NUT; BRKT DOUBLE TIRE REARWARD<SR6> M10 FLANGE	0-91180-210-0	02	1	1003-1011	●
26	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> M10 FLANGE	0-91180-210-0	04	1	1012-	●
26	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> M10 FLANGE	0-91180-210-0	04	1	1012-	●
26	NUT; BRKT WHEEL BASE 4200MM(42W) M10 FLANGE	0-91180-210-0	04	1	1012-		●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0712-0902	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0903-1002	●	●
26	NUT; BRKT DOUBLE TIRE REARWARD<SR6> M10 FLANGE	0-91180-210-0	04	1	1003-1009	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1003-1009		●
26	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> M10 FLANGE	0-91180-210-0	04	1	1010-1011	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1010-1011		●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	0712-1002		●
29	BOLT; BRKT TO FRAME REARWARD INNER SINGLE TIRE<YK3> M10X35 FLANGE	0-28651-035-0	04	1	1003-1009	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	1003-1009		●
29	BOLT; BRKT TO FRAME WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> M10X35 FLANGE	0-28651-035-0	04	1	1010-	●
29	BOLT; BRKT TO FRAME REARWARD INNER SINGLE TIRE<YK3> M10X35 FLANGE	0-28651-035-0	04	1	1010-	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	1010-		●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	0712-	●
30	PLATE; BATTERY	5-53615-004-1	01	1	0712-		●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0712-0712	●
35	WASHER; PL,BATTERY CARRIER ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0712-0712		●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	0712-	●
35	WASHER; PL,BATTERY CARRIER ID=10.5 OD=22	0-91614-610-0	04	1	0712-		●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (I)	1-53619-056-1	01	1	1003-1009	●
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (I)	1-53619-056-1	01	1	1010-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (I)	1-53619-056-1	01	1	1010-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (J)	1-53619-057-2	01	1	1003-1009	●
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (J)	1-53619-057-2	01	1	1010-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (J)	1-53619-057-2	01	1	1010-	●
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1003-1009	●
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1010-	●
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1010-	●
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1003-1009	●
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1010-	●
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1010-	●
37	BRACKET; BATTERY EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> (F)	8-98091-497-0	01	1	0812-1405	●
37	BRACKET; BATTERY EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> (F)	8-98261-636-0	01	1	1406-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-98054-925-1	01	1	0712-0811	●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 80D26L<TM1> (A)	8-98054-925-1	01	1	0812-	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-98054-924-1	01	1	0712-0811	●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 65D23L<8EJ> (A)	8-98054-924-1	01	1	0812-	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (F)	8-98091-499-0	01	1	0712-0811	●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 115E41L<8MA> (F)	8-98091-499-0	01	1	0812-1405	●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 115E41L<8MA> (F)	8-98261-637-0	01	1	1406-	●
37	BRACKET; BATTERY (C)	8-98070-047-0	01	1	0712-0906	●
37	BRACKET; BATTERY (C)	8-98144-194-0	01	1	0907-1002	●
37	BRACKET; BATTERY DOUBLE TIRE REARWARD<SR6> (C)	8-98144-194-0	01	1	1003-1009	●
37	BRACKET; BATTERY WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (C)	8-98144-194-0	01	1	1010-1011	●
37	BRACKET; BATTERY WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (K)	8-98162-291-0	01	1	1012-	●
37	BRACKET; BATTERY (B)	8-98088-828-0	01	1	0712-1002	●
37	BRACKET; BATTERY DOUBLE TIRE REARWARD<SR6> (B)	8-98088-828-0	01	1	1003-1009	●
37	BRACKET; BATTERY WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (B)	8-98088-828-0	01	1	1010-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0712-0811		●
37	BRACKET; BATTERY EURO2 SPECIFICATION<NT2> BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0812-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0812-		●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (E)	8-98074-286-0	01	1	0712-		●
37	BRACKET; BATTERY (D)	8-98074-285-0	01	1	0712-		●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0712-0811		●
37	BRACKET; BATTERY EURO2 SPECIFICATION<NT2> BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0812-	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0812-		●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (A) ID=8.4 OD=16	0-91610-508-0	02	1	0712-	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=8.4 OD=22	0-91614-708-0	02	1	0712-	●
43	WASHER; PL,CLAMP (B) ID=8.4 OD=22	0-91614-708-0	02	1	0712-		●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A)	8-97134-740-0	02	1	0712-	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	9-53616-615-0	02	1	0712-	●
45	ROD; TENSION,BATTERY (B)	9-53616-615-0	02	1	0712-		●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	0712-	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	0712-	●
51	COVER; BATTERY (B)	8-97120-747-0	01	1	0712-		●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	0712-	●
52	NUT; WING,COVER FIX M8 WING NUT	0-91118-408-0	02	1	0712-		●
54	PROTECTOR; HEAT,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A)	1-53619-139-1	01	1	0712-0811	●
54	PROTECTOR; HEAT,BATTERY EURO4 SPECIFICATION<NT4> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A)	1-53619-139-1	01	1	0812-	●
54	PROTECTOR; HEAT,BATTERY BATTERY 115E41L<8MA> (B)	1-53619-140-1	01	1	0712-0811	●
54	PROTECTOR; HEAT,BATTERY EURO4 SPECIFICATION<NT4> BATTERY 115E41L<8MA> (B)	1-53619-140-1	01	1	0812-	●
55	BOLT; HEAT PROTECTOR BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M8X10 FLANGE	0-28050-810-0	04	1	0712-0811	●
55	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M8X10 FLANGE	0-28050-810-0	04	1	0812-	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
138	STUD (B)	8-98121-393-0	01	1	0805-		●
138	STUD (A)	8-98066-802-0	01	1	0801-0811	●
138	STUD EURO4 SPECIFICATION<NT4> (A)	8-98066-802-0	01	1	0812-1002	●
138	STUD EURO4 SPECIFICATION<NT4> DOUBLE TIRE REARWARD<SR6> (A)	8-98066-802-0	01	1	1003-1010	●
138	STUD EURO4 SPECIFICATION<NT4> DOUBLE TIRE REARWARD<SR6> (A)	8-98178-497-0	01	1	1011-1311	●
138	STUD EURO4 SPECIFICATION<NT4> DOUBLE TIRE REARWARD<SR6> (A)	8-98255-710-0	01	1	1312-	●

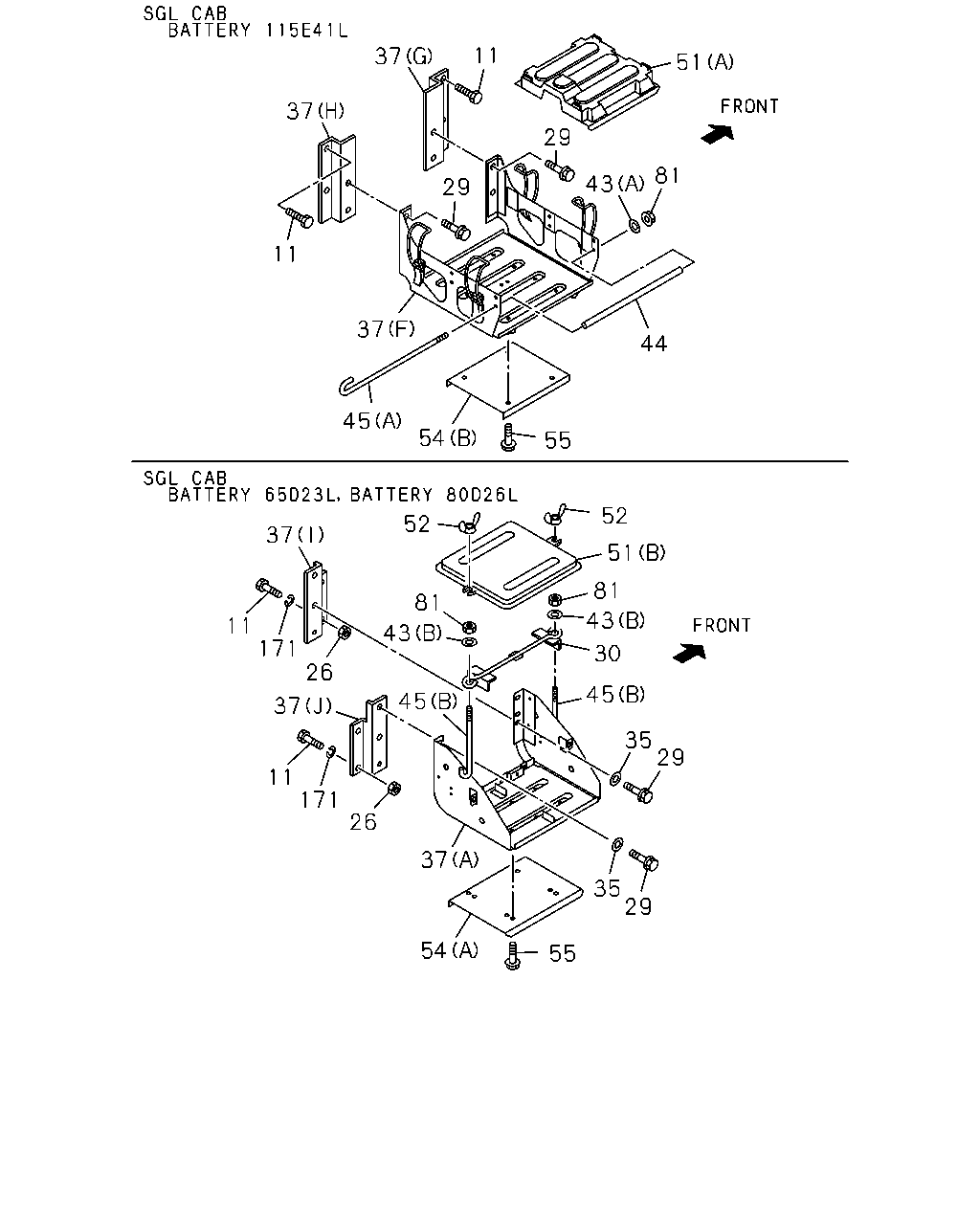

37 11 37 29 11 37 45 55 54 44 43 81 51 29 52 52 81 43 51 30 45 35 29 29 35 55 54 37 26 171 11 37 171 11 37 81 43 45 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT FIX REARWARD INNER SINGLE TIRE<YK3> M14X35	0-20851-435-0	04	1	1003-1009	●
11	BOLT; BRKT FIX WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> M14X35	0-20851-435-0	04	1	1010-	●
11	BOLT; BRKT FIX REARWARD INNER SINGLE TIRE<YK3> M14X35	0-20851-435-0	04	1	1010-	●
11	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	04	1	0812-1002	●
11	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> M10X35 FLANGE	0-28651-035-0	04	1	1003-1009	●
11	BOLT; BRKT FIX WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> M10X35 FLANGE	0-28651-035-0	04	1	1010-	●
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	04	1	0801-0804		●
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	04	1	0712-0712	●	●
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	02	1	0801-0804	●
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	02	1	0805-0811	●	●
11	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> M10X35 FLANGE	0-28651-035-0	02	1	0812-1002	●
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	02	1	0812-1002		●
11	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> DOUBLE TIRE REARWARD<SR6> M10X35 FLANGE	0-28651-035-0	02	1	1003-	●
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	02	1	1003-		●
26	NUT; BRKT BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> REARWARD INNER SINGLE TIRE<YK3> M14	0-91110-514-0	04	1	1003-1009	●
26	NUT; BRKT WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M14	0-91110-514-0	04	1	1010-	●
26	NUT; BRKT BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> REARWARD INNER SINGLE TIRE<YK3> M14	0-91110-514-0	04	1	1010-	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0712-1002	●
26	NUT; BRKT DOUBLE TIRE REARWARD<SR6> M10 FLANGE	0-91180-210-0	02	1	1003-1011	●
26	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> M10 FLANGE	0-91180-210-0	04	1	1012-	●
26	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> M10 FLANGE	0-91180-210-0	04	1	1012-	●
26	NUT; BRKT WHEEL BASE 4200MM(42W) M10 FLANGE	0-91180-210-0	04	1	1012-		●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0712-0902	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0903-1002	●	●
26	NUT; BRKT DOUBLE TIRE REARWARD<SR6> M10 FLANGE	0-91180-210-0	04	1	1003-1009	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1003-1009		●
26	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> M10 FLANGE	0-91180-210-0	04	1	1010-1011	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1010-1011		●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	0712-1002		●
29	BOLT; BRKT TO FRAME REARWARD INNER SINGLE TIRE<YK3> M10X35 FLANGE	0-28651-035-0	04	1	1003-1009	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	1003-1009		●
29	BOLT; BRKT TO FRAME WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> M10X35 FLANGE	0-28651-035-0	04	1	1010-	●
29	BOLT; BRKT TO FRAME REARWARD INNER SINGLE TIRE<YK3> M10X35 FLANGE	0-28651-035-0	04	1	1010-	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	1010-		●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	0712-	●
30	PLATE; BATTERY	5-53615-004-1	01	1	0712-		●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0712-0712	●
35	WASHER; PL,BATTERY CARRIER ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0712-0712		●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	0712-	●
35	WASHER; PL,BATTERY CARRIER ID=10.5 OD=22	0-91614-610-0	04	1	0712-		●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (I)	1-53619-056-1	01	1	1003-1009	●
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (I)	1-53619-056-1	01	1	1010-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (I)	1-53619-056-1	01	1	1010-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (J)	1-53619-057-2	01	1	1003-1009	●
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (J)	1-53619-057-2	01	1	1010-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> REARWARD INNER SINGLE TIRE<YK3> (J)	1-53619-057-2	01	1	1010-	●
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1003-1009	●
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1010-	●
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1010-	●
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1003-1009	●
37	BRACKET; BATTERY WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1010-	●
37	BRACKET; BATTERY REARWARD INNER SINGLE TIRE<YK3> BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1010-	●
37	BRACKET; BATTERY EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> (F)	8-98091-497-0	01	1	0812-1405	●
37	BRACKET; BATTERY EURO2 SPECIFICATION<NT2> BATTERY 115E41L<8MA> (F)	8-98261-636-0	01	1	1406-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-98054-925-1	01	1	0712-0811	●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 80D26L<TM1> (A)	8-98054-925-1	01	1	0812-	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-98054-924-1	01	1	0712-0811	●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 65D23L<8EJ> (A)	8-98054-924-1	01	1	0812-	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (F)	8-98091-499-0	01	1	0712-0811	●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 115E41L<8MA> (F)	8-98091-499-0	01	1	0812-1405	●
37	BRACKET; BATTERY EURO4 SPECIFICATION<NT4> BATTERY 115E41L<8MA> (F)	8-98261-637-0	01	1	1406-	●
37	BRACKET; BATTERY (C)	8-98070-047-0	01	1	0712-0906	●
37	BRACKET; BATTERY (C)	8-98144-194-0	01	1	0907-1002	●
37	BRACKET; BATTERY DOUBLE TIRE REARWARD<SR6> (C)	8-98144-194-0	01	1	1003-1009	●
37	BRACKET; BATTERY WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (C)	8-98144-194-0	01	1	1010-1011	●
37	BRACKET; BATTERY WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (K)	8-98162-291-0	01	1	1012-	●
37	BRACKET; BATTERY (B)	8-98088-828-0	01	1	0712-1002	●
37	BRACKET; BATTERY DOUBLE TIRE REARWARD<SR6> (B)	8-98088-828-0	01	1	1003-1009	●
37	BRACKET; BATTERY WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> (B)	8-98088-828-0	01	1	1010-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0712-0811		●
37	BRACKET; BATTERY EURO2 SPECIFICATION<NT2> BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0812-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0812-		●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (E)	8-98074-286-0	01	1	0712-		●
37	BRACKET; BATTERY (D)	8-98074-285-0	01	1	0712-		●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0712-0811		●
37	BRACKET; BATTERY EURO2 SPECIFICATION<NT2> BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0812-	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0812-		●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (A) ID=8.4 OD=16	0-91610-508-0	02	1	0712-	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=8.4 OD=22	0-91614-708-0	02	1	0712-	●
43	WASHER; PL,CLAMP (B) ID=8.4 OD=22	0-91614-708-0	02	1	0712-		●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A)	8-97134-740-0	02	1	0712-	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	9-53616-615-0	02	1	0712-	●
45	ROD; TENSION,BATTERY (B)	9-53616-615-0	02	1	0712-		●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	0712-	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	0712-	●
51	COVER; BATTERY (B)	8-97120-747-0	01	1	0712-		●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	0712-	●
52	NUT; WING,COVER FIX M8 WING NUT	0-91118-408-0	02	1	0712-		●
54	PROTECTOR; HEAT,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A)	1-53619-139-1	01	1	0712-0811	●
54	PROTECTOR; HEAT,BATTERY EURO4 SPECIFICATION<NT4> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A)	1-53619-139-1	01	1	0812-	●
54	PROTECTOR; HEAT,BATTERY BATTERY 115E41L<8MA> (B)	1-53619-140-1	01	1	0712-0811	●
54	PROTECTOR; HEAT,BATTERY EURO4 SPECIFICATION<NT4> BATTERY 115E41L<8MA> (B)	1-53619-140-1	01	1	0812-	●
55	BOLT; HEAT PROTECTOR BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M8X10 FLANGE	0-28050-810-0	04	1	0712-0811	●
55	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M8X10 FLANGE	0-28050-810-0	04	1	0812-	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
171	WASHER; BRKT BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> REARWARD INNER SINGLE TIRE<YK3> ID=14.2	0-91510-814-0	04	1	1003-1009	●
171	WASHER; BRKT WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> ID=14.2	0-91510-814-0	04	1	1010-	●
171	WASHER; BRKT BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> REARWARD INNER SINGLE TIRE<YK3> ID=14.2	0-91510-814-0	04	1	1010-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
