5-10 — CAB MOUNTING; FRAME SIDE (#66748) — 172 parça

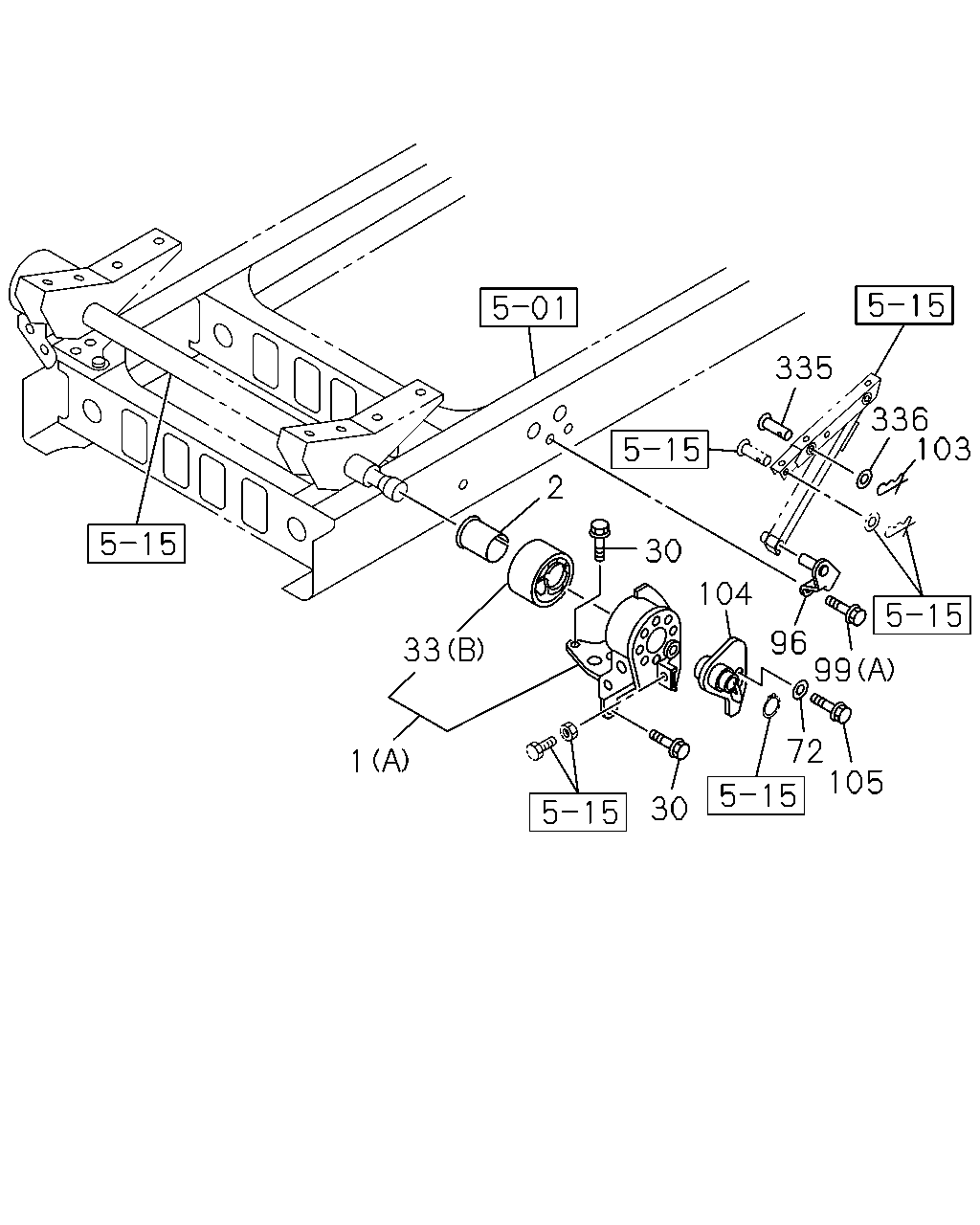

335 336 103 2 30 104 96 99 33 72 105 1 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-658-1	01	1	0712-	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-659-1	01	1	0712-	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98013-038-2	01	1	0712-	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-660-2	01	1	0712-	●
1	BRACKET; CAB MTG (A)	8-98017-660-2	01	1	0712-		●
1	BRACKET; CAB MTG (A)	8-98017-661-2	01	1	0712-		●
1	BRACKET; CAB MTG (B)	8-98050-976-0	02	1	0712-0804		●
1	BRACKET; CAB MTG (B)	8-98120-623-0	02	1	0805-		●
1	BRACKET; CAB MTG (C)	8-98094-593-0	02	1	0712-		●
2	BUSHING; TORSION BAR	8-98010-767-0	02	1	0712-0807		●
2	BUSHING; TORSION BAR CAB SUSPENSION RIGID<W71>	8-98010-767-0	02	1	0808-	●
2	BUSHING; TORSION BAR	8-98010-767-0	02	1	0808-		●
30	BOLT; CAB FRT FOOT M14X45 FLANGE	0-28861-445-0	10	1	0712-	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98013-933-1	01	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98013-933-1	01	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-933-1	01	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-933-1	01	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98013-934-1	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98013-934-1	02	1	0712-		●
72	WASHER; PL,BRKT TO FRAME ID=15 OD=36	0-91614-714-0	01	1	0712-	●
96	BRACKET; CAB STAY	1-62500-628-0	01	1	0712-	●
99	BOLT; BRKT (C) M12X25 FLANGE	0-28061-225-0	08	1	0805-		●
99	BOLT; BRKT (A) M10X30 FLANGE	0-28661-030-0	02	1	0712-	●
99	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	0712-		●
99	BOLT; BRKT (C) M12X35 FLANGE	0-28061-235-0	12	1	0712-0804		●
99	BOLT; BRKT (C) M12X35 FLANGE	0-28061-235-0	04	1	0805-		●
103	PIN; SPLIT,CAB STAY L=32.6	8-98062-280-0	01	1	0712-	●
104	BRACKET; CAB FRAME,CAB FRT MTG	8-98010-753-3	01	1	0712-	●
105	BOLT; BRKT TO CAB FRAME M14X35 FLANGE	0-28661-435-0	01	1	0712-	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	0712-	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	0712-	●

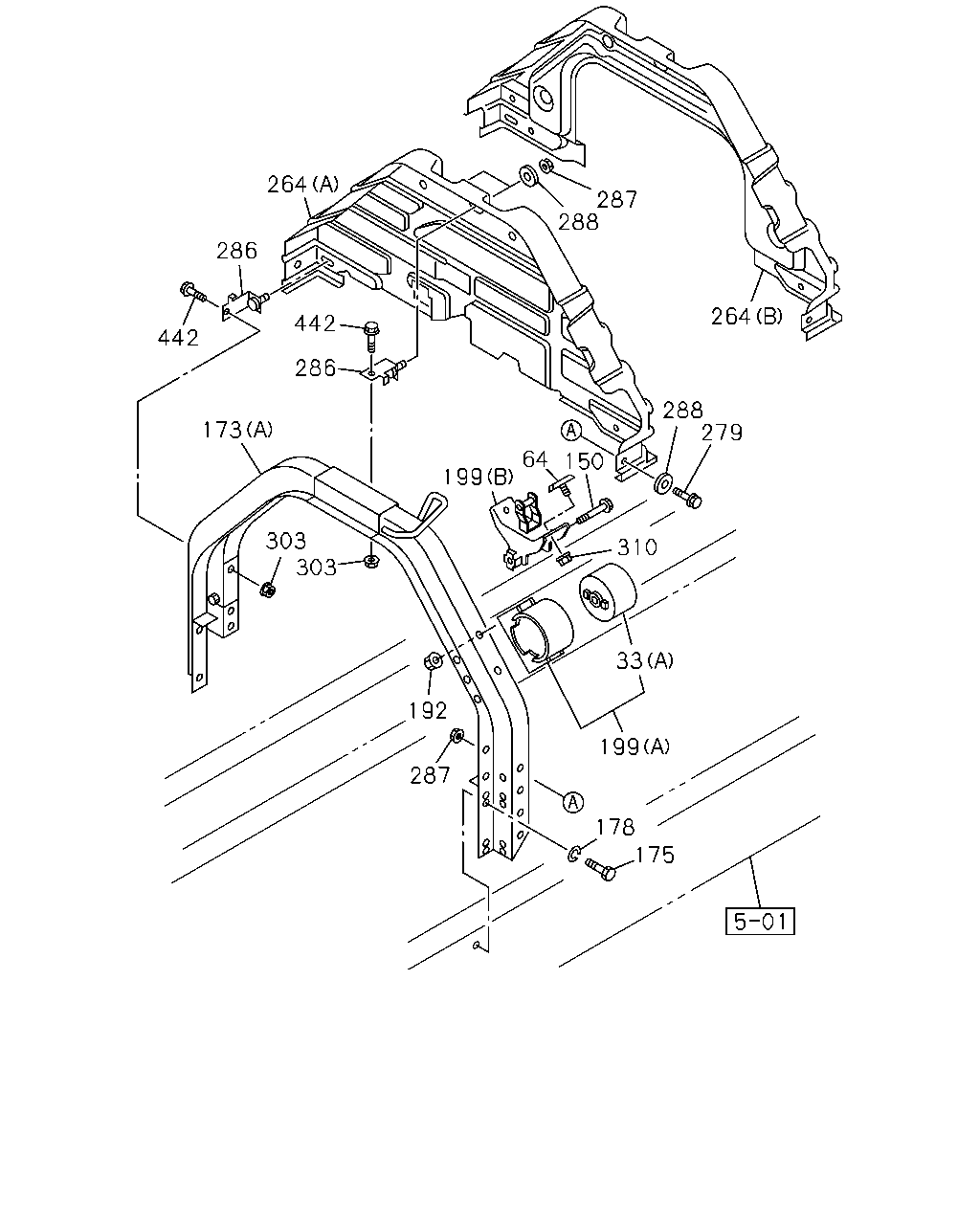

264 287 288 286 264 442 442 286 288 279 173 64 150 199 303 303 310 33 192 199 287 178 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98013-933-1	01	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98013-933-1	01	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-933-1	01	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-933-1	01	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98013-934-1	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98013-934-1	02	1	0712-		●
64	RUBBER; CUSHION	8-97113-340-0	04	1	0712-	●	●
150	BOLT; CAB MTG RR M14X100	0-10956-400-0	02	1	0712-	●	●
173	MEMBER; CAB MTG RR (C)	8-98084-158-3	01	1	0712-		●
173	MEMBER; CAB MTG RR (A)	8-98013-041-3	01	1	0712-0910	●
173	MEMBER; CAB MTG RR (A)	8-98151-943-0	01	1	0911-	●
173	MEMBER; CAB MTG RR (B)	1-53454-568-1	01	1	0712-		●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0712-	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0712-	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	0712-	●	●
199	BRACKET; CAB RR MTG (B)	8-98023-692-0	02	1	0712-	●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	0712-	●
199	BRACKET; CAB RR MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-770-0	02	1	0712-	●
199	BRACKET; CAB RR MTG (C)	8-98069-332-1	02	1	0712-		●
199	BRACKET; CAB RR MTG (D)	8-98095-166-0	02	1	0712-		●
264	PANEL; BACK (C)	8-98055-597-1	01	1	0712-		●
264	PANEL; BACK ANTI NOISE EQUIPMENT-ECE R51.02<JCA> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-53194-610-2	01	1	0712-0806	●
264	PANEL; BACK ANTI NOISE EQUIPMENT-ECE R51.02<JCA> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98124-640-0	01	1	0807-	●
264	PANEL; BACK ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98092-711-3	01	1	0712-	●
279	BOLT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE	0-28650-825-0	01	1	0712-	●
279	BOLT M8X25 FLANGE	0-28650-825-0	01	1	0712-		●
286	BRACKET; LOW ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	1-53457-187-0	02	1	0712-	●
286	BRACKET; LOW	1-53457-187-0	02	1	0712-		●
287	NUT M8 FLANGE	0-91180-108-0	02	1	0810-		●
287	NUT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	03	1	0712-	●
288	WASHER; PL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26	0-91614-808-0	03	1	0712-	●
288	WASHER; PL ID=8.4 OD=26	0-91614-808-0	03	1	0712-		●
303	NUT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	02	1	0712-	●
303	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-		●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0712-	●	●
442	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28650-820-0	02	1	0712-	●
442	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-		●

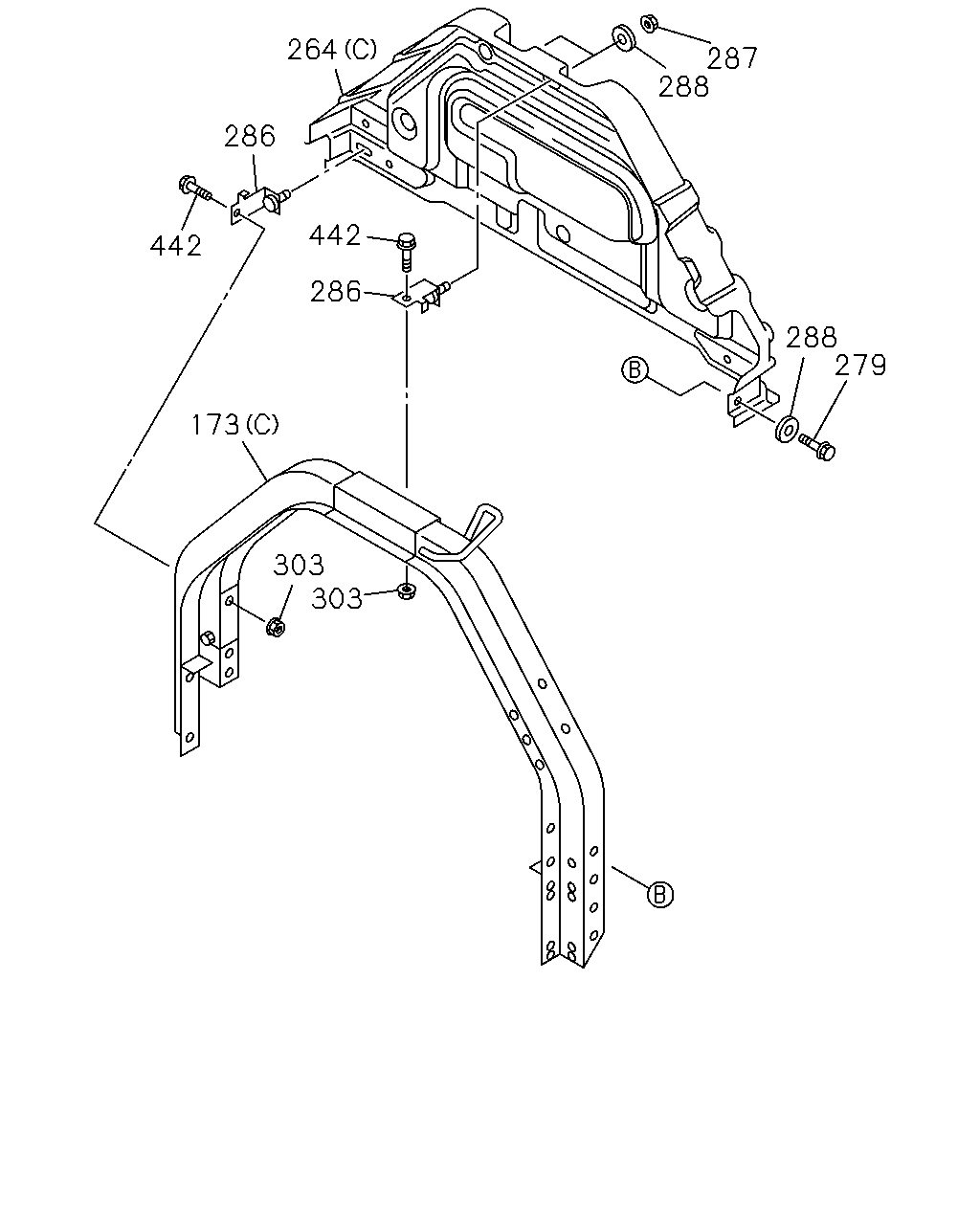

264 287 288 286 442 442 286 288 279 173 303 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
173	MEMBER; CAB MTG RR (C)	8-98084-158-3	01	1	0712-		●
173	MEMBER; CAB MTG RR (A)	8-98013-041-3	01	1	0712-0910	●
173	MEMBER; CAB MTG RR (A)	8-98151-943-0	01	1	0911-	●
173	MEMBER; CAB MTG RR (B)	1-53454-568-1	01	1	0712-		●
264	PANEL; BACK (C)	8-98055-597-1	01	1	0712-		●
264	PANEL; BACK ANTI NOISE EQUIPMENT-ECE R51.02<JCA> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	1-53194-610-2	01	1	0712-0806	●
264	PANEL; BACK ANTI NOISE EQUIPMENT-ECE R51.02<JCA> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98124-640-0	01	1	0807-	●
264	PANEL; BACK ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98092-711-3	01	1	0712-	●
279	BOLT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE	0-28650-825-0	01	1	0712-	●
279	BOLT M8X25 FLANGE	0-28650-825-0	01	1	0712-		●
286	BRACKET; LOW ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	1-53457-187-0	02	1	0712-	●
286	BRACKET; LOW	1-53457-187-0	02	1	0712-		●
287	NUT M8 FLANGE	0-91180-108-0	02	1	0810-		●
287	NUT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	03	1	0712-	●
288	WASHER; PL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26	0-91614-808-0	03	1	0712-	●
288	WASHER; PL ID=8.4 OD=26	0-91614-808-0	03	1	0712-		●
303	NUT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	02	1	0712-	●
303	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-		●
442	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28650-820-0	02	1	0712-	●
442	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-		●

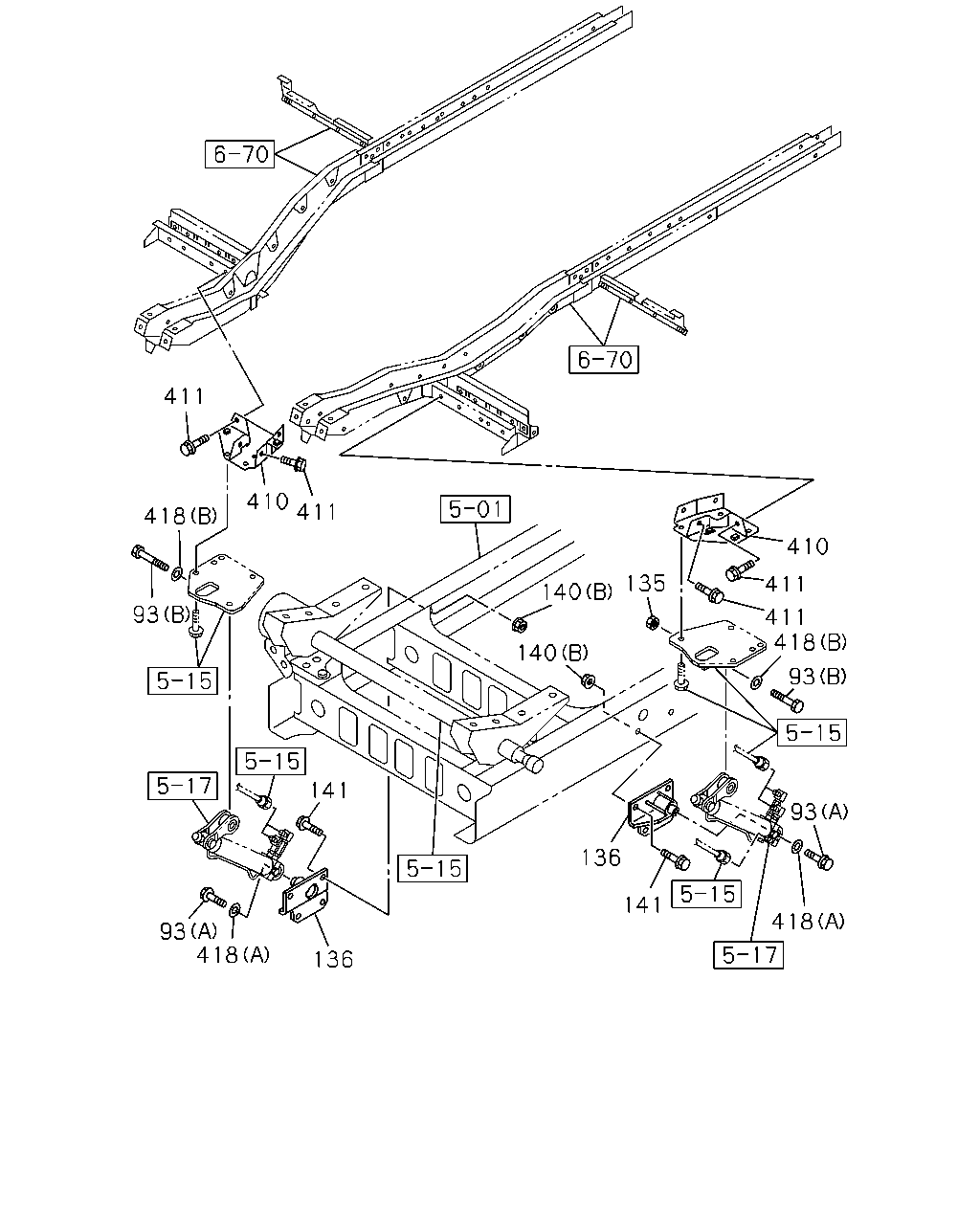

411 410 418 410 135 411 140 93 411 418 140 93 141 93 136 141 418 93 418 136 411

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
93	BOLT; PIN (A) M10X20 FLANGE	0-28651-020-0	02	1	0712-	●
93	BOLT; PIN (B) M14X70 FLANGE	0-29261-470-0	02	1	0712-	●
135	NUT; PIN M14	0-91110-514-0	01	1	0712-	●
136	BRACKET; OIL CYL	8-98077-941-1	01	1	0712-	●
136	BRACKET; OIL CYL	8-98077-942-1	01	1	0712-	●
140	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	04	1	0712-	●
140	NUT; BRKT (B) M14 FLANGE	0-91180-214-0	08	1	0712-	●
141	BOLT; BRKT M14X35 FLANGE	0-28661-435-0	08	1	0712-0804	●
141	BOLT; BRKT M14X40 FLANGE	0-28661-440-0	08	1	0805-	●
410	REINFORCEMENT; CAB TILT	8-97588-837-5	01	1	0712-	●
410	REINFORCEMENT; CAB TILT	8-97614-237-4	01	1	0712-	●
411	BOLT; REINFORCEMENT M8X20 FLANGE	0-28650-820-0	08	1	0712-	●
418	WASHER; PL,PIN (B) ID=15	0-91610-514-0	02	1	0712-	●
418	WASHER; PL,PIN (A) ID=10.5 OD=32	0-91614-810-0	02	1	0712-	●

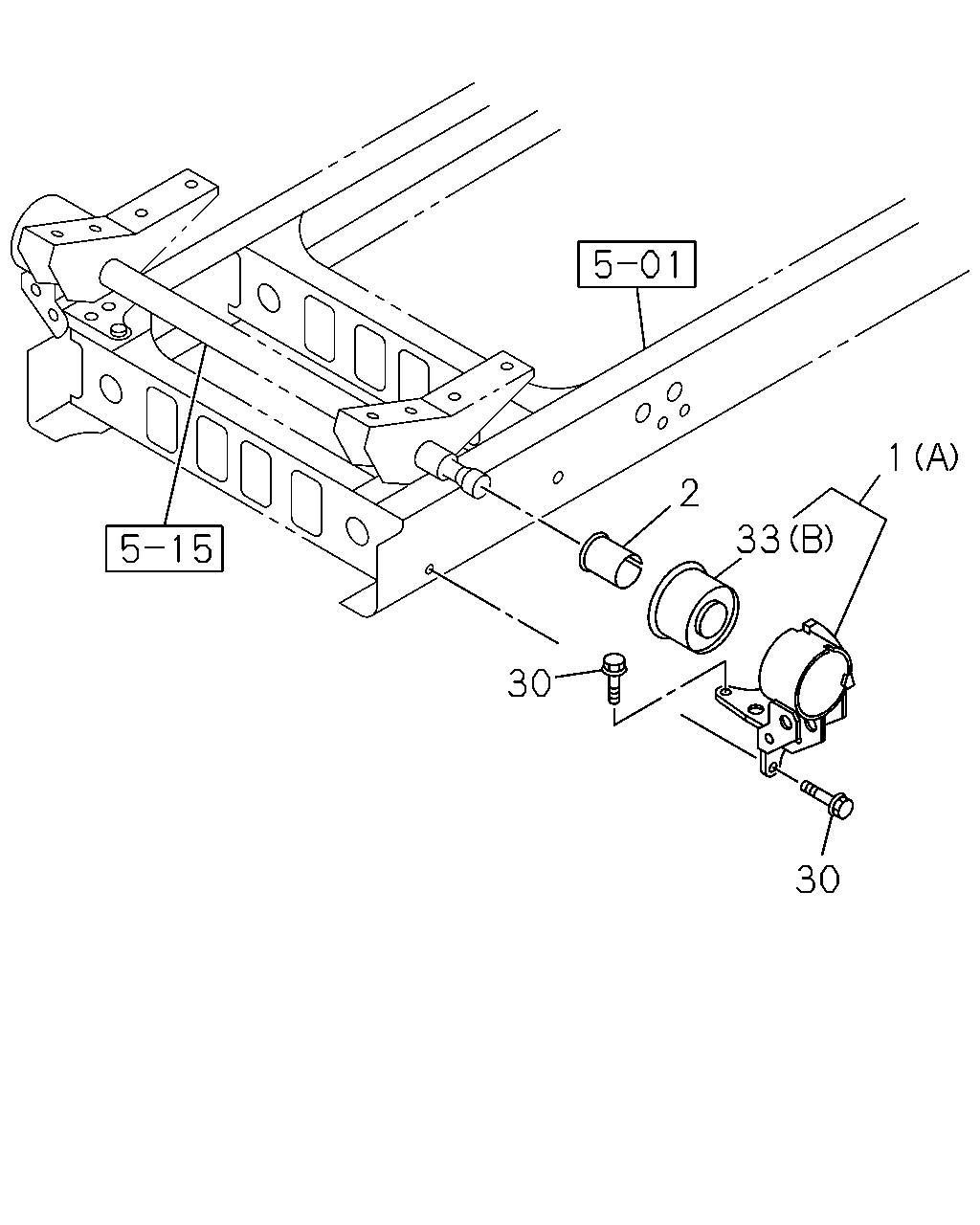

1 2 33 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-658-1	01	1	0712-	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-659-1	01	1	0712-	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98013-038-2	01	1	0712-	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-660-2	01	1	0712-	●
1	BRACKET; CAB MTG (A)	8-98017-660-2	01	1	0712-		●
1	BRACKET; CAB MTG (A)	8-98017-661-2	01	1	0712-		●
1	BRACKET; CAB MTG (B)	8-98050-976-0	02	1	0712-0804		●
1	BRACKET; CAB MTG (B)	8-98120-623-0	02	1	0805-		●
1	BRACKET; CAB MTG (C)	8-98094-593-0	02	1	0712-		●
2	BUSHING; TORSION BAR	8-98010-767-0	02	1	0712-0807		●
2	BUSHING; TORSION BAR CAB SUSPENSION RIGID<W71>	8-98010-767-0	02	1	0808-	●
2	BUSHING; TORSION BAR	8-98010-767-0	02	1	0808-		●
30	BOLT; CAB FRT FOOT M14X45 FLANGE	0-28861-445-0	10	1	0712-	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98013-933-1	01	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98013-933-1	01	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-933-1	01	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-933-1	01	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98013-934-1	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98013-934-1	02	1	0712-		●

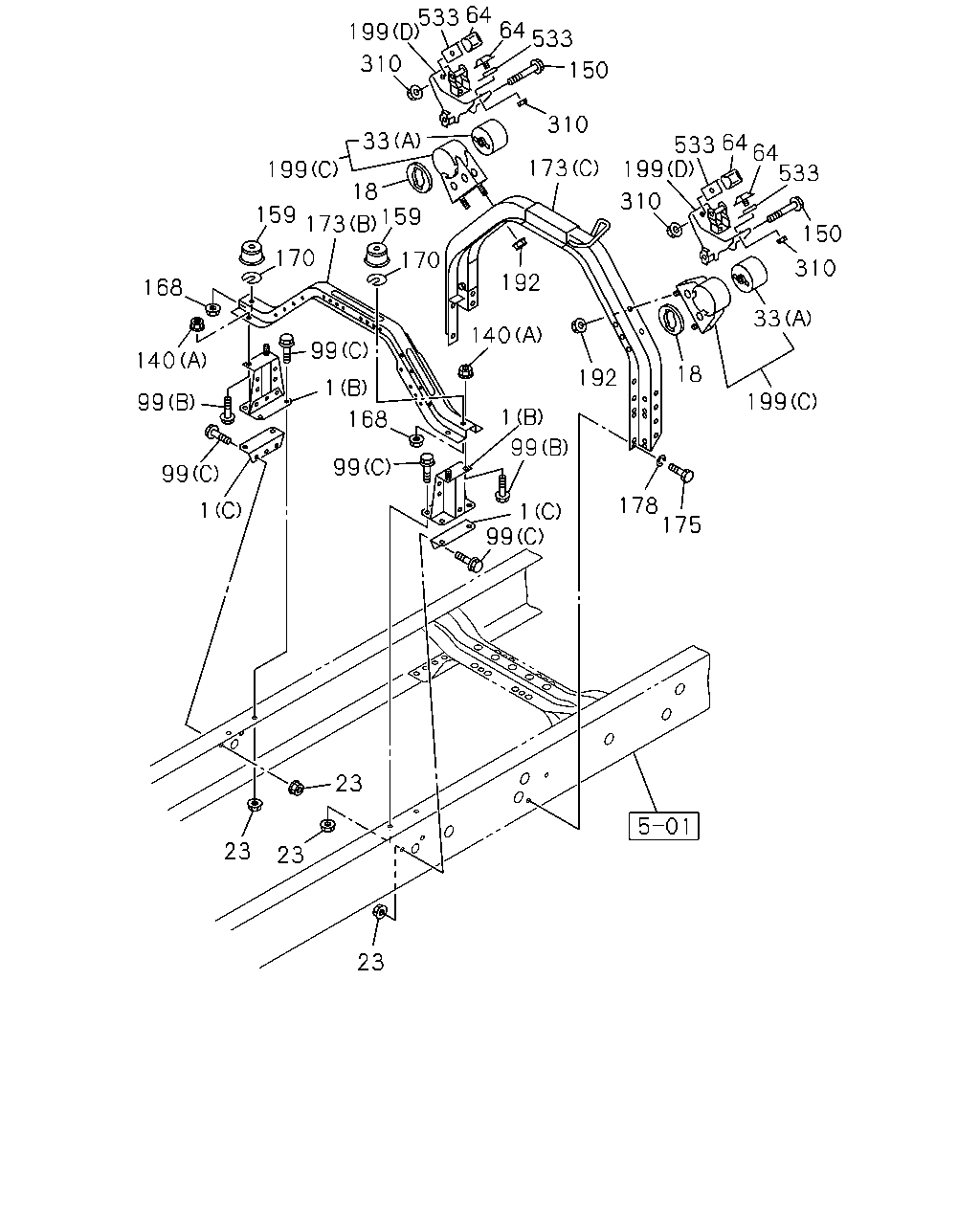

533 64 199 64 533 310 150 310 33 533 64 64 199 533 173 199 18 159 173 310 159 150 170 170 310 192 168 33 99 140 140 18 192 1 199 99 1 168 99 99 99 178 175 1 1 99 23 23 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-658-1	01	1	0712-	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-659-1	01	1	0712-	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98013-038-2	01	1	0712-	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-660-2	01	1	0712-	●
1	BRACKET; CAB MTG (A)	8-98017-660-2	01	1	0712-		●
1	BRACKET; CAB MTG (A)	8-98017-661-2	01	1	0712-		●
1	BRACKET; CAB MTG (B)	8-98050-976-0	02	1	0712-0804		●
1	BRACKET; CAB MTG (B)	8-98120-623-0	02	1	0805-		●
1	BRACKET; CAB MTG (C)	8-98094-593-0	02	1	0712-		●
18	PLATE; MTG BRKT FIX	8-98096-159-0	02	1	0712-		●
23	NUT; MTG BRKT M12 FLANGE	0-91180-212-0	12	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98013-933-1	01	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98013-933-1	01	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-933-1	01	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-933-1	01	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98013-934-1	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98013-934-1	02	1	0712-		●
64	RUBBER; CUSHION	8-97113-340-0	04	1	0712-	●	●
99	BOLT; BRKT (C) M12X25 FLANGE	0-28061-225-0	08	1	0805-		●
99	BOLT; BRKT (A) M10X30 FLANGE	0-28661-030-0	02	1	0712-	●
99	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	0712-		●
99	BOLT; BRKT (C) M12X35 FLANGE	0-28061-235-0	12	1	0712-0804		●
99	BOLT; BRKT (C) M12X35 FLANGE	0-28061-235-0	04	1	0805-		●
140	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	04	1	0712-		●
140	NUT; BRKT (B) M14 FLANGE	0-91180-214-0	08	1	0712-		●
150	BOLT; CAB MTG RR M14X100	0-10956-400-0	02	1	0712-	●	●
159	RUBBER; CUSHION,CAB MTG	9-54347-160-1	02	1	0712-		●
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91180-212-0	02	1	0712-		●
170	SHIM; CUSHION RUBBER T=1.6	9-54347-136-1	AR	1	0712-		●
173	MEMBER; CAB MTG RR (C)	8-98084-158-3	01	1	0712-		●
173	MEMBER; CAB MTG RR (A)	8-98013-041-3	01	1	0712-0910	●
173	MEMBER; CAB MTG RR (A)	8-98151-943-0	01	1	0911-	●
173	MEMBER; CAB MTG RR (B)	1-53454-568-1	01	1	0712-		●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0712-	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0712-	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	0712-	●	●
199	BRACKET; CAB RR MTG (B)	8-98023-692-0	02	1	0712-	●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	0712-	●
199	BRACKET; CAB RR MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-770-0	02	1	0712-	●
199	BRACKET; CAB RR MTG (C)	8-98069-332-1	02	1	0712-		●
199	BRACKET; CAB RR MTG (D)	8-98095-166-0	02	1	0712-		●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0712-	●	●
533	SPACER; MTG RUBBER	8-98077-323-0	04	1	0712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
