5-01 — FRAME AND OTHER PARTS (#66747) — 221 parça

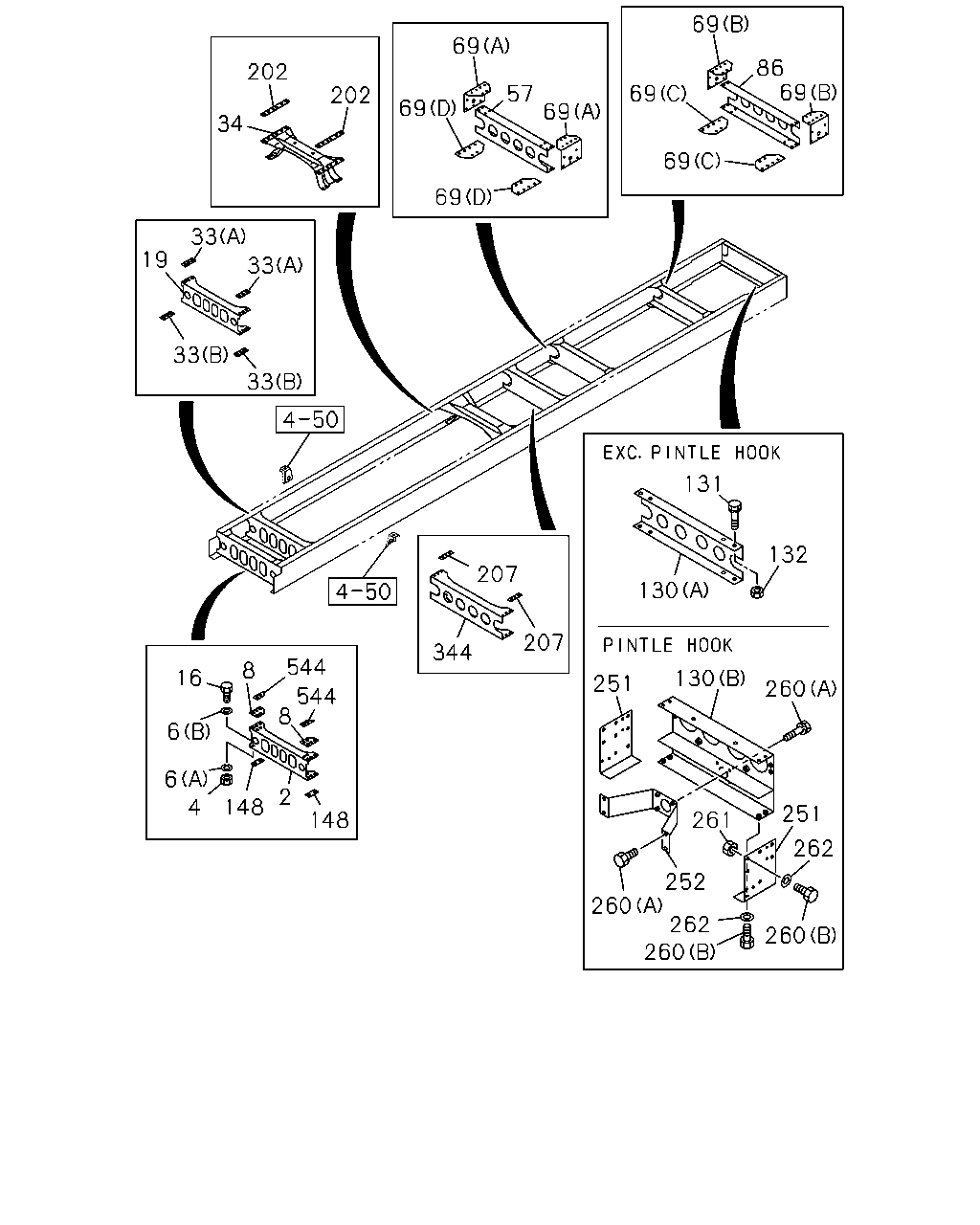

çizim 193357
69 69 86 69 202 69 57 69 202 69 34 69 69 33 19 33 33 33 131 132 207 130 207 344 544 8 16 130 251 260 544 8 6 6 2 261 148 4 251 148 262 252 262 260 260 260
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97610-852-4 01 1 0712-0801 ●
2 MEMBER; CROSS,1ST 8-97626-850-0 01 1 0802-0811 ●
2 MEMBER; CROSS,1ST 8-97626-850-0 01 1 0812-1002 ● ●
2 MEMBER; CROSS,1ST 8-97626-850-2 01 1 1003- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
REARWARD INNER SINGLE TIRE<YK3> M14 		0-91110-514-0 02 1 1003- ● ● ●
6 WASHER; LK,1ST C/MBR
REARWARD INNER SINGLE TIRE<YK3> (A) ID=14.2 		0-91510-814-0 02 1 1003- ● ● ●
6 WASHER; LK,1ST C/MBR
REARWARD INNER SINGLE TIRE<YK3> (B) ID=15 		8-98010-627-1 02 1 1003- ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0712-0811 ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0812-1002 ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1003- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
REARWARD INNER SINGLE TIRE<YK3> M14X40 		0-20851-440-0 02 1 1003- ● ● ●
19 MEMBER; CROSS,2ND
DOUBLE TIRE REARWARD<SR6> 		8-97629-721-0 01 1 1009-1009 ●
19 MEMBER; CROSS,2ND 8-97615-907-2 01 1 0712-0811 ●
19 MEMBER; CROSS,2ND 8-97615-907-2 01 1 0812-1002 ● ●
19 MEMBER; CROSS,2ND 8-97615-907-2 01 1 1003-1009 ● ●
19 MEMBER; CROSS,2ND
REARWARD INNER SINGLE TIRE<YK3> 		8-97615-907-2 01 1 1003-1009 ●
19 MEMBER; CROSS,2ND 8-97615-907-4 01 1 1010- ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		8-97611-040-0 02 1 0712-0811 ●
33 SPACER; 2ND C/MBR,UPR
(A) 		8-97611-040-0 02 1 0812-1002 ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		8-97611-040-0 02 1 1003- ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		8-97616-640-0 02 1 0712-0811 ●
33 SPACER; 2ND C/MBR,UPR
(B) 		8-97616-640-0 02 1 0812-1002 ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		8-97616-640-0 02 1 1003- ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0712-0811 ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0812-1002 ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1003- ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97637-015-0 01 1 1003-1010 ●
57 MEMBER; CROSS,RR SUSP FRT
REARWARD INNER SINGLE TIRE<YK3> 		8-97637-015-0 01 1 1011- ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 0712-0811 ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 0812-1010 ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 1011- ● ●
57 MEMBER; CROSS,RR SUSP FRT
DOUBLE TIRE REARWARD<SR6> 		8-97610-858-5 01 1 1011- ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-865-0 02 1 0712-0811 ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-865-0 02 1 0812-1002 ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-865-0 02 1 1003- ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97610-866-0 02 1 0712-0811 ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97610-866-0 02 1 0812-1002 ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97610-866-0 02 1 1003- ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-264-0 01 1 0712-0811 ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-264-0 01 1 0812-1002 ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-264-0 01 1 1003- ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-265-1 01 1 0712-0811 ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-265-1 01 1 0812-1002 ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-265-1 01 1 1003- ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97612-266-1 01 1 0712-0811 ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97612-266-1 01 1 0812-1002 ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97612-266-1 01 1 1003- ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97612-267-1 01 1 0712-0811 ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97612-267-1 01 1 0812-1002 ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97612-267-1 01 1 1003- ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97620-884-5 01 1 0812- ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-5 01 1 0712-1002 ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-5 01 1 1003- ● ●
130 MEMBER; CROSS,END
PINTLE HOOK<PP7> (B) 		8-97618-608-1 01 1 0712-0811 ●
130 MEMBER; CROSS,END
PINTLE HOOK<PP7> (B) 		8-97618-608-1 01 1 0812-1002 ● ●
130 MEMBER; CROSS,END
PINTLE HOOK<PP7> (B) 		8-97618-608-1 01 1 1003- ● ● ●
130 MEMBER; CROSS,END
EXC. PINTLE HOOK<PP7> (A) 		8-97610-869-1 01 1 0712-0811 ●
130 MEMBER; CROSS,END
EXC. PINTLE HOOK<PP7> (A) 		8-97610-869-1 01 1 0812-1002 ● ●
130 MEMBER; CROSS,END
EXC. PINTLE HOOK<PP7> (A) 		8-97610-869-1 01 1 1003- ● ● ●
131 BOLT; END C/MBR
EXC. PINTLE HOOK<PP7> M12X30 W/LK WASHER 		0-50541-230-0 04 1 0712-0811 ●
131 BOLT; END C/MBR
EXC. PINTLE HOOK<PP7> M12X30 W/LK WASHER 		0-50541-230-0 04 1 0812-1002 ● ●
131 BOLT; END C/MBR
EXC. PINTLE HOOK<PP7> M12X30 W/LK WASHER 		0-50541-230-0 04 1 1003- ● ● ●
132 NUT; END C/MBR
EXC. PINTLE HOOK<PP7> M12 		0-91110-512-0 04 1 0712-0811 ●
132 NUT; END C/MBR
EXC. PINTLE HOOK<PP7> M12 		0-91110-512-0 04 1 0812-1002 ● ●
132 NUT; END C/MBR
EXC. PINTLE HOOK<PP7> M12 		0-91110-512-0 04 1 1003- ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0712-0811 ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0812-1002 ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 1003- ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0712-0811 ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0812-1002 ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1003- ● ● ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0712- ●
251 SUPPORT; PINTLE HOOK
PINTLE HOOK<PP7> 		8-97618-611-0 01 1 0712-0811 ●
251 SUPPORT; PINTLE HOOK
PINTLE HOOK<PP7> 		8-97618-611-0 01 1 0812-1002 ● ●
251 SUPPORT; PINTLE HOOK
PINTLE HOOK<PP7> 		8-97618-611-0 01 1 1003- ● ● ●
251 SUPPORT; PINTLE HOOK
PINTLE HOOK<PP7> 		8-97618-612-0 01 1 0712-0811 ●
251 SUPPORT; PINTLE HOOK
PINTLE HOOK<PP7> 		8-97618-612-0 01 1 0812-1002 ● ●
251 SUPPORT; PINTLE HOOK
PINTLE HOOK<PP7> 		8-97618-612-0 01 1 1003- ● ● ●
252 STIFFENER; PINTLE HOOK
PINTLE HOOK<PP7> 		8-97618-613-0 01 1 0712-0811 ●
252 STIFFENER; PINTLE HOOK
PINTLE HOOK<PP7> 		8-97618-613-0 01 1 0812-1002 ● ●
252 STIFFENER; PINTLE HOOK
PINTLE HOOK<PP7> 		8-97618-613-0 01 1 1003- ● ● ●
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> (A) M12X35 FLANGE 		0-28051-235-0 08 1 0712-0811 ●
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> (A) M12X35 FLANGE 		0-28051-235-0 08 1 0812-1002 ● ●
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> (A) M12X35 FLANGE 		0-28051-235-0 08 1 1003- ● ● ●
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> (B) M14X35 		0-20951-435-0 24 1 0712-0811 ●
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> (B) M14X35 		0-20951-435-0 24 1 0812-1002 ● ●
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> (B) M14X35 		0-20951-435-0 24 1 1003- ● ● ●
261 NUT; SUB FRAME
PINTLE HOOK<PP7> M14 		0-91110-514-0 16 1 0712-0811 ●
261 NUT; SUB FRAME
PINTLE HOOK<PP7> M14 		0-91110-514-0 16 1 0812-1002 ● ●
261 NUT; SUB FRAME
PINTLE HOOK<PP7> M14 		0-91110-514-0 16 1 1003- ● ● ●
262 WASHER; LK,SUB FRAME
EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> ID=14.2 		0-91510-614-0 24 1 0812-0910 ●
262 WASHER; LK,SUB FRAME
PINTLE HOOK<PP7> ID=14.2 		0-91510-614-0 24 1 0812-0910 ●
262 WASHER; LK,SUB FRAME
PINTLE HOOK<PP7> ID=14.2 		0-91510-614-0 24 1 0712-0811 ●
262 WASHER; LK,SUB FRAME
EURO4 SPECIFICATION<NT4> PINTLE HOOK<PP7> ID=14.2 		0-91510-814-0 24 1 0812-0910 ●
262 WASHER; LK,SUB FRAME
PINTLE HOOK<PP7> ID=14.2 		0-91510-814-0 24 1 0911-1002 ● ●
262 WASHER; LK,SUB FRAME
PINTLE HOOK<PP7> ID=14.2 		0-91510-814-0 24 1 1003- ● ● ●
344 MEMBER; CROSS,4TH 8-97616-641-4 01 1 0712- ●
544 PLATE; CAB FRT MTG 8-97617-891-0 02 1 0712-0811 ●
544 PLATE; CAB FRT MTG 8-97617-891-0 02 1 0812-1002 ● ●
544 PLATE; CAB FRT MTG 8-97617-891-0 02 1 1003- ● ● ●

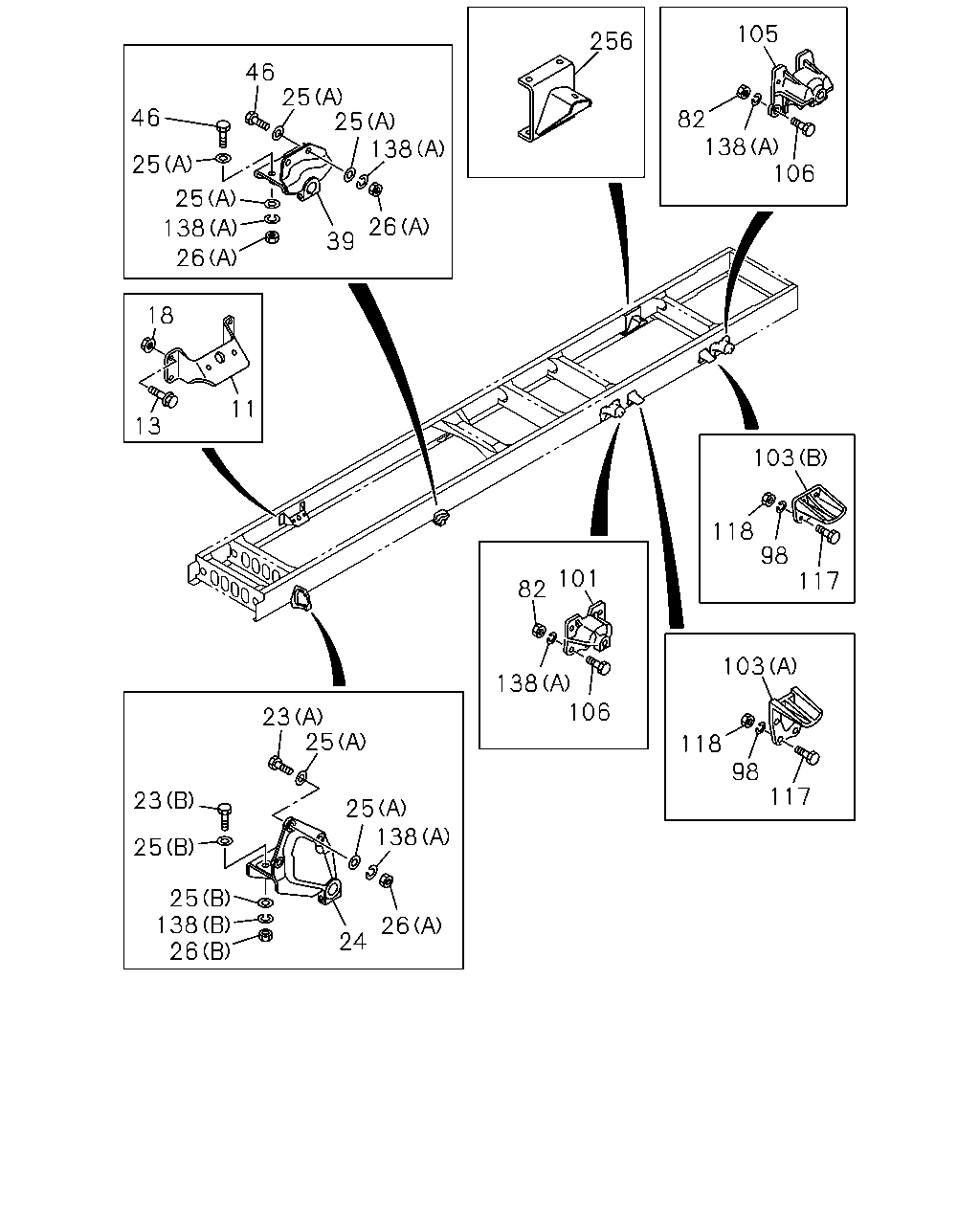

çizim 193366
105 256 46 25 25 138 46 82 138 106 25 25 26 138 39 26 18 11 13 103 118 98 101 117 82 103 138 106 23 25 118 98 117 23 25 138 25 25 138 26 26 24
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG 8-97619-549-0 02 1 0712-0811 ●
11 BRACKET; ENG MTG 8-97619-549-0 02 1 0812-1002 ● ●
11 BRACKET; ENG MTG 8-97619-549-0 02 1 1003- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0712-0811 ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0812-1002 ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1003- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0712-0811 ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0812-1002 ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1003- ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 0712-0811 ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 0812-1002 ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1003- ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 0712-0811 ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 0812-1002 ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1003- ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0712-0811 ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0812-1002 ● ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 1003- ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0712-0811 ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0812-1002 ● ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 1003- ● ● ●
25 WASHER; PL,BRKT
FTS WIDE SGL CAB(FG**M*) (B) ID=16.2 		1-09503-223-0 08 1 0712-0811 ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0812-0910 ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-0 28 1 0712-0811 ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-0 28 1 0812-1002 ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1003- ● ● ●
25 WASHER; PL,BRKT
FTS WIDE DBL CAB(FG**W*) (B) ID=16.2 		1-09503-316-0 08 1 0712-0811 ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 0812-0910 ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 0911-1002 ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1003- ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0712-0811 ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0812-1002 ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1003- ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0712-0811 ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0812-1002 ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1003- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0712-0811 ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0812-1002 ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 1003-1501 ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 1502- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0712-0811 ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0812-1002 ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 1003-1501 ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 1502- ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 0712-0811 ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 0812-1002 ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1003- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 0712-0811 ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 0812-1002 ● ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 1003- ● ● ●
98 WASHER; LK,STOPPER
FTS WIDE DBL CAB(FG**W*) ID=14.2 		0-91510-814-0 16 1 0804-0811 ●
98 WASHER; LK,STOPPER
EURO4 SPECIFICATION<NT4> ID=14.2 		0-91510-814-0 16 1 0812-0902 ●
98 WASHER; LK,STOPPER
EURO4 SPECIFICATION<NT4> ID=14.2 		0-91510-814-0 16 1 0903-0906 ●
98 WASHER; LK,STOPPER
EURO2 SPECIFICATION<NT2> EXC. PINTLE HOOK<PP7> ID=14.2 		0-91510-814-0 16 1 0903-0906 ●
98 WASHER; LK,STOPPER
EURO4 SPECIFICATION<NT4> ID=14.2 		0-91510-814-0 16 1 0907-0910 ●
98 WASHER; LK,STOPPER
EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> ID=14.2 		0-91510-814-0 16 1 0907-0910 ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 0911-1002 ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1003- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0712-0803 ●
98 WASHER; LK,STOPPER
FTS WIDE SGL CAB(FG**M*) ID=14.2 		0-91510-614-0 16 1 0804-0811 ●
98 WASHER; LK,STOPPER
EURO2 SPECIFICATION<NT2> ID=14.2 		0-91510-614-0 16 1 0812-0902 ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0812-0902 ●
98 WASHER; LK,STOPPER
EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> ID=14.2 		0-91510-614-0 16 1 0903-0906 ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0903-0906 ●
98 WASHER; LK,STOPPER
EURO2 SPECIFICATION<NT2> EXC. PINTLE HOOK<PP7> ID=14.2 		0-91510-614-0 16 1 0907-0910 ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0907-0910 ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 0712-0811 ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 0812-1002 ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 1003- ● ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 0712-0811 ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 0812-1002 ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 1003- ● ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 0712-0811 ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 0812-1002 ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 1003- ● ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 0712-0811 ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 0812-1002 ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 1003- ● ● ●
106 BOLT; BRKT
M14X50 		0-20851-450-0 20 1 0712-0811 ●
106 BOLT; BRKT
M14X50 		0-20851-450-0 20 1 0812-1002 ● ●
106 BOLT; BRKT
M14X50 		0-20851-450-0 20 1 1003- ● ● ●
117 BOLT; STOPPER
M14X50 		0-20851-450-0 16 1 0712-0811 ●
117 BOLT; STOPPER
M14X50 		0-20851-450-0 16 1 0812-1002 ● ●
117 BOLT; STOPPER
M14X50 		0-20851-450-0 16 1 1003- ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0712-0811 ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0812-1002 ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1003- ● ● ●
138 WASHER; LK,BRKT
FTS WIDE DBL CAB(FG**W*) (A) ID=14.2 		0-91510-814-0 34 1 0804-0811 ●
138 WASHER; LK,BRKT
EURO4 SPECIFICATION<NT4> (A) ID=14.2 		0-91510-814-0 34 1 0812-0902 ●
138 WASHER; LK,BRKT
EURO4 SPECIFICATION<NT4> (A) ID=14.2 		0-91510-814-0 34 1 0903-0906 ●
138 WASHER; LK,BRKT
EURO2 SPECIFICATION<NT2> EXC. PINTLE HOOK<PP7> (A) ID=14.2 		0-91510-814-0 34 1 0903-0906 ●
138 WASHER; LK,BRKT
EURO4 SPECIFICATION<NT4> (A) ID=14.2 		0-91510-814-0 34 1 0907-0910 ●
138 WASHER; LK,BRKT
EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> (A) ID=14.2 		0-91510-814-0 34 1 0907-0910 ●
138 WASHER; LK,BRKT
(A) ID=14.2 		0-91510-814-0 34 1 0911-1002 ● ●
138 WASHER; LK,BRKT
(A) ID=14.2 		0-91510-814-0 34 1 1003- ● ● ●
138 WASHER; LK,BRKT
FTS WIDE DBL CAB(FG**W*) (B) ID=16.2 		0-91510-816-0 04 1 0804-0811 ●
138 WASHER; LK,BRKT
EURO4 SPECIFICATION<NT4> (B) ID=16.2 		0-91510-816-0 04 1 0812-0902 ●
138 WASHER; LK,BRKT
EURO4 SPECIFICATION<NT4> (B) ID=16.2 		0-91510-816-0 04 1 0903-0906 ●
138 WASHER; LK,BRKT
EURO2 SPECIFICATION<NT2> EXC. PINTLE HOOK<PP7> (B) ID=16.2 		0-91510-816-0 04 1 0903-0906 ●
138 WASHER; LK,BRKT
EURO4 SPECIFICATION<NT4> (B) ID=16.2 		0-91510-816-0 04 1 0907-0910 ●
138 WASHER; LK,BRKT
EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> (B) ID=16.2 		0-91510-816-0 04 1 0907-0910 ●
138 WASHER; LK,BRKT
(B) ID=16.2 		0-91510-816-0 04 1 0911-1002 ● ●
138 WASHER; LK,BRKT
(B) ID=16.2 		0-91510-816-0 04 1 1003- ● ● ●
138 WASHER; LK,BRKT
(A) ID=14.2 		0-91510-614-0 34 1 0712-0803 ●
138 WASHER; LK,BRKT
FTS WIDE SGL CAB(FG**M*) (A) ID=14.2 		0-91510-614-0 34 1 0804-0811 ●
138 WASHER; LK,BRKT
EURO2 SPECIFICATION<NT2> (A) ID=14.2 		0-91510-614-0 34 1 0812-0902 ●
138 WASHER; LK,BRKT
(A) ID=14.2 		0-91510-614-0 34 1 0812-0902 ●
138 WASHER; LK,BRKT
EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> (A) ID=14.2 		0-91510-614-0 34 1 0903-0906 ●
138 WASHER; LK,BRKT
(A) ID=14.2 		0-91510-614-0 34 1 0903-0906 ●
138 WASHER; LK,BRKT
EURO2 SPECIFICATION<NT2> EXC. PINTLE HOOK<PP7> (A) ID=14.2 		0-91510-614-0 34 1 0907-0910 ●
138 WASHER; LK,BRKT
(A) ID=14.2 		0-91510-614-0 34 1 0907-0910 ●
138 WASHER; LK,BRKT
(B) ID=16.2 		0-91510-616-0 04 1 0712-0803 ●
138 WASHER; LK,BRKT
FTS WIDE SGL CAB(FG**M*) (B) ID=16.2 		0-91510-616-0 04 1 0804-0811 ●
138 WASHER; LK,BRKT
EURO2 SPECIFICATION<NT2> (B) ID=16.2 		0-91510-616-0 04 1 0812-0902 ●
138 WASHER; LK,BRKT
(B) ID=16.2 		0-91510-616-0 04 1 0812-0902 ●
138 WASHER; LK,BRKT
EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> (B) ID=16.2 		0-91510-616-0 04 1 0903-0906 ●
138 WASHER; LK,BRKT
(B) ID=16.2 		0-91510-616-0 04 1 0903-0906 ●
138 WASHER; LK,BRKT
EURO2 SPECIFICATION<NT2> EXC. PINTLE HOOK<PP7> (B) ID=16.2 		0-91510-616-0 04 1 0907-0910 ●
138 WASHER; LK,BRKT
(B) ID=16.2 		0-91510-616-0 04 1 0907-0910 ●
256 BRACKET; S/ABS 8-98050-122-0 01 1 1003- ●
256 BRACKET; S/ABS 8-98050-123-0 01 1 1003- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
