4-65 — REAR LEAF SPRING (#66745) — 93 parça

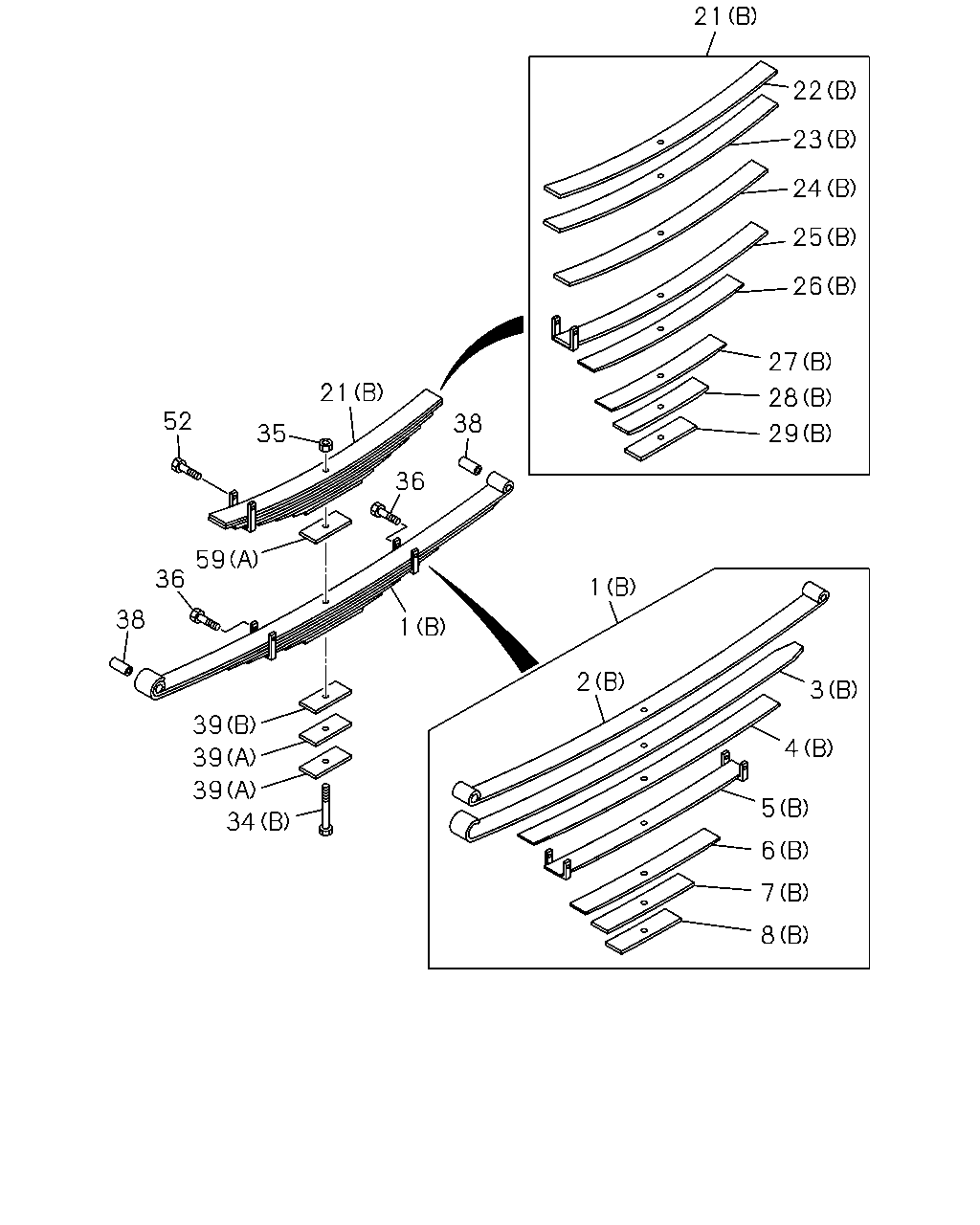

21 22 23 24 25 26 21 52 27 35 28 38 29 36 30 59 59 59 36 1 38 1 2 3 39 4 34 5 6 7 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN (A) ASM PART: A = 8-98034-467-0	8-98051-285-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN (B) ASM PART: B = 8-98034-468-0	8-98056-554-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: A = 8-98034-467-0	8-98051-286-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: B = 8-98034-468-0	8-98056-555-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: A = 8-98034-467-0	8-98051-287-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: B = 8-98034-468-0	8-98056-556-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: A = 8-98034-467-0	8-98051-288-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: B = 8-98034-468-0	8-98056-557-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: A = 8-98034-467-0	8-98051-289-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: B = 8-98034-468-0	8-98056-558-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: A = 8-98034-467-0	8-98051-290-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: B = 8-98034-468-0	8-98056-559-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (A) ASM PART: A = 8-98034-467-0	8-98051-291-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (B) ASM PART: B = 8-98034-468-0	8-98056-560-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (A) ASM PART: A = 8-98034-467-0	8-98051-292-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (B) ASM PART: B = 8-98034-468-0	8-98056-561-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (A) ASM PART: A = 8-98034-467-0	8-98051-293-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (B) ASM PART: B = 8-98034-468-0	8-98056-562-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (A) ASM PART: A = 8-98034-467-0	8-98051-294-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (B) ASM PART: B = 8-98034-468-0	8-98056-563-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (A) ASM PART: A = 8-98034-467-0	8-98051-295-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (B) ASM PART: B = 8-98034-468-0	8-98056-564-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (A) ASM PART: A = 8-98034-467-0	8-98051-296-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (B) ASM PART: B = 8-98034-468-0	8-98056-565-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (A) ASM PART: A = 8-98034-467-0	8-98051-297-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (B) ASM PART: B = 8-98034-468-0	8-98056-566-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (A) ASM PART: A = 8-98034-467-0	8-98051-298-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (B) ASM PART: B = 8-98034-468-0	8-98056-567-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB (A) ASM PART: A = 8-98034-467-0	8-98051-299-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB (B) ASM PART: B = 8-98034-468-0	8-98056-568-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB (A) ASM PART: A = 8-98034-467-0	8-98051-300-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB (B) ASM PART: B = 8-98034-468-0	8-98056-569-0	01	1	-
29	SPRING; LEAF,NO 8,RR SUB (A) ASM PART: A = 8-98034-467-0	8-98051-301-0	01	1	-
29	SPRING; LEAF,NO 8,RR SUB (B) ASM PART: B = 8-98034-468-0	8-98056-570-0	01	1	-
30	SPRING; LEAF,NO 9,RR SUB ASM PART: A = 8-98034-467-0	8-98051-302-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=220 ASM PART: B = 8-98034-468-0	1-51356-211-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=240 ASM PART: A = 8-98034-467-0	1-51356-280-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-98034-467-0, B = 8-98034-468-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X99 ASM PART: A = 8-98034-467-0, B = 8-98034-468-0	1-09000-328-0	02	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 8-98034-467-0, B = 8-98034-468-0	9-51351-019-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=6 ASM PART: A = 8-98034-467-0	1-51377-249-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=6 ASM PART: B = 8-98034-468-0	1-51377-249-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=9 ASM PART: B = 8-98034-468-0	8-98051-107-0	01	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X99 ASM PART: A = 8-98034-467-0, B = 8-98034-468-0	1-09000-328-0	01	1	-
59	SEAT; RR SPRING,SUB (A), T=6 ASM PART: B = 8-98034-468-0	1-51377-249-0	01	1	-
59	SEAT; RR SPRING,SUB (A), T=6 ASM PART: A = 8-98034-467-0	1-51377-249-0	02	1	-
59	SEAT; RR SPRING,SUB (B), T=9 ASM PART: A = 8-98034-467-0	8-98051-107-0	01	1	-

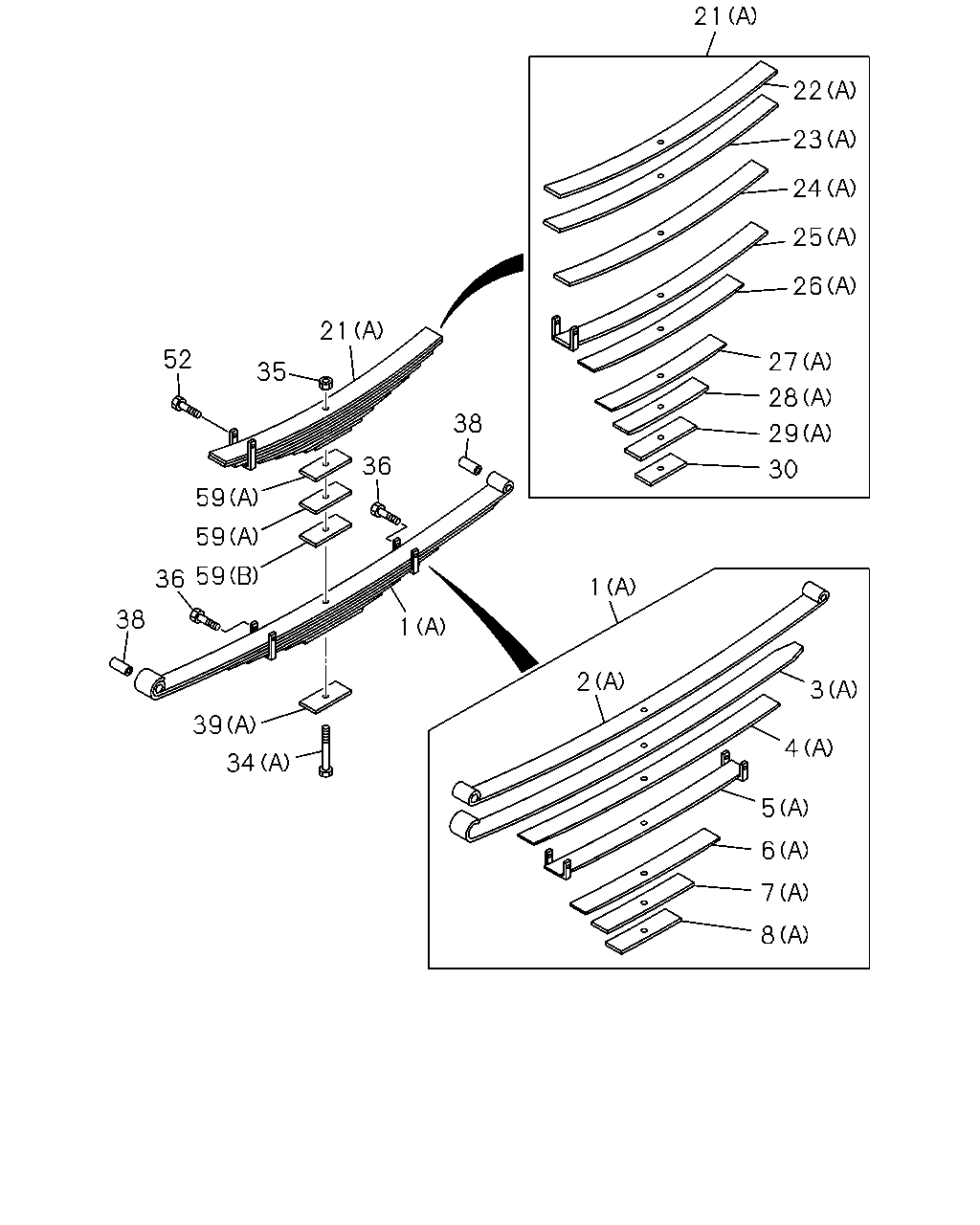

21 22 23 24 25 26 27 21 28 52 38 35 29 36 59 36 1 38 1 2 3 39 4 39 39 5 34 6 7 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN (A) ASM PART: A = 8-98034-467-0	8-98051-285-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN (B) ASM PART: B = 8-98034-468-0	8-98056-554-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: A = 8-98034-467-0	8-98051-286-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: B = 8-98034-468-0	8-98056-555-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: A = 8-98034-467-0	8-98051-287-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: B = 8-98034-468-0	8-98056-556-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: A = 8-98034-467-0	8-98051-288-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: B = 8-98034-468-0	8-98056-557-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: A = 8-98034-467-0	8-98051-289-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: B = 8-98034-468-0	8-98056-558-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: A = 8-98034-467-0	8-98051-290-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: B = 8-98034-468-0	8-98056-559-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (A) ASM PART: A = 8-98034-467-0	8-98051-291-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (B) ASM PART: B = 8-98034-468-0	8-98056-560-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (A) ASM PART: A = 8-98034-467-0	8-98051-292-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (B) ASM PART: B = 8-98034-468-0	8-98056-561-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (A) ASM PART: A = 8-98034-467-0	8-98051-293-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (B) ASM PART: B = 8-98034-468-0	8-98056-562-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (A) ASM PART: A = 8-98034-467-0	8-98051-294-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (B) ASM PART: B = 8-98034-468-0	8-98056-563-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (A) ASM PART: A = 8-98034-467-0	8-98051-295-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (B) ASM PART: B = 8-98034-468-0	8-98056-564-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (A) ASM PART: A = 8-98034-467-0	8-98051-296-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (B) ASM PART: B = 8-98034-468-0	8-98056-565-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (A) ASM PART: A = 8-98034-467-0	8-98051-297-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (B) ASM PART: B = 8-98034-468-0	8-98056-566-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (A) ASM PART: A = 8-98034-467-0	8-98051-298-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (B) ASM PART: B = 8-98034-468-0	8-98056-567-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB (A) ASM PART: A = 8-98034-467-0	8-98051-299-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB (B) ASM PART: B = 8-98034-468-0	8-98056-568-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB (A) ASM PART: A = 8-98034-467-0	8-98051-300-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB (B) ASM PART: B = 8-98034-468-0	8-98056-569-0	01	1	-
29	SPRING; LEAF,NO 8,RR SUB (A) ASM PART: A = 8-98034-467-0	8-98051-301-0	01	1	-
29	SPRING; LEAF,NO 8,RR SUB (B) ASM PART: B = 8-98034-468-0	8-98056-570-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=220 ASM PART: B = 8-98034-468-0	1-51356-211-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=240 ASM PART: A = 8-98034-467-0	1-51356-280-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-98034-467-0, B = 8-98034-468-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X99 ASM PART: A = 8-98034-467-0, B = 8-98034-468-0	1-09000-328-0	02	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 8-98034-467-0, B = 8-98034-468-0	9-51351-019-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=6 ASM PART: A = 8-98034-467-0	1-51377-249-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=6 ASM PART: B = 8-98034-468-0	1-51377-249-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=9 ASM PART: B = 8-98034-468-0	8-98051-107-0	01	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X99 ASM PART: A = 8-98034-467-0, B = 8-98034-468-0	1-09000-328-0	01	1	-
59	SEAT; RR SPRING,SUB (A), T=6 ASM PART: B = 8-98034-468-0	1-51377-249-0	01	1	-
59	SEAT; RR SPRING,SUB (A), T=6 ASM PART: A = 8-98034-467-0	1-51377-249-0	02	1	-
59	SEAT; RR SPRING,SUB (B), T=9 ASM PART: A = 8-98034-467-0	8-98051-107-0	01	1	-
