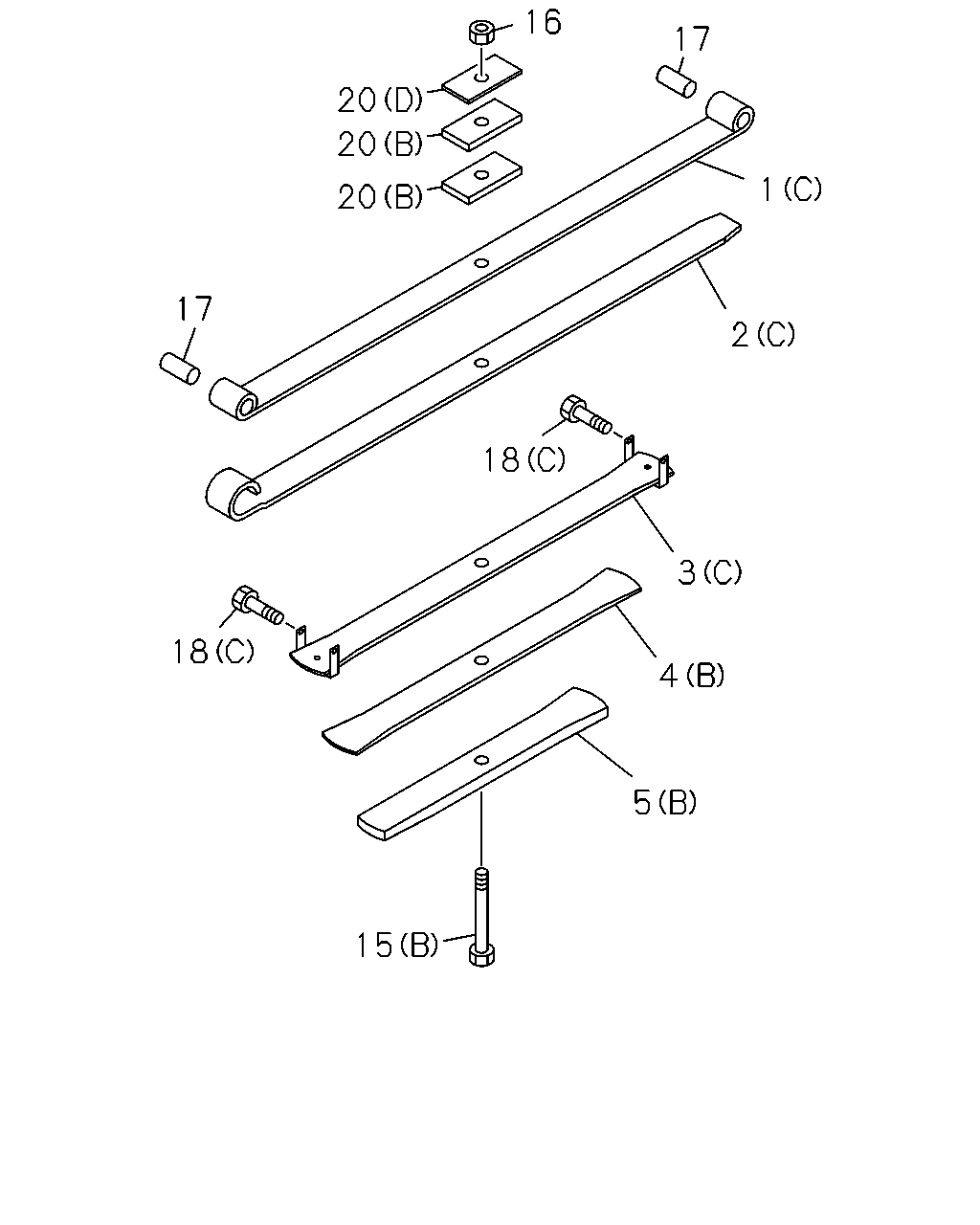

4-55 — FRONT LEAF SPRING (#66742) — 77 parça

17 16 1 20 2 20 17 3 33 18 4 5 18 6 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98027-963-1	8-98051-282-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: B = 8-98034-466-1	8-98083-610-1	01	1	-
1	SPRING; LEAF,NO 1,FRT (C) ASM PART: C = 8-98135-956-0	8-98138-612-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98027-963-1	8-98051-283-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: B = 8-98034-466-1	8-98083-611-1	01	1	-
2	SPRING; LEAF,NO 2,FRT (C) ASM PART: C = 8-98135-956-0	8-98138-613-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98027-963-1	8-98051-284-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: B = 8-98034-466-1	8-98083-612-1	01	1	-
3	SPRING; LEAF,NO 3,FRT (C) ASM PART: C = 8-98135-956-0	8-98138-614-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: B = 8-98034-466-1	8-98083-613-1	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: C = 8-98135-956-0	8-98138-615-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: B = 8-98034-466-1	8-98083-614-1	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: C = 8-98135-956-0	8-98138-616-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 8-98034-466-1	8-98083-615-1	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=125 ASM PART: A = 8-98027-963-1	1-51156-196-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=140 ASM PART: B = 8-98034-466-1, C = 8-98135-956-0	1-51156-276-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 8-98027-963-1, B = 8-98034-466-1, C = 8-98135-956-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 8-98027-963-1, B = 8-98034-466-1, C = 8-98135-956-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: B = 8-98034-466-1	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 8-98027-963-1	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X99 ASM PART: C = 8-98135-956-0	8-98138-617-0	02	1	-
20	SEAT; LEAF SPR,FRT (A) ASM PART: B = 8-98034-466-1	1-51177-252-0	01	1	-
20	SEAT; LEAF SPR,FRT (A) ASM PART: A = 8-98027-963-1	1-51177-252-0	02	1	-
20	SEAT; LEAF SPR,FRT (D) ASM PART: C = 8-98135-956-0	1-51177-326-0	01	1	-
20	SEAT; LEAF SPR,FRT (C) ASM PART: A = 8-98027-963-1	8-98049-893-0	01	1	-
20	SEAT; LEAF SPR,FRT (B) ASM PART: C = 8-98135-956-0	8-98083-651-0	02	1	-
20	SEAT; LEAF SPR,FRT (B) ASM PART: B = 8-98034-466-1	8-98083-651-0	01	1	-
33	SPRING ASM; LEAF,FRT MAIN ASM PART: B = 8-98034-466-1	8-98083-625-1	01	1	-

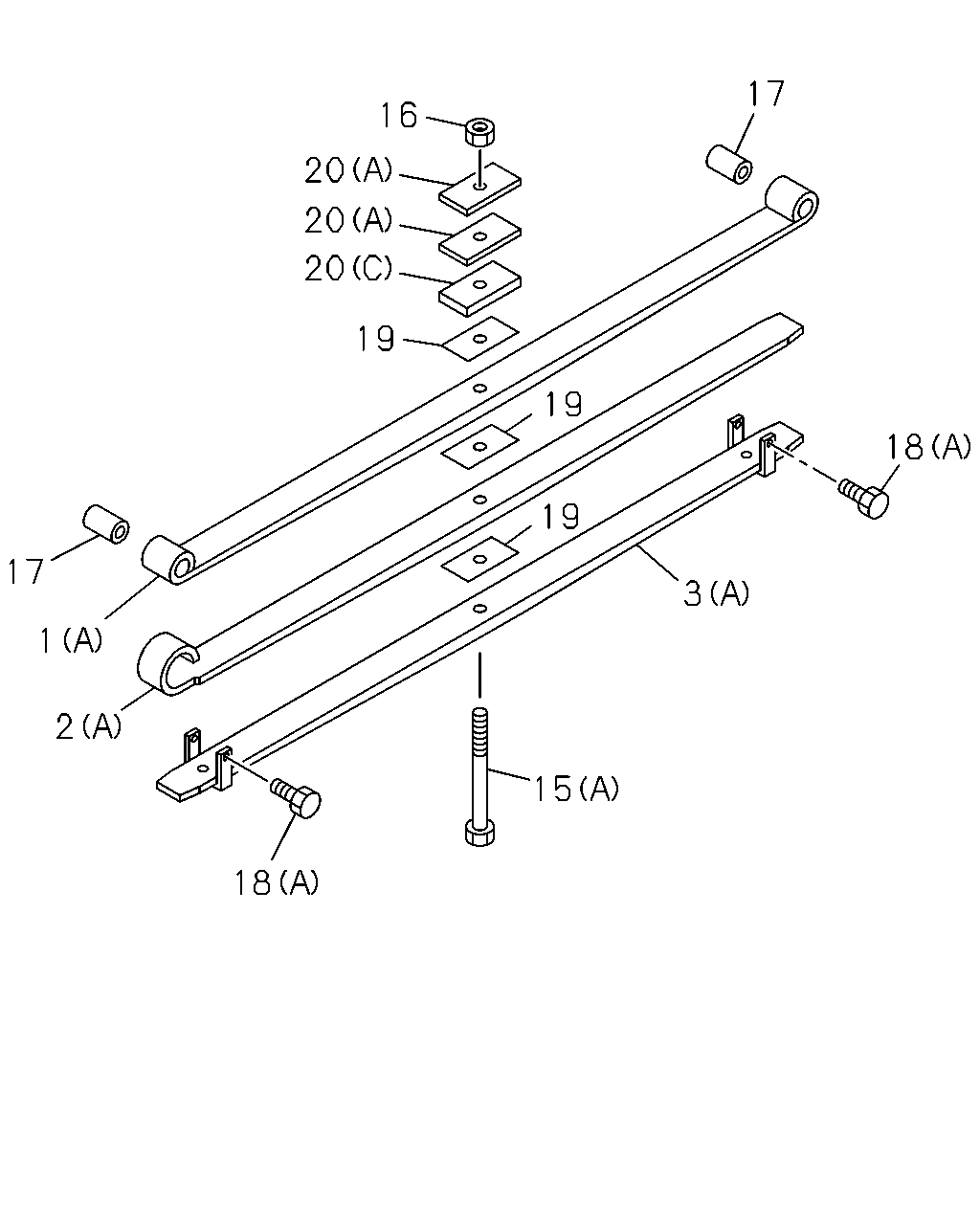

17 16 20 20 20 19 19 18 19 17 3 1 2 15 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98027-963-1	8-98051-282-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: B = 8-98034-466-1	8-98083-610-1	01	1	-
1	SPRING; LEAF,NO 1,FRT (C) ASM PART: C = 8-98135-956-0	8-98138-612-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98027-963-1	8-98051-283-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: B = 8-98034-466-1	8-98083-611-1	01	1	-
2	SPRING; LEAF,NO 2,FRT (C) ASM PART: C = 8-98135-956-0	8-98138-613-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98027-963-1	8-98051-284-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: B = 8-98034-466-1	8-98083-612-1	01	1	-
3	SPRING; LEAF,NO 3,FRT (C) ASM PART: C = 8-98135-956-0	8-98138-614-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=125 ASM PART: A = 8-98027-963-1	1-51156-196-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=140 ASM PART: B = 8-98034-466-1, C = 8-98135-956-0	1-51156-276-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 8-98027-963-1, B = 8-98034-466-1, C = 8-98135-956-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 8-98027-963-1, B = 8-98034-466-1, C = 8-98135-956-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: B = 8-98034-466-1	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 8-98027-963-1	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X99 ASM PART: C = 8-98135-956-0	8-98138-617-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98027-963-1	8-97386-326-0	03	1	-
20	SEAT; LEAF SPR,FRT (A) ASM PART: B = 8-98034-466-1	1-51177-252-0	01	1	-
20	SEAT; LEAF SPR,FRT (A) ASM PART: A = 8-98027-963-1	1-51177-252-0	02	1	-
20	SEAT; LEAF SPR,FRT (D) ASM PART: C = 8-98135-956-0	1-51177-326-0	01	1	-
20	SEAT; LEAF SPR,FRT (C) ASM PART: A = 8-98027-963-1	8-98049-893-0	01	1	-
20	SEAT; LEAF SPR,FRT (B) ASM PART: C = 8-98135-956-0	8-98083-651-0	02	1	-
20	SEAT; LEAF SPR,FRT (B) ASM PART: B = 8-98034-466-1	8-98083-651-0	01	1	-

16 17 20 20 1 20 17 2 18 3 18 4 5 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98027-963-1	8-98051-282-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: B = 8-98034-466-1	8-98083-610-1	01	1	-
1	SPRING; LEAF,NO 1,FRT (C) ASM PART: C = 8-98135-956-0	8-98138-612-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98027-963-1	8-98051-283-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: B = 8-98034-466-1	8-98083-611-1	01	1	-
2	SPRING; LEAF,NO 2,FRT (C) ASM PART: C = 8-98135-956-0	8-98138-613-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98027-963-1	8-98051-284-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: B = 8-98034-466-1	8-98083-612-1	01	1	-
3	SPRING; LEAF,NO 3,FRT (C) ASM PART: C = 8-98135-956-0	8-98138-614-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: B = 8-98034-466-1	8-98083-613-1	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: C = 8-98135-956-0	8-98138-615-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: B = 8-98034-466-1	8-98083-614-1	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: C = 8-98135-956-0	8-98138-616-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=125 ASM PART: A = 8-98027-963-1	1-51156-196-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=140 ASM PART: B = 8-98034-466-1, C = 8-98135-956-0	1-51156-276-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 8-98027-963-1, B = 8-98034-466-1, C = 8-98135-956-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 8-98027-963-1, B = 8-98034-466-1, C = 8-98135-956-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: B = 8-98034-466-1	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 8-98027-963-1	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X99 ASM PART: C = 8-98135-956-0	8-98138-617-0	02	1	-
20	SEAT; LEAF SPR,FRT (A) ASM PART: B = 8-98034-466-1	1-51177-252-0	01	1	-
20	SEAT; LEAF SPR,FRT (A) ASM PART: A = 8-98027-963-1	1-51177-252-0	02	1	-
20	SEAT; LEAF SPR,FRT (D) ASM PART: C = 8-98135-956-0	1-51177-326-0	01	1	-
20	SEAT; LEAF SPR,FRT (C) ASM PART: A = 8-98027-963-1	8-98049-893-0	01	1	-
20	SEAT; LEAF SPR,FRT (B) ASM PART: C = 8-98135-956-0	8-98083-651-0	02	1	-
20	SEAT; LEAF SPR,FRT (B) ASM PART: B = 8-98034-466-1	8-98083-651-0	01	1	-
