◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#66741) — 48 parça
çizim 124081
344 82
BalonParca AdiParca NoAdetTipApplied Date A B
82 PIN; SPLIT,FRT S/ABS
OD=2.8 L=25 		9-08113-025-0 01 1 0712- ● ●
344 PIN; FRT S/ABS 9-43219-034-0 01 1 0712- ● ●

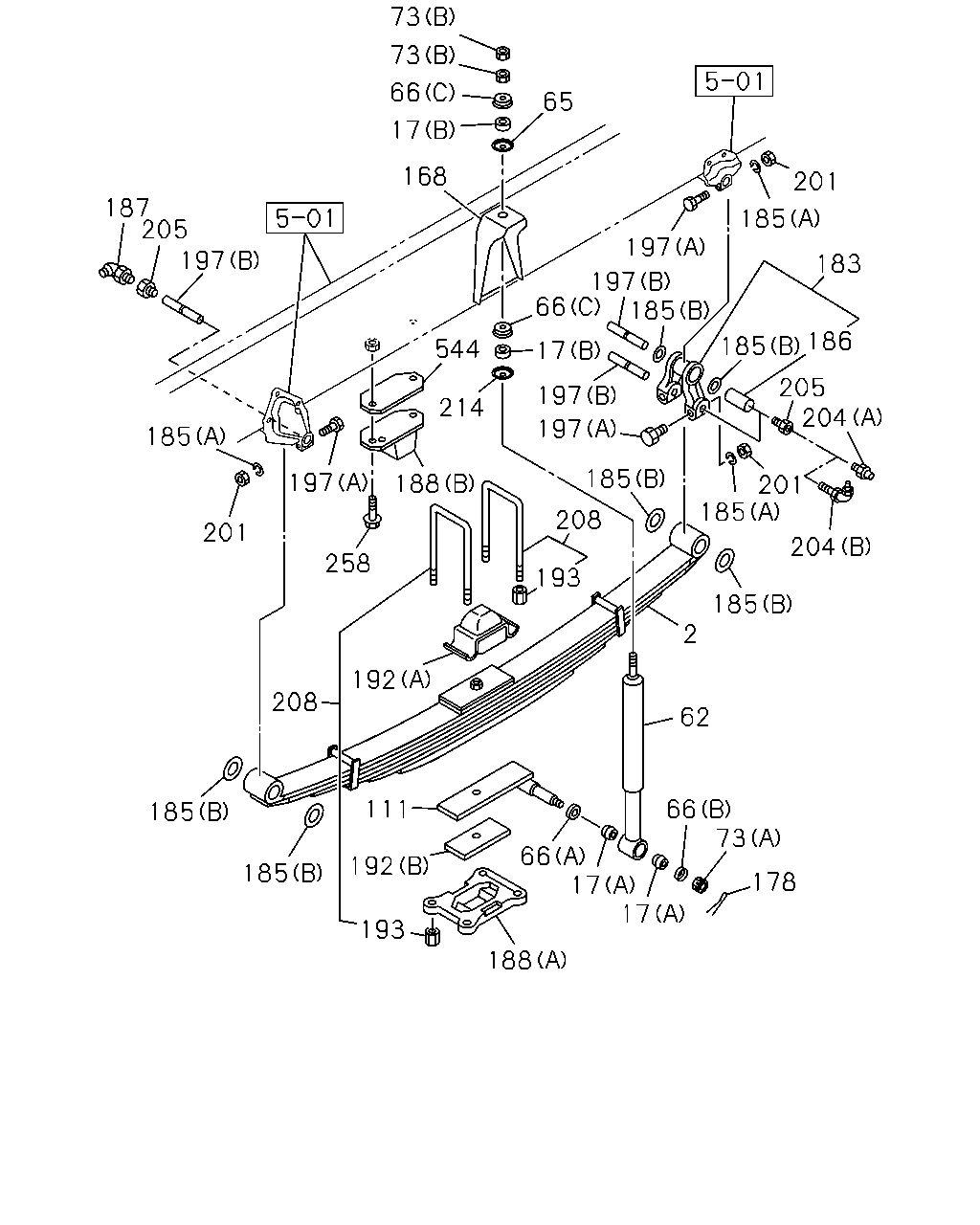

çizim 193368
73 73 66 65 17 168 201 187 205 197 185 197 183 197 66 185 544 186 185 17 205 204 197 214 197 185 188 185 197 201 185 208 201 204 258 193 185 2 192 208 62 66 73 111 185 66 17 192 185 178 17 193 188
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98027-963-1 02 1 0712- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-98027-963-1 02 1 0712- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT TAPER LEAF SUSPENSION<SAR> 6-LEAF 		8-98034-466-1 02 1 0712-0809 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT TAPER LEAF SUSPENSION<SAR> 5-LEAF 		8-98135-956-0 02 1 0810- ●
17 BUSHING; RUBBER,S/ABS
(A) 		1-51631-009-1 04 1 0712- ● ●
17 BUSHING; RUBBER,S/ABS
(B) 		9-51631-050-0 04 1 0712- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-4 02 1 0712- ● ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-153-0 02 1 0712-1412 ● ●
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 02 1 0712- ● ●
66 WASHER; LK,S/ABS SETTING
(A) ID=23 		1-51631-019-0 02 1 0712- ● ●
66 WASHER; LK,S/ABS SETTING
(B) ID=17 		1-51631-020-0 02 1 0712- ● ●
66 WASHER; LK,S/ABS SETTING
(C) ID=16.8 		1-51631-022-0 04 1 0712- ● ●
73 NUT; BRKT,SHOCK
(A) M16 SLOTTED 		0-91116-516-0 02 1 0712-1204 ● ●
73 NUT; BRKT,SHOCK
(A) M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
73 NUT; BRKT,SHOCK
(B) M12 		8-98010-412-0 04 1 0712- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-743-0 01 1 0712- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-744-0 01 1 0712- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 0712- ● ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		0-81124-025-0 02 1 0712- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0712- ● ●
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 0712- ● ●
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 0712- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0712-0902 ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0712- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-51173-038-0 02 1 0712- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51174-008-2 01 1 0712- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51174-009-2 01 1 0712- ● ●
192 PIECE; DIST
(A) 		1-51172-106-0 02 1 0712- ● ●
192 PIECE; DIST
(B) 		9-51377-038-0 01 1 0712- ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0712-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
197 PIN; FRT SPR,FRT
(A) M12X80 		0-10856-280-0 12 1 0712- ● ●
197 PIN; FRT SPR,FRT
(B) 		1-51161-031-0 06 1 0712- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0712- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0907- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0712-0906 ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 0712- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0712- ● ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=380 		1-87870-488-1 04 1 0712- ●
208 U-BOLT SET; FRT SPRING
L=380 		1-87870-488-1 04 1 0712- ●
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=400 		1-87870-356-2 04 1 0712-1206 ●
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=400 		1-87870-503-0 04 1 1207- ●
214 WASHER; S/ABS,UPR,INNER
ID=14.5 		9-51631-051-0 02 1 0712- ● ●
258 BOLT; CUSHION,WIND UP
M8X35 FLANGE 		0-28050-835-0 04 1 0712- ● ●
544 BRACKET; RUBBER 1-51174-017-1 02 1 0712- ● ●
