◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#66734) — 31 parça
çizim 123006
30 33 44 106 26 6 1 5 20 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY 		8-97407-720-0 01 1 0712-1210 ● ●
1 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) DARK GRAY 		8-97423-998-0 01 1 1211- ● ●
1 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY 		8-97412-555-1 01 1 0712- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0712- ● ●
6 SCREW; HORN SPR CONTACT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M4X12 		8-97167-588-0 04 1 0712- ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97405-985-1 01 1 0712- ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY 		8-97405-841-0 01 1 0712-1210 ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY 		8-97421-978-0 01 1 1211- ● ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY 		8-97409-275-2 01 1 0712- ● ●
30 COWL; STEERING
DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-503-1 01 1 0712- ●
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 0712- ●
30 COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97405-356-5 01 1 0712- ●
33 COVER; STRG COWL
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY 		8-97409-495-0 01 1 0712- ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 0712- ● ●
81 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97405-986-0 01 1 0712- ● ●
106 BOLT; TORX 8-98231-397-0 02 1 0907- ● ●

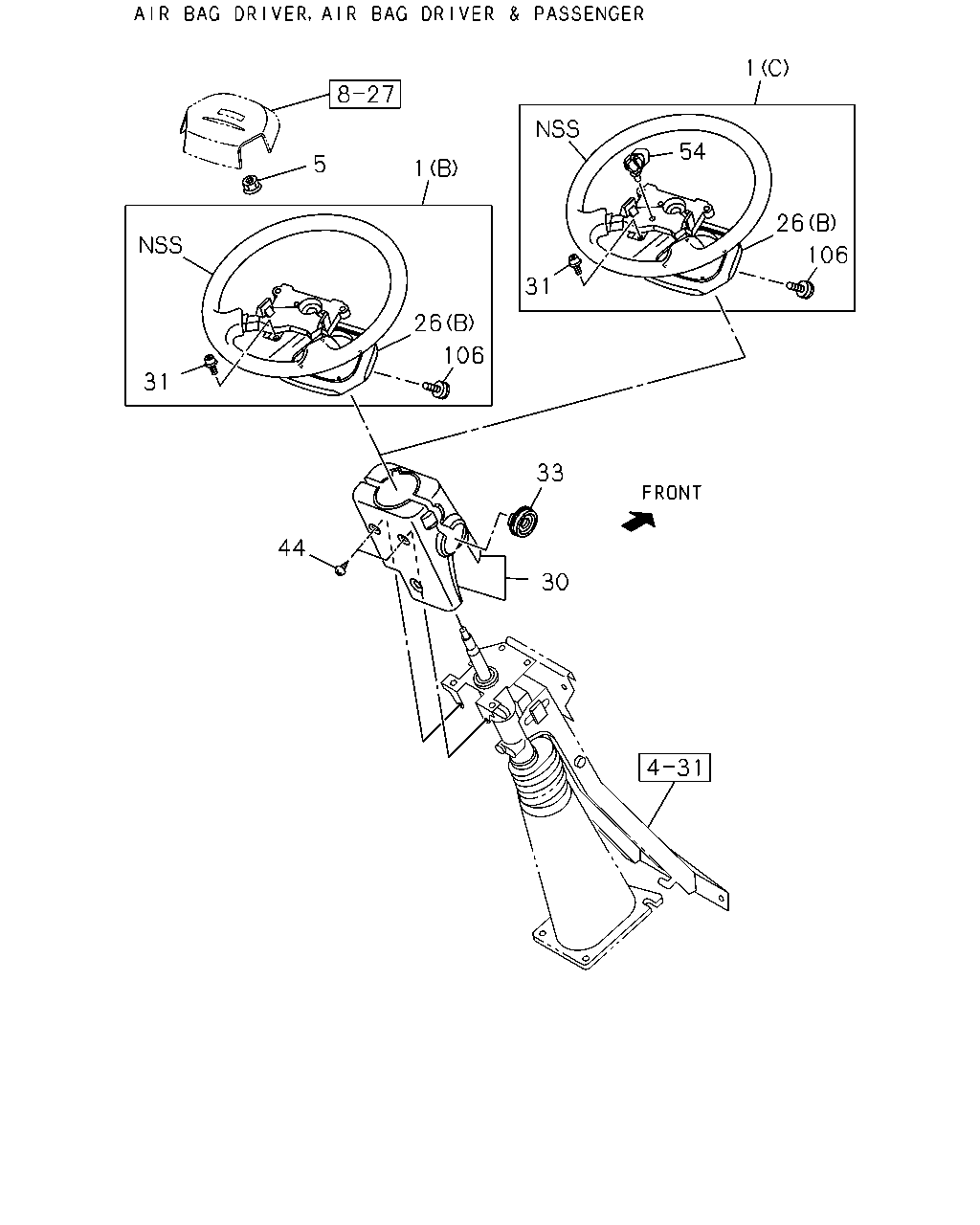

çizim 123105
1 54 26 106 31 1 5 31 26 106 33 30 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY 		8-97407-720-0 01 1 0712-1210 ● ●
1 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) DARK GRAY 		8-97423-998-0 01 1 1211- ● ●
1 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY 		8-97412-555-1 01 1 0712- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0712- ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY 		8-97405-841-0 01 1 0712-1210 ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY 		8-97421-978-0 01 1 1211- ● ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY 		8-97409-275-2 01 1 0712- ● ●
30 COWL; STEERING
DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-503-1 01 1 0712- ●
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 0712- ●
30 COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97405-356-5 01 1 0712- ●
31 SCREW; BOSS TO COVER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M4X12 		8-97167-588-0 04 1 0712- ● ●
33 COVER; STRG COWL
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY 		8-97409-495-0 01 1 0712- ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 0712- ● ●
54 CLIP; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98165-703-0 01 1 1211- ● ●
106 BOLT; TORX 8-98231-397-0 02 1 0907- ● ●
