Sayfa 4-25 - Isuzu EPC

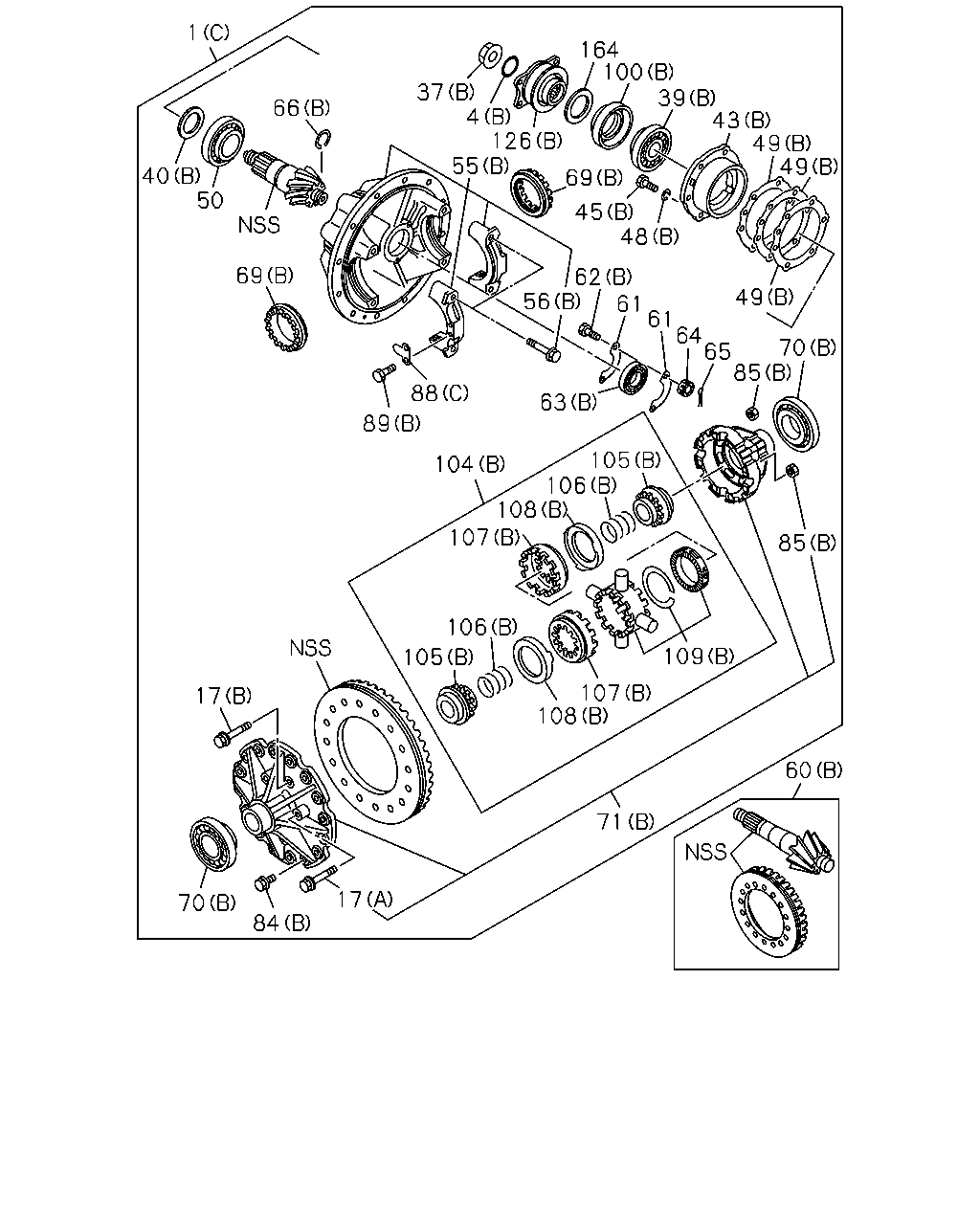

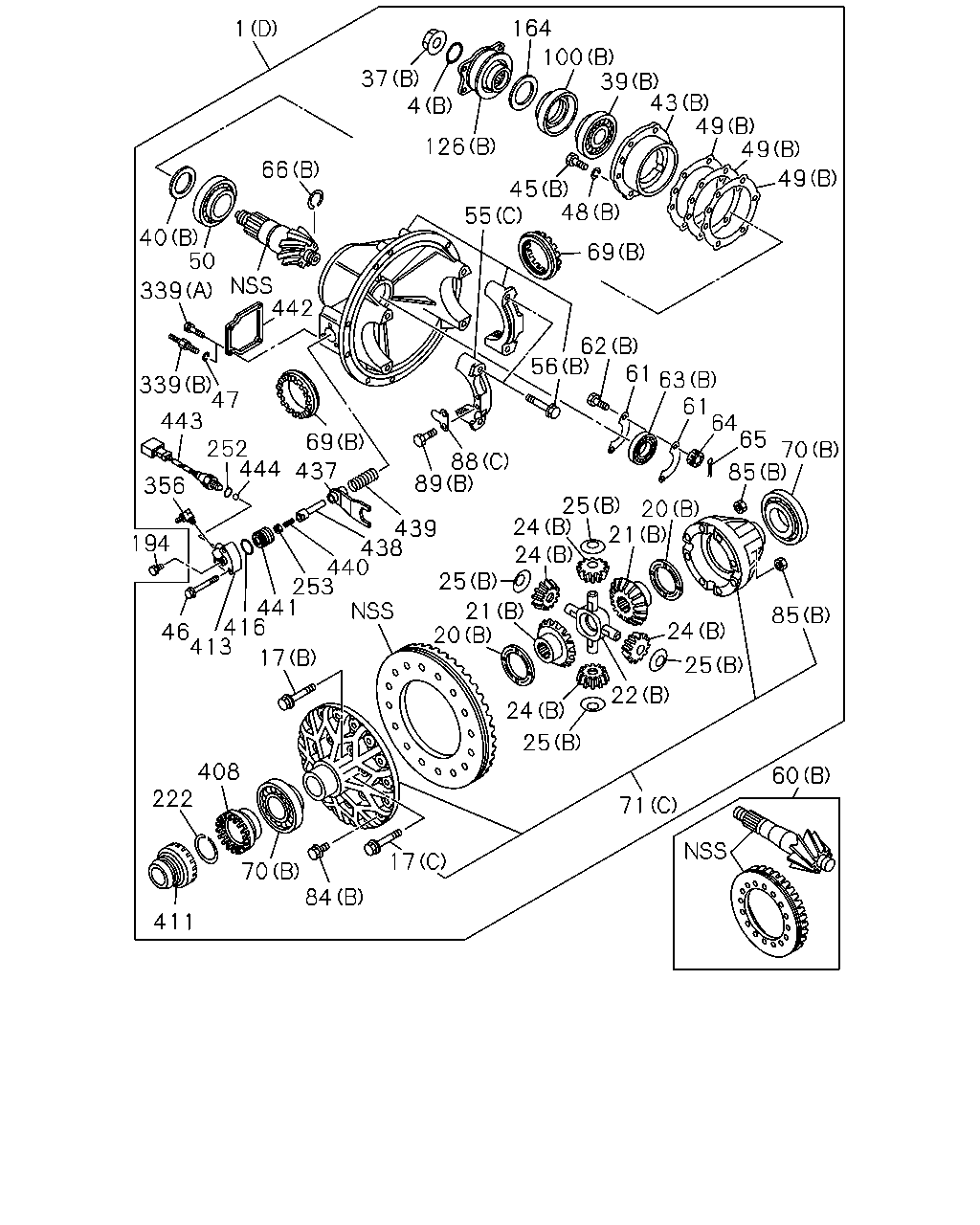

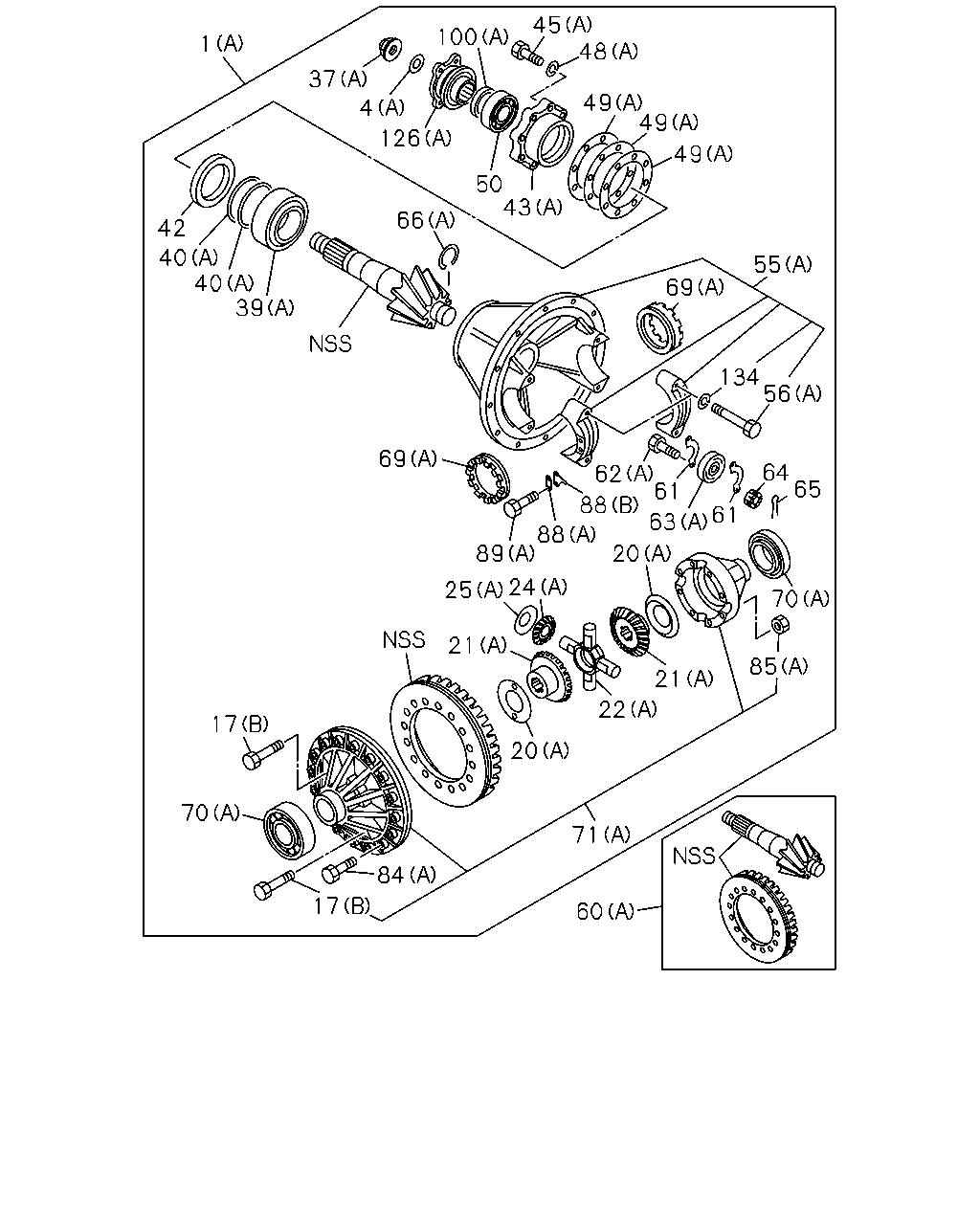

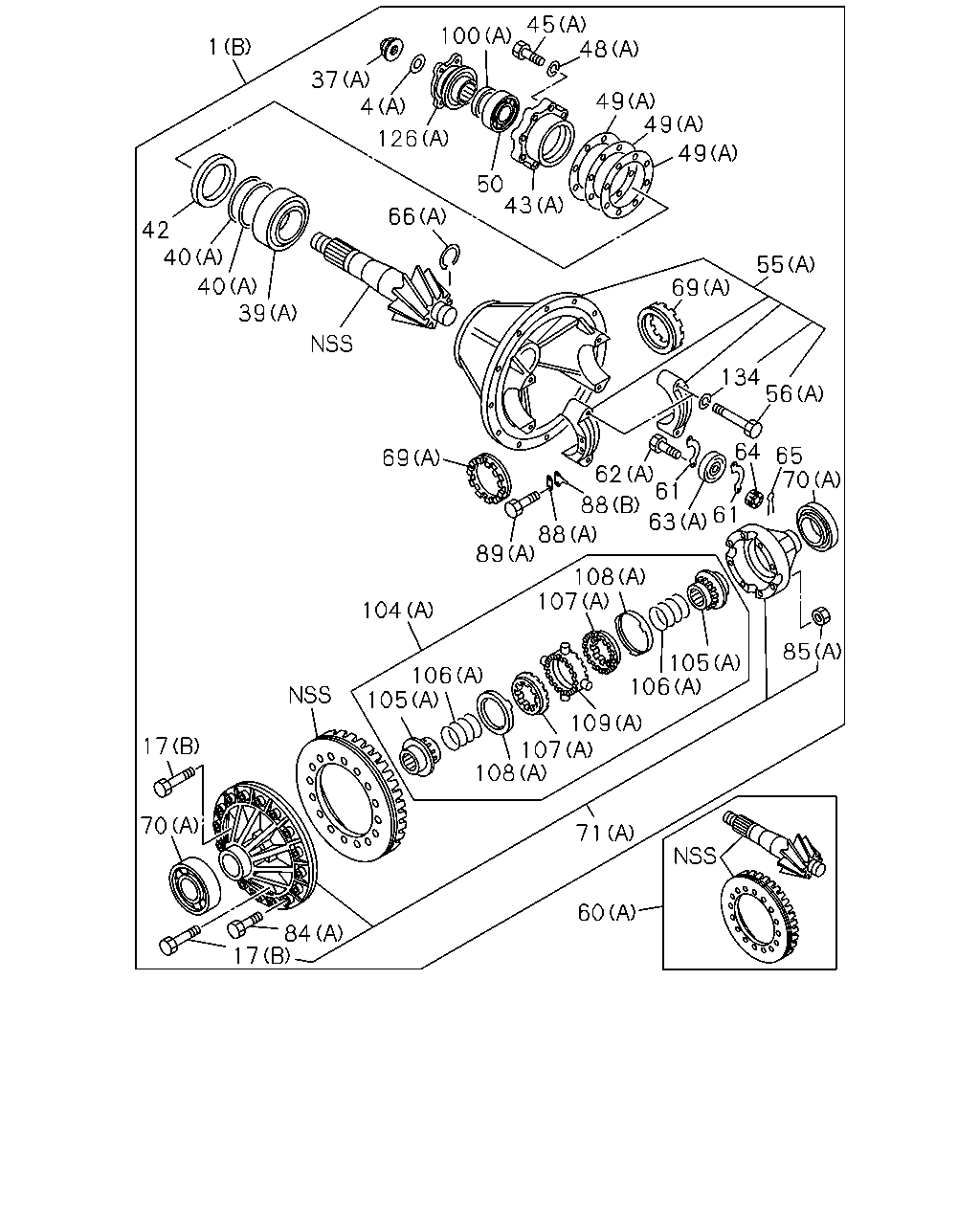

4-25 — REAR FINAL DRIVE (#66733) — 836 parça

45 48 100 1 37 49 49 4 126 49 50 43 66 42 40 40 39 55 69 134 56 62 69 64 65 61 88 61 63 88 89 20 24 25 70 21 85 21 22 17 20 70 71 84 17 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR (B) 39/6	1-41001-549-0	01	1	1012-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (D) 43/7	1-41003-387-0	01	1	1003-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (D) 39/6	1-41003-386-0	01	1	1003-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 43/7	1-41003-388-0	01	1	1003-1404		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (C) 43/7	1-41003-388-0	01	1	1405-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 39/6	1-41003-306-0	01	1	1003-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41001-547-0	01	1	0712-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41001-257-0	01	1	0712-				●
4	GASKET; FLANGE,FINAL PINION (B) ID=37.5 T=4	1-09623-582-0	01	1	1003-		●	●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	0712-1011				●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	1012-	●			●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1003-		●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1003-		●	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF VAR2<G86> (A) M14X121 FLANGE	1-09044-006-0	04	1	1003-		●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	12	1	0712-1011				●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	12	1	1012-	●			●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=2.80	1-41562-061-0	AR	1	1003-		●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.00	1-41562-062-0	AR	1	1003-		●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.20	1-41562-063-0	AR	1	1003-		●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.40	1-41562-064-0	AR	1	1003-		●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=2.90	1-41562-080-0	AR	1	1003-		●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.10	1-41562-081-0	AR	1	1003-		●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.30	1-41562-082-0	AR	1	1003-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.75	1-41562-139-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.80	1-41562-140-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.85	1-41562-141-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.90	1-41562-142-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.95	1-41562-143-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.00	1-41562-144-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.05	1-41562-145-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.10	1-41562-146-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.15	1-41562-147-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.20	1-41562-148-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.25	1-41562-149-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.30	1-41562-150-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.35	1-41562-151-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.40	1-41562-152-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.45	1-41562-153-0	AR	1	0712-				●
21	GEAR; SIDE,DIFF DIFF LOCK<C3N> (B) Z=16	1-41561-149-0	02	1	1003-		●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=16	1-41561-126-0	02	1	0712-0903				●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=16	1-41561-159-1	02	1	0904-				●
22	SPIDER; DIFF PINION DIFF LOCK<C3N> (B)	1-41521-050-2	01	1	1003-		●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A)	1-41521-061-0	01	1	0712-				●
24	GEAR; PINION,DIFF DIFF LOCK<C3N> (B) Z=10	1-41551-049-0	04	1	1003-		●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-041-0	04	1	0712-0903				●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-051-0	04	1	0904-				●
25	WASHER; THRUST,PINION DIFF LOCK<C3N> (B) ID=29 OD=60	1-41562-119-0	04	1	1003-		●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A)	1-41552-012-0	04	1	0712-				●
37	NUT; DRIVING PINION (B) M36 FLANGE	1-09449-083-0	01	1	1003-		●	●
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	0712-1011				●
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	1012-	●			●
39	BEARING; FINAL PINION (B) NSK	5-09812-063-0	01	1	1003-		●	●
39	BEARING; FINAL PINION (B) JTEKT	5-09812-062-1	01	1	1003-		●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	0712-1011				●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	1012-	●			●
40	SHIM; FINAL PINION (B) T=1.60	1-41229-179-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.61	1-41229-180-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.62	1-41229-181-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.63	1-41229-182-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.64	1-41229-183-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.65	1-41229-184-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.66	1-41229-185-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.67	1-41229-186-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.68	1-41229-187-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.69	1-41229-188-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.70	1-41229-189-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (A) T=3.50	1-41229-256-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.50	1-41229-256-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.51	1-41229-257-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.51	1-41229-257-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.52	1-41229-258-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.52	1-41229-258-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.53	1-41229-259-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.53	1-41229-259-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.54	1-41229-260-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.54	1-41229-260-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.55	1-41229-261-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.55	1-41229-261-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.56	1-41229-262-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.56	1-41229-262-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.57	1-41229-263-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.57	1-41229-263-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.58	1-41229-264-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.58	1-41229-264-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.59	1-41229-265-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.59	1-41229-265-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.60	1-41229-266-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.60	1-41229-266-0	AR	1	1012-	●			●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	0712-1011				●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1012-	●			●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	0712-1011				●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1012-	●			●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	0712-1011				●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1012-	●			●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	0712-1011				●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1012-	●			●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	0712-1011				●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1012-	●			●
43	CAGE; FINAL PINION (B)	1-41151-027-0	01	1	1003-		●	●
43	CAGE; FINAL PINION (A)	1-41151-028-1	01	1	0712-1011				●
43	CAGE; FINAL PINION (A)	1-41151-028-1	01	1	1012-	●			●
45	BOLT; FINAL PINION CAGE (B) M12X40	9-02361-240-0	06	1	1003-		●	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	0712-1011				●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	1012-	●			●
48	WASHER; LK,FINAL PINION (B) ID=12.2	0-91510-812-0	06	1	1003-		●	●
48	WASHER; LK,FINAL PINION (A) ID=14.2	0-91510-514-0	08	1	0712-1011				●
48	WASHER; LK,FINAL PINION (A) ID=14.2	0-91510-514-0	08	1	1012-	●			●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-021-1	AR	1	1003-		●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-051-1	AR	1	1003-		●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-052-1	AR	1	1003-		●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-053-1	AR	1	1003-		●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-063-0	AR	1	0712-1011				●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-063-0	AR	1	1012-	●			●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-064-0	AR	1	0712-1011				●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-064-0	AR	1	1012-	●			●
49	SHIM; FINAL PINION CAGE (A) T=1.00	9-41154-013-0	AR	1	0712-1011				●
49	SHIM; FINAL PINION CAGE (A) T=1.00	9-41154-013-0	AR	1	1012-	●			●
49	SHIM; FINAL PINION CAGE (A) T=0.50	9-41154-014-0	AR	1	0712-1011				●
49	SHIM; FINAL PINION CAGE (A) T=0.50	9-41154-014-0	AR	1	1012-	●			●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0712-1002				●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1003-1011		●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1012-	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0712-1002				●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1003-1011		●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1012-	●	●	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (C)	1-41110-122-0	01	1	1003-		●	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41110-048-1	01	1	1003-1006		●	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41110-129-0	01	1	1007-		●	●
55	CARRIER; DIFF (A)	1-41110-052-0	01	1	0712-1011				●
55	CARRIER; DIFF (A)	1-41110-052-0	01	1	1012-	●			●
56	BOLT; BRG CAP (B) M16X100 FLANGE	1-09070-047-0	04	1	1003-		●	●
56	BOLT; BRG CAP (A) M18X107	1-09050-002-1	04	1	0712-1011				●
56	BOLT; BRG CAP (A) M18X107	1-09050-002-1	04	1	1012-	●			●
60	GEAR SET; FINAL DRIVE,RR (A) 39/6	1-41210-276-3	01	1	1012-	●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-392-2	01	1	1003-		●
60	GEAR SET; FINAL DRIVE,RR (B) 39/6	1-41210-394-2	01	1	1003-			●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-280-3	01	1	0712-				●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	0712-1002				●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1003-1011		●	●	●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1012-	●	●	●	●
62	BOLT; RET (B) M8X35 W/PIN HOLE	1-09042-046-0	02	1	1003-		●	●
62	BOLT; RET (A) M8X36 W/PIN HOLE	1-09042-035-0	02	1	0712-1011				●
62	BOLT; RET (A) M8X36 W/PIN HOLE	1-09042-035-0	02	1	1012-	●			●
63	BEARING; PINION PILOT (B) NSK	1-09810-073-2	01	1	1003-		●	●
63	BEARING; PINION PILOT (B) JTEKT	1-09810-074-1	01	1	1003-		●	●
63	BEARING; PINION PILOT (A) JTEKT	1-09810-229-2	01	1	0712-1011				●
63	BEARING; PINION PILOT (A) JTEKT	1-09810-229-2	01	1	1012-	●			●
63	BEARING; PINION PILOT (A) NSK	1-09810-230-1	01	1	0712-1011				●
63	BEARING; PINION PILOT (A) NSK	1-09810-230-1	01	1	1012-	●			●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0712-1002				●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1003-1011		●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1012-	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0712-0805				●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-1002				●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1003-1011		●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1012-	●	●	●	●
66	RING; SNAP,PILOT BRG (B) OD=34.2	1-09588-214-0	01	1	1003-		●	●
66	RING; SNAP,PILOT BRG (A) OD=42	9-09950-179-0	01	1	0712-1011				●
66	RING; SNAP,PILOT BRG (A) OD=42	9-09950-179-0	01	1	1012-	●			●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> (B) M138 H=30	1-41121-054-0	01	1	1003-		●	●
69	NUT; ADJ,DIFF CAGE (B) M128 H=22	1-41121-013-0	01	1	1003-		●	●
69	NUT; ADJ,DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) M128 H=30	1-41121-015-0	01	1	1003-		●	●
69	NUT; ADJ,DIFF CAGE (A) M143 H=24	1-41121-005-0	01	1	0712-1011				●
69	NUT; ADJ,DIFF CAGE (A) M143 H=24	1-41121-005-0	01	1	1012-	●			●
69	NUT; ADJ,DIFF CAGE (A) M143 H=29	1-41121-006-0	01	1	0712-1011				●
69	NUT; ADJ,DIFF CAGE (A) M143 H=29	1-41121-006-0	01	1	1012-	●			●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1003-		●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1003-		●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1003-		●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1003-		●	●
70	BEARING; DIFF CAGE (A) NACHI ID=80 OD=140 T=35.3	1-09812-144-0	02	1	0712-0911				●
70	BEARING; DIFF CAGE (A) NACHI	1-09812-151-0	02	1	0912-1011				●
70	BEARING; DIFF CAGE (A) NACHI	1-09812-151-0	02	1	1012-	●			●
70	BEARING; DIFF CAGE (A) JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	0712-0911				●
70	BEARING; DIFF CAGE (A) NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	0712-1002				●
70	BEARING; DIFF CAGE (A) NSK	1-09812-150-0	02	1	1003-1011				●
70	BEARING; DIFF CAGE (A) NSK	1-09812-150-0	02	1	1012-	●			●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1003-		●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1003-		●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1003-		●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1003-		●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (C)	1-41510-335-0	01	1	1003-		●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF VAR2<G86> (B)	1-41510-112-0	01	1	1003-1006		●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF VAR2<G86> (B)	1-41510-343-0	01	1	1007-		●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-127-0	01	1	0712-1011				●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-127-0	01	1	1012-	●			●
84	BOLT; FINAL DRIVE GEAR (B) M16X34.5 FLANGE	9-09802-575-1	16	1	1003-		●	●
84	BOLT; FINAL DRIVE GEAR (A) M16X37.5 FLANGE	1-09020-167-0	16	1	0712-1011				●
84	BOLT; FINAL DRIVE GEAR (A) M16X37.5 FLANGE	1-09020-167-0	16	1	1012-	●			●
85	NUT; DIFF CAGE SETTING (B) M14	1-09400-077-1	08	1	1003-		●	●
85	NUT; DIFF CAGE SETTING (A) M14	1-09400-077-1	12	1	0712-1011				●
85	NUT; DIFF CAGE SETTING (A) M14	1-09400-077-1	12	1	1012-	●			●
88	PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	02	1	1003-		●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	0712-1011				●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1012-	●			●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	0712-1011				●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1012-	●			●
89	BOLT; LK PLATE (B) M8X12 FLANGE	8-94479-696-1	04	1	1003-		●	●
89	BOLT; LK PLATE (A) M8X16	0-20850-816-0	04	1	0712-1011				●
89	BOLT; LK PLATE (A) M8X16	0-20850-816-0	04	1	1012-	●			●
100	SEAL; OIL,FINAL PINION (B) NOK	1-09625-484-1	01	1	1003-		●	●
100	SEAL; OIL,FINAL PINION (B) TKK	1-09625-637-0	01	1	1003-		●	●
100	SEAL; OIL,FINAL PINION (A) NOK	1-09625-017-0	01	1	0712-1011				●
100	SEAL; OIL,FINAL PINION (A) NOK	1-09625-017-0	01	1	1012-	●			●
126	COUPLING; DRIVING PINION (B)	1-37245-414-0	01	1	1003-		●	●
126	COUPLING; DRIVING PINION (A)	1-37245-388-0	01	1	0712-1011				●
126	COUPLING; DRIVING PINION (A)	1-37245-388-0	01	1	1012-	●			●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	0712-1011				●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1012-	●			●

45 48 100 1 37 4 49 49 126 49 50 43 66 42 40 55 40 39 69 134 56 62 64 65 70 69 61 88 63 61 88 89 108 107 104 85 105 106 106 105 109 107 108 17 70 71 60 84 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR (B) 39/6	1-41001-549-0	01	1	1012-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (D) 43/7	1-41003-387-0	01	1	1003-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (D) 39/6	1-41003-386-0	01	1	1003-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 43/7	1-41003-388-0	01	1	1003-1404		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (C) 43/7	1-41003-388-0	01	1	1405-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 39/6	1-41003-306-0	01	1	1003-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41001-547-0	01	1	0712-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41001-257-0	01	1	0712-				●
4	GASKET; FLANGE,FINAL PINION (B) ID=37.5 T=4	1-09623-582-0	01	1	1003-		●	●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	0712-1011				●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	1012-	●			●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1003-		●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1003-		●	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF VAR2<G86> (A) M14X121 FLANGE	1-09044-006-0	04	1	1003-		●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	12	1	0712-1011				●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	12	1	1012-	●			●
37	NUT; DRIVING PINION (B) M36 FLANGE	1-09449-083-0	01	1	1003-		●	●
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	0712-1011				●
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	1012-	●			●
39	BEARING; FINAL PINION (B) NSK	5-09812-063-0	01	1	1003-		●	●
39	BEARING; FINAL PINION (B) JTEKT	5-09812-062-1	01	1	1003-		●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	0712-1011				●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	1012-	●			●
40	SHIM; FINAL PINION (B) T=1.60	1-41229-179-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.61	1-41229-180-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.62	1-41229-181-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.63	1-41229-182-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.64	1-41229-183-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.65	1-41229-184-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.66	1-41229-185-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.67	1-41229-186-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.68	1-41229-187-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.69	1-41229-188-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.70	1-41229-189-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (A) T=3.50	1-41229-256-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.50	1-41229-256-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.51	1-41229-257-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.51	1-41229-257-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.52	1-41229-258-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.52	1-41229-258-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.53	1-41229-259-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.53	1-41229-259-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.54	1-41229-260-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.54	1-41229-260-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.55	1-41229-261-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.55	1-41229-261-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.56	1-41229-262-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.56	1-41229-262-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.57	1-41229-263-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.57	1-41229-263-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.58	1-41229-264-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.58	1-41229-264-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.59	1-41229-265-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.59	1-41229-265-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.60	1-41229-266-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.60	1-41229-266-0	AR	1	1012-	●			●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	0712-1011				●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1012-	●			●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	0712-1011				●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1012-	●			●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	0712-1011				●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1012-	●			●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	0712-1011				●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1012-	●			●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	0712-1011				●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1012-	●			●
43	CAGE; FINAL PINION (B)	1-41151-027-0	01	1	1003-		●	●
43	CAGE; FINAL PINION (A)	1-41151-028-1	01	1	0712-1011				●
43	CAGE; FINAL PINION (A)	1-41151-028-1	01	1	1012-	●			●
45	BOLT; FINAL PINION CAGE (B) M12X40	9-02361-240-0	06	1	1003-		●	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	0712-1011				●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	1012-	●			●
48	WASHER; LK,FINAL PINION (B) ID=12.2	0-91510-812-0	06	1	1003-		●	●
48	WASHER; LK,FINAL PINION (A) ID=14.2	0-91510-514-0	08	1	0712-1011				●
48	WASHER; LK,FINAL PINION (A) ID=14.2	0-91510-514-0	08	1	1012-	●			●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-021-1	AR	1	1003-		●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-051-1	AR	1	1003-		●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-052-1	AR	1	1003-		●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-053-1	AR	1	1003-		●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-063-0	AR	1	0712-1011				●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-063-0	AR	1	1012-	●			●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-064-0	AR	1	0712-1011				●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-064-0	AR	1	1012-	●			●
49	SHIM; FINAL PINION CAGE (A) T=1.00	9-41154-013-0	AR	1	0712-1011				●
49	SHIM; FINAL PINION CAGE (A) T=1.00	9-41154-013-0	AR	1	1012-	●			●
49	SHIM; FINAL PINION CAGE (A) T=0.50	9-41154-014-0	AR	1	0712-1011				●
49	SHIM; FINAL PINION CAGE (A) T=0.50	9-41154-014-0	AR	1	1012-	●			●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0712-1002				●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1003-1011		●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1012-	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0712-1002				●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1003-1011		●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1012-	●	●	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (C)	1-41110-122-0	01	1	1003-		●	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41110-048-1	01	1	1003-1006		●	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41110-129-0	01	1	1007-		●	●
55	CARRIER; DIFF (A)	1-41110-052-0	01	1	0712-1011				●
55	CARRIER; DIFF (A)	1-41110-052-0	01	1	1012-	●			●
56	BOLT; BRG CAP (B) M16X100 FLANGE	1-09070-047-0	04	1	1003-		●	●
56	BOLT; BRG CAP (A) M18X107	1-09050-002-1	04	1	0712-1011				●
56	BOLT; BRG CAP (A) M18X107	1-09050-002-1	04	1	1012-	●			●
60	GEAR SET; FINAL DRIVE,RR (A) 39/6	1-41210-276-3	01	1	1012-	●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-392-2	01	1	1003-		●
60	GEAR SET; FINAL DRIVE,RR (B) 39/6	1-41210-394-2	01	1	1003-			●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-280-3	01	1	0712-				●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	0712-1002				●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1003-1011		●	●	●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1012-	●	●	●	●
62	BOLT; RET (B) M8X35 W/PIN HOLE	1-09042-046-0	02	1	1003-		●	●
62	BOLT; RET (A) M8X36 W/PIN HOLE	1-09042-035-0	02	1	0712-1011				●
62	BOLT; RET (A) M8X36 W/PIN HOLE	1-09042-035-0	02	1	1012-	●			●
63	BEARING; PINION PILOT (B) NSK	1-09810-073-2	01	1	1003-		●	●
63	BEARING; PINION PILOT (B) JTEKT	1-09810-074-1	01	1	1003-		●	●
63	BEARING; PINION PILOT (A) JTEKT	1-09810-229-2	01	1	0712-1011				●
63	BEARING; PINION PILOT (A) JTEKT	1-09810-229-2	01	1	1012-	●			●
63	BEARING; PINION PILOT (A) NSK	1-09810-230-1	01	1	0712-1011				●
63	BEARING; PINION PILOT (A) NSK	1-09810-230-1	01	1	1012-	●			●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0712-1002				●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1003-1011		●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1012-	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0712-0805				●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-1002				●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1003-1011		●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1012-	●	●	●	●
66	RING; SNAP,PILOT BRG (B) OD=34.2	1-09588-214-0	01	1	1003-		●	●
66	RING; SNAP,PILOT BRG (A) OD=42	9-09950-179-0	01	1	0712-1011				●
66	RING; SNAP,PILOT BRG (A) OD=42	9-09950-179-0	01	1	1012-	●			●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> (B) M138 H=30	1-41121-054-0	01	1	1003-		●	●
69	NUT; ADJ,DIFF CAGE (B) M128 H=22	1-41121-013-0	01	1	1003-		●	●
69	NUT; ADJ,DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) M128 H=30	1-41121-015-0	01	1	1003-		●	●
69	NUT; ADJ,DIFF CAGE (A) M143 H=24	1-41121-005-0	01	1	0712-1011				●
69	NUT; ADJ,DIFF CAGE (A) M143 H=24	1-41121-005-0	01	1	1012-	●			●
69	NUT; ADJ,DIFF CAGE (A) M143 H=29	1-41121-006-0	01	1	0712-1011				●
69	NUT; ADJ,DIFF CAGE (A) M143 H=29	1-41121-006-0	01	1	1012-	●			●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1003-		●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1003-		●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1003-		●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1003-		●	●
70	BEARING; DIFF CAGE (A) NACHI ID=80 OD=140 T=35.3	1-09812-144-0	02	1	0712-0911				●
70	BEARING; DIFF CAGE (A) NACHI	1-09812-151-0	02	1	0912-1011				●
70	BEARING; DIFF CAGE (A) NACHI	1-09812-151-0	02	1	1012-	●			●
70	BEARING; DIFF CAGE (A) JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	0712-0911				●
70	BEARING; DIFF CAGE (A) NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	0712-1002				●
70	BEARING; DIFF CAGE (A) NSK	1-09812-150-0	02	1	1003-1011				●
70	BEARING; DIFF CAGE (A) NSK	1-09812-150-0	02	1	1012-	●			●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1003-		●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1003-		●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1003-		●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1003-		●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (C)	1-41510-335-0	01	1	1003-		●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF VAR2<G86> (B)	1-41510-112-0	01	1	1003-1006		●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF VAR2<G86> (B)	1-41510-343-0	01	1	1007-		●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-127-0	01	1	0712-1011				●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-127-0	01	1	1012-	●			●
84	BOLT; FINAL DRIVE GEAR (B) M16X34.5 FLANGE	9-09802-575-1	16	1	1003-		●	●
84	BOLT; FINAL DRIVE GEAR (A) M16X37.5 FLANGE	1-09020-167-0	16	1	0712-1011				●
84	BOLT; FINAL DRIVE GEAR (A) M16X37.5 FLANGE	1-09020-167-0	16	1	1012-	●			●
85	NUT; DIFF CAGE SETTING (B) M14	1-09400-077-1	08	1	1003-		●	●
85	NUT; DIFF CAGE SETTING (A) M14	1-09400-077-1	12	1	0712-1011				●
85	NUT; DIFF CAGE SETTING (A) M14	1-09400-077-1	12	1	1012-	●			●
88	PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	02	1	1003-		●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	0712-1011				●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1012-	●			●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	0712-1011				●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1012-	●			●
89	BOLT; LK PLATE (B) M8X12 FLANGE	8-94479-696-1	04	1	1003-		●	●
89	BOLT; LK PLATE (A) M8X16	0-20850-816-0	04	1	0712-1011				●
89	BOLT; LK PLATE (A) M8X16	0-20850-816-0	04	1	1012-	●			●
100	SEAL; OIL,FINAL PINION (B) NOK	1-09625-484-1	01	1	1003-		●	●
100	SEAL; OIL,FINAL PINION (B) TKK	1-09625-637-0	01	1	1003-		●	●
100	SEAL; OIL,FINAL PINION (A) NOK	1-09625-017-0	01	1	0712-1011				●
100	SEAL; OIL,FINAL PINION (A) NOK	1-09625-017-0	01	1	1012-	●			●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86> (B)	1-41530-053-0	01	1	1003-		●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86> (A)	1-41530-040-0	01	1	0712-1011				●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86> (A)	1-41530-040-0	01	1	1012-				●
104	DIFF ASM; NO SPIN (A)	1-41530-040-0	01	1	1012-	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-043-0	02	1	1003-		●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86> (A)	1-41561-100-0	02	1	0712-1011				●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86> (A)	1-41561-100-0	02	1	1012-				●
105	GEAR; SIDE (A)	1-41561-100-0	02	1	1012-	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-006-0	02	1	1003-		●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86> (A)	1-09580-314-0	02	1	0712-1011				●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86> (A)	1-09580-314-0	02	1	1012-				●
106	SPRING; NO SPIN DIFF (A)	1-09580-314-0	02	1	1012-	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-003-0	02	1	1003-		●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86> (A)	1-41532-003-0	02	1	0712-1011				●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86> (A)	1-41532-003-0	02	1	1012-				●
107	CLUTCH; DRIVEN (A)	1-41532-003-0	02	1	1012-	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-004-1	02	1	1003-		●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86> (A)	1-41539-032-0	02	1	0712-1011				●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86> (A)	1-41539-032-0	02	1	1012-				●
108	RING; HOLD OUT (A)	1-41539-032-0	02	1	1012-	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-014-0	01	1	1003-		●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86> (A)	1-41521-034-0	01	1	0712-1011				●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86> (A)	1-41521-034-0	01	1	1012-				●
109	SPIDER; DIFF (A)	1-41521-034-0	01	1	1012-	●
126	COUPLING; DRIVING PINION (B)	1-37245-414-0	01	1	1003-		●	●
126	COUPLING; DRIVING PINION (A)	1-37245-388-0	01	1	0712-1011				●
126	COUPLING; DRIVING PINION (A)	1-37245-388-0	01	1	1012-	●			●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	0712-1011				●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1012-	●			●

1 164 100 39 43 49 49 37 4 126 55 66 40 50 69 45 48 69 62 56 61 61 64 65 70 85 49 88 63 89 105 106 108 107 104 85 106 109 105 107 108 17 60 71 17 70 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR (B) 39/6	1-41001-549-0	01	1	1012-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (D) 43/7	1-41003-387-0	01	1	1003-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (D) 39/6	1-41003-386-0	01	1	1003-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 43/7	1-41003-388-0	01	1	1003-1404		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (C) 43/7	1-41003-388-0	01	1	1405-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 39/6	1-41003-306-0	01	1	1003-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41001-547-0	01	1	0712-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41001-257-0	01	1	0712-				●
4	GASKET; FLANGE,FINAL PINION (B) ID=37.5 T=4	1-09623-582-0	01	1	1003-		●	●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	0712-1011				●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	1012-	●			●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1003-		●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1003-		●	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF VAR2<G86> (A) M14X121 FLANGE	1-09044-006-0	04	1	1003-		●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	12	1	0712-1011				●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	12	1	1012-	●			●
37	NUT; DRIVING PINION (B) M36 FLANGE	1-09449-083-0	01	1	1003-		●	●
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	0712-1011				●
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	1012-	●			●
39	BEARING; FINAL PINION (B) NSK	5-09812-063-0	01	1	1003-		●	●
39	BEARING; FINAL PINION (B) JTEKT	5-09812-062-1	01	1	1003-		●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	0712-1011				●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	1012-	●			●
40	SHIM; FINAL PINION (B) T=1.60	1-41229-179-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.61	1-41229-180-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.62	1-41229-181-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.63	1-41229-182-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.64	1-41229-183-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.65	1-41229-184-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.66	1-41229-185-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.67	1-41229-186-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.68	1-41229-187-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.69	1-41229-188-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.70	1-41229-189-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (A) T=3.50	1-41229-256-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.50	1-41229-256-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.51	1-41229-257-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.51	1-41229-257-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.52	1-41229-258-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.52	1-41229-258-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.53	1-41229-259-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.53	1-41229-259-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.54	1-41229-260-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.54	1-41229-260-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.55	1-41229-261-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.55	1-41229-261-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.56	1-41229-262-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.56	1-41229-262-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.57	1-41229-263-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.57	1-41229-263-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.58	1-41229-264-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.58	1-41229-264-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.59	1-41229-265-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.59	1-41229-265-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.60	1-41229-266-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.60	1-41229-266-0	AR	1	1012-	●			●
43	CAGE; FINAL PINION (B)	1-41151-027-0	01	1	1003-		●	●
43	CAGE; FINAL PINION (A)	1-41151-028-1	01	1	0712-1011				●
43	CAGE; FINAL PINION (A)	1-41151-028-1	01	1	1012-	●			●
45	BOLT; FINAL PINION CAGE (B) M12X40	9-02361-240-0	06	1	1003-		●	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	0712-1011				●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	1012-	●			●
48	WASHER; LK,FINAL PINION (B) ID=12.2	0-91510-812-0	06	1	1003-		●	●
48	WASHER; LK,FINAL PINION (A) ID=14.2	0-91510-514-0	08	1	0712-1011				●
48	WASHER; LK,FINAL PINION (A) ID=14.2	0-91510-514-0	08	1	1012-	●			●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-021-1	AR	1	1003-		●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-051-1	AR	1	1003-		●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-052-1	AR	1	1003-		●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-053-1	AR	1	1003-		●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-063-0	AR	1	0712-1011				●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-063-0	AR	1	1012-	●			●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-064-0	AR	1	0712-1011				●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-064-0	AR	1	1012-	●			●
49	SHIM; FINAL PINION CAGE (A) T=1.00	9-41154-013-0	AR	1	0712-1011				●
49	SHIM; FINAL PINION CAGE (A) T=1.00	9-41154-013-0	AR	1	1012-	●			●
49	SHIM; FINAL PINION CAGE (A) T=0.50	9-41154-014-0	AR	1	0712-1011				●
49	SHIM; FINAL PINION CAGE (A) T=0.50	9-41154-014-0	AR	1	1012-	●			●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0712-1002				●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1003-1011		●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1012-	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0712-1002				●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1003-1011		●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1012-	●	●	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (C)	1-41110-122-0	01	1	1003-		●	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41110-048-1	01	1	1003-1006		●	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41110-129-0	01	1	1007-		●	●
55	CARRIER; DIFF (A)	1-41110-052-0	01	1	0712-1011				●
55	CARRIER; DIFF (A)	1-41110-052-0	01	1	1012-	●			●
56	BOLT; BRG CAP (B) M16X100 FLANGE	1-09070-047-0	04	1	1003-		●	●
56	BOLT; BRG CAP (A) M18X107	1-09050-002-1	04	1	0712-1011				●
56	BOLT; BRG CAP (A) M18X107	1-09050-002-1	04	1	1012-	●			●
60	GEAR SET; FINAL DRIVE,RR (A) 39/6	1-41210-276-3	01	1	1012-	●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-392-2	01	1	1003-		●
60	GEAR SET; FINAL DRIVE,RR (B) 39/6	1-41210-394-2	01	1	1003-			●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-280-3	01	1	0712-				●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	0712-1002				●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1003-1011		●	●	●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1012-	●	●	●	●
62	BOLT; RET (B) M8X35 W/PIN HOLE	1-09042-046-0	02	1	1003-		●	●
62	BOLT; RET (A) M8X36 W/PIN HOLE	1-09042-035-0	02	1	0712-1011				●
62	BOLT; RET (A) M8X36 W/PIN HOLE	1-09042-035-0	02	1	1012-	●			●
63	BEARING; PINION PILOT (B) NSK	1-09810-073-2	01	1	1003-		●	●
63	BEARING; PINION PILOT (B) JTEKT	1-09810-074-1	01	1	1003-		●	●
63	BEARING; PINION PILOT (A) JTEKT	1-09810-229-2	01	1	0712-1011				●
63	BEARING; PINION PILOT (A) JTEKT	1-09810-229-2	01	1	1012-	●			●
63	BEARING; PINION PILOT (A) NSK	1-09810-230-1	01	1	0712-1011				●
63	BEARING; PINION PILOT (A) NSK	1-09810-230-1	01	1	1012-	●			●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0712-1002				●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1003-1011		●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1012-	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0712-0805				●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-1002				●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1003-1011		●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1012-	●	●	●	●
66	RING; SNAP,PILOT BRG (B) OD=34.2	1-09588-214-0	01	1	1003-		●	●
66	RING; SNAP,PILOT BRG (A) OD=42	9-09950-179-0	01	1	0712-1011				●
66	RING; SNAP,PILOT BRG (A) OD=42	9-09950-179-0	01	1	1012-	●			●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> (B) M138 H=30	1-41121-054-0	01	1	1003-		●	●
69	NUT; ADJ,DIFF CAGE (B) M128 H=22	1-41121-013-0	01	1	1003-		●	●
69	NUT; ADJ,DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) M128 H=30	1-41121-015-0	01	1	1003-		●	●
69	NUT; ADJ,DIFF CAGE (A) M143 H=24	1-41121-005-0	01	1	0712-1011				●
69	NUT; ADJ,DIFF CAGE (A) M143 H=24	1-41121-005-0	01	1	1012-	●			●
69	NUT; ADJ,DIFF CAGE (A) M143 H=29	1-41121-006-0	01	1	0712-1011				●
69	NUT; ADJ,DIFF CAGE (A) M143 H=29	1-41121-006-0	01	1	1012-	●			●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1003-		●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1003-		●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1003-		●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1003-		●	●
70	BEARING; DIFF CAGE (A) NACHI ID=80 OD=140 T=35.3	1-09812-144-0	02	1	0712-0911				●
70	BEARING; DIFF CAGE (A) NACHI	1-09812-151-0	02	1	0912-1011				●
70	BEARING; DIFF CAGE (A) NACHI	1-09812-151-0	02	1	1012-	●			●
70	BEARING; DIFF CAGE (A) JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	0712-0911				●
70	BEARING; DIFF CAGE (A) NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	0712-1002				●
70	BEARING; DIFF CAGE (A) NSK	1-09812-150-0	02	1	1003-1011				●
70	BEARING; DIFF CAGE (A) NSK	1-09812-150-0	02	1	1012-	●			●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1003-		●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1003-		●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1003-		●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1003-		●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (C)	1-41510-335-0	01	1	1003-		●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF VAR2<G86> (B)	1-41510-112-0	01	1	1003-1006		●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF VAR2<G86> (B)	1-41510-343-0	01	1	1007-		●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-127-0	01	1	0712-1011				●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-127-0	01	1	1012-	●			●
84	BOLT; FINAL DRIVE GEAR (B) M16X34.5 FLANGE	9-09802-575-1	16	1	1003-		●	●
84	BOLT; FINAL DRIVE GEAR (A) M16X37.5 FLANGE	1-09020-167-0	16	1	0712-1011				●
84	BOLT; FINAL DRIVE GEAR (A) M16X37.5 FLANGE	1-09020-167-0	16	1	1012-	●			●
85	NUT; DIFF CAGE SETTING (B) M14	1-09400-077-1	08	1	1003-		●	●
85	NUT; DIFF CAGE SETTING (A) M14	1-09400-077-1	12	1	0712-1011				●
85	NUT; DIFF CAGE SETTING (A) M14	1-09400-077-1	12	1	1012-	●			●
88	PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	02	1	1003-		●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	0712-1011				●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1012-	●			●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	0712-1011				●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1012-	●			●
89	BOLT; LK PLATE (B) M8X12 FLANGE	8-94479-696-1	04	1	1003-		●	●
89	BOLT; LK PLATE (A) M8X16	0-20850-816-0	04	1	0712-1011				●
89	BOLT; LK PLATE (A) M8X16	0-20850-816-0	04	1	1012-	●			●
100	SEAL; OIL,FINAL PINION (B) NOK	1-09625-484-1	01	1	1003-		●	●
100	SEAL; OIL,FINAL PINION (B) TKK	1-09625-637-0	01	1	1003-		●	●
100	SEAL; OIL,FINAL PINION (A) NOK	1-09625-017-0	01	1	0712-1011				●
100	SEAL; OIL,FINAL PINION (A) NOK	1-09625-017-0	01	1	1012-	●			●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86> (B)	1-41530-053-0	01	1	1003-		●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86> (A)	1-41530-040-0	01	1	0712-1011				●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86> (A)	1-41530-040-0	01	1	1012-				●
104	DIFF ASM; NO SPIN (A)	1-41530-040-0	01	1	1012-	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-043-0	02	1	1003-		●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86> (A)	1-41561-100-0	02	1	0712-1011				●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86> (A)	1-41561-100-0	02	1	1012-				●
105	GEAR; SIDE (A)	1-41561-100-0	02	1	1012-	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-006-0	02	1	1003-		●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86> (A)	1-09580-314-0	02	1	0712-1011				●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86> (A)	1-09580-314-0	02	1	1012-				●
106	SPRING; NO SPIN DIFF (A)	1-09580-314-0	02	1	1012-	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-003-0	02	1	1003-		●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86> (A)	1-41532-003-0	02	1	0712-1011				●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86> (A)	1-41532-003-0	02	1	1012-				●
107	CLUTCH; DRIVEN (A)	1-41532-003-0	02	1	1012-	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-004-1	02	1	1003-		●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86> (A)	1-41539-032-0	02	1	0712-1011				●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86> (A)	1-41539-032-0	02	1	1012-				●
108	RING; HOLD OUT (A)	1-41539-032-0	02	1	1012-	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-014-0	01	1	1003-		●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86> (A)	1-41521-034-0	01	1	0712-1011				●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86> (A)	1-41521-034-0	01	1	1012-				●
109	SPIDER; DIFF (A)	1-41521-034-0	01	1	1012-	●
126	COUPLING; DRIVING PINION (B)	1-37245-414-0	01	1	1003-		●	●
126	COUPLING; DRIVING PINION (A)	1-37245-388-0	01	1	0712-1011				●
126	COUPLING; DRIVING PINION (A)	1-37245-388-0	01	1	1012-	●			●
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	1003-		●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1003-		●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1003-		●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1003-		●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1003-		●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1003-		●	●
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	1003-		●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1003-		●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1003-		●	●

164 1 100 39 43 49 49 37 4 126 45 55 48 66 49 40 50 69 442 339 62 56 61 63 61 64 65 339 47 443 252 444 69 70 85 88 89 437 356 25 24 24 20 21 439 438 440 253 441 416 46 413 194 25 21 20 85 24 17 25 22 24 25 408 222 60 71 17 70 84 411

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR (B) 39/6	1-41001-549-0	01	1	1012-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (D) 43/7	1-41003-387-0	01	1	1003-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (D) 39/6	1-41003-386-0	01	1	1003-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 43/7	1-41003-388-0	01	1	1003-1404		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (C) 43/7	1-41003-388-0	01	1	1405-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 39/6	1-41003-306-0	01	1	1003-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41001-547-0	01	1	0712-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41001-257-0	01	1	0712-				●
4	GASKET; FLANGE,FINAL PINION (B) ID=37.5 T=4	1-09623-582-0	01	1	1003-		●	●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	0712-1011				●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	1012-	●			●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1003-		●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1003-		●	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF VAR2<G86> (A) M14X121 FLANGE	1-09044-006-0	04	1	1003-		●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	12	1	0712-1011				●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	12	1	1012-	●			●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=2.80	1-41562-061-0	AR	1	1003-		●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.00	1-41562-062-0	AR	1	1003-		●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.20	1-41562-063-0	AR	1	1003-		●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.40	1-41562-064-0	AR	1	1003-		●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=2.90	1-41562-080-0	AR	1	1003-		●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.10	1-41562-081-0	AR	1	1003-		●	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.30	1-41562-082-0	AR	1	1003-		●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.75	1-41562-139-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.80	1-41562-140-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.85	1-41562-141-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.90	1-41562-142-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.95	1-41562-143-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.00	1-41562-144-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.05	1-41562-145-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.10	1-41562-146-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.15	1-41562-147-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.20	1-41562-148-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.25	1-41562-149-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.30	1-41562-150-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.35	1-41562-151-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.40	1-41562-152-0	AR	1	0712-				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.45	1-41562-153-0	AR	1	0712-				●
21	GEAR; SIDE,DIFF DIFF LOCK<C3N> (B) Z=16	1-41561-149-0	02	1	1003-		●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=16	1-41561-126-0	02	1	0712-0903				●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=16	1-41561-159-1	02	1	0904-				●
22	SPIDER; DIFF PINION DIFF LOCK<C3N> (B)	1-41521-050-2	01	1	1003-		●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A)	1-41521-061-0	01	1	0712-				●
24	GEAR; PINION,DIFF DIFF LOCK<C3N> (B) Z=10	1-41551-049-0	04	1	1003-		●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-041-0	04	1	0712-0903				●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-051-0	04	1	0904-				●
25	WASHER; THRUST,PINION DIFF LOCK<C3N> (B) ID=29 OD=60	1-41562-119-0	04	1	1003-		●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A)	1-41552-012-0	04	1	0712-				●
37	NUT; DRIVING PINION (B) M36 FLANGE	1-09449-083-0	01	1	1003-		●	●
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	0712-1011				●
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	1012-	●			●
39	BEARING; FINAL PINION (B) NSK	5-09812-063-0	01	1	1003-		●	●
39	BEARING; FINAL PINION (B) JTEKT	5-09812-062-1	01	1	1003-		●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	0712-1011				●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	1012-	●			●
40	SHIM; FINAL PINION (B) T=1.60	1-41229-179-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.61	1-41229-180-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.62	1-41229-181-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.63	1-41229-182-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.64	1-41229-183-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.65	1-41229-184-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.66	1-41229-185-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.67	1-41229-186-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.68	1-41229-187-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.69	1-41229-188-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (B) T=1.70	1-41229-189-0	AR	1	1003-		●	●
40	SHIM; FINAL PINION (A) T=3.50	1-41229-256-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.50	1-41229-256-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.51	1-41229-257-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.51	1-41229-257-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.52	1-41229-258-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.52	1-41229-258-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.53	1-41229-259-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.53	1-41229-259-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.54	1-41229-260-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.54	1-41229-260-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.55	1-41229-261-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.55	1-41229-261-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.56	1-41229-262-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.56	1-41229-262-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.57	1-41229-263-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.57	1-41229-263-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.58	1-41229-264-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.58	1-41229-264-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.59	1-41229-265-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.59	1-41229-265-0	AR	1	1012-	●			●
40	SHIM; FINAL PINION (A) T=3.60	1-41229-266-0	AR	1	0712-1011				●
40	SHIM; FINAL PINION (A) T=3.60	1-41229-266-0	AR	1	1012-	●			●
43	CAGE; FINAL PINION (B)	1-41151-027-0	01	1	1003-		●	●
43	CAGE; FINAL PINION (A)	1-41151-028-1	01	1	0712-1011				●
43	CAGE; FINAL PINION (A)	1-41151-028-1	01	1	1012-	●			●
45	BOLT; FINAL PINION CAGE (B) M12X40	9-02361-240-0	06	1	1003-		●	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	0712-1011				●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	1012-	●			●
46	BOLT DIFF LOCK<C3N> M8X60 FLANGE	0-28050-860-0	03	1	1003-		●	●
47	WASHER; LK DIFF LOCK<C3N> ID=8.2	1-09985-177-0	04	1	1204-		●	●
48	WASHER; LK,FINAL PINION (B) ID=12.2	0-91510-812-0	06	1	1003-		●	●
48	WASHER; LK,FINAL PINION (A) ID=14.2	0-91510-514-0	08	1	0712-1011				●
48	WASHER; LK,FINAL PINION (A) ID=14.2	0-91510-514-0	08	1	1012-	●			●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-021-1	AR	1	1003-		●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-051-1	AR	1	1003-		●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-052-1	AR	1	1003-		●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-053-1	AR	1	1003-		●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-063-0	AR	1	0712-1011				●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-063-0	AR	1	1012-	●			●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-064-0	AR	1	0712-1011				●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-064-0	AR	1	1012-	●			●
49	SHIM; FINAL PINION CAGE (A) T=1.00	9-41154-013-0	AR	1	0712-1011				●
49	SHIM; FINAL PINION CAGE (A) T=1.00	9-41154-013-0	AR	1	1012-	●			●
49	SHIM; FINAL PINION CAGE (A) T=0.50	9-41154-014-0	AR	1	0712-1011				●
49	SHIM; FINAL PINION CAGE (A) T=0.50	9-41154-014-0	AR	1	1012-	●			●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0712-1002				●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1003-1011		●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1012-	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0712-1002				●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1003-1011		●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1012-	●	●	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (C)	1-41110-122-0	01	1	1003-		●	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41110-048-1	01	1	1003-1006		●	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41110-129-0	01	1	1007-		●	●
55	CARRIER; DIFF (A)	1-41110-052-0	01	1	0712-1011				●
55	CARRIER; DIFF (A)	1-41110-052-0	01	1	1012-	●			●
56	BOLT; BRG CAP (B) M16X100 FLANGE	1-09070-047-0	04	1	1003-		●	●
56	BOLT; BRG CAP (A) M18X107	1-09050-002-1	04	1	0712-1011				●
56	BOLT; BRG CAP (A) M18X107	1-09050-002-1	04	1	1012-	●			●
60	GEAR SET; FINAL DRIVE,RR (A) 39/6	1-41210-276-3	01	1	1012-	●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-392-2	01	1	1003-		●
60	GEAR SET; FINAL DRIVE,RR (B) 39/6	1-41210-394-2	01	1	1003-			●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-280-3	01	1	0712-				●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	0712-1002				●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1003-1011		●	●	●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1012-	●	●	●	●
62	BOLT; RET (B) M8X35 W/PIN HOLE	1-09042-046-0	02	1	1003-		●	●
62	BOLT; RET (A) M8X36 W/PIN HOLE	1-09042-035-0	02	1	0712-1011				●
62	BOLT; RET (A) M8X36 W/PIN HOLE	1-09042-035-0	02	1	1012-	●			●
63	BEARING; PINION PILOT (B) NSK	1-09810-073-2	01	1	1003-		●	●
63	BEARING; PINION PILOT (B) JTEKT	1-09810-074-1	01	1	1003-		●	●
63	BEARING; PINION PILOT (A) JTEKT	1-09810-229-2	01	1	0712-1011				●
63	BEARING; PINION PILOT (A) JTEKT	1-09810-229-2	01	1	1012-	●			●
63	BEARING; PINION PILOT (A) NSK	1-09810-230-1	01	1	0712-1011				●
63	BEARING; PINION PILOT (A) NSK	1-09810-230-1	01	1	1012-	●			●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0712-1002				●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1003-1011		●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1012-	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0712-0805				●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-1002				●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1003-1011		●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1012-	●	●	●	●
66	RING; SNAP,PILOT BRG (B) OD=34.2	1-09588-214-0	01	1	1003-		●	●
66	RING; SNAP,PILOT BRG (A) OD=42	9-09950-179-0	01	1	0712-1011				●
66	RING; SNAP,PILOT BRG (A) OD=42	9-09950-179-0	01	1	1012-	●			●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> (B) M138 H=30	1-41121-054-0	01	1	1003-		●	●
69	NUT; ADJ,DIFF CAGE (B) M128 H=22	1-41121-013-0	01	1	1003-		●	●
69	NUT; ADJ,DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) M128 H=30	1-41121-015-0	01	1	1003-		●	●
69	NUT; ADJ,DIFF CAGE (A) M143 H=24	1-41121-005-0	01	1	0712-1011				●
69	NUT; ADJ,DIFF CAGE (A) M143 H=24	1-41121-005-0	01	1	1012-	●			●
69	NUT; ADJ,DIFF CAGE (A) M143 H=29	1-41121-006-0	01	1	0712-1011				●
69	NUT; ADJ,DIFF CAGE (A) M143 H=29	1-41121-006-0	01	1	1012-	●			●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1003-		●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1003-		●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1003-		●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1003-		●	●
70	BEARING; DIFF CAGE (A) NACHI ID=80 OD=140 T=35.3	1-09812-144-0	02	1	0712-0911				●
70	BEARING; DIFF CAGE (A) NACHI	1-09812-151-0	02	1	0912-1011				●
70	BEARING; DIFF CAGE (A) NACHI	1-09812-151-0	02	1	1012-	●			●
70	BEARING; DIFF CAGE (A) JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	0712-0911				●
70	BEARING; DIFF CAGE (A) NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	0712-1002				●
70	BEARING; DIFF CAGE (A) NSK	1-09812-150-0	02	1	1003-1011				●
70	BEARING; DIFF CAGE (A) NSK	1-09812-150-0	02	1	1012-	●			●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1003-		●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1003-		●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1003-		●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1003-		●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (C)	1-41510-335-0	01	1	1003-		●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF VAR2<G86> (B)	1-41510-112-0	01	1	1003-1006		●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF VAR2<G86> (B)	1-41510-343-0	01	1	1007-		●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-127-0	01	1	0712-1011				●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-127-0	01	1	1012-	●			●
84	BOLT; FINAL DRIVE GEAR (B) M16X34.5 FLANGE	9-09802-575-1	16	1	1003-		●	●
84	BOLT; FINAL DRIVE GEAR (A) M16X37.5 FLANGE	1-09020-167-0	16	1	0712-1011				●
84	BOLT; FINAL DRIVE GEAR (A) M16X37.5 FLANGE	1-09020-167-0	16	1	1012-	●			●
85	NUT; DIFF CAGE SETTING (B) M14	1-09400-077-1	08	1	1003-		●	●
85	NUT; DIFF CAGE SETTING (A) M14	1-09400-077-1	12	1	0712-1011				●
85	NUT; DIFF CAGE SETTING (A) M14	1-09400-077-1	12	1	1012-	●			●
88	PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	02	1	1003-		●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	0712-1011				●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1012-	●			●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	0712-1011				●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1012-	●			●
89	BOLT; LK PLATE (B) M8X12 FLANGE	8-94479-696-1	04	1	1003-		●	●
89	BOLT; LK PLATE (A) M8X16	0-20850-816-0	04	1	0712-1011				●
89	BOLT; LK PLATE (A) M8X16	0-20850-816-0	04	1	1012-	●			●
100	SEAL; OIL,FINAL PINION (B) NOK	1-09625-484-1	01	1	1003-		●	●
100	SEAL; OIL,FINAL PINION (B) TKK	1-09625-637-0	01	1	1003-		●	●
100	SEAL; OIL,FINAL PINION (A) NOK	1-09625-017-0	01	1	0712-1011				●
100	SEAL; OIL,FINAL PINION (A) NOK	1-09625-017-0	01	1	1012-	●			●
126	COUPLING; DRIVING PINION (B)	1-37245-414-0	01	1	1003-		●	●
126	COUPLING; DRIVING PINION (A)	1-37245-388-0	01	1	0712-1011				●
126	COUPLING; DRIVING PINION (A)	1-37245-388-0	01	1	1012-	●			●
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	1003-		●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1003-		●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1003-		●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1003-		●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1003-		●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1003-		●	●
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	1003-		●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1003-		●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1003-		●	●
194	PLUG DIFF LOCK<C3N> M12X9	9-99202-312-0	01	1	1003-1304		●	●
194	PLUG DIFF LOCK<C3N> M12X9	0-92002-412-0	01	1	1305-		●	●
222	RING; SNAP DIFF LOCK<C3N>	1-09588-186-0	01	1	1003-		●	●
252	GASKET; CARRIER DIFF LOCK<C3N> ID=14.2	8-94462-114-0	01	1	1003-		●	●
253	NUT DIFF LOCK<C3N> M12	0-91111-512-0	01	1	1003-		●	●
339	BOLT; COVER DIFF LOCK<C3N> (A) M8X16 W/LK WASHER	0-50540-816-0	04	1	1003-1203		●	●
339	BOLT; COVER DIFF LOCK<C3N> (B) M6X14,M8X17 L=42	5-09309-006-1	04	1	1204-		●	●
356	NIPPLE; SHIFT UNIT DIFF LOCK<C3N> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-		●	●
408	CLAW; CLU,DIFF LK DIFF LOCK<C3N>	1-41266-025-0	01	1	1003-		●	●
411	SLEEVE; CLU DIFF LOCK<C3N>	1-41266-027-0	01	1	1003-		●	●
413	CYLINDER; DIFF LK DIFF LOCK<C3N>	1-41279-021-0	01	1	1003-		●	●
416	GASKET DIFF LOCK<C3N> ID=43.7	9-09561-344-0	01	1	1003-		●	●
437	FORK ASM; SHIFT,DIFF LK DIFF LOCK<C3N>	1-41271-015-0	01	1	1003-		●	●
438	ROD; SHIFTER,DIFF LK DIFF LOCK<C3N>	1-41271-014-0	01	1	1003-		●	●
439	SPRING; RETUN,DIFF LK DIFF LOCK<C3N>	1-09580-507-0	01	1	1003-		●	●
440	SCREW SET; DIFF LK DIFF LOCK<C3N> M12X31	1-09120-021-0	01	1	1003-		●	●
441	PISTON; CHAMBER,DIFF LK DIFF LOCK<C3N>	1-41279-020-0	01	1	1003-		●	●
442	COVER; CARRIER,DIFF LK DIFF LOCK<C3N>	1-41117-005-0	01	1	1003-		●	●
443	SWITCH; STROKE DIFF LOCK<C3N>	1-82340-534-0	01	1	1003-		●	●
444	BALL DIFF LOCK<C3N>	9-00097-010-0	01	1	1003-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
