Sayfa 4-20 - Isuzu EPC

4-20 — REAR AXLE CASE AND SHAFT (#66732) — 400 parça

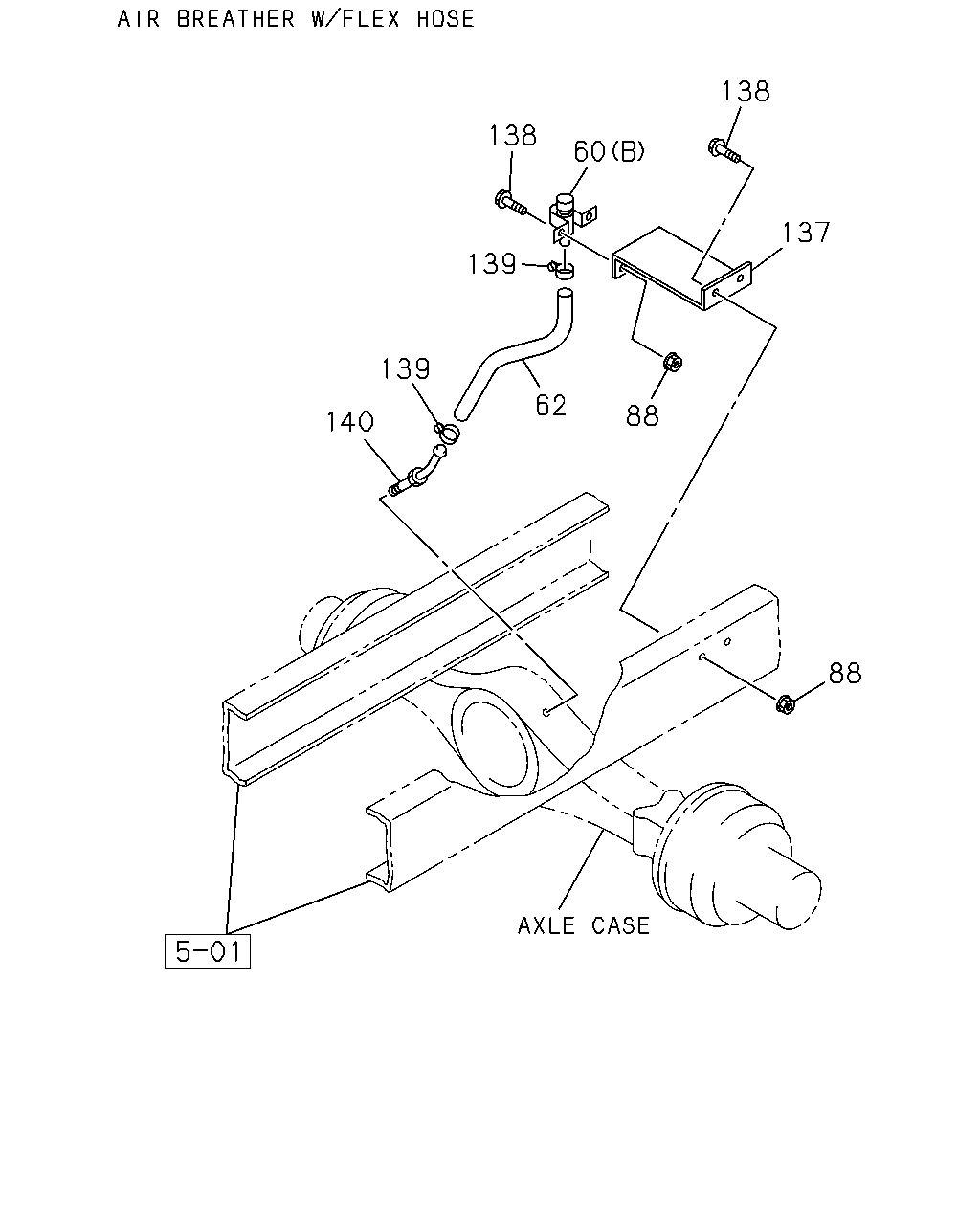

138 138 60 137 139 139 62 88 140 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
60	BREATHER; RR AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	1-09893-009-0	01	1	0712-	●
60	BREATHER; RR AXLE CASE (B)	1-09893-009-0	01	1	0712-		●
60	BREATHER; RR AXLE CASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	1-09893-007-0	01	1	0712-	●
60	BREATHER; RR AXLE CASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AIRBREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	0712-1306	●
60	BREATHER; RR AXLE CASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AIRBREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	1307-	●
62	HOSE; RUBBER,BREATHER,RR AXLE AIR BREATHER W/FLEX HOSE<C4M>	0-02811-500-0	01	1	0712-0908	●
62	HOSE; RUBBER,BREATHER,RR AXLE	0-02811-500-0	01	1	0712-0908		●
62	HOSE; RUBBER,BREATHER,RR AXLE AIR BREATHER W/FLEX HOSE<C4M>	0-02811-400-0	01	1	0909-	●
62	HOSE; RUBBER,BREATHER,RR AXLE	0-02811-400-0	01	1	0909-		●
88	NUT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE	0-91180-108-0	04	1	0712-0908	●
88	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0712-0908		●
88	NUT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE	0-91180-108-0	02	1	0909-	●
88	NUT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE	0-91180-108-0	02	1	0909-	●
88	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0909-		●
88	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0909-		●
137	BRACKET; BREATHER,RR AXLE AIR BREATHER W/FLEX HOSE<C4M>	1-42129-122-0	01	1	0712-	●
137	BRACKET; BREATHER,RR AXLE	1-42129-122-0	01	1	0712-		●
138	BOLT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8X20 FLANGE	0-28050-820-0	02	1	0909-	●
138	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	02	1	0909-		●
138	BOLT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28650-825-0	04	1	0712-0908	●
138	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0712-0908		●
138	BOLT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28650-825-0	02	1	0909-	●
138	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0909-		●
139	CLIP; WIRE AIR BREATHER W/FLEX HOSE<C4M> ID=18	1-09707-011-1	02	1	0712-0908	●
139	CLIP; WIRE ID=18	1-09707-011-1	02	1	0712-0908		●
139	CLIP; WIRE AIR BREATHER W/FLEX HOSE<C4M> ID=18	1-09707-011-1	01	1	0909-	●
139	CLIP; WIRE AIR BREATHER W/FLEX HOSE<C4M> ID=18	1-09707-011-1	01	1	0909-	●
139	CLIP; WIRE ID=18	1-09707-011-1	01	1	0909-		●
139	CLIP; WIRE ID=18	1-09707-011-1	01	1	0909-		●
140	CONNECTOR; AXLE CASE AIR BREATHER W/FLEX HOSE<C4M>	1-09669-080-2	01	1	0712-	●
140	CONNECTOR; AXLE CASE	1-09669-080-2	01	1	0712-		●

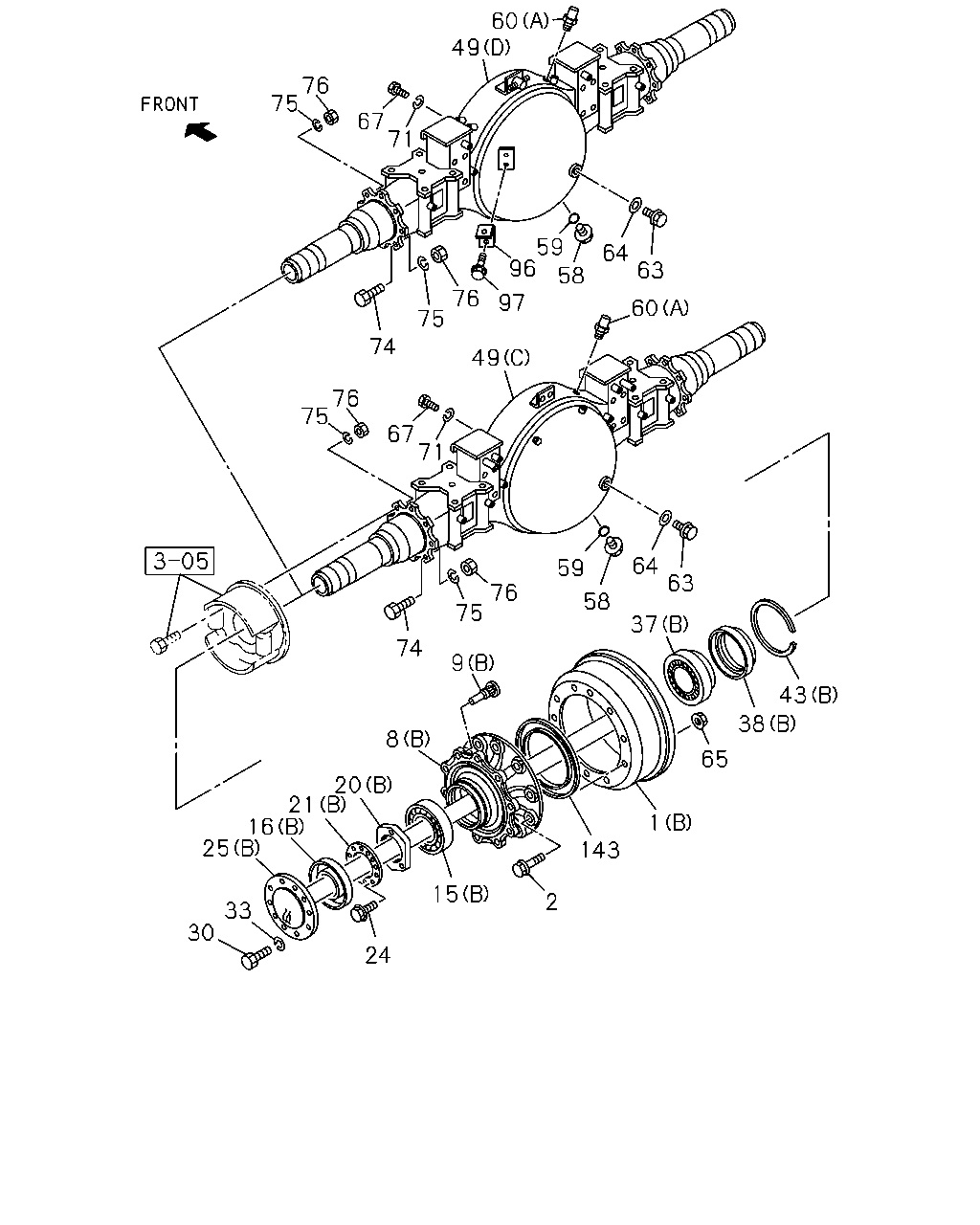

60 49 76 75 67 71 59 96 64 63 58 76 75 97 60 74 49 76 75 67 71 64 63 59 76 75 58 37 74 9 43 38 8 65 20 21 16 25 1 143 15 2 33 30 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B)	1-42315-380-0	02	1	1003-	●
1	DRUM; BRK,RR (A)	1-42315-355-0	02	1	0712-1002	●	●
1	DRUM; BRK,RR FINAL GEAR 39/7 15.5"(W3K) (A)	1-42315-355-0	02	1	1003-1011	●
1	DRUM; BRK,RR (A)	1-42315-355-0	02	1	1003-1011		●
1	DRUM; BRK,RR FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A)	1-42315-355-0	02	1	1012-	●
1	DRUM; BRK,RR (A)	1-42315-355-0	02	1	1012-		●
2	BOLT; BRK DRUM FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M22X54	1-09000-275-1	20	1	1003-	●
8	HUB; RR AXLE FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> (A)	1-42311-105-0	02	1	1411-	●
8	HUB; RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (B)	8-98136-845-0	02	1	1003-	●
8	HUB; RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5> (B)	8-98136-844-0	02	1	1003-	●
8	HUB; RR AXLE (A)	1-42311-104-0	02	1	0712-1002	●	●
8	HUB; RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A)	1-42311-104-0	02	1	1003-1011	●
8	HUB; RR AXLE (A)	1-42311-104-0	02	1	1003-1011		●
8	HUB; RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A)	1-42311-104-0	02	1	1012-1404	●
8	HUB; RR AXLE (A)	1-42311-104-0	02	1	1012-1404		●
8	HUB; RR AXLE FINAL GEAR 39/6 15.5"(W1T) (A)	1-42311-104-0	02	1	1405-	●
8	HUB; RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. ANTI LOCK BRAKE<JE5> (A)	1-42311-104-0	02	1	1405-	●
8	HUB; RR AXLE (A)	1-42311-104-0	02	1	1405-		●
9	PIN; WHEEL,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M22X67 RH THREAD	1-42337-097-1	20	1	1003-	●
9	PIN; WHEEL,RR AXLE (A) M20X34.5,M22X53.5 RH THREAD	1-42331-117-2	08	1	0712-1002	●	●
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) M20X34.5,M22X53.5 RH THREAD	1-42331-117-2	08	1	1003-1011	●
9	PIN; WHEEL,RR AXLE (A) M20X34.5,M22X53.5 RH THREAD	1-42331-117-2	08	1	1003-1011		●
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) M20X34.5,M22X53.5 RH THREAD	1-42331-117-2	08	1	1012-	●
9	PIN; WHEEL,RR AXLE (A) M20X34.5,M22X53.5 RH THREAD	1-42331-117-2	08	1	1012-		●
9	PIN; WHEEL,RR AXLE (A) M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-2	08	1	0712-1002	●	●
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-2	08	1	1003-1011	●
9	PIN; WHEEL,RR AXLE (A) M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-2	08	1	1003-1011		●
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-2	08	1	1012-	●
9	PIN; WHEEL,RR AXLE (A) M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-2	08	1	1012-		●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) SKF	1-09812-256-0	02	1	1209-	●
15	BEARING; HUB OUTER,RR AXLE (A) SKF	1-09812-256-0	02	1	1209-		●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) BEST VALUE PARTS	1-87610-136-0	02	1	1209-	●
15	BEARING; HUB OUTER,RR AXLE (A) BEST VALUE PARTS	1-87610-136-0	02	1	1209-		●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) NSK	1-09812-153-0	02	1	1003-	●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) JTEKT	1-09812-154-0	02	1	1003-	●
15	BEARING; HUB OUTER,RR AXLE (A) JTEKT	1-09812-232-0	02	1	0712-1002	●	●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) JTEKT	1-09812-232-0	02	1	1003-1011	●
15	BEARING; HUB OUTER,RR AXLE (A) JTEKT	1-09812-232-0	02	1	1003-1011		●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) JTEKT	1-09812-232-0	02	1	1012-	●
15	BEARING; HUB OUTER,RR AXLE (A) JTEKT	1-09812-232-0	02	1	1012-		●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) NOK	9-09924-468-0	02	1	1003-	●
16	SEAL; OIL,RR HUB,OUTER (A) TKK	1-09625-444-0	02	1	0712-1002	●	●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 39/7 15.5"(W3K) (A) TKK	1-09625-444-0	02	1	1003-1011	●
16	SEAL; OIL,RR HUB,OUTER (A) TKK	1-09625-444-0	02	1	1003-1011		●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) TKK	1-09625-444-0	02	1	1012-	●
16	SEAL; OIL,RR HUB,OUTER (A) TKK	1-09625-444-0	02	1	1012-		●
20	NUT; BRG,RR HUB FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M74.6	9-09843-064-2	02	1	1003-	●
20	NUT; BRG,RR HUB FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) M88	9-09843-062-2	02	1	0712-0811	●	●
20	NUT; BRG,RR HUB (A) M88	9-09843-062-2	02	1	0812-1002	●	●
20	NUT; BRG,RR HUB FINAL GEAR 39/7 15.5"(W3K) (A) M88	9-09843-062-2	02	1	1003-1011	●
20	NUT; BRG,RR HUB (A) M88	9-09843-062-2	02	1	1003-1011		●
20	NUT; BRG,RR HUB FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) M88	9-09843-062-2	02	1	1012-1404	●
20	NUT; BRG,RR HUB (A) M88	9-09843-062-2	02	1	1012-1404		●
20	NUT; BRG,RR HUB FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) M88	9-09843-062-2	02	1	1405-	●	●
21	WASHER; LK,BRG NUT FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) ID=74.6	1-09533-008-0	02	1	1003-	●
21	WASHER; LK,BRG NUT (A) ID=88	9-09854-112-0	02	1	0712-1002	●	●
21	WASHER; LK,BRG NUT FINAL GEAR 39/7 15.5"(W3K) (A) ID=88	9-09854-112-0	02	1	1003-1011	●
21	WASHER; LK,BRG NUT (A) ID=88	9-09854-112-0	02	1	1003-1011		●
21	WASHER; LK,BRG NUT FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) ID=88	9-09854-112-0	02	1	1012-	●
21	WASHER; LK,BRG NUT (A) ID=88	9-09854-112-0	02	1	1012-		●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0712-	●	●
25	SHAFT; AXLE,RR DIFF LOCK<C3N> (B) L=1137	8-98139-718-0	01	1	1003-	●
25	SHAFT; AXLE,RR FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) L=1049	8-98139-716-0	01	1	1003-	●
25	SHAFT; AXLE,RR FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. DIFF LOCK<C3N> (B) L=1137	8-98139-717-0	01	1	1003-	●
25	SHAFT; AXLE,RR (A) L=1020	1-42171-434-0	02	1	0712-1002	●	●
25	SHAFT; AXLE,RR FINAL GEAR 39/7 15.5"(W3K) (A) L=1020	1-42171-434-0	02	1	1003-1011	●
25	SHAFT; AXLE,RR (A) L=1020	1-42171-434-0	02	1	1003-1011		●
25	SHAFT; AXLE,RR FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) L=1020	1-42171-434-0	02	1	1012-	●
25	SHAFT; AXLE,RR (A) L=1020	1-42171-434-0	02	1	1012-		●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0712-	●	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	0712-	●	●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) BEST VALUE PARTS	1-87610-138-0	02	1	1209-	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1209-		●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) SKF	1-09812-257-0	02	1	1209-	●
37	BEARING; HUB INNER,RR AXLE (A) SKF	1-09812-257-0	02	1	1209-		●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) NSK	1-09812-150-0	02	1	1003-	●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) NACHI	1-09812-151-0	02	1	1003-	●
37	BEARING; HUB INNER,RR AXLE (A) JTEKT	1-09812-233-0	02	1	0712-1002	●	●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) JTEKT	1-09812-233-0	02	1	1003-1011	●
37	BEARING; HUB INNER,RR AXLE (A) JTEKT	1-09812-233-0	02	1	1003-1011		●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) JTEKT	1-09812-233-0	02	1	1012-	●
37	BEARING; HUB INNER,RR AXLE (A) JTEKT	1-09812-233-0	02	1	1012-		●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) TKK	9-09924-415-0	02	1	1003-	●
38	SEAL; OIL,RR HUB,INNER (A) NOK	1-09625-265-0	02	1	0712-1002	●	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/7 15.5"(W3K) (A) NOK	1-09625-265-0	02	1	1003-1011	●
38	SEAL; OIL,RR HUB,INNER (A) NOK	1-09625-265-0	02	1	1003-1011		●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) NOK	1-09625-265-0	02	1	1012-	●
38	SEAL; OIL,RR HUB,INNER (A) NOK	1-09625-265-0	02	1	1012-		●
38	SEAL; OIL,RR HUB,INNER (A) TKK	1-09625-350-0	02	1	0712-1002	●	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/7 15.5"(W3K) (A) TKK	1-09625-350-0	02	1	1003-1011	●
38	SEAL; OIL,RR HUB,INNER (A) TKK	1-09625-350-0	02	1	1003-1011		●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) TKK	1-09625-350-0	02	1	1012-	●
38	SEAL; OIL,RR HUB,INNER (A) TKK	1-09625-350-0	02	1	1012-		●
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) OD=150	9-09950-147-0	02	1	1003-	●
43	RING; SNAP,HUB SEAL,RR AXLE (A) OD=179	1-09587-057-0	02	1	0712-1002	●	●
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) OD=179	1-09587-057-0	02	1	1003-1011	●
43	RING; SNAP,HUB SEAL,RR AXLE (A) OD=179	1-09587-057-0	02	1	1003-1011		●
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) OD=179	1-09587-057-0	02	1	1012-	●
43	RING; SNAP,HUB SEAL,RR AXLE (A) OD=179	1-09587-057-0	02	1	1012-		●
49	CASE; RR AXLE FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> (A)	8-98043-946-4	01	1	1411-	●
49	CASE; RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (C)	8-98138-994-0	01	1	1003-	●
49	CASE; RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> EXC. ANTI LOCK BRAKE<JE5> (D)	8-98138-995-1	01	1	1003-	●
49	CASE; RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. DIFF LOCK<C3N> (D)	8-98138-996-0	01	1	1003-	●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98053-660-2	01	1	0712-1002	●
49	CASE; RR AXLE (A)	8-98053-660-2	01	1	0712-1002		●
49	CASE; RR AXLE FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98053-660-2	01	1	1003-1404	●
49	CASE; RR AXLE (A)	8-98053-660-2	01	1	1003-1404		●
49	CASE; RR AXLE FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE<JE5> (A)	8-98053-660-3	01	1	1405-	●
49	CASE; RR AXLE (A)	8-98053-660-3	01	1	1405-		●
49	CASE; RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98053-661-2	01	1	0712-1002	●
49	CASE; RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98053-661-2	01	1	1003-1011	●
49	CASE; RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98053-661-2	01	1	1012-1404	●
49	CASE; RR AXLE FINAL GEAR 39/6 15.5"(W1T) (B)	8-98053-661-2	01	1	1012-1404	●
49	CASE; RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE<JE5> (B)	8-98053-661-3	01	1	1405-	●
49	CASE; RR AXLE FINAL GEAR 39/6 15.5"(W1T) (B)	8-98053-661-3	01	1	1405-	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0712-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0712-	●	●
60	BREATHER; RR AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	1-09893-009-0	01	1	0712-	●
60	BREATHER; RR AXLE CASE (B)	1-09893-009-0	01	1	0712-		●
60	BREATHER; RR AXLE CASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	1-09893-007-0	01	1	0712-	●
60	BREATHER; RR AXLE CASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AIRBREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	0712-1306	●
60	BREATHER; RR AXLE CASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AIRBREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	1307-	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0712-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0712-	●	●
65	NUT FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M22 FLANGE	1-09440-065-0	20	1	1003-	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. DIFF LOCK<C3N> M12X35	0-20951-235-0	08	1	1307-1401	●
67	BOLT; FINAL DRIVE SETTING DIFF LOCK<C3N> M12X35	0-20951-235-0	06	1	1003-	●
67	BOLT; FINAL DRIVE SETTING DIFF LOCK<C3N> M12X105	8-97029-869-0	02	1	1003-	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X60	0-10956-260-0	04	1	1003-	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. DIFF LOCK<C3N> M12X35	0-20951-235-0	08	1	1003-1306	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. DIFF LOCK<C3N> M12X35	0-20951-235-0	08	1	1402-	●
67	BOLT; FINAL DRIVE SETTING M14X40	0-20951-440-0	08	1	0712-1002	●	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 15.5"(W3K) M14X40	0-20951-440-0	08	1	1003-1011	●
67	BOLT; FINAL DRIVE SETTING M14X40	0-20951-440-0	08	1	1003-1011		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) M14X40	0-20951-440-0	08	1	1012-	●
67	BOLT; FINAL DRIVE SETTING M14X40	0-20951-440-0	08	1	1012-		●
67	BOLT; FINAL DRIVE SETTING M14X65	9-92061-465-0	04	1	0712-1002	●	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 15.5"(W3K) M14X65	9-92061-465-0	04	1	1003-1011	●
67	BOLT; FINAL DRIVE SETTING M14X65	9-92061-465-0	04	1	1003-1011		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) M14X65	9-92061-465-0	04	1	1012-	●
67	BOLT; FINAL DRIVE SETTING M14X65	9-92061-465-0	04	1	1012-		●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ID=12.2	0-91510-812-0	12	1	1003-1410	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	0-91510-812-0	12	1	1411-	●
71	WASHER; LK,FINAL DRIVE SETTING ID=14.2	0-91510-814-0	12	1	0712-1002	●	●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 39/7 15.5"(W3K) ID=14.2	0-91510-814-0	12	1	1003-1011	●
71	WASHER; LK,FINAL DRIVE SETTING ID=14.2	0-91510-814-0	12	1	1003-1011		●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) ID=14.2	0-91510-814-0	12	1	1012-	●
71	WASHER; LK,FINAL DRIVE SETTING ID=14.2	0-91510-814-0	12	1	1012-		●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> M14X60	1-09040-084-0	04	1	1505-1505	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	16	1	1411-	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	16	1	1411-	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/6 15.5"(W1T) M14X50	1-09040-066-0	16	1	1411-	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> M14X80	9-92621-480-0	04	1	1003-1410	●
74	BOLT; RR BRK ASM SETTING ANTI LOCK BRAKE<JE5> M14X80	9-92621-480-0	04	1	1411-1504	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> M14X80	9-92621-480-0	04	1	1505-1505	●
74	BOLT; RR BRK ASM SETTING ANTI LOCK BRAKE<JE5> M14X80	9-92621-480-0	04	1	1506-	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	16	1	1003-1011	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	16	1	1003-1011	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	16	1	1012-1306	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	16	1	1012-1306	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/6 15.5"(W1T) M14X50	1-09040-066-0	16	1	1012-1306	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	12	1	1307-1401	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	16	1	1402-1410	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	16	1	1402-1410	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/6 15.5"(W1T) M14X50	1-09040-066-0	16	1	1402-1410	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	10	1	1411-	●
74	BOLT; RR BRK ASM SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	14	1	0712-1002	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	0712-1002		●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	14	1	1003-1404	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	1003-1404		●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	14	1	1405-	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	1405-		●
74	BOLT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	16	1	0712-1002	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	12	1	1003-1306	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	16	1	1307-1401	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	16	1	1307-1401	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/6 15.5"(W1T) M14X50	1-09040-066-0	16	1	1307-1401	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	12	1	1402-	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0712-	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0712-	●	●
96	BRACKET; LSPV,AXLE CASE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5>	1-47475-073-0	01	1	1003-	●
97	BOLT; BRKT,LSPV FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5> M8X16 FLANGE	0-28050-816-0	02	1	1003-	●
143	RING; EXCITER FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5>	1-42319-173-0	02	1	1411-	●
143	RING; EXCITER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5>	1-42319-198-0	02	1	1003-	●

75 76 67 71 60 49 59 64 63 58 49 60 76 75 74 76 75 67 71 74 75 76 59 58 10 64 63 43 38 37 1 143 8 15 9 20 21 16 25 33 30 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B)	1-42315-380-0	02	1	1003-	●
1	DRUM; BRK,RR (A)	1-42315-355-0	02	1	0712-1002	●	●
1	DRUM; BRK,RR FINAL GEAR 39/7 15.5"(W3K) (A)	1-42315-355-0	02	1	1003-1011	●
1	DRUM; BRK,RR (A)	1-42315-355-0	02	1	1003-1011		●
1	DRUM; BRK,RR FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A)	1-42315-355-0	02	1	1012-	●
1	DRUM; BRK,RR (A)	1-42315-355-0	02	1	1012-		●
8	HUB; RR AXLE FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> (A)	1-42311-105-0	02	1	1411-	●
8	HUB; RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (B)	8-98136-845-0	02	1	1003-	●
8	HUB; RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5> (B)	8-98136-844-0	02	1	1003-	●
8	HUB; RR AXLE (A)	1-42311-104-0	02	1	0712-1002	●	●
8	HUB; RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A)	1-42311-104-0	02	1	1003-1011	●
8	HUB; RR AXLE (A)	1-42311-104-0	02	1	1003-1011		●
8	HUB; RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A)	1-42311-104-0	02	1	1012-1404	●
8	HUB; RR AXLE (A)	1-42311-104-0	02	1	1012-1404		●
8	HUB; RR AXLE FINAL GEAR 39/6 15.5"(W1T) (A)	1-42311-104-0	02	1	1405-	●
8	HUB; RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. ANTI LOCK BRAKE<JE5> (A)	1-42311-104-0	02	1	1405-	●
8	HUB; RR AXLE (A)	1-42311-104-0	02	1	1405-		●
9	PIN; WHEEL,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M22X67 RH THREAD	1-42337-097-1	20	1	1003-	●
9	PIN; WHEEL,RR AXLE (A) M20X34.5,M22X53.5 RH THREAD	1-42331-117-2	08	1	0712-1002	●	●
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) M20X34.5,M22X53.5 RH THREAD	1-42331-117-2	08	1	1003-1011	●
9	PIN; WHEEL,RR AXLE (A) M20X34.5,M22X53.5 RH THREAD	1-42331-117-2	08	1	1003-1011		●
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) M20X34.5,M22X53.5 RH THREAD	1-42331-117-2	08	1	1012-	●
9	PIN; WHEEL,RR AXLE (A) M20X34.5,M22X53.5 RH THREAD	1-42331-117-2	08	1	1012-		●
9	PIN; WHEEL,RR AXLE (A) M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-2	08	1	0712-1002	●	●
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-2	08	1	1003-1011	●
9	PIN; WHEEL,RR AXLE (A) M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-2	08	1	1003-1011		●
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-2	08	1	1012-	●
9	PIN; WHEEL,RR AXLE (A) M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-2	08	1	1012-		●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	0712-1002	●	●
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR 39/7 15.5"(W3K) M22 FLANGE	1-09440-065-0	16	1	1003-1011	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	1003-1011		●
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) M22 FLANGE	1-09440-065-0	16	1	1012-	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	1012-		●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) SKF	1-09812-256-0	02	1	1209-	●
15	BEARING; HUB OUTER,RR AXLE (A) SKF	1-09812-256-0	02	1	1209-		●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) BEST VALUE PARTS	1-87610-136-0	02	1	1209-	●
15	BEARING; HUB OUTER,RR AXLE (A) BEST VALUE PARTS	1-87610-136-0	02	1	1209-		●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) NSK	1-09812-153-0	02	1	1003-	●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) JTEKT	1-09812-154-0	02	1	1003-	●
15	BEARING; HUB OUTER,RR AXLE (A) JTEKT	1-09812-232-0	02	1	0712-1002	●	●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) JTEKT	1-09812-232-0	02	1	1003-1011	●
15	BEARING; HUB OUTER,RR AXLE (A) JTEKT	1-09812-232-0	02	1	1003-1011		●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) JTEKT	1-09812-232-0	02	1	1012-	●
15	BEARING; HUB OUTER,RR AXLE (A) JTEKT	1-09812-232-0	02	1	1012-		●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) NOK	9-09924-468-0	02	1	1003-	●
16	SEAL; OIL,RR HUB,OUTER (A) TKK	1-09625-444-0	02	1	0712-1002	●	●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 39/7 15.5"(W3K) (A) TKK	1-09625-444-0	02	1	1003-1011	●
16	SEAL; OIL,RR HUB,OUTER (A) TKK	1-09625-444-0	02	1	1003-1011		●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) TKK	1-09625-444-0	02	1	1012-	●
16	SEAL; OIL,RR HUB,OUTER (A) TKK	1-09625-444-0	02	1	1012-		●
20	NUT; BRG,RR HUB FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M74.6	9-09843-064-2	02	1	1003-	●
20	NUT; BRG,RR HUB FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) M88	9-09843-062-2	02	1	0712-0811	●	●
20	NUT; BRG,RR HUB (A) M88	9-09843-062-2	02	1	0812-1002	●	●
20	NUT; BRG,RR HUB FINAL GEAR 39/7 15.5"(W3K) (A) M88	9-09843-062-2	02	1	1003-1011	●
20	NUT; BRG,RR HUB (A) M88	9-09843-062-2	02	1	1003-1011		●
20	NUT; BRG,RR HUB FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) M88	9-09843-062-2	02	1	1012-1404	●
20	NUT; BRG,RR HUB (A) M88	9-09843-062-2	02	1	1012-1404		●
20	NUT; BRG,RR HUB FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) M88	9-09843-062-2	02	1	1405-	●	●
21	WASHER; LK,BRG NUT FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) ID=74.6	1-09533-008-0	02	1	1003-	●
21	WASHER; LK,BRG NUT (A) ID=88	9-09854-112-0	02	1	0712-1002	●	●
21	WASHER; LK,BRG NUT FINAL GEAR 39/7 15.5"(W3K) (A) ID=88	9-09854-112-0	02	1	1003-1011	●
21	WASHER; LK,BRG NUT (A) ID=88	9-09854-112-0	02	1	1003-1011		●
21	WASHER; LK,BRG NUT FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) ID=88	9-09854-112-0	02	1	1012-	●
21	WASHER; LK,BRG NUT (A) ID=88	9-09854-112-0	02	1	1012-		●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0712-	●	●
25	SHAFT; AXLE,RR DIFF LOCK<C3N> (B) L=1137	8-98139-718-0	01	1	1003-	●
25	SHAFT; AXLE,RR FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) L=1049	8-98139-716-0	01	1	1003-	●
25	SHAFT; AXLE,RR FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. DIFF LOCK<C3N> (B) L=1137	8-98139-717-0	01	1	1003-	●
25	SHAFT; AXLE,RR (A) L=1020	1-42171-434-0	02	1	0712-1002	●	●
25	SHAFT; AXLE,RR FINAL GEAR 39/7 15.5"(W3K) (A) L=1020	1-42171-434-0	02	1	1003-1011	●
25	SHAFT; AXLE,RR (A) L=1020	1-42171-434-0	02	1	1003-1011		●
25	SHAFT; AXLE,RR FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) L=1020	1-42171-434-0	02	1	1012-	●
25	SHAFT; AXLE,RR (A) L=1020	1-42171-434-0	02	1	1012-		●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0712-	●	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	0712-	●	●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) BEST VALUE PARTS	1-87610-138-0	02	1	1209-	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1209-		●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) SKF	1-09812-257-0	02	1	1209-	●
37	BEARING; HUB INNER,RR AXLE (A) SKF	1-09812-257-0	02	1	1209-		●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) NSK	1-09812-150-0	02	1	1003-	●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) NACHI	1-09812-151-0	02	1	1003-	●
37	BEARING; HUB INNER,RR AXLE (A) JTEKT	1-09812-233-0	02	1	0712-1002	●	●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) JTEKT	1-09812-233-0	02	1	1003-1011	●
37	BEARING; HUB INNER,RR AXLE (A) JTEKT	1-09812-233-0	02	1	1003-1011		●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) JTEKT	1-09812-233-0	02	1	1012-	●
37	BEARING; HUB INNER,RR AXLE (A) JTEKT	1-09812-233-0	02	1	1012-		●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) TKK	9-09924-415-0	02	1	1003-	●
38	SEAL; OIL,RR HUB,INNER (A) NOK	1-09625-265-0	02	1	0712-1002	●	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/7 15.5"(W3K) (A) NOK	1-09625-265-0	02	1	1003-1011	●
38	SEAL; OIL,RR HUB,INNER (A) NOK	1-09625-265-0	02	1	1003-1011		●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) NOK	1-09625-265-0	02	1	1012-	●
38	SEAL; OIL,RR HUB,INNER (A) NOK	1-09625-265-0	02	1	1012-		●
38	SEAL; OIL,RR HUB,INNER (A) TKK	1-09625-350-0	02	1	0712-1002	●	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/7 15.5"(W3K) (A) TKK	1-09625-350-0	02	1	1003-1011	●
38	SEAL; OIL,RR HUB,INNER (A) TKK	1-09625-350-0	02	1	1003-1011		●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) TKK	1-09625-350-0	02	1	1012-	●
38	SEAL; OIL,RR HUB,INNER (A) TKK	1-09625-350-0	02	1	1012-		●
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) OD=150	9-09950-147-0	02	1	1003-	●
43	RING; SNAP,HUB SEAL,RR AXLE (A) OD=179	1-09587-057-0	02	1	0712-1002	●	●
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) OD=179	1-09587-057-0	02	1	1003-1011	●
43	RING; SNAP,HUB SEAL,RR AXLE (A) OD=179	1-09587-057-0	02	1	1003-1011		●
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) OD=179	1-09587-057-0	02	1	1012-	●
43	RING; SNAP,HUB SEAL,RR AXLE (A) OD=179	1-09587-057-0	02	1	1012-		●
49	CASE; RR AXLE FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> (A)	8-98043-946-4	01	1	1411-	●
49	CASE; RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (C)	8-98138-994-0	01	1	1003-	●
49	CASE; RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> EXC. ANTI LOCK BRAKE<JE5> (D)	8-98138-995-1	01	1	1003-	●
49	CASE; RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. DIFF LOCK<C3N> (D)	8-98138-996-0	01	1	1003-	●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98053-660-2	01	1	0712-1002	●
49	CASE; RR AXLE (A)	8-98053-660-2	01	1	0712-1002		●
49	CASE; RR AXLE FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98053-660-2	01	1	1003-1404	●
49	CASE; RR AXLE (A)	8-98053-660-2	01	1	1003-1404		●
49	CASE; RR AXLE FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE<JE5> (A)	8-98053-660-3	01	1	1405-	●
49	CASE; RR AXLE (A)	8-98053-660-3	01	1	1405-		●
49	CASE; RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98053-661-2	01	1	0712-1002	●
49	CASE; RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98053-661-2	01	1	1003-1011	●
49	CASE; RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98053-661-2	01	1	1012-1404	●
49	CASE; RR AXLE FINAL GEAR 39/6 15.5"(W1T) (B)	8-98053-661-2	01	1	1012-1404	●
49	CASE; RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE<JE5> (B)	8-98053-661-3	01	1	1405-	●
49	CASE; RR AXLE FINAL GEAR 39/6 15.5"(W1T) (B)	8-98053-661-3	01	1	1405-	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0712-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0712-	●	●
60	BREATHER; RR AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	1-09893-009-0	01	1	0712-	●
60	BREATHER; RR AXLE CASE (B)	1-09893-009-0	01	1	0712-		●
60	BREATHER; RR AXLE CASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	1-09893-007-0	01	1	0712-	●
60	BREATHER; RR AXLE CASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AIRBREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	0712-1306	●
60	BREATHER; RR AXLE CASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AIRBREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	1307-	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0712-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0712-	●	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. DIFF LOCK<C3N> M12X35	0-20951-235-0	08	1	1307-1401	●
67	BOLT; FINAL DRIVE SETTING DIFF LOCK<C3N> M12X35	0-20951-235-0	06	1	1003-	●
67	BOLT; FINAL DRIVE SETTING DIFF LOCK<C3N> M12X105	8-97029-869-0	02	1	1003-	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X60	0-10956-260-0	04	1	1003-	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. DIFF LOCK<C3N> M12X35	0-20951-235-0	08	1	1003-1306	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. DIFF LOCK<C3N> M12X35	0-20951-235-0	08	1	1402-	●
67	BOLT; FINAL DRIVE SETTING M14X40	0-20951-440-0	08	1	0712-1002	●	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 15.5"(W3K) M14X40	0-20951-440-0	08	1	1003-1011	●
67	BOLT; FINAL DRIVE SETTING M14X40	0-20951-440-0	08	1	1003-1011		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) M14X40	0-20951-440-0	08	1	1012-	●
67	BOLT; FINAL DRIVE SETTING M14X40	0-20951-440-0	08	1	1012-		●
67	BOLT; FINAL DRIVE SETTING M14X65	9-92061-465-0	04	1	0712-1002	●	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 15.5"(W3K) M14X65	9-92061-465-0	04	1	1003-1011	●
67	BOLT; FINAL DRIVE SETTING M14X65	9-92061-465-0	04	1	1003-1011		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) M14X65	9-92061-465-0	04	1	1012-	●
67	BOLT; FINAL DRIVE SETTING M14X65	9-92061-465-0	04	1	1012-		●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ID=12.2	0-91510-812-0	12	1	1003-1410	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	0-91510-812-0	12	1	1411-	●
71	WASHER; LK,FINAL DRIVE SETTING ID=14.2	0-91510-814-0	12	1	0712-1002	●	●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 39/7 15.5"(W3K) ID=14.2	0-91510-814-0	12	1	1003-1011	●
71	WASHER; LK,FINAL DRIVE SETTING ID=14.2	0-91510-814-0	12	1	1003-1011		●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) ID=14.2	0-91510-814-0	12	1	1012-	●
71	WASHER; LK,FINAL DRIVE SETTING ID=14.2	0-91510-814-0	12	1	1012-		●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> M14X60	1-09040-084-0	04	1	1505-1505	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	16	1	1411-	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	16	1	1411-	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/6 15.5"(W1T) M14X50	1-09040-066-0	16	1	1411-	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> M14X80	9-92621-480-0	04	1	1003-1410	●
74	BOLT; RR BRK ASM SETTING ANTI LOCK BRAKE<JE5> M14X80	9-92621-480-0	04	1	1411-1504	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> M14X80	9-92621-480-0	04	1	1505-1505	●
74	BOLT; RR BRK ASM SETTING ANTI LOCK BRAKE<JE5> M14X80	9-92621-480-0	04	1	1506-	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	16	1	1003-1011	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	16	1	1003-1011	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	16	1	1012-1306	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	16	1	1012-1306	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/6 15.5"(W1T) M14X50	1-09040-066-0	16	1	1012-1306	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	12	1	1307-1401	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	16	1	1402-1410	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	16	1	1402-1410	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/6 15.5"(W1T) M14X50	1-09040-066-0	16	1	1402-1410	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	10	1	1411-	●
74	BOLT; RR BRK ASM SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	14	1	0712-1002	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	0712-1002		●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	14	1	1003-1404	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	1003-1404		●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	14	1	1405-	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	1405-		●
74	BOLT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	16	1	0712-1002	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	12	1	1003-1306	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	1-09040-066-0	16	1	1307-1401	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	16	1	1307-1401	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/6 15.5"(W1T) M14X50	1-09040-066-0	16	1	1307-1401	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> M14X50	1-09040-066-0	12	1	1402-	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0712-	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0712-	●	●
143	RING; EXCITER FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5>	1-42319-173-0	02	1	1411-	●
143	RING; EXCITER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5>	1-42319-198-0	02	1	1003-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
