Sayfa 4-12 - Isuzu EPC

4-12 — FRONT DRIVE SHAFT (#66729) — 283 parça

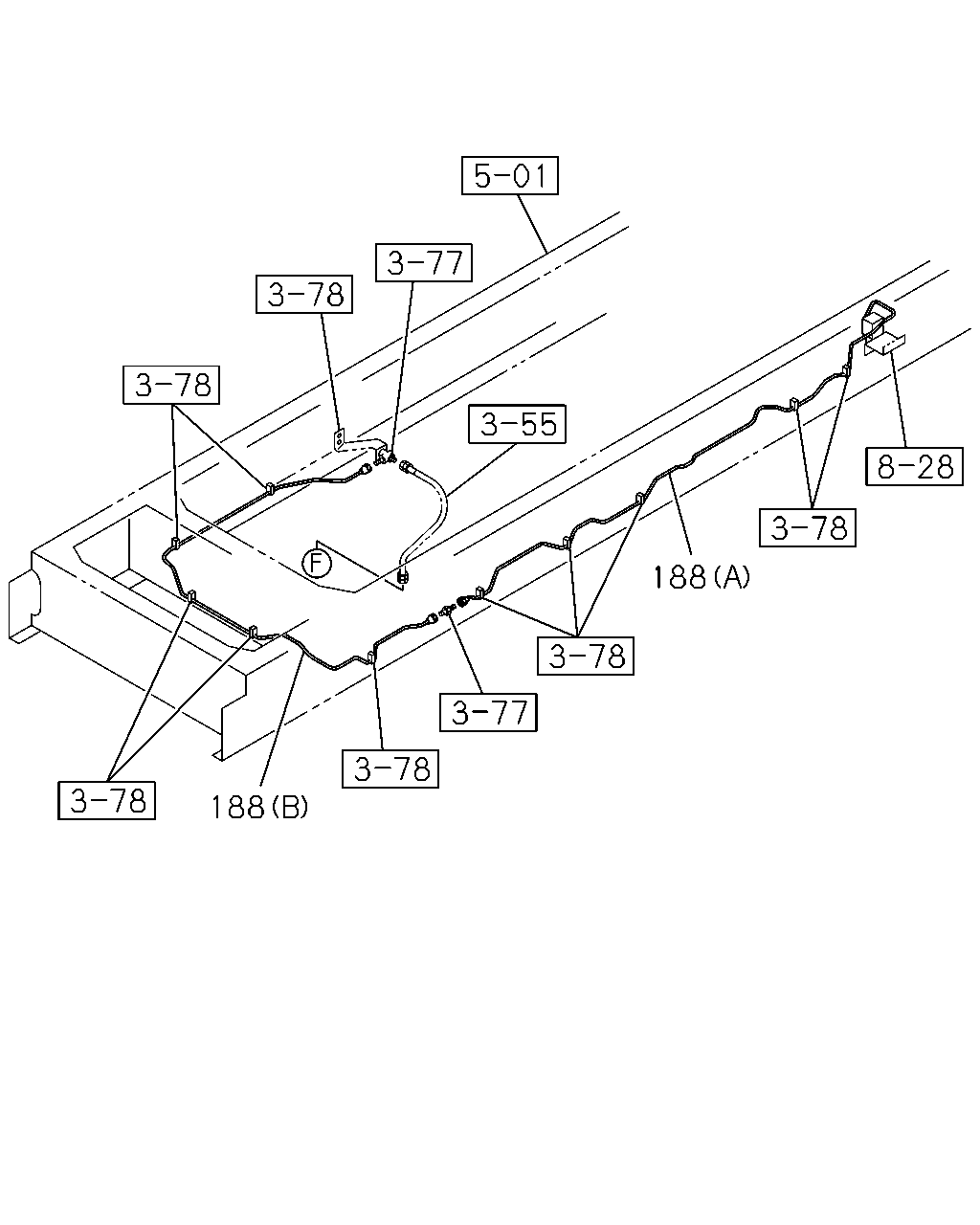

188 188

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	188	PIPE; AIR,DIFF LOCK REARWARD INNER SINGLE TIRE<YK3> (A) L=2166 SERVICED BY L=2200	1-47428-824-0	01	1	1003-	●
	188	PIPE; AIR,DIFF LOCK REARWARD INNER SINGLE TIRE<YK3> (B) L=2049 SERVICED BY L=2200	1-47428-824-0	01	1	1003-	●

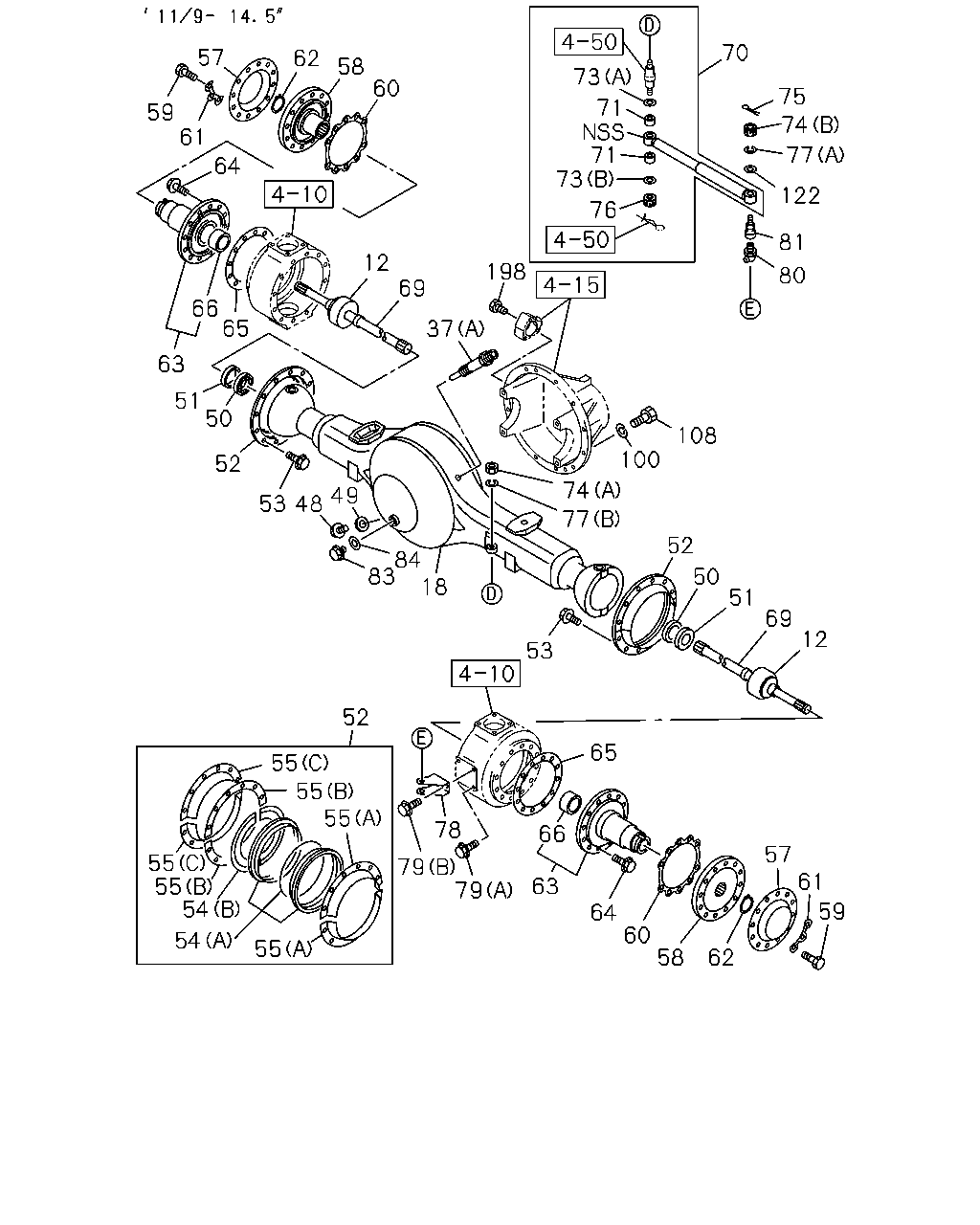

70 57 62 58 73 60 75 71 71 73 59 61 74 77 64 122 76 81 12 198 80 69 66 65 37 63 51 50 108 74 100 52 49 77 52 84 83 18 50 51 69 12 53 52 65 55 55 55 78 66 55 55 54 57 61 79 79 63 59 64 60 58 54 55 62 53 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	0712-1001	●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	0712-1001	●	●
12	JOINT ASM	1-43330-018-0	02	1	1002-	●	●
18	CASE; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98082-671-3	01	1	1003-1108	●
18	CASE; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98200-134-0	01	1	1109-	●
18	CASE; FRT AXLE	8-98011-801-2	01	1	0712-1002	●	●
18	CASE; FRT AXLE FINAL GEAR 39/7 15.5"(W3K)	8-98011-801-2	01	1	1003-1011	●
18	CASE; FRT AXLE	8-98011-801-2	01	1	1003-1011		●
18	CASE; FRT AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K)	8-98011-801-2	01	1	1012-1109	●
18	CASE; FRT AXLE	8-98011-801-2	01	1	1012-1109		●
18	CASE; FRT AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K)	8-98200-146-0	01	1	1110-	●
18	CASE; FRT AXLE	8-98200-146-0	01	1	1110-		●

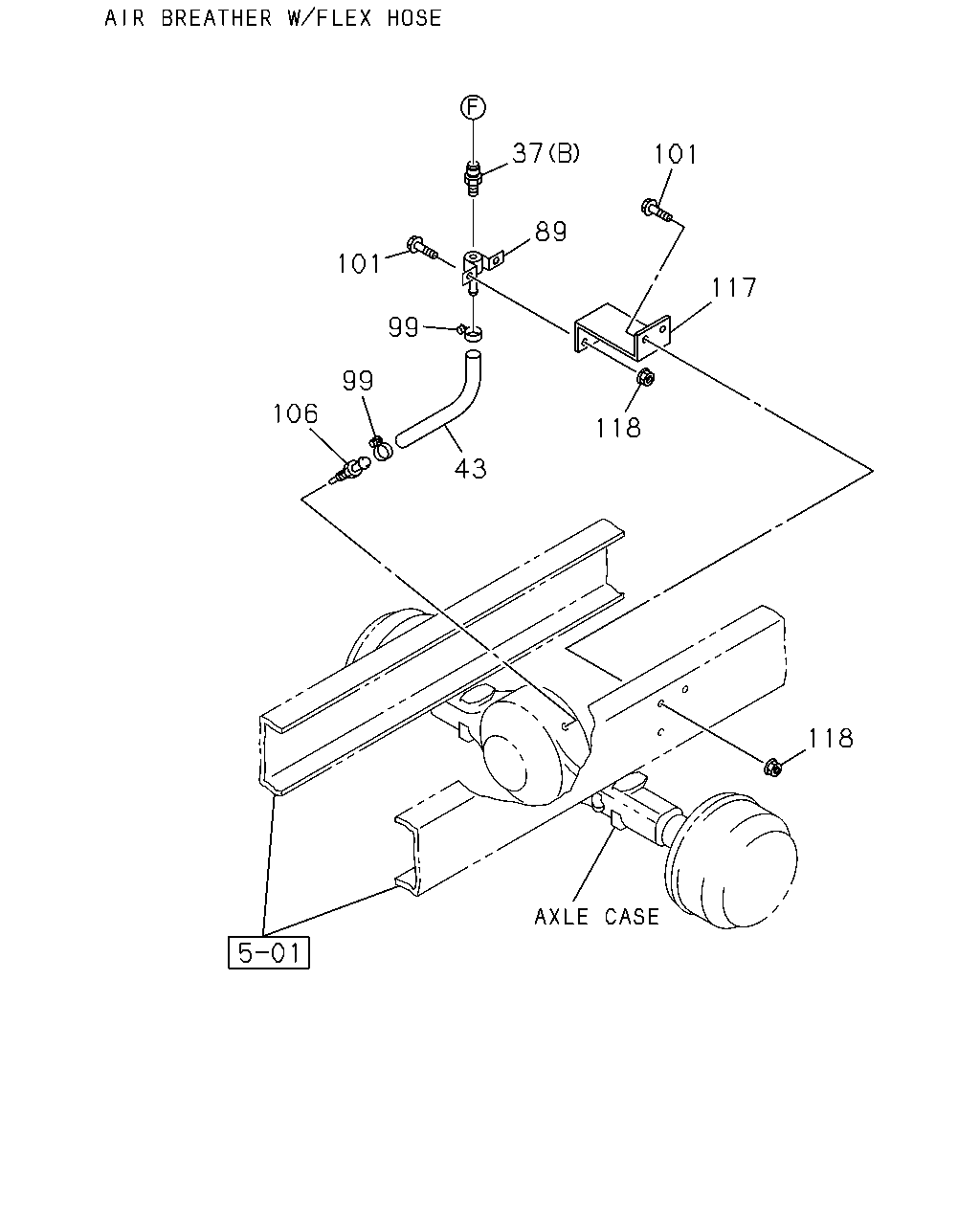

37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	0712-	●
37	BREATHER; FRT AXLE CASE (B)	9-36122-013-0	01	1	0712-		●
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	0712-	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0712-	●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0712-	●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	0712-	●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	0712-	●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	0712-	●	●
53	BOLT; OIL SEAL EXC. ANTI LOCK BRAKE<JE5> M8X12 FLANGE	0-28050-812-0	20	1	1003-	●
53	BOLT; OIL SEAL M8X12 FLANGE	0-28050-812-0	20	1	1003-		●
53	BOLT; OIL SEAL EXC. ANTI LOCK BRAKE<JE5> M8X16 FLANGE	0-28050-816-0	04	1	1003-	●
53	BOLT; OIL SEAL M8X16 FLANGE	0-28050-816-0	04	1	1003-		●
53	BOLT; OIL SEAL M8X16 FLANGE	0-28050-816-0	02	1	0712-0803	●	●
53	BOLT; OIL SEAL M8X16 FLANGE	0-28050-816-0	04	1	0804-1002	●	●
53	BOLT; OIL SEAL ANTI LOCK BRAKE<JE5> M8X16 FLANGE	0-28050-816-0	08	1	1003-	●
53	BOLT; OIL SEAL M8X12 FLANGE	0-28050-812-0	24	1	0712-0712	●	●
53	BOLT; OIL SEAL M8X12 FLANGE	0-28050-812-0	22	1	0712-0803	●	●
53	BOLT; OIL SEAL M8X12 FLANGE	0-28050-812-0	20	1	0804-1002	●	●
53	BOLT; OIL SEAL ANTI LOCK BRAKE<JE5> M8X12 FLANGE	0-28050-812-0	16	1	1003-	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	0712-	●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	0712-	●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	0712-	●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	0712-	●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	0712-	●	●
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	0712-1001	●	●
57	COVER; FLANGE,FRT AXLE SHAFT	9-42313-116-0	02	1	1002-	●	●
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	0712-1001	●	●
58	FLANGE; AXLE SHAFT,FRT	1-42312-028-0	02	1	1002-	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	0712-1001	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT M12X45	9-09804-239-1	20	1	1002-	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	0712-1001	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT	1-42175-001-0	02	1	1002-	●	●
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	0712-1001	●	●
61	PLATE; LK,FLANGE	1-43319-005-0	08	1	1002-	●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	0712-	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98082-198-0	02	1	1003-	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	0712-0902	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	0903-1002	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT FINAL GEAR 39/7 15.5"(W3K)	1-43241-061-0	02	1	1003-1011	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	1003-1011		●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K)	1-43241-061-0	02	1	1012-	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	1012-		●
64	BOLT; SPINDLE FINAL GEAR 39/7 15.5"(W3K) M12X50 FLANGE	0-29261-250-0	16	1	1004-1005	●
64	BOLT; SPINDLE M12X50 FLANGE	0-29261-250-0	16	1	1004-1005		●
64	BOLT; SPINDLE ANTI LOCK BRAKE<JE5> M12X70 FLANGE	0-28061-270-0	04	1	1003-	●
64	BOLT; SPINDLE EXC. ANTI LOCK BRAKE<JE5> M12X45 FLANGE	0-28061-245-0	16	1	1003-1003	●
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1003-1003		●
64	BOLT; SPINDLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5> M12X45 FLANGE	0-28061-245-0	16	1	1004-1005	●
64	BOLT; SPINDLE EXC. ANTI LOCK BRAKE<JE5> M12X45 FLANGE	0-28061-245-0	16	1	1006-	●
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1006-		●
64	BOLT; SPINDLE M12X30 FLANGE	0-28661-230-0	08	1	0712-0912	●	●
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1001-	●	●
64	BOLT; SPINDLE M12X50 FLANGE	0-29261-250-0	16	1	0712-0912	●	●
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1001-1002	●	●
64	BOLT; SPINDLE ANTI LOCK BRAKE<JE5> M12X45 FLANGE	0-28061-245-0	12	1	1003-	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	0712-	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-008-0	02	1	0712-0902	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	0903-	●	●
69	SHAFT; AXLE,FRT INNER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98082-680-2	01	1	1003-	●
69	SHAFT; AXLE,FRT INNER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98082-681-2	01	1	1003-	●
69	SHAFT; AXLE,FRT INNER	1-43311-063-0	01	1	0712-1002	●	●
69	SHAFT; AXLE,FRT INNER FINAL GEAR 39/7 15.5"(W3K)	1-43311-063-0	01	1	1003-1011	●
69	SHAFT; AXLE,FRT INNER	1-43311-063-0	01	1	1003-1011		●
69	SHAFT; AXLE,FRT INNER FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K)	1-43311-063-0	01	1	1012-	●
69	SHAFT; AXLE,FRT INNER	1-43311-063-0	01	1	1012-		●
69	SHAFT; AXLE,FRT INNER	1-43311-064-0	01	1	0712-1002	●	●
69	SHAFT; AXLE,FRT INNER FINAL GEAR 39/7 15.5"(W3K)	1-43311-064-0	01	1	1003-1011	●
69	SHAFT; AXLE,FRT INNER	1-43311-064-0	01	1	1003-1011		●
69	SHAFT; AXLE,FRT INNER FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K)	1-43311-064-0	01	1	1012-	●
69	SHAFT; AXLE,FRT INNER	1-43311-064-0	01	1	1012-		●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	0712-	●	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	0712-	●	●
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	0712-	●	●
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	0712-	●	●
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	0712-	●	●
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	0712-	●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	0712-	●	●
76	NUT; LWR,FRT S/ABS	9-51631-083-0	01	1	0712-	●	●
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	0712-	●	●
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	0712-	●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	0712-	●	●
79	BOLT; BRKT (A) M12X20 FLANGE	0-28051-220-0	02	1	0712-	●	●
79	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	0712-	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0712-	●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	0712-	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	0712-	●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	0712-	●	●
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	0-91510-812-0	12	1	0712-	●	●
108	BOLT; FRT FINAL DRIVE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X60	0-10956-260-0	04	1	1003-	●
108	BOLT; FRT FINAL DRIVE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X35	0-20951-235-0	06	1	1003-	●
108	BOLT; FRT FINAL DRIVE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X105	8-97029-869-0	02	1	1003-	●
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	08	1	0712-1002	●	●
108	BOLT; FRT FINAL DRIVE FINAL GEAR 39/7 15.5"(W3K) M12X35	0-20951-235-0	08	1	1003-1011	●
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	08	1	1003-1011		●
108	BOLT; FRT FINAL DRIVE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) M12X35	0-20951-235-0	08	1	1012-	●
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	08	1	1012-		●
108	BOLT; FRT FINAL DRIVE M12X45	9-92061-245-0	04	1	0712-1002	●	●
108	BOLT; FRT FINAL DRIVE FINAL GEAR 39/7 15.5"(W3K) M12X45	9-92061-245-0	04	1	1003-1011	●
108	BOLT; FRT FINAL DRIVE M12X45	9-92061-245-0	04	1	1003-1011		●
108	BOLT; FRT FINAL DRIVE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) M12X45	9-92061-245-0	04	1	1012-	●
108	BOLT; FRT FINAL DRIVE M12X45	9-92061-245-0	04	1	1012-		●
122	WASHER; S/ABS ID=17 OD=30	0-91610-516-0	01	1	0712-	●	●
198	PLUG; COVER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X9	9-99202-312-0	01	1	1003-1304	●
198	PLUG; COVER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X9	0-92002-412-0	01	1	1305-	●

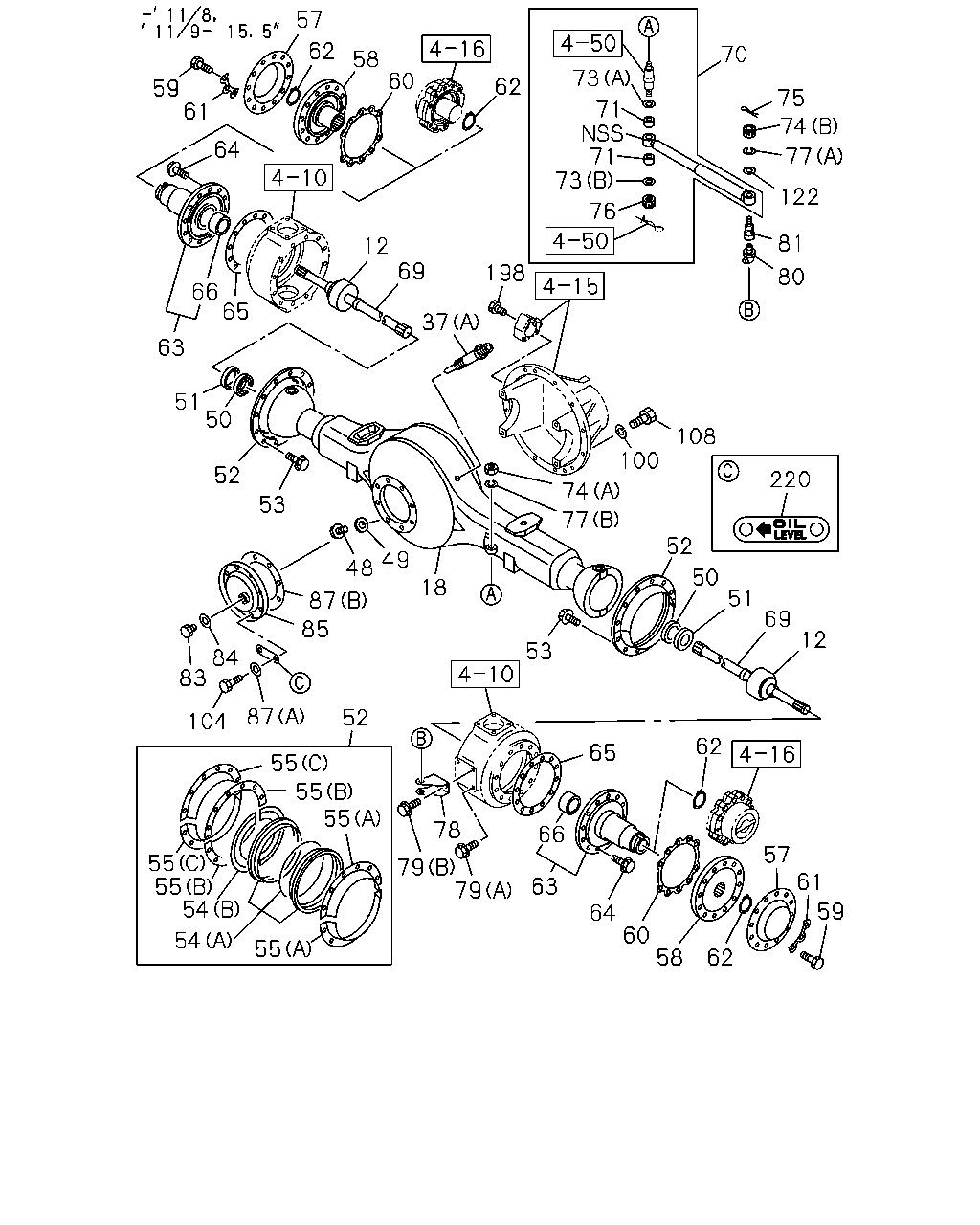

57 62 70 58 73 60 62 59 61 75 71 71 73 74 64 77 122 76 81 12 69 198 80 66 65 37 63 51 50 108 74 100 52 220 53 77 52 49 48 50 18 51 87 69 85 12 53 84 83 87 52 104 62 65 55 55 55 78 66 55 55 54 57 61 79 79 63 59 64 60 58 54 55 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	0712-1001	●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	0712-1001	●	●
12	JOINT ASM	1-43330-018-0	02	1	1002-	●	●
18	CASE; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98082-671-3	01	1	1003-1108	●
18	CASE; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98200-134-0	01	1	1109-	●
18	CASE; FRT AXLE	8-98011-801-2	01	1	0712-1002	●	●
18	CASE; FRT AXLE FINAL GEAR 39/7 15.5"(W3K)	8-98011-801-2	01	1	1003-1011	●
18	CASE; FRT AXLE	8-98011-801-2	01	1	1003-1011		●
18	CASE; FRT AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K)	8-98011-801-2	01	1	1012-1109	●
18	CASE; FRT AXLE	8-98011-801-2	01	1	1012-1109		●
18	CASE; FRT AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K)	8-98200-146-0	01	1	1110-	●
18	CASE; FRT AXLE	8-98200-146-0	01	1	1110-		●
37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	0712-	●
37	BREATHER; FRT AXLE CASE (B)	9-36122-013-0	01	1	0712-		●
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	0712-	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0712-	●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0712-	●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	0712-	●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	0712-	●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	0712-	●	●
53	BOLT; OIL SEAL EXC. ANTI LOCK BRAKE<JE5> M8X12 FLANGE	0-28050-812-0	20	1	1003-	●
53	BOLT; OIL SEAL M8X12 FLANGE	0-28050-812-0	20	1	1003-		●
53	BOLT; OIL SEAL EXC. ANTI LOCK BRAKE<JE5> M8X16 FLANGE	0-28050-816-0	04	1	1003-	●
53	BOLT; OIL SEAL M8X16 FLANGE	0-28050-816-0	04	1	1003-		●
53	BOLT; OIL SEAL M8X16 FLANGE	0-28050-816-0	02	1	0712-0803	●	●
53	BOLT; OIL SEAL M8X16 FLANGE	0-28050-816-0	04	1	0804-1002	●	●
53	BOLT; OIL SEAL ANTI LOCK BRAKE<JE5> M8X16 FLANGE	0-28050-816-0	08	1	1003-	●
53	BOLT; OIL SEAL M8X12 FLANGE	0-28050-812-0	24	1	0712-0712	●	●
53	BOLT; OIL SEAL M8X12 FLANGE	0-28050-812-0	22	1	0712-0803	●	●
53	BOLT; OIL SEAL M8X12 FLANGE	0-28050-812-0	20	1	0804-1002	●	●
53	BOLT; OIL SEAL ANTI LOCK BRAKE<JE5> M8X12 FLANGE	0-28050-812-0	16	1	1003-	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	0712-	●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	0712-	●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	0712-	●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	0712-	●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	0712-	●	●
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	0712-1001	●	●
57	COVER; FLANGE,FRT AXLE SHAFT	9-42313-116-0	02	1	1002-	●	●
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	0712-1001	●	●
58	FLANGE; AXLE SHAFT,FRT	1-42312-028-0	02	1	1002-	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	0712-1001	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT M12X45	9-09804-239-1	20	1	1002-	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	0712-1001	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT	1-42175-001-0	02	1	1002-	●	●
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	0712-1001	●	●
61	PLATE; LK,FLANGE	1-43319-005-0	08	1	1002-	●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	0712-	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98082-198-0	02	1	1003-	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	0712-0902	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	0903-1002	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT FINAL GEAR 39/7 15.5"(W3K)	1-43241-061-0	02	1	1003-1011	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	1003-1011		●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K)	1-43241-061-0	02	1	1012-	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	1012-		●
64	BOLT; SPINDLE FINAL GEAR 39/7 15.5"(W3K) M12X50 FLANGE	0-29261-250-0	16	1	1004-1005	●
64	BOLT; SPINDLE M12X50 FLANGE	0-29261-250-0	16	1	1004-1005		●
64	BOLT; SPINDLE ANTI LOCK BRAKE<JE5> M12X70 FLANGE	0-28061-270-0	04	1	1003-	●
64	BOLT; SPINDLE EXC. ANTI LOCK BRAKE<JE5> M12X45 FLANGE	0-28061-245-0	16	1	1003-1003	●
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1003-1003		●
64	BOLT; SPINDLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5> M12X45 FLANGE	0-28061-245-0	16	1	1004-1005	●
64	BOLT; SPINDLE EXC. ANTI LOCK BRAKE<JE5> M12X45 FLANGE	0-28061-245-0	16	1	1006-	●
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1006-		●
64	BOLT; SPINDLE M12X30 FLANGE	0-28661-230-0	08	1	0712-0912	●	●
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1001-	●	●
64	BOLT; SPINDLE M12X50 FLANGE	0-29261-250-0	16	1	0712-0912	●	●
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1001-1002	●	●
64	BOLT; SPINDLE ANTI LOCK BRAKE<JE5> M12X45 FLANGE	0-28061-245-0	12	1	1003-	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	0712-	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-008-0	02	1	0712-0902	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	0903-	●	●
69	SHAFT; AXLE,FRT INNER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98082-680-2	01	1	1003-	●
69	SHAFT; AXLE,FRT INNER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98082-681-2	01	1	1003-	●
69	SHAFT; AXLE,FRT INNER	1-43311-063-0	01	1	0712-1002	●	●
69	SHAFT; AXLE,FRT INNER FINAL GEAR 39/7 15.5"(W3K)	1-43311-063-0	01	1	1003-1011	●
69	SHAFT; AXLE,FRT INNER	1-43311-063-0	01	1	1003-1011		●
69	SHAFT; AXLE,FRT INNER FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K)	1-43311-063-0	01	1	1012-	●
69	SHAFT; AXLE,FRT INNER	1-43311-063-0	01	1	1012-		●
69	SHAFT; AXLE,FRT INNER	1-43311-064-0	01	1	0712-1002	●	●
69	SHAFT; AXLE,FRT INNER FINAL GEAR 39/7 15.5"(W3K)	1-43311-064-0	01	1	1003-1011	●
69	SHAFT; AXLE,FRT INNER	1-43311-064-0	01	1	1003-1011		●
69	SHAFT; AXLE,FRT INNER FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K)	1-43311-064-0	01	1	1012-	●
69	SHAFT; AXLE,FRT INNER	1-43311-064-0	01	1	1012-		●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	0712-	●	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	0712-	●	●
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	0712-	●	●
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	0712-	●	●
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	0712-	●	●
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	0712-	●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	0712-	●	●
76	NUT; LWR,FRT S/ABS	9-51631-083-0	01	1	0712-	●	●
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	0712-	●	●
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	0712-	●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	0712-	●	●
79	BOLT; BRKT (A) M12X20 FLANGE	0-28051-220-0	02	1	0712-	●	●
79	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	0712-	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0712-	●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	0712-	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	0712-	●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	0712-	●	●
85	COVER; AXLE CASE	9-42141-059-0	01	1	0712-1108	●	●
85	COVER; AXLE CASE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K)	9-42141-059-0	01	1	1109-1109	●
85	COVER; AXLE CASE	9-42141-059-0	01	1	1109-1109		●
87	GASKET; COVER,AXLE CASE (A) ID=10.2 OD=19	9-09572-010-0	08	1	0712-1108	●	●
87	GASKET; COVER,AXLE CASE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) ID=10.2 OD=19	9-09572-010-0	08	1	1109-1109	●
87	GASKET; COVER,AXLE CASE (A) ID=10.2 OD=19	9-09572-010-0	08	1	1109-1109		●
87	GASKET; COVER,AXLE CASE (B)	9-42142-026-2	01	1	0712-1108	●	●
87	GASKET; COVER,AXLE CASE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (B)	9-42142-026-2	01	1	1109-1109	●
87	GASKET; COVER,AXLE CASE (B)	9-42142-026-2	01	1	1109-1109		●
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	0-91510-812-0	12	1	0712-	●	●
104	BOLT; COVER,AXLE CASE M10X16	9-09800-874-0	08	1	0712-1108	●	●
104	BOLT; COVER,AXLE CASE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) M10X16	9-09800-874-0	08	1	1109-1109	●
104	BOLT; COVER,AXLE CASE M10X16	9-09800-874-0	08	1	1109-1109		●
108	BOLT; FRT FINAL DRIVE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X60	0-10956-260-0	04	1	1003-	●
108	BOLT; FRT FINAL DRIVE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X35	0-20951-235-0	06	1	1003-	●
108	BOLT; FRT FINAL DRIVE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X105	8-97029-869-0	02	1	1003-	●
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	08	1	0712-1002	●	●
108	BOLT; FRT FINAL DRIVE FINAL GEAR 39/7 15.5"(W3K) M12X35	0-20951-235-0	08	1	1003-1011	●
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	08	1	1003-1011		●
108	BOLT; FRT FINAL DRIVE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) M12X35	0-20951-235-0	08	1	1012-	●
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	08	1	1012-		●
108	BOLT; FRT FINAL DRIVE M12X45	9-92061-245-0	04	1	0712-1002	●	●
108	BOLT; FRT FINAL DRIVE FINAL GEAR 39/7 15.5"(W3K) M12X45	9-92061-245-0	04	1	1003-1011	●
108	BOLT; FRT FINAL DRIVE M12X45	9-92061-245-0	04	1	1003-1011		●
108	BOLT; FRT FINAL DRIVE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) M12X45	9-92061-245-0	04	1	1012-	●
108	BOLT; FRT FINAL DRIVE M12X45	9-92061-245-0	04	1	1012-		●
122	WASHER; S/ABS ID=17 OD=30	0-91610-516-0	01	1	0712-	●	●
198	PLUG; COVER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X9	9-99202-312-0	01	1	1003-1304	●
198	PLUG; COVER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X9	0-92002-412-0	01	1	1305-	●
220	PLATE	9-83996-444-1	01	1	0712-1002	●	●
220	PLATE FINAL GEAR 39/7 15.5"(W3K)	9-83996-444-1	01	1	1003-1005	●
220	PLATE	9-83996-444-1	01	1	1003-1005		●
220	PLATE	9-83996-444-1	01	1	1006-1108	●	●
220	PLATE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K)	9-83996-444-1	01	1	1109-1109	●
220	PLATE	9-83996-444-1	01	1	1109-1109		●

37 101 89 101 117 99 99 106 118 43 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	0712-	●
37	BREATHER; FRT AXLE CASE (B)	9-36122-013-0	01	1	0712-		●
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	0712-	●
43	HOSE; RUBBER,AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M> L=640 SERVICED BY L=3000	0-02857-300-0	01	1	0712-0908	●
43	HOSE; RUBBER,AIR BREATHER L=640 SERVICED BY L=3000	0-02857-300-0	01	1	0712-0908		●
43	HOSE; RUBBER,AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M> L=440 SERVICED BY L=3000	0-02857-300-0	01	1	0909-	●
43	HOSE; RUBBER,AIR BREATHER L=440 SERVICED BY L=3000	0-02857-300-0	01	1	0909-		●
89	ADAPTER; AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M>	1-09669-066-0	01	1	0712-	●
89	ADAPTER; AIR BREATHER	1-09669-066-0	01	1	0712-		●
99	CLIP; RUBBER HOSE AIR BREATHER W/FLEX HOSE<C4M> ID=15	1-09704-018-1	02	1	0712-0908	●
99	CLIP; RUBBER HOSE ID=15	1-09704-018-1	02	1	0712-0908		●
99	CLIP; RUBBER HOSE AIR BREATHER W/FLEX HOSE<C4M> ID=15	1-09704-018-1	01	1	0909-	●
99	CLIP; RUBBER HOSE AIR BREATHER W/FLEX HOSE<C4M> ID=15	1-09704-018-1	01	1	0909-	●
99	CLIP; RUBBER HOSE ID=15	1-09704-018-1	01	1	0909-		●
99	CLIP; RUBBER HOSE ID=15	1-09704-018-1	01	1	0909-		●
101	BOLT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8X20 FLANGE	0-28050-820-0	02	1	0909-	●
101	BOLT; BRKT,ADAPTER M8X20 FLANGE	0-28050-820-0	02	1	0909-		●
101	BOLT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28650-825-0	04	1	0712-0908	●
101	BOLT; BRKT,ADAPTER M8X25 FLANGE	0-28650-825-0	04	1	0712-0908		●
101	BOLT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28650-825-0	02	1	0909-	●
101	BOLT; BRKT,ADAPTER M8X25 FLANGE	0-28650-825-0	02	1	0909-		●
106	CONNECTOR; RUBBER HOSE AIR BREATHER W/FLEX HOSE<C4M>	1-09669-081-0	01	1	0712-	●
106	CONNECTOR; RUBBER HOSE	1-09669-081-0	01	1	0712-		●
117	BRACKET; ADAPTER,AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M>	1-42129-203-0	01	1	0712-	●
117	BRACKET; ADAPTER,AIR BREATHER	1-42129-203-0	01	1	0712-		●
118	NUT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE	0-91180-108-0	04	1	0712-0908	●
118	NUT; BRKT,ADAPTER M8 FLANGE	0-91180-108-0	04	1	0712-0908		●
118	NUT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE	0-91180-108-0	02	1	0909-	●
118	NUT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE	0-91180-108-0	02	1	0909-	●
118	NUT; BRKT,ADAPTER M8 FLANGE	0-91180-108-0	02	1	0909-		●
118	NUT; BRKT,ADAPTER M8 FLANGE	0-91180-108-0	02	1	0909-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
