4-11 — FRONT HUB AND DRUM OR ROTOR (#66728) — 110 parça

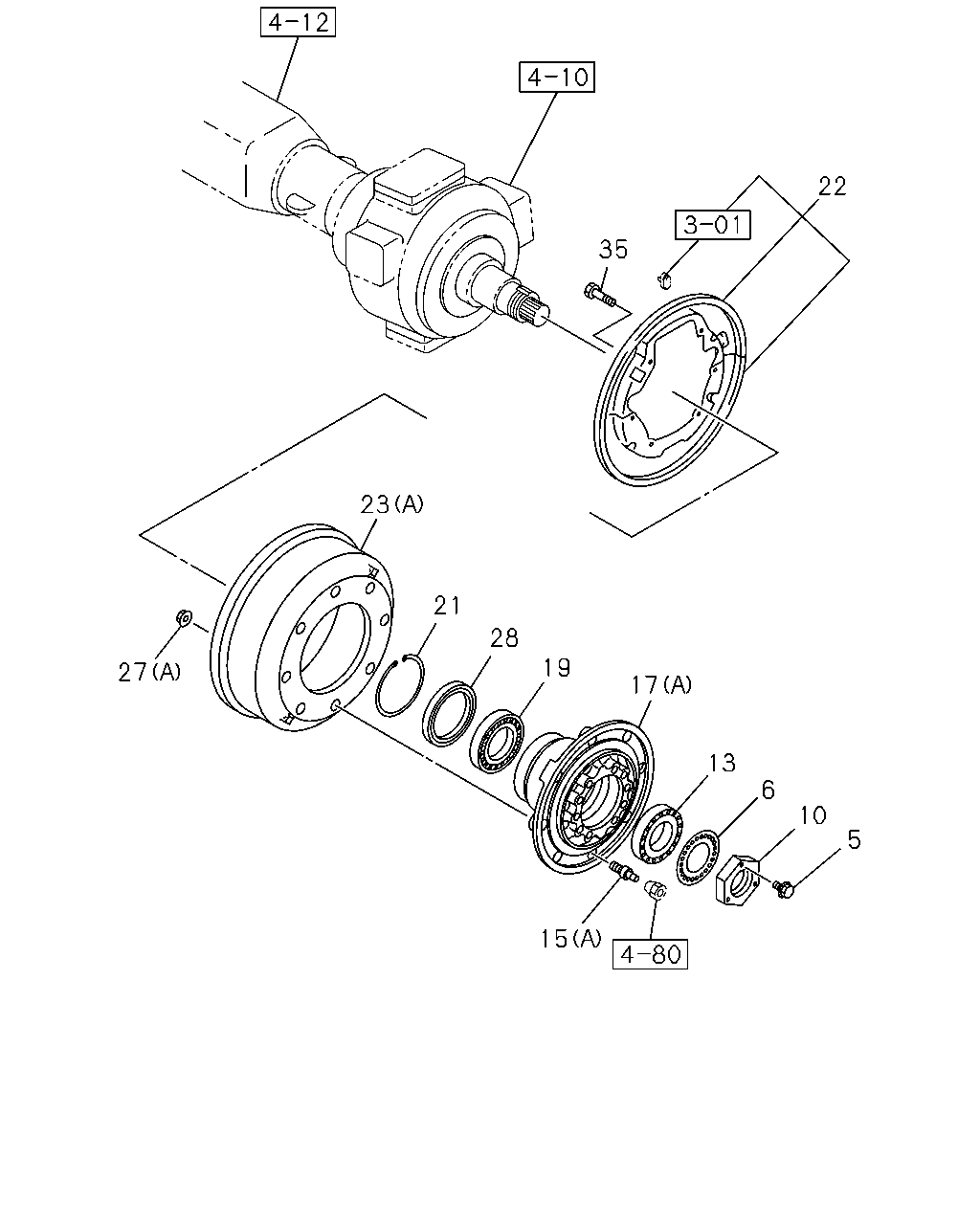

22 35 23 21 28 19 27 17 13 6 10 5 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98084-271-0	06	1	0712-1201	●	●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98200-943-0	06	1	1202-	●	●
6	WASHER; LK,FRT HUB ID=74.6	1-09533-008-0	02	1	0712-	●	●
10	NUT; FRT HUB BRG M74.6	9-09843-064-2	02	1	0712-	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-044-0	02	1	0712-1002	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-154-0	02	1	1003-	●	●
13	BEARING; HUB OUTER,FRT AXLE NACHI	1-09812-053-0	02	1	0712-1002	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-161-0	02	1	0712-1002	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-153-0	02	1	1003-	●	●
15	PIN; WHEEL,FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M22X42.8,M22X59.5 RH THREAD	1-42337-083-0	20	1	1003-1008	●
15	PIN; WHEEL,FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (C) M22X82 RH THREAD	1-42337-093-1	20	1	1009-	●
15	PIN; WHEEL,FRT AXLE (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	0712-1002	●	●
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1003-1011	●
15	PIN; WHEEL,FRT AXLE (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1003-1011		●
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1012-	●
15	PIN; WHEEL,FRT AXLE (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1012-		●
15	PIN; WHEEL,FRT AXLE (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	0712-1002	●	●
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1003-1011	●
15	PIN; WHEEL,FRT AXLE (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1003-1011		●
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1012-	●
15	PIN; WHEEL,FRT AXLE (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1012-		●
17	HUB; FRT AXLE FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> (A)	1-42312-144-1	02	1	1411-	●
17	HUB; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (B)	8-98081-888-0	02	1	1003-1008	●
17	HUB; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (B)	8-98139-836-0	02	1	1009-	●
17	HUB; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5> (B)	8-98081-887-0	02	1	1003-1008	●
17	HUB; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5> (B)	8-98139-835-0	02	1	1009-	●
17	HUB; FRT AXLE (A)	1-42312-143-1	02	1	0712-1002	●	●
17	HUB; FRT AXLE FINAL GEAR 39/7 15.5"(W3K) (A)	1-42312-143-1	02	1	1003-1011	●
17	HUB; FRT AXLE (A)	1-42312-143-1	02	1	1003-1011		●
17	HUB; FRT AXLE FINAL GEAR 39/6 15.5"(W1T) (A)	1-42312-143-1	02	1	1012-	●
17	HUB; FRT AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. ANTI LOCK BRAKE<JE5> (A)	1-42312-143-1	02	1	1012-	●
17	HUB; FRT AXLE (A)	1-42312-143-1	02	1	1012-		●
19	BEARING; HUB INNER,FRT AXLE NACHI ID=80 OD=140 T=35.3	1-09812-144-0	02	1	0712-1002	●	●
19	BEARING; HUB INNER,FRT AXLE NACHI	1-09812-151-0	02	1	1003-	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	0712-1002	●	●
19	BEARING; HUB INNER,FRT AXLE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	0712-1002	●	●
19	BEARING; HUB INNER,FRT AXLE NSK	1-09812-150-0	02	1	1003-	●	●
21	RING; SNAP,HUB OD=150	9-09950-147-0	02	1	0712-	●	●
22	COVER SET; FRT BRK DRUM	1-85576-014-1	02	1	0712-	●	●
23	DRUM; BRK,FRT FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B)	1-42315-404-0	02	1	1003-1008	●
23	DRUM; BRK,FRT FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B)	1-42315-416-0	02	1	1009-	●
23	DRUM; BRK,FRT (A)	1-42315-362-1	02	1	0712-1002	●	●
23	DRUM; BRK,FRT FINAL GEAR 39/7 15.5"(W3K) (A)	1-42315-362-1	02	1	1003-1011	●
23	DRUM; BRK,FRT (A)	1-42315-362-1	02	1	1003-1011		●
23	DRUM; BRK,FRT FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A)	1-42315-362-1	02	1	1012-	●
23	DRUM; BRK,FRT (A)	1-42315-362-1	02	1	1012-		●
27	NUT; WHEEL PIN,FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M22	1-09400-071-0	20	1	1003-1008	●
27	NUT; WHEEL PIN,FRT AXLE (A) M22 FLANGE	1-09440-065-0	16	1	0712-1002	●	●
27	NUT; WHEEL PIN,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) (A) M22 FLANGE	1-09440-065-0	16	1	1003-1011	●
27	NUT; WHEEL PIN,FRT AXLE (A) M22 FLANGE	1-09440-065-0	16	1	1003-1011		●
27	NUT; WHEEL PIN,FRT AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) M22 FLANGE	1-09440-065-0	16	1	1012-	●
27	NUT; WHEEL PIN,FRT AXLE (A) M22 FLANGE	1-09440-065-0	16	1	1012-		●
28	SEAL; OIL,FRT HUB TKK	9-09924-415-0	02	1	0712-	●	●
35	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0712-	●	●

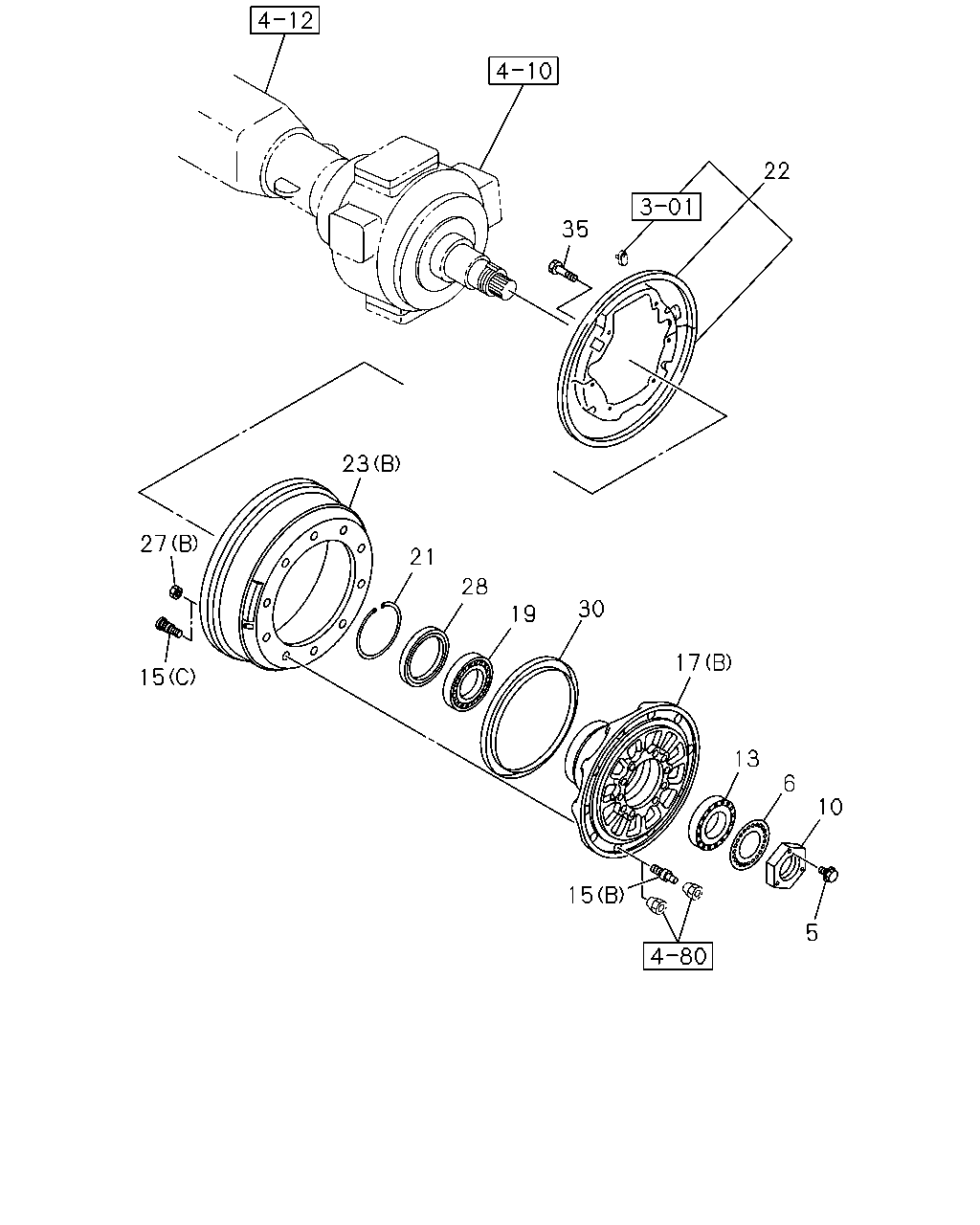

22 35 23 27 21 28 30 19 17 15 13 6 10 15 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98084-271-0	06	1	0712-1201	●	●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98200-943-0	06	1	1202-	●	●
6	WASHER; LK,FRT HUB ID=74.6	1-09533-008-0	02	1	0712-	●	●
10	NUT; FRT HUB BRG M74.6	9-09843-064-2	02	1	0712-	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-044-0	02	1	0712-1002	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-154-0	02	1	1003-	●	●
13	BEARING; HUB OUTER,FRT AXLE NACHI	1-09812-053-0	02	1	0712-1002	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-161-0	02	1	0712-1002	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-153-0	02	1	1003-	●	●
15	PIN; WHEEL,FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M22X42.8,M22X59.5 RH THREAD	1-42337-083-0	20	1	1003-1008	●
15	PIN; WHEEL,FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (C) M22X82 RH THREAD	1-42337-093-1	20	1	1009-	●
15	PIN; WHEEL,FRT AXLE (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	0712-1002	●	●
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1003-1011	●
15	PIN; WHEEL,FRT AXLE (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1003-1011		●
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1012-	●
15	PIN; WHEEL,FRT AXLE (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1012-		●
15	PIN; WHEEL,FRT AXLE (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	0712-1002	●	●
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1003-1011	●
15	PIN; WHEEL,FRT AXLE (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1003-1011		●
15	PIN; WHEEL,FRT AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1012-	●
15	PIN; WHEEL,FRT AXLE (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1012-		●
17	HUB; FRT AXLE FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> (A)	1-42312-144-1	02	1	1411-	●
17	HUB; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (B)	8-98081-888-0	02	1	1003-1008	●
17	HUB; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (B)	8-98139-836-0	02	1	1009-	●
17	HUB; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5> (B)	8-98081-887-0	02	1	1003-1008	●
17	HUB; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5> (B)	8-98139-835-0	02	1	1009-	●
17	HUB; FRT AXLE (A)	1-42312-143-1	02	1	0712-1002	●	●
17	HUB; FRT AXLE FINAL GEAR 39/7 15.5"(W3K) (A)	1-42312-143-1	02	1	1003-1011	●
17	HUB; FRT AXLE (A)	1-42312-143-1	02	1	1003-1011		●
17	HUB; FRT AXLE FINAL GEAR 39/6 15.5"(W1T) (A)	1-42312-143-1	02	1	1012-	●
17	HUB; FRT AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. ANTI LOCK BRAKE<JE5> (A)	1-42312-143-1	02	1	1012-	●
17	HUB; FRT AXLE (A)	1-42312-143-1	02	1	1012-		●
19	BEARING; HUB INNER,FRT AXLE NACHI ID=80 OD=140 T=35.3	1-09812-144-0	02	1	0712-1002	●	●
19	BEARING; HUB INNER,FRT AXLE NACHI	1-09812-151-0	02	1	1003-	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	0712-1002	●	●
19	BEARING; HUB INNER,FRT AXLE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	0712-1002	●	●
19	BEARING; HUB INNER,FRT AXLE NSK	1-09812-150-0	02	1	1003-	●	●
21	RING; SNAP,HUB OD=150	9-09950-147-0	02	1	0712-	●	●
22	COVER SET; FRT BRK DRUM	1-85576-014-1	02	1	0712-	●	●
23	DRUM; BRK,FRT FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B)	1-42315-404-0	02	1	1003-1008	●
23	DRUM; BRK,FRT FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B)	1-42315-416-0	02	1	1009-	●
23	DRUM; BRK,FRT (A)	1-42315-362-1	02	1	0712-1002	●	●
23	DRUM; BRK,FRT FINAL GEAR 39/7 15.5"(W3K) (A)	1-42315-362-1	02	1	1003-1011	●
23	DRUM; BRK,FRT (A)	1-42315-362-1	02	1	1003-1011		●
23	DRUM; BRK,FRT FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A)	1-42315-362-1	02	1	1012-	●
23	DRUM; BRK,FRT (A)	1-42315-362-1	02	1	1012-		●
27	NUT; WHEEL PIN,FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M22	1-09400-071-0	20	1	1003-1008	●
27	NUT; WHEEL PIN,FRT AXLE (A) M22 FLANGE	1-09440-065-0	16	1	0712-1002	●	●
27	NUT; WHEEL PIN,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) (A) M22 FLANGE	1-09440-065-0	16	1	1003-1011	●
27	NUT; WHEEL PIN,FRT AXLE (A) M22 FLANGE	1-09440-065-0	16	1	1003-1011		●
27	NUT; WHEEL PIN,FRT AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) (A) M22 FLANGE	1-09440-065-0	16	1	1012-	●
27	NUT; WHEEL PIN,FRT AXLE (A) M22 FLANGE	1-09440-065-0	16	1	1012-		●
28	SEAL; OIL,FRT HUB TKK	9-09924-415-0	02	1	0712-	●	●
30	RING; EXCITER,FRT HUB FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5>	1-42319-173-0	02	1	1411-	●
30	RING; EXCITER,FRT HUB FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5>	1-42319-173-0	02	1	1003-	●
35	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0712-	●	●
