Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#66727) — 278 parça

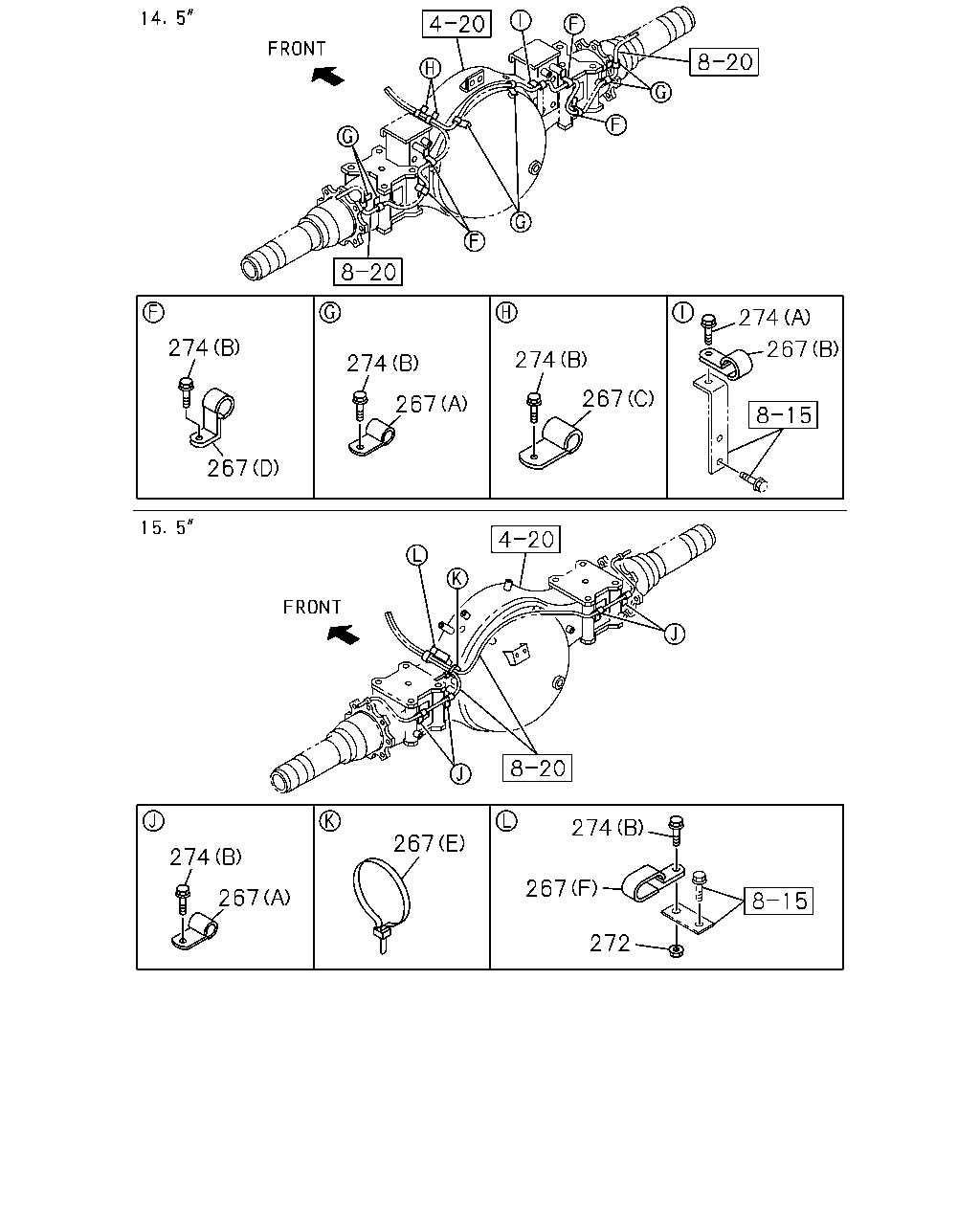

274 267 348 2 267 348 274 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	KNUCKLE; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98090-493-2	01	1	1003-	●
2	KNUCKLE; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98090-494-2	01	1	1003-	●
2	KNUCKLE; FRT AXLE	1-43242-006-3	01	1	0712-1002	●	●
2	KNUCKLE; FRT AXLE FINAL GEAR 39/7 15.5"(W3K)	1-43242-006-3	01	1	1003-1011	●
2	KNUCKLE; FRT AXLE	1-43242-006-3	01	1	1003-1011		●
2	KNUCKLE; FRT AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K)	1-43242-006-4	01	1	1012-	●
2	KNUCKLE; FRT AXLE	1-43242-006-4	01	1	1012-		●
2	KNUCKLE; FRT AXLE	9-43241-037-1	01	1	0712-1002	●	●
2	KNUCKLE; FRT AXLE FINAL GEAR 39/7 15.5"(W3K)	9-43241-037-1	01	1	1003-1011	●
2	KNUCKLE; FRT AXLE	9-43241-037-1	01	1	1003-1011		●
2	KNUCKLE; FRT AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K)	9-43241-037-2	01	1	1012-	●
2	KNUCKLE; FRT AXLE	9-43241-037-2	01	1	1012-		●
267	CLIP; HARNESS FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> (A) ID=11 L=20	0-95235-035-0	04	1	1411-	●
267	CLIP; HARNESS FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> (F) ID=11X2 L=20	0-95325-035-0	01	1	1411-	●
267	CLIP; HARNESS FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> (E) L=140	5-09707-031-1	01	1	1411-	●
267	CLIP; HARNESS FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (A) ID=11 L=16	0-95235-025-0	06	1	1003-	●
267	CLIP; HARNESS FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (B) ID=11 L=50	0-95235-085-0	01	1	1003-	●
267	CLIP; HARNESS FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (C) ID=19 L=20	0-95235-836-0	02	1	1003-	●
267	CLIP; HARNESS FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (D) ID=11 H=20 L=20	8-98033-780-0	04	1	1003-	●
267	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (A) ID=11 L=16	0-95235-025-0	02	1	1003-	●
267	CLIP; HARNESS FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> EXC. ANTI LOCK BRAKE<JE5> (A) ID=11 L=20	0-95235-035-0	02	1	1003-	●
274	BOLT; CLIP FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> (B) M8X10 FLANGE	0-28050-810-0	04	1	1411-	●
274	BOLT; CLIP FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (B) M8X10 FLANGE	0-28050-810-0	10	1	1003-	●
274	BOLT; CLIP FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (A) M8X16 FLANGE	0-28050-816-0	01	1	1003-1410	●
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> (A) M8X16 FLANGE	0-28050-816-0	01	1	1411-	●
274	BOLT; CLIP DIFF LOCK<C3N> (B) M8X10 FLANGE	0-28050-810-0	02	1	1003-1306	●
274	BOLT; CLIP DIFF LOCK<C3N> (B) M8X10 FLANGE	0-28050-810-0	02	1	1307-1401	●
274	BOLT; CLIP CONVERTING INTO 6X6<BCC> (B) M8X10 FLANGE	0-28050-810-0	02	1	1307-1401	●
274	BOLT; CLIP DIFF LOCK<C3N> (B) M8X10 FLANGE	0-28050-810-0	02	1	1402-	●
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> (A) M8X16 FLANGE	0-28050-816-0	02	1	1003-	●
348	BRACKET; CLIP ANTI LOCK BRAKE<JE5>	1-47477-539-0	01	1	1003-	●
348	BRACKET; CLIP ANTI LOCK BRAKE<JE5>	1-47477-540-0	01	1	1003-	●

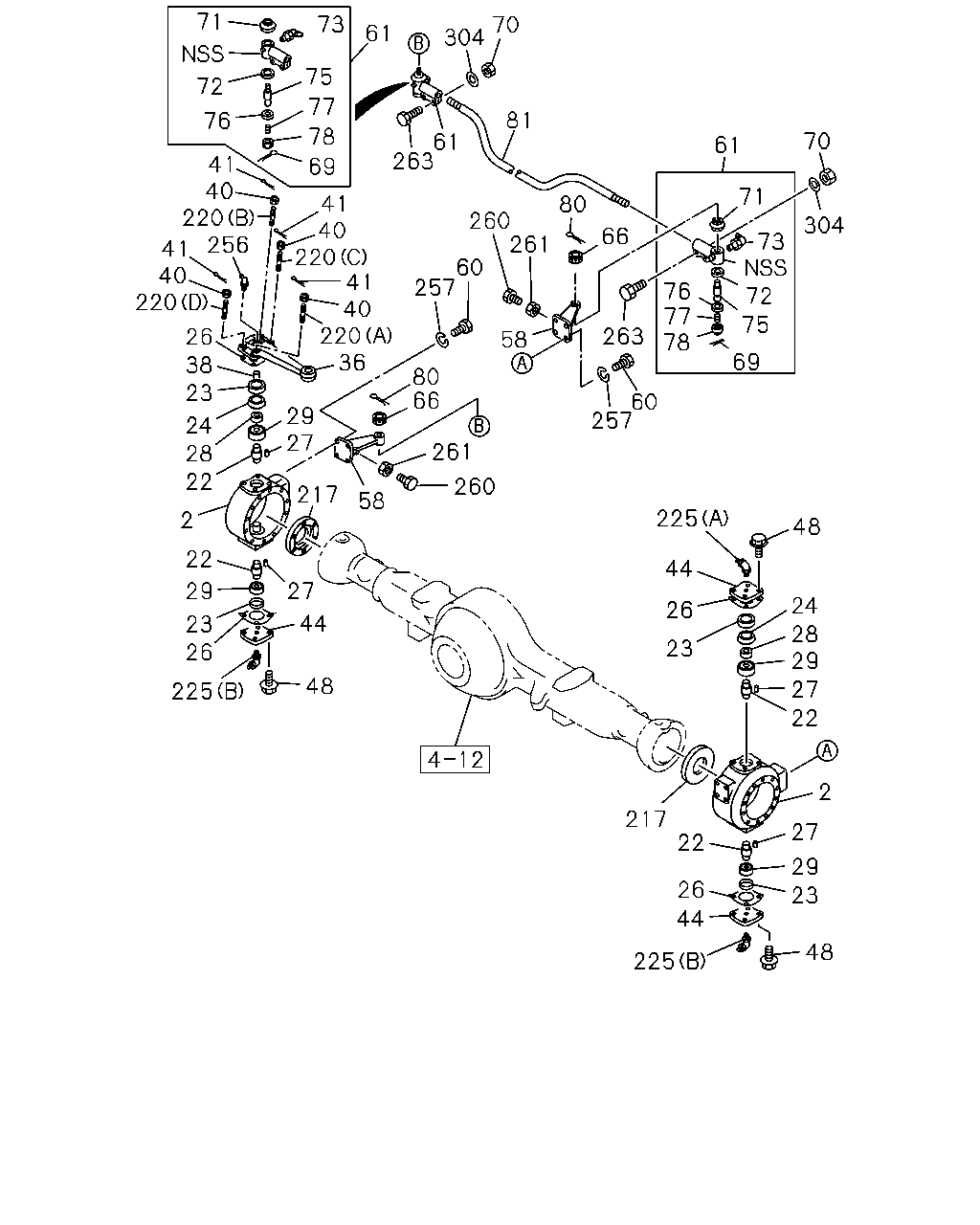

71 73 70 304 61 75 72 77 81 76 78 70 61 263 61 41 40 220 256 69 71 41 40 220 41 40 220 36 80 260 261 304 73 72 66 41 40 220 60 257 76 77 78 75 263 26 38 23 58 69 80 66 60 257 29 27 24 28 22 261 260 217 58 225 2 48 22 44 29 27 24 26 44 23 28 29 23 26 48 27 225 22 2 217 27 22 29 26 23 44 48 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	KNUCKLE; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98090-493-2	01	1	1003-	●
2	KNUCKLE; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98090-494-2	01	1	1003-	●
2	KNUCKLE; FRT AXLE	1-43242-006-3	01	1	0712-1002	●	●
2	KNUCKLE; FRT AXLE FINAL GEAR 39/7 15.5"(W3K)	1-43242-006-3	01	1	1003-1011	●
2	KNUCKLE; FRT AXLE	1-43242-006-3	01	1	1003-1011		●
2	KNUCKLE; FRT AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K)	1-43242-006-4	01	1	1012-	●
2	KNUCKLE; FRT AXLE	1-43242-006-4	01	1	1012-		●
2	KNUCKLE; FRT AXLE	9-43241-037-1	01	1	0712-1002	●	●
2	KNUCKLE; FRT AXLE FINAL GEAR 39/7 15.5"(W3K)	9-43241-037-1	01	1	1003-1011	●
2	KNUCKLE; FRT AXLE	9-43241-037-1	01	1	1003-1011		●
2	KNUCKLE; FRT AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K)	9-43241-037-2	01	1	1012-	●
2	KNUCKLE; FRT AXLE	9-43241-037-2	01	1	1012-		●
22	PIN; KING,FRT AXLE H=50	1-43264-003-0	04	1	0712-	●	●
23	COLLAR; DIST BRG	9-43267-004-0	04	1	0712-	●	●
24	RECEIVER; KING PIN	9-43269-008-0	02	1	0712-	●	●
26	SHIM; KING PIN,BRG T=0.1	9-43266-013-0	AR	1	0712-	●	●
26	SHIM; KING PIN,BRG T=0.2	9-43266-014-0	AR	1	0712-	●	●
26	SHIM; KING PIN,BRG T=0.5	9-43266-015-0	AR	1	0712-	●	●
27	PIN; STRAIGHT,KING PIN OD=5 L=10	9-08160-510-0	04	1	0712-	●	●
28	WASHER; KING PIN	9-43269-007-0	02	1	0712-	●	●
29	BEARING; KING PIN	9-00093-181-0	04	1	0712-	●	●
36	ARM; KNUCKLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	1-43261-035-0	01	1	1003-1003	●
36	ARM; KNUCKLE	1-43261-035-0	01	1	1004-	●	●
36	ARM; KNUCKLE	1-43261-029-0	01	1	0712-1002	●	●
36	ARM; KNUCKLE FINAL GEAR 39/7 15.5"(W3K)	1-43261-029-0	01	1	1003-1003	●
36	ARM; KNUCKLE	1-43261-029-0	01	1	1003-1003		●
38	KNOCK; KNUCKLE ARM	9-43269-009-1	02	1	0712-	●	●
40	NUT; KNUCKLE ARM M14 SLOTTED	0-91116-514-0	04	1	0712-	●	●
41	PIN; KNOCK,KNUCKLE ARM OD=2.8 L=25	0-81123-025-0	04	1	0712-	●	●
44	COVER; KING PIN	9-43265-007-1	03	1	0712-	●	●
48	BOLT; COVER M14X35 FLANGE	0-28861-435-0	12	1	0712-	●	●
58	ARM; TIE ROD FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98138-221-0	01	1	1003-1003	●
58	ARM; TIE ROD	8-98138-221-0	01	1	1004-	●	●
58	ARM; TIE ROD FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98138-222-0	01	1	1003-1003	●
58	ARM; TIE ROD	8-98138-222-0	01	1	1004-	●	●
58	ARM; TIE ROD	9-43262-017-1	01	1	0712-1002	●	●
58	ARM; TIE ROD FINAL GEAR 39/7 15.5"(W3K)	9-43262-017-1	01	1	1003-1003	●
58	ARM; TIE ROD	9-43262-017-1	01	1	1003-1003		●
58	ARM; TIE ROD	9-43263-011-1	01	1	0712-1002	●	●
58	ARM; TIE ROD FINAL GEAR 39/7 15.5"(W3K)	9-43263-011-1	01	1	1003-1003	●
58	ARM; TIE ROD	9-43263-011-1	01	1	1003-1003		●
60	BOLT; TIE ROD ARM M16X40	0-20951-640-0	08	1	0712-	●	●
61	ROD END; TIE ROD FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98138-799-0	01	1	1003-1003	●
61	ROD END; TIE ROD	8-98138-799-0	01	1	1004-1306	●	●
61	ROD END; TIE ROD	8-98236-792-1	01	1	1307-	●	●
61	ROD END; TIE ROD FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98138-800-0	01	1	1003-1003	●
61	ROD END; TIE ROD	8-98138-800-0	01	1	1004-1306	●	●
61	ROD END; TIE ROD	8-98236-793-1	01	1	1307-	●	●
61	ROD END; TIE ROD	1-43150-191-0	01	1	0712-1002	●	●
61	ROD END; TIE ROD FINAL GEAR 39/7 15.5"(W3K)	1-43150-191-0	01	1	1003-1003	●
61	ROD END; TIE ROD	1-43150-191-0	01	1	1003-1003		●
61	ROD END; TIE ROD	1-43150-192-0	01	1	0712-1002	●	●
61	ROD END; TIE ROD FINAL GEAR 39/7 15.5"(W3K)	1-43150-192-0	01	1	1003-1003	●
61	ROD END; TIE ROD	1-43150-192-0	01	1	1003-1003		●
66	NUT; TIE ROD END FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M24	1-09442-032-0	02	1	1003-1003	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1004-	●	●
66	NUT; TIE ROD END M16	9-09841-068-0	02	1	0712-1002	●	●
66	NUT; TIE ROD END FINAL GEAR 39/7 15.5"(W3K) M16	9-09841-068-0	02	1	1003-1003	●
66	NUT; TIE ROD END M16	9-09841-068-0	02	1	1003-1003		●
69	PIN; SPLIT,TIE ROD END	9-08114-065-0	02	1	0712-0808	●	●
69	PIN; SPLIT,TIE ROD END	0-81124-065-0	02	1	0809-1002	●	●
69	PIN; SPLIT,TIE ROD END FINAL GEAR 39/7 15.5"(W3K)	0-81124-065-0	02	1	1003-1003	●
69	PIN; SPLIT,TIE ROD END	0-81124-065-0	02	1	1003-1003		●
70	NUT; TIE ROD END M12	0-91110-512-0	04	1	0712-	●	●
71	BOOT; TIE ROD END	1-43159-009-0	02	1	0712-1002	●	●
71	BOOT; TIE ROD END FINAL GEAR 39/7 15.5"(W3K)	1-43159-009-0	02	1	1003-1003	●
71	BOOT; TIE ROD END	1-43159-009-0	02	1	1003-1003		●
72	SEAT; BALL,TIE ROD JOINT	9-44371-133-0	02	1	0712-1002	●	●
72	SEAT; BALL,TIE ROD JOINT FINAL GEAR 39/7 15.5"(W3K)	9-44371-133-0	02	1	1003-1003	●
72	SEAT; BALL,TIE ROD JOINT	9-44371-133-0	02	1	1003-1003		●
73	NIPPLE; GREASE,TIE ROD END FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	1-43159-133-0	02	1	1003-1003	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1004-1404	●	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-132-0	02	1	1405-	●	●
73	NIPPLE; GREASE,TIE ROD END PT1/8 ELBOW	0-90301-610-0	02	1	0712-1002	●	●
73	NIPPLE; GREASE,TIE ROD END FINAL GEAR 39/7 15.5"(W3K) PT1/8 ELBOW	0-90301-610-0	02	1	1003-1003	●
73	NIPPLE; GREASE,TIE ROD END PT1/8 ELBOW	0-90301-610-0	02	1	1003-1003		●
75	JOINT; BALL,DRAG LINK	1-44361-042-2	02	1	0712-1002	●	●
75	JOINT; BALL,DRAG LINK FINAL GEAR 39/7 15.5"(W3K)	1-44361-042-2	02	1	1003-1003	●
75	JOINT; BALL,DRAG LINK	1-44361-042-2	02	1	1003-1003		●
76	SEAT; SPR,DRAG LINK	9-44373-006-0	02	1	0712-1002	●	●
76	SEAT; SPR,DRAG LINK FINAL GEAR 39/7 15.5"(W3K)	9-44373-006-0	02	1	1003-1003	●
76	SEAT; SPR,DRAG LINK	9-44373-006-0	02	1	1003-1003		●
77	SPRING; TIE ROD END	9-09940-057-0	02	1	0712-1002	●	●
77	SPRING; TIE ROD END FINAL GEAR 39/7 15.5"(W3K)	9-09940-057-0	02	1	1003-1003	●
77	SPRING; TIE ROD END	9-09940-057-0	02	1	1003-1003		●
78	PLUG; ADJ,ROD END	1-44375-017-0	02	1	0712-1002	●	●
78	PLUG; ADJ,ROD END FINAL GEAR 39/7 15.5"(W3K)	1-44375-017-0	02	1	1003-1003	●
78	PLUG; ADJ,ROD END	1-44375-017-0	02	1	1003-1003		●
80	PIN; SPLIT,ROD END FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) OD=4.6 L=35	0-81125-035-0	02	1	1003-1003	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1004-	●	●
80	PIN; SPLIT,ROD END OD=3.7 L=30	0-81124-030-0	02	1	0712-1002	●	●
80	PIN; SPLIT,ROD END FINAL GEAR 39/7 15.5"(W3K) OD=3.7 L=30	0-81124-030-0	02	1	1003-1003	●
80	PIN; SPLIT,ROD END OD=3.7 L=30	0-81124-030-0	02	1	1003-1003		●
81	ROD; TIE	1-43151-070-0	01	1	0712-1002	●	●
81	ROD; TIE FINAL GEAR 39/7 15.5"(W3K)	1-43151-070-0	01	1	1003-1003	●
81	ROD; TIE	1-43151-070-0	01	1	1003-1003		●
81	ROD; TIE FINAL GEAR 39/7 15.5"(W3K)	8-98147-602-0	01	1	1003-	●
81	ROD; TIE	8-98147-602-0	01	1	1003-		●
81	ROD; TIE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98147-601-0	01	1	1003-	●
217	WASHER; THRUST,SHAFT LOCKING HUB FRT WHEEL DRIVE(W12) OD=100 ID=71	1-43321-009-0	02	1	0712-1001	●	●
220	STUD; KNUCKLE ARM (A) M14X54.5 L=72	9-09830-131-0	01	1	0712-	●	●
220	STUD; KNUCKLE ARM (B) M14X41.5 L=60.5	9-09830-132-0	01	1	0712-	●	●
220	STUD; KNUCKLE ARM (C) M14X46.5 L=72	9-09830-133-0	01	1	0712-	●	●
220	STUD; KNUCKLE ARM (D) M14X33.5 L=60.5	9-09830-134-0	01	1	0712-	●	●
225	NIPPLE; GREASE,COVER (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0712-	●	●
225	NIPPLE; GREASE,COVER (B) PT1/8 ELBOW	0-90301-610-0	02	1	0712-	●	●
256	NIPPLE; GREASE,KNUCKLE ARM PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0712-	●	●
257	WASHER; LK,TIE ROD ARM ID=16.2	0-91510-516-0	08	1	0712-	●	●
260	BOLT; STOPPER,TIE ROD ARM FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M14X45	0-20951-445-0	02	1	1010-	●
260	BOLT; STOPPER,TIE ROD ARM M14X35	0-20851-435-0	02	1	0712-1009	●	●
260	BOLT; STOPPER,TIE ROD ARM FINAL GEAR 39/7 15.5"(W3K) M14X35	0-20851-435-0	02	1	1010-1011	●
260	BOLT; STOPPER,TIE ROD ARM M14X35	0-20851-435-0	02	1	1010-1011		●
260	BOLT; STOPPER,TIE ROD ARM FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) M14X35	0-20851-435-0	02	1	1012-	●
260	BOLT; STOPPER,TIE ROD ARM M14X35	0-20851-435-0	02	1	1012-		●
261	NUT; STOPPER BOLT M14	0-91111-514-0	02	1	0712-	●	●
263	BOLT; ROD END FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X65	8-98053-922-0	04	1	1003-1003	●
263	BOLT; ROD END M12X65	8-98053-922-0	04	1	1004-	●	●
263	BOLT; ROD END M12X45	9-92061-245-0	04	1	0712-0808	●	●
263	BOLT; ROD END M12X50	0-20951-250-0	04	1	0809-1002	●	●
263	BOLT; ROD END FINAL GEAR 39/7 15.5"(W3K) M12X50	0-20951-250-0	04	1	1003-1003	●
263	BOLT; ROD END M12X50	0-20951-250-0	04	1	1003-1003		●
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	0712-0808	●	●
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	0809-	●	●

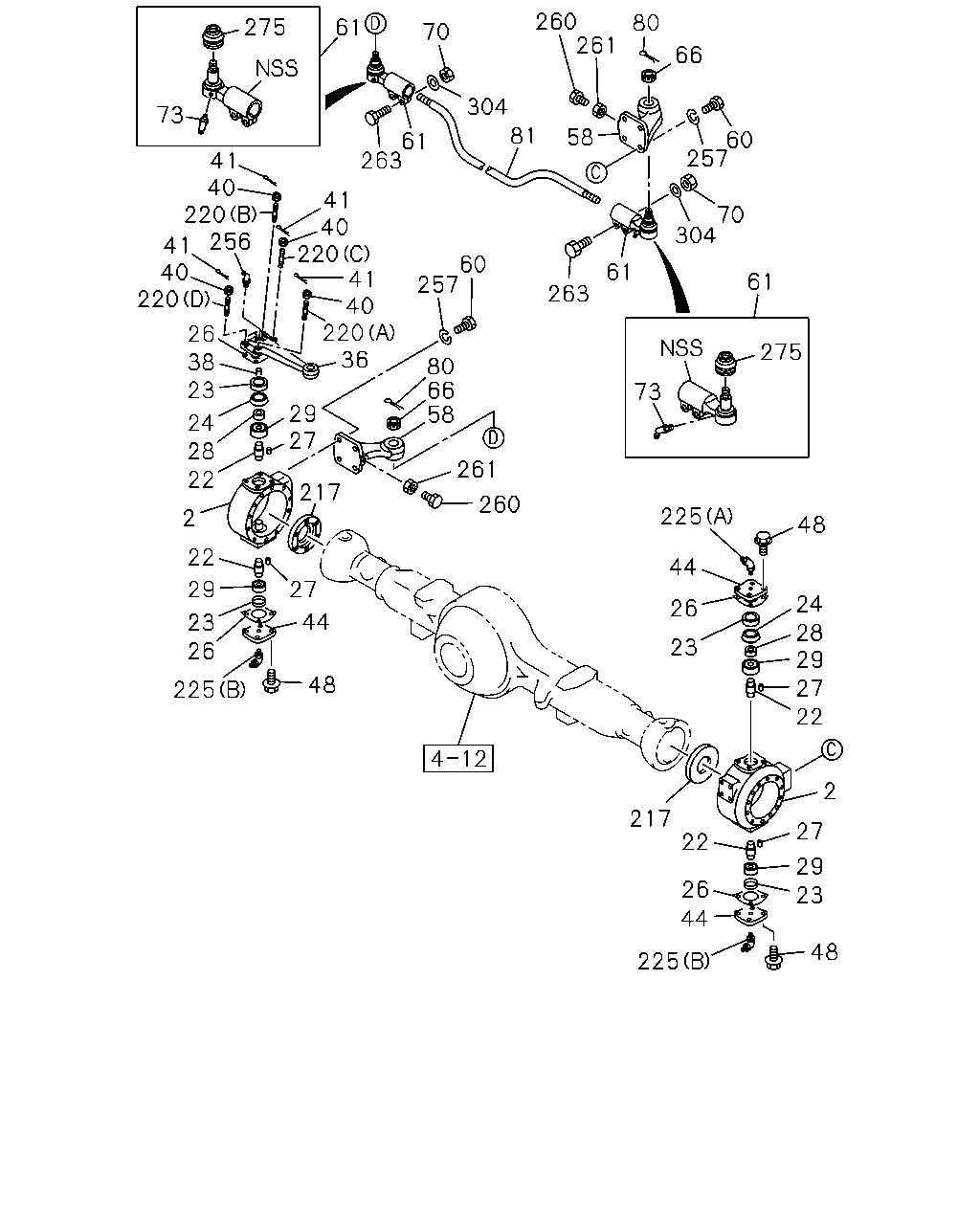

260 261 80 275 61 70 66 304 73 81 58 60 257 61 263 41 40 220 256 41 40 220 41 40 220 36 70 304 41 40 220 60 257 61 61 263 26 38 23 275 80 66 58 73 29 27 24 28 22 261 217 260 225 2 48 22 44 29 27 24 26 44 23 28 29 23 26 48 27 225 22 2 217 27 22 29 26 23 44 48 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	KNUCKLE; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98090-493-2	01	1	1003-	●
2	KNUCKLE; FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98090-494-2	01	1	1003-	●
2	KNUCKLE; FRT AXLE	1-43242-006-3	01	1	0712-1002	●	●
2	KNUCKLE; FRT AXLE FINAL GEAR 39/7 15.5"(W3K)	1-43242-006-3	01	1	1003-1011	●
2	KNUCKLE; FRT AXLE	1-43242-006-3	01	1	1003-1011		●
2	KNUCKLE; FRT AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K)	1-43242-006-4	01	1	1012-	●
2	KNUCKLE; FRT AXLE	1-43242-006-4	01	1	1012-		●
2	KNUCKLE; FRT AXLE	9-43241-037-1	01	1	0712-1002	●	●
2	KNUCKLE; FRT AXLE FINAL GEAR 39/7 15.5"(W3K)	9-43241-037-1	01	1	1003-1011	●
2	KNUCKLE; FRT AXLE	9-43241-037-1	01	1	1003-1011		●
2	KNUCKLE; FRT AXLE FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K)	9-43241-037-2	01	1	1012-	●
2	KNUCKLE; FRT AXLE	9-43241-037-2	01	1	1012-		●
22	PIN; KING,FRT AXLE H=50	1-43264-003-0	04	1	0712-	●	●
23	COLLAR; DIST BRG	9-43267-004-0	04	1	0712-	●	●
24	RECEIVER; KING PIN	9-43269-008-0	02	1	0712-	●	●
26	SHIM; KING PIN,BRG T=0.1	9-43266-013-0	AR	1	0712-	●	●
26	SHIM; KING PIN,BRG T=0.2	9-43266-014-0	AR	1	0712-	●	●
26	SHIM; KING PIN,BRG T=0.5	9-43266-015-0	AR	1	0712-	●	●
27	PIN; STRAIGHT,KING PIN OD=5 L=10	9-08160-510-0	04	1	0712-	●	●
28	WASHER; KING PIN	9-43269-007-0	02	1	0712-	●	●
29	BEARING; KING PIN	9-00093-181-0	04	1	0712-	●	●
36	ARM; KNUCKLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	1-43261-035-0	01	1	1003-1003	●
36	ARM; KNUCKLE	1-43261-035-0	01	1	1004-	●	●
36	ARM; KNUCKLE	1-43261-029-0	01	1	0712-1002	●	●
36	ARM; KNUCKLE FINAL GEAR 39/7 15.5"(W3K)	1-43261-029-0	01	1	1003-1003	●
36	ARM; KNUCKLE	1-43261-029-0	01	1	1003-1003		●
38	KNOCK; KNUCKLE ARM	9-43269-009-1	02	1	0712-	●	●
40	NUT; KNUCKLE ARM M14 SLOTTED	0-91116-514-0	04	1	0712-	●	●
41	PIN; KNOCK,KNUCKLE ARM OD=2.8 L=25	0-81123-025-0	04	1	0712-	●	●
44	COVER; KING PIN	9-43265-007-1	03	1	0712-	●	●
48	BOLT; COVER M14X35 FLANGE	0-28861-435-0	12	1	0712-	●	●
58	ARM; TIE ROD FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98138-221-0	01	1	1003-1003	●
58	ARM; TIE ROD	8-98138-221-0	01	1	1004-	●	●
58	ARM; TIE ROD FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98138-222-0	01	1	1003-1003	●
58	ARM; TIE ROD	8-98138-222-0	01	1	1004-	●	●
58	ARM; TIE ROD	9-43262-017-1	01	1	0712-1002	●	●
58	ARM; TIE ROD FINAL GEAR 39/7 15.5"(W3K)	9-43262-017-1	01	1	1003-1003	●
58	ARM; TIE ROD	9-43262-017-1	01	1	1003-1003		●
58	ARM; TIE ROD	9-43263-011-1	01	1	0712-1002	●	●
58	ARM; TIE ROD FINAL GEAR 39/7 15.5"(W3K)	9-43263-011-1	01	1	1003-1003	●
58	ARM; TIE ROD	9-43263-011-1	01	1	1003-1003		●
60	BOLT; TIE ROD ARM M16X40	0-20951-640-0	08	1	0712-	●	●
61	ROD END; TIE ROD FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98138-799-0	01	1	1003-1003	●
61	ROD END; TIE ROD	8-98138-799-0	01	1	1004-1306	●	●
61	ROD END; TIE ROD	8-98236-792-1	01	1	1307-	●	●
61	ROD END; TIE ROD FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98138-800-0	01	1	1003-1003	●
61	ROD END; TIE ROD	8-98138-800-0	01	1	1004-1306	●	●
61	ROD END; TIE ROD	8-98236-793-1	01	1	1307-	●	●
61	ROD END; TIE ROD	1-43150-191-0	01	1	0712-1002	●	●
61	ROD END; TIE ROD FINAL GEAR 39/7 15.5"(W3K)	1-43150-191-0	01	1	1003-1003	●
61	ROD END; TIE ROD	1-43150-191-0	01	1	1003-1003		●
61	ROD END; TIE ROD	1-43150-192-0	01	1	0712-1002	●	●
61	ROD END; TIE ROD FINAL GEAR 39/7 15.5"(W3K)	1-43150-192-0	01	1	1003-1003	●
61	ROD END; TIE ROD	1-43150-192-0	01	1	1003-1003		●
66	NUT; TIE ROD END FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M24	1-09442-032-0	02	1	1003-1003	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1004-	●	●
66	NUT; TIE ROD END M16	9-09841-068-0	02	1	0712-1002	●	●
66	NUT; TIE ROD END FINAL GEAR 39/7 15.5"(W3K) M16	9-09841-068-0	02	1	1003-1003	●
66	NUT; TIE ROD END M16	9-09841-068-0	02	1	1003-1003		●
70	NUT; TIE ROD END M12	0-91110-512-0	04	1	0712-	●	●
73	NIPPLE; GREASE,TIE ROD END FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	1-43159-133-0	02	1	1003-1003	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1004-1404	●	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-132-0	02	1	1405-	●	●
73	NIPPLE; GREASE,TIE ROD END PT1/8 ELBOW	0-90301-610-0	02	1	0712-1002	●	●
73	NIPPLE; GREASE,TIE ROD END FINAL GEAR 39/7 15.5"(W3K) PT1/8 ELBOW	0-90301-610-0	02	1	1003-1003	●
73	NIPPLE; GREASE,TIE ROD END PT1/8 ELBOW	0-90301-610-0	02	1	1003-1003		●
80	PIN; SPLIT,ROD END FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) OD=4.6 L=35	0-81125-035-0	02	1	1003-1003	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1004-	●	●
80	PIN; SPLIT,ROD END OD=3.7 L=30	0-81124-030-0	02	1	0712-1002	●	●
80	PIN; SPLIT,ROD END FINAL GEAR 39/7 15.5"(W3K) OD=3.7 L=30	0-81124-030-0	02	1	1003-1003	●
80	PIN; SPLIT,ROD END OD=3.7 L=30	0-81124-030-0	02	1	1003-1003		●
81	ROD; TIE	1-43151-070-0	01	1	0712-1002	●	●
81	ROD; TIE FINAL GEAR 39/7 15.5"(W3K)	1-43151-070-0	01	1	1003-1003	●
81	ROD; TIE	1-43151-070-0	01	1	1003-1003		●
81	ROD; TIE FINAL GEAR 39/7 15.5"(W3K)	8-98147-602-0	01	1	1003-	●
81	ROD; TIE	8-98147-602-0	01	1	1003-		●
81	ROD; TIE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	8-98147-601-0	01	1	1003-	●
217	WASHER; THRUST,SHAFT LOCKING HUB FRT WHEEL DRIVE(W12) OD=100 ID=71	1-43321-009-0	02	1	0712-1001	●	●
220	STUD; KNUCKLE ARM (A) M14X54.5 L=72	9-09830-131-0	01	1	0712-	●	●
220	STUD; KNUCKLE ARM (B) M14X41.5 L=60.5	9-09830-132-0	01	1	0712-	●	●
220	STUD; KNUCKLE ARM (C) M14X46.5 L=72	9-09830-133-0	01	1	0712-	●	●
220	STUD; KNUCKLE ARM (D) M14X33.5 L=60.5	9-09830-134-0	01	1	0712-	●	●
225	NIPPLE; GREASE,COVER (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0712-	●	●
225	NIPPLE; GREASE,COVER (B) PT1/8 ELBOW	0-90301-610-0	02	1	0712-	●	●
256	NIPPLE; GREASE,KNUCKLE ARM PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0712-	●	●
257	WASHER; LK,TIE ROD ARM ID=16.2	0-91510-516-0	08	1	0712-	●	●
260	BOLT; STOPPER,TIE ROD ARM FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M14X45	0-20951-445-0	02	1	1010-	●
260	BOLT; STOPPER,TIE ROD ARM M14X35	0-20851-435-0	02	1	0712-1009	●	●
260	BOLT; STOPPER,TIE ROD ARM FINAL GEAR 39/7 15.5"(W3K) M14X35	0-20851-435-0	02	1	1010-1011	●
260	BOLT; STOPPER,TIE ROD ARM M14X35	0-20851-435-0	02	1	1010-1011		●
260	BOLT; STOPPER,TIE ROD ARM FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) M14X35	0-20851-435-0	02	1	1012-	●
260	BOLT; STOPPER,TIE ROD ARM M14X35	0-20851-435-0	02	1	1012-		●
261	NUT; STOPPER BOLT M14	0-91111-514-0	02	1	0712-	●	●
263	BOLT; ROD END FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X65	8-98053-922-0	04	1	1003-1003	●
263	BOLT; ROD END M12X65	8-98053-922-0	04	1	1004-	●	●
263	BOLT; ROD END M12X45	9-92061-245-0	04	1	0712-0808	●	●
263	BOLT; ROD END M12X50	0-20951-250-0	04	1	0809-1002	●	●
263	BOLT; ROD END FINAL GEAR 39/7 15.5"(W3K) M12X50	0-20951-250-0	04	1	1003-1003	●
263	BOLT; ROD END M12X50	0-20951-250-0	04	1	1003-1003		●
275	BOOT; ROD END,TIE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	1-43159-131-0	02	1	1003-1003	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1004-1306	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●	●
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	0712-0808	●	●
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	0809-	●	●

274 267 274 267 274 267 274 267 274 267 267 274 267 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
267	CLIP; HARNESS FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> (A) ID=11 L=20	0-95235-035-0	04	1	1411-	●
267	CLIP; HARNESS FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> (F) ID=11X2 L=20	0-95325-035-0	01	1	1411-	●
267	CLIP; HARNESS FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> (E) L=140	5-09707-031-1	01	1	1411-	●
267	CLIP; HARNESS FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (A) ID=11 L=16	0-95235-025-0	06	1	1003-	●
267	CLIP; HARNESS FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (B) ID=11 L=50	0-95235-085-0	01	1	1003-	●
267	CLIP; HARNESS FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (C) ID=19 L=20	0-95235-836-0	02	1	1003-	●
267	CLIP; HARNESS FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (D) ID=11 H=20 L=20	8-98033-780-0	04	1	1003-	●
267	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (A) ID=11 L=16	0-95235-025-0	02	1	1003-	●
267	CLIP; HARNESS FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> EXC. ANTI LOCK BRAKE<JE5> (A) ID=11 L=20	0-95235-035-0	02	1	1003-	●
272	NUT; CLIP FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	01	1	1411-	●
274	BOLT; CLIP FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> (B) M8X10 FLANGE	0-28050-810-0	04	1	1411-	●
274	BOLT; CLIP FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (B) M8X10 FLANGE	0-28050-810-0	10	1	1003-	●
274	BOLT; CLIP FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (A) M8X16 FLANGE	0-28050-816-0	01	1	1003-1410	●
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> (A) M8X16 FLANGE	0-28050-816-0	01	1	1411-	●
274	BOLT; CLIP DIFF LOCK<C3N> (B) M8X10 FLANGE	0-28050-810-0	02	1	1003-1306	●
274	BOLT; CLIP DIFF LOCK<C3N> (B) M8X10 FLANGE	0-28050-810-0	02	1	1307-1401	●
274	BOLT; CLIP CONVERTING INTO 6X6<BCC> (B) M8X10 FLANGE	0-28050-810-0	02	1	1307-1401	●
274	BOLT; CLIP DIFF LOCK<C3N> (B) M8X10 FLANGE	0-28050-810-0	02	1	1402-	●
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> (A) M8X16 FLANGE	0-28050-816-0	02	1	1003-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
