Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#66723) — 501 parça

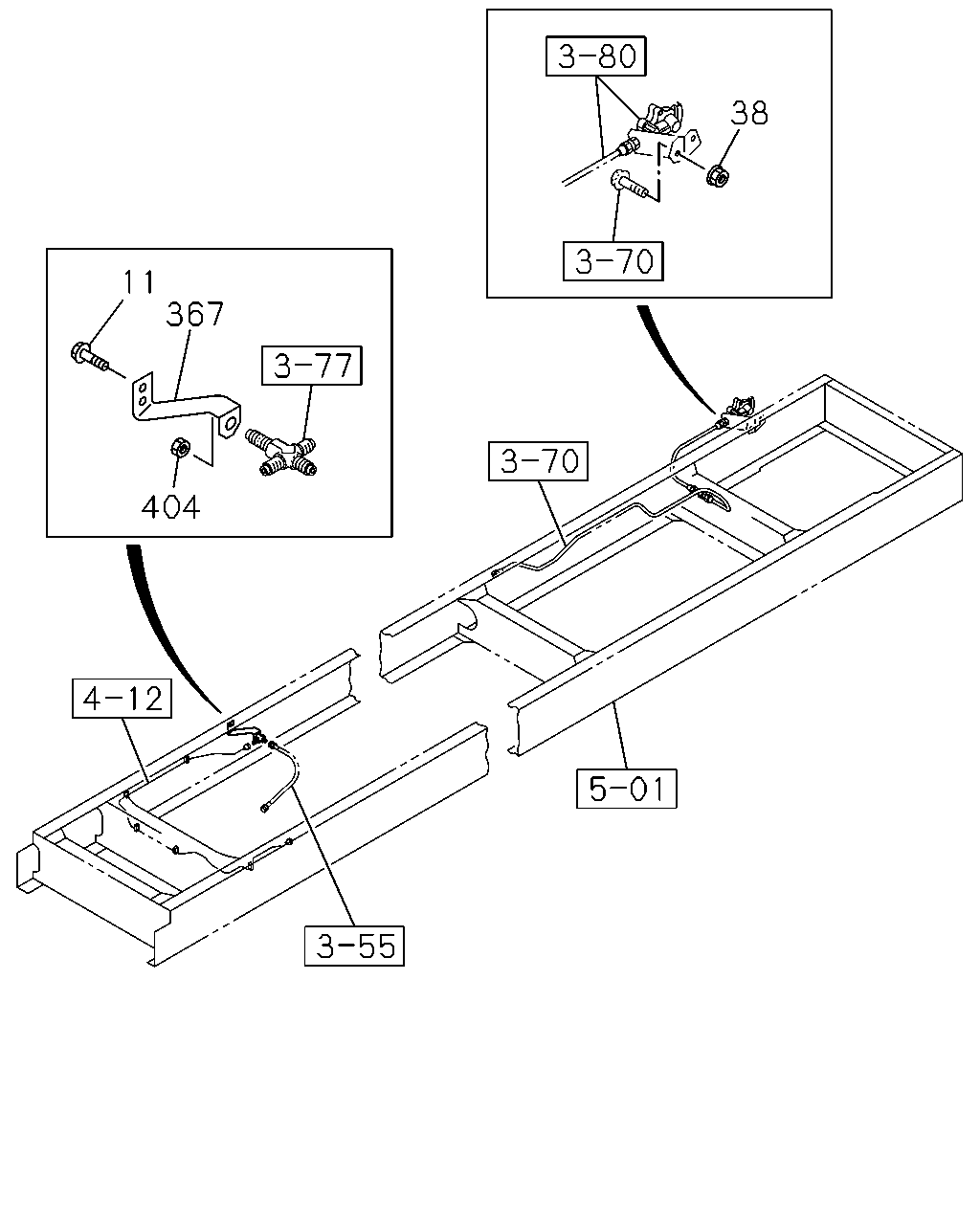

38 11 367 404

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
11	BOLT; CLIP BRKT REARWARD INNER SINGLE TIRE<YK3> M8X25 FLANGE	0-28650-825-0	02	1	1003-	●
38	NUT; BRKT TRAILER BRAKE CONTROL<J91> M10 FLANGE	0-91180-210-0	02	1	1003-	●
367	BRACKET ASM REARWARD INNER SINGLE TIRE<YK3>	8-98152-567-0	01	1	1003-	●
404	NUT REARWARD INNER SINGLE TIRE<YK3> M12	0-91111-512-0	01	1	1003-	●

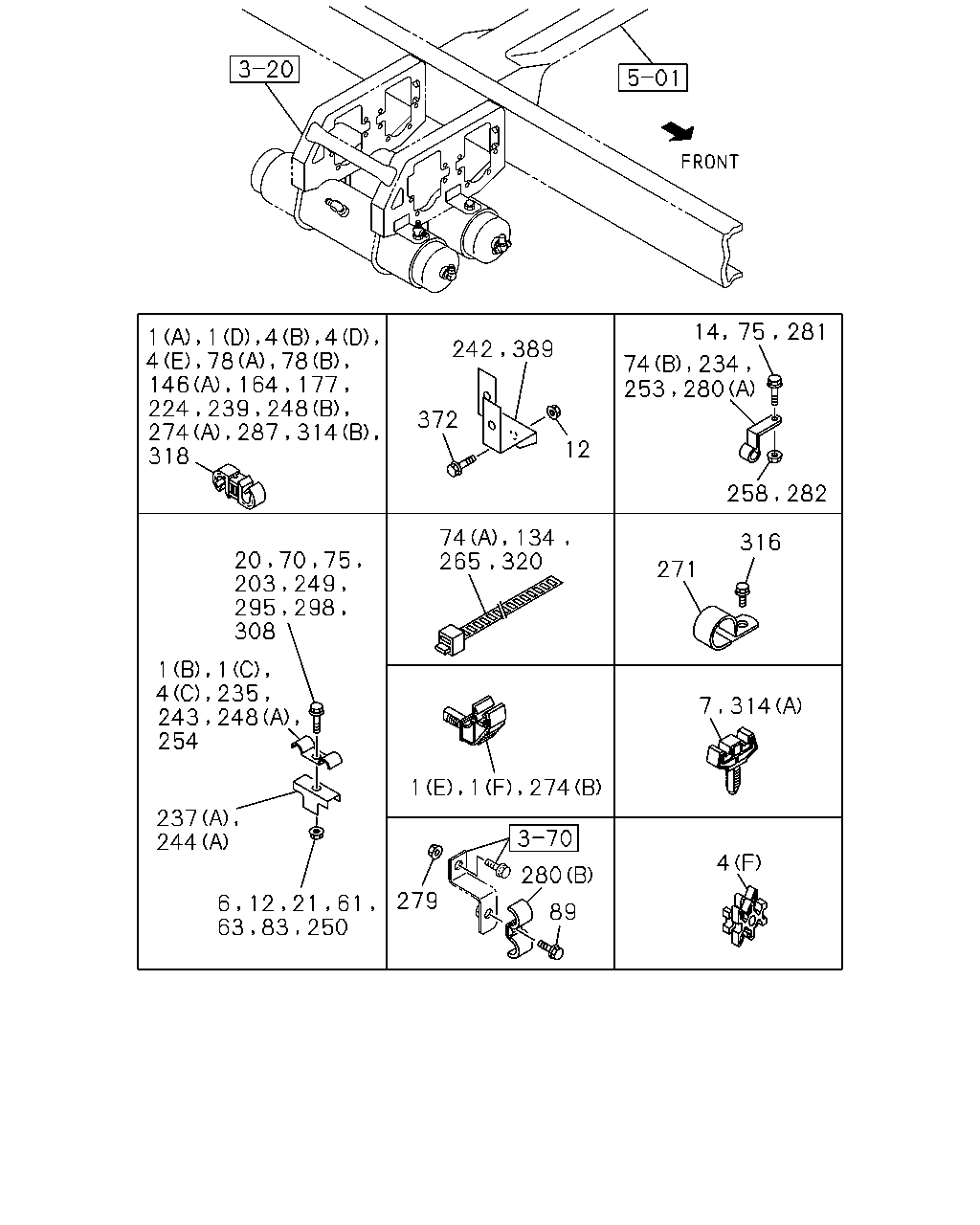

1 1 4 4 78 78 4 146 164 177 224 239 248 314 287 274 318 372 242 389 12 74 253 280 234 14 75 281 282 258 316 271 320 134 74 265 75 70 20 203 249 298 295 308 1 1 4 235 248 243 254 237 244 6 63 83 250 12 21 61 279 89 280 4 314 7 274 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE (F)	8-98012-254-1	01	1	0804-1002	●	●
1	CLIP; AIR PIPE (F)	8-98012-254-1	01	1	1003-	●	●
1	CLIP; AIR PIPE (G) ID=12 & 15	1-09709-281-1	01	1	0804-		●
1	CLIP; AIR PIPE (A) ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0802	●
1	CLIP; AIR PIPE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0712-0802	●
1	CLIP; AIR PIPE (D) ID=6.35 & 6.35	1-09709-273-1	01	1	0803-0811	●	●
1	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (D) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-	●
1	CLIP; AIR PIPE (D) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-		●
1	CLIP; AIR PIPE (C) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	0712-0802	●
1	CLIP; AIR PIPE (E) ID=6.35	1-09701-247-1	01	1	0803-0811	●	●
1	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (E) ID=6.35	1-09701-247-1	01	1	0812-	●
1	CLIP; AIR PIPE (E) ID=6.35	1-09701-247-1	01	1	0812-		●
4	CLIP; AIR PIPE ANTI LOCK BRAKE<JE5> (F) ID=4.7X4	1-09701-304-0	01	1	1003-	●
4	CLIP; AIR PIPE ANTI LOCK BRAKE<JE5> (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1003-	●
4	CLIP; AIR PIPE ANTI LOCK BRAKE<JE5> (B) ID=6.35 & 12	1-09709-275-1	02	1	1003-	●
4	CLIP; AIR PIPE ANTI LOCK BRAKE<JE5> (B) ID=4.76 & 10.0	1-09709-305-0	03	1	1003-	●
4	CLIP; AIR PIPE ANTI LOCK BRAKE<JE5> TRAILER BRAKE CONTROL<J91> (E) ID=10 & 10	1-09709-277-1	11	1	1003-	●
4	CLIP; AIR PIPE ANTI LOCK BRAKE<JE5> EXC. TRAILER BRAKE CONTROL<J91> (E) ID=10 & 10	1-09709-277-1	09	1	1003-	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	06	1	0804-0804		●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	06	1	0805-0811	●	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	06	1	0812-		●
4	CLIP; AIR PIPE (E) ID=10 & 10	1-09709-277-1	04	1	0804-0804		●
4	CLIP; AIR PIPE (E) ID=10 & 10	1-09709-277-1	04	1	0805-1002	●	●
4	CLIP; AIR PIPE EXC. ANTI LOCK BRAKE<JE5> (E) ID=10 & 10	1-09709-277-1	04	1	1003-	●
4	CLIP; AIR PIPE (E) ID=10 & 10	1-09709-277-1	04	1	1003-		●
4	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	02	1	0804-0804		●
4	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	02	1	0805-0811	●	●
4	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	01	1	0812-	●	●
4	CLIP; AIR PIPE (E) ID=10 & 10	1-09709-277-1	02	1	0712-0811	●
4	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	01	1	0712-0811	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0802	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0802	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0803-0803	●	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0804-0811	●
4	CLIP; AIR PIPE (C) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	0712-0802	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0803-0811	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	04	1	0812-	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0802		●
4	CLIP; AIR PIPE (A) ID=11 H=20 L=20	8-98033-780-0	01	1	0712-0802		●
6	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
7	CLIP; AIR PIPE REARWARD INNER SINGLE TIRE<YK3>	8-98012-254-1	10	1	1003-	●
12	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
12	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
14	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●	●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
14	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0803-		●
20	BOLT; CLIP EXC. CATALYSIS CONTROL WITH DPD<8JM> M8X50 FLANGE	0-28050-850-0	02	1	0812-	●
20	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	02	1	0712-0802	●
20	BOLT; CLIP M8X70 FLANGE	0-28050-870-0	02	1	0803-0811	●	●
20	BOLT; CLIP CATALYSIS CONTROL WITH DPD<8JM> M8X70 FLANGE	0-28050-870-0	02	1	0812-	●
20	BOLT; CLIP M8X70 FLANGE	0-28050-870-0	02	1	0812-		●
20	BOLT; CLIP M8X60 FLANGE	0-28050-860-0	01	1	0712-0802		●
20	BOLT; CLIP M8X60 FLANGE	0-28050-860-0	01	1	0712-0802		●
20	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X50 FLANGE	0-28050-850-0	05	1	0803-	●
20	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	05	1	0803-		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
21	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	05	1	0803-	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0803-		●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
63	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	02	1	0712-0802	●
70	BOLT; CLIP,AIR PIPE M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
70	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
74	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	02	1	0803-0806	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	0803-0806		●
74	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	0807-0811	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	0807-0811		●
74	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0803-0811	●
74	CLIP; NYLON TUBE (B) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0803-0811		●
74	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (B) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0812-	●
74	CLIP; NYLON TUBE (B) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0812-		●
75	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	01	1	0712-0802		●
75	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0712-0802		●
75	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0803-0806	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0803-0806		●
75	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0807-0811	●
75	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0807-0811	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0807-0811		●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0807-0811		●
75	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	01	1	0812-	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0812-		●
75	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0712-0802		●
78	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) ID=10 & 15	1-09709-279-1	01	1	0812-0812	●
78	CLIP; AIR PIPE (A) ID=10 & 15	1-09709-279-1	01	1	0712-0802	●
78	CLIP; AIR PIPE (B) ID=12 & 15	1-09709-281-1	01	1	0712-0802	●
78	CLIP; AIR PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0712-0802		●
78	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	01	1	0712-0802		●
78	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	02	1	0803-0811		●
78	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (D) ID=10 & 12	1-09709-278-1	02	1	0812-0812	●
78	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	02	1	0812-0812		●
78	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (D) ID=10 & 12	1-09709-278-1	01	1	0812-0905	●
78	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (D) ID=10 & 12	1-09709-278-1	01	1	0812-0905	●
78	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (D) ID=10 & 12	1-09709-278-1	01	1	0906-	●
78	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (D) ID=10 & 12	1-09709-278-1	01	1	0906-	●
78	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	01	1	0906-		●
83	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
83	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0803-0811	●
83	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0811		●
83	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	0812-	●
83	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0812-		●
89	BOLT; PIPE CLIP WHEEL BASE 3600MM(36W) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0812-	●
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0812-	●	●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0712-0802	●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0803-0804	●	●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	04	1	0805-1002	●	●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	04	1	1003-	●	●
146	CLIP; AIR PIPE (B) ID=10	1-09709-242-0	01	1	0712-0802		●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	01	1	0712-0802		●
164	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0712-0811	●	●
177	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0811	●
177	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	04	1	0712-0811		●
203	BOLT; CLIP BRKT M8X40 FLANGE	0-28650-840-0	02	1	0712-0802	●
203	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
224	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0811	●
224	CLIP; AIR PIPE ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	0712-0802		●
234	CLIP; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=34 L=27	1-09701-023-0	01	1	0803-	●
234	CLIP; UNION ID=11 H=34 L=27	1-09701-023-0	01	1	0803-		●
235	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0712-0802	●
237	BRACKET; PIPE CLIP (A)	1-47475-427-1	03	1	0712-0802	●
237	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47475-427-1	02	1	0712-0802	●
237	BRACKET; PIPE CLIP (A)	1-47475-427-1	02	1	0712-0802		●
237	BRACKET; PIPE CLIP (B) L=65	1-47479-064-0	01	1	0712-0802		●
239	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0802	●
239	CLIP; AIR PIPE ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	03	1	0712-0802		●
242	BRACKET; PIPE CLIP M8 W/NUT	1-47475-439-2	01	1	0712-0802	●
243	CLIP; AIR,PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	0712-0802	●
243	CLIP; AIR,PIPE ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0712-0802		●
244	BRACKET; CLIP,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=65	1-47479-064-0	01	1	0807-0811	●
244	BRACKET; CLIP,AIR PIPE (B) L=65	1-47479-064-0	01	1	0807-0811		●
244	BRACKET; CLIP,AIR PIPE (A)	1-47475-427-1	01	1	0712-0802	●
244	BRACKET; CLIP,AIR PIPE (A)	1-47475-427-1	02	1	0712-0802		●
244	BRACKET; CLIP,AIR PIPE (B) L=95	1-82699-085-0	01	1	0712-0802		●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0807-0811	●
248	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0807-0811		●
248	CLIP; AIR PIPE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0712-0802	●
249	BOLT; PIPE CLIP M8X40 FLANGE	0-28650-840-0	02	1	0712-0802	●
250	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
250	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	0803-	●
250	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0803-		●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	03	1	1502-	●
253	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	03	1	1502-		●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	02	1	0712-0802	●
253	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	02	1	0712-0802		●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	05	1	0803-1501	●
253	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	05	1	0803-1501		●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	02	1	1502-	●
253	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	02	1	1502-		●
254	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	0803-	●
254	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0803-		●
258	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0712-	●
258	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0712-		●
265	CLIP; NYLON TUBE L=250	1-09707-126-0	01	1	0712-0802	●
271	CLIP; AIR PIPE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 L=20	0-95235-035-0	06	1	0712-1002	●
271	CLIP; AIR PIPE FIX ID=11 L=20	0-95235-035-0	06	1	0712-1002		●
271	CLIP; AIR PIPE FIX FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 L=20	0-95235-035-0	06	1	1003-1404	●
271	CLIP; AIR PIPE FIX ID=11 L=20	0-95235-035-0	06	1	1003-1404		●
271	CLIP; AIR PIPE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 L=20	0-95235-035-0	06	1	1405-	●	●
274	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) BRAKE REGULATION ADR<TDU> (B) ID=6.35	1-09701-247-1	02	1	0812-	●
274	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) BRAKE REGULATION ADR<TDU> (A) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-	●
274	CLIP; AIR PIPE (B)	8-98012-254-1	01	1	0805-0811	●	●
274	CLIP; AIR PIPE BRAKE REGULATION ADR<TDU> (B)	8-98012-254-1	01	1	0812-	●
274	CLIP; AIR PIPE (B)	8-98012-254-1	01	1	0812-		●
274	CLIP; AIR PIPE (A) ID=6.35 & 10.0	1-09709-274-1	01	1	0712-		●
279	NUT; BRKT WHEEL BASE 3600MM(36W) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0812-	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
280	CLIP; AIR PIPE WHEEL BASE 3600MM(36W) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0812-	●
280	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	03	1	0712-0802	●
281	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0712-0802	●
282	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0712-0802	●
287	CLIP; AIR PIPE ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> ID=6.35 & 12	1-09709-275-1	01	1	1003-	●
287	CLIP; AIR PIPE ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	01	1	1003-	●
287	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> ID=6.35 & 12	1-09709-275-1	01	1	0812-0908	●
287	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> ID=6.35 & 10.0	1-09709-274-1	01	1	0909-1002	●
287	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5> ID=6.35 & 10.0	1-09709-274-1	01	1	1003-	●
287	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	01	1	0812-0908	●
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0712-0811	●
298	BOLT; CLIP M8X70 FLANGE	0-28050-870-0	02	1	0712-0802	●
308	BOLT; CLIP,AIR PIPE M8X70 FLANGE	0-28050-870-0	01	1	0712-0811	●
314	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) EXC. RIGID SEAT WO/ARM REST<TAZ> (A)	8-98012-254-1	06	1	0812-	●
314	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) (A)	8-98012-254-1	06	1	0812-		●
314	CLIP; AIR PIPE (A)	8-98012-254-1	02	1	0804-1001	●	●
314	CLIP; AIR PIPE BRAKE REGULATION ADR<TDU> (A)	8-98012-254-1	02	1	1002-	●
314	CLIP; AIR PIPE (A)	8-98012-254-1	02	1	1002-		●
314	CLIP; AIR PIPE EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0803-0806	●
314	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0803-0806		●
314	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0807-0811	●	●
314	CLIP; AIR PIPE EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0807-0811	●
314	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0807-0811		●
314	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0812-	●
314	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0812-		●
314	CLIP; AIR PIPE EXC. RIGID SEAT WO/ARM REST<TAZ> (A)	8-98012-254-1	05	1	0803-0811	●
314	CLIP; AIR PIPE (A)	8-98012-254-1	05	1	0803-0811		●
314	CLIP; AIR PIPE WHEEL BASE 3600MM(36W) EXC. RIGID SEAT WO/ARM REST<TAZ> (A)	8-98012-254-1	05	1	0812-	●
314	CLIP; AIR PIPE (A)	8-98012-254-1	01	1	0712-0804	●
314	CLIP; AIR PIPE (B) ID=6.35 & 6.35	1-09709-273-1	01	1	0712-0811		●
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE	0-28050-810-0	04	1	0712-1002	●
316	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	04	1	0712-1002		●
316	BOLT; CLIP FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE	0-28050-810-0	04	1	1003-1404	●
316	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	04	1	1003-1404		●
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE	0-28050-810-0	04	1	1405-	●	●
318	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> ID=6.35 & 12	1-09709-275-1	02	1	0812-0812	●
318	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> ID=6.35 & 12	1-09709-275-1	01	1	0812-	●
318	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	0812-0812	●
318	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> ID=6.35 & 15	1-09709-276-1	02	1	0812-	●
318	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	03	1	0812-0812	●
320	CLIP; BAND,FLEX FIX EURO2 SPECIFICATION<NT2> L=250	5-09707-030-1	01	1	0812-	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0712-0802	●
389	BRACKET; UNION M8 W/NUT	1-47475-439-2	01	1	0712-0802	●

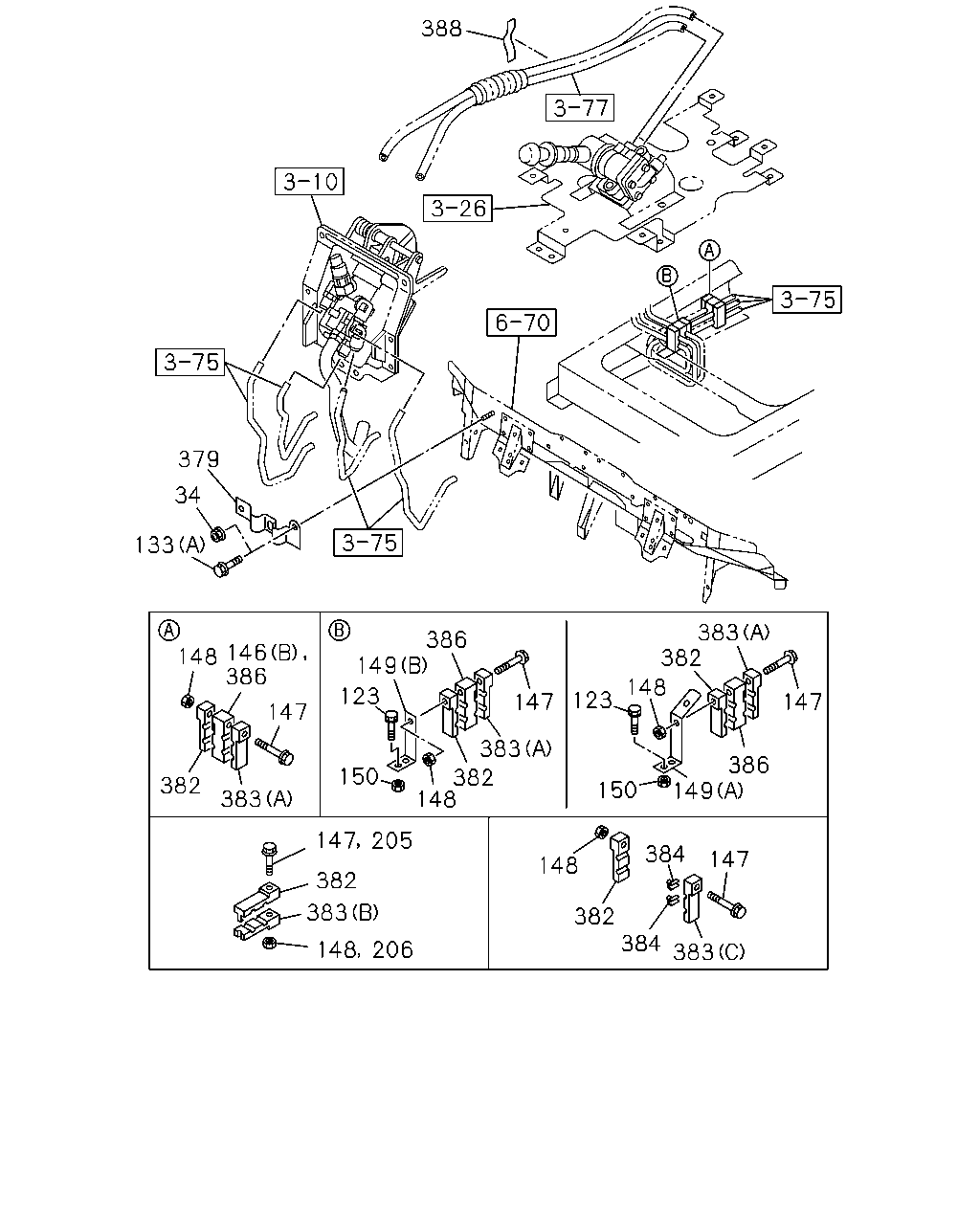

388 379 34 133 148 146 386 383 382 386 149 148 123 123 147 147 147 383 386 149 150 382 148 382 150 383 147 205 384 147 148 382 383 382 384 148 206 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0712-0802	●
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0803-1002	●	●
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	1003-	●	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0803-	●	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	03	1	0712-0802		●
133	BOLT; BRKT (A) M6X20 FLANGE	0-28650-620-0	02	1	0712-0802		●
133	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0712-0802	●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0803-0804	●	●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	04	1	0805-1002	●	●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	04	1	1003-	●	●
146	CLIP; AIR PIPE (B) ID=10	1-09709-242-0	01	1	0712-0802		●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	01	1	0712-0802		●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	05	1	0804-		●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	04	1	0712-0803	●	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	04	1	0804-	●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0804-		●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0712-0803	●	●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0804-	●
149	BRACKET; PIPE CLIP (B)	1-47476-792-0	01	1	0712-0802	●
149	BRACKET; PIPE CLIP (B)	1-47476-792-0	01	1	0803-1409	●	●
149	BRACKET; PIPE CLIP (B)	8-98296-534-0	01	1	1410-	●	●
149	BRACKET; PIPE CLIP (B)	1-47478-791-0	01	1	0712-0802		●
149	BRACKET; PIPE CLIP (A)	1-47479-986-1	01	1	0712-0802		●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	03	1	0712-0802		●
205	BOLT; PIPE CLIP M8X50 FLANGE	0-28050-850-0	01	1	0812-	●
206	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0812-	●
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	0712-0802	●
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	0803-1002	●	●
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	1003-	●	●
379	BRACKET; NYLON TUBE	8-98030-950-0	01	1	0712-0802		●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	0803-0803	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	0804-	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	05	1	0804-1501		●
382	CLIP; UPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-241-0	05	1	1502-	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	05	1	1502-		●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	05	1	1502-		●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	0803-1002	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	1003-	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	0712-0802		●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	0712-0802		●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	01	1	0803-0811	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	0712-0802	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	0712-0802	●
382	CLIP; UPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-241-0	06	1	0803-1501	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	06	1	0803-1501		●
382	CLIP; UPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-241-0	01	1	1502-	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	01	1	1502-		●
383	CLIP; LWR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=10 & 10	1-09709-243-0	05	1	1502-	●
383	CLIP; LWR (C) ID=10 & 10	1-09709-243-0	05	1	1502-		●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	04	1	0803-0803	●	●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	04	1	0804-	●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	05	1	0804-		●
383	CLIP; LWR (B) ID=6 & 6	1-09709-244-0	02	1	0712-0802		●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	02	1	0803-0811	●	●
383	CLIP; LWR EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) ID=10 & 10	1-09709-243-0	02	1	0812-	●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	04	1	0712-0802	●	●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	04	1	0712-0802	●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	01	1	0803-0811	●
383	CLIP; LWR CATALYSIS CONTROL WITH DPD<8JM> (A) ID=10 & 10	1-09709-241-0	02	1	0812-	●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	02	1	0812-		●
383	CLIP; LWR (C) ID=10 & 10	1-09709-243-0	02	1	0712-0802		●
383	CLIP; LWR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=10 & 10	1-09709-243-0	06	1	0803-1501	●
383	CLIP; LWR (C) ID=10 & 10	1-09709-243-0	06	1	0803-1501		●
383	CLIP; LWR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=10 & 10	1-09709-243-0	01	1	1502-	●
383	CLIP; LWR (C) ID=10 & 10	1-09709-243-0	01	1	1502-		●
384	COLLAR EXC. CATALYSIS CONTROL WITH DPD<8JM> ID=6	1-47459-010-0	02	1	0812-	●
384	COLLAR ID=6	1-47459-010-0	11	1	0712-0802	●
384	COLLAR ID=6	1-47459-010-0	04	1	0803-0811	●	●
384	COLLAR ID=6	1-47459-010-0	04	1	0803-0811	●
384	COLLAR CATALYSIS CONTROL WITH DPD<8JM> ID=6	1-47459-010-0	04	1	0812-	●
384	COLLAR ID=6	1-47459-010-0	04	1	0812-		●
384	COLLAR ID=6	1-47459-010-0	02	1	0712-0802		●
384	COLLAR ID=8	1-47459-011-0	02	1	0712-0802		●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	0803-0803	●	●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	0804-	●
386	CLIP; CENTER ID=10	1-09709-242-0	05	1	0804-		●
386	CLIP; CENTER ID=10	1-09709-242-0	02	1	0803-0811	●	●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	0712-0802	●	●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	0712-0802	●
386	CLIP; CENTER ID=10	1-09709-242-0	01	1	0803-0811	●
386	CLIP; CENTER CATALYSIS CONTROL WITH DPD<8JM> ID=10	1-09709-242-0	02	1	0812-	●
386	CLIP; CENTER ID=10	1-09709-242-0	02	1	0812-		●
388	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	03	1	0712-	●
388	SEAL 100X40	1-72498-022-1	03	1	0712-		●

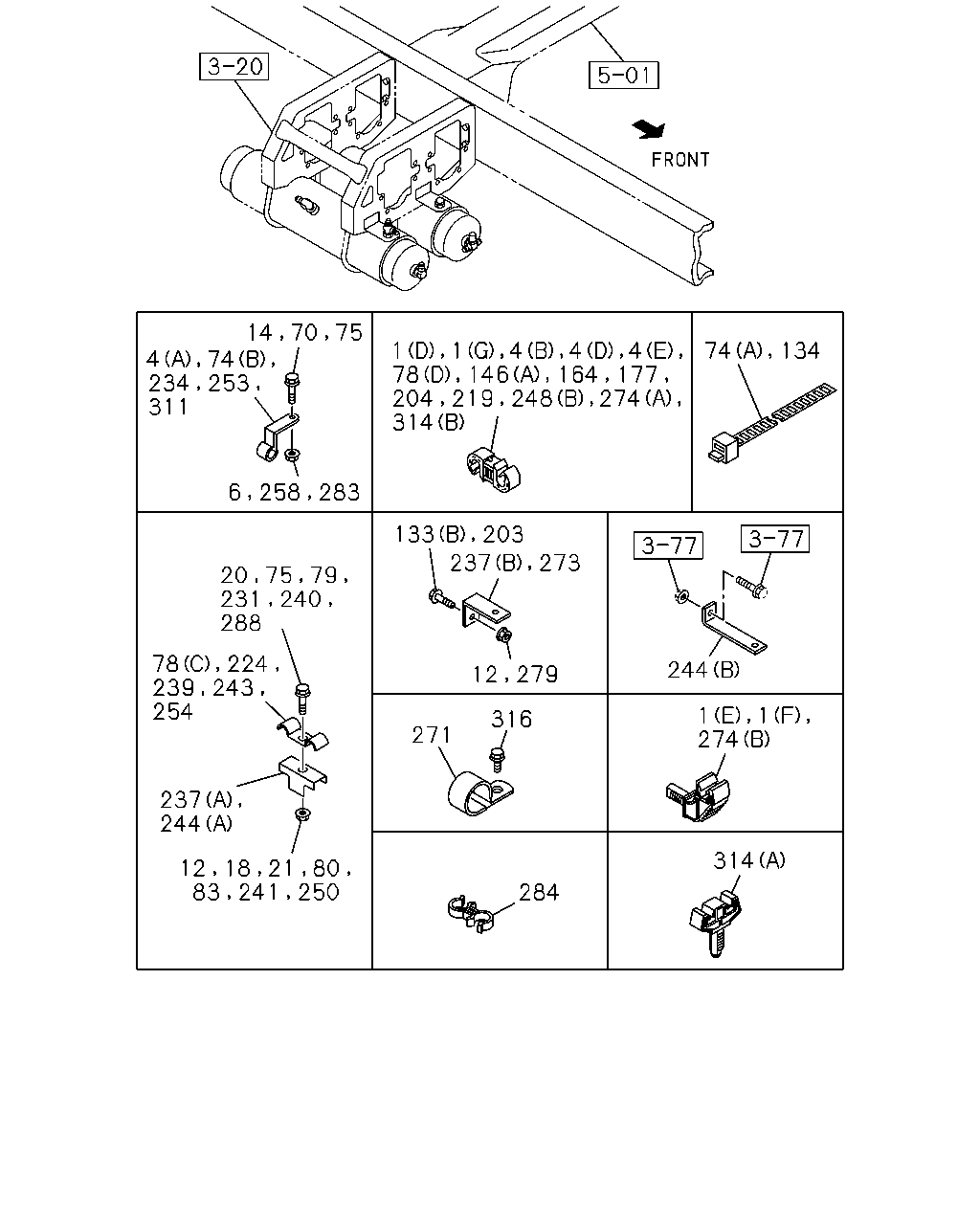

311 1 78 146 314 74 134 75 288 254 244 1 1 274 316 271 237 244 314 284 14 70 75 74 4 234 253 6 258 283 79 20 231 240 224 78 239 243 12 18 21 80 83 241 250 12 279 273 237 203 133 204 219 248 274 177 164 1 4 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE (F)	8-98012-254-1	01	1	0804-1002	●	●
1	CLIP; AIR PIPE (F)	8-98012-254-1	01	1	1003-	●	●
1	CLIP; AIR PIPE (G) ID=12 & 15	1-09709-281-1	01	1	0804-		●
1	CLIP; AIR PIPE (A) ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0802	●
1	CLIP; AIR PIPE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0712-0802	●
1	CLIP; AIR PIPE (D) ID=6.35 & 6.35	1-09709-273-1	01	1	0803-0811	●	●
1	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (D) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-	●
1	CLIP; AIR PIPE (D) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-		●
1	CLIP; AIR PIPE (C) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	0712-0802	●
1	CLIP; AIR PIPE (E) ID=6.35	1-09701-247-1	01	1	0803-0811	●	●
1	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (E) ID=6.35	1-09701-247-1	01	1	0812-	●
1	CLIP; AIR PIPE (E) ID=6.35	1-09701-247-1	01	1	0812-		●
4	CLIP; AIR PIPE ANTI LOCK BRAKE<JE5> (F) ID=4.7X4	1-09701-304-0	01	1	1003-	●
4	CLIP; AIR PIPE ANTI LOCK BRAKE<JE5> (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1003-	●
4	CLIP; AIR PIPE ANTI LOCK BRAKE<JE5> (B) ID=6.35 & 12	1-09709-275-1	02	1	1003-	●
4	CLIP; AIR PIPE ANTI LOCK BRAKE<JE5> (B) ID=4.76 & 10.0	1-09709-305-0	03	1	1003-	●
4	CLIP; AIR PIPE ANTI LOCK BRAKE<JE5> TRAILER BRAKE CONTROL<J91> (E) ID=10 & 10	1-09709-277-1	11	1	1003-	●
4	CLIP; AIR PIPE ANTI LOCK BRAKE<JE5> EXC. TRAILER BRAKE CONTROL<J91> (E) ID=10 & 10	1-09709-277-1	09	1	1003-	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	06	1	0804-0804		●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	06	1	0805-0811	●	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	06	1	0812-		●
4	CLIP; AIR PIPE (E) ID=10 & 10	1-09709-277-1	04	1	0804-0804		●
4	CLIP; AIR PIPE (E) ID=10 & 10	1-09709-277-1	04	1	0805-1002	●	●
4	CLIP; AIR PIPE EXC. ANTI LOCK BRAKE<JE5> (E) ID=10 & 10	1-09709-277-1	04	1	1003-	●
4	CLIP; AIR PIPE (E) ID=10 & 10	1-09709-277-1	04	1	1003-		●
4	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	02	1	0804-0804		●
4	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	02	1	0805-0811	●	●
4	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	01	1	0812-	●	●
4	CLIP; AIR PIPE (E) ID=10 & 10	1-09709-277-1	02	1	0712-0811	●
4	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	01	1	0712-0811	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0802	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0802	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0803-0803	●	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0804-0811	●
4	CLIP; AIR PIPE (C) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	0712-0802	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0803-0811	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	04	1	0812-	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0802		●
4	CLIP; AIR PIPE (A) ID=11 H=20 L=20	8-98033-780-0	01	1	0712-0802		●
6	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
12	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
12	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
14	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●	●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
14	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0803-		●
18	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
18	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0803-1002	●	●
18	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1003-	●	●
20	BOLT; CLIP EXC. CATALYSIS CONTROL WITH DPD<8JM> M8X50 FLANGE	0-28050-850-0	02	1	0812-	●
20	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	02	1	0712-0802	●
20	BOLT; CLIP M8X70 FLANGE	0-28050-870-0	02	1	0803-0811	●	●
20	BOLT; CLIP CATALYSIS CONTROL WITH DPD<8JM> M8X70 FLANGE	0-28050-870-0	02	1	0812-	●
20	BOLT; CLIP M8X70 FLANGE	0-28050-870-0	02	1	0812-		●
20	BOLT; CLIP M8X60 FLANGE	0-28050-860-0	01	1	0712-0802		●
20	BOLT; CLIP M8X60 FLANGE	0-28050-860-0	01	1	0712-0802		●
20	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X50 FLANGE	0-28050-850-0	05	1	0803-	●
20	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	05	1	0803-		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
21	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	05	1	0803-	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0803-		●
70	BOLT; CLIP,AIR PIPE M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
70	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
74	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	02	1	0803-0806	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	0803-0806		●
74	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	0807-0811	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	0807-0811		●
74	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0803-0811	●
74	CLIP; NYLON TUBE (B) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0803-0811		●
74	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (B) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0812-	●
74	CLIP; NYLON TUBE (B) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0812-		●
75	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	01	1	0712-0802		●
75	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0712-0802		●
75	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0803-0806	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0803-0806		●
75	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0807-0811	●
75	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0807-0811	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0807-0811		●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0807-0811		●
75	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	01	1	0812-	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0812-		●
75	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0712-0802		●
78	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) ID=10 & 15	1-09709-279-1	01	1	0812-0812	●
78	CLIP; AIR PIPE (A) ID=10 & 15	1-09709-279-1	01	1	0712-0802	●
78	CLIP; AIR PIPE (B) ID=12 & 15	1-09709-281-1	01	1	0712-0802	●
78	CLIP; AIR PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0712-0802		●
78	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	01	1	0712-0802		●
78	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	02	1	0803-0811		●
78	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (D) ID=10 & 12	1-09709-278-1	02	1	0812-0812	●
78	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	02	1	0812-0812		●
78	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (D) ID=10 & 12	1-09709-278-1	01	1	0812-0905	●
78	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (D) ID=10 & 12	1-09709-278-1	01	1	0812-0905	●
78	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (D) ID=10 & 12	1-09709-278-1	01	1	0906-	●
78	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (D) ID=10 & 12	1-09709-278-1	01	1	0906-	●
78	CLIP; AIR PIPE (D) ID=10 & 12	1-09709-278-1	01	1	0906-		●
79	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0712-0802		●
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
83	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
83	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0803-0811	●
83	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0811		●
83	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	0812-	●
83	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0812-		●
133	BOLT; BRKT (A) M6X20 FLANGE	0-28650-620-0	02	1	0712-0802		●
133	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0812-	●	●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0712-0802	●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0803-0804	●	●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	04	1	0805-1002	●	●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	04	1	1003-	●	●
146	CLIP; AIR PIPE (B) ID=10	1-09709-242-0	01	1	0712-0802		●
146	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	01	1	0712-0802		●
164	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0712-0811	●	●
177	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0811	●
177	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	04	1	0712-0811		●
203	BOLT; CLIP BRKT M8X40 FLANGE	0-28650-840-0	02	1	0712-0802	●
203	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
204	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0909-	●
204	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0712-0804		●
204	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	03	1	0805-		●
219	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	04	1	0712-0811		●
224	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0811	●
224	CLIP; AIR PIPE ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	0712-0802		●
231	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
234	CLIP; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=34 L=27	1-09701-023-0	01	1	0803-	●
234	CLIP; UNION ID=11 H=34 L=27	1-09701-023-0	01	1	0803-		●
237	BRACKET; PIPE CLIP (A)	1-47475-427-1	03	1	0712-0802	●
237	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47475-427-1	02	1	0712-0802	●
237	BRACKET; PIPE CLIP (A)	1-47475-427-1	02	1	0712-0802		●
237	BRACKET; PIPE CLIP (B) L=65	1-47479-064-0	01	1	0712-0802		●
239	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0802	●
239	CLIP; AIR PIPE ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	03	1	0712-0802		●
240	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
240	BOLT; PIPE CLIP M8X40 FLANGE	0-28650-840-0	02	1	0712-0802		●
241	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0712-0802		●
243	CLIP; AIR,PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	0712-0802	●
243	CLIP; AIR,PIPE ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0712-0802		●
244	BRACKET; CLIP,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=65	1-47479-064-0	01	1	0807-0811	●
244	BRACKET; CLIP,AIR PIPE (B) L=65	1-47479-064-0	01	1	0807-0811		●
244	BRACKET; CLIP,AIR PIPE (A)	1-47475-427-1	01	1	0712-0802	●
244	BRACKET; CLIP,AIR PIPE (A)	1-47475-427-1	02	1	0712-0802		●
244	BRACKET; CLIP,AIR PIPE (B) L=95	1-82699-085-0	01	1	0712-0802		●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0807-0811	●
248	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0807-0811		●
248	CLIP; AIR PIPE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0712-0802	●
250	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
250	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	0803-	●
250	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0803-		●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	03	1	1502-	●
253	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	03	1	1502-		●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	02	1	0712-0802	●
253	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	02	1	0712-0802		●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	05	1	0803-1501	●
253	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	05	1	0803-1501		●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	02	1	1502-	●
253	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	02	1	1502-		●
254	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	0803-	●
254	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0803-		●
258	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0712-	●
258	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0712-		●
271	CLIP; AIR PIPE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 L=20	0-95235-035-0	06	1	0712-1002	●
271	CLIP; AIR PIPE FIX ID=11 L=20	0-95235-035-0	06	1	0712-1002		●
271	CLIP; AIR PIPE FIX FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 L=20	0-95235-035-0	06	1	1003-1404	●
271	CLIP; AIR PIPE FIX ID=11 L=20	0-95235-035-0	06	1	1003-1404		●
271	CLIP; AIR PIPE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 L=20	0-95235-035-0	06	1	1405-	●	●
273	BRACKET; CLIP L=65	1-47479-064-0	01	1	0712-0802		●
274	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) BRAKE REGULATION ADR<TDU> (B) ID=6.35	1-09701-247-1	02	1	0812-	●
274	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) BRAKE REGULATION ADR<TDU> (A) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-	●
274	CLIP; AIR PIPE (B)	8-98012-254-1	01	1	0805-0811	●	●
274	CLIP; AIR PIPE BRAKE REGULATION ADR<TDU> (B)	8-98012-254-1	01	1	0812-	●
274	CLIP; AIR PIPE (B)	8-98012-254-1	01	1	0812-		●
274	CLIP; AIR PIPE (A) ID=6.35 & 10.0	1-09709-274-1	01	1	0712-		●
279	NUT; BRKT WHEEL BASE 3600MM(36W) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0812-	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
283	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0712-0802		●
284	CLIP; FLEX HOSE ID=18 & 18	8-94323-068-0	02	1	0712-0802		●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	02	1	0712-0802		●
311	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	02	1	0712-0802		●
314	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) EXC. RIGID SEAT WO/ARM REST<TAZ> (A)	8-98012-254-1	06	1	0812-	●
314	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) (A)	8-98012-254-1	06	1	0812-		●
314	CLIP; AIR PIPE (A)	8-98012-254-1	02	1	0804-1001	●	●
314	CLIP; AIR PIPE BRAKE REGULATION ADR<TDU> (A)	8-98012-254-1	02	1	1002-	●
314	CLIP; AIR PIPE (A)	8-98012-254-1	02	1	1002-		●
314	CLIP; AIR PIPE EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0803-0806	●
314	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0803-0806		●
314	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0807-0811	●	●
314	CLIP; AIR PIPE EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0807-0811	●
314	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0807-0811		●
314	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0812-	●
314	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0812-		●
314	CLIP; AIR PIPE EXC. RIGID SEAT WO/ARM REST<TAZ> (A)	8-98012-254-1	05	1	0803-0811	●
314	CLIP; AIR PIPE (A)	8-98012-254-1	05	1	0803-0811		●
314	CLIP; AIR PIPE WHEEL BASE 3600MM(36W) EXC. RIGID SEAT WO/ARM REST<TAZ> (A)	8-98012-254-1	05	1	0812-	●
314	CLIP; AIR PIPE (A)	8-98012-254-1	01	1	0712-0804	●
314	CLIP; AIR PIPE (B) ID=6.35 & 6.35	1-09709-273-1	01	1	0712-0811		●
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE	0-28050-810-0	04	1	0712-1002	●
316	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	04	1	0712-1002		●
316	BOLT; CLIP FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE	0-28050-810-0	04	1	1003-1404	●
316	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	04	1	1003-1404		●
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE	0-28050-810-0	04	1	1405-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
