Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#66722) — 842 parça

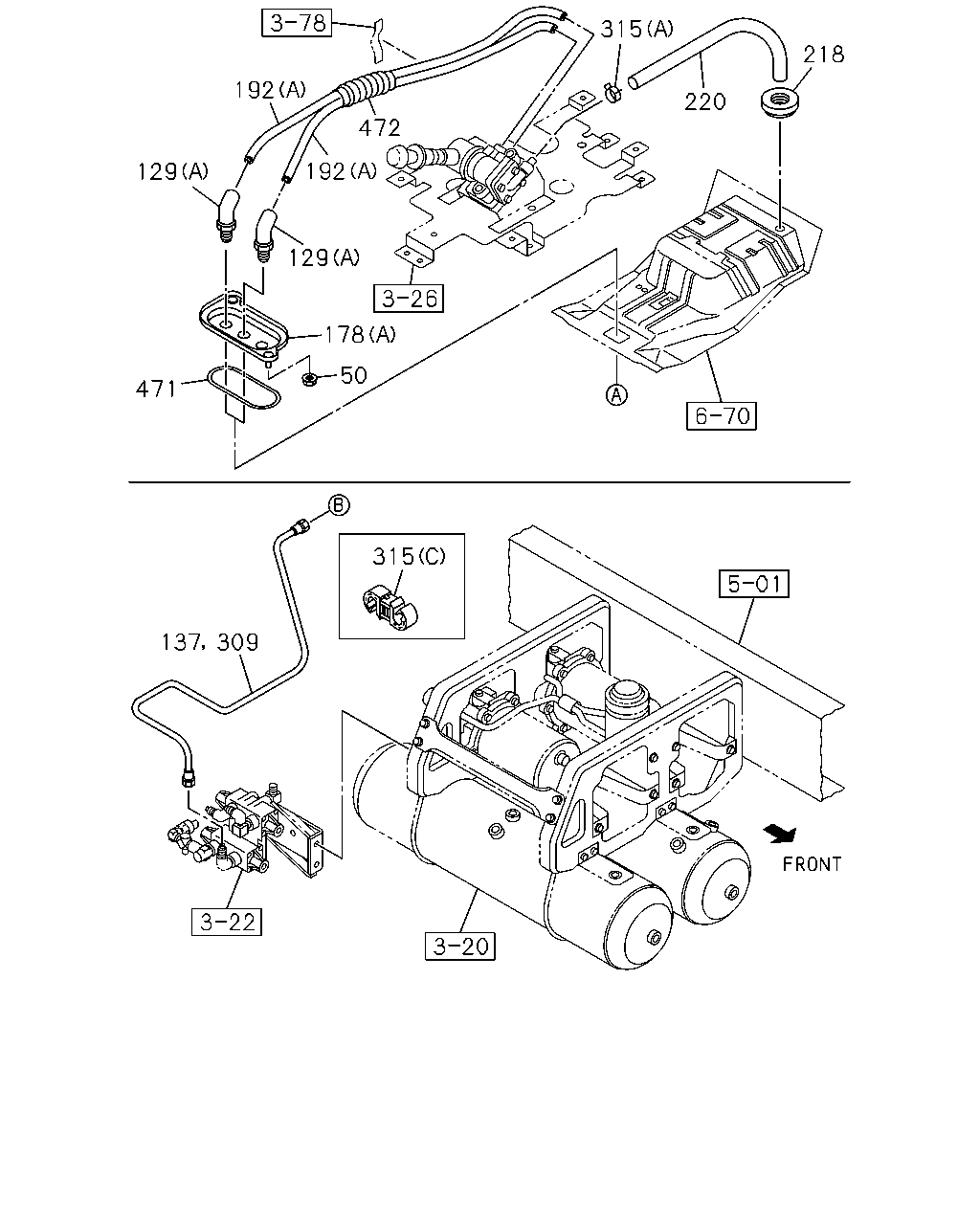

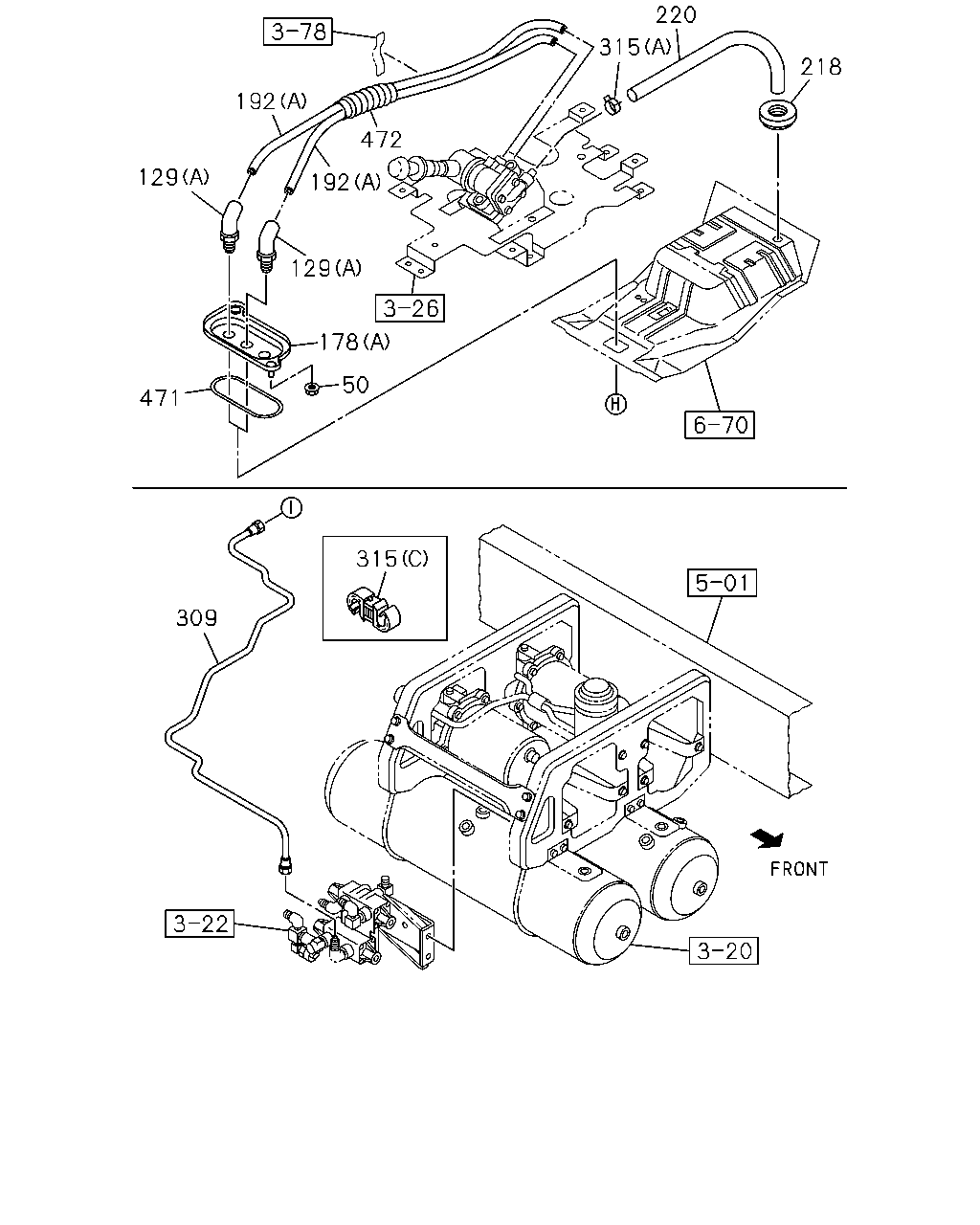

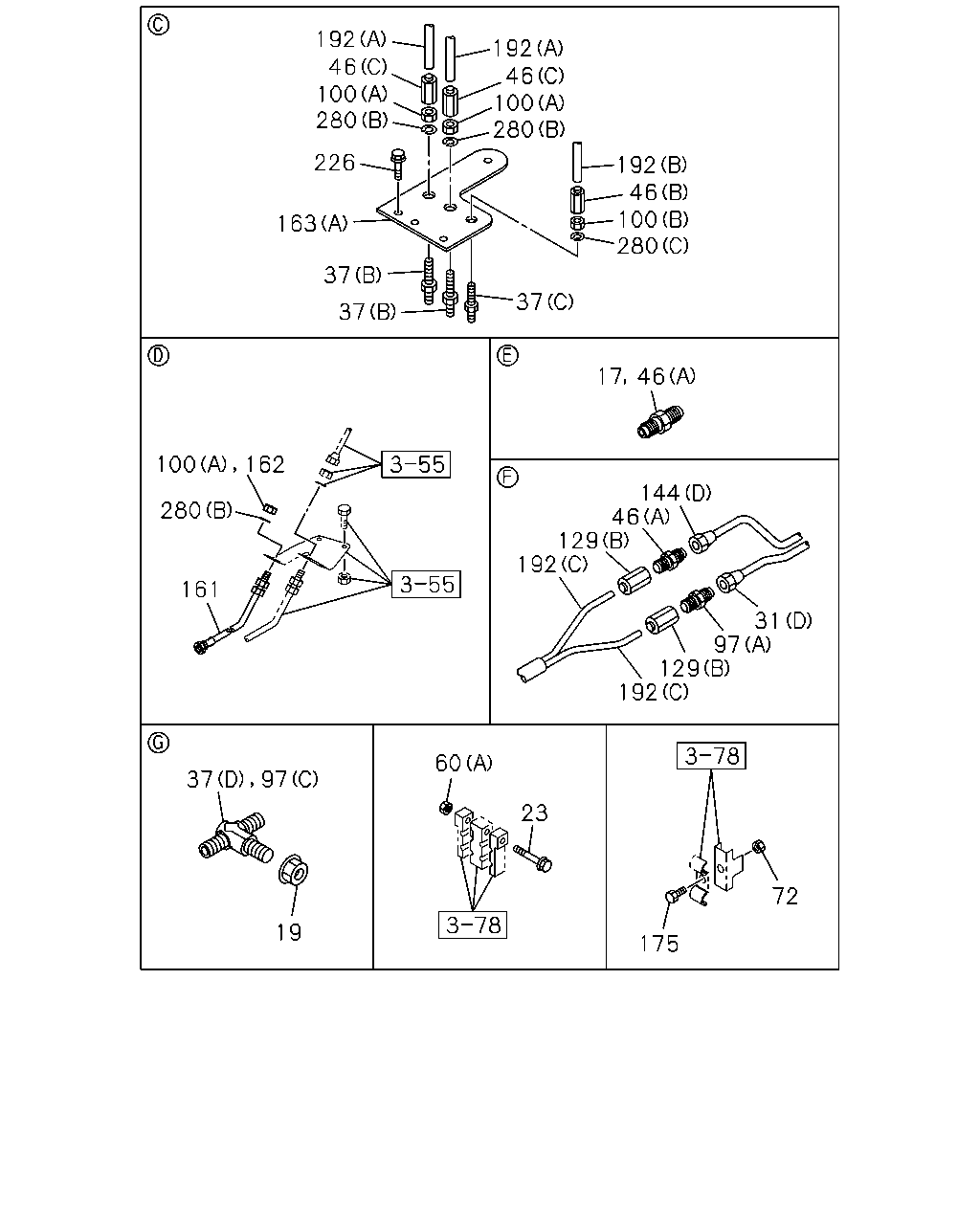

220 315 218 192 472 129 192 129 178 50 471 315 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0803-	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0803-		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0712-	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0712-		●
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	0712-	●
178	BRACKET; UNION (A)	8-98017-054-1	01	1	0712-		●
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	0712-	●
178	BRACKET; UNION (B)	1-47475-611-4	01	1	0712-0802		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0712-0802	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98115-590-0	01	1	0803-0811	●
192	TUBE; NYLON (C)	8-98115-590-0	01	1	0803-0811		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811		●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-		●
218	GROMMET; VINYL HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	0712-	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	0712-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0712-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0712-		●
309	PIPE; AIR,MPV TO UNION L=937 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=762 SERVICED BY L=800	1-47428-872-0	01	1	0803-	●
309	PIPE; AIR,MPV TO UNION L=1328 SERVICED BY L=1400	1-47428-878-0	01	1	0712-0802		●
309	PIPE; AIR,MPV TO UNION L=1180 SERVICED BY L=1250	1-47428-876-0	01	1	0803-		●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0812-	●
315	CLIP (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0812-		●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0807-0811	●
315	CLIP (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0807-0811		●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=350	1-09707-183-0	01	1	0812-	●
315	CLIP (E) L=350	1-09707-183-0	01	1	0812-		●
315	CLIP (C) ID=10 & 10	1-09709-277-1	01	1	0807-0811	●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=14	8-94238-572-0	01	1	0712-	●
315	CLIP (A) ID=14	8-94238-572-0	01	1	0712-		●
471	SEAL; BRKT	1-79738-832-0	01	1	0712-	●	●
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	0712-	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	0712-		●

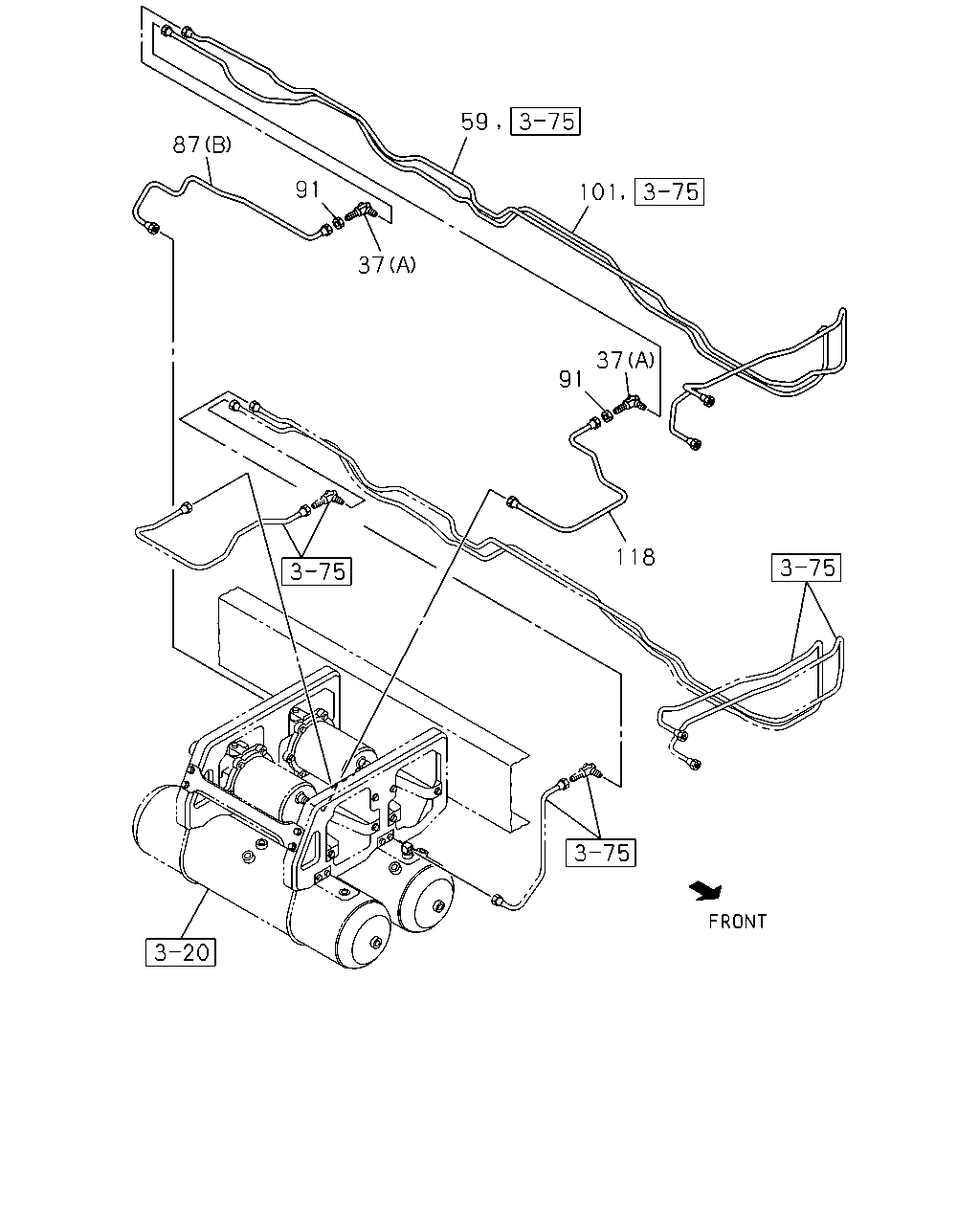

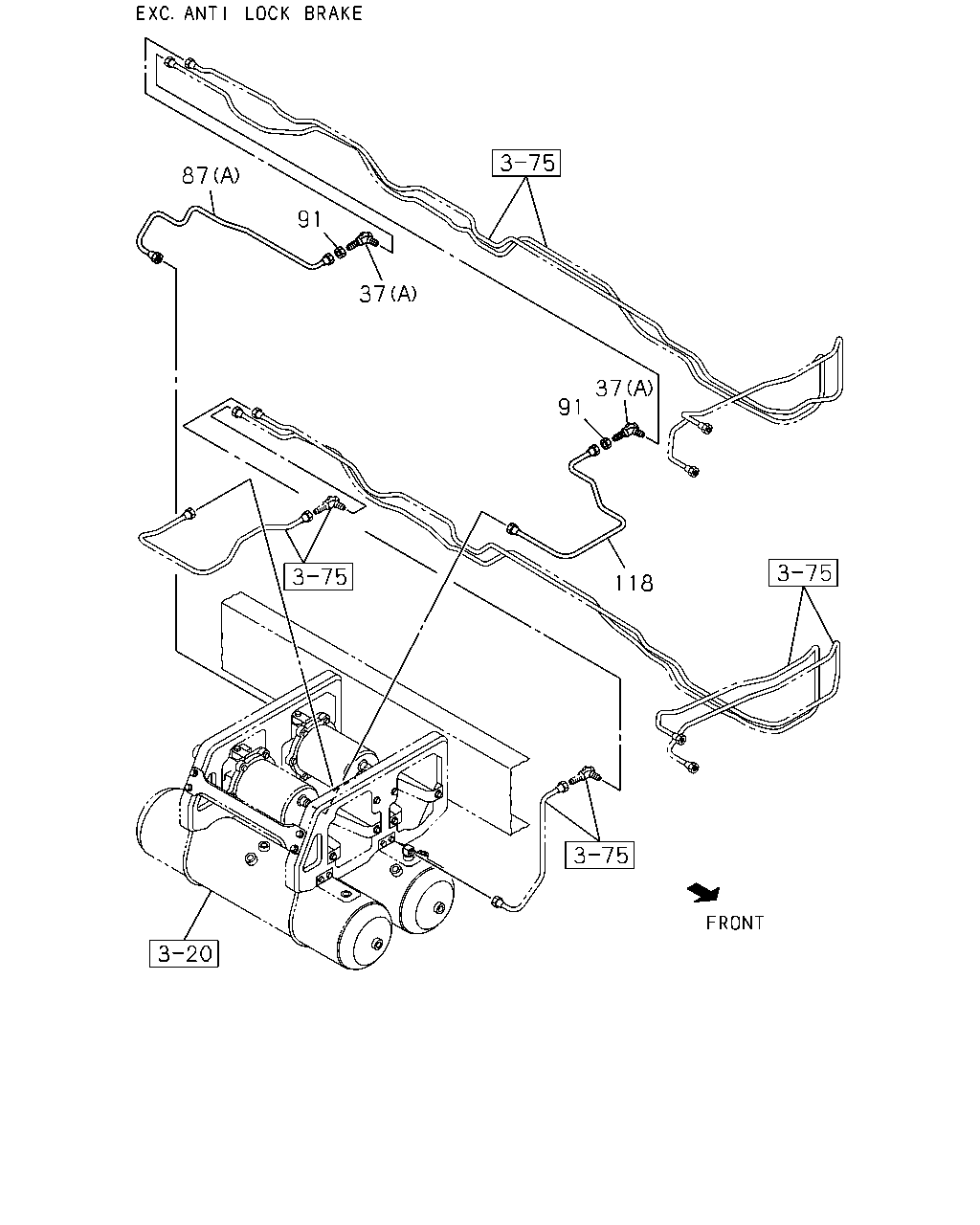

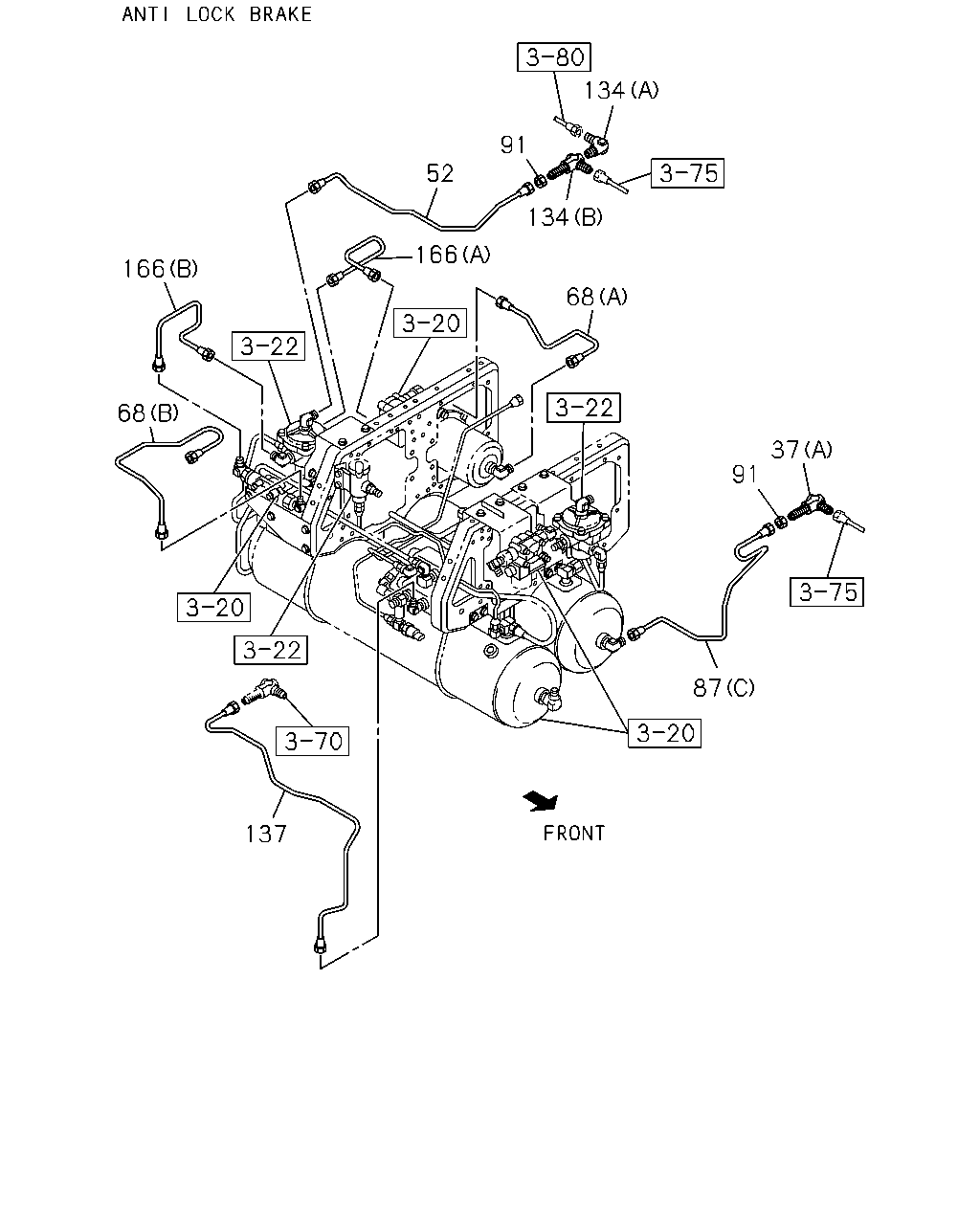

87 91 37 37 91 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810		●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0811-0812	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0812		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●
37	UNION; AIR PIPE EXC. TRAILER BRAKE CONTROL<J91> (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-		●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16	1-09654-148-1	01	1	0712-0802	●
37	UNION; AIR PIPE (D) M16	1-09654-148-1	01	1	0712-0802		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> (C) L=822 SERVICED BY L=900	1-47428-873-0	01	1	1003-	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=807 SERVICED BY L=900	1-47428-873-0	01	1	0712-0802	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=954 SERVICED BY L=1000	1-47428-874-0	01	1	0803-1002	●
87	PIPE; AIR,AIR TANK TO UNION EXC. ANTI LOCK BRAKE<JE5> (A) L=954 SERVICED BY L=1000	1-47428-874-0	01	1	1003-	●
87	PIPE; AIR,AIR TANK TO UNION (B) L=817 SERVICED BY L=900	1-49115-484-0	01	1	0712-0802		●
87	PIPE; AIR,AIR TANK TO UNION (B) L=979 SERVICED BY L=1000	1-47428-874-0	01	1	0803-		●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0712-0802	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-0810	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-0810	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0811-	●	●
118	PIPE; AIR,UNION TO AIR MASTER EURO2 SPECIFICATION<NT2> BRAKE REGULATION ADR<TDU> L=670 SERVICED BY L=700	1-47428-870-0	01	1	0909-1002	●
118	PIPE; AIR,UNION TO AIR MASTER EURO2 SPECIFICATION<NT2> BRAKE REGULATION ADR<TDU> EXC. ANTI LOCK BRAKE<JE5> L=670 SERVICED BY L=700	1-47428-870-0	01	1	1003-	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU> L=706 SERVICED BY L=730	1-47428-871-0	01	1	0811-0908	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU> L=688 SERVICED BY L=700	1-47428-870-0	01	1	0909-1002	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. ANTI LOCK BRAKE<JE5>,BRAKE REGULATION ADR<TDU> L=688 SERVICED BY L=700	1-47428-870-0	01	1	1003-	●
118	PIPE; AIR,UNION TO AIR MASTER L=664 SERVICED BY L=700	1-47428-870-0	01	1	0803-		●
118	PIPE; AIR,UNION TO AIR MASTER L=474	8-98098-204-0	01	1	0712-0802	●
118	PIPE; AIR,UNION TO AIR MASTER L=689 SERVICED BY L=700	1-47428-870-0	01	1	0803-0810	●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE REGULATION ADR<TDU> L=689 SERVICED BY L=700	1-47428-870-0	01	1	0811-0908	●
118	PIPE; AIR,UNION TO AIR MASTER EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR<TDU> L=689 SERVICED BY L=700	1-47428-870-0	01	1	0909-1002	●
118	PIPE; AIR,UNION TO AIR MASTER EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR<TDU> EXC. ANTI LOCK BRAKE<JE5> L=689 SERVICED BY L=700	1-47428-870-0	01	1	1003-	●
118	PIPE; AIR,UNION TO AIR MASTER L=747	8-98108-577-0	01	1	0712-0802		●

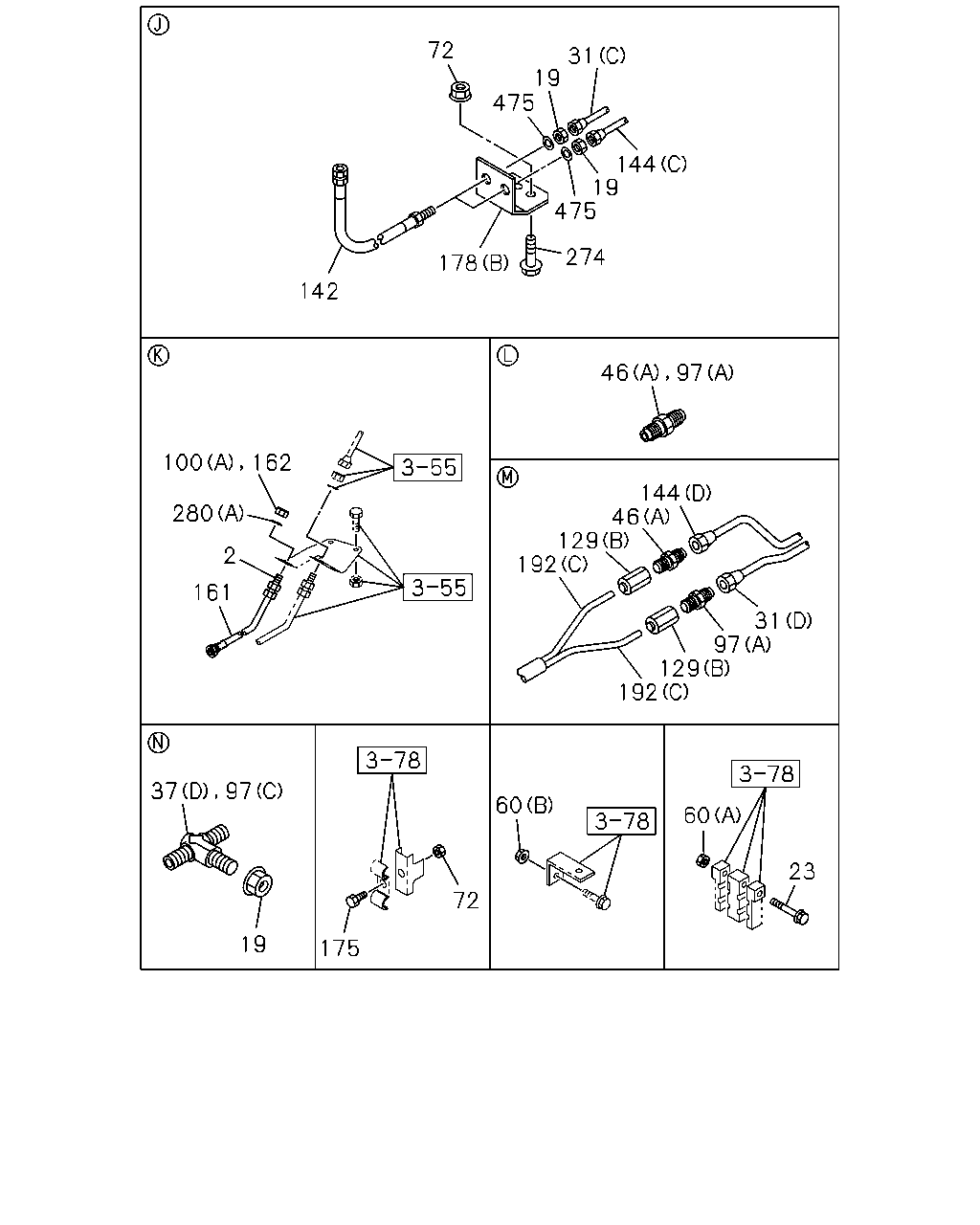

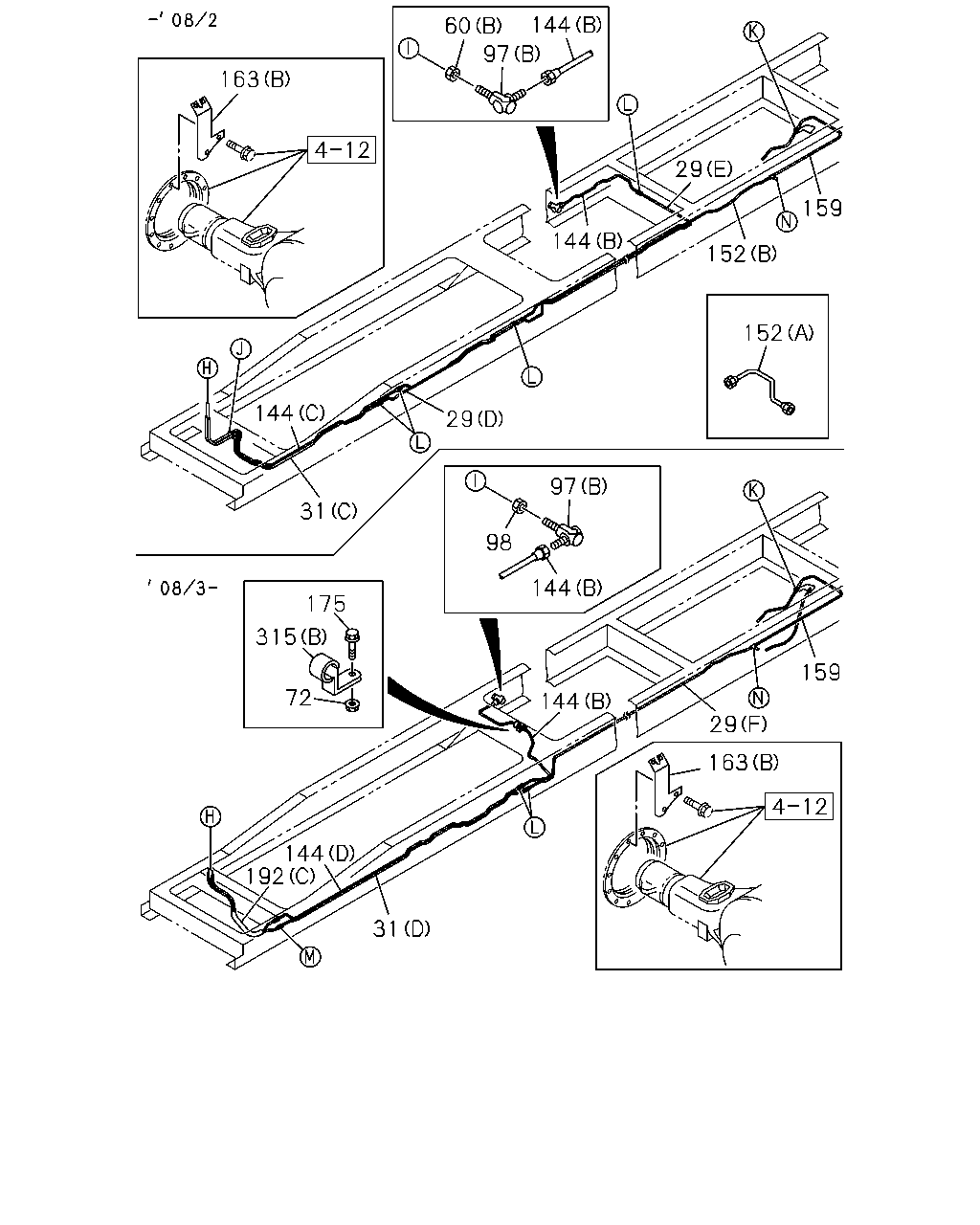

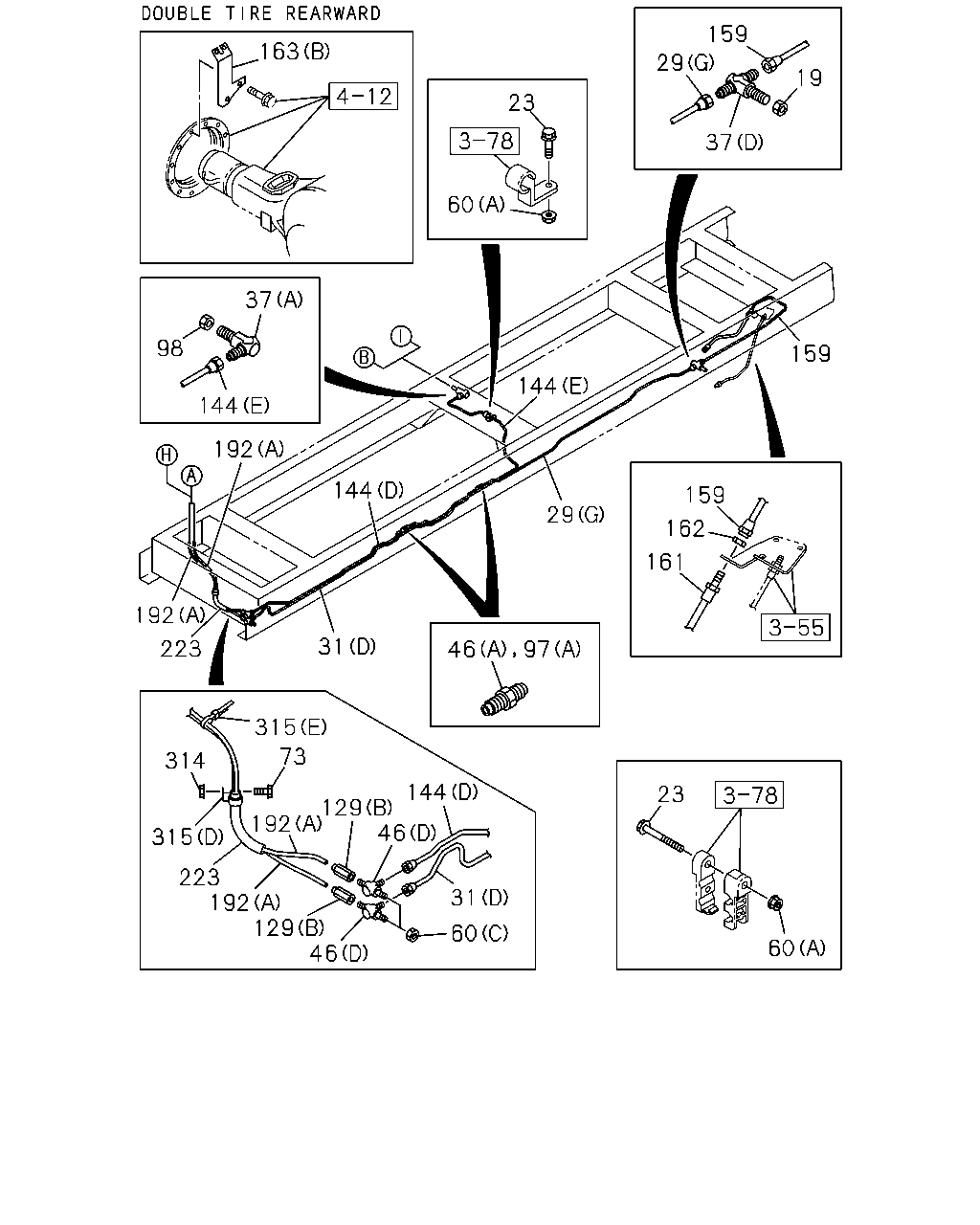

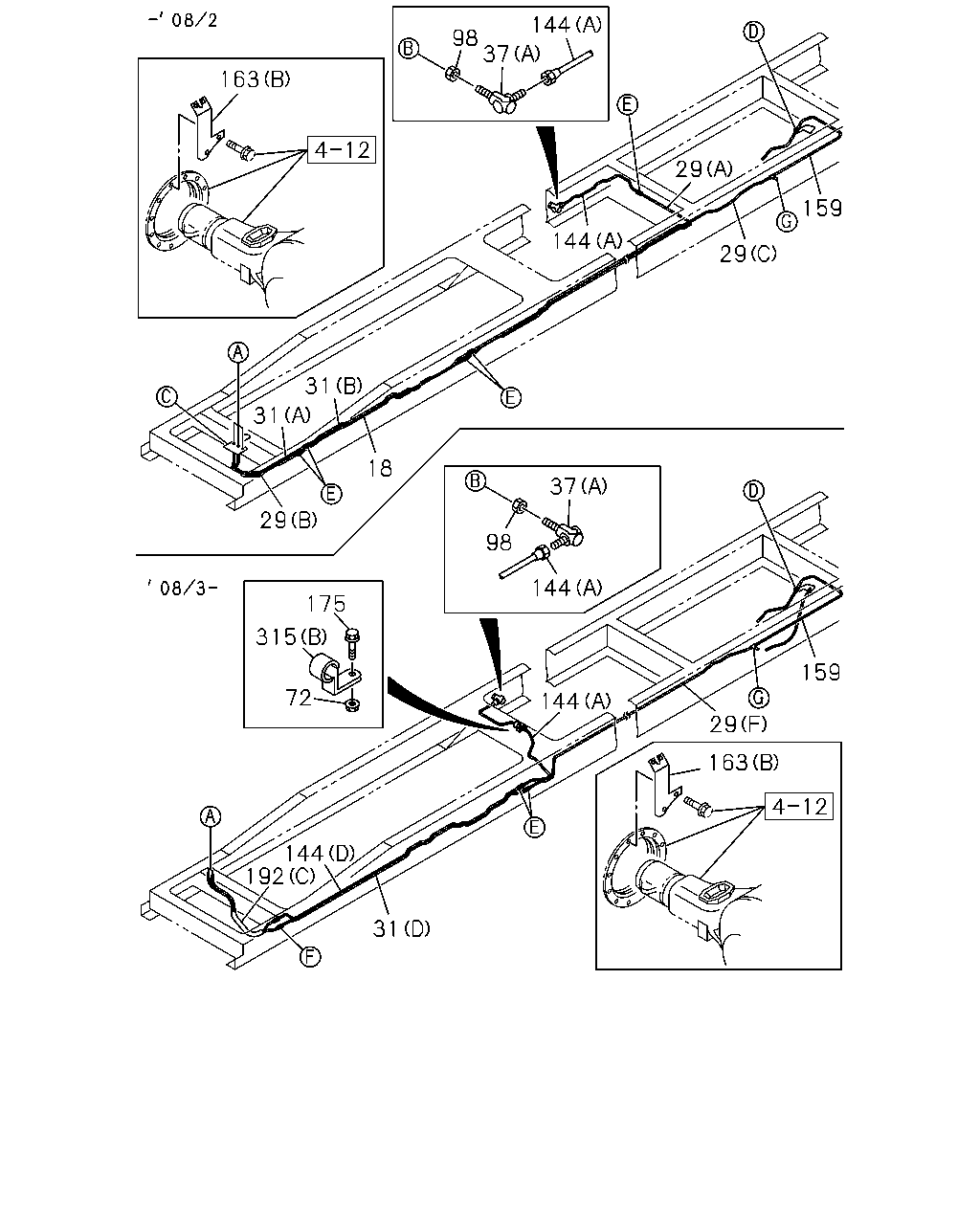

144 60 97 163 29 159 144 152 152 144 29 97 31 98 144 175 315 159 72 29 144 163 144 192 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	PIPE; AIR,UNION TO UNION WHEEL BASE 3600MM(36W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) L=2096 SERVICED BY L=2100	1-47428-882-0	01	1	0812-	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (F) L=2541 SERVICED BY L=2600	1-47428-884-0	01	1	0804-0811		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (G) L=2734 SERVICED BY L=2900	1-47428-885-0	01	1	0812-0908		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (G) L=2728 SERVICED BY L=2900	1-47428-885-0	01	1	0909-		●
29	PIPE; AIR,UNION TO UNION (A) L=2377 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F)	8-98111-622-0	01	1	0803-0803	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (F)	8-98111-622-0	01	1	0803-0803		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F)	8-98111-622-0	01	1	0804-0811	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) L=2736 SERVICED BY L=2900	1-47428-885-0	01	1	0812-1012	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) L=2728 SERVICED BY L=2900	1-47428-885-0	01	1	1101-	●
29	PIPE; AIR,UNION TO UNION (B) L=907 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (C) L=2763 SERVICED BY L=2900	1-47428-885-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (D) L=1349 SERVICED BY L=1400	1-47428-878-0	01	1	0712-0802		●
29	PIPE; AIR,UNION TO UNION (E) L=2900 SERVICED BY L=2900	1-47428-885-0	01	1	0712-0802		●
31	PIPE; AIR,UNION TO UNION (D) L=2253 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0812-1002	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0812-1002		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4100MM(41W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	1003-	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	1003-		●
31	PIPE; AIR,UNION TO UNION (A) L=916 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0803	●
31	PIPE; AIR,UNION TO UNION (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0803		●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 3600MM(36W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2362 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
31	PIPE; AIR,UNION TO UNION (B) L=1715 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (C) L=1838 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802		●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12	9-09840-280-0	02	1	0812-0812	●
60	NUT; NIPPLE,AIR PIPE (C) M12	9-09840-280-0	02	1	0812-0812		●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12	0-91111-512-0	02	1	0901-	●
60	NUT; NIPPLE,AIR PIPE (C) M12	0-91111-512-0	02	1	0901-		●
60	NUT; NIPPLE,AIR PIPE (B) M16	0-91111-516-0	01	1	0712-0802		●
60	NUT; NIPPLE,AIR PIPE (A) M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	0803-	●
60	NUT; NIPPLE,AIR PIPE (A) M8 FLANGE	0-91180-108-0	02	1	0803-		●
72	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0807-0811	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0807-0811		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M16	1-09654-148-1	01	1	0803-	●
97	UNION; AIR PIPE (C) M16	1-09654-148-1	01	1	0803-		●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0803-	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0803-		●
97	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	0712-0811		●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0712-0802	●
98	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0803-	●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-		●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=2182 SERVICED BY L=2500	1-47428-883-0	01	1	0812-1002	●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4100MM(41W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=2182 SERVICED BY L=2500	1-47428-883-0	01	1	1003-	●
144	PIPE; AIR,UNION TO UNION (A) L=1184 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1338 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811	●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 3600MM(36W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=2169 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (B) L=573 SERVICED BY L=600	1-47428-868-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION (B) L=1309 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811		●
144	PIPE; AIR,UNION TO UNION (B) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0812-0908		●
144	PIPE; AIR,UNION TO UNION (B) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0909-		●
144	PIPE; AIR,UNION TO UNION (C) L=2013 SERVICED BY L=2100	1-47428-882-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2211 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0811	●
144	PIPE; AIR,UNION TO UNION (D) L=2211 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0811		●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1531 SERVICED BY L=1550	1-47428-879-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (D) L=1531 SERVICED BY L=1550	1-47428-879-0	01	1	0812-		●
152	PIPE; AIR,UNION TO UNION (A) L=507 SERVICED BY L=550	1-47428-867-0	01	1	0712-0802		●
152	PIPE; AIR,UNION TO UNION (B) L=2346 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802		●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1295 SERVICED BY L=1300	1-47428-877-0	01	1	0712-0802	●
159	PIPE; AIR,UNION TO FLEX HOSE L=1295 SERVICED BY L=1300	1-47428-877-0	01	1	0712-0802		●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98111-625-0	01	1	0803-	●
159	PIPE; AIR,UNION TO FLEX HOSE	8-98111-625-0	01	1	0803-		●
163	BRACKET; FLEX HOSE (B)	8-98093-260-0	01	1	0712-	●	●
163	BRACKET; FLEX HOSE (B)	8-98106-706-0	01	1	0804-	●	●
163	BRACKET; FLEX HOSE (A)	8-98098-182-0	01	1	0712-0802	●
175	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	0807-0811	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0807-0811		●
175	BOLT; HOSE BRKT M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0712-0802	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98115-590-0	01	1	0803-0811	●
192	TUBE; NYLON (C)	8-98115-590-0	01	1	0803-0811		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811		●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-		●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0812-	●
315	CLIP (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0812-		●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0807-0811	●
315	CLIP (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0807-0811		●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=350	1-09707-183-0	01	1	0812-	●
315	CLIP (E) L=350	1-09707-183-0	01	1	0812-		●
315	CLIP (C) ID=10 & 10	1-09709-277-1	01	1	0807-0811	●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=14	8-94238-572-0	01	1	0712-	●
315	CLIP (A) ID=14	8-94238-572-0	01	1	0712-		●

72 31 19 475 144 19 475 274 178 142 46 97 100 162 144 46 129 192 280 2 161 31 97 129 192 60 23 72 19 175 60 97 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE M16 L=74	0-92123-310-0	01	1	0712-0802		●
19	NUT; PIPE UNION M12	9-09840-280-0	01	1	0712-0802	●
19	NUT; PIPE UNION M12	0-91111-512-0	01	1	0712-0802		●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	0-91111-512-0	01	1	0803-	●
19	NUT; PIPE UNION M12	0-91111-512-0	01	1	0803-		●
19	NUT; PIPE UNION M16	0-91111-516-0	02	1	0712-0802		●
23	BOLT; UNION BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	01	1	0803-		●
23	BOLT; UNION BRKT M8X70 FLANGE	0-28050-870-0	01	1	0712-0802	●
23	BOLT; UNION BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X50 FLANGE	0-28050-850-0	01	1	0803-	●
23	BOLT; UNION BRKT M8X50 FLANGE	0-28050-850-0	01	1	0803-		●
31	PIPE; AIR,UNION TO UNION (D) L=2253 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0812-1002	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0812-1002		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4100MM(41W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	1003-	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	1003-		●
31	PIPE; AIR,UNION TO UNION (A) L=916 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0803	●
31	PIPE; AIR,UNION TO UNION (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0803		●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 3600MM(36W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2362 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
31	PIPE; AIR,UNION TO UNION (B) L=1715 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (C) L=1838 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810		●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0811-0812	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0812		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●
37	UNION; AIR PIPE EXC. TRAILER BRAKE CONTROL<J91> (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-		●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16	1-09654-148-1	01	1	0712-0802	●
37	UNION; AIR PIPE (D) M16	1-09654-148-1	01	1	0712-0802		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
46	NIPPLE; AIR PIPE REARWARD INNER SINGLE TIRE<YK3> (E) M12 2WAY	1-09654-059-2	01	1	1003-	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16 2WAY	1-09650-182-1	02	1	0812-	●
46	NIPPLE; AIR PIPE (D) M16 2WAY	1-09650-182-1	02	1	0812-		●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) M16 L=42	0-92123-010-0	02	1	0812-	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	02	1	0812-		●
46	NIPPLE; AIR PIPE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0712-0802	●
46	NIPPLE; AIR PIPE (C) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0712-0802	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	03	1	0803-0811	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	03	1	0803-0811		●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0812-	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0812-		●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12	9-09840-280-0	02	1	0812-0812	●
60	NUT; NIPPLE,AIR PIPE (C) M12	9-09840-280-0	02	1	0812-0812		●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12	0-91111-512-0	02	1	0901-	●
60	NUT; NIPPLE,AIR PIPE (C) M12	0-91111-512-0	02	1	0901-		●
60	NUT; NIPPLE,AIR PIPE (B) M16	0-91111-516-0	01	1	0712-0802		●
60	NUT; NIPPLE,AIR PIPE (A) M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	0803-	●
60	NUT; NIPPLE,AIR PIPE (A) M8 FLANGE	0-91180-108-0	02	1	0803-		●
72	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0807-0811	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0807-0811		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M16	1-09654-148-1	01	1	0803-	●
97	UNION; AIR PIPE (C) M16	1-09654-148-1	01	1	0803-		●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0803-	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0803-		●
97	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	0712-0811		●
100	NUT; UNION (A) M16	0-91111-516-0	02	1	0712-0802	●
100	NUT; UNION (B) M12	9-09840-280-0	01	1	0712-0802	●
100	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16	0-91111-516-0	01	1	0712-0802	●
100	NUT; UNION (A) M16	0-91111-516-0	01	1	0712-0802		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0803-	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0803-		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0712-	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0712-		●
142	HOSE; FLEX,MAXI L=600	1-09363-732-0	02	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=2182 SERVICED BY L=2500	1-47428-883-0	01	1	0812-1002	●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4100MM(41W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=2182 SERVICED BY L=2500	1-47428-883-0	01	1	1003-	●
144	PIPE; AIR,UNION TO UNION (A) L=1184 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1338 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811	●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 3600MM(36W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=2169 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (B) L=573 SERVICED BY L=600	1-47428-868-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION (B) L=1309 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811		●
144	PIPE; AIR,UNION TO UNION (B) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0812-0908		●
144	PIPE; AIR,UNION TO UNION (B) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0909-		●
144	PIPE; AIR,UNION TO UNION (C) L=2013 SERVICED BY L=2100	1-47428-882-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2211 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0811	●
144	PIPE; AIR,UNION TO UNION (D) L=2211 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0811		●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1531 SERVICED BY L=1550	1-47428-879-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (D) L=1531 SERVICED BY L=1550	1-47428-879-0	01	1	0812-		●
161	HOSE; FLEX,QUICK RELEASE VLV L=490	1-09363-808-0	01	1	0712-0712	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=520	1-09363-605-0	01	1	0801-0906	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=520	1-09363-605-0	01	1	0803-	●
161	HOSE; FLEX,QUICK RELEASE VLV L=520	1-09363-605-0	01	1	0803-		●
161	HOSE; FLEX,QUICK RELEASE VLV L=680	1-09363-742-0	01	1	0712-0802		●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0803-	●
162	NUT; FLEX HOSE M16	0-91111-516-0	01	1	0803-		●
175	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	0807-0811	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0807-0811		●
175	BOLT; HOSE BRKT M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	0712-	●
178	BRACKET; UNION (A)	8-98017-054-1	01	1	0712-		●
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	0712-	●
178	BRACKET; UNION (B)	1-47475-611-4	01	1	0712-0802		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0712-0802	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98115-590-0	01	1	0803-0811	●
192	TUBE; NYLON (C)	8-98115-590-0	01	1	0803-0811		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811		●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-		●
274	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-0802		●
280	WASHER; LK (C) ID=12.2	0-91510-812-0	01	1	0712-0802	●
280	WASHER; LK (B) ID=16.2	0-91510-816-0	03	1	0712-0802	●
280	WASHER; LK (A) ID=16.2	0-91510-516-0	01	1	0712-0802		●
475	WASHER; FLEX HOSE ID=16.2	0-91510-516-0	02	1	0712-0802		●

315 218 192 220 472 192 129 129 178 50 471 315 137 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0803-	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0803-		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0712-	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0712-		●
137	PIPE; AIR,PROTECTION VLV TO UNION ANTI LOCK BRAKE<JE5> TRAILER BRAKE CONTROL<J91> L=1174 SERVICED BY L=1250	1-47428-876-0	01	1	1003-	●
137	PIPE; AIR,PROTECTION VLV TO UNION TRAILER BRAKE CONTROL<J91> EXC. ANTI LOCK BRAKE<JE5> L=776 SERVICED BY L=800	1-47428-872-0	01	1	1003-	●
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	0712-	●
178	BRACKET; UNION (A)	8-98017-054-1	01	1	0712-		●
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	0712-	●
178	BRACKET; UNION (B)	1-47475-611-4	01	1	0712-0802		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0712-0802	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98115-590-0	01	1	0803-0811	●
192	TUBE; NYLON (C)	8-98115-590-0	01	1	0803-0811		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811		●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-		●
218	GROMMET; VINYL HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	0712-	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	0712-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0712-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0712-		●
309	PIPE; AIR,MPV TO UNION L=937 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=762 SERVICED BY L=800	1-47428-872-0	01	1	0803-	●
309	PIPE; AIR,MPV TO UNION L=1328 SERVICED BY L=1400	1-47428-878-0	01	1	0712-0802		●
309	PIPE; AIR,MPV TO UNION L=1180 SERVICED BY L=1250	1-47428-876-0	01	1	0803-		●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0812-	●
315	CLIP (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0812-		●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0807-0811	●
315	CLIP (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0807-0811		●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=350	1-09707-183-0	01	1	0812-	●
315	CLIP (E) L=350	1-09707-183-0	01	1	0812-		●
315	CLIP (C) ID=10 & 10	1-09709-277-1	01	1	0807-0811	●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=14	8-94238-572-0	01	1	0712-	●
315	CLIP (A) ID=14	8-94238-572-0	01	1	0712-		●
471	SEAL; BRKT	1-79738-832-0	01	1	0712-	●	●
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	0712-	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	0712-		●

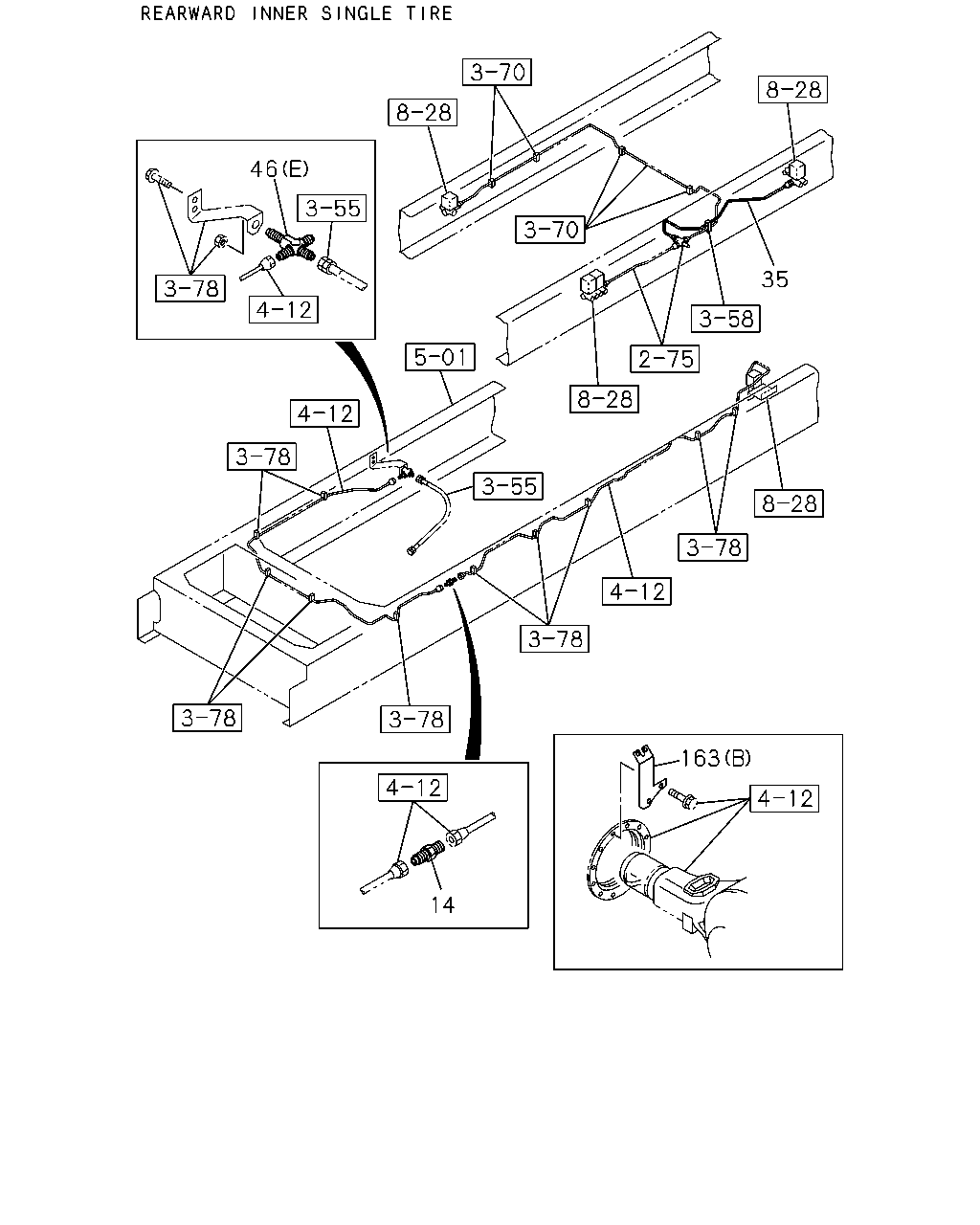

46 163 14 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	UNION; AIR PIPE REARWARD INNER SINGLE TIRE<YK3> M12 L=40	0-92113-006-0	01	1	1003-	●
35	PIPE; AIR,UNION TO UNION,DIFF LOCK DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> L=811 SERVICED BY L=900	1-47428-813-0	01	1	1003-	●
46	NIPPLE; AIR PIPE REARWARD INNER SINGLE TIRE<YK3> (E) M12 2WAY	1-09654-059-2	01	1	1003-	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16 2WAY	1-09650-182-1	02	1	0812-	●
46	NIPPLE; AIR PIPE (D) M16 2WAY	1-09650-182-1	02	1	0812-		●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) M16 L=42	0-92123-010-0	02	1	0812-	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	02	1	0812-		●
46	NIPPLE; AIR PIPE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0712-0802	●
46	NIPPLE; AIR PIPE (C) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0712-0802	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	03	1	0803-0811	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	03	1	0803-0811		●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0812-	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0812-		●
163	BRACKET; FLEX HOSE (B)	8-98093-260-0	01	1	0712-	●	●
163	BRACKET; FLEX HOSE (B)	8-98106-706-0	01	1	0804-	●	●
163	BRACKET; FLEX HOSE (A)	8-98098-182-0	01	1	0712-0802	●

144 98 37 163 29 159 144 29 31 31 18 37 29 98 144 175 315 159 72 29 144 163 144 192 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	PIPE; AIR,UNION TO UNION L=1721 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 3600MM(36W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) L=2096 SERVICED BY L=2100	1-47428-882-0	01	1	0812-	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (F) L=2541 SERVICED BY L=2600	1-47428-884-0	01	1	0804-0811		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (G) L=2734 SERVICED BY L=2900	1-47428-885-0	01	1	0812-0908		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (G) L=2728 SERVICED BY L=2900	1-47428-885-0	01	1	0909-		●
29	PIPE; AIR,UNION TO UNION (A) L=2377 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F)	8-98111-622-0	01	1	0803-0803	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (F)	8-98111-622-0	01	1	0803-0803		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F)	8-98111-622-0	01	1	0804-0811	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) L=2736 SERVICED BY L=2900	1-47428-885-0	01	1	0812-1012	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) L=2728 SERVICED BY L=2900	1-47428-885-0	01	1	1101-	●
29	PIPE; AIR,UNION TO UNION (B) L=907 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (C) L=2763 SERVICED BY L=2900	1-47428-885-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (D) L=1349 SERVICED BY L=1400	1-47428-878-0	01	1	0712-0802		●
29	PIPE; AIR,UNION TO UNION (E) L=2900 SERVICED BY L=2900	1-47428-885-0	01	1	0712-0802		●
31	PIPE; AIR,UNION TO UNION (D) L=2253 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0812-1002	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0812-1002		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4100MM(41W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	1003-	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	1003-		●
31	PIPE; AIR,UNION TO UNION (A) L=916 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0803	●
31	PIPE; AIR,UNION TO UNION (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0803		●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 3600MM(36W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2362 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
31	PIPE; AIR,UNION TO UNION (B) L=1715 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (C) L=1838 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810		●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0811-0812	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0812		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●
37	UNION; AIR PIPE EXC. TRAILER BRAKE CONTROL<J91> (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-		●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16	1-09654-148-1	01	1	0712-0802	●
37	UNION; AIR PIPE (D) M16	1-09654-148-1	01	1	0712-0802		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
72	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0807-0811	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0807-0811		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0712-0802	●
98	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0803-	●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-		●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=2182 SERVICED BY L=2500	1-47428-883-0	01	1	0812-1002	●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4100MM(41W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=2182 SERVICED BY L=2500	1-47428-883-0	01	1	1003-	●
144	PIPE; AIR,UNION TO UNION (A) L=1184 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1338 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811	●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 3600MM(36W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=2169 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (B) L=573 SERVICED BY L=600	1-47428-868-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION (B) L=1309 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811		●
144	PIPE; AIR,UNION TO UNION (B) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0812-0908		●
144	PIPE; AIR,UNION TO UNION (B) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0909-		●
144	PIPE; AIR,UNION TO UNION (C) L=2013 SERVICED BY L=2100	1-47428-882-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2211 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0811	●
144	PIPE; AIR,UNION TO UNION (D) L=2211 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0811		●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1531 SERVICED BY L=1550	1-47428-879-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (D) L=1531 SERVICED BY L=1550	1-47428-879-0	01	1	0812-		●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1295 SERVICED BY L=1300	1-47428-877-0	01	1	0712-0802	●
159	PIPE; AIR,UNION TO FLEX HOSE L=1295 SERVICED BY L=1300	1-47428-877-0	01	1	0712-0802		●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98111-625-0	01	1	0803-	●
159	PIPE; AIR,UNION TO FLEX HOSE	8-98111-625-0	01	1	0803-		●
163	BRACKET; FLEX HOSE (B)	8-98093-260-0	01	1	0712-	●	●
163	BRACKET; FLEX HOSE (B)	8-98106-706-0	01	1	0804-	●	●
163	BRACKET; FLEX HOSE (A)	8-98098-182-0	01	1	0712-0802	●
175	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	0807-0811	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0807-0811		●
175	BOLT; HOSE BRKT M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0712-0802	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98115-590-0	01	1	0803-0811	●
192	TUBE; NYLON (C)	8-98115-590-0	01	1	0803-0811		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811		●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-		●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0812-	●
315	CLIP (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0812-		●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0807-0811	●
315	CLIP (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0807-0811		●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=350	1-09707-183-0	01	1	0812-	●
315	CLIP (E) L=350	1-09707-183-0	01	1	0812-		●
315	CLIP (C) ID=10 & 10	1-09709-277-1	01	1	0807-0811	●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=14	8-94238-572-0	01	1	0712-	●
315	CLIP (A) ID=14	8-94238-572-0	01	1	0712-		●

134 91 52 134 166 166 68 68 37 91 87 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810		●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0811-0812	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0812		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●
37	UNION; AIR PIPE EXC. TRAILER BRAKE CONTROL<J91> (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-		●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16	1-09654-148-1	01	1	0712-0802	●
37	UNION; AIR PIPE (D) M16	1-09654-148-1	01	1	0712-0802		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
52	PIPE; AIR,UNION TO RELAY VLV ANTI LOCK BRAKE<JE5> L=722 SERVICED BY L=730	1-47428-871-0	01	1	1003-	●
68	PIPE; AIR,MODULATOR TO UNION ANTI LOCK BRAKE<JE5> (A)	8-98167-302-0	01	1	1003-	●
68	PIPE; AIR,MODULATOR TO UNION ANTI LOCK BRAKE<JE5> (B)	8-98147-519-0	01	1	1003-	●
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> (C) L=822 SERVICED BY L=900	1-47428-873-0	01	1	1003-	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=807 SERVICED BY L=900	1-47428-873-0	01	1	0712-0802	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=954 SERVICED BY L=1000	1-47428-874-0	01	1	0803-1002	●
87	PIPE; AIR,AIR TANK TO UNION EXC. ANTI LOCK BRAKE<JE5> (A) L=954 SERVICED BY L=1000	1-47428-874-0	01	1	1003-	●
87	PIPE; AIR,AIR TANK TO UNION (B) L=817 SERVICED BY L=900	1-49115-484-0	01	1	0712-0802		●
87	PIPE; AIR,AIR TANK TO UNION (B) L=979 SERVICED BY L=1000	1-47428-874-0	01	1	0803-		●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0712-0802	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-0810	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-0810	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0811-	●	●
134	CONNECTOR TRAILER BRAKE CONTROL<J91> (A) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1003-	●
134	CONNECTOR TRAILER BRAKE CONTROL<J91> (B)	1-09656-561-1	01	1	1003-	●
137	PIPE; AIR,PROTECTION VLV TO UNION ANTI LOCK BRAKE<JE5> TRAILER BRAKE CONTROL<J91> L=1174 SERVICED BY L=1250	1-47428-876-0	01	1	1003-	●
137	PIPE; AIR,PROTECTION VLV TO UNION TRAILER BRAKE CONTROL<J91> EXC. ANTI LOCK BRAKE<JE5> L=776 SERVICED BY L=800	1-47428-872-0	01	1	1003-	●
166	PIPE; AIR,RELAY VALVE TO UNION ANTI LOCK BRAKE<JE5> (A) L=345	8-98147-516-0	01	1	1003-	●
166	PIPE; AIR,RELAY VALVE TO UNION ANTI LOCK BRAKE<JE5> (B) L=428	8-98147-517-0	01	1	1003-	●

59 87 91 101 37 37 91 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810		●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0811-0812	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0812		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●
37	UNION; AIR PIPE EXC. TRAILER BRAKE CONTROL<J91> (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-		●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16	1-09654-148-1	01	1	0712-0802	●
37	UNION; AIR PIPE (D) M16	1-09654-148-1	01	1	0712-0802		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3543	8-98054-017-0	01	1	0712-0802		●
87	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE<JE5> (C) L=822 SERVICED BY L=900	1-47428-873-0	01	1	1003-	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=807 SERVICED BY L=900	1-47428-873-0	01	1	0712-0802	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=954 SERVICED BY L=1000	1-47428-874-0	01	1	0803-1002	●
87	PIPE; AIR,AIR TANK TO UNION EXC. ANTI LOCK BRAKE<JE5> (A) L=954 SERVICED BY L=1000	1-47428-874-0	01	1	1003-	●
87	PIPE; AIR,AIR TANK TO UNION (B) L=817 SERVICED BY L=900	1-49115-484-0	01	1	0712-0802		●
87	PIPE; AIR,AIR TANK TO UNION (B) L=979 SERVICED BY L=1000	1-47428-874-0	01	1	0803-		●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0712-0802	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-0810	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-0810	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0811-	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3804	8-98054-018-0	01	1	0712-0802		●
118	PIPE; AIR,UNION TO AIR MASTER EURO2 SPECIFICATION<NT2> BRAKE REGULATION ADR<TDU> L=670 SERVICED BY L=700	1-47428-870-0	01	1	0909-1002	●
118	PIPE; AIR,UNION TO AIR MASTER EURO2 SPECIFICATION<NT2> BRAKE REGULATION ADR<TDU> EXC. ANTI LOCK BRAKE<JE5> L=670 SERVICED BY L=700	1-47428-870-0	01	1	1003-	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU> L=706 SERVICED BY L=730	1-47428-871-0	01	1	0811-0908	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU> L=688 SERVICED BY L=700	1-47428-870-0	01	1	0909-1002	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. ANTI LOCK BRAKE<JE5>,BRAKE REGULATION ADR<TDU> L=688 SERVICED BY L=700	1-47428-870-0	01	1	1003-	●
118	PIPE; AIR,UNION TO AIR MASTER L=664 SERVICED BY L=700	1-47428-870-0	01	1	0803-		●
118	PIPE; AIR,UNION TO AIR MASTER L=474	8-98098-204-0	01	1	0712-0802	●
118	PIPE; AIR,UNION TO AIR MASTER L=689 SERVICED BY L=700	1-47428-870-0	01	1	0803-0810	●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE REGULATION ADR<TDU> L=689 SERVICED BY L=700	1-47428-870-0	01	1	0811-0908	●
118	PIPE; AIR,UNION TO AIR MASTER EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR<TDU> L=689 SERVICED BY L=700	1-47428-870-0	01	1	0909-1002	●
118	PIPE; AIR,UNION TO AIR MASTER EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR<TDU> EXC. ANTI LOCK BRAKE<JE5> L=689 SERVICED BY L=700	1-47428-870-0	01	1	1003-	●
118	PIPE; AIR,UNION TO AIR MASTER L=747	8-98108-577-0	01	1	0712-0802		●

192 46 100 280 192 46 100 280 226 192 46 100 280 163 37 37 37 17 46 100 162 144 46 129 192 280 161 31 97 129 192 60 23 72 19 175 37 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	UNION; AIR PIPE M16 L=42	0-92123-010-0	01	1	0712-0802	●
17	UNION; AIR PIPE M16 L=42	0-92123-010-0	01	1	0712-0802	●
19	NUT; PIPE UNION M12	9-09840-280-0	01	1	0712-0802	●
19	NUT; PIPE UNION M12	0-91111-512-0	01	1	0712-0802		●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	0-91111-512-0	01	1	0803-	●
19	NUT; PIPE UNION M12	0-91111-512-0	01	1	0803-		●
19	NUT; PIPE UNION M16	0-91111-516-0	02	1	0712-0802		●
23	BOLT; UNION BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	01	1	0803-		●
23	BOLT; UNION BRKT M8X70 FLANGE	0-28050-870-0	01	1	0712-0802	●
23	BOLT; UNION BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X50 FLANGE	0-28050-850-0	01	1	0803-	●
23	BOLT; UNION BRKT M8X50 FLANGE	0-28050-850-0	01	1	0803-		●
31	PIPE; AIR,UNION TO UNION (D) L=2253 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0812-1002	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0812-1002		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4100MM(41W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	1003-	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	1003-		●
31	PIPE; AIR,UNION TO UNION (A) L=916 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0803	●
31	PIPE; AIR,UNION TO UNION (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0803		●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 3600MM(36W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2362 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
31	PIPE; AIR,UNION TO UNION (B) L=1715 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (C) L=1838 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810		●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0811-0812	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0812		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●
37	UNION; AIR PIPE EXC. TRAILER BRAKE CONTROL<J91> (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-		●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16	1-09654-148-1	01	1	0712-0802	●
37	UNION; AIR PIPE (D) M16	1-09654-148-1	01	1	0712-0802		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
46	NIPPLE; AIR PIPE REARWARD INNER SINGLE TIRE<YK3> (E) M12 2WAY	1-09654-059-2	01	1	1003-	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16 2WAY	1-09650-182-1	02	1	0812-	●
46	NIPPLE; AIR PIPE (D) M16 2WAY	1-09650-182-1	02	1	0812-		●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) M16 L=42	0-92123-010-0	02	1	0812-	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	02	1	0812-		●
46	NIPPLE; AIR PIPE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0712-0802	●
46	NIPPLE; AIR PIPE (C) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0712-0802	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	03	1	0803-0811	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	03	1	0803-0811		●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0812-	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0812-		●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12	9-09840-280-0	02	1	0812-0812	●
60	NUT; NIPPLE,AIR PIPE (C) M12	9-09840-280-0	02	1	0812-0812		●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12	0-91111-512-0	02	1	0901-	●
60	NUT; NIPPLE,AIR PIPE (C) M12	0-91111-512-0	02	1	0901-		●
60	NUT; NIPPLE,AIR PIPE (B) M16	0-91111-516-0	01	1	0712-0802		●
60	NUT; NIPPLE,AIR PIPE (A) M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	0803-	●
60	NUT; NIPPLE,AIR PIPE (A) M8 FLANGE	0-91180-108-0	02	1	0803-		●
72	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0807-0811	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0807-0811		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M16	1-09654-148-1	01	1	0803-	●
97	UNION; AIR PIPE (C) M16	1-09654-148-1	01	1	0803-		●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0803-	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0803-		●
97	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	0712-0811		●
100	NUT; UNION (A) M16	0-91111-516-0	02	1	0712-0802	●
100	NUT; UNION (B) M12	9-09840-280-0	01	1	0712-0802	●
100	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16	0-91111-516-0	01	1	0712-0802	●
100	NUT; UNION (A) M16	0-91111-516-0	01	1	0712-0802		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0803-	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0803-		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0712-	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0712-		●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=2182 SERVICED BY L=2500	1-47428-883-0	01	1	0812-1002	●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4100MM(41W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=2182 SERVICED BY L=2500	1-47428-883-0	01	1	1003-	●
144	PIPE; AIR,UNION TO UNION (A) L=1184 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1338 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811	●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 3600MM(36W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=2169 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (B) L=573 SERVICED BY L=600	1-47428-868-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION (B) L=1309 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811		●
144	PIPE; AIR,UNION TO UNION (B) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0812-0908		●
144	PIPE; AIR,UNION TO UNION (B) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0909-		●
144	PIPE; AIR,UNION TO UNION (C) L=2013 SERVICED BY L=2100	1-47428-882-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2211 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0811	●
144	PIPE; AIR,UNION TO UNION (D) L=2211 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0811		●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1531 SERVICED BY L=1550	1-47428-879-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (D) L=1531 SERVICED BY L=1550	1-47428-879-0	01	1	0812-		●
161	HOSE; FLEX,QUICK RELEASE VLV L=490	1-09363-808-0	01	1	0712-0712	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=520	1-09363-605-0	01	1	0801-0906	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=520	1-09363-605-0	01	1	0803-	●
161	HOSE; FLEX,QUICK RELEASE VLV L=520	1-09363-605-0	01	1	0803-		●
161	HOSE; FLEX,QUICK RELEASE VLV L=680	1-09363-742-0	01	1	0712-0802		●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0803-	●
162	NUT; FLEX HOSE M16	0-91111-516-0	01	1	0803-		●
163	BRACKET; FLEX HOSE (B)	8-98093-260-0	01	1	0712-	●	●
163	BRACKET; FLEX HOSE (B)	8-98106-706-0	01	1	0804-	●	●
163	BRACKET; FLEX HOSE (A)	8-98098-182-0	01	1	0712-0802	●
175	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	0807-0811	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0807-0811		●
175	BOLT; HOSE BRKT M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0712-0802	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98115-590-0	01	1	0803-0811	●
192	TUBE; NYLON (C)	8-98115-590-0	01	1	0803-0811		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811		●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-		●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●
280	WASHER; LK (C) ID=12.2	0-91510-812-0	01	1	0712-0802	●
280	WASHER; LK (B) ID=16.2	0-91510-816-0	03	1	0712-0802	●
280	WASHER; LK (A) ID=16.2	0-91510-516-0	01	1	0712-0802		●

159 163 29 19 23 37 60 37 98 159 144 144 192 144 159 29 162 161 192 31 223 46 97 315 73 314 144 23 129 46 192 315 223 192 129 46 31 60 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	NUT; PIPE UNION M12	9-09840-280-0	01	1	0712-0802	●
19	NUT; PIPE UNION M12	0-91111-512-0	01	1	0712-0802		●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	0-91111-512-0	01	1	0803-	●
19	NUT; PIPE UNION M12	0-91111-512-0	01	1	0803-		●
19	NUT; PIPE UNION M16	0-91111-516-0	02	1	0712-0802		●
23	BOLT; UNION BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	01	1	0803-		●
23	BOLT; UNION BRKT M8X70 FLANGE	0-28050-870-0	01	1	0712-0802	●
23	BOLT; UNION BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X50 FLANGE	0-28050-850-0	01	1	0803-	●
23	BOLT; UNION BRKT M8X50 FLANGE	0-28050-850-0	01	1	0803-		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 3600MM(36W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) L=2096 SERVICED BY L=2100	1-47428-882-0	01	1	0812-	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (F) L=2541 SERVICED BY L=2600	1-47428-884-0	01	1	0804-0811		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (G) L=2734 SERVICED BY L=2900	1-47428-885-0	01	1	0812-0908		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (G) L=2728 SERVICED BY L=2900	1-47428-885-0	01	1	0909-		●
29	PIPE; AIR,UNION TO UNION (A) L=2377 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F)	8-98111-622-0	01	1	0803-0803	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (F)	8-98111-622-0	01	1	0803-0803		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F)	8-98111-622-0	01	1	0804-0811	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) L=2736 SERVICED BY L=2900	1-47428-885-0	01	1	0812-1012	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) L=2728 SERVICED BY L=2900	1-47428-885-0	01	1	1101-	●
29	PIPE; AIR,UNION TO UNION (B) L=907 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (C) L=2763 SERVICED BY L=2900	1-47428-885-0	01	1	0712-0802	●
29	PIPE; AIR,UNION TO UNION (D) L=1349 SERVICED BY L=1400	1-47428-878-0	01	1	0712-0802		●
29	PIPE; AIR,UNION TO UNION (E) L=2900 SERVICED BY L=2900	1-47428-885-0	01	1	0712-0802		●
31	PIPE; AIR,UNION TO UNION (D) L=2253 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0812-1002	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	0812-1002		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4100MM(41W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	1003-	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (D) L=2364 SERVICED BY L=2500	1-47428-883-0	01	1	1003-		●
31	PIPE; AIR,UNION TO UNION (A) L=916 SERVICED BY L=1000	1-47428-874-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0803	●
31	PIPE; AIR,UNION TO UNION (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0803		●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2166 SERVICED BY L=2500	1-47428-883-0	01	1	0804-0811	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 3600MM(36W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2362 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
31	PIPE; AIR,UNION TO UNION (B) L=1715 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802	●
31	PIPE; AIR,UNION TO UNION (C) L=1838 SERVICED BY L=1900	1-47428-881-0	01	1	0712-0802		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0811-0812	●	●
37	UNION; AIR PIPE (C) M12 L=66.5	0-92113-306-0	01	1	0712-0802	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	02	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0712-0802	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0803-0810		●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0811-0812	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0811-0812		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0901-1002		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●
37	UNION; AIR PIPE EXC. TRAILER BRAKE CONTROL<J91> (A) M16 ELBOW	0-92135-210-0	01	1	1003-	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1003-		●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16	1-09654-148-1	01	1	0712-0802	●
37	UNION; AIR PIPE (D) M16	1-09654-148-1	01	1	0712-0802		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0712-0802	●	●
46	NIPPLE; AIR PIPE REARWARD INNER SINGLE TIRE<YK3> (E) M12 2WAY	1-09654-059-2	01	1	1003-	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16 2WAY	1-09650-182-1	02	1	0812-	●
46	NIPPLE; AIR PIPE (D) M16 2WAY	1-09650-182-1	02	1	0812-		●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO4 SPECIFICATION<NT4> (A) M16 L=42	0-92123-010-0	02	1	0812-	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	02	1	0812-		●
46	NIPPLE; AIR PIPE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0712-0802	●
46	NIPPLE; AIR PIPE (C) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0712-0802	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	03	1	0803-0811	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	03	1	0803-0811		●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0812-	●
46	NIPPLE; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0812-		●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12	9-09840-280-0	02	1	0812-0812	●
60	NUT; NIPPLE,AIR PIPE (C) M12	9-09840-280-0	02	1	0812-0812		●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12	0-91111-512-0	02	1	0901-	●
60	NUT; NIPPLE,AIR PIPE (C) M12	0-91111-512-0	02	1	0901-		●
60	NUT; NIPPLE,AIR PIPE (B) M16	0-91111-516-0	01	1	0712-0802		●
60	NUT; NIPPLE,AIR PIPE (A) M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	0803-	●
60	NUT; NIPPLE,AIR PIPE (A) M8 FLANGE	0-91180-108-0	02	1	0803-		●
73	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0812-	●
73	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0812-		●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M16	1-09654-148-1	01	1	0803-	●
97	UNION; AIR PIPE (C) M16	1-09654-148-1	01	1	0803-		●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0712-0802	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0712-0802		●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=42	0-92123-010-0	01	1	0803-	●
97	UNION; AIR PIPE (A) M16 L=42	0-92123-010-0	01	1	0803-		●
97	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	0712-0811		●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0712-0802	●
98	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0803-	●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	0803-		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0803-	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0803-		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0712-	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0712-		●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=2182 SERVICED BY L=2500	1-47428-883-0	01	1	0812-1002	●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4100MM(41W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=2182 SERVICED BY L=2500	1-47428-883-0	01	1	1003-	●
144	PIPE; AIR,UNION TO UNION (A) L=1184 SERVICED BY L=1250	1-47428-876-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1338 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811	●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 3600MM(36W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=2169 SERVICED BY L=2500	1-47428-883-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (B) L=573 SERVICED BY L=600	1-47428-868-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION (B) L=1309 SERVICED BY L=1400	1-47428-878-0	01	1	0803-0811		●
144	PIPE; AIR,UNION TO UNION (B) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0812-0908		●
144	PIPE; AIR,UNION TO UNION (B) L=2159 SERVICED BY L=2500	1-47428-883-0	01	1	0909-		●
144	PIPE; AIR,UNION TO UNION (C) L=2013 SERVICED BY L=2100	1-47428-882-0	01	1	0712-0802		●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=2211 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0811	●
144	PIPE; AIR,UNION TO UNION (D) L=2211 SERVICED BY L=2500	1-47428-883-0	01	1	0803-0811		●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1531 SERVICED BY L=1550	1-47428-879-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (D) L=1531 SERVICED BY L=1550	1-47428-879-0	01	1	0812-		●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1295 SERVICED BY L=1300	1-47428-877-0	01	1	0712-0802	●
159	PIPE; AIR,UNION TO FLEX HOSE L=1295 SERVICED BY L=1300	1-47428-877-0	01	1	0712-0802		●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98111-625-0	01	1	0803-	●
159	PIPE; AIR,UNION TO FLEX HOSE	8-98111-625-0	01	1	0803-		●
161	HOSE; FLEX,QUICK RELEASE VLV L=490	1-09363-808-0	01	1	0712-0712	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=520	1-09363-605-0	01	1	0801-0906	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=520	1-09363-605-0	01	1	0803-	●
161	HOSE; FLEX,QUICK RELEASE VLV L=520	1-09363-605-0	01	1	0803-		●
161	HOSE; FLEX,QUICK RELEASE VLV L=680	1-09363-742-0	01	1	0712-0802		●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0803-	●
162	NUT; FLEX HOSE M16	0-91111-516-0	01	1	0803-		●
163	BRACKET; FLEX HOSE (B)	8-98093-260-0	01	1	0712-	●	●
163	BRACKET; FLEX HOSE (B)	8-98106-706-0	01	1	0804-	●	●
163	BRACKET; FLEX HOSE (A)	8-98098-182-0	01	1	0712-0802	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0712-0802	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98115-590-0	01	1	0803-0811	●
192	TUBE; NYLON (C)	8-98115-590-0	01	1	0803-0811		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0712-0802	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0811		●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-		●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0812-		●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	0812-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	0812-		●
314	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0812-	●
314	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0812-		●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0812-	●
315	CLIP (D) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0812-		●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0807-0811	●
315	CLIP (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0807-0811		●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=350	1-09707-183-0	01	1	0812-	●
315	CLIP (E) L=350	1-09707-183-0	01	1	0812-		●
315	CLIP (C) ID=10 & 10	1-09709-277-1	01	1	0807-0811	●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=14	8-94238-572-0	01	1	0712-	●
315	CLIP (A) ID=14	8-94238-572-0	01	1	0712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
