3-75 — BRAKE PIPING; AIR,FRONT (#66721) — 241 parça

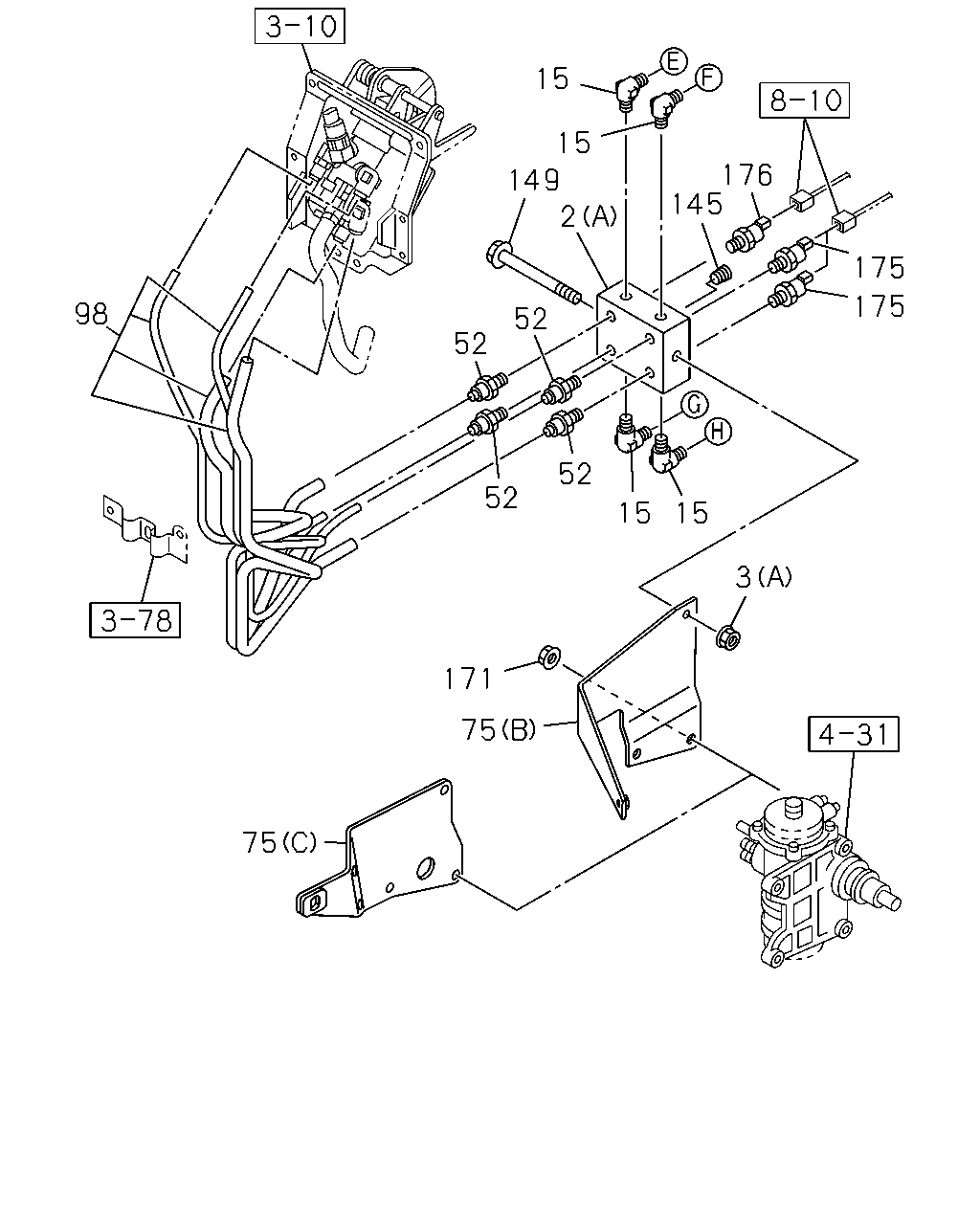

çizim 122240
15 15 176 145 149 2 175 175 98 52 52 52 52 15 15 3 171 75 75
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0712- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0712-0812 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 0901-1002 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 0901-1002 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1003- ● ●
2 UNION; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> (B) M16 ELBOW 		0-92135-210-0 01 1 1003- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1003- ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0712- ● ●
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 0712- ● ●
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 0712- ● ●
75 BRACKET; UNION
(A) 		8-98075-871-1 01 1 0712-0802 ●
75 BRACKET; UNION
(C) 		8-98099-485-1 01 1 0803- ● ●
75 BRACKET; UNION
(B) 		8-98031-419-0 01 1 0712-0802 ●
98 TUBE; NYLON
EXC. BUMPER W/HEADLAMPS<SLB> 		8-98139-141-0 01 1 1003- ●
98 TUBE; NYLON 8-97625-675-0 01 1 0803-1002 ● ●
98 TUBE; NYLON
BUMPER W/HEADLAMPS<SLB> 		8-97625-675-0 01 1 1003- ●
98 TUBE; NYLON 8-97625-675-0 01 1 1003- ●
98 TUBE; NYLON 8-98084-363-0 01 1 0712-0802 ● ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 0712- ● ●
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 0712- ● ●
171 NUT; BRACKET
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0712- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 0712- ● ●

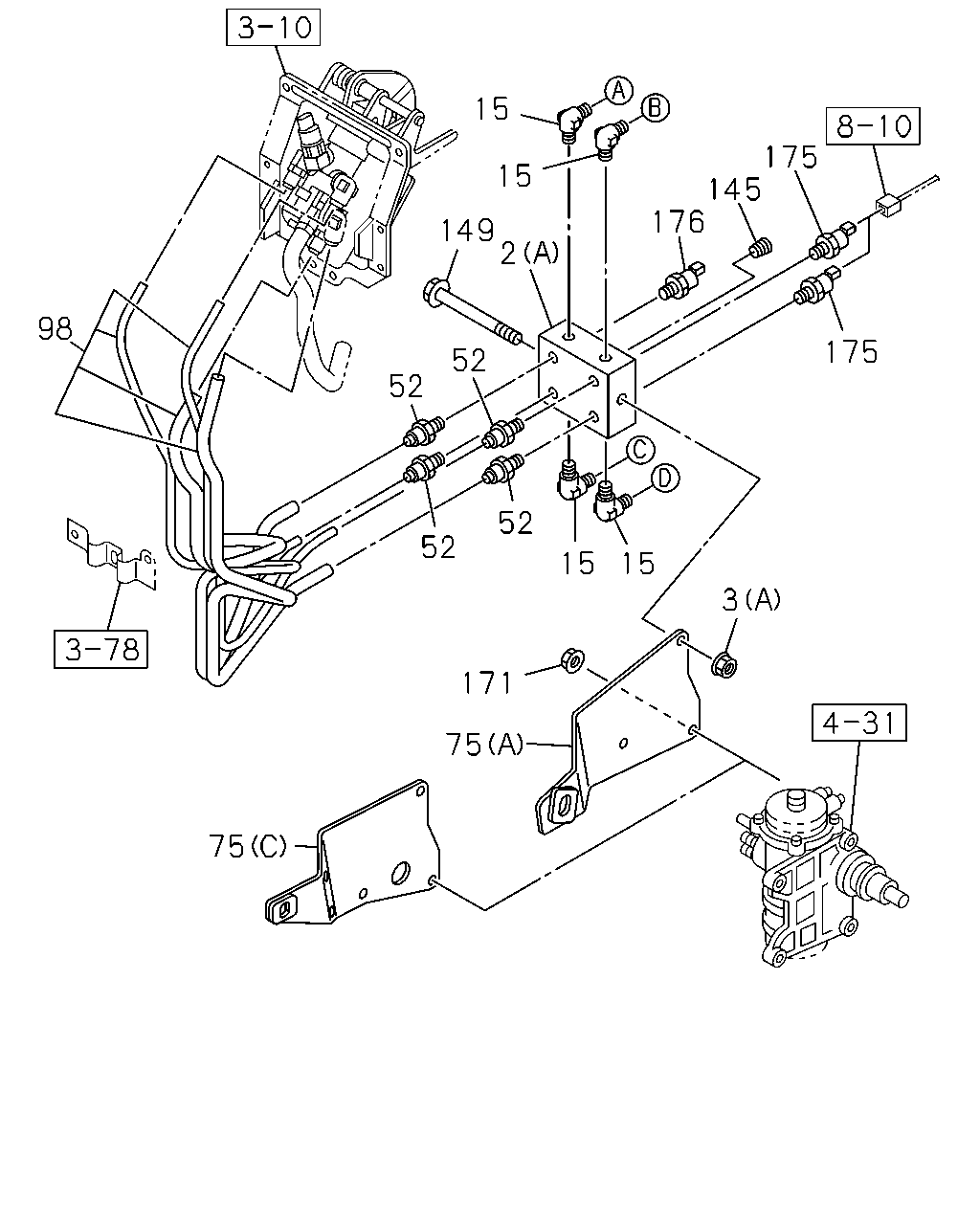

çizim 122343
15 175 145 176 15 149 2 98 175 52 52 52 52 15 15 3 171 75 75
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0712- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0712-0812 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 0901-1002 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 0901-1002 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1003- ● ●
2 UNION; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> (B) M16 ELBOW 		0-92135-210-0 01 1 1003- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1003- ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0712- ● ●
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 0712- ● ●
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 0712- ● ●
75 BRACKET; UNION
(A) 		8-98075-871-1 01 1 0712-0802 ●
75 BRACKET; UNION
(C) 		8-98099-485-1 01 1 0803- ● ●
75 BRACKET; UNION
(B) 		8-98031-419-0 01 1 0712-0802 ●
98 TUBE; NYLON
EXC. BUMPER W/HEADLAMPS<SLB> 		8-98139-141-0 01 1 1003- ●
98 TUBE; NYLON 8-97625-675-0 01 1 0803-1002 ● ●
98 TUBE; NYLON
BUMPER W/HEADLAMPS<SLB> 		8-97625-675-0 01 1 1003- ●
98 TUBE; NYLON 8-97625-675-0 01 1 1003- ●
98 TUBE; NYLON 8-98084-363-0 01 1 0712-0802 ● ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 0712- ● ●
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 0712- ● ●
171 NUT; BRACKET
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0712- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 0712- ● ●

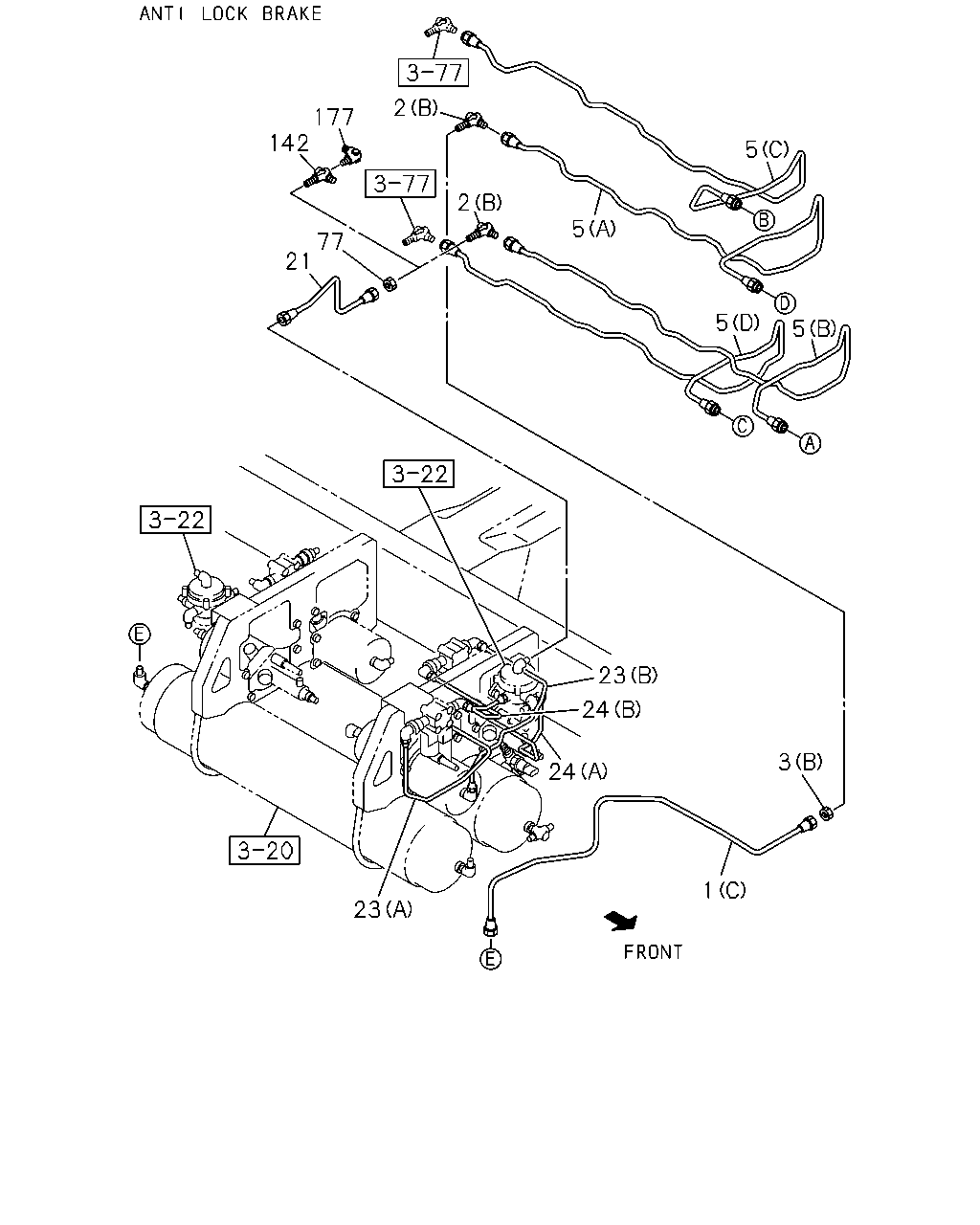

çizim 122350
2 177 142 5 2 5 77 21 5 5 23 24 3 24 1 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
ANTI LOCK BRAKE<JE5> (C) L=1385 SERVICED BY L=1400 		1-47428-878-0 01 1 1003- ●
1 PIPE; AIR,AIR TANK TO UNION
(A) L=536 SERVICED BY L=550 		1-47428-867-0 01 1 0712-0802 ●
1 PIPE; AIR,AIR TANK TO UNION
(A) L=568 SERVICED BY L=600 		1-47428-868-0 01 1 0803-1002 ●
1 PIPE; AIR,AIR TANK TO UNION
EXC. ANTI LOCK BRAKE<JE5> (A) L=568 SERVICED BY L=600 		1-47428-868-0 01 1 1003- ●
1 PIPE; AIR,AIR TANK TO UNION
(B) L=546 SERVICED BY L=550 		1-47428-867-0 01 1 0712-0802 ●
1 PIPE; AIR,AIR TANK TO UNION
(B) L=549 SERVICED BY L=550 		1-47428-867-0 01 1 0803- ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0712- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0712-0812 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 0901-1002 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 0901-1002 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1003- ● ●
2 UNION; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> (B) M16 ELBOW 		0-92135-210-0 01 1 1003- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1003- ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0712- ● ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) ANTI LOCK BRAKE<JE5> (A) L=3271 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) ANTI LOCK BRAKE<JE5> (B) L=3061 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) ANTI LOCK BRAKE<JE5> (C) L=2997 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) ANTI LOCK BRAKE<JE5> (D) L=3188 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 4100MM(41W) (A) L=2998 SERVICED BY L=3300 		1-47428-886-0 01 1 1003- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 4100MM(41W) (B) L=3060 SERVICED BY L=3300 		1-47428-886-0 01 1 1003- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 4100MM(41W) (C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 1003- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 4100MM(41W) (D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 1003- ●
5 PIPE; AIR,UNION TO UNION
(A) L=3494 SERVICED BY L=3500 		1-47428-887-0 01 1 0803- ●
5 PIPE; AIR,UNION TO UNION
(B) L=3561 		8-98111-239-0 01 1 0803- ●
5 PIPE; AIR,UNION TO UNION
(C) L=3676 		8-98111-245-0 01 1 0803-0804 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3662 		8-98122-757-0 01 1 0805-0811 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3683 		8-98132-519-1 01 1 0812- ●
5 PIPE; AIR,UNION TO UNION
(D) L=3652 		8-98111-249-0 01 1 0803-0804 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3639 		8-98122-758-0 01 1 0805-0811 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3656 		8-98132-520-0 01 1 0812- ●
5 PIPE; AIR,UNION TO UNION
(A) L=2972 SERVICED BY L=3300 		1-47428-886-0 01 1 0712-0802 ●
5 PIPE; AIR,UNION TO UNION
(A) L=3005 SERVICED BY L=3300 		1-47428-886-0 01 1 0803-0811 ●
5 PIPE; AIR,UNION TO UNION
(A) L=3011 SERVICED BY L=3300 		1-47428-886-0 01 1 0812-0908 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) L=3011 SERVICED BY L=3300 		1-47428-886-0 01 1 0909-1501 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. ANTI LOCK BRAKE<JE5> (A) L=3011 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
(B) L=3050 SERVICED BY L=3300 		1-47428-886-0 01 1 0712-0802 ●
5 PIPE; AIR,UNION TO UNION
(B) L=3034 SERVICED BY L=3300 		1-47428-886-0 01 1 0803-0811 ●
5 PIPE; AIR,UNION TO UNION
(B) L=3060 SERVICED BY L=3300 		1-47428-886-0 01 1 0812-0908 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (B) L=3060 SERVICED BY L=3300 		1-47428-886-0 01 1 0909-1501 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. ANTI LOCK BRAKE<JE5> (B) L=3060 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
(C) L=3210 SERVICED BY L=3300 		1-47428-886-0 01 1 0712-0802 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3241 SERVICED BY L=3300 		1-47428-886-0 01 1 0803-0811 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 0812-0908 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 0909-1501 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. ANTI LOCK BRAKE<JE5> (C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
(D) L=3229 SERVICED BY L=3300 		1-47428-886-0 01 1 0712-0802 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3186 SERVICED BY L=3300 		1-47428-886-0 01 1 0803-0811 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 0812-0908 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 0909-1501 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. ANTI LOCK BRAKE<JE5> (D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
21 PIPE; AIR,UNION TO RELAY VLV
ANTI LOCK BRAKE<JE5> L=275 		8-98138-343-0 01 1 1003- ●
23 PIPE; AIR,MODULATOR
ANTI LOCK BRAKE<JE5> (A) 		8-98157-076-0 01 1 1003- ●
23 PIPE; AIR,MODULATOR
ANTI LOCK BRAKE<JE5> (B) 		8-98157-077-0 01 1 1003- ●
24 PIPE; AIR,RELAY VLV TO UNION
ANTI LOCK BRAKE<JE5> (A) L=498 		8-98140-418-0 01 1 1003- ●
24 PIPE; AIR,RELAY VLV TO UNION
ANTI LOCK BRAKE<JE5> (B) L=435 		8-98147-513-0 01 1 1003- ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0712- ● ●
142 UNION; 3-WAY
TRAILER BRAKE CONTROL<J91> 		1-09656-561-1 01 1 1003- ●
177 CONNECTOR
TRAILER BRAKE CONTROL<J91> M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1003- ●

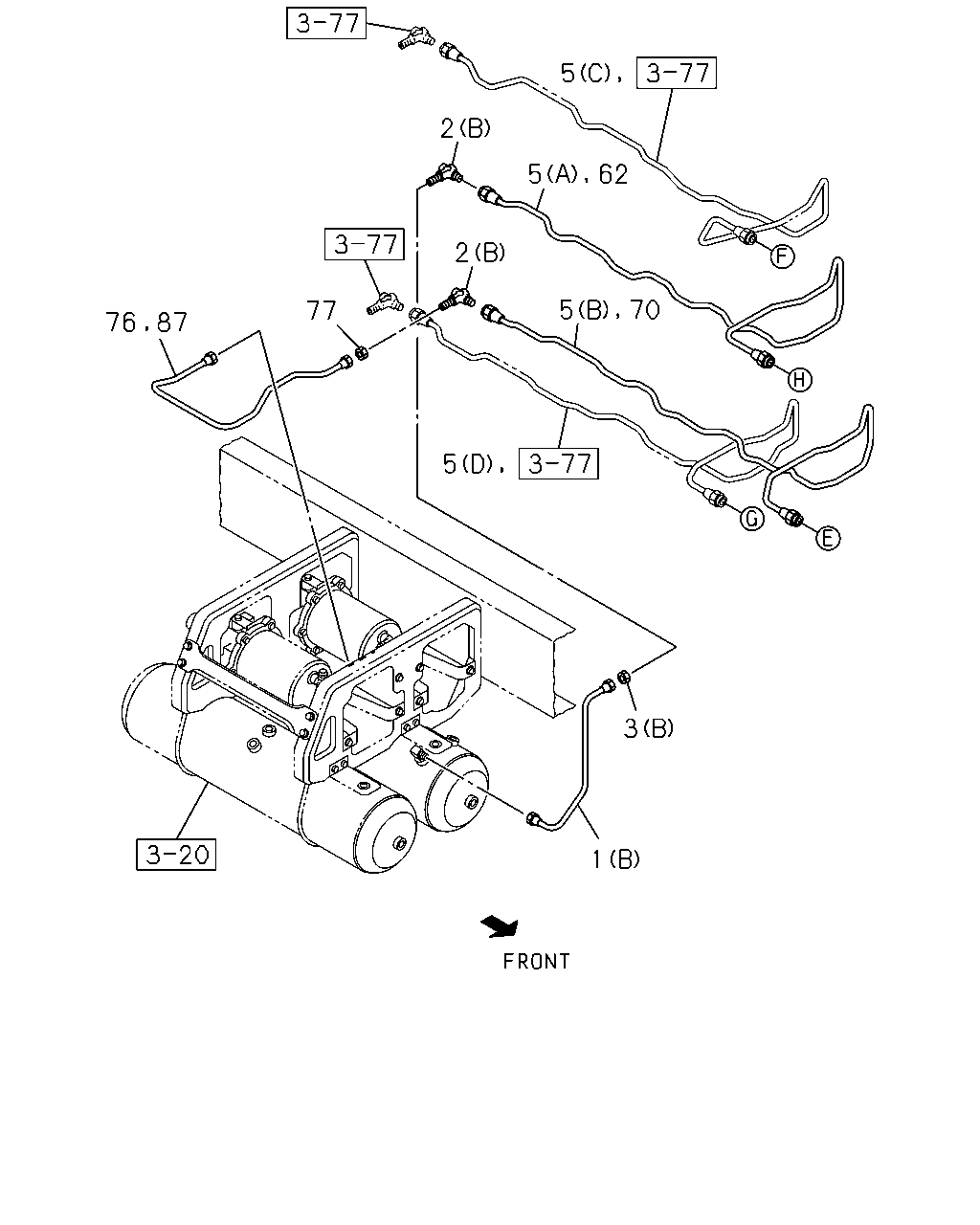

çizim 193335
5 2 5 62 2 77 5 3 1 76 87 5 70
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
ANTI LOCK BRAKE<JE5> (C) L=1385 SERVICED BY L=1400 		1-47428-878-0 01 1 1003- ●
1 PIPE; AIR,AIR TANK TO UNION
(A) L=536 SERVICED BY L=550 		1-47428-867-0 01 1 0712-0802 ●
1 PIPE; AIR,AIR TANK TO UNION
(A) L=568 SERVICED BY L=600 		1-47428-868-0 01 1 0803-1002 ●
1 PIPE; AIR,AIR TANK TO UNION
EXC. ANTI LOCK BRAKE<JE5> (A) L=568 SERVICED BY L=600 		1-47428-868-0 01 1 1003- ●
1 PIPE; AIR,AIR TANK TO UNION
(B) L=546 SERVICED BY L=550 		1-47428-867-0 01 1 0712-0802 ●
1 PIPE; AIR,AIR TANK TO UNION
(B) L=549 SERVICED BY L=550 		1-47428-867-0 01 1 0803- ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0712- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0712-0812 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 0901-1002 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 0901-1002 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1003- ● ●
2 UNION; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> (B) M16 ELBOW 		0-92135-210-0 01 1 1003- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1003- ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0712- ● ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) ANTI LOCK BRAKE<JE5> (A) L=3271 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) ANTI LOCK BRAKE<JE5> (B) L=3061 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) ANTI LOCK BRAKE<JE5> (C) L=2997 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) ANTI LOCK BRAKE<JE5> (D) L=3188 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 4100MM(41W) (A) L=2998 SERVICED BY L=3300 		1-47428-886-0 01 1 1003- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 4100MM(41W) (B) L=3060 SERVICED BY L=3300 		1-47428-886-0 01 1 1003- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 4100MM(41W) (C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 1003- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 4100MM(41W) (D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 1003- ●
5 PIPE; AIR,UNION TO UNION
(A) L=3494 SERVICED BY L=3500 		1-47428-887-0 01 1 0803- ●
5 PIPE; AIR,UNION TO UNION
(B) L=3561 		8-98111-239-0 01 1 0803- ●
5 PIPE; AIR,UNION TO UNION
(C) L=3676 		8-98111-245-0 01 1 0803-0804 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3662 		8-98122-757-0 01 1 0805-0811 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3683 		8-98132-519-1 01 1 0812- ●
5 PIPE; AIR,UNION TO UNION
(D) L=3652 		8-98111-249-0 01 1 0803-0804 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3639 		8-98122-758-0 01 1 0805-0811 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3656 		8-98132-520-0 01 1 0812- ●
5 PIPE; AIR,UNION TO UNION
(A) L=2972 SERVICED BY L=3300 		1-47428-886-0 01 1 0712-0802 ●
5 PIPE; AIR,UNION TO UNION
(A) L=3005 SERVICED BY L=3300 		1-47428-886-0 01 1 0803-0811 ●
5 PIPE; AIR,UNION TO UNION
(A) L=3011 SERVICED BY L=3300 		1-47428-886-0 01 1 0812-0908 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) L=3011 SERVICED BY L=3300 		1-47428-886-0 01 1 0909-1501 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. ANTI LOCK BRAKE<JE5> (A) L=3011 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
(B) L=3050 SERVICED BY L=3300 		1-47428-886-0 01 1 0712-0802 ●
5 PIPE; AIR,UNION TO UNION
(B) L=3034 SERVICED BY L=3300 		1-47428-886-0 01 1 0803-0811 ●
5 PIPE; AIR,UNION TO UNION
(B) L=3060 SERVICED BY L=3300 		1-47428-886-0 01 1 0812-0908 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (B) L=3060 SERVICED BY L=3300 		1-47428-886-0 01 1 0909-1501 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. ANTI LOCK BRAKE<JE5> (B) L=3060 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
(C) L=3210 SERVICED BY L=3300 		1-47428-886-0 01 1 0712-0802 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3241 SERVICED BY L=3300 		1-47428-886-0 01 1 0803-0811 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 0812-0908 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 0909-1501 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. ANTI LOCK BRAKE<JE5> (C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
(D) L=3229 SERVICED BY L=3300 		1-47428-886-0 01 1 0712-0802 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3186 SERVICED BY L=3300 		1-47428-886-0 01 1 0803-0811 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 0812-0908 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 0909-1501 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. ANTI LOCK BRAKE<JE5> (D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=3405 SERVICED BY L=3500 		1-47428-887-0 01 1 0712-0802 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3789 		8-98054-015-0 01 1 0712-0802 ●
76 PIPE; AIR,UNION TO UNION 8-98098-201-0 01 1 0712-0802 ●
76 PIPE; AIR,UNION TO UNION
L=745 		8-98108-569-0 01 1 0712-0802 ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0712- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=661 SERVICED BY L=700 		1-47428-870-0 01 1 0803-1002 ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. ANTI LOCK BRAKE<JE5> L=661 SERVICED BY L=700 		1-47428-870-0 01 1 1003- ●
87 PIPE; AIR,UNION TO AIR MASTER
L=657 SERVICED BY L=660 		1-47428-869-0 01 1 0803- ●

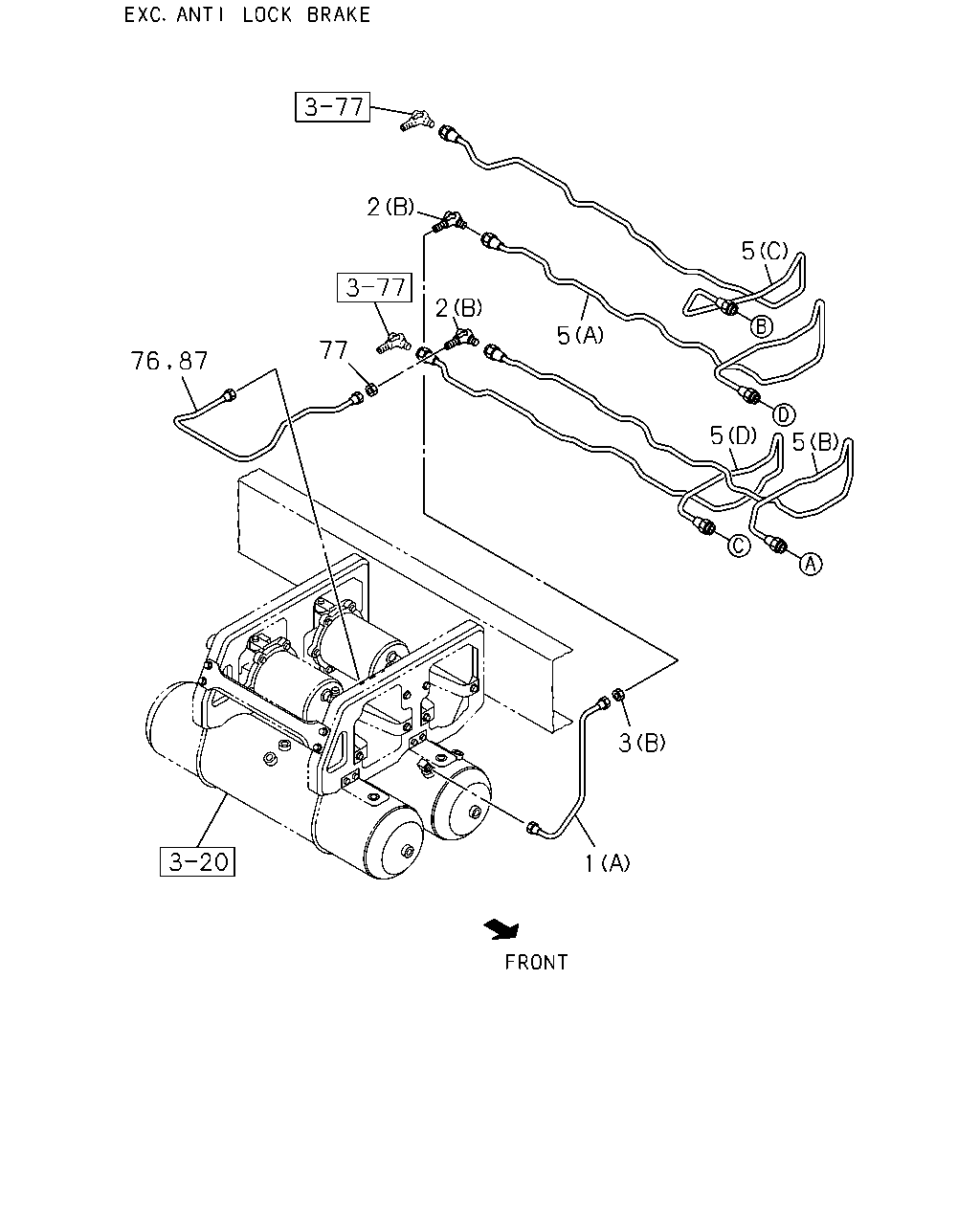

çizim 193342
2 5 2 5 77 5 5 3 1 76 87
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
ANTI LOCK BRAKE<JE5> (C) L=1385 SERVICED BY L=1400 		1-47428-878-0 01 1 1003- ●
1 PIPE; AIR,AIR TANK TO UNION
(A) L=536 SERVICED BY L=550 		1-47428-867-0 01 1 0712-0802 ●
1 PIPE; AIR,AIR TANK TO UNION
(A) L=568 SERVICED BY L=600 		1-47428-868-0 01 1 0803-1002 ●
1 PIPE; AIR,AIR TANK TO UNION
EXC. ANTI LOCK BRAKE<JE5> (A) L=568 SERVICED BY L=600 		1-47428-868-0 01 1 1003- ●
1 PIPE; AIR,AIR TANK TO UNION
(B) L=546 SERVICED BY L=550 		1-47428-867-0 01 1 0712-0802 ●
1 PIPE; AIR,AIR TANK TO UNION
(B) L=549 SERVICED BY L=550 		1-47428-867-0 01 1 0803- ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0712- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0712-0812 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 0901-1002 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 0901-1002 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1003- ● ●
2 UNION; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> (B) M16 ELBOW 		0-92135-210-0 01 1 1003- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1003- ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0712- ● ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) ANTI LOCK BRAKE<JE5> (A) L=3271 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) ANTI LOCK BRAKE<JE5> (B) L=3061 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) ANTI LOCK BRAKE<JE5> (C) L=2997 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) ANTI LOCK BRAKE<JE5> (D) L=3188 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 4100MM(41W) (A) L=2998 SERVICED BY L=3300 		1-47428-886-0 01 1 1003- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 4100MM(41W) (B) L=3060 SERVICED BY L=3300 		1-47428-886-0 01 1 1003- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 4100MM(41W) (C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 1003- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 4100MM(41W) (D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 1003- ●
5 PIPE; AIR,UNION TO UNION
(A) L=3494 SERVICED BY L=3500 		1-47428-887-0 01 1 0803- ●
5 PIPE; AIR,UNION TO UNION
(B) L=3561 		8-98111-239-0 01 1 0803- ●
5 PIPE; AIR,UNION TO UNION
(C) L=3676 		8-98111-245-0 01 1 0803-0804 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3662 		8-98122-757-0 01 1 0805-0811 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3683 		8-98132-519-1 01 1 0812- ●
5 PIPE; AIR,UNION TO UNION
(D) L=3652 		8-98111-249-0 01 1 0803-0804 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3639 		8-98122-758-0 01 1 0805-0811 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3656 		8-98132-520-0 01 1 0812- ●
5 PIPE; AIR,UNION TO UNION
(A) L=2972 SERVICED BY L=3300 		1-47428-886-0 01 1 0712-0802 ●
5 PIPE; AIR,UNION TO UNION
(A) L=3005 SERVICED BY L=3300 		1-47428-886-0 01 1 0803-0811 ●
5 PIPE; AIR,UNION TO UNION
(A) L=3011 SERVICED BY L=3300 		1-47428-886-0 01 1 0812-0908 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) L=3011 SERVICED BY L=3300 		1-47428-886-0 01 1 0909-1501 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. ANTI LOCK BRAKE<JE5> (A) L=3011 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
(B) L=3050 SERVICED BY L=3300 		1-47428-886-0 01 1 0712-0802 ●
5 PIPE; AIR,UNION TO UNION
(B) L=3034 SERVICED BY L=3300 		1-47428-886-0 01 1 0803-0811 ●
5 PIPE; AIR,UNION TO UNION
(B) L=3060 SERVICED BY L=3300 		1-47428-886-0 01 1 0812-0908 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (B) L=3060 SERVICED BY L=3300 		1-47428-886-0 01 1 0909-1501 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. ANTI LOCK BRAKE<JE5> (B) L=3060 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
(C) L=3210 SERVICED BY L=3300 		1-47428-886-0 01 1 0712-0802 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3241 SERVICED BY L=3300 		1-47428-886-0 01 1 0803-0811 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 0812-0908 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 0909-1501 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. ANTI LOCK BRAKE<JE5> (C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
5 PIPE; AIR,UNION TO UNION
(D) L=3229 SERVICED BY L=3300 		1-47428-886-0 01 1 0712-0802 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3186 SERVICED BY L=3300 		1-47428-886-0 01 1 0803-0811 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 0812-0908 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 0909-1501 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. ANTI LOCK BRAKE<JE5> (D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 1502- ●
76 PIPE; AIR,UNION TO UNION 8-98098-201-0 01 1 0712-0802 ●
76 PIPE; AIR,UNION TO UNION
L=745 		8-98108-569-0 01 1 0712-0802 ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0712- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=661 SERVICED BY L=700 		1-47428-870-0 01 1 0803-1002 ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. ANTI LOCK BRAKE<JE5> L=661 SERVICED BY L=700 		1-47428-870-0 01 1 1003- ●
87 PIPE; AIR,UNION TO AIR MASTER
L=657 SERVICED BY L=660 		1-47428-869-0 01 1 0803- ●

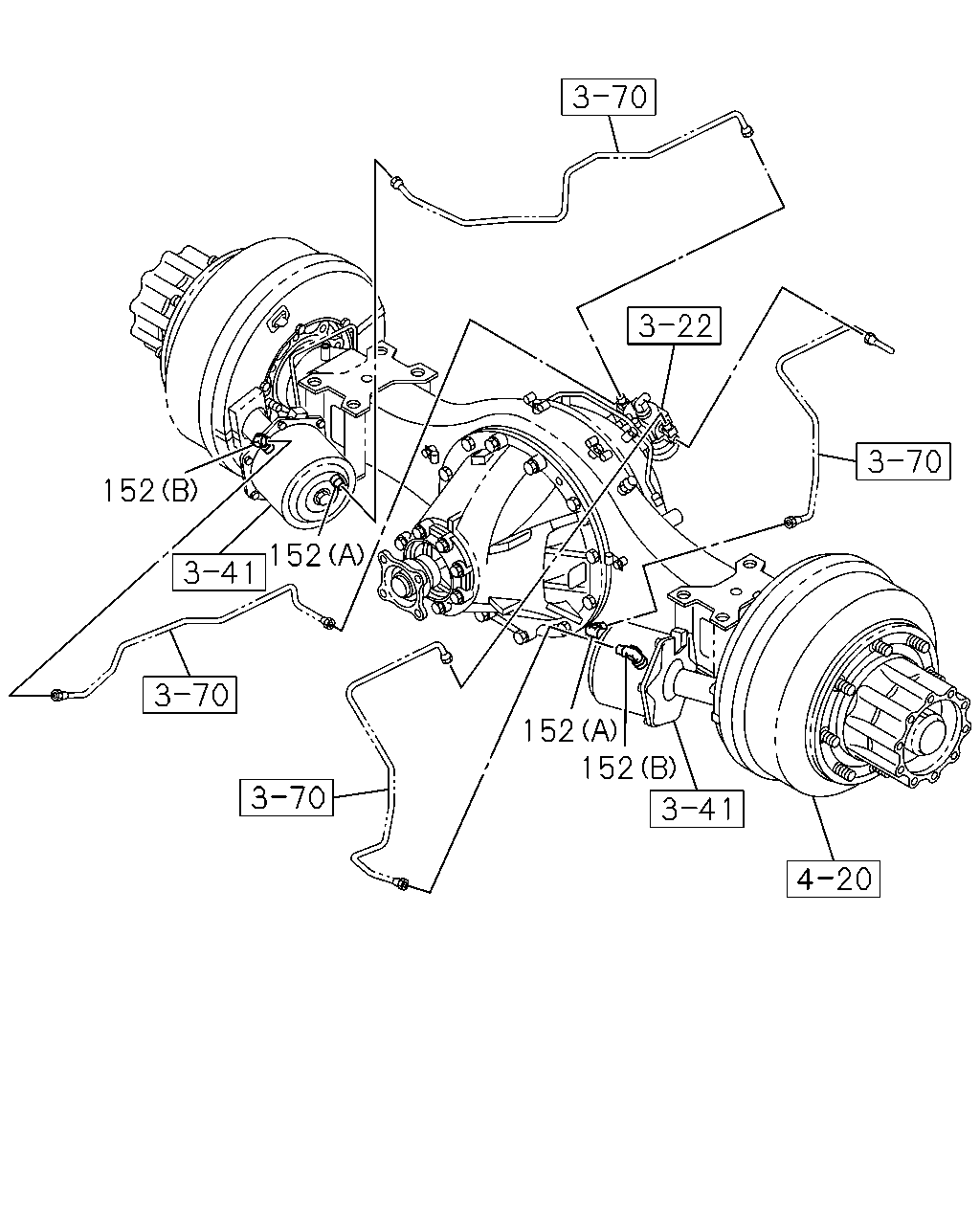

çizim 193462
152 152 152 152
BalonParca AdiParca NoAdetTipApplied Date A B
152 CONNECTOR; POWER CHAMBER
FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> (B) M14 & PT3/8 ELBOW 		1-09650-437-0 01 1 1411- ●
152 CONNECTOR; POWER CHAMBER
FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> (A) 		8-98296-626-0 01 1 1411- ●
152 CONNECTOR; POWER CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT1/4 ELBOW 		1-09650-432-0 02 1 0712-1002 ●
152 CONNECTOR; POWER CHAMBER
(A) M14 & PT1/4 ELBOW 		1-09650-432-0 02 1 0712-1002 ●
152 CONNECTOR; POWER CHAMBER
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT1/4 ELBOW 		1-09650-432-0 02 1 1003-1404 ●
152 CONNECTOR; POWER CHAMBER
(A) M14 & PT1/4 ELBOW 		1-09650-432-0 02 1 1003-1404 ●
152 CONNECTOR; POWER CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT1/4 ELBOW 		1-09650-432-0 02 1 1405- ● ●
152 CONNECTOR; POWER CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW 		1-09650-437-0 02 1 0712-1002 ●
152 CONNECTOR; POWER CHAMBER
(B) M14 & PT3/8 ELBOW 		1-09650-437-0 02 1 0712-1002 ●
152 CONNECTOR; POWER CHAMBER
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW 		1-09650-437-0 02 1 1003-1404 ●
152 CONNECTOR; POWER CHAMBER
(B) M14 & PT3/8 ELBOW 		1-09650-437-0 02 1 1003-1404 ●
152 CONNECTOR; POWER CHAMBER
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE<JE5> (B) M14 & PT3/8 ELBOW 		1-09650-437-0 02 1 1405- ●
152 CONNECTOR; POWER CHAMBER
(B) M14 & PT3/8 ELBOW 		1-09650-437-0 02 1 1405- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
