Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#66720) — 1203 parça

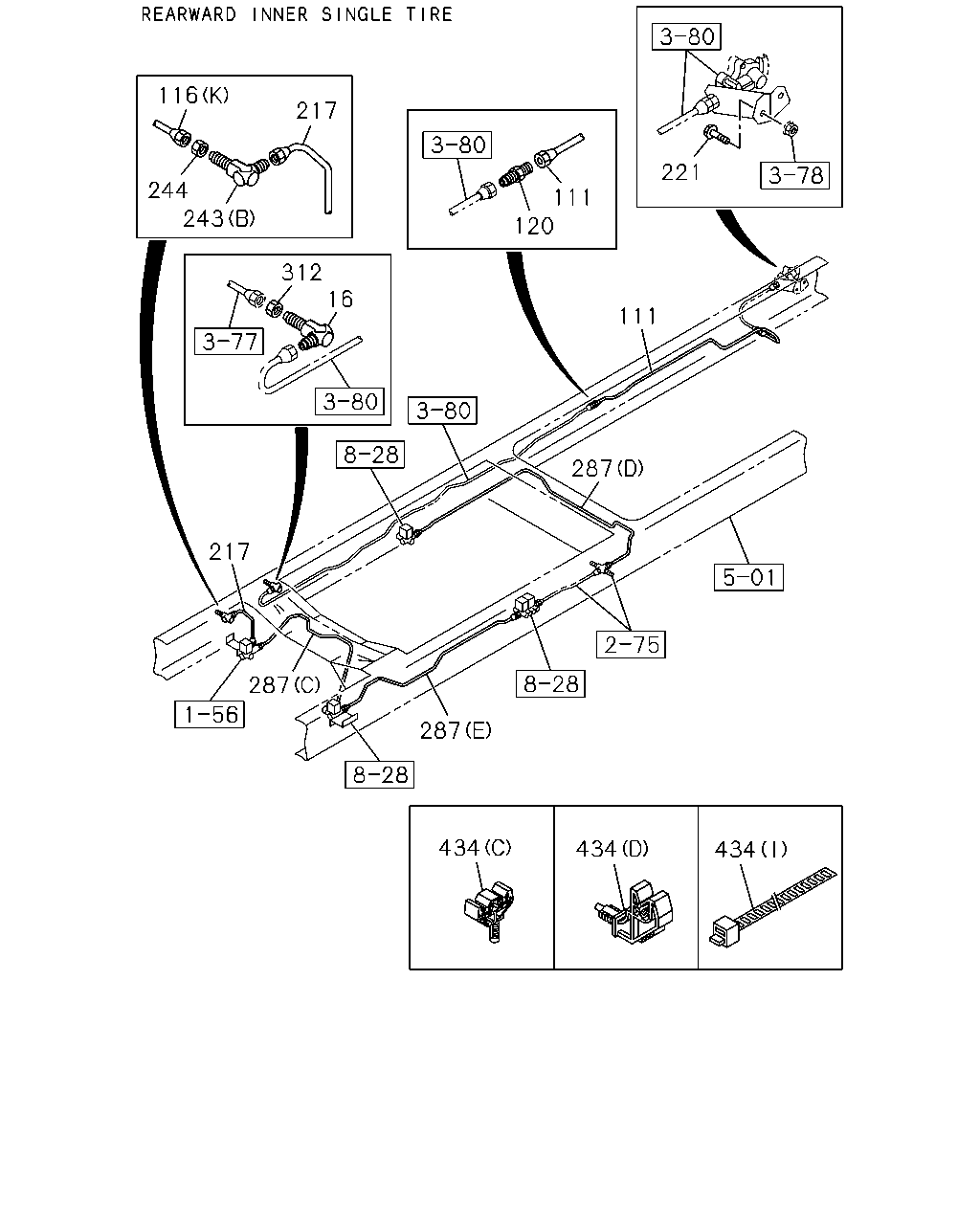

116 217 221 244 111 243 120 312 16 111 287 217 287 287 434 434 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	UNION; AIR PIPE TRAILER BRAKE CONTROL<J91> M16 ELBOW	0-92135-210-0	01	1	1003-	●
111	PIPE; AIR,UNION TO UNION TRAILER BRAKE CONTROL<J91> L=1277 SERVICED BY L=1300	1-47428-877-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> (I)	8-98147-507-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> (J)	8-98147-509-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> TRAILER BRAKE CONTROL<J91> (K) L=787 SERVICED BY L=800	1-47428-812-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> EXC. TRAILER BRAKE CONTROL<J91> (K) L=865 SERVICED BY L=900	1-47428-813-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV EXC. BRAKE REGULATION ADR<TDU> (A) L=973 SERVICED BY L=1000	1-47428-814-0	01	1	0812-0901	●
116	PIPE; AIR,PROTECTION VLV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=973 SERVICED BY L=1000	1-47428-814-0	01	1	0902-1002	●
116	PIPE; AIR,PROTECTION VLV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91> (A) L=973 SERVICED BY L=1000	1-47428-814-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (A) L=1290 SERVICED BY L=1370	1-47428-818-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	0803-0811	●
116	PIPE; AIR,PROTECTION VLV BRAKE REGULATION ADR<TDU> (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	0812-0901	●
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	0902-1002	●
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91> (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV TRAILER BRAKE CONTROL<J91> EXC. ANTI LOCK BRAKE<JE5> (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (B)	8-98098-223-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (G)	8-98108-561-0	01	1	0803-1002	●	●
116	PIPE; AIR,PROTECTION VLV EXC. ANTI LOCK BRAKE<JE5> (G)	8-98108-561-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (G)	8-98108-561-0	01	1	1003-		●
116	PIPE; AIR,PROTECTION VLV (C)	8-98098-224-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (H)	8-98108-563-0	01	1	0803-1002	●	●
116	PIPE; AIR,PROTECTION VLV EXC. ANTI LOCK BRAKE<JE5> (H)	8-98108-563-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (H)	8-98108-563-0	01	1	1003-		●
116	PIPE; AIR,PROTECTION VLV (D)	8-98054-506-0	01	1	0712-0802		●
116	PIPE; AIR,PROTECTION VLV (F) L=1008 SERVICED BY L=1100	1-47428-815-0	01	1	0803-		●
116	PIPE; AIR,PROTECTION VLV (E)	8-98054-507-0	01	1	0712-0802		●
120	CONNECTOR; AIR PIPE TRAILER BRAKE CONTROL<J91> M16 L=42	0-92123-010-0	01	1	1003-	●
217	PIPE; VAC,UNION TO MAG VLV EURO2 SPECIFICATION<NT2> EXC. BRAKE REGULATION ADR<TDU> L=268	8-98111-589-0	01	1	0812-	●
221	BOLT; BRKT TRAILER BRAKE CONTROL<J91> M10X30 FLANGE	0-28651-030-0	02	1	1003-	●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
243	UNION; AIR PIPE BRAKE REGULATION ADR<TDU> (A) M12 L=40	0-92113-006-0	01	1	0803-	●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0803-		●
243	UNION; AIR PIPE (B) M12 ELBOW	0-92125-206-0	01	1	0803-	●	●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0803-1002	●	●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1003-	●	●
287	PIPE; AIR,MAG VLV PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (A) L=1138 SERVICED BY L=1200	1-47428-816-0	01	1	1012-	●
287	PIPE; AIR,MAG VLV REARWARD INNER SINGLE TIRE<YK3> (C) L=1114 SERVICED BY L=1200	1-47428-816-0	01	1	1003-	●
287	PIPE; AIR,MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (D) L=1672 SERVICED BY L=1700	1-47428-821-0	01	1	1003-1011	●
287	PIPE; AIR,MAG VLV WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (D) L=1672 SERVICED BY L=1700	1-47428-821-0	01	1	1012-	●
287	PIPE; AIR,MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (D) L=1672 SERVICED BY L=1700	1-47428-821-0	01	1	1012-	●
287	PIPE; AIR,MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (E) L=1092 SERVICED BY L=1100	1-47428-815-0	01	1	1003-	●
287	PIPE; AIR,MAG VLV (A) L=1219 SERVICED BY L=1250	1-47428-817-0	01	1	0804-0811		●
287	PIPE; AIR,MAG VLV WHEEL BASE 3600MM(36W) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) L=1207 SERVICED BY L=1250	1-47428-817-0	01	1	0812-	●
287	PIPE; AIR,MAG VLV (B) L=1189 SERVICED BY L=1200	1-47428-816-0	01	1	0804-0901		●
287	PIPE; AIR,MAG VLV WHEEL BASE 4200MM(42W) (B) L=1189 SERVICED BY L=1200	1-47428-816-0	01	1	0902-		●
287	PIPE; AIR,MAG VLV (A) L=1240 SERVICED BY L=1250	1-47428-817-0	01	1	0803-0803	●	●
287	PIPE; AIR,MAG VLV (A) L=1240 SERVICED BY L=1250	1-47428-817-0	01	1	0804-0811	●
287	PIPE; AIR,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) L=1240 SERVICED BY L=1250	1-47428-817-0	01	1	0812-	●
287	PIPE; AIR,MAG VLV (A) L=1240 SERVICED BY L=1250	1-47428-817-0	01	1	0812-		●
287	PIPE; AIR,MAG VLV EXC. BRAKE REGULATION ADR<TDU> (B)	8-98111-580-0	01	1	0803-0811	●
287	PIPE; AIR,MAG VLV WHEEL BASE 4200MM(42W) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) L=1212 SERVICED BY L=1250	1-47428-817-0	01	1	0812-	●
287	PIPE; AIR,MAG VLV (A) L=964 SERVICED BY L=1000	1-47428-814-0	01	1	0712-0802		●
287	PIPE; AIR,MAG VLV BRAKE REGULATION ADR<TDU> (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	0803-0803	●
287	PIPE; AIR,MAG VLV (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	0803-0803		●
287	PIPE; AIR,MAG VLV BRAKE REGULATION ADR<TDU> (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	0804-0906	●
287	PIPE; AIR,MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) BRAKE REGULATION ADR<TDU> (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	0907-	●
312	NUT; UNION TRAILER BRAKE CONTROL<J91> M16	0-91111-516-0	01	1	1003-	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (D) ID=6.35	1-09701-247-1	04	1	1003-1011	●
434	CLIP WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (D) ID=6.35	1-09701-247-1	04	1	1012-	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (D) ID=6.35	1-09701-247-1	04	1	1012-	●
434	CLIP (I) L=250	5-09707-030-1	01	1	0906-	●
434	CLIP (I) L=600	1-09707-107-1	01	1	0906-1002	●	●
434	CLIP (I) L=600	1-09707-107-1	01	1	1003-	●	●
434	CLIP EURO4 SPECIFICATION<NT4> (H) ID=16 L=20	0-95235-536-0	01	1	0812-	●
434	CLIP (H) ID=16 L=20	0-95235-536-0	01	1	0812-		●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (F) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-	●
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (D) ID=6.35	1-09701-247-1	02	1	0812-0906	●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (D) ID=6.35	1-09701-247-1	02	1	0907-	●
434	CLIP (C)	8-98012-254-1	01	1	0804-0811	●	●
434	CLIP (C)	8-98012-254-1	01	1	0812-0901	●	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	0812-0901	●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0902-0906	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	0902-0906	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0902-0906		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0907-1002	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	0907-1002	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0907-1002		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1003-1011	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (C)	8-98012-254-1	01	1	1003-1011	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	1003-1011	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1003-1011		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1012-		●
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0803-0803	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	02	1	0804-0811	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0812-0901	●	●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0902-0906	●
434	CLIP WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0902-0906		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0907-	●
434	CLIP WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0907-		●
434	CLIP (F) ID=12 & 15	1-09709-281-1	01	1	0803-0811	●	●
434	CLIP EURO4 SPECIFICATION<NT4> (F) ID=12 & 15	1-09709-281-1	01	1	0812-	●
434	CLIP (F) ID=12 & 15	1-09709-281-1	01	1	0812-		●
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (G) ID=7 L=20	0-95234-635-0	01	1	0803-	●
434	CLIP (G) ID=7 L=20	0-95234-635-0	01	1	0803-		●
434	CLIP (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
434	CLIP (A) ID=10 & 15	1-09709-279-1	01	1	0803-0811	●	●
434	CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) ID=10 & 15	1-09709-279-1	01	1	0812-	●
434	CLIP EURO4 SPECIFICATION<NT4> (A) ID=10 & 15	1-09709-279-1	01	1	0812-	●
434	CLIP (B) ID=35 L=33	1-09700-945-0	01	1	0712-0802	●	●
434	CLIP (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-0811	●	●
434	CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0812-	●

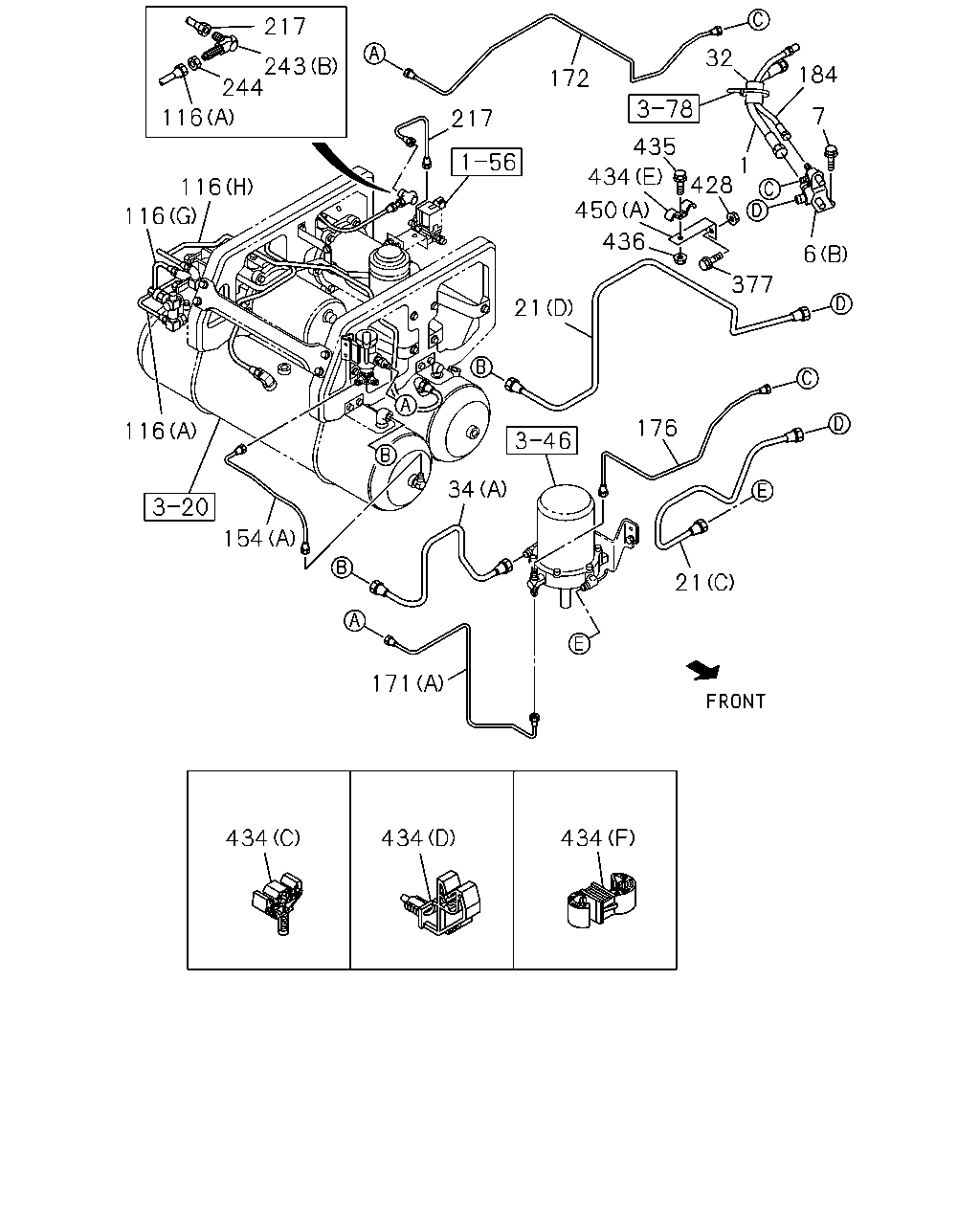

217 32 243 244 184 172 7 116 217 435 1 428 434 116 450 116 436 6 377 21 176 116 34 154 21 171 434 434 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2>	1-09363-910-0	01	1	0812-0812	●
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2>	8-98140-111-0	01	1	0812-	●
1	HOSE; FLEX,AIR TANK	8-97607-418-0	01	1	0712-0802	●
1	HOSE; FLEX,AIR TANK	8-97607-418-0	01	1	0803-0811	●	●
1	HOSE; FLEX,AIR TANK EURO4 SPECIFICATION<NT4>	8-97607-418-0	01	1	0812-	●
1	HOSE; FLEX,AIR TANK	8-97607-418-0	01	1	0812-		●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0712-0802		●
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98120-436-0	01	1	0812-0903	●
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98133-392-0	01	1	0904-	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0712-0811	●	●
6	BRACKET; FLEX HOSE,AIR TANK EURO4 SPECIFICATION<NT4> (A)	8-98076-344-0	01	1	0812-	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0812-		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	0712-1002	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	1003-	●	●
21	PIPE; AIR,UNION TO AIR DRYER ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (E) L=1188	8-98147-522-0	01	1	1003-	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C) L=751	8-98111-626-0	01	1	0812-	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (D) L=1345	8-98130-957-0	01	1	0812-1002	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5>,AIR DRYER<PS7> (D) L=1345	8-98130-957-0	01	1	1003-1003	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5>,AIR DRYER<PS7> (D) L=1511	8-98164-599-0	01	1	1004-	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1764	8-98111-600-0	01	1	0803-0811	●
21	PIPE; AIR,UNION TO AIR DRYER EURO4 SPECIFICATION<NT4> (A) L=1748	8-98126-086-0	01	1	0812-	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1708	8-98111-601-0	01	1	0803-0805		●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1717	8-98123-625-0	01	1	0806-0811		●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1722	8-98126-087-0	01	1	0812-		●
32	SLEEVE; RUBBER,AIR PIPE EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50	1-09337-023-0	01	1	0812-	●
34	PIPE; AIR ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> (D) L=556 SERVICED BY L=600	1-49115-479-0	01	1	1003-	●
34	PIPE; AIR (A) L=1717	8-98098-197-0	01	1	0712-0802	●
34	PIPE; AIR (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	0803-0811	●
34	PIPE; AIR AIR DRYER<PS7> (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	0812-1002	●
34	PIPE; AIR AIR DRYER<PS7> EXC. ANTI LOCK BRAKE<JE5> (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	1003-	●
34	PIPE; AIR (B) L=437	8-98098-198-0	01	1	0712-0802	●
34	PIPE; AIR (C) L=1711	8-98084-332-0	01	1	0712-0802		●
34	PIPE; AIR (C) L=1121	8-98108-558-1	01	1	0803-		●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> (I)	8-98147-507-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> (J)	8-98147-509-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> TRAILER BRAKE CONTROL<J91> (K) L=787 SERVICED BY L=800	1-47428-812-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> EXC. TRAILER BRAKE CONTROL<J91> (K) L=865 SERVICED BY L=900	1-47428-813-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV EXC. BRAKE REGULATION ADR<TDU> (A) L=973 SERVICED BY L=1000	1-47428-814-0	01	1	0812-0901	●
116	PIPE; AIR,PROTECTION VLV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=973 SERVICED BY L=1000	1-47428-814-0	01	1	0902-1002	●
116	PIPE; AIR,PROTECTION VLV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91> (A) L=973 SERVICED BY L=1000	1-47428-814-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (A) L=1290 SERVICED BY L=1370	1-47428-818-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	0803-0811	●
116	PIPE; AIR,PROTECTION VLV BRAKE REGULATION ADR<TDU> (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	0812-0901	●
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	0902-1002	●
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91> (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV TRAILER BRAKE CONTROL<J91> EXC. ANTI LOCK BRAKE<JE5> (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (B)	8-98098-223-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (G)	8-98108-561-0	01	1	0803-1002	●	●
116	PIPE; AIR,PROTECTION VLV EXC. ANTI LOCK BRAKE<JE5> (G)	8-98108-561-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (G)	8-98108-561-0	01	1	1003-		●
116	PIPE; AIR,PROTECTION VLV (C)	8-98098-224-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (H)	8-98108-563-0	01	1	0803-1002	●	●
116	PIPE; AIR,PROTECTION VLV EXC. ANTI LOCK BRAKE<JE5> (H)	8-98108-563-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (H)	8-98108-563-0	01	1	1003-		●
116	PIPE; AIR,PROTECTION VLV (D)	8-98054-506-0	01	1	0712-0802		●
116	PIPE; AIR,PROTECTION VLV (F) L=1008 SERVICED BY L=1100	1-47428-815-0	01	1	0803-		●
116	PIPE; AIR,PROTECTION VLV (E)	8-98054-507-0	01	1	0712-0802		●
154	PIPE; AIR,AIR TANK TO AIR GOV ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> (B)	8-98157-080-0	01	1	1003-	●
154	PIPE; AIR,AIR TANK TO AIR GOV EURO2 SPECIFICATION<NT2> (A)	8-98131-480-0	01	1	0812-0908	●
154	PIPE; AIR,AIR TANK TO AIR GOV EURO2 SPECIFICATION<NT2> (A)	8-98152-813-0	01	1	0909-1002	●

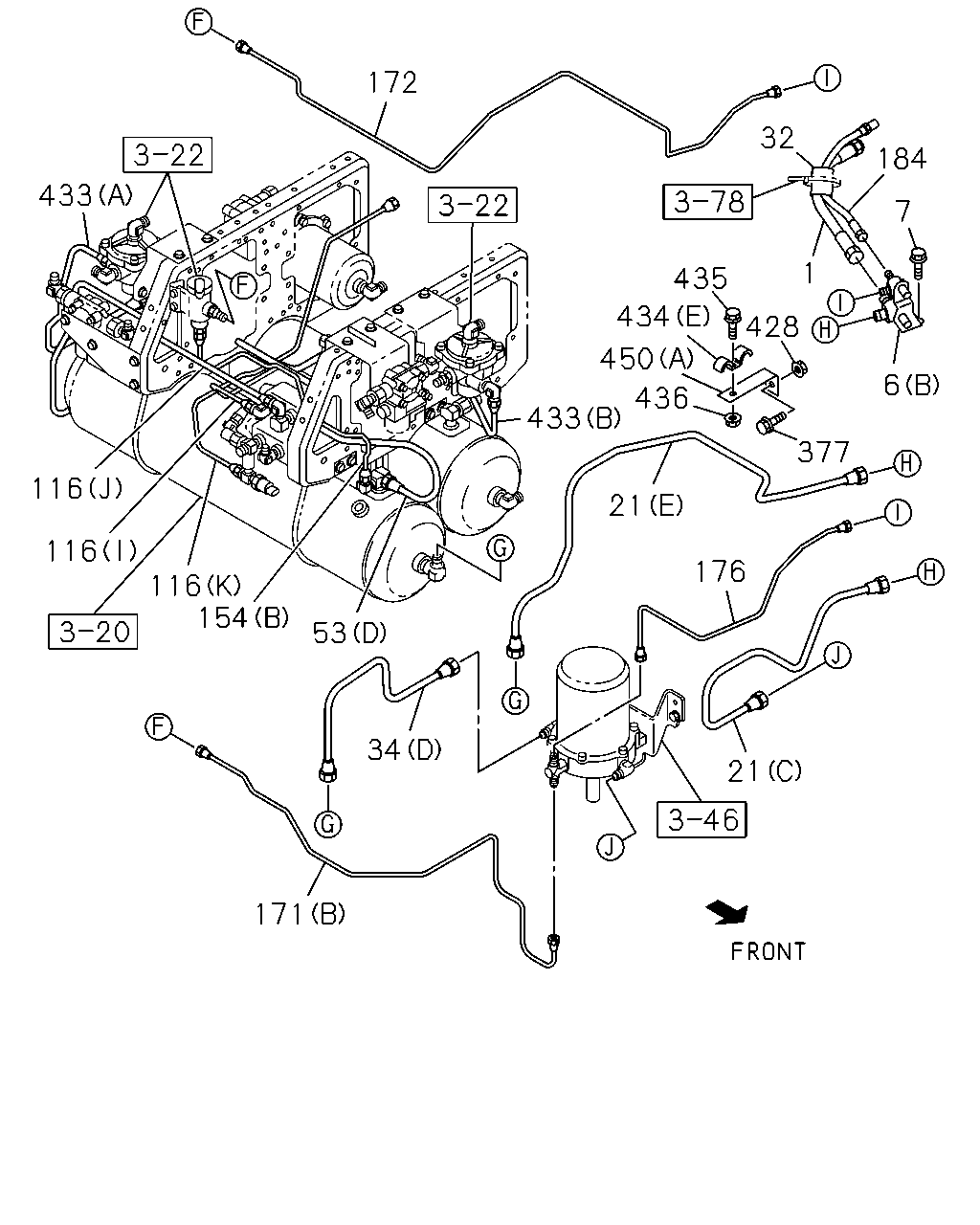

154	PIPE; AIR,AIR TANK TO AIR GOV EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5> (A)	8-98152-813-0	01	1	1003-	●
171	PIPE; AIR,GOV TO AIR DRYER ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=1115 SERVICED BY L=1200	1-47428-816-0	01	1	1003-	●
171	PIPE; AIR,GOV TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) L=762 SERVICED BY L=800	1-47428-812-0	01	1	0812-1002	●
171	PIPE; AIR,GOV TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. ANTI LOCK BRAKE<JE5> (A) L=762 SERVICED BY L=800	1-47428-812-0	01	1	1003-	●
172	PIPE; AIR,GOV TO UNION ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98148-026-0	01	1	1003-	●
172	PIPE; AIR,GOV TO UNION EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98131-481-0	01	1	0812-1002	●
172	PIPE; AIR,GOV TO UNION EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5>,AIR DRYER<PS7>	8-98131-481-0	01	1	1003-1003	●
172	PIPE; AIR,GOV TO UNION EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5>,AIR DRYER<PS7>	8-98164-600-0	01	1	1004-	●
176	PIPE; AIR,AIR DRYER TO UNION EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=695 SERVICED BY L=700	1-47428-811-0	01	1	0812-	●
184	HOSE; FLEX,AIR GOV EURO2 SPECIFICATION<NT2> L=340	1-09363-622-0	01	1	0812-	●
217	PIPE; VAC,UNION TO MAG VLV EURO2 SPECIFICATION<NT2> EXC. BRAKE REGULATION ADR<TDU> L=268	8-98111-589-0	01	1	0812-	●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
243	UNION; AIR PIPE BRAKE REGULATION ADR<TDU> (A) M12 L=40	0-92113-006-0	01	1	0803-	●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0803-		●
243	UNION; AIR PIPE (B) M12 ELBOW	0-92125-206-0	01	1	0803-	●	●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0803-1002	●	●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1003-	●	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	0712-0802	●
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	02	1	0803-		●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	0803-0811	●	●
377	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
377	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	0812-		●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-0811	●	●
428	NUT; BRKT EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0812-	●
428	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	0812-	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0812-		●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (D) ID=6.35	1-09701-247-1	04	1	1003-1011	●
434	CLIP WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (D) ID=6.35	1-09701-247-1	04	1	1012-	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (D) ID=6.35	1-09701-247-1	04	1	1012-	●
434	CLIP (I) L=250	5-09707-030-1	01	1	0906-	●
434	CLIP (I) L=600	1-09707-107-1	01	1	0906-1002	●	●
434	CLIP (I) L=600	1-09707-107-1	01	1	1003-	●	●
434	CLIP EURO4 SPECIFICATION<NT4> (H) ID=16 L=20	0-95235-536-0	01	1	0812-	●
434	CLIP (H) ID=16 L=20	0-95235-536-0	01	1	0812-		●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (F) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-	●
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (D) ID=6.35	1-09701-247-1	02	1	0812-0906	●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (D) ID=6.35	1-09701-247-1	02	1	0907-	●
434	CLIP (C)	8-98012-254-1	01	1	0804-0811	●	●
434	CLIP (C)	8-98012-254-1	01	1	0812-0901	●	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	0812-0901	●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0902-0906	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	0902-0906	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0902-0906		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0907-1002	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	0907-1002	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0907-1002		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1003-1011	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (C)	8-98012-254-1	01	1	1003-1011	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	1003-1011	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1003-1011		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1012-		●
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0803-0803	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	02	1	0804-0811	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0812-0901	●	●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0902-0906	●
434	CLIP WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0902-0906		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0907-	●
434	CLIP WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0907-		●
434	CLIP (F) ID=12 & 15	1-09709-281-1	01	1	0803-0811	●	●
434	CLIP EURO4 SPECIFICATION<NT4> (F) ID=12 & 15	1-09709-281-1	01	1	0812-	●
434	CLIP (F) ID=12 & 15	1-09709-281-1	01	1	0812-		●
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (G) ID=7 L=20	0-95234-635-0	01	1	0803-	●
434	CLIP (G) ID=7 L=20	0-95234-635-0	01	1	0803-		●
434	CLIP (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
434	CLIP (A) ID=10 & 15	1-09709-279-1	01	1	0803-0811	●	●
434	CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) ID=10 & 15	1-09709-279-1	01	1	0812-	●
434	CLIP EURO4 SPECIFICATION<NT4> (A) ID=10 & 15	1-09709-279-1	01	1	0812-	●
434	CLIP (B) ID=35 L=33	1-09700-945-0	01	1	0712-0802	●	●
434	CLIP (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-0811	●	●
434	CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0812-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0803-0811	●	●
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0803-0811	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0803-0811		●
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0812-	●
435	BOLT; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	01	1	0812-	●
435	BOLT; CLIP EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	01	1	0812-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0812-		●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0812-		●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0811	●	●
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0803-0811	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0811		●
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0812-	●
436	NUT; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0812-	●
436	NUT; CLIP EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	0812-	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0812-		●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0812-		●
450	BRACKET; CLIP (A) L=95	1-82699-085-0	01	1	0712-0802	●
450	BRACKET; CLIP (A) L=95	1-82699-085-0	01	1	0803-0811	●	●
450	BRACKET; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) L=115 B=25	1-47476-758-0	01	1	0812-	●
450	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (A) L=115 B=25	1-47476-758-0	01	1	0812-	●
450	BRACKET; CLIP (A) L=115 B=25	1-47476-758-0	01	1	0812-		●
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98074-610-0	01	1	0803-0811	●
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98074-610-0	01	1	0803-0811	●
450	BRACKET; CLIP (B)	8-98074-610-0	01	1	0803-0811		●
450	BRACKET; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	0812-0905	●
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	0812-0905		●
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98070-479-0	01	1	0906-	●
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	0906-	●
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	0906-		●

172 32 184 433 7 1 435 434 428 450 6 436 433 377 116 21 116 176 116 154 53 34 21 171

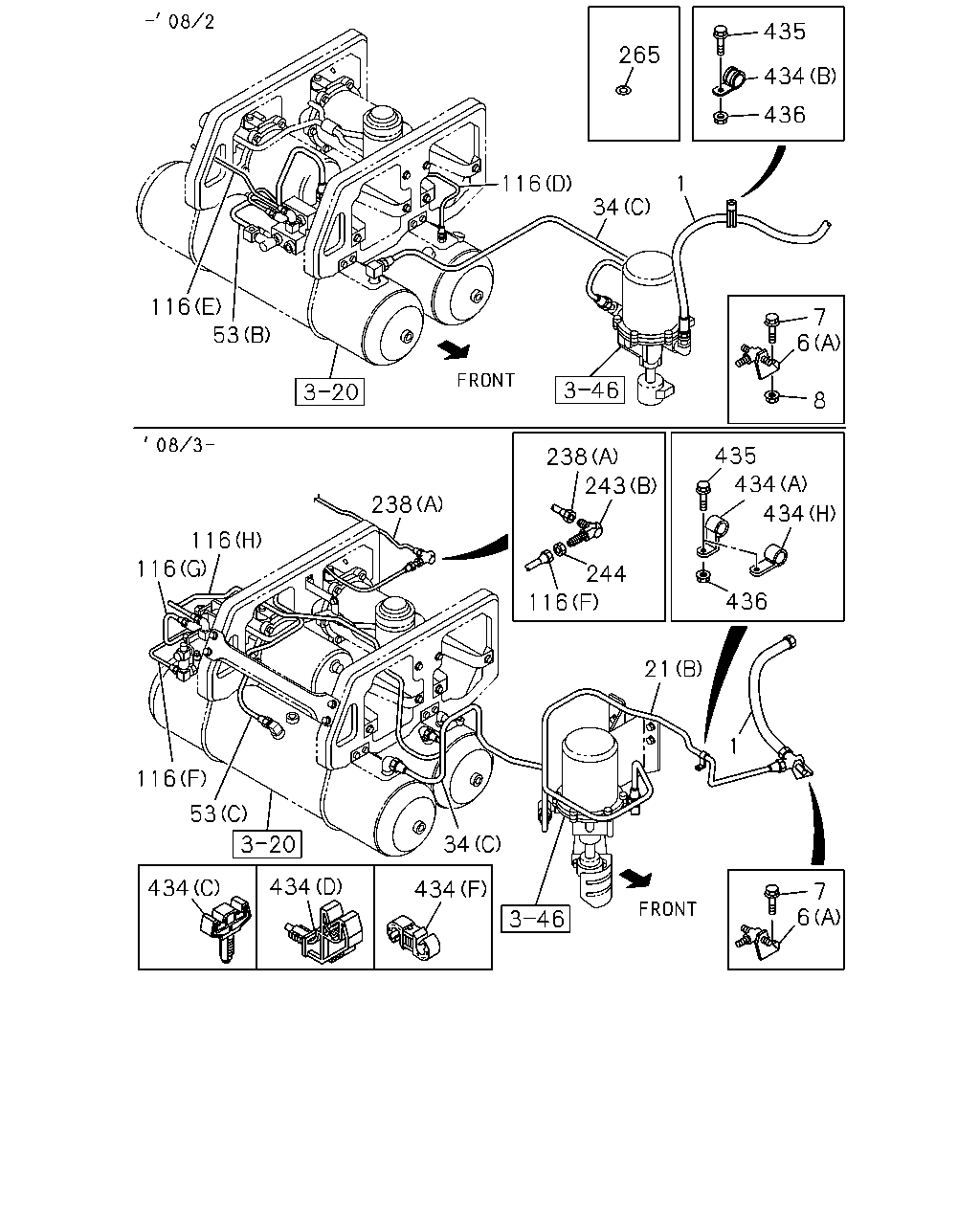

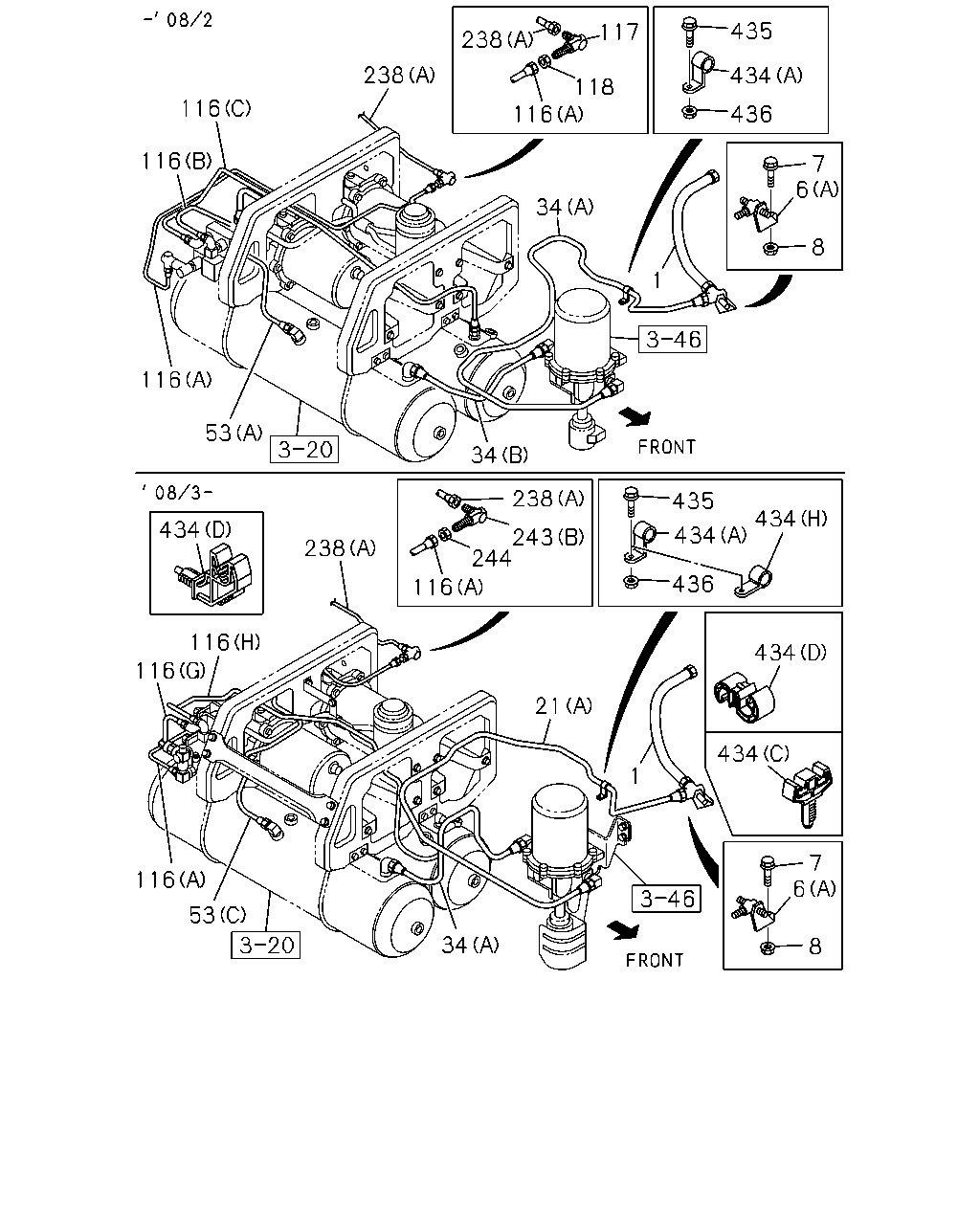

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2>	1-09363-910-0	01	1	0812-0812	●
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2>	8-98140-111-0	01	1	0812-	●
1	HOSE; FLEX,AIR TANK	8-97607-418-0	01	1	0712-0802	●
1	HOSE; FLEX,AIR TANK	8-97607-418-0	01	1	0803-0811	●	●
1	HOSE; FLEX,AIR TANK EURO4 SPECIFICATION<NT4>	8-97607-418-0	01	1	0812-	●
1	HOSE; FLEX,AIR TANK	8-97607-418-0	01	1	0812-		●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0712-0802		●
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98120-436-0	01	1	0812-0903	●
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98133-392-0	01	1	0904-	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0712-0811	●	●
6	BRACKET; FLEX HOSE,AIR TANK EURO4 SPECIFICATION<NT4> (A)	8-98076-344-0	01	1	0812-	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0812-		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	0712-1002	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	1003-	●	●
21	PIPE; AIR,UNION TO AIR DRYER ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (E) L=1188	8-98147-522-0	01	1	1003-	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C) L=751	8-98111-626-0	01	1	0812-	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (D) L=1345	8-98130-957-0	01	1	0812-1002	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5>,AIR DRYER<PS7> (D) L=1345	8-98130-957-0	01	1	1003-1003	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5>,AIR DRYER<PS7> (D) L=1511	8-98164-599-0	01	1	1004-	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1764	8-98111-600-0	01	1	0803-0811	●
21	PIPE; AIR,UNION TO AIR DRYER EURO4 SPECIFICATION<NT4> (A) L=1748	8-98126-086-0	01	1	0812-	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1708	8-98111-601-0	01	1	0803-0805		●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1717	8-98123-625-0	01	1	0806-0811		●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1722	8-98126-087-0	01	1	0812-		●
32	SLEEVE; RUBBER,AIR PIPE EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50	1-09337-023-0	01	1	0812-	●
34	PIPE; AIR ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> (D) L=556 SERVICED BY L=600	1-49115-479-0	01	1	1003-	●
34	PIPE; AIR (A) L=1717	8-98098-197-0	01	1	0712-0802	●
34	PIPE; AIR (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	0803-0811	●
34	PIPE; AIR AIR DRYER<PS7> (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	0812-1002	●
34	PIPE; AIR AIR DRYER<PS7> EXC. ANTI LOCK BRAKE<JE5> (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	1003-	●
34	PIPE; AIR (B) L=437	8-98098-198-0	01	1	0712-0802	●
34	PIPE; AIR (C) L=1711	8-98084-332-0	01	1	0712-0802		●
34	PIPE; AIR (C) L=1121	8-98108-558-1	01	1	0803-		●
53	PIPE; AIR,AIR TANK TO VALVE ANTI LOCK BRAKE<JE5> (D)	8-98147-505-0	01	1	1003-	●
53	PIPE; AIR,AIR TANK TO VALVE (A)	8-98098-222-0	01	1	0712-0802	●
53	PIPE; AIR,AIR TANK TO VALVE (C) L=732	8-98108-559-0	01	1	0803-1002	●	●
53	PIPE; AIR,AIR TANK TO VALVE EXC. ANTI LOCK BRAKE<JE5> (C) L=732	8-98108-559-0	01	1	1003-	●
53	PIPE; AIR,AIR TANK TO VALVE (C) L=732	8-98108-559-0	01	1	1003-		●
53	PIPE; AIR,AIR TANK TO VALVE (B)	8-98054-508-0	01	1	0712-0802		●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> (I)	8-98147-507-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> (J)	8-98147-509-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> TRAILER BRAKE CONTROL<J91> (K) L=787 SERVICED BY L=800	1-47428-812-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> EXC. TRAILER BRAKE CONTROL<J91> (K) L=865 SERVICED BY L=900	1-47428-813-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV EXC. BRAKE REGULATION ADR<TDU> (A) L=973 SERVICED BY L=1000	1-47428-814-0	01	1	0812-0901	●
116	PIPE; AIR,PROTECTION VLV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=973 SERVICED BY L=1000	1-47428-814-0	01	1	0902-1002	●
116	PIPE; AIR,PROTECTION VLV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91> (A) L=973 SERVICED BY L=1000	1-47428-814-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (A) L=1290 SERVICED BY L=1370	1-47428-818-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	0803-0811	●
116	PIPE; AIR,PROTECTION VLV BRAKE REGULATION ADR<TDU> (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	0812-0901	●
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	0902-1002	●
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91> (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV TRAILER BRAKE CONTROL<J91> EXC. ANTI LOCK BRAKE<JE5> (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (B)	8-98098-223-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (G)	8-98108-561-0	01	1	0803-1002	●	●
116	PIPE; AIR,PROTECTION VLV EXC. ANTI LOCK BRAKE<JE5> (G)	8-98108-561-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (G)	8-98108-561-0	01	1	1003-		●
116	PIPE; AIR,PROTECTION VLV (C)	8-98098-224-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (H)	8-98108-563-0	01	1	0803-1002	●	●
116	PIPE; AIR,PROTECTION VLV EXC. ANTI LOCK BRAKE<JE5> (H)	8-98108-563-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (H)	8-98108-563-0	01	1	1003-		●
116	PIPE; AIR,PROTECTION VLV (D)	8-98054-506-0	01	1	0712-0802		●
116	PIPE; AIR,PROTECTION VLV (F) L=1008 SERVICED BY L=1100	1-47428-815-0	01	1	0803-		●
116	PIPE; AIR,PROTECTION VLV (E)	8-98054-507-0	01	1	0712-0802		●
154	PIPE; AIR,AIR TANK TO AIR GOV ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> (B)	8-98157-080-0	01	1	1003-	●
154	PIPE; AIR,AIR TANK TO AIR GOV EURO2 SPECIFICATION<NT2> (A)	8-98131-480-0	01	1	0812-0908	●
154	PIPE; AIR,AIR TANK TO AIR GOV EURO2 SPECIFICATION<NT2> (A)	8-98152-813-0	01	1	0909-1002	●
154	PIPE; AIR,AIR TANK TO AIR GOV EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5> (A)	8-98152-813-0	01	1	1003-	●
171	PIPE; AIR,GOV TO AIR DRYER ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=1115 SERVICED BY L=1200	1-47428-816-0	01	1	1003-	●
171	PIPE; AIR,GOV TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) L=762 SERVICED BY L=800	1-47428-812-0	01	1	0812-1002	●
171	PIPE; AIR,GOV TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. ANTI LOCK BRAKE<JE5> (A) L=762 SERVICED BY L=800	1-47428-812-0	01	1	1003-	●
172	PIPE; AIR,GOV TO UNION ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98148-026-0	01	1	1003-	●
172	PIPE; AIR,GOV TO UNION EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98131-481-0	01	1	0812-1002	●
172	PIPE; AIR,GOV TO UNION EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5>,AIR DRYER<PS7>	8-98131-481-0	01	1	1003-1003	●
172	PIPE; AIR,GOV TO UNION EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5>,AIR DRYER<PS7>	8-98164-600-0	01	1	1004-	●
176	PIPE; AIR,AIR DRYER TO UNION EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=695 SERVICED BY L=700	1-47428-811-0	01	1	0812-	●
184	HOSE; FLEX,AIR GOV EURO2 SPECIFICATION<NT2> L=340	1-09363-622-0	01	1	0812-	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	0712-0802	●
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	02	1	0803-		●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	0803-0811	●	●
377	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
377	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	0812-		●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-0811	●	●
428	NUT; BRKT EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0812-	●
428	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	0812-	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0812-		●
433	PIPE; AIR,AIR TANK TO RELAY VLV ANTI LOCK BRAKE<JE5> (A)	8-98147-512-0	01	1	1003-	●
433	PIPE; AIR,AIR TANK TO RELAY VLV ANTI LOCK BRAKE<JE5> (B)	8-98157-079-0	01	1	1003-	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (D) ID=6.35	1-09701-247-1	04	1	1003-1011	●
434	CLIP WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (D) ID=6.35	1-09701-247-1	04	1	1012-	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (D) ID=6.35	1-09701-247-1	04	1	1012-	●
434	CLIP (I) L=250	5-09707-030-1	01	1	0906-	●
434	CLIP (I) L=600	1-09707-107-1	01	1	0906-1002	●	●
434	CLIP (I) L=600	1-09707-107-1	01	1	1003-	●	●
434	CLIP EURO4 SPECIFICATION<NT4> (H) ID=16 L=20	0-95235-536-0	01	1	0812-	●
434	CLIP (H) ID=16 L=20	0-95235-536-0	01	1	0812-		●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (F) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-	●
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (D) ID=6.35	1-09701-247-1	02	1	0812-0906	●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (D) ID=6.35	1-09701-247-1	02	1	0907-	●
434	CLIP (C)	8-98012-254-1	01	1	0804-0811	●	●
434	CLIP (C)	8-98012-254-1	01	1	0812-0901	●	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	0812-0901	●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0902-0906	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	0902-0906	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0902-0906		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0907-1002	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	0907-1002	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0907-1002		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1003-1011	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (C)	8-98012-254-1	01	1	1003-1011	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	1003-1011	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1003-1011		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1012-		●
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0803-0803	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	02	1	0804-0811	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0812-0901	●	●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0902-0906	●
434	CLIP WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0902-0906		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0907-	●
434	CLIP WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0907-		●
434	CLIP (F) ID=12 & 15	1-09709-281-1	01	1	0803-0811	●	●
434	CLIP EURO4 SPECIFICATION<NT4> (F) ID=12 & 15	1-09709-281-1	01	1	0812-	●
434	CLIP (F) ID=12 & 15	1-09709-281-1	01	1	0812-		●
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (G) ID=7 L=20	0-95234-635-0	01	1	0803-	●
434	CLIP (G) ID=7 L=20	0-95234-635-0	01	1	0803-		●
434	CLIP (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
434	CLIP (A) ID=10 & 15	1-09709-279-1	01	1	0803-0811	●	●
434	CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) ID=10 & 15	1-09709-279-1	01	1	0812-	●
434	CLIP EURO4 SPECIFICATION<NT4> (A) ID=10 & 15	1-09709-279-1	01	1	0812-	●
434	CLIP (B) ID=35 L=33	1-09700-945-0	01	1	0712-0802	●	●
434	CLIP (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-0811	●	●
434	CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0812-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0803-0811	●	●
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0803-0811	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0803-0811		●
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0812-	●
435	BOLT; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	01	1	0812-	●
435	BOLT; CLIP EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	01	1	0812-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0812-		●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0812-		●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0811	●	●
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0803-0811	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0811		●
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0812-	●
436	NUT; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0812-	●
436	NUT; CLIP EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	0812-	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0812-		●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0812-		●
450	BRACKET; CLIP (A) L=95	1-82699-085-0	01	1	0712-0802	●
450	BRACKET; CLIP (A) L=95	1-82699-085-0	01	1	0803-0811	●	●
450	BRACKET; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) L=115 B=25	1-47476-758-0	01	1	0812-	●
450	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (A) L=115 B=25	1-47476-758-0	01	1	0812-	●
450	BRACKET; CLIP (A) L=115 B=25	1-47476-758-0	01	1	0812-		●
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98074-610-0	01	1	0803-0811	●
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98074-610-0	01	1	0803-0811	●
450	BRACKET; CLIP (B)	8-98074-610-0	01	1	0803-0811		●
450	BRACKET; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	0812-0905	●
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	0812-0905		●
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98070-479-0	01	1	0906-	●
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	0906-	●
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	0906-		●

435 265 434 436 116 1 34 116 7 6 53 8 435 238 434 243 238 434 116 116 244 436 116 21 1 116 53 34 434 434 434 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2>	1-09363-910-0	01	1	0812-0812	●
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2>	8-98140-111-0	01	1	0812-	●
1	HOSE; FLEX,AIR TANK	8-97607-418-0	01	1	0712-0802	●
1	HOSE; FLEX,AIR TANK	8-97607-418-0	01	1	0803-0811	●	●
1	HOSE; FLEX,AIR TANK EURO4 SPECIFICATION<NT4>	8-97607-418-0	01	1	0812-	●
1	HOSE; FLEX,AIR TANK	8-97607-418-0	01	1	0812-		●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0712-0802		●
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98120-436-0	01	1	0812-0903	●
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98133-392-0	01	1	0904-	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0712-0811	●	●
6	BRACKET; FLEX HOSE,AIR TANK EURO4 SPECIFICATION<NT4> (A)	8-98076-344-0	01	1	0812-	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0812-		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	0712-1002	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	1003-	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91180-108-0	02	1	0712-0802	●	●
21	PIPE; AIR,UNION TO AIR DRYER ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (E) L=1188	8-98147-522-0	01	1	1003-	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C) L=751	8-98111-626-0	01	1	0812-	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (D) L=1345	8-98130-957-0	01	1	0812-1002	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5>,AIR DRYER<PS7> (D) L=1345	8-98130-957-0	01	1	1003-1003	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5>,AIR DRYER<PS7> (D) L=1511	8-98164-599-0	01	1	1004-	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1764	8-98111-600-0	01	1	0803-0811	●
21	PIPE; AIR,UNION TO AIR DRYER EURO4 SPECIFICATION<NT4> (A) L=1748	8-98126-086-0	01	1	0812-	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1708	8-98111-601-0	01	1	0803-0805		●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1717	8-98123-625-0	01	1	0806-0811		●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1722	8-98126-087-0	01	1	0812-		●
34	PIPE; AIR ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> (D) L=556 SERVICED BY L=600	1-49115-479-0	01	1	1003-	●
34	PIPE; AIR (A) L=1717	8-98098-197-0	01	1	0712-0802	●
34	PIPE; AIR (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	0803-0811	●
34	PIPE; AIR AIR DRYER<PS7> (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	0812-1002	●
34	PIPE; AIR AIR DRYER<PS7> EXC. ANTI LOCK BRAKE<JE5> (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	1003-	●
34	PIPE; AIR (B) L=437	8-98098-198-0	01	1	0712-0802	●
34	PIPE; AIR (C) L=1711	8-98084-332-0	01	1	0712-0802		●
34	PIPE; AIR (C) L=1121	8-98108-558-1	01	1	0803-		●
53	PIPE; AIR,AIR TANK TO VALVE ANTI LOCK BRAKE<JE5> (D)	8-98147-505-0	01	1	1003-	●
53	PIPE; AIR,AIR TANK TO VALVE (A)	8-98098-222-0	01	1	0712-0802	●
53	PIPE; AIR,AIR TANK TO VALVE (C) L=732	8-98108-559-0	01	1	0803-1002	●	●
53	PIPE; AIR,AIR TANK TO VALVE EXC. ANTI LOCK BRAKE<JE5> (C) L=732	8-98108-559-0	01	1	1003-	●
53	PIPE; AIR,AIR TANK TO VALVE (C) L=732	8-98108-559-0	01	1	1003-		●
53	PIPE; AIR,AIR TANK TO VALVE (B)	8-98054-508-0	01	1	0712-0802		●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> (I)	8-98147-507-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> (J)	8-98147-509-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> TRAILER BRAKE CONTROL<J91> (K) L=787 SERVICED BY L=800	1-47428-812-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> EXC. TRAILER BRAKE CONTROL<J91> (K) L=865 SERVICED BY L=900	1-47428-813-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV EXC. BRAKE REGULATION ADR<TDU> (A) L=973 SERVICED BY L=1000	1-47428-814-0	01	1	0812-0901	●
116	PIPE; AIR,PROTECTION VLV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=973 SERVICED BY L=1000	1-47428-814-0	01	1	0902-1002	●
116	PIPE; AIR,PROTECTION VLV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91> (A) L=973 SERVICED BY L=1000	1-47428-814-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (A) L=1290 SERVICED BY L=1370	1-47428-818-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	0803-0811	●
116	PIPE; AIR,PROTECTION VLV BRAKE REGULATION ADR<TDU> (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	0812-0901	●
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	0902-1002	●
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91> (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV TRAILER BRAKE CONTROL<J91> EXC. ANTI LOCK BRAKE<JE5> (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (B)	8-98098-223-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (G)	8-98108-561-0	01	1	0803-1002	●	●
116	PIPE; AIR,PROTECTION VLV EXC. ANTI LOCK BRAKE<JE5> (G)	8-98108-561-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (G)	8-98108-561-0	01	1	1003-		●
116	PIPE; AIR,PROTECTION VLV (C)	8-98098-224-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (H)	8-98108-563-0	01	1	0803-1002	●	●
116	PIPE; AIR,PROTECTION VLV EXC. ANTI LOCK BRAKE<JE5> (H)	8-98108-563-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (H)	8-98108-563-0	01	1	1003-		●
116	PIPE; AIR,PROTECTION VLV (D)	8-98054-506-0	01	1	0712-0802		●
116	PIPE; AIR,PROTECTION VLV (F) L=1008 SERVICED BY L=1100	1-47428-815-0	01	1	0803-		●
116	PIPE; AIR,PROTECTION VLV (E)	8-98054-507-0	01	1	0712-0802		●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) BRAKE REGULATION ADR<TDU> (A) L=1671 SERVICED BY L=1700	1-47428-821-0	01	1	0812-1003	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) BRAKE REGULATION ADR<TDU> (A) L=1680 SERVICED BY L=1700	1-47428-821-0	01	1	1004-	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (B) L=801 SERVICED BY L=900	1-47428-813-0	01	1	0803-0811	●	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR<TDU> (B) L=801 SERVICED BY L=900	1-47428-813-0	01	1	0812-	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (B) L=801 SERVICED BY L=900	1-47428-813-0	01	1	0812-		●
238	PIPE; AIR,UNION TO UNION (A) L=1319	8-98111-261-1	01	1	0803-0811		●
238	PIPE; AIR,UNION TO UNION (A) L=1309 SERVICED BY L=1370	1-47428-818-0	01	1	0812-		●
238	PIPE; AIR,UNION TO UNION (A) L=1756 SERVICED BY L=1820	1-47428-822-0	01	1	0712-0802	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (A) L=1726 SERVICED BY L=1820	1-47428-822-0	01	1	0803-0811	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ADR<TDU> (B) L=790 SERVICED BY L=800	1-47428-812-0	01	1	0812-	●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
243	UNION; AIR PIPE BRAKE REGULATION ADR<TDU> (A) M12 L=40	0-92113-006-0	01	1	0803-	●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0803-		●
243	UNION; AIR PIPE (B) M12 ELBOW	0-92125-206-0	01	1	0803-	●	●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0803-1002	●	●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1003-	●	●
265	GASKET; FLEX TUBE ID=11 OD=18	9-09572-510-0	06	1	0712-0802		●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (D) ID=6.35	1-09701-247-1	04	1	1003-1011	●
434	CLIP WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (D) ID=6.35	1-09701-247-1	04	1	1012-	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (D) ID=6.35	1-09701-247-1	04	1	1012-	●
434	CLIP (I) L=250	5-09707-030-1	01	1	0906-	●
434	CLIP (I) L=600	1-09707-107-1	01	1	0906-1002	●	●
434	CLIP (I) L=600	1-09707-107-1	01	1	1003-	●	●
434	CLIP EURO4 SPECIFICATION<NT4> (H) ID=16 L=20	0-95235-536-0	01	1	0812-	●
434	CLIP (H) ID=16 L=20	0-95235-536-0	01	1	0812-		●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (F) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-	●
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (D) ID=6.35	1-09701-247-1	02	1	0812-0906	●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (D) ID=6.35	1-09701-247-1	02	1	0907-	●
434	CLIP (C)	8-98012-254-1	01	1	0804-0811	●	●
434	CLIP (C)	8-98012-254-1	01	1	0812-0901	●	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	0812-0901	●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0902-0906	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	0902-0906	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0902-0906		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0907-1002	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	0907-1002	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0907-1002		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1003-1011	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (C)	8-98012-254-1	01	1	1003-1011	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	1003-1011	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1003-1011		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1012-		●
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0803-0803	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	02	1	0804-0811	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0812-0901	●	●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0902-0906	●
434	CLIP WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0902-0906		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0907-	●
434	CLIP WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0907-		●
434	CLIP (F) ID=12 & 15	1-09709-281-1	01	1	0803-0811	●	●
434	CLIP EURO4 SPECIFICATION<NT4> (F) ID=12 & 15	1-09709-281-1	01	1	0812-	●
434	CLIP (F) ID=12 & 15	1-09709-281-1	01	1	0812-		●
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (G) ID=7 L=20	0-95234-635-0	01	1	0803-	●
434	CLIP (G) ID=7 L=20	0-95234-635-0	01	1	0803-		●
434	CLIP (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
434	CLIP (A) ID=10 & 15	1-09709-279-1	01	1	0803-0811	●	●
434	CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) ID=10 & 15	1-09709-279-1	01	1	0812-	●
434	CLIP EURO4 SPECIFICATION<NT4> (A) ID=10 & 15	1-09709-279-1	01	1	0812-	●
434	CLIP (B) ID=35 L=33	1-09700-945-0	01	1	0712-0802	●	●
434	CLIP (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-0811	●	●
434	CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0812-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0803-0811	●	●
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0803-0811	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0803-0811		●
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0812-	●
435	BOLT; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	01	1	0812-	●
435	BOLT; CLIP EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	01	1	0812-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0812-		●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0812-		●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0811	●	●
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0803-0811	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0811		●
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0812-	●
436	NUT; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0812-	●
436	NUT; CLIP EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	0812-	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0812-		●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0812-		●

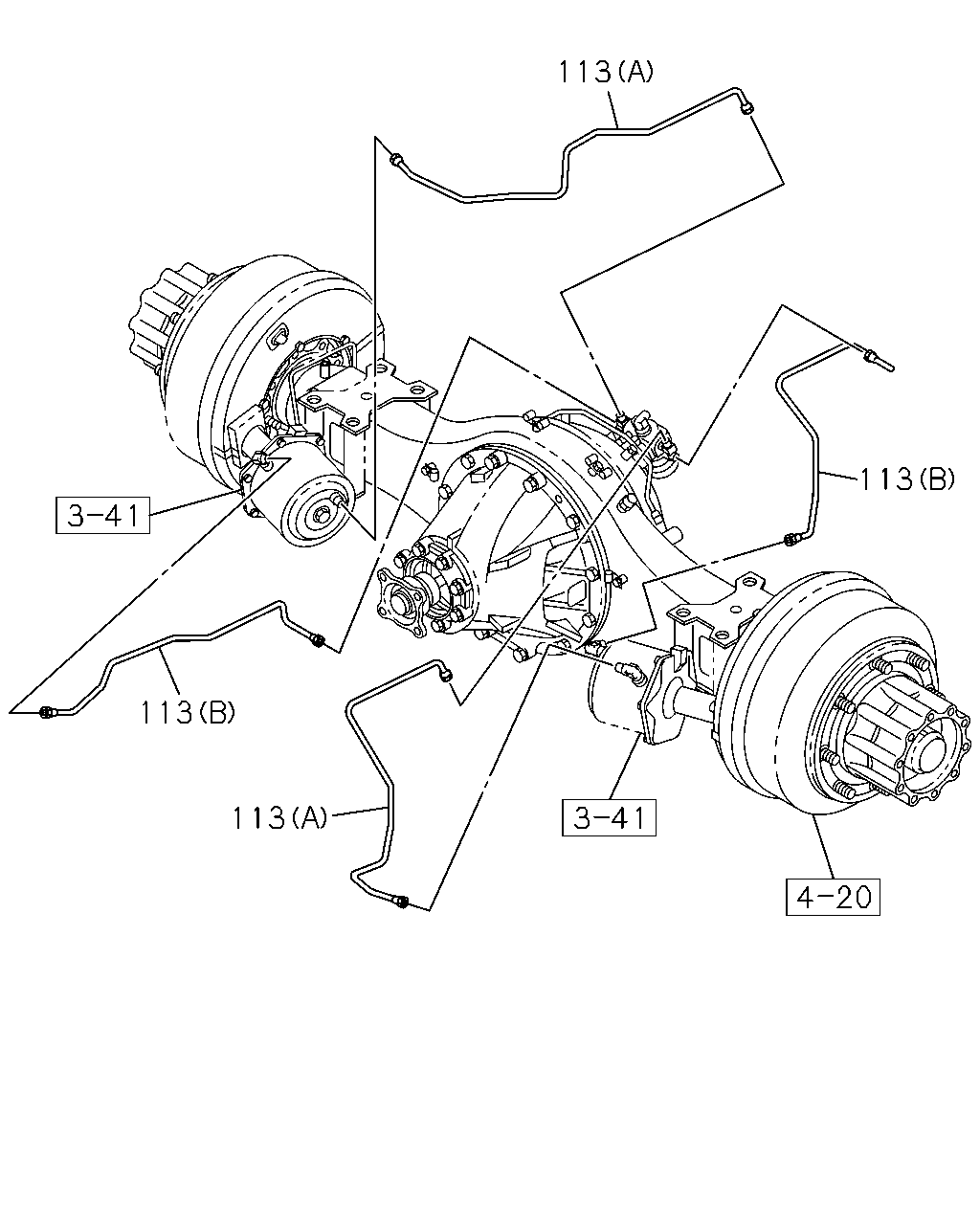

113 113 113 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1064	8-98088-416-0	01	1	0712-1002	●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB (A) L=1064	8-98088-416-0	01	1	0712-1002		●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1064	8-98088-416-0	01	1	1003-1404	●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB (A) L=1064	8-98088-416-0	01	1	1003-1404		●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1064	8-98088-416-0	01	1	1405-	●	●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=972	8-98088-417-0	01	1	0712-1002	●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB (A) L=972	8-98088-417-0	01	1	0712-1002		●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=972	8-98088-417-0	01	1	1003-1404	●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB (A) L=972	8-98088-417-0	01	1	1003-1404		●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=972	8-98088-417-0	01	1	1405-	●	●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98089-891-0	01	1	0712-1002	●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB (B)	8-98089-891-0	01	1	0712-1002		●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98089-891-0	01	1	1003-1404	●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB (B)	8-98089-891-0	01	1	1003-1404		●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98089-891-0	01	1	1405-	●	●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98089-892-0	01	1	0712-1002	●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB (B)	8-98089-892-0	01	1	0712-1002		●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98089-892-0	01	1	1003-1404	●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB (B)	8-98089-892-0	01	1	1003-1404		●
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98089-892-0	01	1	1405-	●	●

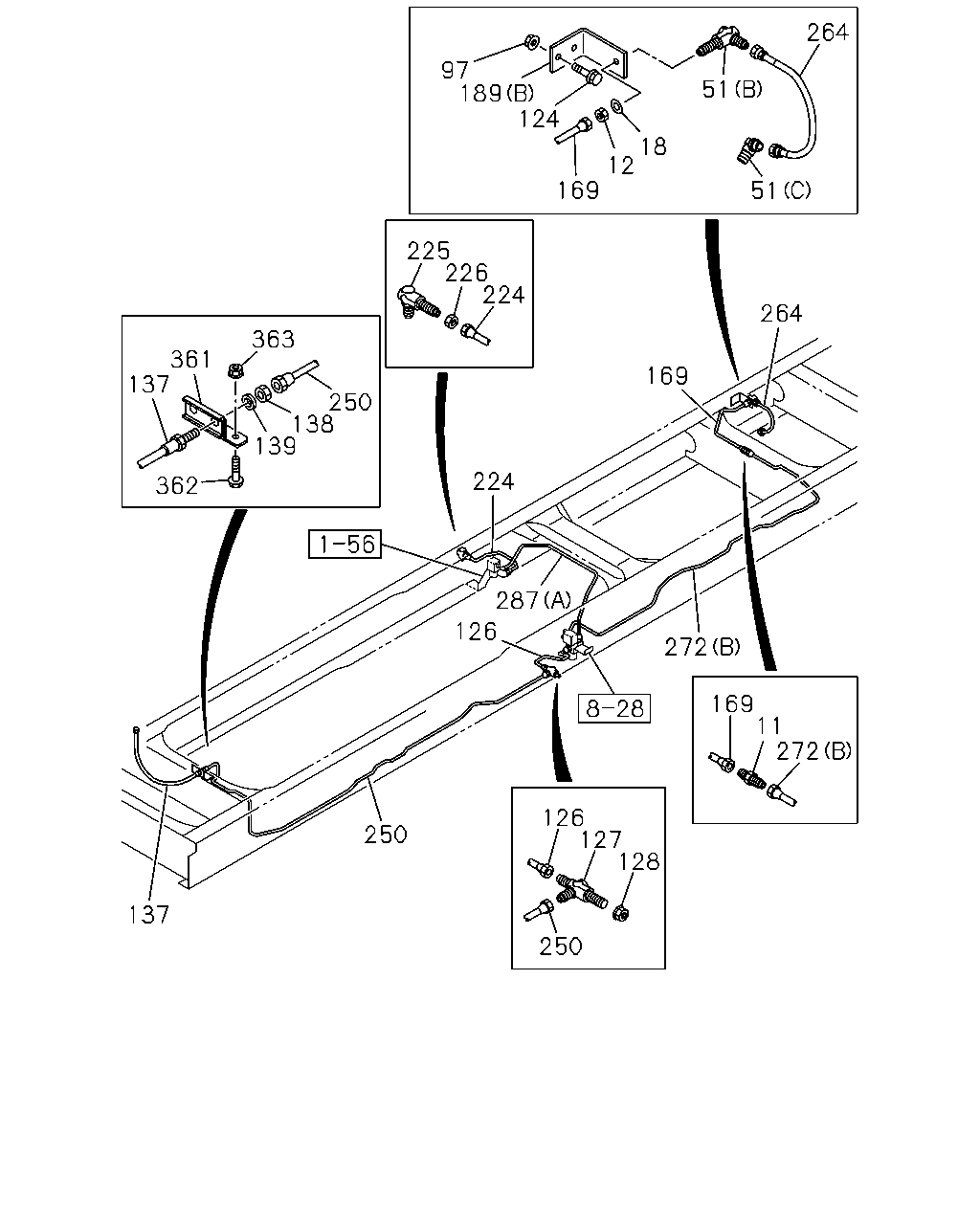

264 97 189 124 51 18 12 169 51 225 226 224 264 363 361 137 169 250 138 139 224 362 287 126 272 169 11 272 126 127 128 250 137 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	UNION; AIR PIPE M12 L=40	0-92113-006-0	01	1	0712-0802		●
12	NUT; UNION EXC. PTO CONTROL<SV6>,CATALYSIS CONTROL WITH DPD<8JM> M12	0-91111-512-0	01	1	0812-1002	●
12	NUT; UNION RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,REARWARD INNER SINGLE TIRE<YK3>,CATALYSIS CONTROL WITH DPD<8JM> M12	0-91111-512-0	01	1	1003-	●
12	NUT; UNION EXC. DIFF LOCK<C3N>,PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>,REARWARD INNER SINGLE TIRE<YK3>, CATALYSIS CONTROL WITH DPD<8JM> M12	0-91111-512-0	01	1	1003-	●
12	NUT; UNION M12	9-09840-280-0	01	1	0804-0811	●	●
12	NUT; UNION EURO4 SPECIFICATION<NT4> M12	9-09840-280-0	01	1	0812-	●
12	NUT; UNION M12	9-09840-280-0	01	1	0812-		●
12	NUT; UNION M12	0-91111-512-0	01	1	0712-0802	●	●
18	WASHER; LK,UNION ID=12.2	0-91510-812-0	01	1	0712-0802	●	●
51	UNION (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-		●
51	UNION (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0712-0802	●
51	UNION (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0803-0803	●	●
51	UNION (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0804-0811	●
51	UNION EURO4 SPECIFICATION<NT4> (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0812-1503	●
51	UNION EURO4 SPECIFICATION<NT4> (A) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-	●
51	UNION (B) M12 ELBOW	0-92125-206-0	01	1	0712-0802		●
51	UNION (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0802		●
97	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0811	●	●
97	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0812-	●
97	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0812-		●
124	BOLT; BRKT WHEEL BASE 3600MM(36W) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
124	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0712-0811	●	●
124	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	0812-	●
124	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0812-		●
126	PIPE; AIR,UNION TO UNION L=402	8-98054-028-0	01	1	0712-0802		●
127	UNION; AIR PIPE M12	0-92138-306-0	01	1	0712-0802		●
128	NUT; PIPE UNION M12	0-91111-512-0	01	1	0712-0802		●
137	HOSE; FLEX,AIR PRESSURE GAGE L=560	1-09363-654-0	01	1	0712-0802		●
138	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	0712-0802		●
139	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	0-91510-512-0	01	1	0712-0802		●
169	PIPE; AIR,UNION TO FLEX HOSE L=503 SERVICED BY L=550	1-47428-808-0	01	1	0712-0802		●
189	BRACKET; FLEX HOSE (A)	8-98034-744-0	01	1	0712-0802	●
189	BRACKET; FLEX HOSE (A)	8-98034-744-0	01	1	0803-0811	●	●
189	BRACKET; FLEX HOSE EURO4 SPECIFICATION<NT4> (A)	8-98034-744-0	01	1	0812-1005	●
189	BRACKET; FLEX HOSE (A)	8-98034-744-0	01	1	0812-1005		●
189	BRACKET; FLEX HOSE EURO4 SPECIFICATION<NT4> (A)	8-98077-571-0	01	1	1006-	●
189	BRACKET; FLEX HOSE (A)	8-98077-571-0	01	1	1006-		●
189	BRACKET; FLEX HOSE (B)	1-47471-361-0	01	1	0712-0802		●
224	PIPE; AIR,UNION TO FLEX HOSE L=391	8-97616-770-0	01	1	0712-0802		●
225	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0712-0802		●
226	NUT; UNION M12	0-91111-512-0	01	1	0712-0802		●
250	PIPE; AIR,UNION TO FLEX HOSE L=2562 SERVICED BY L=2650	1-47428-827-0	01	1	0712-0802		●
264	HOSE; FLEX L=280	1-09363-610-0	01	1	0804-		●
264	HOSE; FLEX L=360	1-09363-823-0	01	1	0712-0802	●
264	HOSE; FLEX L=430	1-09363-623-0	01	1	0803-0803	●	●
264	HOSE; FLEX L=430	1-09363-623-0	01	1	0804-0811	●
264	HOSE; FLEX CATALYSIS CONTROL WITH DPD<8JM> L=430	1-09363-623-0	01	1	0812-	●
264	HOSE; FLEX L=480	1-09363-659-0	01	1	0712-0802		●
272	PIPE; AIR,MAG VLV TO UNION WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> (C) L=2651 SERVICED BY L=2900	1-47428-828-0	01	1	0812-	●
272	PIPE; AIR,MAG VLV TO UNION WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> (C) L=2646 SERVICED BY L=2650	1-47428-827-0	01	1	0812-	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2685 SERVICED BY L=2900	1-47428-828-0	01	1	0804-0811		●
272	PIPE; AIR,MAG VLV TO UNION EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (C) L=2624 SERVICED BY L=2650	1-47428-827-0	01	1	0812-0905	●
272	PIPE; AIR,MAG VLV TO UNION EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (C) L=2624 SERVICED BY L=2650	1-47428-827-0	01	1	0906-	●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2624 SERVICED BY L=2650	1-47428-827-0	01	1	0906-		●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2626 SERVICED BY L=2650	1-47428-827-0	01	1	0804-0811		●
272	PIPE; AIR,MAG VLV TO UNION WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,CATALYSIS CONTROLWITH DPD<8JM> (C) L=2580 SERVICED BY L=2650	1-47428-827-0	01	1	0812-	●
272	PIPE; AIR,MAG VLV TO UNION (A) L=1424 SERVICED BY L=1500	1-47428-819-0	01	1	0712-0802	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=2664 SERVICED BY L=2900	1-47428-828-0	01	1	0803-0803	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2664 SERVICED BY L=2900	1-47428-828-0	01	1	0803-0803		●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=2664 SERVICED BY L=2900	1-47428-828-0	01	1	0804-0811	●
272	PIPE; AIR,MAG VLV TO UNION EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=2684 SERVICED BY L=2900	1-47428-828-0	01	1	0812-	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2684 SERVICED BY L=2900	1-47428-828-0	01	1	0812-		●
272	PIPE; AIR,MAG VLV TO UNION (B) L=2100 SERVICED BY L=2200	1-47428-824-0	01	1	0712-0802		●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (C) L=2604 SERVICED BY L=2650	1-47428-827-0	01	1	0803-0803	●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2604 SERVICED BY L=2650	1-47428-827-0	01	1	0803-0803		●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (C) L=2604 SERVICED BY L=2650	1-47428-827-0	01	1	0804-0811	●
272	PIPE; AIR,MAG VLV TO UNION WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,CATALYSIS CONTROLWITH DPD<8JM> (C) L=2584 SERVICED BY L=2650	1-47428-827-0	01	1	0812-	●
287	PIPE; AIR,MAG VLV PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (A) L=1138 SERVICED BY L=1200	1-47428-816-0	01	1	1012-	●
287	PIPE; AIR,MAG VLV REARWARD INNER SINGLE TIRE<YK3> (C) L=1114 SERVICED BY L=1200	1-47428-816-0	01	1	1003-	●
287	PIPE; AIR,MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (D) L=1672 SERVICED BY L=1700	1-47428-821-0	01	1	1003-1011	●
287	PIPE; AIR,MAG VLV WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (D) L=1672 SERVICED BY L=1700	1-47428-821-0	01	1	1012-	●
287	PIPE; AIR,MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (D) L=1672 SERVICED BY L=1700	1-47428-821-0	01	1	1012-	●
287	PIPE; AIR,MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (E) L=1092 SERVICED BY L=1100	1-47428-815-0	01	1	1003-	●
287	PIPE; AIR,MAG VLV (A) L=1219 SERVICED BY L=1250	1-47428-817-0	01	1	0804-0811		●
287	PIPE; AIR,MAG VLV WHEEL BASE 3600MM(36W) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) L=1207 SERVICED BY L=1250	1-47428-817-0	01	1	0812-	●
287	PIPE; AIR,MAG VLV (B) L=1189 SERVICED BY L=1200	1-47428-816-0	01	1	0804-0901		●
287	PIPE; AIR,MAG VLV WHEEL BASE 4200MM(42W) (B) L=1189 SERVICED BY L=1200	1-47428-816-0	01	1	0902-		●
287	PIPE; AIR,MAG VLV (A) L=1240 SERVICED BY L=1250	1-47428-817-0	01	1	0803-0803	●	●
287	PIPE; AIR,MAG VLV (A) L=1240 SERVICED BY L=1250	1-47428-817-0	01	1	0804-0811	●
287	PIPE; AIR,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) L=1240 SERVICED BY L=1250	1-47428-817-0	01	1	0812-	●
287	PIPE; AIR,MAG VLV (A) L=1240 SERVICED BY L=1250	1-47428-817-0	01	1	0812-		●
287	PIPE; AIR,MAG VLV EXC. BRAKE REGULATION ADR<TDU> (B)	8-98111-580-0	01	1	0803-0811	●
287	PIPE; AIR,MAG VLV WHEEL BASE 4200MM(42W) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) L=1212 SERVICED BY L=1250	1-47428-817-0	01	1	0812-	●
287	PIPE; AIR,MAG VLV (A) L=964 SERVICED BY L=1000	1-47428-814-0	01	1	0712-0802		●
287	PIPE; AIR,MAG VLV BRAKE REGULATION ADR<TDU> (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	0803-0803	●
287	PIPE; AIR,MAG VLV (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	0803-0803		●
287	PIPE; AIR,MAG VLV BRAKE REGULATION ADR<TDU> (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	0804-0906	●
287	PIPE; AIR,MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) BRAKE REGULATION ADR<TDU> (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	0907-	●
361	BRACKET; FLEX HOSE,AIR GOV	1-47476-781-0	01	1	0712-0802		●
362	BOLT; BRKT,FLEX HOSE,AIR GOV M8X25 FLANGE	0-28650-825-0	02	1	0712-0802		●
363	NUT; BRKT,FLEX HOSE,AIR GOV M8 FLANGE	0-91180-108-0	02	1	0712-0802		●

124 144 12 18 97 45 243 264 189 51 238 45 251 238 450 144 428 377 212 251 135 144 272 144 213 135 377 450 144 272 130 130 130 131 118 130 239 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NUT; UNION EXC. PTO CONTROL<SV6>,CATALYSIS CONTROL WITH DPD<8JM> M12	0-91111-512-0	01	1	0812-1002	●
12	NUT; UNION RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,REARWARD INNER SINGLE TIRE<YK3>,CATALYSIS CONTROL WITH DPD<8JM> M12	0-91111-512-0	01	1	1003-	●
12	NUT; UNION EXC. DIFF LOCK<C3N>,PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>,REARWARD INNER SINGLE TIRE<YK3>, CATALYSIS CONTROL WITH DPD<8JM> M12	0-91111-512-0	01	1	1003-	●
12	NUT; UNION M12	9-09840-280-0	01	1	0804-0811	●	●
12	NUT; UNION EURO4 SPECIFICATION<NT4> M12	9-09840-280-0	01	1	0812-	●
12	NUT; UNION M12	9-09840-280-0	01	1	0812-		●
12	NUT; UNION M12	0-91111-512-0	01	1	0712-0802	●	●
18	WASHER; LK,UNION ID=12.2	0-91510-812-0	01	1	0712-0802	●	●
45	PIPE; AIR,UNION TO AIR TANK L=813 SERVICED BY L=900	1-47428-813-0	01	1	0804-		●
45	PIPE; AIR,UNION TO AIR TANK L=715 SERVICED BY L=800	1-47428-812-0	01	1	0712-0802	●
45	PIPE; AIR,UNION TO AIR TANK BRAKE REGULATION ADR<TDU> L=810 SERVICED BY L=900	1-47428-813-0	01	1	0803-0803	●
45	PIPE; AIR,UNION TO AIR TANK L=810 SERVICED BY L=900	1-47428-813-0	01	1	0803-0803		●
45	PIPE; AIR,UNION TO AIR TANK BRAKE REGULATION ADR<TDU> L=810 SERVICED BY L=900	1-47428-813-0	01	1	0804-	●
51	UNION (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-		●
51	UNION (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0712-0802	●
51	UNION (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0803-0803	●	●
51	UNION (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0804-0811	●
51	UNION EURO4 SPECIFICATION<NT4> (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0812-1503	●
51	UNION EURO4 SPECIFICATION<NT4> (A) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-	●
51	UNION (B) M12 ELBOW	0-92125-206-0	01	1	0712-0802		●
51	UNION (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0802		●
97	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0811	●	●
97	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0812-	●
97	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0812-		●
118	NUT; UNION M12	9-09840-280-0	02	1	0712-0802	●
124	BOLT; BRKT WHEEL BASE 3600MM(36W) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
124	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0712-0811	●	●
124	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	0812-	●
124	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0812-		●
130	PIPE; AIR,UNION TO UNION (A) L=1688 SERVICED BY L=1700	1-47428-821-0	01	1	0712-0802	●
130	PIPE; AIR,UNION TO UNION (B) L=966 SERVICED BY L=1000	1-47428-814-0	01	1	0712-0802	●
131	UNION; AIR PIPE M12	0-92138-306-0	01	1	0712-0802	●
135	PIPE; AIR,UNION TO UNION L=1173 SERVICED BY L=1200	1-47428-816-0	01	1	0804-0912		●
135	PIPE; AIR,UNION TO UNION L=1220 SERVICED BY L=1250	1-47428-817-0	01	1	1001-		●
135	PIPE; AIR,UNION TO UNION L=1447 SERVICED BY L=1500	1-47428-819-0	01	1	0712-0802	●
135	PIPE; AIR,UNION TO UNION L=1155 SERVICED BY L=1200	1-47428-816-0	01	1	0803-0803	●	●
135	PIPE; AIR,UNION TO UNION L=1155 SERVICED BY L=1200	1-47428-816-0	01	1	0804-0811	●
135	PIPE; AIR,UNION TO UNION EURO4 SPECIFICATION<NT4> L=1155 SERVICED BY L=1200	1-47428-816-0	01	1	0812-0912	●
135	PIPE; AIR,UNION TO UNION EURO4 SPECIFICATION<NT4> L=1202 SERVICED BY L=1250	1-47428-817-0	01	1	1001-	●
144	PIPE; AIR,UNION TO UNION (A) L=1274 SERVICED BY L=1370	1-47428-818-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (B) L=227	8-98084-353-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (C) L=1579 SERVICED BY L=1620	1-47428-820-0	01	1	0803-0811	●	●
144	PIPE; AIR,UNION TO UNION EURO4 SPECIFICATION<NT4> (C) L=1579 SERVICED BY L=1620	1-47428-820-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (C) L=1579 SERVICED BY L=1620	1-47428-820-0	01	1	0812-		●
189	BRACKET; FLEX HOSE (A)	8-98034-744-0	01	1	0712-0802	●
189	BRACKET; FLEX HOSE (A)	8-98034-744-0	01	1	0803-0811	●	●
189	BRACKET; FLEX HOSE EURO4 SPECIFICATION<NT4> (A)	8-98034-744-0	01	1	0812-1005	●
189	BRACKET; FLEX HOSE (A)	8-98034-744-0	01	1	0812-1005		●
189	BRACKET; FLEX HOSE EURO4 SPECIFICATION<NT4> (A)	8-98077-571-0	01	1	1006-	●
189	BRACKET; FLEX HOSE (A)	8-98077-571-0	01	1	1006-		●
189	BRACKET; FLEX HOSE (B)	1-47471-361-0	01	1	0712-0802		●
212	PIPE; AIR,UNION TO UNION L=939 SERVICED BY L=1000	1-47428-814-0	01	1	0712-0802	●
213	UNION; AIR PIPE M12 L=40	0-92113-006-0	01	1	0712-0802	●
213	UNION; AIR PIPE M12 L=40	0-92113-006-0	01	1	0803-0811	●	●
213	UNION; AIR PIPE EURO4 SPECIFICATION<NT4> M12 L=40	0-92113-006-0	01	1	0812-	●
213	UNION; AIR PIPE M12 L=40	0-92113-006-0	01	1	0812-		●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) BRAKE REGULATION ADR<TDU> (A) L=1671 SERVICED BY L=1700	1-47428-821-0	01	1	0812-1003	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) BRAKE REGULATION ADR<TDU> (A) L=1680 SERVICED BY L=1700	1-47428-821-0	01	1	1004-	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (B) L=801 SERVICED BY L=900	1-47428-813-0	01	1	0803-0811	●	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR<TDU> (B) L=801 SERVICED BY L=900	1-47428-813-0	01	1	0812-	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (B) L=801 SERVICED BY L=900	1-47428-813-0	01	1	0812-		●
238	PIPE; AIR,UNION TO UNION (A) L=1319	8-98111-261-1	01	1	0803-0811		●
238	PIPE; AIR,UNION TO UNION (A) L=1309 SERVICED BY L=1370	1-47428-818-0	01	1	0812-		●
238	PIPE; AIR,UNION TO UNION (A) L=1756 SERVICED BY L=1820	1-47428-822-0	01	1	0712-0802	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (A) L=1726 SERVICED BY L=1820	1-47428-822-0	01	1	0803-0811	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ADR<TDU> (B) L=790 SERVICED BY L=800	1-47428-812-0	01	1	0812-	●
239	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
239	UNION; AIR PIPE EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M12 2WAY	1-09654-059-2	01	1	0803-	●
239	UNION; AIR PIPE (B) M12 2WAY	1-09654-059-2	01	1	0803-		●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
243	UNION; AIR PIPE BRAKE REGULATION ADR<TDU> (A) M12 L=40	0-92113-006-0	01	1	0803-	●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0803-		●
243	UNION; AIR PIPE (B) M12 ELBOW	0-92125-206-0	01	1	0803-	●	●
251	PIPE; AIR,UNION TO MAG VLV EURO2 SPECIFICATION<NT2> EXC. BRAKE REGULATION ADR<TDU>,CATALYSIS CONTROL WITH DPD<8JM> (C) L=1154 SERVICED BY L=1200	1-47428-816-0	01	1	0812-1002	●
251	PIPE; AIR,UNION TO MAG VLV EURO2 SPECIFICATION<NT2> EXC. BRAKE REGULATION ADR<TDU>,REARWARD INNER SINGLE TIRE<YK3>,CATALYSIS CONTROL WITH DPD<8JM> (C) L=1154 SERVICED BY L=1200	1-47428-816-0	01	1	1003-	●
251	PIPE; AIR,UNION TO MAG VLV EURO4 SPECIFICATION<NT4> (C) L=1127 SERVICED BY L=1200	1-47428-816-0	01	1	0812-	●
251	PIPE; AIR,UNION TO MAG VLV (C) L=1127 SERVICED BY L=1200	1-47428-816-0	01	1	0812-		●
251	PIPE; AIR,UNION TO MAG VLV (A) L=1205 SERVICED BY L=1250	1-47428-817-0	01	1	0712-0802	●
251	PIPE; AIR,UNION TO MAG VLV (C) L=1136 SERVICED BY L=1200	1-47428-816-0	01	1	0803-0811	●	●
251	PIPE; AIR,UNION TO MAG VLV EURO2 SPECIFICATION<NT2> BRAKE REGULATION ADR<TDU> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) L=1173 SERVICED BY L=1200	1-47428-816-0	01	1	0812-	●
251	PIPE; AIR,UNION TO MAG VLV (B) L=845 SERVICED BY L=900	1-47428-813-0	01	1	0712-0802	●
264	HOSE; FLEX L=280	1-09363-610-0	01	1	0804-		●
264	HOSE; FLEX L=360	1-09363-823-0	01	1	0712-0802	●
264	HOSE; FLEX L=430	1-09363-623-0	01	1	0803-0803	●	●
264	HOSE; FLEX L=430	1-09363-623-0	01	1	0804-0811	●
264	HOSE; FLEX CATALYSIS CONTROL WITH DPD<8JM> L=430	1-09363-623-0	01	1	0812-	●
264	HOSE; FLEX L=480	1-09363-659-0	01	1	0712-0802		●
272	PIPE; AIR,MAG VLV TO UNION WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> (C) L=2651 SERVICED BY L=2900	1-47428-828-0	01	1	0812-	●
272	PIPE; AIR,MAG VLV TO UNION WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> (C) L=2646 SERVICED BY L=2650	1-47428-827-0	01	1	0812-	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2685 SERVICED BY L=2900	1-47428-828-0	01	1	0804-0811		●
272	PIPE; AIR,MAG VLV TO UNION EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (C) L=2624 SERVICED BY L=2650	1-47428-827-0	01	1	0812-0905	●
272	PIPE; AIR,MAG VLV TO UNION EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (C) L=2624 SERVICED BY L=2650	1-47428-827-0	01	1	0906-	●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2624 SERVICED BY L=2650	1-47428-827-0	01	1	0906-		●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2626 SERVICED BY L=2650	1-47428-827-0	01	1	0804-0811		●
272	PIPE; AIR,MAG VLV TO UNION WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,CATALYSIS CONTROLWITH DPD<8JM> (C) L=2580 SERVICED BY L=2650	1-47428-827-0	01	1	0812-	●
272	PIPE; AIR,MAG VLV TO UNION (A) L=1424 SERVICED BY L=1500	1-47428-819-0	01	1	0712-0802	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=2664 SERVICED BY L=2900	1-47428-828-0	01	1	0803-0803	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2664 SERVICED BY L=2900	1-47428-828-0	01	1	0803-0803		●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=2664 SERVICED BY L=2900	1-47428-828-0	01	1	0804-0811	●
272	PIPE; AIR,MAG VLV TO UNION EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=2684 SERVICED BY L=2900	1-47428-828-0	01	1	0812-	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2684 SERVICED BY L=2900	1-47428-828-0	01	1	0812-		●
272	PIPE; AIR,MAG VLV TO UNION (B) L=2100 SERVICED BY L=2200	1-47428-824-0	01	1	0712-0802		●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (C) L=2604 SERVICED BY L=2650	1-47428-827-0	01	1	0803-0803	●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2604 SERVICED BY L=2650	1-47428-827-0	01	1	0803-0803		●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (C) L=2604 SERVICED BY L=2650	1-47428-827-0	01	1	0804-0811	●
272	PIPE; AIR,MAG VLV TO UNION WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,CATALYSIS CONTROLWITH DPD<8JM> (C) L=2584 SERVICED BY L=2650	1-47428-827-0	01	1	0812-	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	0712-0802	●
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	02	1	0803-		●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	0803-0811	●	●
377	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
377	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	0812-		●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-0811	●	●
428	NUT; BRKT EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0812-	●
428	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	0812-	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0812-		●
450	BRACKET; CLIP (A) L=95	1-82699-085-0	01	1	0712-0802	●
450	BRACKET; CLIP (A) L=95	1-82699-085-0	01	1	0803-0811	●	●
450	BRACKET; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) L=115 B=25	1-47476-758-0	01	1	0812-	●
450	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (A) L=115 B=25	1-47476-758-0	01	1	0812-	●
450	BRACKET; CLIP (A) L=115 B=25	1-47476-758-0	01	1	0812-		●
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98074-610-0	01	1	0803-0811	●
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98074-610-0	01	1	0803-0811	●
450	BRACKET; CLIP (B)	8-98074-610-0	01	1	0803-0811		●
450	BRACKET; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	0812-0905	●
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	0812-0905		●
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98070-479-0	01	1	0906-	●
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	0906-	●
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	0906-		●

124 124 144 12 97 45 243 238 98 264 189 51 450 45 428 377 238 377 287 434 144 238 428 251 287 135 467 144 213 135 377 272 148 381 148 272 450 434 296 202 239 240 444 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NUT; UNION EXC. PTO CONTROL<SV6>,CATALYSIS CONTROL WITH DPD<8JM> M12	0-91111-512-0	01	1	0812-1002	●
12	NUT; UNION RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,REARWARD INNER SINGLE TIRE<YK3>,CATALYSIS CONTROL WITH DPD<8JM> M12	0-91111-512-0	01	1	1003-	●
12	NUT; UNION EXC. DIFF LOCK<C3N>,PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>,REARWARD INNER SINGLE TIRE<YK3>, CATALYSIS CONTROL WITH DPD<8JM> M12	0-91111-512-0	01	1	1003-	●
12	NUT; UNION M12	9-09840-280-0	01	1	0804-0811	●	●
12	NUT; UNION EURO4 SPECIFICATION<NT4> M12	9-09840-280-0	01	1	0812-	●
12	NUT; UNION M12	9-09840-280-0	01	1	0812-		●
12	NUT; UNION M12	0-91111-512-0	01	1	0712-0802	●	●
45	PIPE; AIR,UNION TO AIR TANK L=813 SERVICED BY L=900	1-47428-813-0	01	1	0804-		●
45	PIPE; AIR,UNION TO AIR TANK L=715 SERVICED BY L=800	1-47428-812-0	01	1	0712-0802	●
45	PIPE; AIR,UNION TO AIR TANK BRAKE REGULATION ADR<TDU> L=810 SERVICED BY L=900	1-47428-813-0	01	1	0803-0803	●
45	PIPE; AIR,UNION TO AIR TANK L=810 SERVICED BY L=900	1-47428-813-0	01	1	0803-0803		●
45	PIPE; AIR,UNION TO AIR TANK BRAKE REGULATION ADR<TDU> L=810 SERVICED BY L=900	1-47428-813-0	01	1	0804-	●
51	UNION (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-		●
51	UNION (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0712-0802	●
51	UNION (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0803-0803	●	●
51	UNION (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0804-0811	●
51	UNION EURO4 SPECIFICATION<NT4> (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0812-1503	●
51	UNION EURO4 SPECIFICATION<NT4> (A) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-	●
51	UNION (B) M12 ELBOW	0-92125-206-0	01	1	0712-0802		●
51	UNION (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0802		●
97	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0811	●	●
97	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0812-	●
97	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0812-		●
98	BRACKET; AIR PIPE WHEEL BASE 3600MM(36W) EXC. RIGID SEAT WO/ARM REST<TAZ>	1-47478-981-0	01	1	0812-	●
124	BOLT; BRKT WHEEL BASE 3600MM(36W) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
124	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0712-0811	●	●
124	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	0812-	●
124	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0812-		●
135	PIPE; AIR,UNION TO UNION L=1173 SERVICED BY L=1200	1-47428-816-0	01	1	0804-0912		●
135	PIPE; AIR,UNION TO UNION L=1220 SERVICED BY L=1250	1-47428-817-0	01	1	1001-		●
135	PIPE; AIR,UNION TO UNION L=1447 SERVICED BY L=1500	1-47428-819-0	01	1	0712-0802	●
135	PIPE; AIR,UNION TO UNION L=1155 SERVICED BY L=1200	1-47428-816-0	01	1	0803-0803	●	●
135	PIPE; AIR,UNION TO UNION L=1155 SERVICED BY L=1200	1-47428-816-0	01	1	0804-0811	●
135	PIPE; AIR,UNION TO UNION EURO4 SPECIFICATION<NT4> L=1155 SERVICED BY L=1200	1-47428-816-0	01	1	0812-0912	●
135	PIPE; AIR,UNION TO UNION EURO4 SPECIFICATION<NT4> L=1202 SERVICED BY L=1250	1-47428-817-0	01	1	1001-	●
144	PIPE; AIR,UNION TO UNION (A) L=1274 SERVICED BY L=1370	1-47428-818-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (B) L=227	8-98084-353-0	01	1	0712-0802	●
144	PIPE; AIR,UNION TO UNION (C) L=1579 SERVICED BY L=1620	1-47428-820-0	01	1	0803-0811	●	●
144	PIPE; AIR,UNION TO UNION EURO4 SPECIFICATION<NT4> (C) L=1579 SERVICED BY L=1620	1-47428-820-0	01	1	0812-	●
144	PIPE; AIR,UNION TO UNION (C) L=1579 SERVICED BY L=1620	1-47428-820-0	01	1	0812-		●
148	CONNECTOR; UNION RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,CATALYSIS CONTROL WITH DPD<8JM> (A) M12 2WAY	1-09654-059-2	01	1	0812-1002	●
148	CONNECTOR; UNION RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,REARWARD INNER SINGLE TIRE<YK3>,CATALYSIS CONTROL WITH DPD<8JM> (A) M12 2WAY	1-09654-059-2	01	1	1003-	●
148	CONNECTOR; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> (B) M12	0-92138-306-0	01	1	0812-1002	●
148	CONNECTOR; UNION EXC. DIFF LOCK<C3N>,PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>,REARWARD INNER SINGLE TIRE<YK3>, CATALYSIS CONTROL WITH DPD<8JM> (B) M12	0-92138-306-0	01	1	1003-	●
189	BRACKET; FLEX HOSE (A)	8-98034-744-0	01	1	0712-0802	●
189	BRACKET; FLEX HOSE (A)	8-98034-744-0	01	1	0803-0811	●	●
189	BRACKET; FLEX HOSE EURO4 SPECIFICATION<NT4> (A)	8-98034-744-0	01	1	0812-1005	●
189	BRACKET; FLEX HOSE (A)	8-98034-744-0	01	1	0812-1005		●
189	BRACKET; FLEX HOSE EURO4 SPECIFICATION<NT4> (A)	8-98077-571-0	01	1	1006-	●
189	BRACKET; FLEX HOSE (A)	8-98077-571-0	01	1	1006-		●
189	BRACKET; FLEX HOSE (B)	1-47471-361-0	01	1	0712-0802		●
202	ADAPTER EXC. RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0803-	●
202	ADAPTER DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0803-		●
213	UNION; AIR PIPE M12 L=40	0-92113-006-0	01	1	0712-0802	●
213	UNION; AIR PIPE M12 L=40	0-92113-006-0	01	1	0803-0811	●	●
213	UNION; AIR PIPE EURO4 SPECIFICATION<NT4> M12 L=40	0-92113-006-0	01	1	0812-	●
213	UNION; AIR PIPE M12 L=40	0-92113-006-0	01	1	0812-		●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) BRAKE REGULATION ADR<TDU> (A) L=1671 SERVICED BY L=1700	1-47428-821-0	01	1	0812-1003	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) BRAKE REGULATION ADR<TDU> (A) L=1680 SERVICED BY L=1700	1-47428-821-0	01	1	1004-	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (B) L=801 SERVICED BY L=900	1-47428-813-0	01	1	0803-0811	●	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR<TDU> (B) L=801 SERVICED BY L=900	1-47428-813-0	01	1	0812-	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (B) L=801 SERVICED BY L=900	1-47428-813-0	01	1	0812-		●
238	PIPE; AIR,UNION TO UNION (A) L=1319	8-98111-261-1	01	1	0803-0811		●
238	PIPE; AIR,UNION TO UNION (A) L=1309 SERVICED BY L=1370	1-47428-818-0	01	1	0812-		●
238	PIPE; AIR,UNION TO UNION (A) L=1756 SERVICED BY L=1820	1-47428-822-0	01	1	0712-0802	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (A) L=1726 SERVICED BY L=1820	1-47428-822-0	01	1	0803-0811	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ADR<TDU> (B) L=790 SERVICED BY L=800	1-47428-812-0	01	1	0812-	●
239	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
239	UNION; AIR PIPE EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M12 2WAY	1-09654-059-2	01	1	0803-	●
239	UNION; AIR PIPE (B) M12 2WAY	1-09654-059-2	01	1	0803-		●
240	NUT; UNION,AIR PIPE EXC. RIGID SEAT WO/ARM REST<TAZ> M12 FLANGE	0-91180-212-0	01	1	0803-0804	●
240	NUT; UNION,AIR PIPE M12 FLANGE	0-91180-212-0	01	1	0803-0804		●
240	NUT; UNION,AIR PIPE EXC. RIGID SEAT WO/ARM REST<TAZ> M12	0-91111-512-0	01	1	0805-	●
240	NUT; UNION,AIR PIPE M12	0-91111-512-0	01	1	0805-		●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
243	UNION; AIR PIPE BRAKE REGULATION ADR<TDU> (A) M12 L=40	0-92113-006-0	01	1	0803-	●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0803-		●
243	UNION; AIR PIPE (B) M12 ELBOW	0-92125-206-0	01	1	0803-	●	●
251	PIPE; AIR,UNION TO MAG VLV EURO2 SPECIFICATION<NT2> EXC. BRAKE REGULATION ADR<TDU>,CATALYSIS CONTROL WITH DPD<8JM> (C) L=1154 SERVICED BY L=1200	1-47428-816-0	01	1	0812-1002	●
251	PIPE; AIR,UNION TO MAG VLV EURO2 SPECIFICATION<NT2> EXC. BRAKE REGULATION ADR<TDU>,REARWARD INNER SINGLE TIRE<YK3>,CATALYSIS CONTROL WITH DPD<8JM> (C) L=1154 SERVICED BY L=1200	1-47428-816-0	01	1	1003-	●
251	PIPE; AIR,UNION TO MAG VLV EURO4 SPECIFICATION<NT4> (C) L=1127 SERVICED BY L=1200	1-47428-816-0	01	1	0812-	●
251	PIPE; AIR,UNION TO MAG VLV (C) L=1127 SERVICED BY L=1200	1-47428-816-0	01	1	0812-		●
251	PIPE; AIR,UNION TO MAG VLV (A) L=1205 SERVICED BY L=1250	1-47428-817-0	01	1	0712-0802	●
251	PIPE; AIR,UNION TO MAG VLV (C) L=1136 SERVICED BY L=1200	1-47428-816-0	01	1	0803-0811	●	●
251	PIPE; AIR,UNION TO MAG VLV EURO2 SPECIFICATION<NT2> BRAKE REGULATION ADR<TDU> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) L=1173 SERVICED BY L=1200	1-47428-816-0	01	1	0812-	●
251	PIPE; AIR,UNION TO MAG VLV (B) L=845 SERVICED BY L=900	1-47428-813-0	01	1	0712-0802	●
264	HOSE; FLEX L=280	1-09363-610-0	01	1	0804-		●
264	HOSE; FLEX L=360	1-09363-823-0	01	1	0712-0802	●
264	HOSE; FLEX L=430	1-09363-623-0	01	1	0803-0803	●	●
264	HOSE; FLEX L=430	1-09363-623-0	01	1	0804-0811	●
264	HOSE; FLEX CATALYSIS CONTROL WITH DPD<8JM> L=430	1-09363-623-0	01	1	0812-	●
264	HOSE; FLEX L=480	1-09363-659-0	01	1	0712-0802		●
272	PIPE; AIR,MAG VLV TO UNION WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> (C) L=2651 SERVICED BY L=2900	1-47428-828-0	01	1	0812-	●
272	PIPE; AIR,MAG VLV TO UNION WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> (C) L=2646 SERVICED BY L=2650	1-47428-827-0	01	1	0812-	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2685 SERVICED BY L=2900	1-47428-828-0	01	1	0804-0811		●
272	PIPE; AIR,MAG VLV TO UNION EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (C) L=2624 SERVICED BY L=2650	1-47428-827-0	01	1	0812-0905	●
272	PIPE; AIR,MAG VLV TO UNION EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (C) L=2624 SERVICED BY L=2650	1-47428-827-0	01	1	0906-	●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2624 SERVICED BY L=2650	1-47428-827-0	01	1	0906-		●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2626 SERVICED BY L=2650	1-47428-827-0	01	1	0804-0811		●
272	PIPE; AIR,MAG VLV TO UNION WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,CATALYSIS CONTROLWITH DPD<8JM> (C) L=2580 SERVICED BY L=2650	1-47428-827-0	01	1	0812-	●
272	PIPE; AIR,MAG VLV TO UNION (A) L=1424 SERVICED BY L=1500	1-47428-819-0	01	1	0712-0802	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=2664 SERVICED BY L=2900	1-47428-828-0	01	1	0803-0803	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2664 SERVICED BY L=2900	1-47428-828-0	01	1	0803-0803		●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=2664 SERVICED BY L=2900	1-47428-828-0	01	1	0804-0811	●
272	PIPE; AIR,MAG VLV TO UNION EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=2684 SERVICED BY L=2900	1-47428-828-0	01	1	0812-	●
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> (C) L=2684 SERVICED BY L=2900	1-47428-828-0	01	1	0812-		●
272	PIPE; AIR,MAG VLV TO UNION (B) L=2100 SERVICED BY L=2200	1-47428-824-0	01	1	0712-0802		●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (C) L=2604 SERVICED BY L=2650	1-47428-827-0	01	1	0803-0803	●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6> (C) L=2604 SERVICED BY L=2650	1-47428-827-0	01	1	0803-0803		●
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (C) L=2604 SERVICED BY L=2650	1-47428-827-0	01	1	0804-0811	●
272	PIPE; AIR,MAG VLV TO UNION WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,CATALYSIS CONTROLWITH DPD<8JM> (C) L=2584 SERVICED BY L=2650	1-47428-827-0	01	1	0812-	●
287	PIPE; AIR,MAG VLV PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (A) L=1138 SERVICED BY L=1200	1-47428-816-0	01	1	1012-	●
287	PIPE; AIR,MAG VLV REARWARD INNER SINGLE TIRE<YK3> (C) L=1114 SERVICED BY L=1200	1-47428-816-0	01	1	1003-	●
287	PIPE; AIR,MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (D) L=1672 SERVICED BY L=1700	1-47428-821-0	01	1	1003-1011	●
287	PIPE; AIR,MAG VLV WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (D) L=1672 SERVICED BY L=1700	1-47428-821-0	01	1	1012-	●
287	PIPE; AIR,MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (D) L=1672 SERVICED BY L=1700	1-47428-821-0	01	1	1012-	●
287	PIPE; AIR,MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (E) L=1092 SERVICED BY L=1100	1-47428-815-0	01	1	1003-	●
287	PIPE; AIR,MAG VLV (A) L=1219 SERVICED BY L=1250	1-47428-817-0	01	1	0804-0811		●
287	PIPE; AIR,MAG VLV WHEEL BASE 3600MM(36W) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) L=1207 SERVICED BY L=1250	1-47428-817-0	01	1	0812-	●
287	PIPE; AIR,MAG VLV (B) L=1189 SERVICED BY L=1200	1-47428-816-0	01	1	0804-0901		●
287	PIPE; AIR,MAG VLV WHEEL BASE 4200MM(42W) (B) L=1189 SERVICED BY L=1200	1-47428-816-0	01	1	0902-		●
287	PIPE; AIR,MAG VLV (A) L=1240 SERVICED BY L=1250	1-47428-817-0	01	1	0803-0803	●	●
287	PIPE; AIR,MAG VLV (A) L=1240 SERVICED BY L=1250	1-47428-817-0	01	1	0804-0811	●
287	PIPE; AIR,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) L=1240 SERVICED BY L=1250	1-47428-817-0	01	1	0812-	●
287	PIPE; AIR,MAG VLV (A) L=1240 SERVICED BY L=1250	1-47428-817-0	01	1	0812-		●
287	PIPE; AIR,MAG VLV EXC. BRAKE REGULATION ADR<TDU> (B)	8-98111-580-0	01	1	0803-0811	●
287	PIPE; AIR,MAG VLV WHEEL BASE 4200MM(42W) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) L=1212 SERVICED BY L=1250	1-47428-817-0	01	1	0812-	●
287	PIPE; AIR,MAG VLV (A) L=964 SERVICED BY L=1000	1-47428-814-0	01	1	0712-0802		●
287	PIPE; AIR,MAG VLV BRAKE REGULATION ADR<TDU> (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	0803-0803	●
287	PIPE; AIR,MAG VLV (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	0803-0803		●
287	PIPE; AIR,MAG VLV BRAKE REGULATION ADR<TDU> (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	0804-0906	●
287	PIPE; AIR,MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) BRAKE REGULATION ADR<TDU> (B) L=1156 SERVICED BY L=1200	1-47428-816-0	01	1	0907-	●
296	TUBE; NYLON EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0803-	●
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0803-		●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	0712-0802	●
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	02	1	0803-		●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	0803-0811	●	●
377	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
377	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	0812-		●
381	BRACKET EXC. PTO CONTROL<SV6>,CATALYSIS CONTROL WITH DPD<8JM>	8-98131-569-0	01	1	0812-1002	●
381	BRACKET RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,REARWARD INNER SINGLE TIRE<YK3>,CATALYSIS CONTROL WITH DPD<8JM>	8-98131-569-0	01	1	1003-	●
381	BRACKET EXC. DIFF LOCK<C3N>,PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>,REARWARD INNER SINGLE TIRE<YK3>, CATALYSIS CONTROL WITH DPD<8JM>	8-98131-569-0	01	1	1003-	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-0811	●	●
428	NUT; BRKT EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0812-	●
428	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	0812-	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0812-		●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (D) ID=6.35	1-09701-247-1	04	1	1003-1011	●
434	CLIP WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (D) ID=6.35	1-09701-247-1	04	1	1012-	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (D) ID=6.35	1-09701-247-1	04	1	1012-	●
434	CLIP (I) L=250	5-09707-030-1	01	1	0906-	●
434	CLIP (I) L=600	1-09707-107-1	01	1	0906-1002	●	●
434	CLIP (I) L=600	1-09707-107-1	01	1	1003-	●	●
434	CLIP EURO4 SPECIFICATION<NT4> (H) ID=16 L=20	0-95235-536-0	01	1	0812-	●
434	CLIP (H) ID=16 L=20	0-95235-536-0	01	1	0812-		●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (F) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-	●
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (D) ID=6.35	1-09701-247-1	02	1	0812-0906	●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (D) ID=6.35	1-09701-247-1	02	1	0907-	●
434	CLIP (C)	8-98012-254-1	01	1	0804-0811	●	●
434	CLIP (C)	8-98012-254-1	01	1	0812-0901	●	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	0812-0901	●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0902-0906	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	0902-0906	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0902-0906		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0907-1002	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	0907-1002	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0907-1002		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1003-1011	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (C)	8-98012-254-1	01	1	1003-1011	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	1003-1011	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1003-1011		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1012-		●
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0803-0803	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	02	1	0804-0811	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0812-0901	●	●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0902-0906	●
434	CLIP WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0902-0906		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0907-	●
434	CLIP WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0907-		●
434	CLIP (F) ID=12 & 15	1-09709-281-1	01	1	0803-0811	●	●
434	CLIP EURO4 SPECIFICATION<NT4> (F) ID=12 & 15	1-09709-281-1	01	1	0812-	●
434	CLIP (F) ID=12 & 15	1-09709-281-1	01	1	0812-		●
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (G) ID=7 L=20	0-95234-635-0	01	1	0803-	●
434	CLIP (G) ID=7 L=20	0-95234-635-0	01	1	0803-		●
434	CLIP (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
434	CLIP (A) ID=10 & 15	1-09709-279-1	01	1	0803-0811	●	●
434	CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) ID=10 & 15	1-09709-279-1	01	1	0812-	●
434	CLIP EURO4 SPECIFICATION<NT4> (A) ID=10 & 15	1-09709-279-1	01	1	0812-	●
434	CLIP (B) ID=35 L=33	1-09700-945-0	01	1	0712-0802	●	●
434	CLIP (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-0811	●	●
434	CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0812-	●
444	BOLT; UNION EXC. PTO CONTROL<SV6>,CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	02	1	0812-1002	●
444	BOLT; UNION RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,REARWARD INNER SINGLE TIRE<YK3>,CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	02	1	1003-	●
444	BOLT; UNION EXC. DIFF LOCK<C3N>,PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>,REARWARD INNER SINGLE TIRE<YK3>, CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	02	1	1003-	●
450	BRACKET; CLIP (A) L=95	1-82699-085-0	01	1	0712-0802	●
450	BRACKET; CLIP (A) L=95	1-82699-085-0	01	1	0803-0811	●	●
450	BRACKET; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) L=115 B=25	1-47476-758-0	01	1	0812-	●
450	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (A) L=115 B=25	1-47476-758-0	01	1	0812-	●
450	BRACKET; CLIP (A) L=115 B=25	1-47476-758-0	01	1	0812-		●
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98074-610-0	01	1	0803-0811	●
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98074-610-0	01	1	0803-0811	●
450	BRACKET; CLIP (B)	8-98074-610-0	01	1	0803-0811		●
450	BRACKET; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	0812-0905	●
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	0812-0905		●
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98070-479-0	01	1	0906-	●
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	0906-	●
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	0906-		●
467	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	0805-0811	●	●

435 117 238 238 434 118 116 436 116 116 7 6 34 8 1 116 53 34 238 435 434 434 434 243 244 238 436 116 116 434 116 21 434 1 7 6 116 53 34 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2>	1-09363-910-0	01	1	0812-0812	●
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2>	8-98140-111-0	01	1	0812-	●
1	HOSE; FLEX,AIR TANK	8-97607-418-0	01	1	0712-0802	●
1	HOSE; FLEX,AIR TANK	8-97607-418-0	01	1	0803-0811	●	●
1	HOSE; FLEX,AIR TANK EURO4 SPECIFICATION<NT4>	8-97607-418-0	01	1	0812-	●
1	HOSE; FLEX,AIR TANK	8-97607-418-0	01	1	0812-		●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0712-0802		●
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98120-436-0	01	1	0812-0903	●
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98133-392-0	01	1	0904-	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0712-0811	●	●
6	BRACKET; FLEX HOSE,AIR TANK EURO4 SPECIFICATION<NT4> (A)	8-98076-344-0	01	1	0812-	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0812-		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	0712-1002	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	1003-	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91180-108-0	02	1	0712-0802	●	●
21	PIPE; AIR,UNION TO AIR DRYER ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (E) L=1188	8-98147-522-0	01	1	1003-	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C) L=751	8-98111-626-0	01	1	0812-	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (D) L=1345	8-98130-957-0	01	1	0812-1002	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5>,AIR DRYER<PS7> (D) L=1345	8-98130-957-0	01	1	1003-1003	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5>,AIR DRYER<PS7> (D) L=1511	8-98164-599-0	01	1	1004-	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1764	8-98111-600-0	01	1	0803-0811	●
21	PIPE; AIR,UNION TO AIR DRYER EURO4 SPECIFICATION<NT4> (A) L=1748	8-98126-086-0	01	1	0812-	●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1708	8-98111-601-0	01	1	0803-0805		●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1717	8-98123-625-0	01	1	0806-0811		●
21	PIPE; AIR,UNION TO AIR DRYER (B) L=1722	8-98126-087-0	01	1	0812-		●
34	PIPE; AIR ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> (D) L=556 SERVICED BY L=600	1-49115-479-0	01	1	1003-	●
34	PIPE; AIR (A) L=1717	8-98098-197-0	01	1	0712-0802	●
34	PIPE; AIR (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	0803-0811	●
34	PIPE; AIR AIR DRYER<PS7> (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	0812-1002	●
34	PIPE; AIR AIR DRYER<PS7> EXC. ANTI LOCK BRAKE<JE5> (A) L=639 SERVICED BY L=660	1-49115-480-0	01	1	1003-	●
34	PIPE; AIR (B) L=437	8-98098-198-0	01	1	0712-0802	●
34	PIPE; AIR (C) L=1711	8-98084-332-0	01	1	0712-0802		●
34	PIPE; AIR (C) L=1121	8-98108-558-1	01	1	0803-		●
53	PIPE; AIR,AIR TANK TO VALVE ANTI LOCK BRAKE<JE5> (D)	8-98147-505-0	01	1	1003-	●
53	PIPE; AIR,AIR TANK TO VALVE (A)	8-98098-222-0	01	1	0712-0802	●
53	PIPE; AIR,AIR TANK TO VALVE (C) L=732	8-98108-559-0	01	1	0803-1002	●	●
53	PIPE; AIR,AIR TANK TO VALVE EXC. ANTI LOCK BRAKE<JE5> (C) L=732	8-98108-559-0	01	1	1003-	●
53	PIPE; AIR,AIR TANK TO VALVE (C) L=732	8-98108-559-0	01	1	1003-		●
53	PIPE; AIR,AIR TANK TO VALVE (B)	8-98054-508-0	01	1	0712-0802		●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> (I)	8-98147-507-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> (J)	8-98147-509-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> TRAILER BRAKE CONTROL<J91> (K) L=787 SERVICED BY L=800	1-47428-812-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE<JE5> EXC. TRAILER BRAKE CONTROL<J91> (K) L=865 SERVICED BY L=900	1-47428-813-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV EXC. BRAKE REGULATION ADR<TDU> (A) L=973 SERVICED BY L=1000	1-47428-814-0	01	1	0812-0901	●
116	PIPE; AIR,PROTECTION VLV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=973 SERVICED BY L=1000	1-47428-814-0	01	1	0902-1002	●
116	PIPE; AIR,PROTECTION VLV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91> (A) L=973 SERVICED BY L=1000	1-47428-814-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (A) L=1290 SERVICED BY L=1370	1-47428-818-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	0803-0811	●
116	PIPE; AIR,PROTECTION VLV BRAKE REGULATION ADR<TDU> (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	0812-0901	●
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	0902-1002	●
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91> (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV TRAILER BRAKE CONTROL<J91> EXC. ANTI LOCK BRAKE<JE5> (A) L=957 SERVICED BY L=1000	1-47428-814-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (B)	8-98098-223-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (G)	8-98108-561-0	01	1	0803-1002	●	●
116	PIPE; AIR,PROTECTION VLV EXC. ANTI LOCK BRAKE<JE5> (G)	8-98108-561-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (G)	8-98108-561-0	01	1	1003-		●
116	PIPE; AIR,PROTECTION VLV (C)	8-98098-224-0	01	1	0712-0802	●
116	PIPE; AIR,PROTECTION VLV (H)	8-98108-563-0	01	1	0803-1002	●	●
116	PIPE; AIR,PROTECTION VLV EXC. ANTI LOCK BRAKE<JE5> (H)	8-98108-563-0	01	1	1003-	●
116	PIPE; AIR,PROTECTION VLV (H)	8-98108-563-0	01	1	1003-		●
116	PIPE; AIR,PROTECTION VLV (D)	8-98054-506-0	01	1	0712-0802		●
116	PIPE; AIR,PROTECTION VLV (F) L=1008 SERVICED BY L=1100	1-47428-815-0	01	1	0803-		●
116	PIPE; AIR,PROTECTION VLV (E)	8-98054-507-0	01	1	0712-0802		●
117	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0712-0802	●
118	NUT; UNION M12	9-09840-280-0	02	1	0712-0802	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) BRAKE REGULATION ADR<TDU> (A) L=1671 SERVICED BY L=1700	1-47428-821-0	01	1	0812-1003	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) BRAKE REGULATION ADR<TDU> (A) L=1680 SERVICED BY L=1700	1-47428-821-0	01	1	1004-	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (B) L=801 SERVICED BY L=900	1-47428-813-0	01	1	0803-0811	●	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR<TDU> (B) L=801 SERVICED BY L=900	1-47428-813-0	01	1	0812-	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (B) L=801 SERVICED BY L=900	1-47428-813-0	01	1	0812-		●
238	PIPE; AIR,UNION TO UNION (A) L=1319	8-98111-261-1	01	1	0803-0811		●
238	PIPE; AIR,UNION TO UNION (A) L=1309 SERVICED BY L=1370	1-47428-818-0	01	1	0812-		●
238	PIPE; AIR,UNION TO UNION (A) L=1756 SERVICED BY L=1820	1-47428-822-0	01	1	0712-0802	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) (A) L=1726 SERVICED BY L=1820	1-47428-822-0	01	1	0803-0811	●
238	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ADR<TDU> (B) L=790 SERVICED BY L=800	1-47428-812-0	01	1	0812-	●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
243	UNION; AIR PIPE BRAKE REGULATION ADR<TDU> (A) M12 L=40	0-92113-006-0	01	1	0803-	●
243	UNION; AIR PIPE (A) M12 L=40	0-92113-006-0	01	1	0803-		●
243	UNION; AIR PIPE (B) M12 ELBOW	0-92125-206-0	01	1	0803-	●	●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0803-1002	●	●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1003-	●	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (D) ID=6.35	1-09701-247-1	04	1	1003-1011	●
434	CLIP WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (D) ID=6.35	1-09701-247-1	04	1	1012-	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (D) ID=6.35	1-09701-247-1	04	1	1012-	●
434	CLIP (I) L=250	5-09707-030-1	01	1	0906-	●
434	CLIP (I) L=600	1-09707-107-1	01	1	0906-1002	●	●
434	CLIP (I) L=600	1-09707-107-1	01	1	1003-	●	●
434	CLIP EURO4 SPECIFICATION<NT4> (H) ID=16 L=20	0-95235-536-0	01	1	0812-	●
434	CLIP (H) ID=16 L=20	0-95235-536-0	01	1	0812-		●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (F) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-	●
434	CLIP EXC. BRAKE REGULATION ADR<TDU> (D) ID=6.35	1-09701-247-1	02	1	0812-0906	●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (D) ID=6.35	1-09701-247-1	02	1	0907-	●
434	CLIP (C)	8-98012-254-1	01	1	0804-0811	●	●
434	CLIP (C)	8-98012-254-1	01	1	0812-0901	●	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	0812-0901	●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0902-0906	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	0902-0906	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0902-0906		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0907-1002	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	0907-1002	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	0907-1002		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1003-1011	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (C)	8-98012-254-1	01	1	1003-1011	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	1003-1011	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1003-1011		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> (C)	8-98012-254-1	01	1	1012-	●
434	CLIP WHEEL BASE 4200MM(42W) (C)	8-98012-254-1	01	1	1012-		●
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0803-0803	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	02	1	0804-0811	●	●
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0812-0901	●	●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0902-0906	●
434	CLIP WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0902-0906		●
434	CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0907-	●
434	CLIP WHEEL BASE 4200MM(42W) (D) ID=6.35	1-09701-247-1	01	1	0907-		●
434	CLIP (F) ID=12 & 15	1-09709-281-1	01	1	0803-0811	●	●
434	CLIP EURO4 SPECIFICATION<NT4> (F) ID=12 & 15	1-09709-281-1	01	1	0812-	●
434	CLIP (F) ID=12 & 15	1-09709-281-1	01	1	0812-		●
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (G) ID=7 L=20	0-95234-635-0	01	1	0803-	●
434	CLIP (G) ID=7 L=20	0-95234-635-0	01	1	0803-		●
434	CLIP (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
434	CLIP (A) ID=10 & 15	1-09709-279-1	01	1	0803-0811	●	●
434	CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) ID=10 & 15	1-09709-279-1	01	1	0812-	●
434	CLIP EURO4 SPECIFICATION<NT4> (A) ID=10 & 15	1-09709-279-1	01	1	0812-	●
434	CLIP (B) ID=35 L=33	1-09700-945-0	01	1	0712-0802	●	●
434	CLIP (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-0811	●	●
434	CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0812-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-0802	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0803-0811	●	●
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0803-0811	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0803-0811		●
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0812-	●
435	BOLT; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	01	1	0812-	●
435	BOLT; CLIP EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	01	1	0812-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0812-		●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0812-		●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0811	●	●
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0803-0811	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0811		●
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0812-	●
436	NUT; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0812-	●
436	NUT; CLIP EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	0812-	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0812-		●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0812-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
