◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#66719) — 120 parça

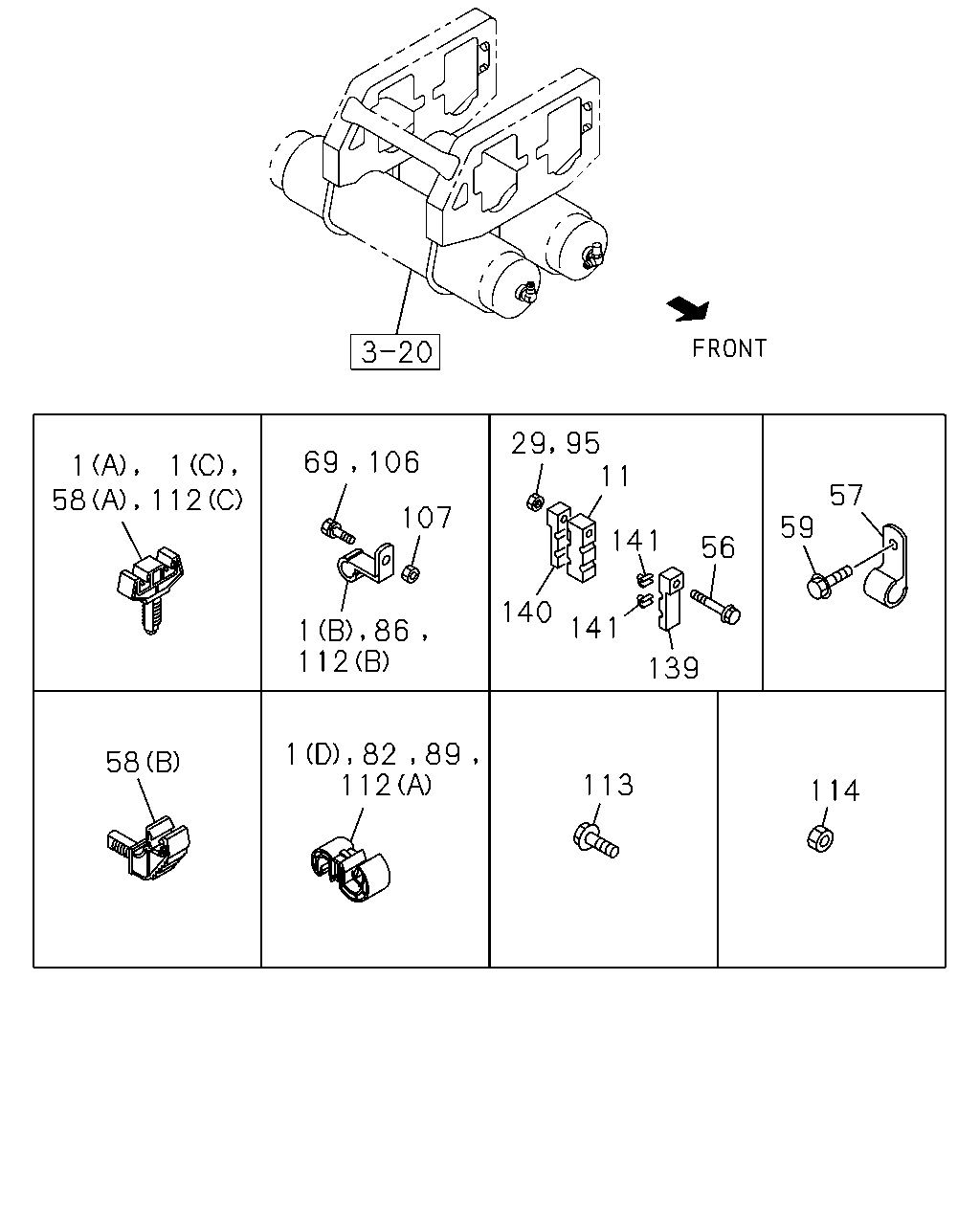

çizim 121121
11 69 106 1 112 1 58 57 107 59 141 56 140 141 139 112 58 113 114 1 86 1 82 89 29 95
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 04 1 0804- ●
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 05 1 0712-0802 ●
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 02 1 0803- ● ●
1 CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20 		1-09700-603-0 03 1 0712-0802 ●
1 CLIP; OIL PIPE TO BODY
(C) ID=6.35 		1-09701-247-1 04 1 0803-0810 ● ●
1 CLIP; OIL PIPE TO BODY
(C) ID=6.35 		1-09701-247-1 05 1 0811- ● ●
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 02 1 0712-0802 ●
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 03 1 0803-0803 ● ●
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 03 1 0804- ●
1 CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 0712-0802 ●
1 CLIP; OIL PIPE TO BODY
(D) ID=6.35 & 6.35 		1-09709-273-1 01 1 0803- ● ●
11 CLIP; OIL PIPE
ID=10 		1-09709-242-0 01 1 0712-0802 ●
11 CLIP; OIL PIPE
ID=10 		1-09709-242-0 02 1 0803-0810 ● ●
11 CLIP; OIL PIPE
BRAKE REGULATION ADR<TDU> ID=10 		1-09709-242-0 02 1 0811- ●
11 CLIP; OIL PIPE
ID=10 		1-09709-242-0 02 1 0811- ●
29 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0811-0901 ● ●
29 NUT; CLIP
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 02 1 0902-0906 ●
29 NUT; CLIP
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 02 1 0902-0906 ●
29 NUT; CLIP
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 02 1 0907- ●
29 NUT; CLIP
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 02 1 0907- ●
29 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0803-0806 ● ●
56 BOLT; CLIP
EXC. BRAKE REGULATION ADR<TDU> M8X50 FLANGE 		0-28050-850-0 02 1 0811-0906 ●
56 BOLT; CLIP
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> M8X50 FLANGE 		0-28050-850-0 02 1 0907- ●
56 BOLT; CLIP
M8X70 FLANGE 		0-28050-870-0 01 1 0712-0802 ●
56 BOLT; CLIP
M8X70 FLANGE 		0-28050-870-0 02 1 0803-0810 ● ●
56 BOLT; CLIP
BRAKE REGULATION ADR<TDU> M8X70 FLANGE 		0-28050-870-0 02 1 0811- ●
56 BOLT; CLIP
M8X70 FLANGE 		0-28050-870-0 02 1 0811- ●
57 CLIP; BRK PIPE,RR AXLE
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ID=7 L=20 		0-95234-635-0 06 1 1003-1410 ●
57 CLIP; BRK PIPE,RR AXLE
ID=7 L=20 		0-95234-635-0 06 1 1411- ●
57 CLIP; BRK PIPE,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=7 L=20 		0-95234-635-0 07 1 0712-1002 ●
57 CLIP; BRK PIPE,RR AXLE
ID=7 L=20 		0-95234-635-0 07 1 0712-1002 ●
57 CLIP; BRK PIPE,RR AXLE
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=7 L=20 		0-95234-635-0 07 1 1003-1404 ●
57 CLIP; BRK PIPE,RR AXLE
ID=7 L=20 		0-95234-635-0 07 1 1003-1404 ●
57 CLIP; BRK PIPE,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=7 L=20 		0-95234-635-0 07 1 1405- ● ●
57 CLIP; BRK PIPE,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=7 L=20 		0-95234-635-0 04 1 0712-1002 ●
57 CLIP; BRK PIPE,RR AXLE
FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=7 L=20 		0-95234-635-0 04 1 1003-1011 ●
57 CLIP; BRK PIPE,RR AXLE
FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=7 L=20 		0-95234-635-0 04 1 1012-1404 ●
57 CLIP; BRK PIPE,RR AXLE
FINAL GEAR 39/6 15.5"(W1T) ID=7 L=20 		0-95234-635-0 04 1 1012-1404 ●
57 CLIP; BRK PIPE,RR AXLE
FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE<JE5> ID=7 L=20 		0-95234-635-0 04 1 1405- ●
57 CLIP; BRK PIPE,RR AXLE
FINAL GEAR 39/6 15.5"(W1T) ID=7 L=20 		0-95234-635-0 04 1 1405- ●
58 CLIP; OIL PIPE
REARWARD INNER SINGLE TIRE<YK3> EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-98012-254-1 01 1 1003-1011 ●
58 CLIP; OIL PIPE
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (A) 		8-98012-254-1 01 1 1012- ●
58 CLIP; OIL PIPE
REARWARD INNER SINGLE TIRE<YK3> EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-98012-254-1 01 1 1012- ●
58 CLIP; OIL PIPE
BRK WHL LK CONT LSPV<6PH> (A) 		8-98012-254-1 02 1 1003- ●
58 CLIP; OIL PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98012-254-1 03 1 0811-0906 ●
58 CLIP; OIL PIPE
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98012-254-1 03 1 0907- ●
58 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 05 1 0712-0802 ●
58 CLIP; OIL PIPE
(A) 		8-98012-254-1 03 1 0712-0802 ●
58 CLIP; OIL PIPE
(A) 		8-98012-254-1 04 1 0803-0810 ● ●
58 CLIP; OIL PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98012-254-1 04 1 0811-0901 ●
58 CLIP; OIL PIPE
(A) 		8-98012-254-1 04 1 0811-0901 ●
58 CLIP; OIL PIPE
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98012-254-1 04 1 0902-0906 ●
58 CLIP; OIL PIPE
WHEEL BASE 4200MM(42W) (A) 		8-98012-254-1 04 1 0902-0906 ●
58 CLIP; OIL PIPE
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98012-254-1 04 1 0907- ●
58 CLIP; OIL PIPE
WHEEL BASE 4200MM(42W) (A) 		8-98012-254-1 04 1 0907- ●
59 BOLT; BRK PIPE,RR AXLE
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M8X10 FLANGE 		0-28050-810-0 06 1 1003-1410 ●
59 BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE 		0-28050-810-0 06 1 1411- ●
59 BOLT; BRK PIPE,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE 		0-28050-810-0 07 1 0712-1002 ●
59 BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE 		0-28050-810-0 07 1 0712-1002 ●
59 BOLT; BRK PIPE,RR AXLE
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE 		0-28050-810-0 07 1 1003-1404 ●
59 BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE 		0-28050-810-0 07 1 1003-1404 ●
59 BOLT; BRK PIPE,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE 		0-28050-810-0 07 1 1405- ● ●
59 BOLT; BRK PIPE,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE 		0-28050-810-0 04 1 0712-1002 ●
59 BOLT; BRK PIPE,RR AXLE
FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE 		0-28050-810-0 04 1 1003-1011 ●
59 BOLT; BRK PIPE,RR AXLE
FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE 		0-28050-810-0 04 1 1012-1404 ●
59 BOLT; BRK PIPE,RR AXLE
FINAL GEAR 39/6 15.5"(W1T) M8X10 FLANGE 		0-28050-810-0 04 1 1012-1404 ●
59 BOLT; BRK PIPE,RR AXLE
FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE<JE5> M8X10 FLANGE 		0-28050-810-0 04 1 1405- ●
59 BOLT; BRK PIPE,RR AXLE
FINAL GEAR 39/6 15.5"(W1T) M8X10 FLANGE 		0-28050-810-0 04 1 1405- ●
69 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
69 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
69 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0811 ● ●
69 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 04 1 0812- ●
82 CLIP; OIL PIPE
ID=6.35 & 10.0 		1-09709-274-1 02 1 0712-0804 ●
82 CLIP; OIL PIPE
ID=6.35 & 10.0 		1-09709-274-1 03 1 0805-0811 ●
86 CLIP; OIL PIPE
ID=6 H=20 L=20 		1-09700-603-0 02 1 0812- ●
86 CLIP; OIL PIPE
ID=6 H=20 L=20 		1-09700-603-0 02 1 0712-0802 ●
86 CLIP; OIL PIPE
ID=6 H=20 L=20 		1-09700-603-0 02 1 0803-0811 ● ●
86 CLIP; OIL PIPE
ID=6 H=20 L=20 		1-09700-603-0 04 1 0812- ●
89 CLIP; OIL PIPE
ID=6.35 & 6.35 		1-09709-273-1 02 1 0712-0802 ●
95 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
106 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 03 1 0712-0802 ●
106 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
107 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 03 1 0712-0802 ●
107 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
112 CLIP; OIL PIPE
REARWARD INNER SINGLE TIRE<YK3> (C) 		8-98012-254-1 05 1 1003-1011 ●
112 CLIP; OIL PIPE
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (C) 		8-98012-254-1 05 1 1012- ●
112 CLIP; OIL PIPE
REARWARD INNER SINGLE TIRE<YK3> (C) 		8-98012-254-1 05 1 1012- ●
112 CLIP; OIL PIPE
WHEEL BASE 3600MM(36W) (C) 		8-98012-254-1 02 1 0909- ●
112 CLIP; OIL PIPE
(A) ID=6.35 & 6.35 		1-09709-273-1 01 1 0712-0802 ●
112 CLIP; OIL PIPE
(A) ID=6.35 & 6.35 		1-09709-273-1 01 1 0803-0810 ● ●
112 CLIP; OIL PIPE
(C) 		8-98012-254-1 03 1 0811-0901 ● ●
112 CLIP; OIL PIPE
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C) 		8-98012-254-1 03 1 0902-0906 ●
112 CLIP; OIL PIPE
WHEEL BASE 4200MM(42W) (C) 		8-98012-254-1 03 1 0902-0906 ●
112 CLIP; OIL PIPE
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C) 		8-98012-254-1 03 1 0907- ●
112 CLIP; OIL PIPE
WHEEL BASE 4200MM(42W) (C) 		8-98012-254-1 03 1 0907- ●
112 CLIP; OIL PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 0712-0802 ●
112 CLIP; OIL PIPE
WHEEL BASE 4200MM(42W) (C) 		8-98012-254-1 03 1 0803-0810 ● ●
112 CLIP; OIL PIPE
BRAKE REGULATION ADR<TDU> (A) ID=6.35 & 6.35 		1-09709-273-1 01 1 0811- ●
112 CLIP; OIL PIPE
(A) ID=6.35 & 6.35 		1-09709-273-1 01 1 0811- ●
112 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 01 1 0712-0802 ●
113 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
114 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
139 CLIP; UPR
ID=10 & 10 		1-09709-241-0 01 1 0712-0802 ●
139 CLIP; UPR
ID=10 & 10 		1-09709-241-0 02 1 0803-0906 ● ●
139 CLIP; UPR
BRAKE REGULATION ADR<TDU> ID=10 & 10 		1-09709-241-0 02 1 0907- ●
139 CLIP; UPR
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> ID=10 & 10 		1-09709-241-0 02 1 0907- ●
139 CLIP; UPR
ID=10 & 10 		1-09709-241-0 02 1 0907- ●
140 CLIP; LWR
EXC. BRAKE REGULATION ADR<TDU> ID=6 & 6 		1-09709-244-0 02 1 0811-0906 ●
140 CLIP; LWR
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> ID=6 & 6 		1-09709-244-0 02 1 0907- ●
140 CLIP; LWR
ID=10 & 10 		1-09709-241-0 01 1 0712-0802 ●
140 CLIP; LWR
ID=10 & 10 		1-09709-241-0 02 1 0803-0810 ● ●
140 CLIP; LWR
BRAKE REGULATION ADR<TDU> ID=10 & 10 		1-09709-241-0 02 1 0811- ●
140 CLIP; LWR
ID=10 & 10 		1-09709-241-0 02 1 0811- ●
141 COLLAR
ID=6 		1-47459-010-0 04 1 0712-0802 ●
141 COLLAR
ID=6 		1-47459-010-0 08 1 0803-0810 ● ●
141 COLLAR
BRAKE REGULATION ADR<TDU> ID=6 		1-47459-010-0 08 1 0811- ●
141 COLLAR
ID=6 		1-47459-010-0 08 1 0811- ●

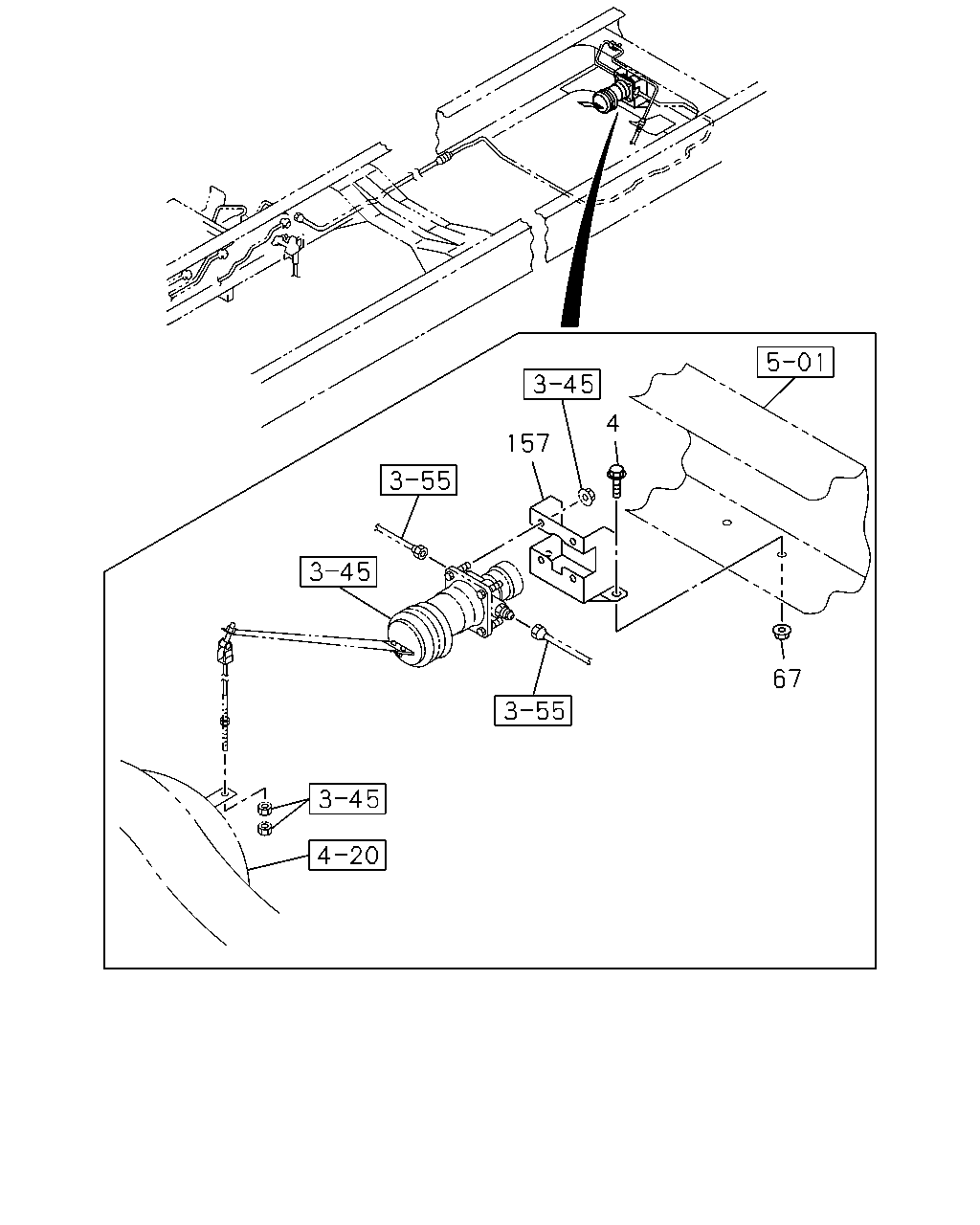

çizim 193456
4 157 67
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOLT; BRKT
BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE<JE5> M8X30 FLANGE 		0-28650-830-0 02 1 1003- ●
67 NUT; BRKT
BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 02 1 1003- ●
157 BRACKET; BRK
BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE<JE5> 		1-47477-787-0 01 1 1003- ●
