Sayfa 3-55 - Isuzu EPC

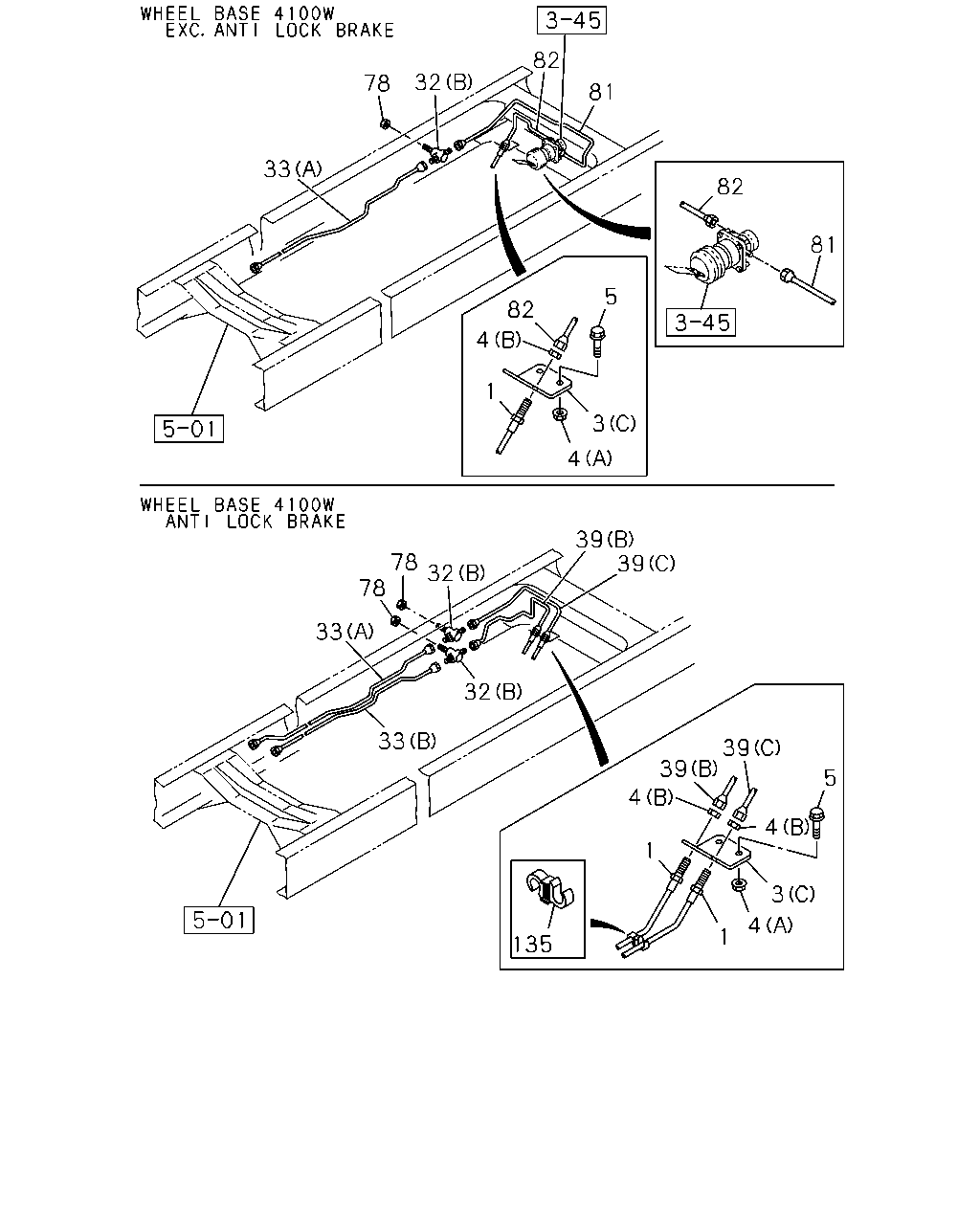

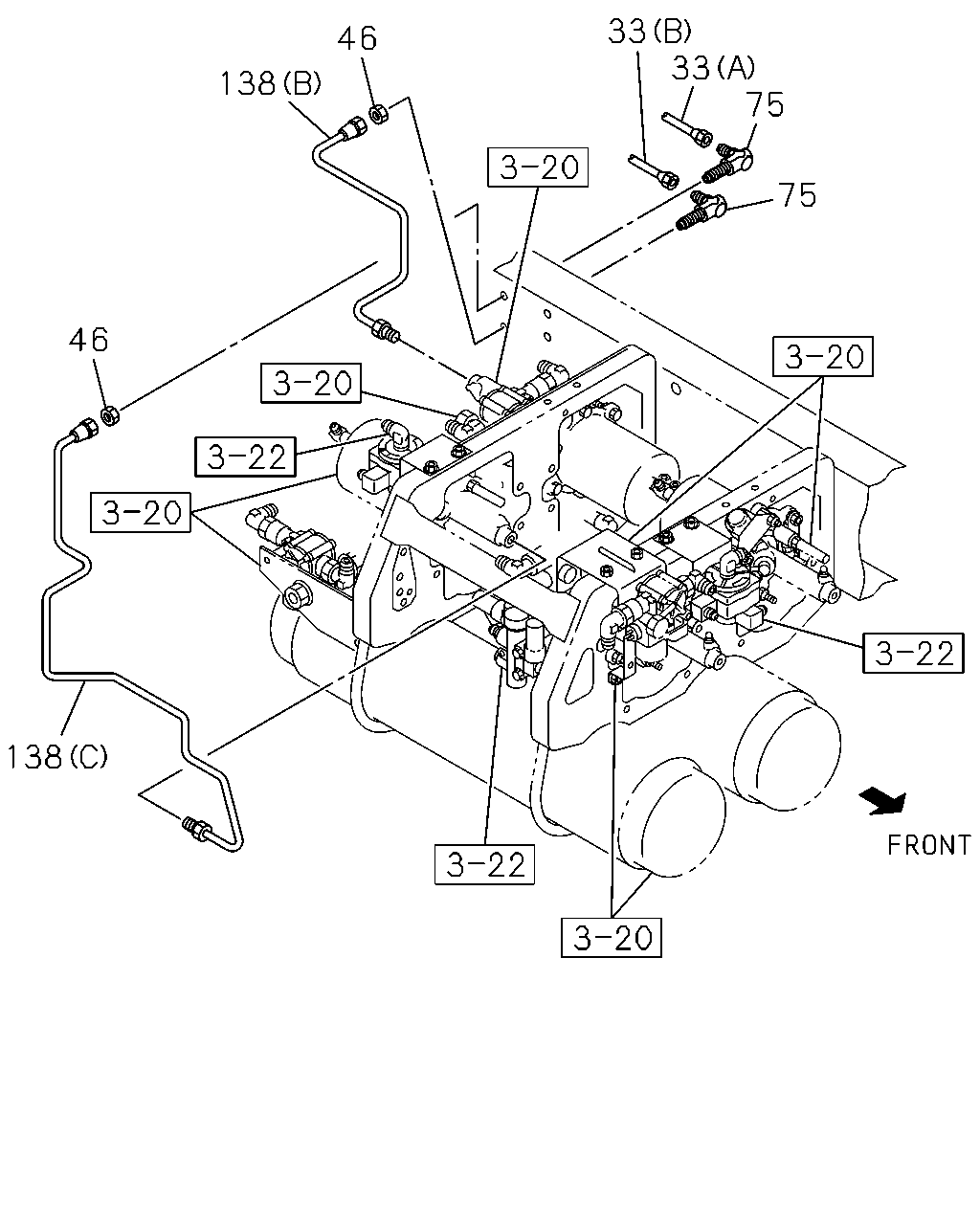

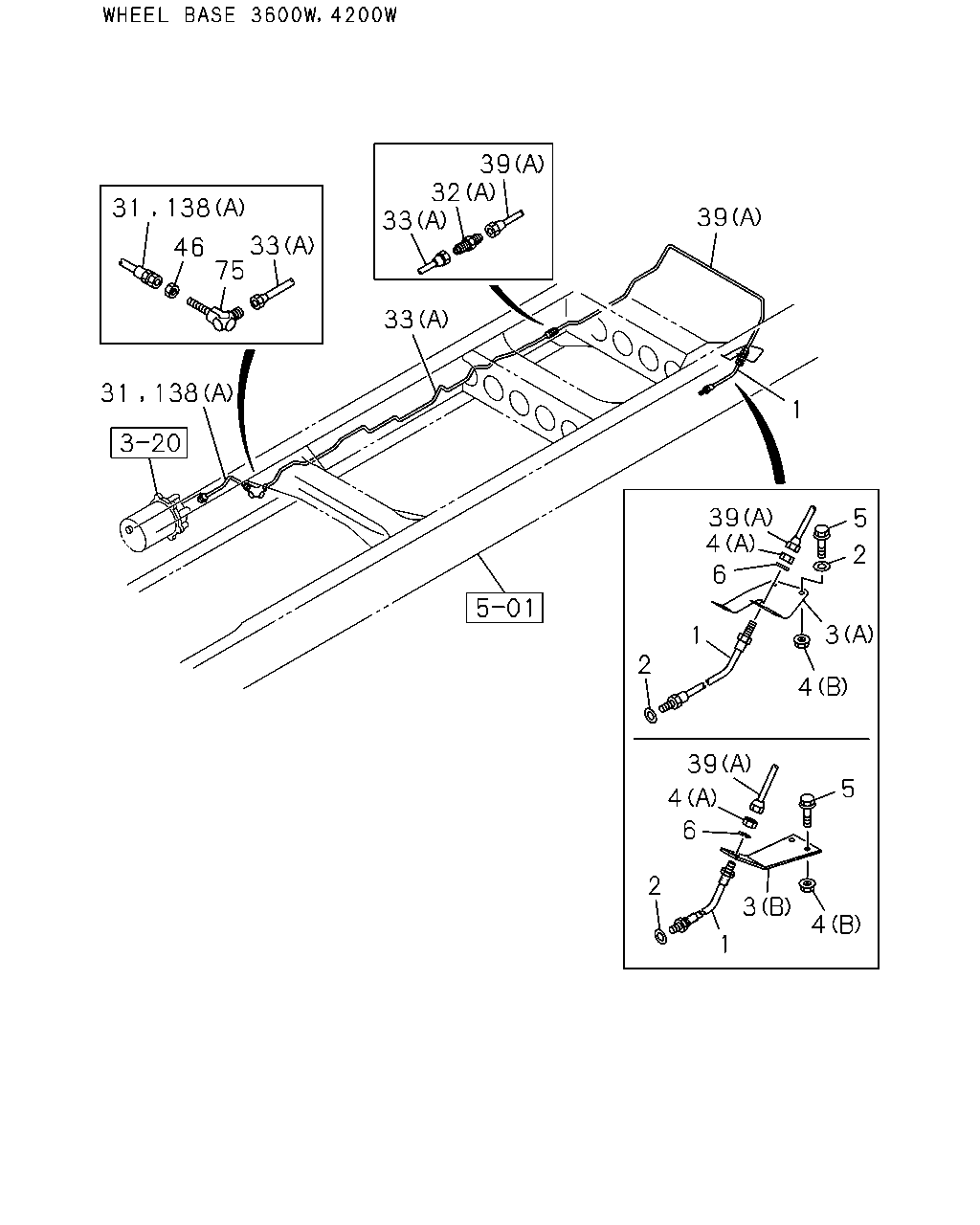

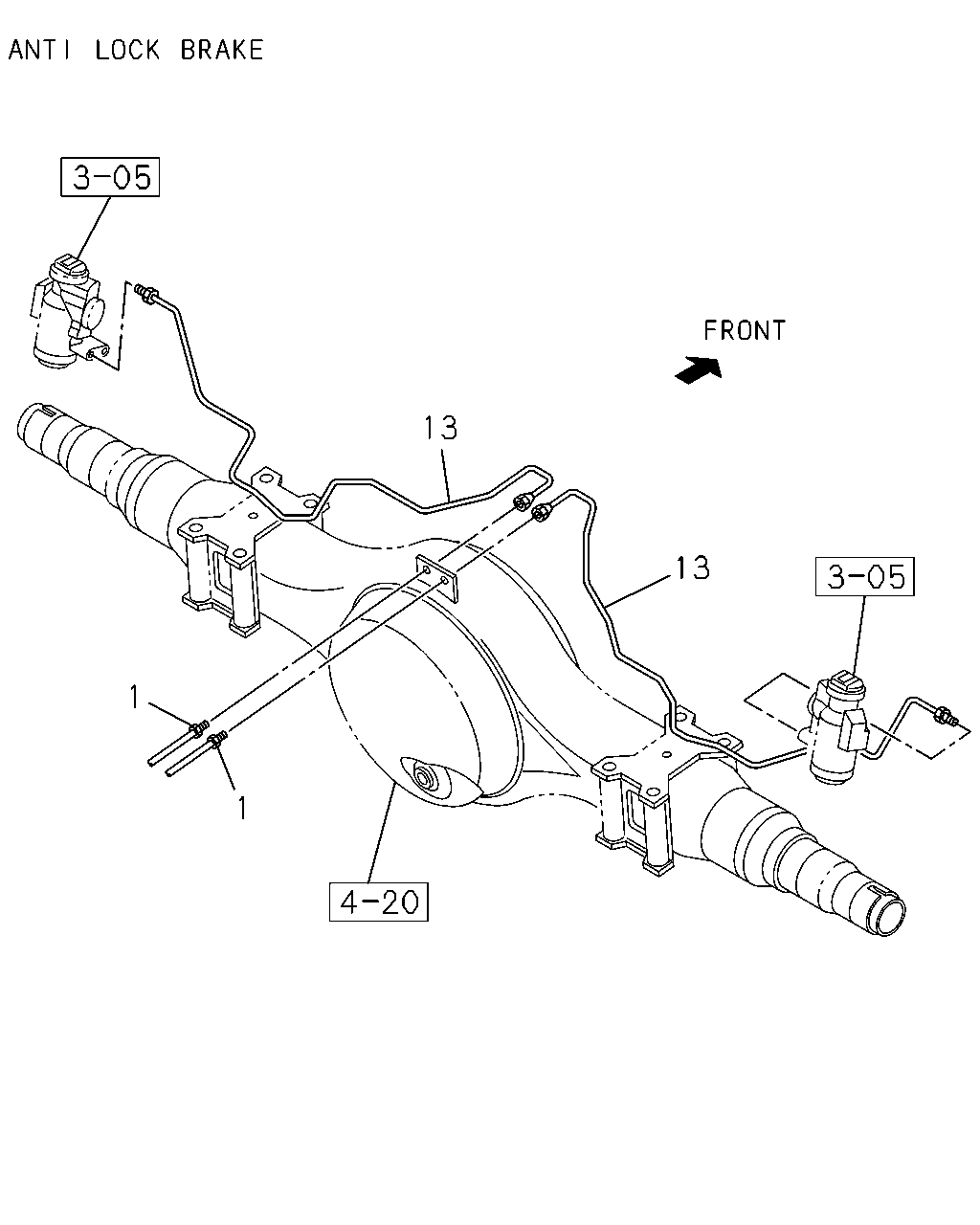

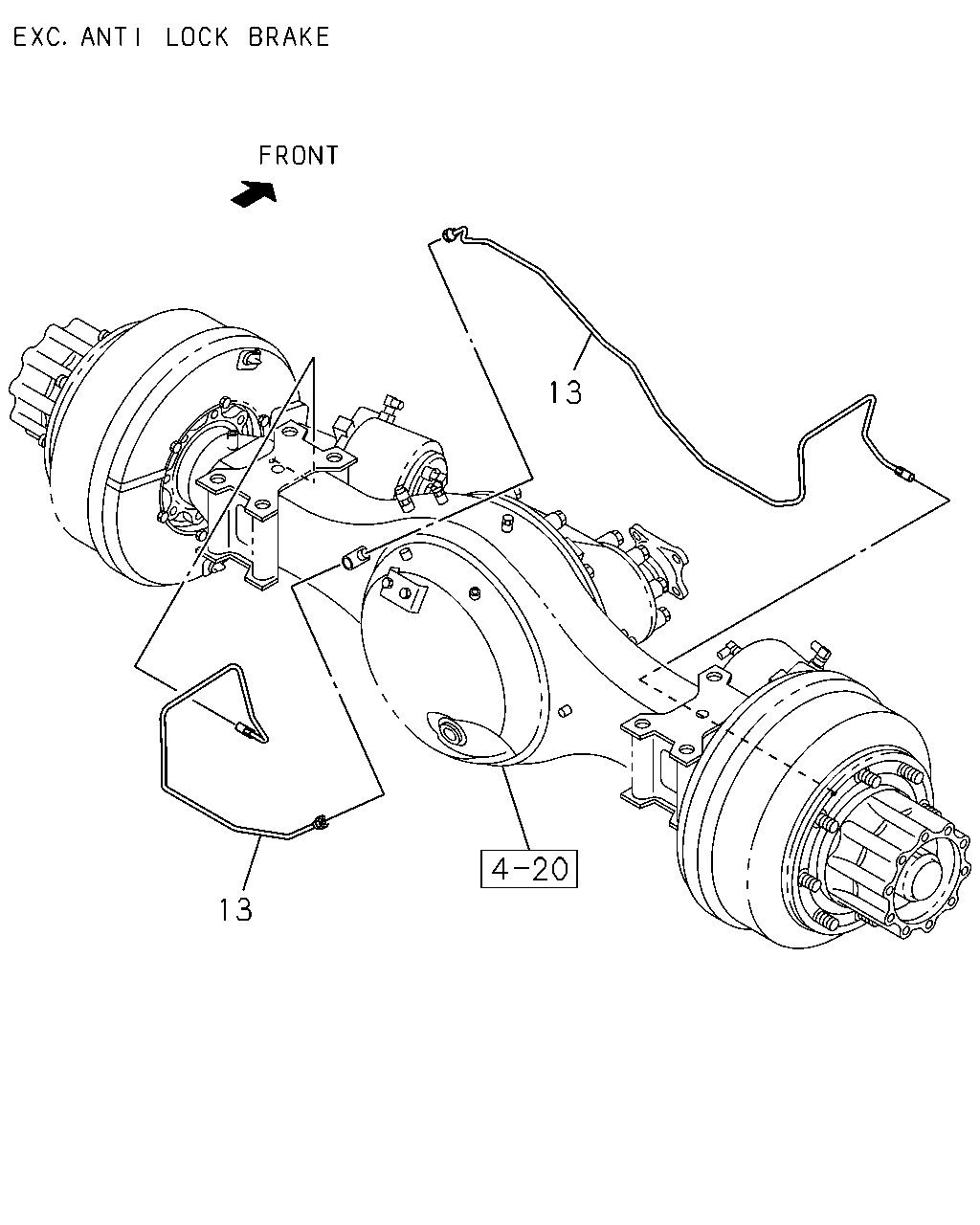

3-55 — BRAKE PIPING; OIL,REAR (#66718) — 280 parça

39 32 33 31 138 39 46 33 75 33 31 138 1 39 4 6 5 2 3 1 2 4 39 5 4 6 2 3 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK REARWARD INNER SINGLE TIRE<YK3> EXC. ANTI LOCK BRAKE<JE5> L=770	0-05212-770-0	01	1	1003-1011	●
1	HOSE; FLEX,RR BRK WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> L=770	0-05212-770-0	01	1	1012-1306	●
1	HOSE; FLEX,RR BRK REARWARD INNER SINGLE TIRE<YK3> EXC. ANTI LOCK BRAKE<JE5> L=770	0-05212-770-0	01	1	1012-1306	●
1	HOSE; FLEX,RR BRK WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> L=770	0-05212-770-0	01	1	1307-	●
1	HOSE; FLEX,RR BRK REARWARD INNER SINGLE TIRE<YK3> EXC. ANTI LOCK BRAKE<JE5> L=770	0-05212-770-0	01	1	1307-	●
1	HOSE; FLEX,RR BRK CONVERTING INTO 6X6<BCC> L=770	0-05212-770-0	01	1	1307-	●
1	HOSE; FLEX,RR BRK WHEEL BASE 4100MM(41W) ANTI LOCK BRAKE<JE5> L=800	0-05211-800-0	02	1	1003-1306	●
1	HOSE; FLEX,RR BRK WHEEL BASE 4100MM(41W) ANTI LOCK BRAKE<JE5> L=800	0-05211-800-0	02	1	1307-	●
1	HOSE; FLEX,RR BRK CONVERTING INTO 6X6<BCC> L=800	0-05211-800-0	02	1	1307-	●
1	HOSE; FLEX,RR BRK L=730	0-05312-730-0	01	1	0712-0901	●	●
1	HOSE; FLEX,RR BRK L=730	0-05212-730-0	01	1	0902-1002	●	●
1	HOSE; FLEX,RR BRK DOUBLE TIRE REARWARD<SR6> L=730	0-05212-730-0	01	1	1003-1011	●
1	HOSE; FLEX,RR BRK L=730	0-05212-730-0	01	1	1003-1011		●
1	HOSE; FLEX,RR BRK DOUBLE TIRE REARWARD<SR6> EXC. PAKISTAN EQUIPMENT(CK1) L=730	0-05212-730-0	01	1	1012-	●
1	HOSE; FLEX,RR BRK L=730	0-05212-730-0	01	1	1012-		●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0712-1002	●	●
2	GASKET; FLEX HOSE,RR BRK EXC. ANTI LOCK BRAKE<JE5> ID=9 OD=17	9-09920-472-0	01	1	1003-	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	1003-		●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4100MM(41W) (C)	8-98146-322-0	01	1	1003-	●
3	BRACKET; FLEX HOSE,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47465-251-0	01	1	0811-0906	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47465-251-0	01	1	0907-	●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47478-271-0	01	1	0712-0810	●	●
3	BRACKET; FLEX HOSE,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98093-620-0	01	1	0811-0901	●
3	BRACKET; FLEX HOSE,RR BRK (A)	8-98093-620-0	01	1	0811-0901		●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98093-620-0	01	1	0902-0906	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4200MM(42W) (A)	8-98093-620-0	01	1	0902-0906		●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98093-620-0	01	1	0907-	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4200MM(42W) (A)	8-98093-620-0	01	1	0907-		●
4	NUT; BRKT,FLEX HOSE,RR BRK EXC. ANTI LOCK BRAKE<JE5> (B) M12	9-09840-280-0	01	1	1003-1306	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	1003-1306		●
4	NUT; BRKT,FLEX HOSE,RR BRK EXC. ANTI LOCK BRAKE<JE5> (B) M12	9-09840-280-0	01	1	1307-	●
4	NUT; BRKT,FLEX HOSE,RR BRK CONVERTING INTO 6X6<BCC> (B) M12	9-09840-280-0	01	1	1307-	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	1307-		●
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	0712-1002	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK ANTI LOCK BRAKE<JE5> (B) M12	9-09840-280-0	04	1	1003-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0803-	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0712-0802	●	●
31	PIPE; OIL,AIR MASTER TO UNION L=305	8-98054-041-0	01	1	0712-0802		●
32	UNION; OIL PIPE WHEEL BASE 4100MM(41W) ANTI LOCK BRAKE<JE5> (B) M12 3WAY	1-09654-137-2	02	1	1003-	●
32	UNION; OIL PIPE WHEEL BASE 4100MM(41W) EXC. ANTI LOCK BRAKE<JE5> (B) M12 3WAY	1-09654-137-2	01	1	1003-	●
32	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-1002	●	●
32	UNION; OIL PIPE DOUBLE TIRE REARWARD<SR6> (A) M12 L=40	0-92113-006-0	01	1	1003-1011	●
32	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	1003-1011		●
32	UNION; OIL PIPE DOUBLE TIRE REARWARD<SR6> EXC. PAKISTAN EQUIPMENT(CK1) (A) M12 L=40	0-92113-006-0	01	1	1012-	●
32	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	1012-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) ANTI LOCK BRAKE<JE5> (A) L=2109 SERVICED BY L=2200	1-47428-740-0	01	1	1502-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) ANTI LOCK BRAKE<JE5> (A) L=2147 SERVICED BY L=2200	1-47428-740-0	01	1	1502-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4100MM(41W) (A) L=2668 SERVICED BY L=2900	1-47428-744-0	01	1	1003-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4100MM(41W) ANTI LOCK BRAKE<JE5> (B) L=1964 SERVICED BY L=2000	1-47428-739-0	01	1	1003-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) (A) L=1439 SERVICED BY L=1500	1-47428-735-0	01	1	0812-0906	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) (A) L=1439	8-98111-269-1	01	1	0907-	●
33	PIPE; OIL,UNION TO UNION (A) L=2013 SERVICED BY L=2200	1-47428-740-0	01	1	0712-0802	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) (A) L=2108 SERVICED BY L=2200	1-47428-740-0	01	1	0803-0803	●	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) (A) L=2108 SERVICED BY L=2200	1-47428-740-0	01	1	0804-0811	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) (A) L=2044 SERVICED BY L=2200	1-47428-740-0	01	1	0812-1003	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) (A) L=2052	8-98167-793-1	01	1	1004-1501	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) EXC. ANTI LOCK BRAKE<JE5> (A) L=2052	8-98167-793-1	01	1	1502-	●
33	PIPE; OIL,UNION TO UNION (A) L=1653 SERVICED BY L=1700	1-47428-737-0	01	1	0712-0802		●
33	PIPE; OIL,UNION TO UNION (A) L=2025 SERVICED BY L=2200	1-47428-740-0	01	1	0803-0811		●
33	PIPE; OIL,UNION TO UNION (A) L=2025 SERVICED BY L=2200	1-47428-740-0	01	1	0812-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4100MM(41W) ANTI LOCK BRAKE<JE5> (B) L=871 SERVICED BY L=900	1-47428-729-0	01	1	1003-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4100MM(41W) EXC. BRK WHL LK CONT LSPV<6PH> (C) L=612 SERVICED BY L=650	1-47428-726-0	01	1	1003-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1416 SERVICED BY L=1500	1-47428-735-0	01	1	0812-0906	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1416 SERVICED BY L=1500	1-47428-735-0	01	1	0907-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=1778 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=1835 SERVICED BY L=2000	1-47428-739-0	01	1	0803-0811	●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1807 SERVICED BY L=1820	1-47428-738-0	01	1	0812-0906	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4200MM(42W) (A) L=1807 SERVICED BY L=1820	1-47428-738-0	01	1	0812-0906		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1807 SERVICED BY L=1820	1-47428-738-0	01	1	0907-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4200MM(42W) (A) L=1807 SERVICED BY L=1820	1-47428-738-0	01	1	0907-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=1772 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802		●
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	01	1	1003-	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1003-		●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-0802	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0803-1002	●	●
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	02	1	1003-	●
46	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0712-0802		●
75	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> M12 ELBOW	8-97325-150-0	02	1	1003-	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0712-1002	●	●
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12 ELBOW	0-92125-206-0	01	1	1003-	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1003-		●
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE<JE5> (B) L=301	8-98147-595-0	01	1	1003-	●
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE<JE5> (C)	8-98147-596-0	01	1	1003-	●
138	PIPE; HYDRAULIC UNIT (A) L=843 SERVICED BY L=900	1-47428-729-0	01	1	0803-		●
138	PIPE; HYDRAULIC UNIT (A) L=272	8-98084-367-0	01	1	0712-0802	●
138	PIPE; HYDRAULIC UNIT (A) L=413	8-98108-551-0	01	1	0803-0811	●
138	PIPE; HYDRAULIC UNIT (A) L=531 SERVICED BY L=550	1-47428-724-0	01	1	0812-1002	●
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE<JE5> (A) L=531 SERVICED BY L=550	1-47428-724-0	01	1	1003-	●

82 32 78 81 33 82 81 5 82 4 1 3 4 39 39 78 32 78 33 32 33 39 39 5 4 4 1 3 4 1 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK REARWARD INNER SINGLE TIRE<YK3> EXC. ANTI LOCK BRAKE<JE5> L=770	0-05212-770-0	01	1	1003-1011	●
1	HOSE; FLEX,RR BRK WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> L=770	0-05212-770-0	01	1	1012-1306	●
1	HOSE; FLEX,RR BRK REARWARD INNER SINGLE TIRE<YK3> EXC. ANTI LOCK BRAKE<JE5> L=770	0-05212-770-0	01	1	1012-1306	●
1	HOSE; FLEX,RR BRK WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> L=770	0-05212-770-0	01	1	1307-	●
1	HOSE; FLEX,RR BRK REARWARD INNER SINGLE TIRE<YK3> EXC. ANTI LOCK BRAKE<JE5> L=770	0-05212-770-0	01	1	1307-	●
1	HOSE; FLEX,RR BRK CONVERTING INTO 6X6<BCC> L=770	0-05212-770-0	01	1	1307-	●
1	HOSE; FLEX,RR BRK WHEEL BASE 4100MM(41W) ANTI LOCK BRAKE<JE5> L=800	0-05211-800-0	02	1	1003-1306	●
1	HOSE; FLEX,RR BRK WHEEL BASE 4100MM(41W) ANTI LOCK BRAKE<JE5> L=800	0-05211-800-0	02	1	1307-	●
1	HOSE; FLEX,RR BRK CONVERTING INTO 6X6<BCC> L=800	0-05211-800-0	02	1	1307-	●
1	HOSE; FLEX,RR BRK L=730	0-05312-730-0	01	1	0712-0901	●	●
1	HOSE; FLEX,RR BRK L=730	0-05212-730-0	01	1	0902-1002	●	●
1	HOSE; FLEX,RR BRK DOUBLE TIRE REARWARD<SR6> L=730	0-05212-730-0	01	1	1003-1011	●
1	HOSE; FLEX,RR BRK L=730	0-05212-730-0	01	1	1003-1011		●
1	HOSE; FLEX,RR BRK DOUBLE TIRE REARWARD<SR6> EXC. PAKISTAN EQUIPMENT(CK1) L=730	0-05212-730-0	01	1	1012-	●
1	HOSE; FLEX,RR BRK L=730	0-05212-730-0	01	1	1012-		●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4100MM(41W) (C)	8-98146-322-0	01	1	1003-	●
3	BRACKET; FLEX HOSE,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47465-251-0	01	1	0811-0906	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47465-251-0	01	1	0907-	●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47478-271-0	01	1	0712-0810	●	●
3	BRACKET; FLEX HOSE,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98093-620-0	01	1	0811-0901	●
3	BRACKET; FLEX HOSE,RR BRK (A)	8-98093-620-0	01	1	0811-0901		●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98093-620-0	01	1	0902-0906	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4200MM(42W) (A)	8-98093-620-0	01	1	0902-0906		●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98093-620-0	01	1	0907-	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4200MM(42W) (A)	8-98093-620-0	01	1	0907-		●
4	NUT; BRKT,FLEX HOSE,RR BRK EXC. ANTI LOCK BRAKE<JE5> (B) M12	9-09840-280-0	01	1	1003-1306	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	1003-1306		●
4	NUT; BRKT,FLEX HOSE,RR BRK EXC. ANTI LOCK BRAKE<JE5> (B) M12	9-09840-280-0	01	1	1307-	●
4	NUT; BRKT,FLEX HOSE,RR BRK CONVERTING INTO 6X6<BCC> (B) M12	9-09840-280-0	01	1	1307-	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	1307-		●
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	0712-1002	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK ANTI LOCK BRAKE<JE5> (B) M12	9-09840-280-0	04	1	1003-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0803-	●	●
32	UNION; OIL PIPE WHEEL BASE 4100MM(41W) ANTI LOCK BRAKE<JE5> (B) M12 3WAY	1-09654-137-2	02	1	1003-	●
32	UNION; OIL PIPE WHEEL BASE 4100MM(41W) EXC. ANTI LOCK BRAKE<JE5> (B) M12 3WAY	1-09654-137-2	01	1	1003-	●
32	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-1002	●	●
32	UNION; OIL PIPE DOUBLE TIRE REARWARD<SR6> (A) M12 L=40	0-92113-006-0	01	1	1003-1011	●
32	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	1003-1011		●
32	UNION; OIL PIPE DOUBLE TIRE REARWARD<SR6> EXC. PAKISTAN EQUIPMENT(CK1) (A) M12 L=40	0-92113-006-0	01	1	1012-	●
32	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	1012-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) ANTI LOCK BRAKE<JE5> (A) L=2109 SERVICED BY L=2200	1-47428-740-0	01	1	1502-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) ANTI LOCK BRAKE<JE5> (A) L=2147 SERVICED BY L=2200	1-47428-740-0	01	1	1502-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4100MM(41W) (A) L=2668 SERVICED BY L=2900	1-47428-744-0	01	1	1003-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4100MM(41W) ANTI LOCK BRAKE<JE5> (B) L=1964 SERVICED BY L=2000	1-47428-739-0	01	1	1003-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) (A) L=1439 SERVICED BY L=1500	1-47428-735-0	01	1	0812-0906	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) (A) L=1439	8-98111-269-1	01	1	0907-	●
33	PIPE; OIL,UNION TO UNION (A) L=2013 SERVICED BY L=2200	1-47428-740-0	01	1	0712-0802	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) (A) L=2108 SERVICED BY L=2200	1-47428-740-0	01	1	0803-0803	●	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) (A) L=2108 SERVICED BY L=2200	1-47428-740-0	01	1	0804-0811	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) (A) L=2044 SERVICED BY L=2200	1-47428-740-0	01	1	0812-1003	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) (A) L=2052	8-98167-793-1	01	1	1004-1501	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) EXC. ANTI LOCK BRAKE<JE5> (A) L=2052	8-98167-793-1	01	1	1502-	●
33	PIPE; OIL,UNION TO UNION (A) L=1653 SERVICED BY L=1700	1-47428-737-0	01	1	0712-0802		●
33	PIPE; OIL,UNION TO UNION (A) L=2025 SERVICED BY L=2200	1-47428-740-0	01	1	0803-0811		●
33	PIPE; OIL,UNION TO UNION (A) L=2025 SERVICED BY L=2200	1-47428-740-0	01	1	0812-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4100MM(41W) ANTI LOCK BRAKE<JE5> (B) L=871 SERVICED BY L=900	1-47428-729-0	01	1	1003-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4100MM(41W) EXC. BRK WHL LK CONT LSPV<6PH> (C) L=612 SERVICED BY L=650	1-47428-726-0	01	1	1003-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1416 SERVICED BY L=1500	1-47428-735-0	01	1	0812-0906	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1416 SERVICED BY L=1500	1-47428-735-0	01	1	0907-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=1778 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=1835 SERVICED BY L=2000	1-47428-739-0	01	1	0803-0811	●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1807 SERVICED BY L=1820	1-47428-738-0	01	1	0812-0906	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4200MM(42W) (A) L=1807 SERVICED BY L=1820	1-47428-738-0	01	1	0812-0906		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1807 SERVICED BY L=1820	1-47428-738-0	01	1	0907-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4200MM(42W) (A) L=1807 SERVICED BY L=1820	1-47428-738-0	01	1	0907-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=1772 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802		●
78	NUT; UNION,OIL PIPE WHEEL BASE 4100MM(41W) ANTI LOCK BRAKE<JE5> M12	0-91111-512-0	02	1	1003-	●
78	NUT; UNION,OIL PIPE WHEEL BASE 4100MM(41W) EXC. ANTI LOCK BRAKE<JE5> M12	0-91111-512-0	01	1	1003-	●
81	PIPE; OIL,UNION TO LSPV WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE<JE5> L=1222 SERVICED BY L=1250	1-47428-733-0	01	1	1003-	●
82	PIPE; OIL,LSPV TO FLEX HOSE WHEEL BASE 4100MM(41W) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE<JE5> L=366	8-98152-597-0	01	1	1003-	●
135	CLIP; FLEX HOSE ANTI LOCK BRAKE<JE5> ID=10 & 10	1-09709-277-1	01	1	1003-	●

33 33 46 75 138 75 46 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) ANTI LOCK BRAKE<JE5> (A) L=2109 SERVICED BY L=2200	1-47428-740-0	01	1	1502-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) ANTI LOCK BRAKE<JE5> (A) L=2147 SERVICED BY L=2200	1-47428-740-0	01	1	1502-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4100MM(41W) (A) L=2668 SERVICED BY L=2900	1-47428-744-0	01	1	1003-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4100MM(41W) ANTI LOCK BRAKE<JE5> (B) L=1964 SERVICED BY L=2000	1-47428-739-0	01	1	1003-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) (A) L=1439 SERVICED BY L=1500	1-47428-735-0	01	1	0812-0906	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) (A) L=1439	8-98111-269-1	01	1	0907-	●
33	PIPE; OIL,UNION TO UNION (A) L=2013 SERVICED BY L=2200	1-47428-740-0	01	1	0712-0802	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) (A) L=2108 SERVICED BY L=2200	1-47428-740-0	01	1	0803-0803	●	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) (A) L=2108 SERVICED BY L=2200	1-47428-740-0	01	1	0804-0811	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) (A) L=2044 SERVICED BY L=2200	1-47428-740-0	01	1	0812-1003	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) (A) L=2052	8-98167-793-1	01	1	1004-1501	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) EXC. ANTI LOCK BRAKE<JE5> (A) L=2052	8-98167-793-1	01	1	1502-	●
33	PIPE; OIL,UNION TO UNION (A) L=1653 SERVICED BY L=1700	1-47428-737-0	01	1	0712-0802		●
33	PIPE; OIL,UNION TO UNION (A) L=2025 SERVICED BY L=2200	1-47428-740-0	01	1	0803-0811		●
33	PIPE; OIL,UNION TO UNION (A) L=2025 SERVICED BY L=2200	1-47428-740-0	01	1	0812-		●
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	01	1	1003-	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1003-		●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-0802	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0803-1002	●	●
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	02	1	1003-	●
46	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0712-0802		●
75	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> M12 ELBOW	8-97325-150-0	02	1	1003-	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0712-1002	●	●
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12 ELBOW	0-92125-206-0	01	1	1003-	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1003-		●
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE<JE5> (B) L=301	8-98147-595-0	01	1	1003-	●
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE<JE5> (C)	8-98147-596-0	01	1	1003-	●
138	PIPE; HYDRAULIC UNIT (A) L=843 SERVICED BY L=900	1-47428-729-0	01	1	0803-		●
138	PIPE; HYDRAULIC UNIT (A) L=272	8-98084-367-0	01	1	0712-0802	●
138	PIPE; HYDRAULIC UNIT (A) L=413	8-98108-551-0	01	1	0803-0811	●
138	PIPE; HYDRAULIC UNIT (A) L=531 SERVICED BY L=550	1-47428-724-0	01	1	0812-1002	●
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE<JE5> (A) L=531 SERVICED BY L=550	1-47428-724-0	01	1	1003-	●

13 13 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK REARWARD INNER SINGLE TIRE<YK3> EXC. ANTI LOCK BRAKE<JE5> L=770	0-05212-770-0	01	1	1003-1011	●
1	HOSE; FLEX,RR BRK WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> L=770	0-05212-770-0	01	1	1012-1306	●
1	HOSE; FLEX,RR BRK REARWARD INNER SINGLE TIRE<YK3> EXC. ANTI LOCK BRAKE<JE5> L=770	0-05212-770-0	01	1	1012-1306	●
1	HOSE; FLEX,RR BRK WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> L=770	0-05212-770-0	01	1	1307-	●
1	HOSE; FLEX,RR BRK REARWARD INNER SINGLE TIRE<YK3> EXC. ANTI LOCK BRAKE<JE5> L=770	0-05212-770-0	01	1	1307-	●
1	HOSE; FLEX,RR BRK CONVERTING INTO 6X6<BCC> L=770	0-05212-770-0	01	1	1307-	●
1	HOSE; FLEX,RR BRK WHEEL BASE 4100MM(41W) ANTI LOCK BRAKE<JE5> L=800	0-05211-800-0	02	1	1003-1306	●
1	HOSE; FLEX,RR BRK WHEEL BASE 4100MM(41W) ANTI LOCK BRAKE<JE5> L=800	0-05211-800-0	02	1	1307-	●
1	HOSE; FLEX,RR BRK CONVERTING INTO 6X6<BCC> L=800	0-05211-800-0	02	1	1307-	●
1	HOSE; FLEX,RR BRK L=730	0-05312-730-0	01	1	0712-0901	●	●
1	HOSE; FLEX,RR BRK L=730	0-05212-730-0	01	1	0902-1002	●	●
1	HOSE; FLEX,RR BRK DOUBLE TIRE REARWARD<SR6> L=730	0-05212-730-0	01	1	1003-1011	●
1	HOSE; FLEX,RR BRK L=730	0-05212-730-0	01	1	1003-1011		●
1	HOSE; FLEX,RR BRK DOUBLE TIRE REARWARD<SR6> EXC. PAKISTAN EQUIPMENT(CK1) L=730	0-05212-730-0	01	1	1012-	●
1	HOSE; FLEX,RR BRK L=730	0-05212-730-0	01	1	1012-		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5>	8-98081-702-0	01	1	1411-	●
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5>	8-98139-120-1	01	1	1003-	●
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5>	8-98139-121-1	01	1	1003-	●
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5>	8-98139-122-1	01	1	1003-1410	●
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE<JE5>	8-98139-122-1	01	1	1411-	●
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5>	8-98139-123-1	01	1	1003-1410	●
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE<JE5>	8-98139-123-1	01	1	1411-	●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98081-701-0	01	1	0712-1002	●
13	PIPE; BRK,RR AXLE	8-98081-701-0	01	1	0712-1002		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98081-701-0	01	1	1003-1404	●
13	PIPE; BRK,RR AXLE	8-98081-701-0	01	1	1003-1404		●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98081-701-0	01	1	1405-	●	●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98081-703-0	01	1	0712-1002	●
13	PIPE; BRK,RR AXLE	8-98081-703-0	01	1	0712-1002		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98081-703-0	01	1	1003-1404	●
13	PIPE; BRK,RR AXLE	8-98081-703-0	01	1	1003-1404		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE<JE5>	8-98081-703-0	01	1	1405-	●
13	PIPE; BRK,RR AXLE	8-98081-703-0	01	1	1405-		●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98053-665-0	01	1	0712-0802	●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98115-431-0	01	1	0803-0810	●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-989-0	01	1	0811-1002	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-989-0	01	1	1003-1011	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-989-0	01	1	1012-1404	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/6 15.5"(W1T)	8-98134-989-0	01	1	1012-1404	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE<JE5>	8-98134-989-0	01	1	1405-	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/6 15.5"(W1T)	8-98134-989-0	01	1	1405-	●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98053-666-0	01	1	0712-0802	●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98115-432-0	01	1	0803-0810	●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-990-0	01	1	0811-1002	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-990-0	01	1	1003-1011	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-990-0	01	1	1012-1404	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/6 15.5"(W1T)	8-98134-990-0	01	1	1012-1404	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE<JE5>	8-98134-990-0	01	1	1405-	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/6 15.5"(W1T)	8-98134-990-0	01	1	1405-	●

42 42

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

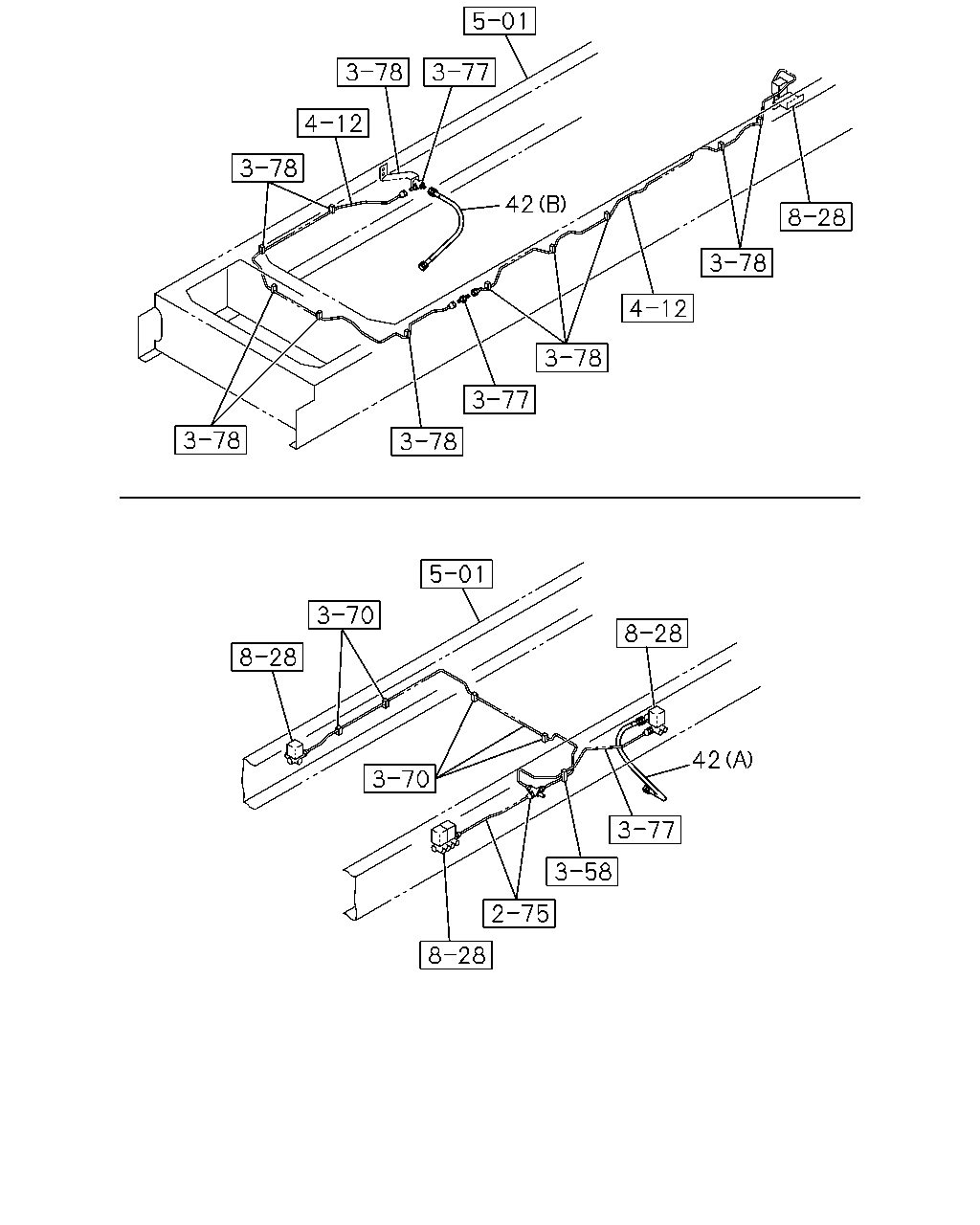

	42	HOSE; FLEX,DIFF LOCK DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A)	8-98142-049-0	01	1	1003-	●
	42	HOSE; FLEX,DIFF LOCK REARWARD INNER SINGLE TIRE<YK3> (B)	1-09363-650-0	01	1	1003-	●

13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5>	8-98081-702-0	01	1	1411-	●
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5>	8-98139-120-1	01	1	1003-	●
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5>	8-98139-121-1	01	1	1003-	●
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5>	8-98139-122-1	01	1	1003-1410	●
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE<JE5>	8-98139-122-1	01	1	1411-	●
13	PIPE; BRK,RR AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) EXC. ANTI LOCK BRAKE<JE5>	8-98139-123-1	01	1	1003-1410	●
13	PIPE; BRK,RR AXLE EXC. ANTI LOCK BRAKE<JE5>	8-98139-123-1	01	1	1411-	●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98081-701-0	01	1	0712-1002	●
13	PIPE; BRK,RR AXLE	8-98081-701-0	01	1	0712-1002		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98081-701-0	01	1	1003-1404	●
13	PIPE; BRK,RR AXLE	8-98081-701-0	01	1	1003-1404		●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98081-701-0	01	1	1405-	●	●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98081-703-0	01	1	0712-1002	●
13	PIPE; BRK,RR AXLE	8-98081-703-0	01	1	0712-1002		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98081-703-0	01	1	1003-1404	●
13	PIPE; BRK,RR AXLE	8-98081-703-0	01	1	1003-1404		●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE<JE5>	8-98081-703-0	01	1	1405-	●
13	PIPE; BRK,RR AXLE	8-98081-703-0	01	1	1405-		●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98053-665-0	01	1	0712-0802	●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98115-431-0	01	1	0803-0810	●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-989-0	01	1	0811-1002	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-989-0	01	1	1003-1011	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-989-0	01	1	1012-1404	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/6 15.5"(W1T)	8-98134-989-0	01	1	1012-1404	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE<JE5>	8-98134-989-0	01	1	1405-	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/6 15.5"(W1T)	8-98134-989-0	01	1	1405-	●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98053-666-0	01	1	0712-0802	●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98115-432-0	01	1	0803-0810	●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-990-0	01	1	0811-1002	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-990-0	01	1	1003-1011	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-990-0	01	1	1012-1404	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/6 15.5"(W1T)	8-98134-990-0	01	1	1012-1404	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE<JE5>	8-98134-990-0	01	1	1405-	●
13	PIPE; BRK,RR AXLE FINAL GEAR 39/6 15.5"(W1T)	8-98134-990-0	01	1	1405-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
