3-52 — BRAKE PIPING; OIL,FRONT (#66717) — 352 parça

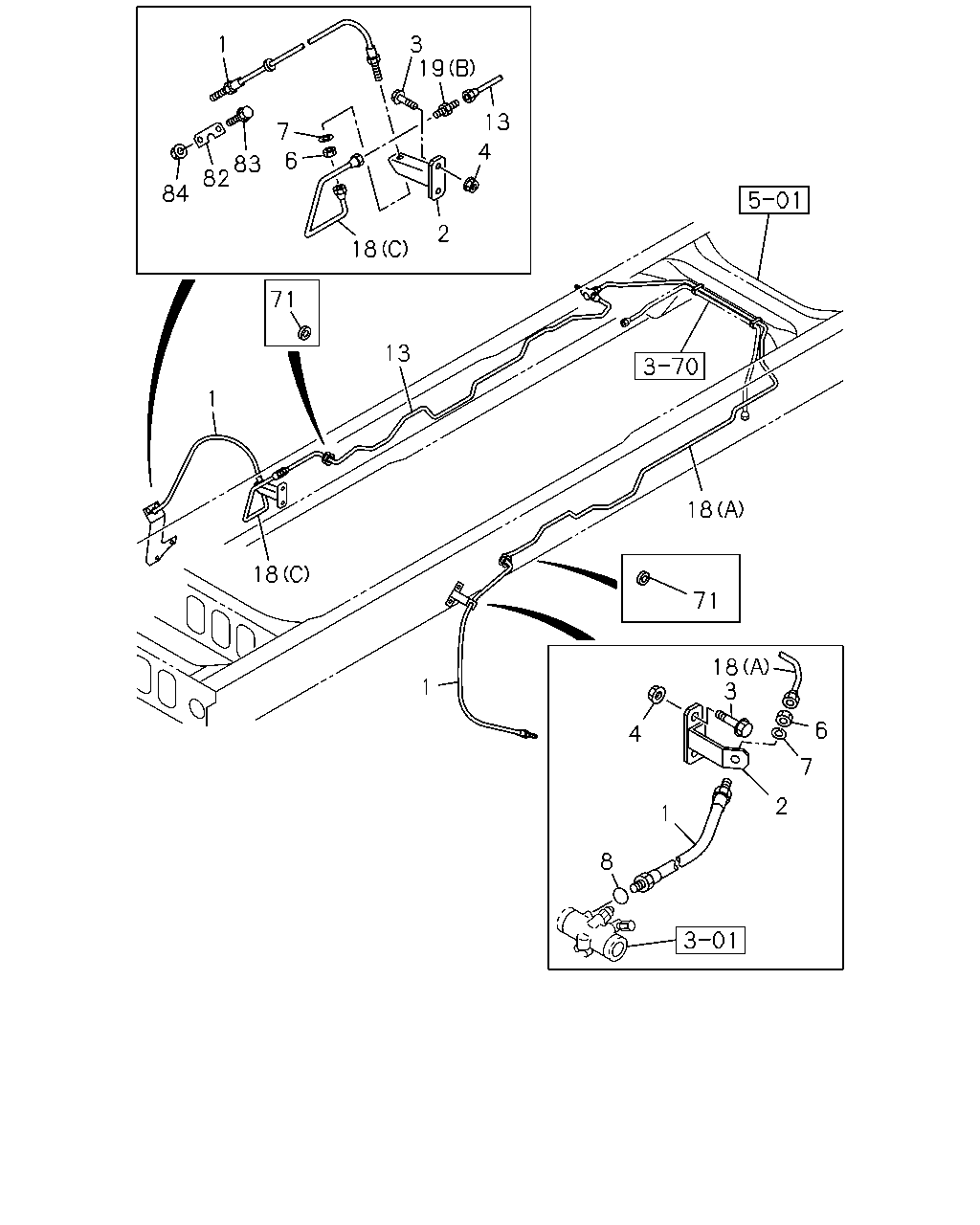

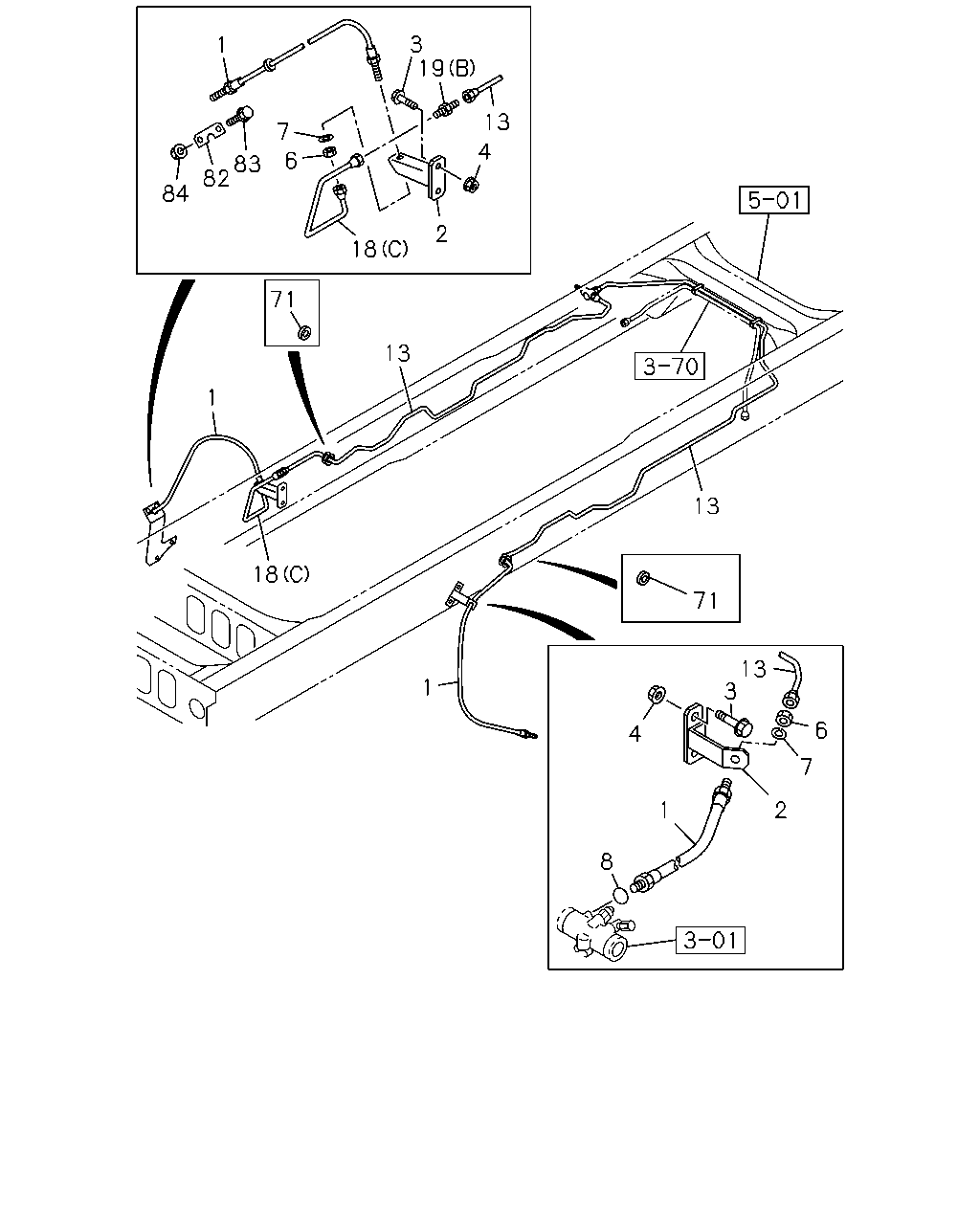

1 3 19 13 4 6 83 82 84 2 18 71 13 1 13 18 71 13 19 18 3 1 1 83 2 84 6 8 18 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK L=730	0-05312-730-0	01	1	0712-0802	●
1	HOSE; FLEX,FRT BRK L=730	0-05312-730-0	01	1	0803-0803	●	●
1	HOSE; FLEX,FRT BRK L=838	8-97623-930-0	01	1	0712-0802	●
1	HOSE; FLEX,FRT BRK L=838	8-97623-930-0	01	1	0803-0803	●	●
1	HOSE; FLEX,FRT BRK L=838	8-97623-930-0	02	1	0804-	●	●
1	HOSE; FLEX,FRT BRK L=730	0-05312-730-0	02	1	0712-0802		●
2	BRACKET; FLEX HOSE,FRT BRK	1-47476-817-0	01	1	0712-0802	●
2	BRACKET; FLEX HOSE,FRT BRK	1-47476-817-0	01	1	0803-0811	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-98130-817-0	01	1	0812-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-97623-926-0	01	1	0712-0802	●
2	BRACKET; FLEX HOSE,FRT BRK	8-97623-926-1	01	1	0803-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	1-47476-817-0	02	1	0712-0802		●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0712-	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0712-0802	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0803-0806	●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	0712-	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	0712-	●	●
13	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> L=1201 SERVICED BY L=1250	1-47428-733-0	01	1	1003-	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=2859 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0904	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=2866 SERVICED BY L=2900	1-47428-744-0	01	1	0905-	●
13	PIPE; OIL,UNION TO UNION L=2899 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0811	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) L=2875 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0904	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) L=2882 SERVICED BY L=2900	1-47428-744-0	01	1	0905-1002	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) L=2882 SERVICED BY L=2900	1-47428-744-0	01	1	1003-	●
13	PIPE; OIL,UNION TO UNION L=1594 SERVICED BY L=1620	1-47428-736-0	01	1	0803-0804		●
13	PIPE; OIL,UNION TO UNION L=1542 SERVICED BY L=1620	1-47428-736-0	01	1	0805-		●
13	PIPE; OIL,UNION TO UNION L=2791 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0804		●
13	PIPE; OIL,UNION TO UNION L=2881 SERVICED BY L=2900	1-47428-744-0	01	1	0805-0811		●
13	PIPE; OIL,UNION TO UNION L=2851 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0906		●
13	PIPE; OIL,UNION TO UNION L=2858 SERVICED BY L=2900	1-47428-744-0	01	1	0907-		●
13	PIPE; OIL,UNION TO UNION L=1725 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802	●
13	PIPE; OIL,UNION TO UNION L=1498 SERVICED BY L=1500	1-47428-735-0	01	1	0803-0812	●
13	PIPE; OIL,UNION TO UNION L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	0901-1002	●
13	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1003-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (D) L=389	8-98130-856-0	01	1	0812-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=413	8-97623-134-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=417	8-98111-592-1	01	1	0803-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=2752 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=1789 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2831 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802		●
19	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> (D) M12 ELBOW	8-97325-150-0	02	1	1003-	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	0804-		●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	0712-0802	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	0803-0803	●	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	0804-1002	●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> (A) M12 3WAY	0-92138-606-0	01	1	1003-	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0712-0802	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0803-0811	●	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	02	1	0812-	●	●
19	UNION; OIL PIPE (C) M12	0-92138-306-0	01	1	0712-0802		●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0712-	●	●
82	PLATE; FLEX HOSE	1-47476-241-1	01	1	0712-0802	●
82	PLATE; FLEX HOSE	1-47476-241-1	01	1	0803-0803	●	●
82	PLATE; FLEX HOSE	1-47476-241-1	02	1	0804-	●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	02	1	0803-0803	●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	04	1	0804-	●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	02	1	0803-0803	●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	0804-	●	●

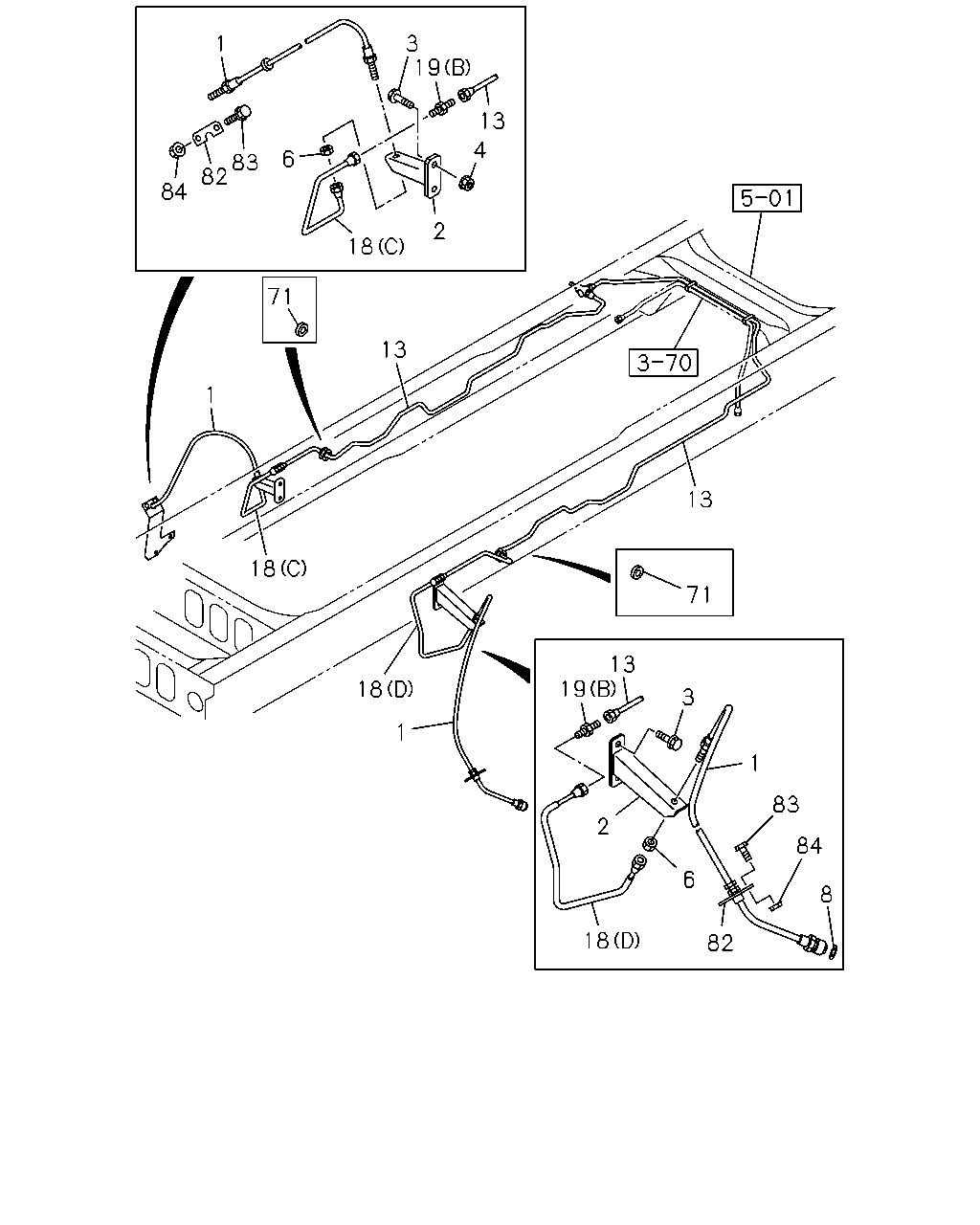

1 3 19 13 7 4 6 83 82 84 2 18 71 13 1 18 18 71 18 3 1 6 4 7 2 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK L=730	0-05312-730-0	01	1	0712-0802	●
1	HOSE; FLEX,FRT BRK L=730	0-05312-730-0	01	1	0803-0803	●	●
1	HOSE; FLEX,FRT BRK L=838	8-97623-930-0	01	1	0712-0802	●
1	HOSE; FLEX,FRT BRK L=838	8-97623-930-0	01	1	0803-0803	●	●
1	HOSE; FLEX,FRT BRK L=838	8-97623-930-0	02	1	0804-	●	●
1	HOSE; FLEX,FRT BRK L=730	0-05312-730-0	02	1	0712-0802		●
2	BRACKET; FLEX HOSE,FRT BRK	1-47476-817-0	01	1	0712-0802	●
2	BRACKET; FLEX HOSE,FRT BRK	1-47476-817-0	01	1	0803-0811	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-98130-817-0	01	1	0812-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-97623-926-0	01	1	0712-0802	●
2	BRACKET; FLEX HOSE,FRT BRK	8-97623-926-1	01	1	0803-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	1-47476-817-0	02	1	0712-0802		●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0712-	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0712-0802	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0803-0806	●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	0712-	●	●
7	WASHER; LK,FLEX HOSE,FRT BRK ID=12.2	0-91510-512-0	02	1	0712-0802	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	0712-	●	●
13	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> L=1201 SERVICED BY L=1250	1-47428-733-0	01	1	1003-	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=2859 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0904	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=2866 SERVICED BY L=2900	1-47428-744-0	01	1	0905-	●
13	PIPE; OIL,UNION TO UNION L=2899 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0811	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) L=2875 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0904	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) L=2882 SERVICED BY L=2900	1-47428-744-0	01	1	0905-1002	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) L=2882 SERVICED BY L=2900	1-47428-744-0	01	1	1003-	●
13	PIPE; OIL,UNION TO UNION L=1594 SERVICED BY L=1620	1-47428-736-0	01	1	0803-0804		●
13	PIPE; OIL,UNION TO UNION L=1542 SERVICED BY L=1620	1-47428-736-0	01	1	0805-		●
13	PIPE; OIL,UNION TO UNION L=2791 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0804		●
13	PIPE; OIL,UNION TO UNION L=2881 SERVICED BY L=2900	1-47428-744-0	01	1	0805-0811		●
13	PIPE; OIL,UNION TO UNION L=2851 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0906		●
13	PIPE; OIL,UNION TO UNION L=2858 SERVICED BY L=2900	1-47428-744-0	01	1	0907-		●
13	PIPE; OIL,UNION TO UNION L=1725 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802	●
13	PIPE; OIL,UNION TO UNION L=1498 SERVICED BY L=1500	1-47428-735-0	01	1	0803-0812	●
13	PIPE; OIL,UNION TO UNION L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	0901-1002	●
13	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1003-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (D) L=389	8-98130-856-0	01	1	0812-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=413	8-97623-134-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=417	8-98111-592-1	01	1	0803-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=2752 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=1789 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2831 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802		●
19	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> (D) M12 ELBOW	8-97325-150-0	02	1	1003-	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	0804-		●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	0712-0802	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	0803-0803	●	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	0804-1002	●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> (A) M12 3WAY	0-92138-606-0	01	1	1003-	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0712-0802	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0803-0811	●	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	02	1	0812-	●	●
19	UNION; OIL PIPE (C) M12	0-92138-306-0	01	1	0712-0802		●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0712-	●	●
82	PLATE; FLEX HOSE	1-47476-241-1	01	1	0712-0802	●
82	PLATE; FLEX HOSE	1-47476-241-1	01	1	0803-0803	●	●
82	PLATE; FLEX HOSE	1-47476-241-1	02	1	0804-	●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	02	1	0803-0803	●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	04	1	0804-	●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	02	1	0803-0803	●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	0804-	●	●

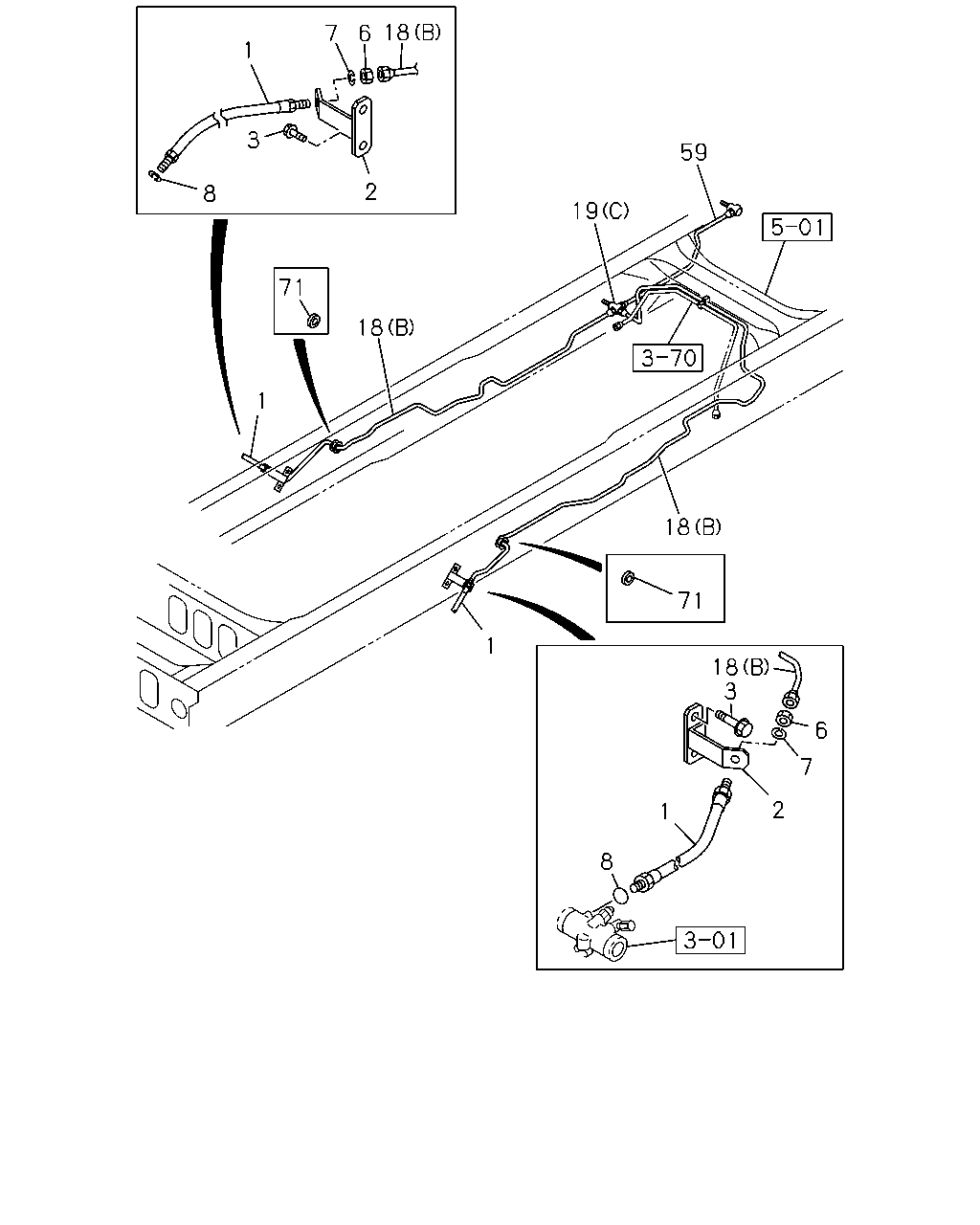

18 7 6 1 3 59 2 8 19 71 18 1 18 71 1 18 3 6 7 2 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK L=730	0-05312-730-0	01	1	0712-0802	●
1	HOSE; FLEX,FRT BRK L=730	0-05312-730-0	01	1	0803-0803	●	●
1	HOSE; FLEX,FRT BRK L=838	8-97623-930-0	01	1	0712-0802	●
1	HOSE; FLEX,FRT BRK L=838	8-97623-930-0	01	1	0803-0803	●	●
1	HOSE; FLEX,FRT BRK L=838	8-97623-930-0	02	1	0804-	●	●
1	HOSE; FLEX,FRT BRK L=730	0-05312-730-0	02	1	0712-0802		●
2	BRACKET; FLEX HOSE,FRT BRK	1-47476-817-0	01	1	0712-0802	●
2	BRACKET; FLEX HOSE,FRT BRK	1-47476-817-0	01	1	0803-0811	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-98130-817-0	01	1	0812-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-97623-926-0	01	1	0712-0802	●
2	BRACKET; FLEX HOSE,FRT BRK	8-97623-926-1	01	1	0803-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	1-47476-817-0	02	1	0712-0802		●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0712-	●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	0712-	●	●
7	WASHER; LK,FLEX HOSE,FRT BRK ID=12.2	0-91510-512-0	02	1	0712-0802	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	0712-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (D) L=389	8-98130-856-0	01	1	0812-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=413	8-97623-134-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=417	8-98111-592-1	01	1	0803-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=2752 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=1789 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2831 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802		●
19	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> (D) M12 ELBOW	8-97325-150-0	02	1	1003-	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	0804-		●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	0712-0802	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	0803-0803	●	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	0804-1002	●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> (A) M12 3WAY	0-92138-606-0	01	1	1003-	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0712-0802	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0803-0811	●	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	02	1	0812-	●	●
19	UNION; OIL PIPE (C) M12	0-92138-306-0	01	1	0712-0802		●
59	PIPE; OIL,JOINT TO JOINT L=661 SERVICED BY L=700	1-47428-727-0	01	1	0712-0802		●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0712-	●	●

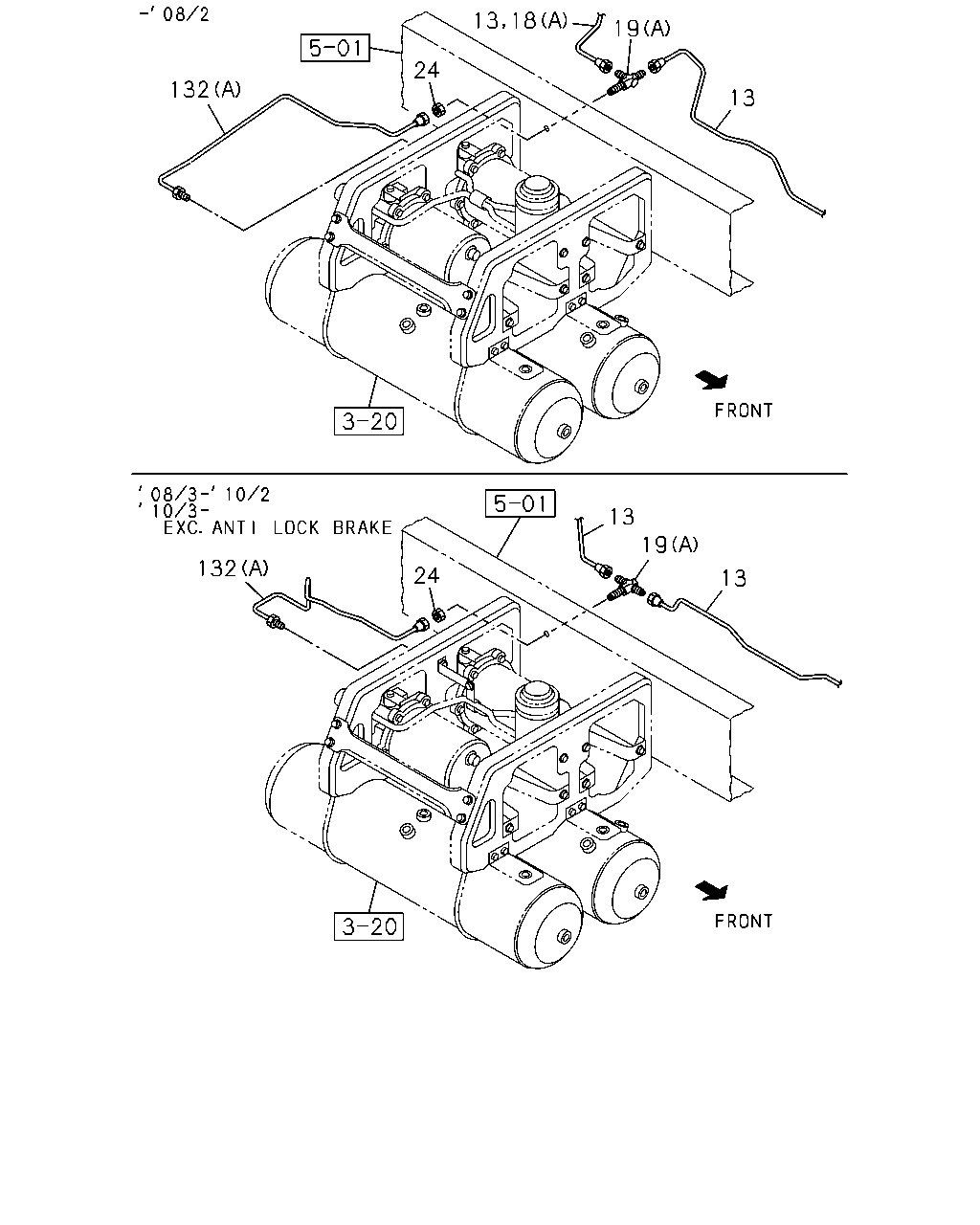

19 24 132 13 13 19 24 132 13 13 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> L=1201 SERVICED BY L=1250	1-47428-733-0	01	1	1003-	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=2859 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0904	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=2866 SERVICED BY L=2900	1-47428-744-0	01	1	0905-	●
13	PIPE; OIL,UNION TO UNION L=2899 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0811	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) L=2875 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0904	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) L=2882 SERVICED BY L=2900	1-47428-744-0	01	1	0905-1002	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) L=2882 SERVICED BY L=2900	1-47428-744-0	01	1	1003-	●
13	PIPE; OIL,UNION TO UNION L=1594 SERVICED BY L=1620	1-47428-736-0	01	1	0803-0804		●
13	PIPE; OIL,UNION TO UNION L=1542 SERVICED BY L=1620	1-47428-736-0	01	1	0805-		●
13	PIPE; OIL,UNION TO UNION L=2791 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0804		●
13	PIPE; OIL,UNION TO UNION L=2881 SERVICED BY L=2900	1-47428-744-0	01	1	0805-0811		●
13	PIPE; OIL,UNION TO UNION L=2851 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0906		●
13	PIPE; OIL,UNION TO UNION L=2858 SERVICED BY L=2900	1-47428-744-0	01	1	0907-		●
13	PIPE; OIL,UNION TO UNION L=1725 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802	●
13	PIPE; OIL,UNION TO UNION L=1498 SERVICED BY L=1500	1-47428-735-0	01	1	0803-0812	●
13	PIPE; OIL,UNION TO UNION L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	0901-1002	●
13	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1003-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (D) L=389	8-98130-856-0	01	1	0812-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=413	8-97623-134-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=417	8-98111-592-1	01	1	0803-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=2752 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=1789 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2831 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802		●
19	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> (D) M12 ELBOW	8-97325-150-0	02	1	1003-	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	0804-		●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	0712-0802	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	0803-0803	●	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	0804-1002	●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> (A) M12 3WAY	0-92138-606-0	01	1	1003-	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0712-0802	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0803-0811	●	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	02	1	0812-	●	●
19	UNION; OIL PIPE (C) M12	0-92138-306-0	01	1	0712-0802		●
24	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	01	1	1003-	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1003-		●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-0802	●	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-0802		●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0803-1002	●	●
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	02	1	1003-	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE<JE5> (C) L=338	8-98147-591-0	01	1	1003-	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE<JE5> (D) L=429	8-98147-592-0	01	1	1003-	●
132	PIPE; OIL,BRK,HYD UNIT (B) L=955 SERVICED BY L=1000	1-47428-730-0	01	1	0803-0804		●
132	PIPE; OIL,BRK,HYD UNIT (B) L=1035 SERVICED BY L=1100	1-47428-731-0	01	1	0805-		●
132	PIPE; OIL,BRK,HYD UNIT (A) L=639 SERVICED BY L=650	1-47428-726-0	01	1	0712-0802	●
132	PIPE; OIL,BRK,HYD UNIT (A) L=678 SERVICED BY L=700	1-47428-727-0	01	1	0803-1002	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE<JE5> (A) L=678 SERVICED BY L=700	1-47428-727-0	01	1	1003-	●

3 19 1 13 7 4 6 83 82 84 2 18 71 13 1 13 18 71 13 3 1 6 4 7 2 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK L=730	0-05312-730-0	01	1	0712-0802	●
1	HOSE; FLEX,FRT BRK L=730	0-05312-730-0	01	1	0803-0803	●	●
1	HOSE; FLEX,FRT BRK L=838	8-97623-930-0	01	1	0712-0802	●
1	HOSE; FLEX,FRT BRK L=838	8-97623-930-0	01	1	0803-0803	●	●
1	HOSE; FLEX,FRT BRK L=838	8-97623-930-0	02	1	0804-	●	●
1	HOSE; FLEX,FRT BRK L=730	0-05312-730-0	02	1	0712-0802		●
2	BRACKET; FLEX HOSE,FRT BRK	1-47476-817-0	01	1	0712-0802	●
2	BRACKET; FLEX HOSE,FRT BRK	1-47476-817-0	01	1	0803-0811	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-98130-817-0	01	1	0812-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-97623-926-0	01	1	0712-0802	●
2	BRACKET; FLEX HOSE,FRT BRK	8-97623-926-1	01	1	0803-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	1-47476-817-0	02	1	0712-0802		●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0712-	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0712-0802	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0803-0806	●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	0712-	●	●
7	WASHER; LK,FLEX HOSE,FRT BRK ID=12.2	0-91510-512-0	02	1	0712-0802	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	0712-	●	●
13	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> L=1201 SERVICED BY L=1250	1-47428-733-0	01	1	1003-	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=2859 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0904	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=2866 SERVICED BY L=2900	1-47428-744-0	01	1	0905-	●
13	PIPE; OIL,UNION TO UNION L=2899 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0811	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) L=2875 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0904	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) L=2882 SERVICED BY L=2900	1-47428-744-0	01	1	0905-1002	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) L=2882 SERVICED BY L=2900	1-47428-744-0	01	1	1003-	●
13	PIPE; OIL,UNION TO UNION L=1594 SERVICED BY L=1620	1-47428-736-0	01	1	0803-0804		●
13	PIPE; OIL,UNION TO UNION L=1542 SERVICED BY L=1620	1-47428-736-0	01	1	0805-		●
13	PIPE; OIL,UNION TO UNION L=2791 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0804		●
13	PIPE; OIL,UNION TO UNION L=2881 SERVICED BY L=2900	1-47428-744-0	01	1	0805-0811		●
13	PIPE; OIL,UNION TO UNION L=2851 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0906		●
13	PIPE; OIL,UNION TO UNION L=2858 SERVICED BY L=2900	1-47428-744-0	01	1	0907-		●
13	PIPE; OIL,UNION TO UNION L=1725 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802	●
13	PIPE; OIL,UNION TO UNION L=1498 SERVICED BY L=1500	1-47428-735-0	01	1	0803-0812	●
13	PIPE; OIL,UNION TO UNION L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	0901-1002	●
13	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1003-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (D) L=389	8-98130-856-0	01	1	0812-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=413	8-97623-134-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=417	8-98111-592-1	01	1	0803-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=2752 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=1789 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2831 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802		●
19	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> (D) M12 ELBOW	8-97325-150-0	02	1	1003-	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	0804-		●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	0712-0802	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	0803-0803	●	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	0804-1002	●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> (A) M12 3WAY	0-92138-606-0	01	1	1003-	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0712-0802	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0803-0811	●	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	02	1	0812-	●	●
19	UNION; OIL PIPE (C) M12	0-92138-306-0	01	1	0712-0802		●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0712-	●	●
82	PLATE; FLEX HOSE	1-47476-241-1	01	1	0712-0802	●
82	PLATE; FLEX HOSE	1-47476-241-1	01	1	0803-0803	●	●
82	PLATE; FLEX HOSE	1-47476-241-1	02	1	0804-	●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	02	1	0803-0803	●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	04	1	0804-	●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	02	1	0803-0803	●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	0804-	●	●

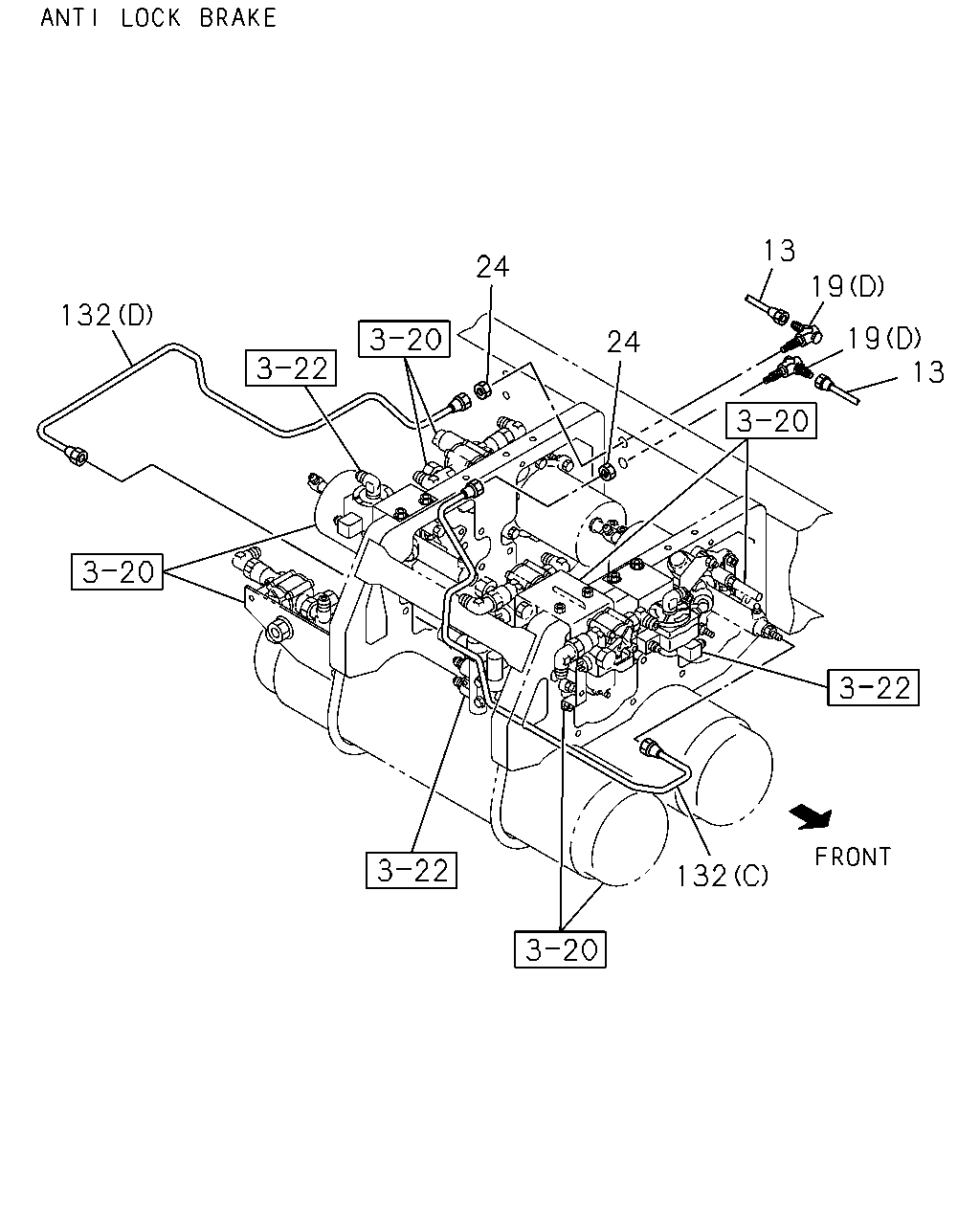

13 24 19 132 19 13 24 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> L=1201 SERVICED BY L=1250	1-47428-733-0	01	1	1003-	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=2859 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0904	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=2866 SERVICED BY L=2900	1-47428-744-0	01	1	0905-	●
13	PIPE; OIL,UNION TO UNION L=2899 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0811	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) L=2875 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0904	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) L=2882 SERVICED BY L=2900	1-47428-744-0	01	1	0905-1002	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) L=2882 SERVICED BY L=2900	1-47428-744-0	01	1	1003-	●
13	PIPE; OIL,UNION TO UNION L=1594 SERVICED BY L=1620	1-47428-736-0	01	1	0803-0804		●
13	PIPE; OIL,UNION TO UNION L=1542 SERVICED BY L=1620	1-47428-736-0	01	1	0805-		●
13	PIPE; OIL,UNION TO UNION L=2791 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0804		●
13	PIPE; OIL,UNION TO UNION L=2881 SERVICED BY L=2900	1-47428-744-0	01	1	0805-0811		●
13	PIPE; OIL,UNION TO UNION L=2851 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0906		●
13	PIPE; OIL,UNION TO UNION L=2858 SERVICED BY L=2900	1-47428-744-0	01	1	0907-		●
13	PIPE; OIL,UNION TO UNION L=1725 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802	●
13	PIPE; OIL,UNION TO UNION L=1498 SERVICED BY L=1500	1-47428-735-0	01	1	0803-0812	●
13	PIPE; OIL,UNION TO UNION L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	0901-1002	●
13	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1003-	●
19	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> (D) M12 ELBOW	8-97325-150-0	02	1	1003-	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	0804-		●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	0712-0802	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	0803-0803	●	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	0804-1002	●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> (A) M12 3WAY	0-92138-606-0	01	1	1003-	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0712-0802	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0803-0811	●	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	02	1	0812-	●	●
19	UNION; OIL PIPE (C) M12	0-92138-306-0	01	1	0712-0802		●
24	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	01	1	1003-	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1003-		●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-0802	●	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-0802		●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0803-1002	●	●
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	02	1	1003-	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE<JE5> (C) L=338	8-98147-591-0	01	1	1003-	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE<JE5> (D) L=429	8-98147-592-0	01	1	1003-	●
132	PIPE; OIL,BRK,HYD UNIT (B) L=955 SERVICED BY L=1000	1-47428-730-0	01	1	0803-0804		●
132	PIPE; OIL,BRK,HYD UNIT (B) L=1035 SERVICED BY L=1100	1-47428-731-0	01	1	0805-		●
132	PIPE; OIL,BRK,HYD UNIT (A) L=639 SERVICED BY L=650	1-47428-726-0	01	1	0712-0802	●
132	PIPE; OIL,BRK,HYD UNIT (A) L=678 SERVICED BY L=700	1-47428-727-0	01	1	0803-1002	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE<JE5> (A) L=678 SERVICED BY L=700	1-47428-727-0	01	1	1003-	●

35 33 59 32 18 19 13 24 132 24 19 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,UNION TO UNION ANTI LOCK BRAKE<JE5> L=1201 SERVICED BY L=1250	1-47428-733-0	01	1	1003-	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=2859 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0904	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=2866 SERVICED BY L=2900	1-47428-744-0	01	1	0905-	●
13	PIPE; OIL,UNION TO UNION L=2899 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0811	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) L=2875 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0904	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W) L=2882 SERVICED BY L=2900	1-47428-744-0	01	1	0905-1002	●
13	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) L=2882 SERVICED BY L=2900	1-47428-744-0	01	1	1003-	●
13	PIPE; OIL,UNION TO UNION L=1594 SERVICED BY L=1620	1-47428-736-0	01	1	0803-0804		●
13	PIPE; OIL,UNION TO UNION L=1542 SERVICED BY L=1620	1-47428-736-0	01	1	0805-		●
13	PIPE; OIL,UNION TO UNION L=2791 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0804		●
13	PIPE; OIL,UNION TO UNION L=2881 SERVICED BY L=2900	1-47428-744-0	01	1	0805-0811		●
13	PIPE; OIL,UNION TO UNION L=2851 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0906		●
13	PIPE; OIL,UNION TO UNION L=2858 SERVICED BY L=2900	1-47428-744-0	01	1	0907-		●
13	PIPE; OIL,UNION TO UNION L=1725 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802	●
13	PIPE; OIL,UNION TO UNION L=1498 SERVICED BY L=1500	1-47428-735-0	01	1	0803-0812	●
13	PIPE; OIL,UNION TO UNION L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	0901-1002	●
13	PIPE; OIL,UNION TO UNION EXC. ANTI LOCK BRAKE<JE5> L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1003-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (D) L=389	8-98130-856-0	01	1	0812-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=413	8-97623-134-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=417	8-98111-592-1	01	1	0803-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=2752 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=1789 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2831 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802		●
19	UNION; OIL PIPE ANTI LOCK BRAKE<JE5> (D) M12 ELBOW	8-97325-150-0	02	1	1003-	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	0804-		●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	0712-0802	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	0803-0803	●	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	0804-1002	●
19	UNION; OIL PIPE EXC. ANTI LOCK BRAKE<JE5> (A) M12 3WAY	0-92138-606-0	01	1	1003-	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0712-0802	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0803-0811	●	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	02	1	0812-	●	●
19	UNION; OIL PIPE (C) M12	0-92138-306-0	01	1	0712-0802		●
24	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	01	1	1003-	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1003-		●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-0802	●	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-0802		●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0803-1002	●	●
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE<JE5> M12	9-09840-280-0	02	1	1003-	●
32	PIPE; OIL,AIR MASTER TO UNION L=592 SERVICED BY L=600	1-47428-725-0	01	1	0712-0802		●
33	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0712-0802		●
35	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0712-0802		●
59	PIPE; OIL,JOINT TO JOINT L=661 SERVICED BY L=700	1-47428-727-0	01	1	0712-0802		●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE<JE5> (C) L=338	8-98147-591-0	01	1	1003-	●
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE<JE5> (D) L=429	8-98147-592-0	01	1	1003-	●
132	PIPE; OIL,BRK,HYD UNIT (B) L=955 SERVICED BY L=1000	1-47428-730-0	01	1	0803-0804		●
132	PIPE; OIL,BRK,HYD UNIT (B) L=1035 SERVICED BY L=1100	1-47428-731-0	01	1	0805-		●
132	PIPE; OIL,BRK,HYD UNIT (A) L=639 SERVICED BY L=650	1-47428-726-0	01	1	0712-0802	●
132	PIPE; OIL,BRK,HYD UNIT (A) L=678 SERVICED BY L=700	1-47428-727-0	01	1	0803-1002	●
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE<JE5> (A) L=678 SERVICED BY L=700	1-47428-727-0	01	1	1003-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
