Sayfa 3-46 - Isuzu EPC

3-46 — AIR DRYER (#66716) — 327 parça

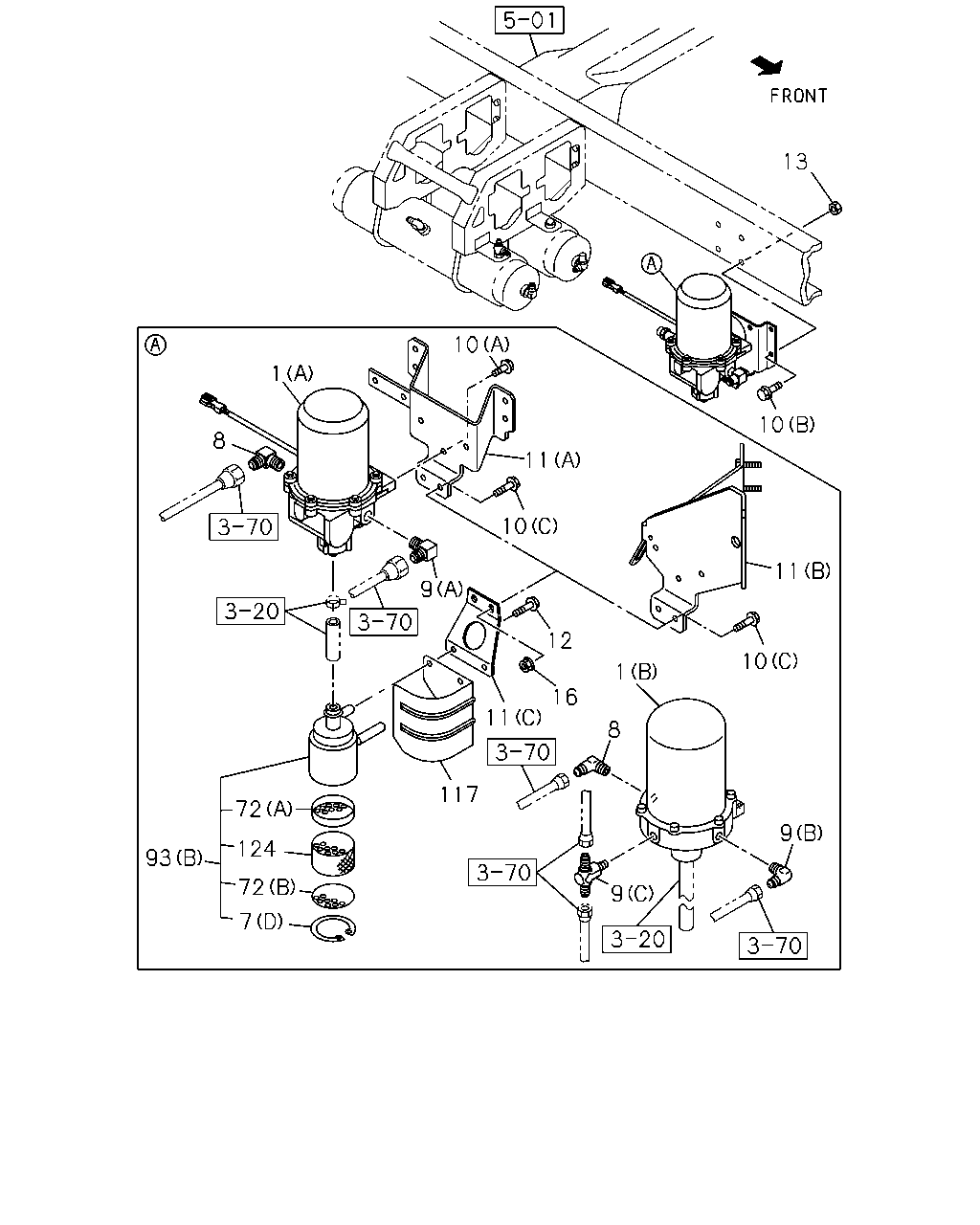

13 10 1 10 8 11 10 11 9 12 10 1 16 11 8 117 72 9 124 93 72 9 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48190-210-1	01	1	0812-	●
1	DRYER; AIR (A)	1-48190-370-1	01	1	0712-0811	●	●
1	DRYER; AIR EURO4 SPECIFICATION<NT4> (A)	1-48190-370-2	01	1	0812-1211	●
1	DRYER; AIR (A)	1-48190-370-2	01	1	0812-1211		●
1	DRYER; AIR EURO4 SPECIFICATION<NT4> (A)	8-98225-285-0	01	1	1212-	●
1	DRYER; AIR (A)	8-98225-285-0	01	1	1212-		●
7	RING; SNAP,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E)	1-48199-403-0	01	1	0812-	●
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	0712-0811	●	●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (D)	1-47769-017-0	01	1	0812-0908	●
7	RING; SNAP,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> BRAKE REGULATION ADR<TDU> (D)	1-47769-017-0	01	1	0812-0908	●
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	0812-0908		●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (D)	1-47769-017-0	01	1	0909-	●
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	0909-		●
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	0712-0811	●	●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (C)	1-48199-520-0	02	1	0812-	●
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	0812-		●
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	0712-0811	●	●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (B)	1-48199-529-0	01	1	0812-	●
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	0812-		●
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	0712-0811	●	●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-579-0	01	1	0812-	●
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	0812-		●
8	CONNECTOR; OUT,AIR DRYER M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0712-0811	●	●
8	CONNECTOR; OUT,AIR DRYER EURO4 SPECIFICATION<NT4> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0812-	●
8	CONNECTOR; OUT,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0812-	●
8	CONNECTOR; OUT,AIR DRYER M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0812-		●
9	CONNECTOR; PIPE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	0812-	●
9	CONNECTOR; PIPE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0812-	●
9	CONNECTOR; PIPE,AIR DRYER (A) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	0712-0811	●	●
9	CONNECTOR; PIPE,AIR DRYER EURO4 SPECIFICATION<NT4> (A) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	0812-	●
9	CONNECTOR; PIPE,AIR DRYER (A) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	0812-		●
10	BOLT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M10X20 FLANGE	0-28051-020-0	03	1	0812-	●
10	BOLT; AIR DRYER (B) M10X30 FLANGE	0-28651-030-0	02	1	0712-0802	●
10	BOLT; AIR DRYER (B) M10X30 FLANGE	0-28051-030-0	02	1	0803-1009	●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> (B) M10X30 FLANGE	0-28051-030-0	02	1	1010-	●
10	BOLT; AIR DRYER (B) M10X30 FLANGE	0-28051-030-0	02	1	1010-		●
10	BOLT; AIR DRYER (C) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0712-0802	●
10	BOLT; AIR DRYER (C) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0803-0811	●	●
10	BOLT; AIR DRYER EURO4 SPECIFICATION<NT4> (C) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0812-0908	●
10	BOLT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> BRAKE REGULATION ADR<TDU> (C) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0812-0908	●
10	BOLT; AIR DRYER (C) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0812-0908		●
10	BOLT; AIR DRYER EURO4 SPECIFICATION<NT4> (C) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0909-	●
10	BOLT; AIR DRYER (C) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0909-		●
10	BOLT; AIR DRYER (A) M10X25 FLANGE	0-28051-025-0	03	1	0712-0811	●	●
10	BOLT; AIR DRYER EURO4 SPECIFICATION<NT4> (A) M10X25 FLANGE	0-28051-025-0	03	1	0812-	●
10	BOLT; AIR DRYER (A) M10X25 FLANGE	0-28051-025-0	03	1	0812-		●
10	BOLT; AIR DRYER (C) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802		●
10	BOLT; AIR DRYER (B) M10X30 FLANGE	0-28651-030-0	04	1	0712-0802		●
11	BRACKET; AIR DRYER (B)	8-98099-368-0	01	1	0804-		●
11	BRACKET; AIR DRYER (A)	8-97621-375-1	01	1	0712-0802	●
11	BRACKET; AIR DRYER (A)	8-97621-375-1	01	1	0803-0803	●	●
11	BRACKET; AIR DRYER (A)	8-97621-375-1	01	1	0804-0811	●
11	BRACKET; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	8-97621-375-2	01	1	0812-	●
11	BRACKET; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A)	8-97621-375-2	01	1	0812-	●
11	BRACKET; AIR DRYER (A)	8-97614-691-0	01	1	0712-0802		●
11	BRACKET; AIR DRYER (C)	8-98039-092-0	01	1	0712-0811	●	●
11	BRACKET; AIR DRYER EURO4 SPECIFICATION<NT4> (C)	8-98039-092-0	01	1	0812-0908	●
11	BRACKET; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> BRAKE REGULATION ADR<TDU> (C)	8-98039-092-0	01	1	0812-0908	●
11	BRACKET; AIR DRYER (C)	8-98039-092-0	01	1	0812-0908		●
11	BRACKET; AIR DRYER EURO4 SPECIFICATION<NT4> (C)	8-98039-092-0	01	1	0909-	●
11	BRACKET; AIR DRYER (C)	8-98039-092-0	01	1	0909-		●
12	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-0811	●	●
12	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	02	1	0812-0908	●
12	BOLT; BRKT EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28650-820-0	02	1	0812-0908	●
12	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0812-0908		●
12	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	02	1	0909-	●
12	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0909-		●
13	NUT; AIR DRYER M10 FLANGE	0-91180-210-0	04	1	0804-		●
13	NUT; AIR DRYER M10 FLANGE	0-91180-210-0	04	1	0712-0802		●
13	NUT; AIR DRYER M10 FLANGE	0-91180-210-0	02	1	0803-0803	●	●
13	NUT; AIR DRYER M10 FLANGE	0-91180-210-0	02	1	0804-1009	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	02	1	1010-	●
16	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0811	●	●
16	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0812-0908	●
16	NUT; BRKT EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91180-108-0	02	1	0812-0908	●
16	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0812-0908		●
16	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0909-	●
16	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0909-		●
72	PLATE; FILTER,AIR DRYER (A)	1-48199-585-0	01	1	0712-0811	●	●
72	PLATE; FILTER,AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-585-0	01	1	0812-0908	●
72	PLATE; FILTER,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> BRAKE REGULATION ADR<TDU> (A)	1-48199-585-0	01	1	0812-0908	●
72	PLATE; FILTER,AIR DRYER (A)	1-48199-585-0	01	1	0812-0908		●
72	PLATE; FILTER,AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-585-0	01	1	0909-	●
72	PLATE; FILTER,AIR DRYER (A)	1-48199-585-0	01	1	0909-		●
72	PLATE; FILTER,AIR DRYER (B)	1-48199-602-0	01	1	0712-0811	●	●
72	PLATE; FILTER,AIR DRYER EURO4 SPECIFICATION<NT4> (B)	1-48199-602-0	01	1	0812-0908	●
72	PLATE; FILTER,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> BRAKE REGULATION ADR<TDU> (B)	1-48199-602-0	01	1	0812-0908	●
72	PLATE; FILTER,AIR DRYER (B)	1-48199-602-0	01	1	0812-0908		●
72	PLATE; FILTER,AIR DRYER EURO4 SPECIFICATION<NT4> (B)	1-48199-602-0	01	1	0909-	●
72	PLATE; FILTER,AIR DRYER (B)	1-48199-602-0	01	1	0909-		●
93	SILENCER; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-619-0	01	1	0907-	●
93	SILENCER; AIR DRYER (A)	1-48199-619-0	01	1	0907-		●
93	SILENCER; AIR DRYER (A)	1-48199-575-0	01	1	0712-0811	●	●
93	SILENCER; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-575-0	01	1	0812-0906	●
93	SILENCER; AIR DRYER (A)	1-48199-575-0	01	1	0812-0906		●
93	SILENCER; AIR DRYER (B)	1-48199-581-0	01	1	0712-0811	●	●
93	SILENCER; AIR DRYER EURO4 SPECIFICATION<NT4> (B)	1-48199-581-0	01	1	0812-0908	●
93	SILENCER; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> BRAKE REGULATION ADR<TDU> (B)	1-48199-581-0	01	1	0812-0908	●
93	SILENCER; AIR DRYER (B)	1-48199-581-0	01	1	0812-0908		●
93	SILENCER; AIR DRYER EURO4 SPECIFICATION<NT4> (B)	1-48199-581-0	01	1	0909-	●
93	SILENCER; AIR DRYER (B)	1-48199-581-0	01	1	0909-		●
117	COVER; SILENCER	8-98065-972-1	01	1	0712-0811	●	●
117	COVER; SILENCER EURO4 SPECIFICATION<NT4>	8-98065-972-1	01	1	0812-0908	●
117	COVER; SILENCER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> BRAKE REGULATION ADR<TDU>	8-98065-972-1	01	1	0812-0908	●
117	COVER; SILENCER	8-98065-972-1	01	1	0812-0908		●
117	COVER; SILENCER EURO4 SPECIFICATION<NT4>	8-98065-972-1	01	1	0909-	●
117	COVER; SILENCER	8-98065-972-1	01	1	0909-		●
124	FILTER; SILENCER	1-48199-465-0	01	1	0712-0811	●	●
124	FILTER; SILENCER EURO4 SPECIFICATION<NT4>	1-48199-465-0	01	1	0812-0908	●
124	FILTER; SILENCER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> BRAKE REGULATION ADR<TDU>	1-48199-465-0	01	1	0812-0908	●
124	FILTER; SILENCER	1-48199-465-0	01	1	0812-0908		●
124	FILTER; SILENCER EURO4 SPECIFICATION<NT4>	1-48199-465-0	01	1	0909-	●
124	FILTER; SILENCER	1-48199-465-0	01	1	0909-		●

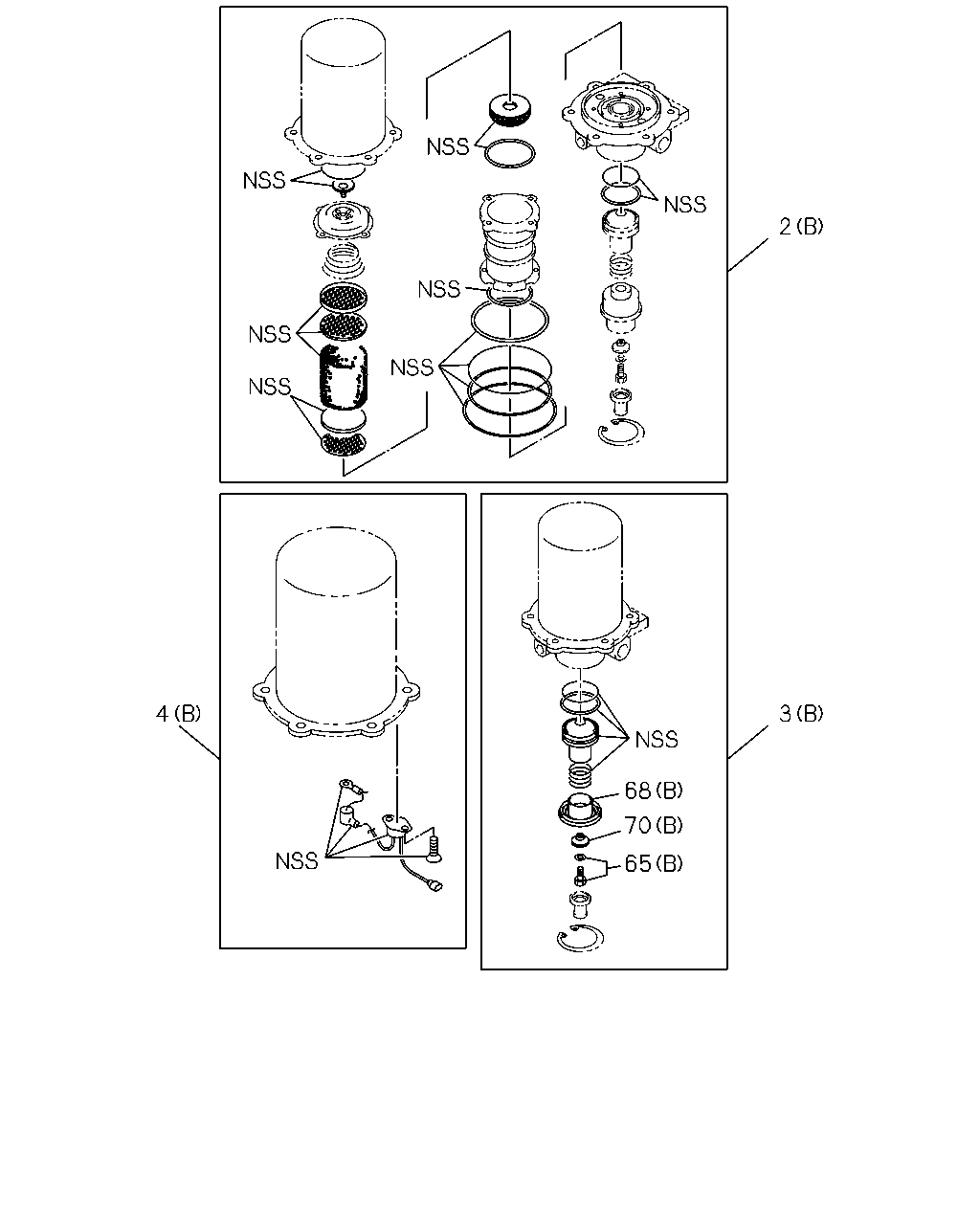

2 4 3 68 70 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-85576-217-0	01	1	0812-	●
2	REPAIR KIT; AIR DRYER (A)	1-85576-457-0	01	1	0712-0811	●	●
2	REPAIR KIT; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-85576-457-0	01	1	0812-1211	●
2	REPAIR KIT; AIR DRYER (A)	1-85576-457-0	01	1	0812-1211		●
2	REPAIR KIT; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	8-98226-323-0	01	1	1212-	●
2	REPAIR KIT; AIR DRYER (A)	8-98226-323-0	01	1	1212-		●
3	PISTON KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-85576-193-0	01	1	0812-	●
3	PISTON KIT; AIR DRYER (A)	1-85576-383-0	01	1	0712-0811	●	●
3	PISTON KIT; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-85576-383-0	01	1	0812-1211	●
3	PISTON KIT; AIR DRYER (A)	1-85576-383-0	01	1	0812-1211		●
3	PISTON KIT; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	8-98226-322-0	01	1	1212-	●
3	PISTON KIT; AIR DRYER (A)	8-98226-322-0	01	1	1212-		●
4	THERMOSTAT KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-85576-218-0	01	1	0812-	●
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-443-0	01	1	0712-0811	●	●
4	THERMOSTAT KIT; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-85576-443-0	01	1	0812-	●
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-443-0	01	1	0812-		●
65	BOLT; PURGE VLV EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-393-0	01	1	0812-	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0712-0811	●	●
65	BOLT; PURGE VLV EURO4 SPECIFICATION<NT4> (A)	1-48199-517-0	01	1	0812-	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0812-		●
68	BODY; VALVE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-408-0	01	1	0812-	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	0712-0811	●	●
68	BODY; VALVE EURO4 SPECIFICATION<NT4> (A)	1-48199-515-0	01	1	0812-	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	0812-		●
70	VALVE; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-105-0	01	1	0812-	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0712-0811	●	●
70	VALVE; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-504-0	01	1	0812-	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0812-		●

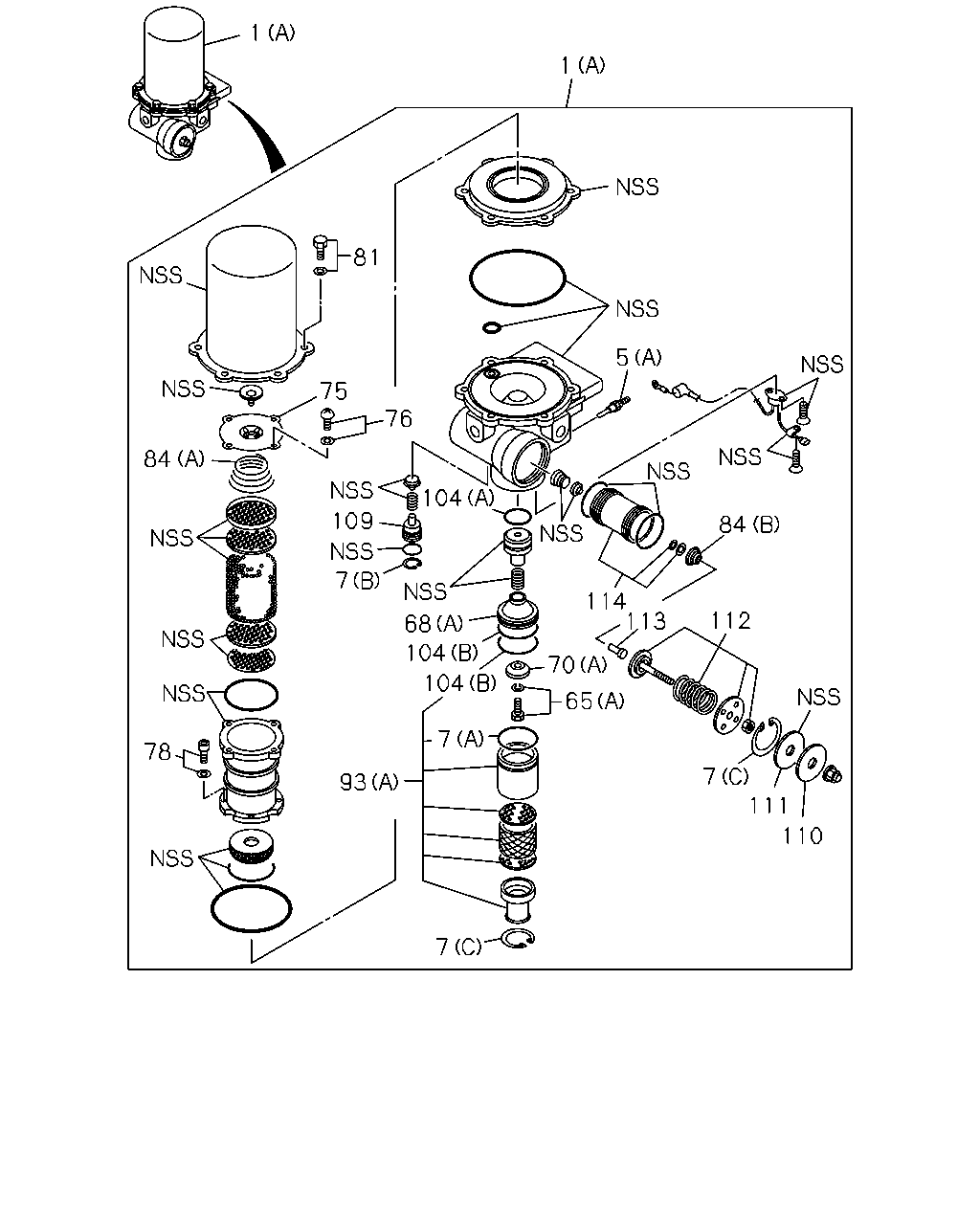

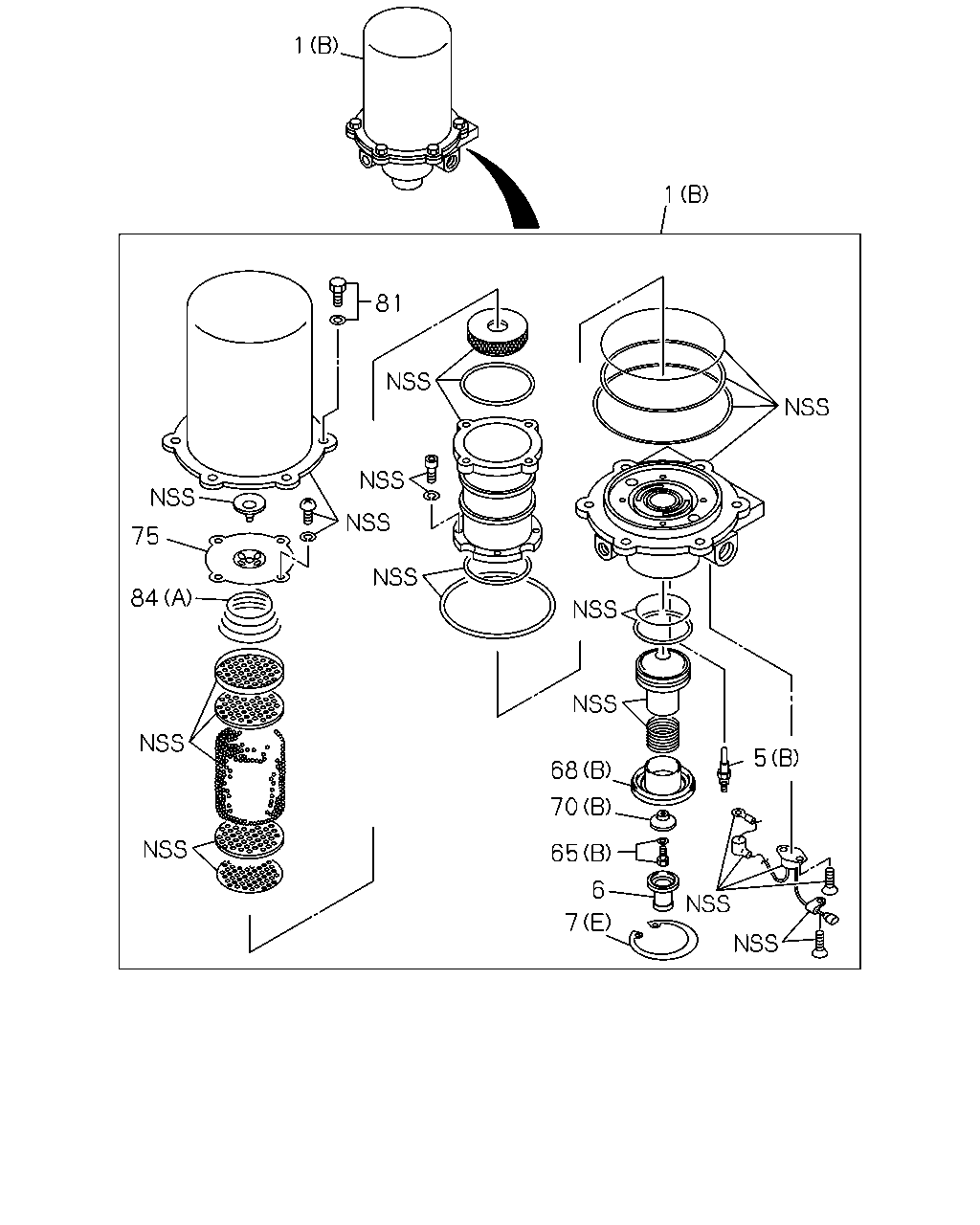

1 1 81 84 78 75 76 109 7 93 104 68 104 104 7 7 65 70 114 113 112 7 111 110 84 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48190-210-1	01	1	0812-	●
1	DRYER; AIR (A)	1-48190-370-1	01	1	0712-0811	●	●
1	DRYER; AIR EURO4 SPECIFICATION<NT4> (A)	1-48190-370-2	01	1	0812-1211	●
1	DRYER; AIR (A)	1-48190-370-2	01	1	0812-1211		●
1	DRYER; AIR EURO4 SPECIFICATION<NT4> (A)	8-98225-285-0	01	1	1212-	●
1	DRYER; AIR (A)	8-98225-285-0	01	1	1212-		●
5	HEATER ASM; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-085-0	01	1	0812-	●
5	HEATER ASM; AIR DRYER (A)	1-48199-530-0	01	1	0712-0811	●	●
5	HEATER ASM; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-530-0	01	1	0812-	●
5	HEATER ASM; AIR DRYER (A)	1-48199-530-0	01	1	0812-		●
7	RING; SNAP,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E)	1-48199-403-0	01	1	0812-	●
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	0712-0811	●	●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (D)	1-47769-017-0	01	1	0812-0908	●
7	RING; SNAP,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> BRAKE REGULATION ADR<TDU> (D)	1-47769-017-0	01	1	0812-0908	●
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	0812-0908		●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (D)	1-47769-017-0	01	1	0909-	●
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	0909-		●
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	0712-0811	●	●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (C)	1-48199-520-0	02	1	0812-	●
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	0812-		●
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	0712-0811	●	●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (B)	1-48199-529-0	01	1	0812-	●
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	0812-		●
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	0712-0811	●	●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-579-0	01	1	0812-	●
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	0812-		●
65	BOLT; PURGE VLV EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-393-0	01	1	0812-	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0712-0811	●	●
65	BOLT; PURGE VLV EURO4 SPECIFICATION<NT4> (A)	1-48199-517-0	01	1	0812-	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0812-		●
68	BODY; VALVE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-408-0	01	1	0812-	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	0712-0811	●	●
68	BODY; VALVE EURO4 SPECIFICATION<NT4> (A)	1-48199-515-0	01	1	0812-	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	0812-		●
70	VALVE; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-105-0	01	1	0812-	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0712-0811	●	●
70	VALVE; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-504-0	01	1	0812-	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0812-		●
75	COVER; CASE,AIR DRYER	1-48199-427-0	01	1	0712-0811	●	●
75	COVER; CASE,AIR DRYER EURO4 SPECIFICATION<NT4>	1-48199-427-0	01	1	0812-	●
75	COVER; CASE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-427-0	01	1	0812-	●
75	COVER; CASE,AIR DRYER	1-48199-427-0	01	1	0812-		●
76	BOLT; COVER,AIR DRYER	1-48199-412-0	04	1	0712-0811	●	●
76	BOLT; COVER,AIR DRYER EURO4 SPECIFICATION<NT4>	1-48199-412-0	04	1	0812-	●
76	BOLT; COVER,AIR DRYER	1-48199-412-0	04	1	0812-		●
78	BOLT; OIL FILTER,AIR DRYER	1-48199-417-0	04	1	0712-0811	●	●
78	BOLT; OIL FILTER,AIR DRYER EURO4 SPECIFICATION<NT4>	1-48199-417-0	04	1	0812-	●
78	BOLT; OIL FILTER,AIR DRYER	1-48199-417-0	04	1	0812-		●
81	BOLT; CASE,AIR DRYER	1-48199-436-0	06	1	0712-0811	●	●
81	BOLT; CASE,AIR DRYER EURO4 SPECIFICATION<NT4>	1-48199-436-0	06	1	0812-	●
81	BOLT; CASE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-436-0	06	1	0812-	●
81	BOLT; CASE,AIR DRYER	1-48199-436-0	06	1	0812-		●
84	SPRING; AIR DRYER (A)	1-48199-425-0	01	1	0712-0811	●	●
84	SPRING; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-425-0	01	1	0812-	●
84	SPRING; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A)	1-48199-425-0	01	1	0812-	●
84	SPRING; AIR DRYER (A)	1-48199-425-0	01	1	0812-		●
84	SPRING; AIR DRYER (B)	1-48199-523-0	01	1	0712-0811	●	●
84	SPRING; AIR DRYER EURO4 SPECIFICATION<NT4> (B)	1-48199-523-0	01	1	0812-	●
84	SPRING; AIR DRYER (B)	1-48199-523-0	01	1	0812-		●
93	SILENCER; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-619-0	01	1	0907-	●
93	SILENCER; AIR DRYER (A)	1-48199-619-0	01	1	0907-		●
93	SILENCER; AIR DRYER (A)	1-48199-575-0	01	1	0712-0811	●	●
93	SILENCER; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-575-0	01	1	0812-0906	●
93	SILENCER; AIR DRYER (A)	1-48199-575-0	01	1	0812-0906		●
93	SILENCER; AIR DRYER (B)	1-48199-581-0	01	1	0712-0811	●	●
93	SILENCER; AIR DRYER EURO4 SPECIFICATION<NT4> (B)	1-48199-581-0	01	1	0812-0908	●
93	SILENCER; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> BRAKE REGULATION ADR<TDU> (B)	1-48199-581-0	01	1	0812-0908	●
93	SILENCER; AIR DRYER (B)	1-48199-581-0	01	1	0812-0908		●
93	SILENCER; AIR DRYER EURO4 SPECIFICATION<NT4> (B)	1-48199-581-0	01	1	0909-	●
93	SILENCER; AIR DRYER (B)	1-48199-581-0	01	1	0909-		●
104	GASKET (A)	1-48199-495-0	01	1	0712-0811	●	●
104	GASKET EURO4 SPECIFICATION<NT4> (A)	1-48199-495-0	01	1	0812-1211	●
104	GASKET (A)	1-48199-495-0	01	1	0812-1211		●
104	GASKET EURO4 SPECIFICATION<NT4> (A)	8-98226-321-0	01	1	1212-	●
104	GASKET (A)	8-98226-321-0	01	1	1212-		●
104	GASKET (B)	1-48199-496-0	02	1	0712-0811	●	●
104	GASKET EURO4 SPECIFICATION<NT4> (B)	1-48199-496-0	02	1	0812-	●
104	GASKET (B)	1-48199-496-0	02	1	0812-		●
109	STOPPER; CHECK VALVE	1-48199-539-0	01	1	0712-0811	●	●
109	STOPPER; CHECK VALVE EURO4 SPECIFICATION<NT4>	1-48199-539-0	01	1	0812-	●
109	STOPPER; CHECK VALVE	1-48199-539-0	01	1	0812-		●
110	NUT; CAP	1-48199-527-0	01	1	0712-0811	●	●
110	NUT; CAP EURO4 SPECIFICATION<NT4>	1-48199-527-0	01	1	0812-	●
110	NUT; CAP	1-48199-527-0	01	1	0812-		●
111	PLATE; GOVERNOR	1-48199-526-0	01	1	0712-0811	●	●
111	PLATE; GOVERNOR EURO4 SPECIFICATION<NT4>	1-48199-526-0	01	1	0812-	●
111	PLATE; GOVERNOR	1-48199-526-0	01	1	0812-		●
112	SCREW & SPRING ASM; AIR DRYER	1-48199-524-0	01	1	0712-0811	●	●
112	SCREW & SPRING ASM; AIR DRYER EURO4 SPECIFICATION<NT4>	1-48199-524-0	01	1	0812-	●
112	SCREW & SPRING ASM; AIR DRYER	1-48199-524-0	01	1	0812-		●
113	STEM; EXHAUST	1-48199-522-0	01	1	0712-0811	●	●
113	STEM; EXHAUST EURO4 SPECIFICATION<NT4>	1-48199-522-0	01	1	0812-	●
113	STEM; EXHAUST	1-48199-522-0	01	1	0812-		●
114	PISTON ASM; GOVERNOR	1-48199-521-0	01	1	0712-0811	●	●
114	PISTON ASM; GOVERNOR EURO4 SPECIFICATION<NT4>	1-48199-521-0	01	1	0812-	●
114	PISTON ASM; GOVERNOR	1-48199-521-0	01	1	0812-		●

1 1 81 75 84 5 68 70 65 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48190-210-1	01	1	0812-	●
1	DRYER; AIR (A)	1-48190-370-1	01	1	0712-0811	●	●
1	DRYER; AIR EURO4 SPECIFICATION<NT4> (A)	1-48190-370-2	01	1	0812-1211	●
1	DRYER; AIR (A)	1-48190-370-2	01	1	0812-1211		●
1	DRYER; AIR EURO4 SPECIFICATION<NT4> (A)	8-98225-285-0	01	1	1212-	●
1	DRYER; AIR (A)	8-98225-285-0	01	1	1212-		●
5	HEATER ASM; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-085-0	01	1	0812-	●
5	HEATER ASM; AIR DRYER (A)	1-48199-530-0	01	1	0712-0811	●	●
5	HEATER ASM; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-530-0	01	1	0812-	●
5	HEATER ASM; AIR DRYER (A)	1-48199-530-0	01	1	0812-		●
6	COVER; EXH,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-404-0	01	1	0812-	●
7	RING; SNAP,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (E)	1-48199-403-0	01	1	0812-	●
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	0712-0811	●	●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (D)	1-47769-017-0	01	1	0812-0908	●
7	RING; SNAP,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> BRAKE REGULATION ADR<TDU> (D)	1-47769-017-0	01	1	0812-0908	●
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	0812-0908		●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (D)	1-47769-017-0	01	1	0909-	●
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	0909-		●
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	0712-0811	●	●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (C)	1-48199-520-0	02	1	0812-	●
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	0812-		●
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	0712-0811	●	●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (B)	1-48199-529-0	01	1	0812-	●
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	0812-		●
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	0712-0811	●	●
7	RING; SNAP,AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-579-0	01	1	0812-	●
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	0812-		●
65	BOLT; PURGE VLV EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-393-0	01	1	0812-	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0712-0811	●	●
65	BOLT; PURGE VLV EURO4 SPECIFICATION<NT4> (A)	1-48199-517-0	01	1	0812-	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0812-		●
68	BODY; VALVE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-408-0	01	1	0812-	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	0712-0811	●	●
68	BODY; VALVE EURO4 SPECIFICATION<NT4> (A)	1-48199-515-0	01	1	0812-	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	0812-		●
70	VALVE; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-105-0	01	1	0812-	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0712-0811	●	●
70	VALVE; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-504-0	01	1	0812-	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0812-		●
75	COVER; CASE,AIR DRYER	1-48199-427-0	01	1	0712-0811	●	●
75	COVER; CASE,AIR DRYER EURO4 SPECIFICATION<NT4>	1-48199-427-0	01	1	0812-	●
75	COVER; CASE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-427-0	01	1	0812-	●
75	COVER; CASE,AIR DRYER	1-48199-427-0	01	1	0812-		●
81	BOLT; CASE,AIR DRYER	1-48199-436-0	06	1	0712-0811	●	●
81	BOLT; CASE,AIR DRYER EURO4 SPECIFICATION<NT4>	1-48199-436-0	06	1	0812-	●
81	BOLT; CASE,AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7>	1-48199-436-0	06	1	0812-	●
81	BOLT; CASE,AIR DRYER	1-48199-436-0	06	1	0812-		●
84	SPRING; AIR DRYER (A)	1-48199-425-0	01	1	0712-0811	●	●
84	SPRING; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-425-0	01	1	0812-	●
84	SPRING; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A)	1-48199-425-0	01	1	0812-	●
84	SPRING; AIR DRYER (A)	1-48199-425-0	01	1	0812-		●
84	SPRING; AIR DRYER (B)	1-48199-523-0	01	1	0712-0811	●	●
84	SPRING; AIR DRYER EURO4 SPECIFICATION<NT4> (B)	1-48199-523-0	01	1	0812-	●
84	SPRING; AIR DRYER (B)	1-48199-523-0	01	1	0812-		●

2 3 104 68 104 104 104 104 70 104 65 70 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-85576-217-0	01	1	0812-	●
2	REPAIR KIT; AIR DRYER (A)	1-85576-457-0	01	1	0712-0811	●	●
2	REPAIR KIT; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-85576-457-0	01	1	0812-1211	●
2	REPAIR KIT; AIR DRYER (A)	1-85576-457-0	01	1	0812-1211		●
2	REPAIR KIT; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	8-98226-323-0	01	1	1212-	●
2	REPAIR KIT; AIR DRYER (A)	8-98226-323-0	01	1	1212-		●
3	PISTON KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-85576-193-0	01	1	0812-	●
3	PISTON KIT; AIR DRYER (A)	1-85576-383-0	01	1	0712-0811	●	●
3	PISTON KIT; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-85576-383-0	01	1	0812-1211	●
3	PISTON KIT; AIR DRYER (A)	1-85576-383-0	01	1	0812-1211		●
3	PISTON KIT; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	8-98226-322-0	01	1	1212-	●
3	PISTON KIT; AIR DRYER (A)	8-98226-322-0	01	1	1212-		●
4	THERMOSTAT KIT; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-85576-218-0	01	1	0812-	●
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-443-0	01	1	0712-0811	●	●
4	THERMOSTAT KIT; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-85576-443-0	01	1	0812-	●
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-443-0	01	1	0812-		●
65	BOLT; PURGE VLV EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-393-0	01	1	0812-	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0712-0811	●	●
65	BOLT; PURGE VLV EURO4 SPECIFICATION<NT4> (A)	1-48199-517-0	01	1	0812-	●
65	BOLT; PURGE VLV (A)	1-48199-517-0	01	1	0812-		●
68	BODY; VALVE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-408-0	01	1	0812-	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	0712-0811	●	●
68	BODY; VALVE EURO4 SPECIFICATION<NT4> (A)	1-48199-515-0	01	1	0812-	●
68	BODY; VALVE (A)	1-48199-515-0	01	1	0812-		●
70	VALVE; AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B)	1-48199-105-0	01	1	0812-	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0712-0811	●	●
70	VALVE; AIR DRYER EURO4 SPECIFICATION<NT4> (A)	1-48199-504-0	01	1	0812-	●
70	VALVE; AIR DRYER (A)	1-48199-504-0	01	1	0812-		●
104	GASKET (A)	1-48199-495-0	01	1	0712-0811	●	●
104	GASKET EURO4 SPECIFICATION<NT4> (A)	1-48199-495-0	01	1	0812-1211	●
104	GASKET (A)	1-48199-495-0	01	1	0812-1211		●
104	GASKET EURO4 SPECIFICATION<NT4> (A)	8-98226-321-0	01	1	1212-	●
104	GASKET (A)	8-98226-321-0	01	1	1212-		●
104	GASKET (B)	1-48199-496-0	02	1	0712-0811	●	●
104	GASKET EURO4 SPECIFICATION<NT4> (B)	1-48199-496-0	02	1	0812-	●
104	GASKET (B)	1-48199-496-0	02	1	0812-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
