◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#66714) — 100 parça

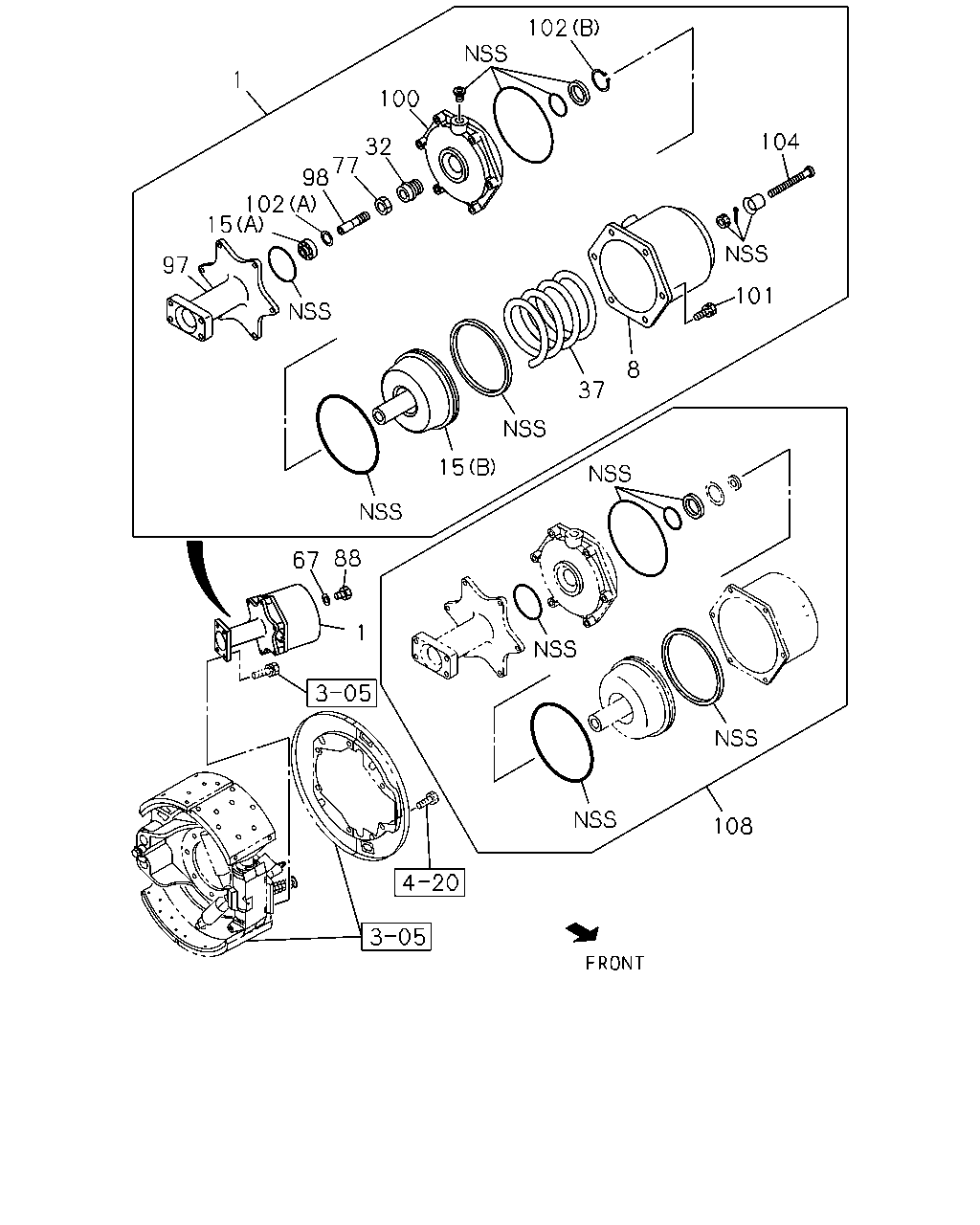

çizim 118351
102 1 100 104 32 77 98 102 15 97 101 8 37 15 88 67 1 108
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-914-0 01 1 0712-1002 ●
1 CHAMBER ASM; SPRING 1-48250-914-0 01 1 0712-1002 ●
1 CHAMBER ASM; SPRING
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-914-0 01 1 1003-1404 ●
1 CHAMBER ASM; SPRING 1-48250-914-0 01 1 1003-1404 ●
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-914-0 01 1 1405- ● ●
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-915-0 01 1 0712-1002 ●
1 CHAMBER ASM; SPRING 1-48250-915-0 01 1 0712-1002 ●
1 CHAMBER ASM; SPRING
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-915-0 01 1 1003-1404 ●
1 CHAMBER ASM; SPRING 1-48250-915-0 01 1 1003-1404 ●
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-915-0 01 1 1405- ● ●
8 SHELL; CYL,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-193-0 01 1 0712-1002 ●
8 SHELL; CYL,SPR CHAMBER 1-48251-193-0 01 1 0712-1002 ●
8 SHELL; CYL,SPR CHAMBER
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-193-0 01 1 1003-1404 ●
8 SHELL; CYL,SPR CHAMBER 1-48251-193-0 01 1 1003-1404 ●
8 SHELL; CYL,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-193-0 01 1 1405- ● ●
8 SHELL; CYL,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-194-0 01 1 0712-1002 ●
8 SHELL; CYL,SPR CHAMBER 1-48251-194-0 01 1 0712-1002 ●
8 SHELL; CYL,SPR CHAMBER
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-194-0 01 1 1003-1404 ●
8 SHELL; CYL,SPR CHAMBER 1-48251-194-0 01 1 1003-1404 ●
8 SHELL; CYL,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-194-0 01 1 1405- ● ●
15 PISTON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48262-027-0 02 1 0712-1002 ●
15 PISTON
(B) 		1-48262-027-0 02 1 0712-1002 ●
15 PISTON
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48262-027-0 02 1 1003-1404 ●
15 PISTON
(B) 		1-48262-027-0 02 1 1003-1404 ●
15 PISTON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48262-027-0 02 1 1405- ● ●
15 PISTON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48263-024-0 02 1 0712-1002 ●
15 PISTON
(A) 		1-48263-024-0 02 1 0712-1002 ●
15 PISTON
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48263-024-0 02 1 1003-1404 ●
15 PISTON
(A) 		1-48263-024-0 02 1 1003-1404 ●
15 PISTON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48263-024-0 02 1 1405- ● ●
32 CONNECTOR; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48263-026-0 02 1 0712-1002 ●
32 CONNECTOR; SPR CHAMBER 1-48263-026-0 02 1 0712-1002 ●
32 CONNECTOR; SPR CHAMBER
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48263-026-0 02 1 1003-1404 ●
32 CONNECTOR; SPR CHAMBER 1-48263-026-0 02 1 1003-1404 ●
32 CONNECTOR; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48263-026-0 02 1 1405- ● ●
37 SPRING; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48265-010-0 02 1 0712-1002 ●
37 SPRING; LWR,SPR CHAMBER 1-48265-010-0 02 1 0712-1002 ●
37 SPRING; LWR,SPR CHAMBER
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48265-010-0 02 1 1003-1404 ●
37 SPRING; LWR,SPR CHAMBER 1-48265-010-0 02 1 1003-1404 ●
37 SPRING; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48265-010-0 02 1 1405- ● ●
67 GASKET; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2 OD=24 		9-09571-416-0 02 1 0712-1002 ●
67 GASKET; SPR CHAMBER
ID=16.2 OD=24 		9-09571-416-0 02 1 0712-1002 ●
67 GASKET; SPR CHAMBER
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2 OD=24 		9-09571-416-0 02 1 1003-1404 ●
67 GASKET; SPR CHAMBER
ID=16.2 OD=24 		9-09571-416-0 02 1 1003-1404 ●
67 GASKET; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2 OD=24 		9-09571-416-0 02 1 1405- ● ●
77 NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18 		9-99111-418-0 02 1 0712-1002 ●
77 NUT; SPR CHAMBER BRK
M18 		9-99111-418-0 02 1 0712-1002 ●
77 NUT; SPR CHAMBER BRK
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18 		9-99111-418-0 02 1 1003-1404 ●
77 NUT; SPR CHAMBER BRK
M18 		9-99111-418-0 02 1 1003-1404 ●
77 NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18 		9-99111-418-0 02 1 1405- ● ●
88 PLUG; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X12 		0-92002-416-0 02 1 0712-1002 ●
88 PLUG; SPR CHAMBER
M16X12 		0-92002-416-0 02 1 0712-1002 ●
88 PLUG; SPR CHAMBER
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X12 		0-92002-416-0 02 1 1003-1404 ●
88 PLUG; SPR CHAMBER
M16X12 		0-92002-416-0 02 1 1003-1404 ●
88 PLUG; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X12 		0-92002-416-0 02 1 1405- ● ●
97 BRACKET; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48258-243-0 01 1 0712-1002 ●
97 BRACKET; CHAMBER 1-48258-243-0 01 1 0712-1002 ●
97 BRACKET; CHAMBER
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48258-243-0 01 1 1003-1404 ●
97 BRACKET; CHAMBER 1-48258-243-0 01 1 1003-1404 ●
97 BRACKET; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48258-243-0 01 1 1405- ● ●
97 BRACKET; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48258-244-0 01 1 0712-1002 ●
97 BRACKET; CHAMBER 1-48258-244-0 01 1 0712-1002 ●
97 BRACKET; CHAMBER
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48258-244-0 01 1 1003-1404 ●
97 BRACKET; CHAMBER 1-48258-244-0 01 1 1003-1404 ●
97 BRACKET; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48258-244-0 01 1 1405- ● ●
98 ROD; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48263-037-0 02 1 0712-1002 ●
98 ROD; CHAMBER 1-48263-037-0 02 1 0712-1002 ●
98 ROD; CHAMBER
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48263-037-0 02 1 1003-1404 ●
98 ROD; CHAMBER 1-48263-037-0 02 1 1003-1404 ●
98 ROD; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48263-037-0 02 1 1405- ● ●
100 HOUSING; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-106-0 02 1 0712-1002 ●
100 HOUSING; SPR CHAMBER 1-48251-106-0 02 1 0712-1002 ●
100 HOUSING; SPR CHAMBER
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-106-0 02 1 1003-1404 ●
100 HOUSING; SPR CHAMBER 1-48251-106-0 02 1 1003-1404 ●
100 HOUSING; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-106-0 02 1 1405- ● ●
101 BOLT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-169-0 12 1 0712-1002 ●
101 BOLT; SPR CHAMBER 1-48269-169-0 12 1 0712-1002 ●
101 BOLT; SPR CHAMBER
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-169-0 12 1 1003-1404 ●
101 BOLT; SPR CHAMBER 1-48269-169-0 12 1 1003-1404 ●
101 BOLT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-169-0 12 1 1405- ● ●
102 RING; SNAP,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48269-092-0 02 1 0712-1002 ●
102 RING; SNAP,SPR CHAMBER
(A) 		1-48269-092-0 02 1 0712-1002 ●
102 RING; SNAP,SPR CHAMBER
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48269-092-0 02 1 1003-1404 ●
102 RING; SNAP,SPR CHAMBER
(A) 		1-48269-092-0 02 1 1003-1404 ●
102 RING; SNAP,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48269-092-0 02 1 1405- ● ●
102 RING; SNAP,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=15.7 		9-09180-017-0 02 1 0712-1002 ●
102 RING; SNAP,SPR CHAMBER
(B) ID=15.7 		9-09180-017-0 02 1 0712-1002 ●
102 RING; SNAP,SPR CHAMBER
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=15.7 		9-09180-017-0 02 1 1003-1404 ●
102 RING; SNAP,SPR CHAMBER
(B) ID=15.7 		9-09180-017-0 02 1 1003-1404 ●
102 RING; SNAP,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=15.7 		9-09180-017-0 02 1 1405- ● ●
104 BOLT; RELEASE,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-163-0 02 1 0712-1002 ●
104 BOLT; RELEASE,SPR CHAMBER 1-48269-163-0 02 1 0712-1002 ●
104 BOLT; RELEASE,SPR CHAMBER
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-163-0 02 1 1003-1404 ●
104 BOLT; RELEASE,SPR CHAMBER 1-48269-163-0 02 1 1003-1404 ●
104 BOLT; RELEASE,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48269-163-0 02 1 1405- ● ●
108 REPAIR KIT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-465-0 02 1 0712-1002 ●
108 REPAIR KIT; SPR CHAMBER 1-85576-465-0 02 1 0712-1002 ●
108 REPAIR KIT; SPR CHAMBER
FINAL GEAR 39/7 15.5"(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-465-0 02 1 1003-1404 ●
108 REPAIR KIT; SPR CHAMBER 1-85576-465-0 02 1 1003-1404 ●
108 REPAIR KIT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-465-0 02 1 1405- ● ●
