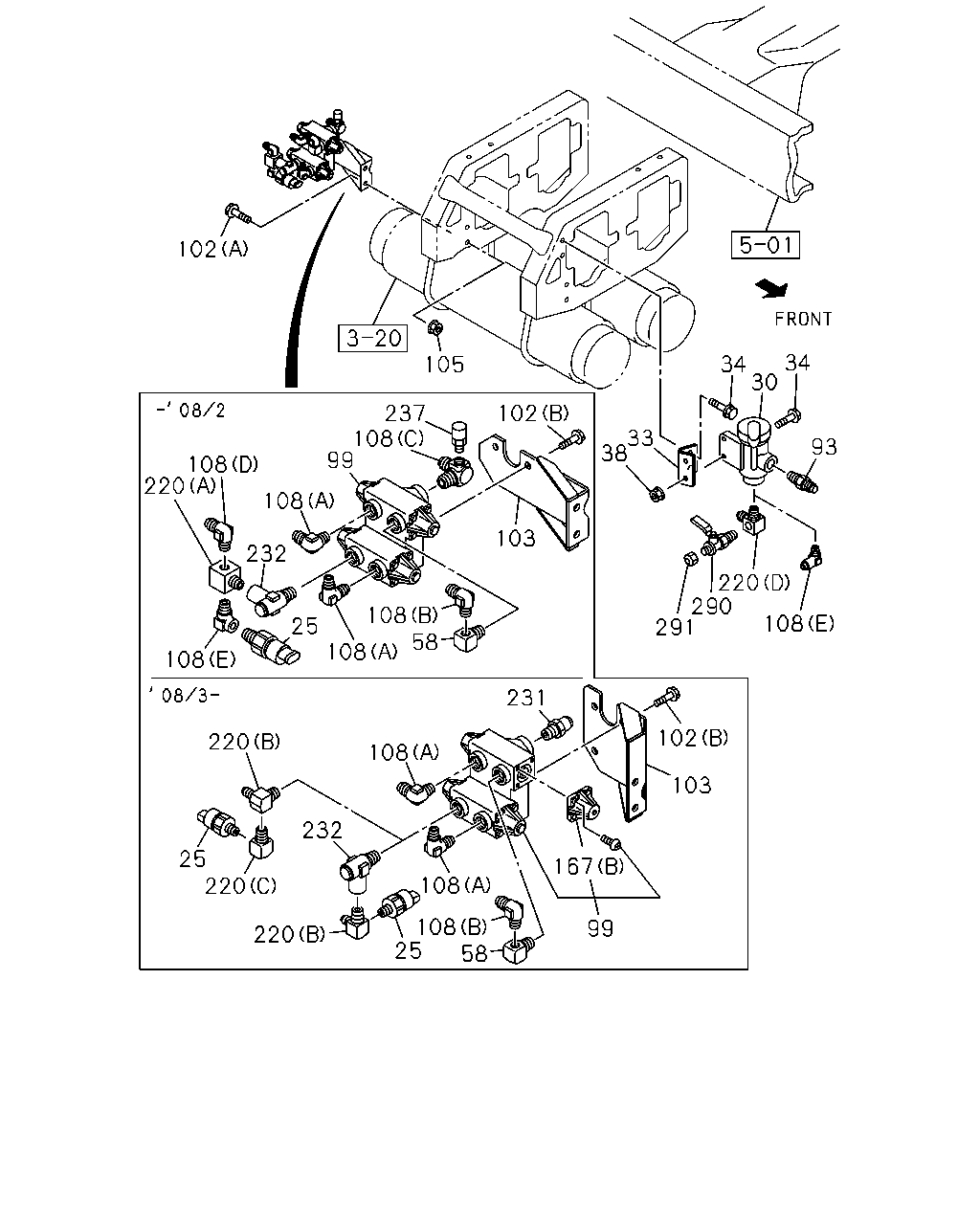

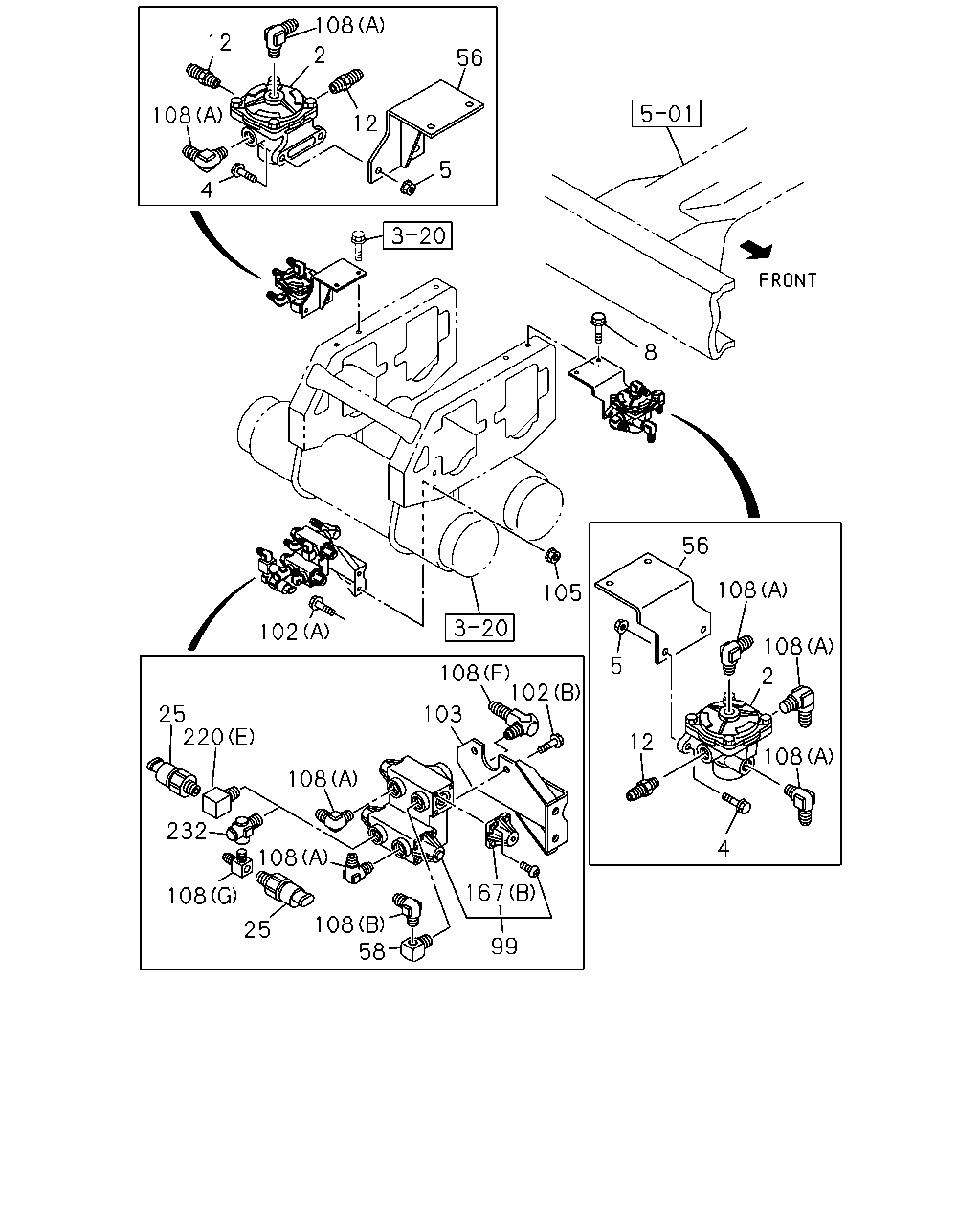

25 |
SWITCH; PRESSURE
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0712-0802 |
● |
● |
| |
25 |
SWITCH; PRESSURE
BRAKE REGULATION ADR<TDU>
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0803-0803 |
● |
|
| |
25 |
SWITCH; PRESSURE
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0803-0803 |
|
● |
| |
25 |
SWITCH; PRESSURE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
BRAKE REGULATION ADR<TDU>
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0804-1002 |
● |
|
| |
25 |
SWITCH; PRESSURE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0804-1002 |
● |
|
| |
25 |
SWITCH; PRESSURE
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0804-1002 |
|
● |
| |
25 |
SWITCH; PRESSURE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ADR<TDU>
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
1003- |
● |
|
| |
25 |
SWITCH; PRESSURE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91>,
BRAKEREGULATION ADR<TDU>
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
1003- |
● |
|
| |
25 |
SWITCH; PRESSURE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TRAILER BRAKE CONTROL<J91>,BRAKE REGULATION
ADR<TDU>
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
1003- |
● |
|
| |
25 |
SWITCH; PRESSURE
TRAILER BRAKE CONTROL<J91>
EXC. ANTI LOCK BRAKE<JE5>,BRAKE REGULATION
ADR<TDU>
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
1003- |
● |
|
| |
25 |
SWITCH; PRESSURE
ANTI LOCK BRAKE<JE5>
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
1003- |
● |
|
| |
25 |
SWITCH; PRESSURE
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
1003- |
|
● |
| |
30 |
GOVERNOR; AIR CONT
EURO2 SPECIFICATION<NT2>
|
1-48350-093-2 |
01 |
1 |
0812- |
● |
|
| |
33 |
BRACKET; GOV,AIR CONT
EURO2 SPECIFICATION<NT2>
|
8-98120-459-1 |
01 |
1 |
0812- |
● |
|
| |
34 |
BOLT; BRKT,GOV
EURO2 SPECIFICATION<NT2>
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0812- |
● |
|
| |
34 |
BOLT; BRKT,GOV
EURO2 SPECIFICATION<NT2>
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0812- |
● |
|
| |
38 |
NUT; BRKT,GOV
EURO2 SPECIFICATION<NT2>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0812- |
● |
|
| |
38 |
NUT; BRKT,GOV
EURO2 SPECIFICATION<NT2>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0812- |
● |
|
| |
58 |
ADAPTER
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
0712-0802 |
● |
● |
| |
58 |
ADAPTER
BRAKE REGULATION ADR<TDU>
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
0803-0803 |
● |
|
| |
58 |
ADAPTER
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
0803-0803 |
|
● |
| |
58 |
ADAPTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
BRAKE REGULATION ADR<TDU>
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
0804-1002 |
● |
|
| |
58 |
ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
0804-1002 |
● |
|
| |
58 |
ADAPTER
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
0804-1002 |
|
● |
| |
58 |
ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ADR<TDU>
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
1003- |
● |
|
| |
58 |
ADAPTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91>,
BRAKEREGULATION ADR<TDU>
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
1003- |
● |
|
| |
58 |
ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TRAILER BRAKE CONTROL<J91>,BRAKE REGULATION
ADR<TDU>
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
1003- |
● |
|
| |
58 |
ADAPTER
TRAILER BRAKE CONTROL<J91>
EXC. ANTI LOCK BRAKE<JE5>,BRAKE REGULATION
ADR<TDU>
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
1003- |
● |
|
| |
58 |
ADAPTER
ANTI LOCK BRAKE<JE5>
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
1003- |
● |
|
| |
58 |
ADAPTER
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
1003- |
|
● |
| |
93 |
CONNECTOR; GOV
EURO2 SPECIFICATION<NT2>
EXC. ANTI LOCK BRAKE<JE5>
M12 & PT1/4 STRAIGHT
|
1-09650-074-1 |
01 |
1 |
1003- |
● |
|
| |
93 |
CONNECTOR; GOV
EURO2 SPECIFICATION<NT2>
M12 & PT1/4 STRAIGHT
|
1-09650-074-1 |
01 |
1 |
0812-1002 |
● |
|
| |
93 |
CONNECTOR; GOV
ANTI LOCK BRAKE<JE5>
EURO2 SPECIFICATION<NT2>
M12 & PT1/4 STRAIGHT
|
1-09650-074-1 |
02 |
1 |
1003- |
● |
|
| |
99 |
VALVE; PROTECTION
BRAKE REGULATION ADR<TDU>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48110-293-0 |
01 |
1 |
0803-0803 |
● |
|
| |
99 |
VALVE; PROTECTION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRAKE REGULATION ADR<TDU>
|
1-48110-288-0 |
01 |
1 |
0804-1002 |
● |
|
| |
99 |
VALVE; PROTECTION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TRAILER BRAKE CONTROL<J91>,BRAKE REGULATION
ADR<TDU>
|
1-48110-288-3 |
01 |
1 |
1003- |
● |
|
| |
99 |
VALVE; PROTECTION
TRAILER BRAKE CONTROL<J91>
EXC. ANTI LOCK BRAKE<JE5>,BRAKE REGULATION
ADR<TDU>
|
1-48110-288-3 |
01 |
1 |
1003- |
● |
|
| |
99 |
VALVE; PROTECTION
ANTI LOCK BRAKE<JE5>
TRAILER BRAKE CONTROL<J91>
|
1-48110-288-3 |
01 |
1 |
1003- |
● |
|
| |
99 |
VALVE; PROTECTION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
BRAKE REGULATION ADR<TDU>
|
1-48110-287-0 |
01 |
1 |
0804-1002 |
● |
|
| |
99 |
VALVE; PROTECTION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91>,
BRAKEREGULATION ADR<TDU>
|
1-48110-287-3 |
01 |
1 |
1003- |
● |
|
| |
99 |
VALVE; PROTECTION
ANTI LOCK BRAKE<JE5>
EXC. TRAILER BRAKE CONTROL<J91>
|
1-48110-287-3 |
01 |
1 |
1003- |
● |
|
| |
99 |
VALVE; PROTECTION
|
1-48110-294-0 |
01 |
1 |
0712-0802 |
● |
● |
| |
99 |
VALVE; PROTECTION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ADR<TDU>
|
1-48110-294-3 |
01 |
1 |
0803- |
● |
|
| |
99 |
VALVE; PROTECTION
|
1-48110-294-3 |
01 |
1 |
0803- |
|
● |
| |
102 |
BOLT; PROTECTION VALVE
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0712-0802 |
● |
● |
| |
102 |
BOLT; PROTECTION VALVE
BRAKE REGULATION ADR<TDU>
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0803-0803 |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0803-0803 |
|
● |
| |
102 |
BOLT; PROTECTION VALVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
BRAKE REGULATION ADR<TDU>
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0804-1002 |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0804-1002 |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0804-1002 |
|
● |
| |
102 |
BOLT; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ADR<TDU>
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1003- |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91>,
BRAKEREGULATION ADR<TDU>
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1003- |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TRAILER BRAKE CONTROL<J91>,BRAKE REGULATION
ADR<TDU>
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1003- |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
TRAILER BRAKE CONTROL<J91>
EXC. ANTI LOCK BRAKE<JE5>,BRAKE REGULATION
ADR<TDU>
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1003- |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
ANTI LOCK BRAKE<JE5>
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1003- |
● |
|
| |
102 |
BOLT; PROTECTION VALVE
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1003- |
|
● |
| |
102 |
BOLT; PROTECTION VALVE
(A)
M10X25 FLANGE
|
0-28651-025-0 |
02 |
1 |
0712- |
● |
● |
| |
103 |
BRACKET; PROTECTION VALVE
ANTI LOCK BRAKE<JE5>
|
8-97622-131-0 |
01 |
1 |
1003- |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
|
8-98098-183-0 |
01 |
1 |
0712-0802 |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
BRAKE REGULATION ADR<TDU>
|
8-98111-527-0 |
01 |
1 |
0803-0803 |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
|
8-98111-527-0 |
01 |
1 |
0803-0803 |
|
● |
| |
103 |
BRACKET; PROTECTION VALVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
BRAKE REGULATION ADR<TDU>
|
8-98111-527-1 |
01 |
1 |
0804-1002 |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
8-98111-527-1 |
01 |
1 |
0804-1002 |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
|
8-98111-527-1 |
01 |
1 |
0804-1002 |
|
● |
| |
103 |
BRACKET; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ADR<TDU>
|
8-98111-527-1 |
01 |
1 |
1003- |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91>,
BRAKEREGULATION ADR<TDU>
|
8-98111-527-1 |
01 |
1 |
1003- |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TRAILER BRAKE CONTROL<J91>,BRAKE REGULATION
ADR<TDU>
|
8-98111-527-1 |
01 |
1 |
1003- |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
TRAILER BRAKE CONTROL<J91>
EXC. ANTI LOCK BRAKE<JE5>,BRAKE REGULATION
ADR<TDU>
|
8-98111-527-1 |
01 |
1 |
1003- |
● |
|
| |
103 |
BRACKET; PROTECTION VALVE
|
8-98111-527-1 |
01 |
1 |
1003- |
|
● |
| |
103 |
BRACKET; PROTECTION VALVE
|
8-97615-744-0 |
01 |
1 |
0712-0802 |
|
● |
| |
105 |
NUT; BRKT,VALVE
ANTI LOCK BRAKE<JE5>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1003- |
● |
|
| |
105 |
NUT; BRKT,VALVE
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0712-0803 |
● |
● |
| |
108 |
CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5>
(F)
|
1-09650-516-0 |
01 |
1 |
1003- |
● |
|
| |
108 |
CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5>
TRAILER BRAKE CONTROL<J91>
(G)
|
8-98148-475-0 |
01 |
1 |
1003- |
● |
|
| |
108 |
CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91>,
BRAKEREGULATION ADR<TDU>
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
01 |
1 |
1003- |
● |
|
| |
108 |
CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5>
EXC. TRAILER BRAKE CONTROL<J91>
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
01 |
1 |
1003- |
● |
|
| |
108 |
CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2>
EXC. TIRE INFLATOR DEVICE(SG4)
(E)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
0812-1002 |
● |
|
| |
108 |
CONNECTOR; ELBOW
EURO2 SPECIFICATION<NT2>
EXC. ANTI LOCK BRAKE<JE5>,TIRE INFLATOR
DEVICE(SG4)
(E)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
1003- |
● |
|
| |
108 |
CONNECTOR; ELBOW
(B)
M16 & PT1/4 ELBOW
|
0-92134-310-0 |
01 |
1 |
0712-0802 |
● |
● |
| |
108 |
CONNECTOR; ELBOW
BRAKE REGULATION ADR<TDU>
(B)
M16 & PT1/4 ELBOW
|
0-92134-310-0 |
01 |
1 |
0803-0803 |
● |
|
| |
108 |
CONNECTOR; ELBOW
(B)
M16 & PT1/4 ELBOW
|
0-92134-310-0 |
01 |
1 |
0803-0803 |
|
● |
| |
108 |
CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
BRAKE REGULATION ADR<TDU>
(B)
M16 & PT1/4 ELBOW
|
0-92134-310-0 |
01 |
1 |
0804-1002 |
● |
|
| |
108 |
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
M16 & PT1/4 ELBOW
|
0-92134-310-0 |
01 |
1 |
0804-1002 |
● |
|
| |
108 |
CONNECTOR; ELBOW
(B)
M16 & PT1/4 ELBOW
|
0-92134-310-0 |
01 |
1 |
0804-1002 |
|
● |
| |
108 |
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ADR<TDU>
(B)
M16 & PT1/4 ELBOW
|
0-92134-310-0 |
01 |
1 |
1003- |
● |
|
| |
108 |
CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91>,
BRAKEREGULATION ADR<TDU>
(B)
M16 & PT1/4 ELBOW
|
0-92134-310-0 |
01 |
1 |
1003- |
● |
|
| |
108 |
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TRAILER BRAKE CONTROL<J91>,BRAKE REGULATION
ADR<TDU>
(B)
M16 & PT1/4 ELBOW
|
0-92134-310-0 |
01 |
1 |
1003- |
● |
|
| |
108 |
CONNECTOR; ELBOW
TRAILER BRAKE CONTROL<J91>
EXC. ANTI LOCK BRAKE<JE5>,BRAKE REGULATION
ADR<TDU>
(B)
M16 & PT1/4 ELBOW
|
0-92134-310-0 |
01 |
1 |
1003- |
● |
|
| |
108 |
CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5>
(B)
M16 & PT1/4 ELBOW
|
0-92134-310-0 |
01 |
1 |
1003- |
● |
|
| |
108 |
CONNECTOR; ELBOW
(B)
M16 & PT1/4 ELBOW
|
0-92134-310-0 |
01 |
1 |
1003- |
|
● |
| |
108 |
CONNECTOR; ELBOW
(D)
M12 & PT3/8 ELBOW
|
1-09650-436-0 |
01 |
1 |
0712-0802 |
|
● |
| |
108 |
CONNECTOR; ELBOW
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
02 |
1 |
0712-0802 |
● |
● |
| |
108 |
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ADR<TDU>
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
02 |
1 |
0803-0803 |
● |
|
| |
108 |
CONNECTOR; ELBOW
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
02 |
1 |
0803-0803 |
|
● |
| |
108 |
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
02 |
1 |
0804-1002 |
● |
|
| |
108 |
CONNECTOR; ELBOW
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
02 |
1 |
0804-1002 |
|
● |
| |
108 |
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ADR<TDU>
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
02 |
1 |
1003- |
● |
|
| |
108 |
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TRAILER BRAKE CONTROL<J91>,BRAKE REGULATION
ADR<TDU>
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
02 |
1 |
1003- |
● |
|
| |
108 |
CONNECTOR; ELBOW
TRAILER BRAKE CONTROL<J91>
EXC. ANTI LOCK BRAKE<JE5>,BRAKE REGULATION
ADR<TDU>
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
02 |
1 |
1003- |
● |
|
| |
108 |
CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5>
TRAILER BRAKE CONTROL<J91>
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
02 |
1 |
1003- |
● |
|
| |
108 |
CONNECTOR; ELBOW
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
02 |
1 |
1003- |
|
● |
| |
108 |
CONNECTOR; ELBOW
(C)
M20 & PT1/2 ELBOW
|
1-09650-443-0 |
01 |
1 |
0712-0802 |
● |
● |
| |
108 |
CONNECTOR; ELBOW
(E)
PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
0712-0802 |
● |
● |
| |
108 |
CONNECTOR; ELBOW
BRAKE REGULATION ADR<TDU>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
01 |
1 |
0803-0803 |
● |
|
| |
108 |
CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
BRAKE REGULATION ADR<TDU>
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
01 |
1 |
0804-1002 |
● |
|
| |
108 |
CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5>
(A)
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
05 |
1 |
1003- |
● |
|
| |

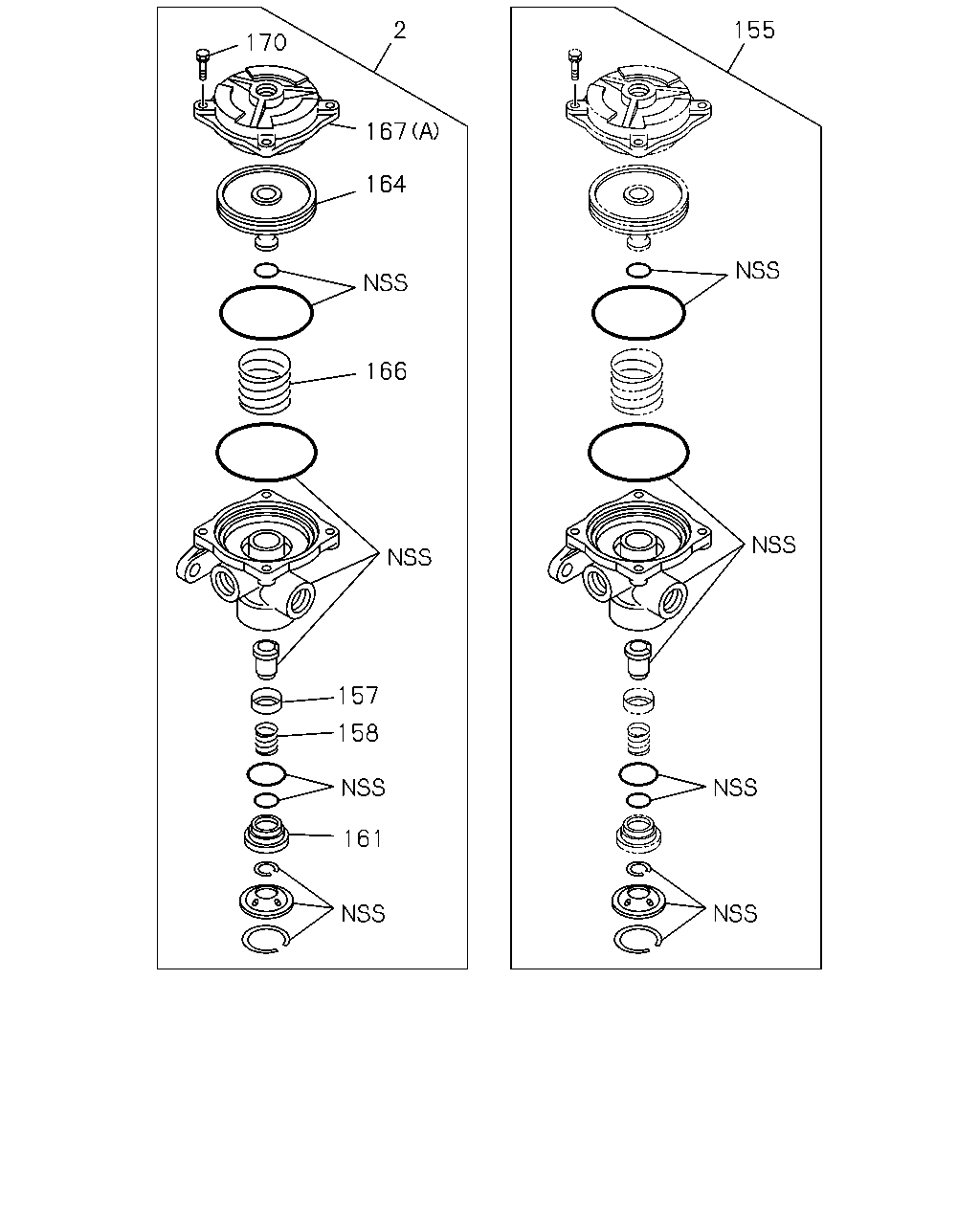

167 |
COVER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-48119-625-0 |
04 |
1 |
0907-1002 |
● |
|
| |
167 |
COVER; VALVE
(B)
|
1-48119-625-0 |
04 |
1 |
0907-1002 |
|
● |
| |
167 |
COVER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ADR<TDU>
(B)
|
1-48119-625-0 |
04 |
1 |
1003-1506 |
● |
|
| |
167 |
COVER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TRAILER BRAKE CONTROL<J91>,BRAKE REGULATION
ADR<TDU>
(B)
|
1-48119-625-0 |
04 |
1 |
1003-1506 |
● |
|
| |
167 |
COVER; VALVE
TRAILER BRAKE CONTROL<J91>
EXC. ANTI LOCK BRAKE<JE5>,BRAKE REGULATION
ADR<TDU>
(B)
|
1-48119-625-0 |
04 |
1 |
1003-1506 |
● |
|
| |
167 |
COVER; VALVE
ANTI LOCK BRAKE<JE5>
TRAILER BRAKE CONTROL<J91>
(B)
|
1-48119-625-0 |
04 |
1 |
1003-1506 |
● |
|
| |
167 |
COVER; VALVE
(B)
|
1-48119-625-0 |
04 |
1 |
1003-1506 |
|
● |
| |
167 |
COVER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ADR<TDU>
(B)
|
1-48119-625-0 |
04 |
1 |
1507- |
● |
|
| |
167 |
COVER; VALVE
(B)
|
1-48119-625-0 |
04 |
1 |
1507- |
|
● |
| |
167 |
COVER; VALVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
BRAKE REGULATION ADR<TDU>
(B)
|
1-48119-625-0 |
03 |
1 |
0907-1002 |
● |
|
| |
167 |
COVER; VALVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91>,
BRAKEREGULATION ADR<TDU>
(B)
|
1-48119-625-0 |
03 |
1 |
1003-1506 |
● |
|
| |
167 |
COVER; VALVE
ANTI LOCK BRAKE<JE5>
EXC. TRAILER BRAKE CONTROL<J91>
(B)
|
1-48119-625-0 |
03 |
1 |
1003-1506 |
● |
|
| |
167 |
COVER; VALVE
ANTI LOCK BRAKE<JE5>
(A)
|
1-48219-070-0 |
02 |
1 |
1003- |
● |
|
| |
220 |
CONNECTOR; 3WAY
ANTI LOCK BRAKE<JE5>
EXC. TRAILER BRAKE CONTROL<J91>
(E)
|
8-98131-540-0 |
01 |
1 |
1003- |
● |
|
| |
220 |
CONNECTOR; 3WAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
BRAKE REGULATION ADR<TDU>
(C)
PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
0809-1002 |
● |
|
| |
220 |
CONNECTOR; 3WAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91>,
BRAKEREGULATION ADR<TDU>
(C)
PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
1003- |
● |
|
| |
220 |
CONNECTOR; 3WAY
EURO2 SPECIFICATION<NT2>
TIRE INFLATOR DEVICE(SG4)
(D)
PT1/4 & M12 ELBOW
|
1-09656-666-0 |
01 |
1 |
0812-1002 |
● |
|
| |
220 |
CONNECTOR; 3WAY
EURO2 SPECIFICATION<NT2>
TIRE INFLATOR DEVICE(SG4)
EXC. ANTI LOCK BRAKE<JE5>
(D)
PT1/4 & M12 ELBOW
|
1-09656-666-0 |
01 |
1 |
1003- |
● |
|
| |
220 |
CONNECTOR; 3WAY
(A)
|
1-09656-734-0 |
01 |
1 |
0712-0802 |
● |
|
| |
220 |
CONNECTOR; 3WAY
BRAKE REGULATION ADR<TDU>
(B)
|
1-09656-698-0 |
01 |
1 |
0803-0803 |
● |
|
| |
220 |
CONNECTOR; 3WAY
(B)
|
1-09656-698-0 |
01 |
1 |
0803-0803 |
|
● |
| |
220 |
CONNECTOR; 3WAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
BRAKE REGULATION ADR<TDU>
(B)
|
1-09656-698-0 |
01 |
1 |
0804-1002 |
● |
|
| |
220 |
CONNECTOR; 3WAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-09656-698-0 |
01 |
1 |
0804-1002 |
● |
|
| |
220 |
CONNECTOR; 3WAY
(B)
|
1-09656-698-0 |
01 |
1 |
0804-1002 |
|
● |
| |
220 |
CONNECTOR; 3WAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ADR<TDU>
(B)
|
1-09656-698-0 |
01 |
1 |
1003- |
● |
|
| |
220 |
CONNECTOR; 3WAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91>,
BRAKEREGULATION ADR<TDU>
(B)
|
1-09656-698-0 |
01 |
1 |
1003- |
● |
|
| |
220 |
CONNECTOR; 3WAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TRAILER BRAKE CONTROL<J91>,BRAKE REGULATION
ADR<TDU>
(B)
|
1-09656-698-0 |
01 |
1 |
1003- |
● |
|
| |
220 |
CONNECTOR; 3WAY
TRAILER BRAKE CONTROL<J91>
EXC. ANTI LOCK BRAKE<JE5>,BRAKE REGULATION
ADR<TDU>
(B)
|
1-09656-698-0 |
01 |
1 |
1003- |
● |
|
| |
220 |
CONNECTOR; 3WAY
(B)
|
1-09656-698-0 |
01 |
1 |
1003- |
|
● |
| |
220 |
CONNECTOR; 3WAY
(A)
|
1-09656-708-0 |
01 |
1 |
0712-0802 |
|
● |
| |
231 |
CONNECTOR; NYLON TUBE
BRAKE REGULATION ADR<TDU>
M20 & PT1/2 STRAIGHT
|
1-09650-249-1 |
01 |
1 |
0803-0803 |
● |
|
| |
231 |
CONNECTOR; NYLON TUBE
M20 & PT1/2 STRAIGHT
|
1-09650-249-1 |
01 |
1 |
0803-0803 |
|
● |
| |
231 |
CONNECTOR; NYLON TUBE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
BRAKE REGULATION ADR<TDU>
M20 & PT1/2 STRAIGHT
|
1-09650-249-1 |
01 |
1 |
0804-1002 |
● |
|
| |
231 |
CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M20 & PT1/2 STRAIGHT
|
1-09650-249-1 |
01 |
1 |
0804-1002 |
● |
|
| |
231 |
CONNECTOR; NYLON TUBE
M20 & PT1/2 STRAIGHT
|
1-09650-249-1 |
01 |
1 |
0804-1002 |
|
● |
| |
231 |
CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ADR<TDU>
M20 & PT1/2 STRAIGHT
|
1-09650-249-1 |
01 |
1 |
1003- |
● |
|
| |
231 |
CONNECTOR; NYLON TUBE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),
ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91>,
BRAKEREGULATION ADR<TDU>
M20 & PT1/2 STRAIGHT
|
1-09650-249-1 |
01 |
1 |
1003- |
● |
|
| |
231 |
CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TRAILER BRAKE CONTROL<J91>,BRAKE REGULATION
ADR<TDU>
M20 & PT1/2 STRAIGHT
|
1-09650-249-1 |
01 |
1 |
1003- |
● |
|
| |
231 |
CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91>
EXC. ANTI LOCK BRAKE<JE5>,BRAKE REGULATION
ADR<TDU>
M20 & PT1/2 STRAIGHT
|
1-09650-249-1 |
01 |
1 |
1003- |
● |
|
| |
231 |
CONNECTOR; NYLON TUBE
M20 & PT1/2 STRAIGHT
|
1-09650-249-1 |
01 |
1 |
1003- |
|
● |
| |
232 |
VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
0712-0802 |
● |
● |
| |
232 |
VALVE; CHECK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ADR<TDU>
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
0803-0803 |
● |
|
| |
232 |
VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
0803-0803 |
|
● |
| |
232 |
VALVE; CHECK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
0804-1002 |
● |
|
| |
232 |
VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
0804-1002 |
|
● |
| |
232 |
VALVE; CHECK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE REGULATION ADR<TDU>
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
1003- |
● |
|
| |
232 |
VALVE; CHECK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. TRAILER BRAKE CONTROL<J91>,BRAKE REGULATION
ADR<TDU>
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
1003- |
● |
|
| |
232 |
VALVE; CHECK
TRAILER BRAKE CONTROL<J91>
EXC. ANTI LOCK BRAKE<JE5>,BRAKE REGULATION
ADR<TDU>
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
1003- |
● |
|
| |
232 |
VALVE; CHECK
ANTI LOCK BRAKE<JE5>
TRAILER BRAKE CONTROL<J91>
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
1003- |
● |
|
| |
232 |
VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY
|
8-98032-527-0 |
01 |
1 |
1003- |
|
● |
| |
237 |
VALVE; SAFETY
|
1-48320-012-2 |
01 |
1 |
0712- |
● |
● |
| |
290 |
COCK; AIR,INFLATOR
EURO2 SPECIFICATION<NT2>
TIRE INFLATOR DEVICE(SG4)
|
1-09680-099-0 |
01 |
1 |
0812-1002 |
● |
|
| |
290 |
COCK; AIR,INFLATOR
EURO2 SPECIFICATION<NT2>
TIRE INFLATOR DEVICE(SG4)
EXC. ANTI LOCK BRAKE<JE5>
|
1-09680-099-0 |
01 |
1 |
1003- |
● |
|
| |
291 |
CAP; AIR COCK
EURO2 SPECIFICATION<NT2>
TIRE INFLATOR DEVICE(SG4)
|
9-48319-102-0 |
01 |
1 |
0812-1002 |
● |
|
| |
291 |
CAP; AIR COCK
EURO2 SPECIFICATION<NT2>
TIRE INFLATOR DEVICE(SG4)
EXC. ANTI LOCK BRAKE<JE5>
|
9-48319-102-0 |
01 |
1 |
1003- |
● |
|
