3-11 — PARKING BRAKE CONTROL (#66708) — 98 parça

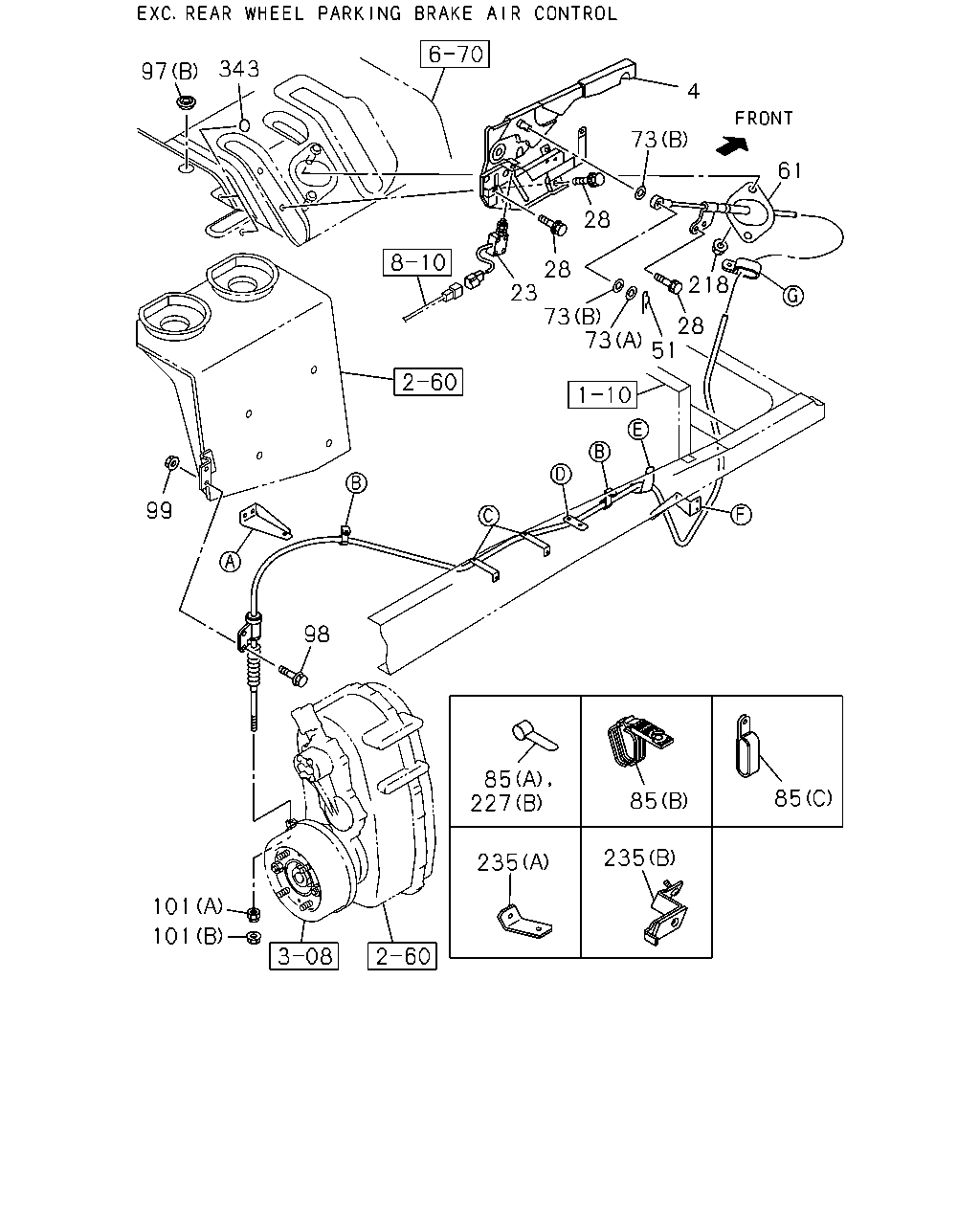

343 97 4 73 61 28 28 23 73 73 218 28 51 99 98 85 227 85 85 235 235 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-549-0	01	1	0712-	●
23	SWITCH; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82440-100-0	01	1	0712-	●
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0712-0904	●
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-	●
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09987-243-1	01	1	0712-	●
61	CABLE; PARKING BRK REARWARD INNER SINGLE TIRE<YK3> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=6032	8-98102-334-5	01	1	1003-1009	●
61	CABLE; PARKING BRK REARWARD INNER SINGLE TIRE<YK3> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=6032	8-98102-334-5	01	1	1010-	●
61	CABLE; PARKING BRK WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=6032	8-98102-334-5	01	1	1010-	●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4788	8-98074-263-1	01	1	0712-0712	●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=6001	8-98102-333-5	01	1	0801-1002	●
61	CABLE; PARKING BRK DOUBLE TIRE REARWARD<SR6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=6001	8-98102-333-5	01	1	1003-1009	●
61	CABLE; PARKING BRK WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=6001	8-98102-333-5	01	1	1010-	●
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30	0-91610-516-0	01	1	0712-	●
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19	8-94206-429-1	02	1	0712-	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65	1-09700-466-0	01	1	0712-0712	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09701-307-2	01	1	0712-0712	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 & 13 L=32	8-97389-264-0	01	1	0712-0712	●
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	0712-	●
97	GROMMET; PARKING BRK CABLE (A)	8-98029-219-1	01	1	0712-		●
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	0712-	●
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	0712-	●
99	NUT; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0909-	●
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	01	1	0712-	●
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-46259-007-0	01	1	0712-	●
218	NUT; BRKT,PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0712-	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=13 H=50 L=25	1-09700-529-0	02	1	0712-	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=9.5	5-09709-020-0	04	1	0712-	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=16 L=20	0-95235-535-0	03	1	0712-0712	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=12 L=70	1-09700-097-1	01	1	0712-0805	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=14.5 L=40	8-98119-885-0	01	1	0806-0908	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=12 L=70	1-09700-097-1	01	1	0909-	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=15 L=65	1-09700-466-0	01	1	0712-0712	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=16 H=30 L=30	1-09701-080-0	01	1	0712-	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=14.5 L=28	1-09701-013-0	01	1	0712-0712	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 L=20	0-95235-235-0	02	1	0712-1001	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 L=20	0-95235-235-0	03	1	1002-	●
235	BRACKET; CONT CABLE TO FRAME REARWARD INNER SINGLE TIRE<YK3> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G)	8-98138-447-0	01	1	1003-1009	●
235	BRACKET; CONT CABLE TO FRAME WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G)	8-98138-447-0	01	1	1010-	●
235	BRACKET; CONT CABLE TO FRAME REARWARD INNER SINGLE TIRE<YK3> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G)	8-98138-447-0	01	1	1010-	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-98099-148-0	01	1	0712-0805	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G)	8-98123-955-0	01	1	0806-1002	●
235	BRACKET; CONT CABLE TO FRAME DOUBLE TIRE REARWARD<SR6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G)	8-98123-955-0	01	1	1003-1009	●
235	BRACKET; CONT CABLE TO FRAME WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G)	8-98123-955-0	01	1	1010-	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F)	8-98105-194-0	02	1	0712-	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47477-648-0	01	1	0712-0712	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98099-142-0	01	1	0712-	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98028-722-0	01	1	0712-0712	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98099-143-0	01	1	0712-0805	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H)	8-98123-954-1	01	1	0806-	●
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	05	1	0712-1104	●
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	04	1	1105-	●

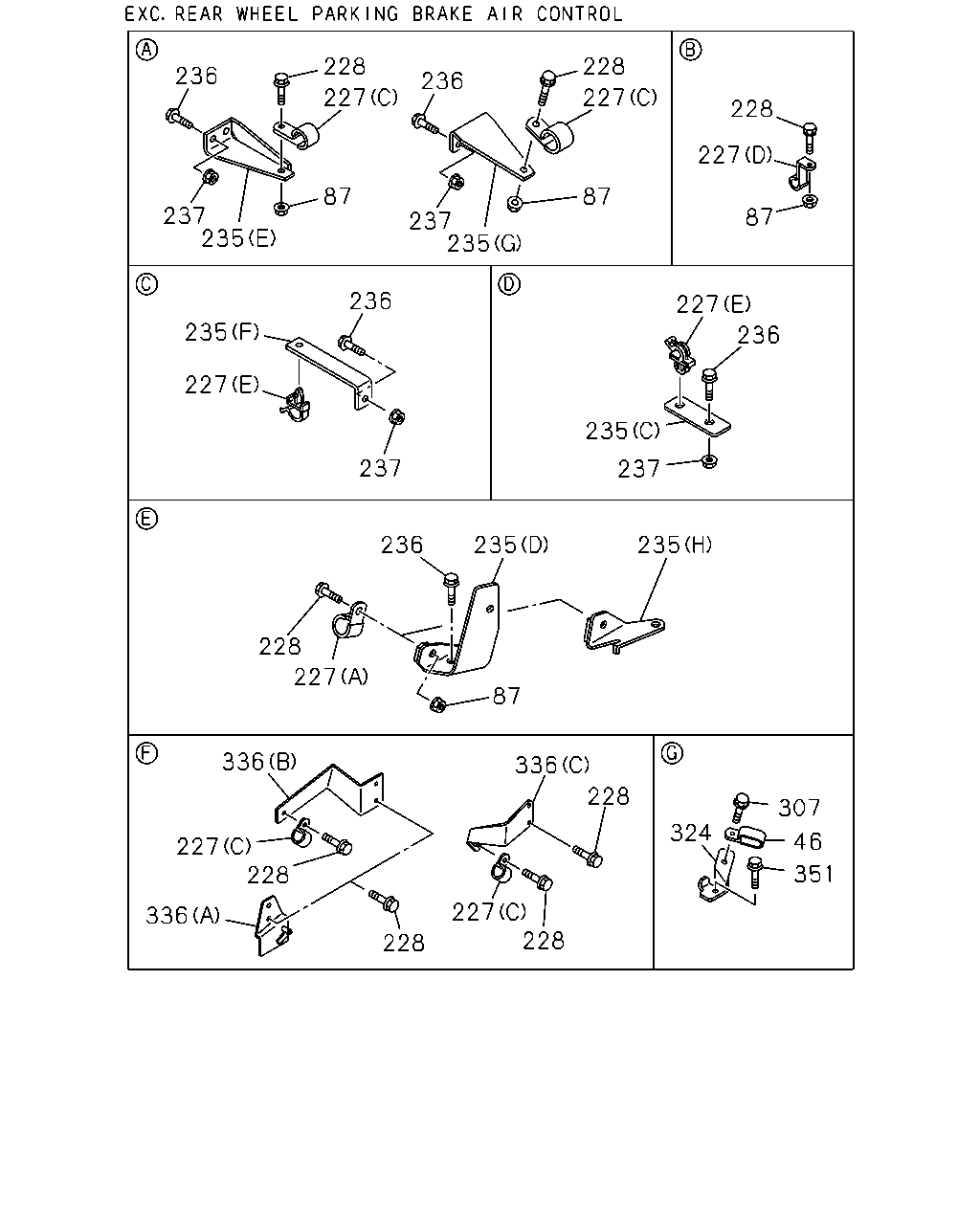

228 228 236 236 227 227 228 227 87 87 237 235 87 237 235 236 227 235 236 227 235 237 237 236 235 235 228 227 87 336 336 228 307 324 46 227 228 351 227 228 336 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	0-95235-535-0	01	1	0712-	●
87	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	05	1	0712-0712	●
87	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	04	1	0712-	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=13 H=50 L=25	1-09700-529-0	02	1	0712-	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=9.5	5-09709-020-0	04	1	0712-	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=16 L=20	0-95235-535-0	03	1	0712-0712	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=12 L=70	1-09700-097-1	01	1	0712-0805	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=14.5 L=40	8-98119-885-0	01	1	0806-0908	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=12 L=70	1-09700-097-1	01	1	0909-	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=15 L=65	1-09700-466-0	01	1	0712-0712	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=16 H=30 L=30	1-09701-080-0	01	1	0712-	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=14.5 L=28	1-09701-013-0	01	1	0712-0712	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 L=20	0-95235-235-0	02	1	0712-1001	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 L=20	0-95235-235-0	03	1	1002-	●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	05	1	0712-	●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0712-	●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) M8X16 FLANGE	0-28050-816-0	01	1	0712-0712	●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28050-816-0	01	1	0712-1001	●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28050-816-0	02	1	1002-	●
235	BRACKET; CONT CABLE TO FRAME REARWARD INNER SINGLE TIRE<YK3> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G)	8-98138-447-0	01	1	1003-1009	●
235	BRACKET; CONT CABLE TO FRAME WHEEL BASE 4100MM(41W) DOUBLE TIRE REARWARD<SR6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G)	8-98138-447-0	01	1	1010-	●
235	BRACKET; CONT CABLE TO FRAME REARWARD INNER SINGLE TIRE<YK3> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G)	8-98138-447-0	01	1	1010-	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-98099-148-0	01	1	0712-0805	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G)	8-98123-955-0	01	1	0806-1002	●
235	BRACKET; CONT CABLE TO FRAME DOUBLE TIRE REARWARD<SR6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G)	8-98123-955-0	01	1	1003-1009	●
235	BRACKET; CONT CABLE TO FRAME WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G)	8-98123-955-0	01	1	1010-	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F)	8-98105-194-0	02	1	0712-	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47477-648-0	01	1	0712-0712	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98099-142-0	01	1	0712-	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98028-722-0	01	1	0712-0712	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98099-143-0	01	1	0712-0805	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H)	8-98123-954-1	01	1	0806-	●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0712-0712	●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	07	1	0712-0805	●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	06	1	0806-	●
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-110-0	04	1	0712-0712	●
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	05	1	0712-	●
307	BOLT; BRKT,PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	01	1	0712-	●
324	BRACKET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-482-1	01	1	0902-	●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (A)	8-98081-003-0	01	1	0712-0712	●	●
336	BRACKET; RADIATOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98099-118-0	01	1	0712-0805	●
336	BRACKET; RADIATOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98123-953-2	01	1	0806-	●
336	BRACKET; RADIATOR EXC. GENERATOR 24V90A(K44) (B)	8-98065-276-0	01	1	0712-0712	●	●
351	BOLT; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	03	1	0712-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	0712-	●
97	GROMMET; PARKING BRK CABLE (A)	8-98029-219-1	01	1	0712-		●
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	0712-	●
