3-08B — PARKING BRAKE (#66706) — 36 parça

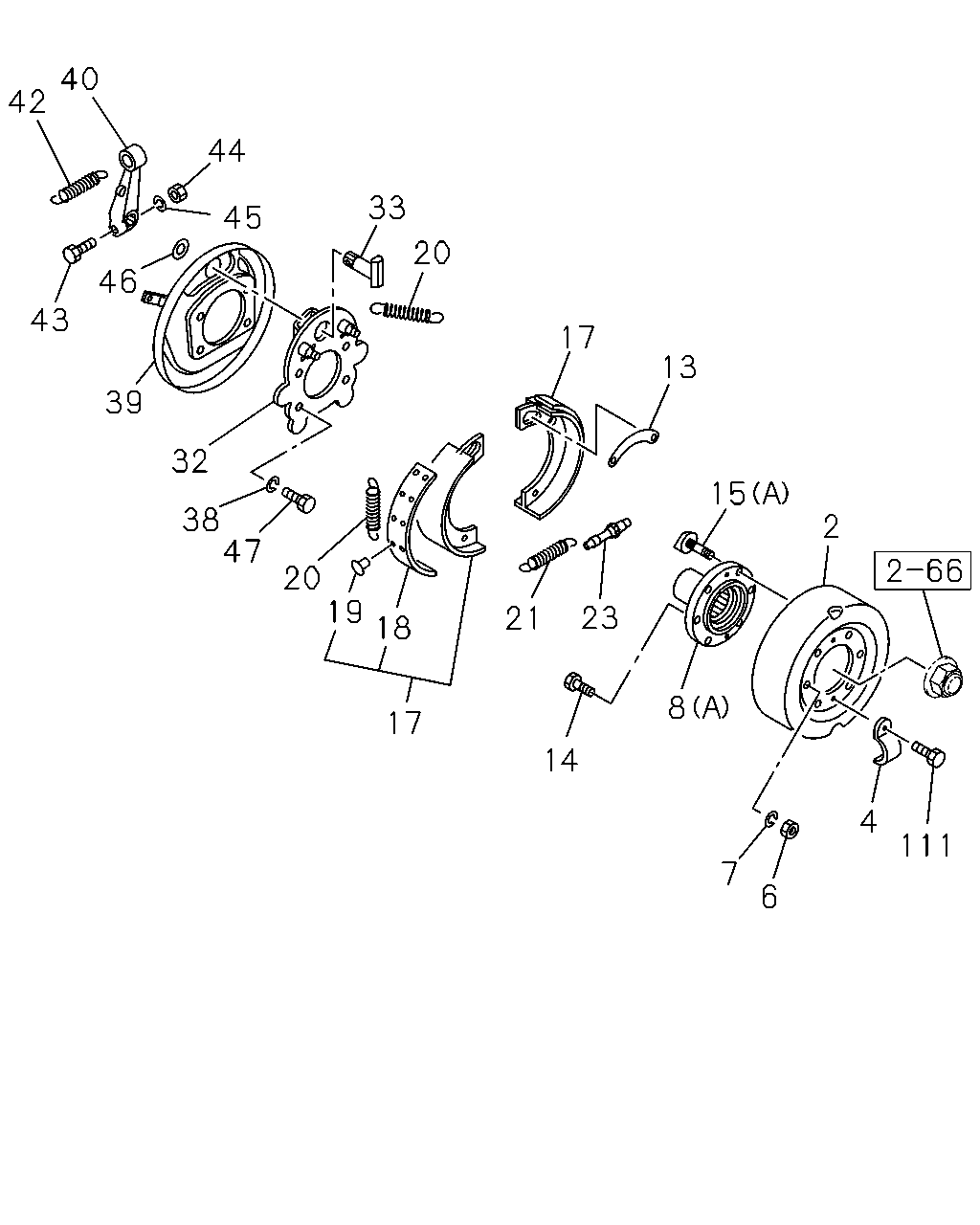

40 42 44 33 45 20 46 43 17 13 39 32 15 38 47 2 20 19 23 21 18 8 17 14 4 111 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DRUM; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46211-026-1	01	1	1003-
4	COVER; ADJ HOLE PARKING BRAKE DRUM 10"(B1T)	8-98031-861-0	02	1	1003-
6	NUT; FLANGE PARKING BRAKE DRUM 10"(B1T) M16	0-91110-516-0	02	1	1003-
7	WASHER; LK,FLANGE PARKING BRAKE DRUM 10"(B1T) ID=16.2	0-91510-516-0	02	1	1003-
8	FLANGE; PARKING BRK (B)	1-37243-426-0	01	1	1003-
8	FLANGE; PARKING BRK (C)	1-37249-199-0	01	1	1003-
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 10"(B1T) (A)	1-37243-213-0	01	1	1003-
13	BRACE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	9-46239-002-0	01	1	1003-
14	BOLT; DRUM TO FLANGE PARKING BRAKE DRUM 10"(B1T) M16X38	1-46219-010-0	02	1	1003-
15	BOLT; FLANGE (B) M14X46	9-46219-012-0	04	1	1003-
15	BOLT; FLANGE PARKING BRAKE DRUM 10"(B1T) (A) M16X55	8-98023-172-0	04	1	1003-
17	SHOE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46220-022-1	02	1	1003-
18	LINING; BRK,PARKING PARKING BRAKE DRUM 10"(B1T)	1-46225-023-0	02	1	1003-
19	RIVET; LINING,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-09732-012-0	32	1	1003-
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	9-09942-434-0	02	1	1003-
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE DRUM 10"(B1T)	9-09942-516-0	01	1	1003-
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE DRUM 10"(B1T)	1-46240-003-0	01	1	1003-
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46213-033-0	01	1	1003-
33	SHAFT; CAM,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	9-46251-069-0	01	1	1003-
38	WASHER; LK,SUPPORT PLATE PARKING BRAKE DRUM 10"(B1T) ID=16.2	0-91510-516-0	04	1	1003-
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46213-061-0	01	1	1003-
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46252-021-0	01	1	1003-
42	SPRING; RETURN,LEVER PARKING BRAKE DRUM 10"(B1T)	1-09583-073-0	01	1	1003-
43	BOLT; LEVER TO CM/SHF PARKING BRAKE DRUM 10"(B1T)	0-10811-045-0	01	1	1003-
44	NUT; LEVER TO CM/SHF PARKING BRAKE DRUM 10"(B1T) M10	0-91111-510-0	01	1	1003-
45	WASHER; LK,LEVER TO CM/SHF PARKING BRAKE DRUM 10"(B1T) ID=10.2	0-91510-510-0	04	1	1003-
46	WASHER; LEVER PARKING BRAKE DRUM 10"(B1T)	9-09855-362-0	01	1	1003-
47	BOLT; SUPPORT PLATE PARKING BRAKE DRUM 10"(B1T) M16X40	9-09804-155-0	04	1	1003-
111	BOLT; COVER,CHECK HOLE PARKING BRAKE DRUM 10"(B1T) M8X20 W/LK WASHER	0-50540-820-0	02	1	1003-

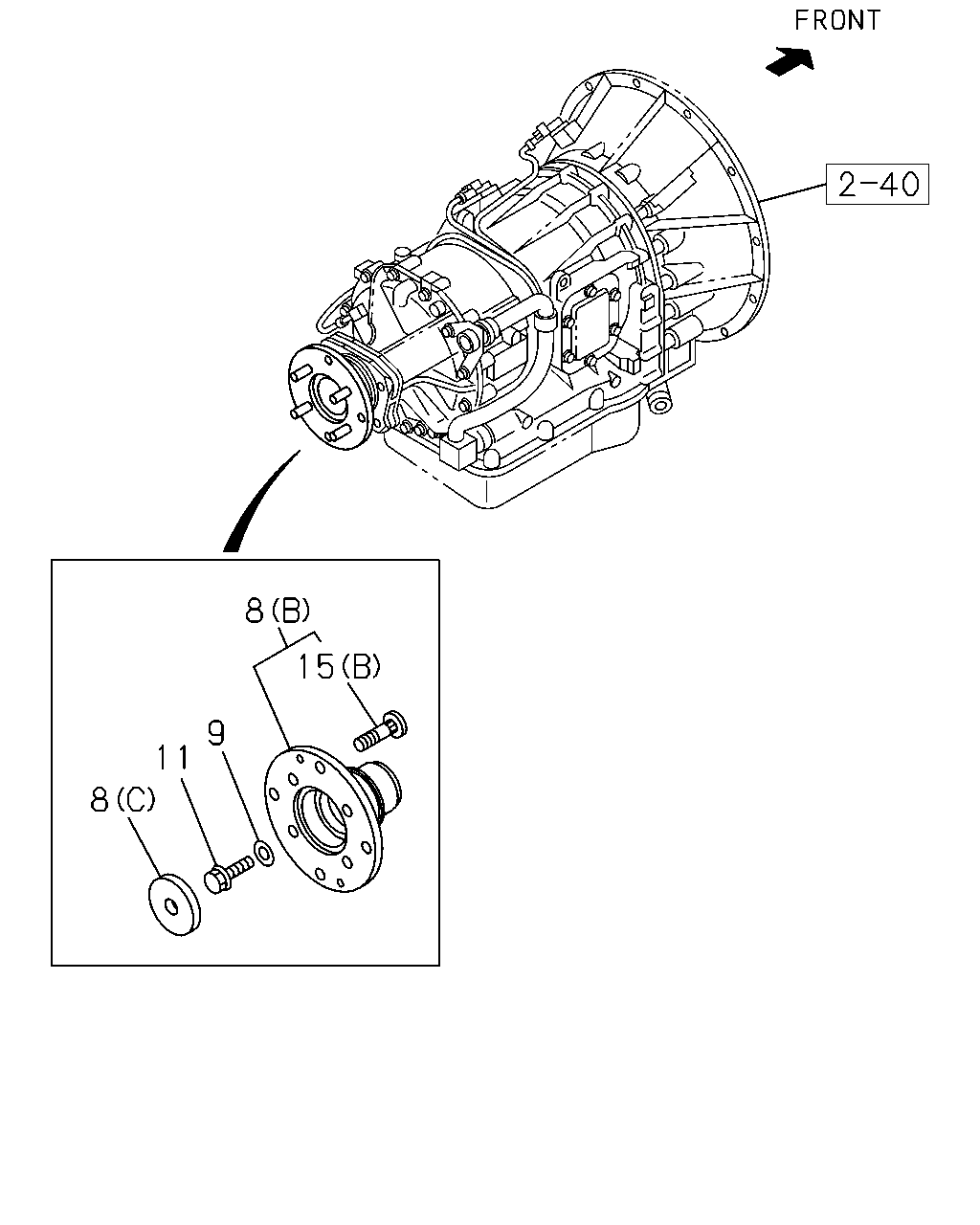

8 15 9 11 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	FLANGE; PARKING BRK (B)	1-37243-426-0	01	1	1003-
8	FLANGE; PARKING BRK (C)	1-37249-199-0	01	1	1003-
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 10"(B1T) (A)	1-37243-213-0	01	1	1003-
9	WASHER; FLANGE FIX	1-37249-200-0	01	1	1003-
11	BOLT; FLANGE FIX	1-09087-048-0	01	1	1003-
15	BOLT; FLANGE (B) M14X46	9-46219-012-0	04	1	1003-
15	BOLT; FLANGE PARKING BRAKE DRUM 10"(B1T) (A) M16X55	8-98023-172-0	04	1	1003-
