◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 3 - Brakes, Brake System ▶ 3-08A - PARKING BRAKE ▶
3-08A — PARKING BRAKE (#66705) — 78 parça

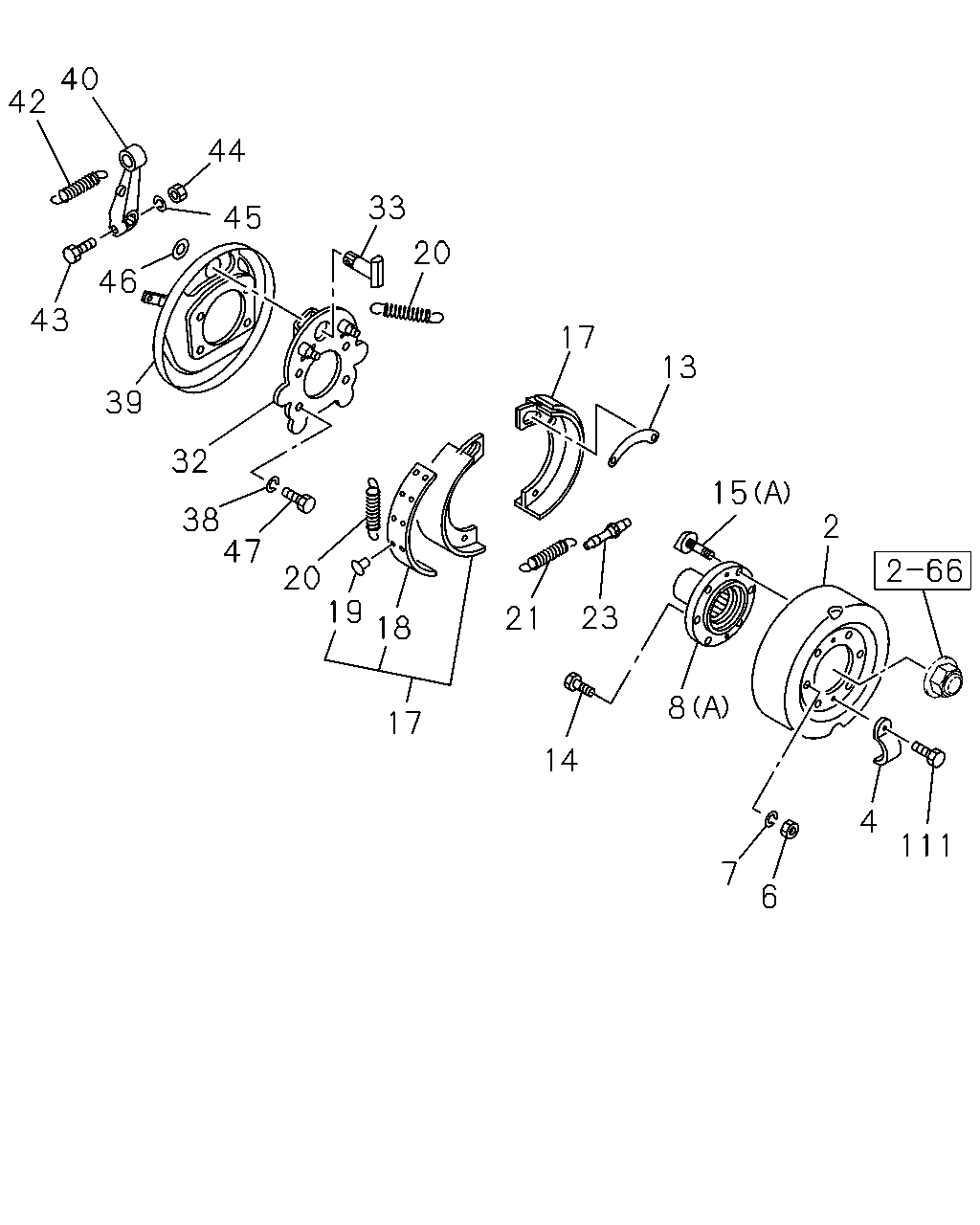

çizim 115123
40 42 44 33 45 20 46 43 17 13 39 32 15 38 47 2 20 19 23 21 18 8 17 14 4 111 7 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 DRUM; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46211-026-1 01 1 0806-0906 ● ● ●
2 DRUM; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46211-026-1 01 1 0907-1002 ● ● ● ●
2 DRUM; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46211-026-1 01 1 1003- ● ● ● ●
4 COVER; ADJ HOLE
PARKING BRAKE DRUM 10"(B1T) 		8-98031-861-0 02 1 0806-0906 ● ● ●
4 COVER; ADJ HOLE
PARKING BRAKE DRUM 10"(B1T) 		8-98031-861-0 02 1 0907-1002 ● ● ● ●
4 COVER; ADJ HOLE
PARKING BRAKE DRUM 10"(B1T) 		8-98031-861-0 02 1 1003- ● ● ● ●
6 NUT; FLANGE
PARKING BRAKE DRUM 10"(B1T) M16 		0-91110-516-0 02 1 0806-0906 ● ● ●
6 NUT; FLANGE
PARKING BRAKE DRUM 10"(B1T) M16 		0-91110-516-0 02 1 0907-1002 ● ● ● ●
6 NUT; FLANGE
PARKING BRAKE DRUM 10"(B1T) M16 		0-91110-516-0 02 1 1003- ● ● ● ●
7 WASHER; LK,FLANGE
PARKING BRAKE DRUM 10"(B1T) ID=16.2 		0-91510-516-0 02 1 0806-0906 ● ● ●
7 WASHER; LK,FLANGE
PARKING BRAKE DRUM 10"(B1T) ID=16.2 		0-91510-516-0 02 1 0907-1002 ● ● ● ●
7 WASHER; LK,FLANGE
PARKING BRAKE DRUM 10"(B1T) ID=16.2 		0-91510-516-0 02 1 1003- ● ● ● ●
8 FLANGE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) (A) 		1-37243-213-0 01 1 0806-0906 ● ● ●
8 FLANGE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) (A) 		1-37243-213-0 01 1 0907-1002 ● ● ● ●
8 FLANGE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) (A) 		1-37243-213-0 01 1 1003- ● ● ● ●
13 BRACE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		9-46239-002-0 01 1 0806-0906 ● ● ●
13 BRACE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		9-46239-002-0 01 1 0907-1002 ● ● ● ●
13 BRACE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		9-46239-002-0 01 1 1003- ● ● ● ●
14 BOLT; DRUM TO FLANGE
PARKING BRAKE DRUM 10"(B1T) M16X38 		1-46219-010-0 02 1 0806-0906 ● ● ●
14 BOLT; DRUM TO FLANGE
PARKING BRAKE DRUM 10"(B1T) M16X38 		1-46219-010-0 02 1 0907-1002 ● ● ● ●
14 BOLT; DRUM TO FLANGE
PARKING BRAKE DRUM 10"(B1T) M16X38 		1-46219-010-0 02 1 1003- ● ● ● ●
15 BOLT; FLANGE
PARKING BRAKE DRUM 10"(B1T) (A) M16X55 		8-98023-172-0 04 1 0806-0906 ● ● ●
15 BOLT; FLANGE
PARKING BRAKE DRUM 10"(B1T) (A) M16X55 		8-98023-172-0 04 1 0907-1002 ● ● ● ●
15 BOLT; FLANGE
PARKING BRAKE DRUM 10"(B1T) (A) M16X55 		8-98023-172-0 04 1 1003- ● ● ● ●
17 SHOE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46220-022-1 02 1 0806-0906 ● ● ●
17 SHOE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46220-022-1 02 1 0907-1002 ● ● ● ●
17 SHOE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46220-022-1 02 1 1003- ● ● ● ●
18 LINING; BRK,PARKING
PARKING BRAKE DRUM 10"(B1T) 		1-46225-023-0 02 1 0806-0906 ● ● ●
18 LINING; BRK,PARKING
PARKING BRAKE DRUM 10"(B1T) 		1-46225-023-0 02 1 0907-1002 ● ● ● ●
18 LINING; BRK,PARKING
PARKING BRAKE DRUM 10"(B1T) 		1-46225-023-0 02 1 1003- ● ● ● ●
19 RIVET; LINING,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-09732-012-0 32 1 0806-0906 ● ● ●
19 RIVET; LINING,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-09732-012-0 32 1 0907-1002 ● ● ● ●
19 RIVET; LINING,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-09732-012-0 32 1 1003- ● ● ● ●
20 SPRING; RETURN,SECONDARY,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		9-09942-434-0 02 1 0806-0906 ● ● ●
20 SPRING; RETURN,SECONDARY,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		9-09942-434-0 02 1 0907-1002 ● ● ● ●
20 SPRING; RETURN,SECONDARY,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		9-09942-434-0 02 1 1003- ● ● ● ●
21 SPRING; RETURN,PARKING BRK SHOE
PARKING BRAKE DRUM 10"(B1T) 		9-09942-516-0 01 1 0806-0906 ● ● ●
21 SPRING; RETURN,PARKING BRK SHOE
PARKING BRAKE DRUM 10"(B1T) 		9-09942-516-0 01 1 0907-1002 ● ● ● ●
21 SPRING; RETURN,PARKING BRK SHOE
PARKING BRAKE DRUM 10"(B1T) 		9-09942-516-0 01 1 1003- ● ● ● ●
23 SCREW; ADJ,PARKING BRK SHOE
PARKING BRAKE DRUM 10"(B1T) 		1-46240-003-0 01 1 0806-0906 ● ● ●
23 SCREW; ADJ,PARKING BRK SHOE
PARKING BRAKE DRUM 10"(B1T) 		1-46240-003-0 01 1 0907-1002 ● ● ● ●
23 SCREW; ADJ,PARKING BRK SHOE
PARKING BRAKE DRUM 10"(B1T) 		1-46240-003-0 01 1 1003- ● ● ● ●
32 PLATE; SUPPORT,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46213-033-0 01 1 0806-0906 ● ● ●
32 PLATE; SUPPORT,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46213-033-0 01 1 0907-1002 ● ● ● ●
32 PLATE; SUPPORT,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46213-033-0 01 1 1003- ● ● ● ●
33 SHAFT; CAM,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		9-46251-069-0 01 1 0806-0906 ● ● ●
33 SHAFT; CAM,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		9-46251-069-0 01 1 0907-1002 ● ● ● ●
33 SHAFT; CAM,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		9-46251-069-0 01 1 1003- ● ● ● ●
38 WASHER; LK,SUPPORT PLATE
PARKING BRAKE DRUM 10"(B1T) ID=16.2 		0-91510-516-0 04 1 0806-0906 ● ● ●
38 WASHER; LK,SUPPORT PLATE
PARKING BRAKE DRUM 10"(B1T) ID=16.2 		0-91510-516-0 04 1 0907-1002 ● ● ● ●
38 WASHER; LK,SUPPORT PLATE
PARKING BRAKE DRUM 10"(B1T) ID=16.2 		0-91510-516-0 04 1 1003- ● ● ● ●
39 COVER; DUST,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46213-061-0 01 1 0806-0906 ● ● ●
39 COVER; DUST,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46213-061-0 01 1 0907-1002 ● ● ● ●
39 COVER; DUST,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46213-061-0 01 1 1003- ● ● ● ●
40 LEVER; CM/SHF,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46252-021-0 01 1 0806-0906 ● ● ●
40 LEVER; CM/SHF,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46252-021-0 01 1 0907-1002 ● ● ● ●
40 LEVER; CM/SHF,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46252-021-0 01 1 1003- ● ● ● ●
42 SPRING; RETURN,LEVER
PARKING BRAKE DRUM 10"(B1T) 		1-09583-073-0 01 1 0806-0906 ● ● ●
42 SPRING; RETURN,LEVER
PARKING BRAKE DRUM 10"(B1T) 		1-09583-073-0 01 1 0907-1002 ● ● ● ●
42 SPRING; RETURN,LEVER
PARKING BRAKE DRUM 10"(B1T) 		1-09583-073-0 01 1 1003- ● ● ● ●
43 BOLT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) 		0-10811-045-0 01 1 0806-0906 ● ● ●
43 BOLT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) 		0-10811-045-0 01 1 0907-1002 ● ● ● ●
43 BOLT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) 		0-10811-045-0 01 1 1003- ● ● ● ●
44 NUT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) M10 		0-91111-510-0 01 1 0806-0906 ● ● ●
44 NUT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) M10 		0-91111-510-0 01 1 0907-1002 ● ● ● ●
44 NUT; LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) M10 		0-91111-510-0 01 1 1003- ● ● ● ●
45 WASHER; LK,LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) ID=10.2 		0-91510-510-0 04 1 0806-0906 ● ● ●
45 WASHER; LK,LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) ID=10.2 		0-91510-510-0 04 1 0907-1002 ● ● ● ●
45 WASHER; LK,LEVER TO CM/SHF
PARKING BRAKE DRUM 10"(B1T) ID=10.2 		0-91510-510-0 04 1 1003- ● ● ● ●
46 WASHER; LEVER
PARKING BRAKE DRUM 10"(B1T) 		9-09855-362-0 01 1 0806-0906 ● ● ●
46 WASHER; LEVER
PARKING BRAKE DRUM 10"(B1T) 		9-09855-362-0 01 1 0907-1002 ● ● ● ●
46 WASHER; LEVER
PARKING BRAKE DRUM 10"(B1T) 		9-09855-362-0 01 1 1003- ● ● ● ●
47 BOLT; SUPPORT PLATE
PARKING BRAKE DRUM 10"(B1T) M16X40 		9-09804-155-0 04 1 0806-0906 ● ● ●
47 BOLT; SUPPORT PLATE
PARKING BRAKE DRUM 10"(B1T) M16X40 		9-09804-155-0 04 1 0907-1002 ● ● ● ●
47 BOLT; SUPPORT PLATE
PARKING BRAKE DRUM 10"(B1T) M16X40 		9-09804-155-0 04 1 1003- ● ● ● ●
111 BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 10"(B1T) M8X20 W/LK WASHER 		0-50040-820-0 02 1 0806-0906 ● ● ●
111 BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 10"(B1T) M8X20 W/LK WASHER 		0-50540-820-0 02 1 0907-1002 ● ● ● ●
111 BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 10"(B1T) M8X20 W/LK WASHER 		0-50540-820-0 02 1 1003- ● ● ● ●
