◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#66702) — 9 parça

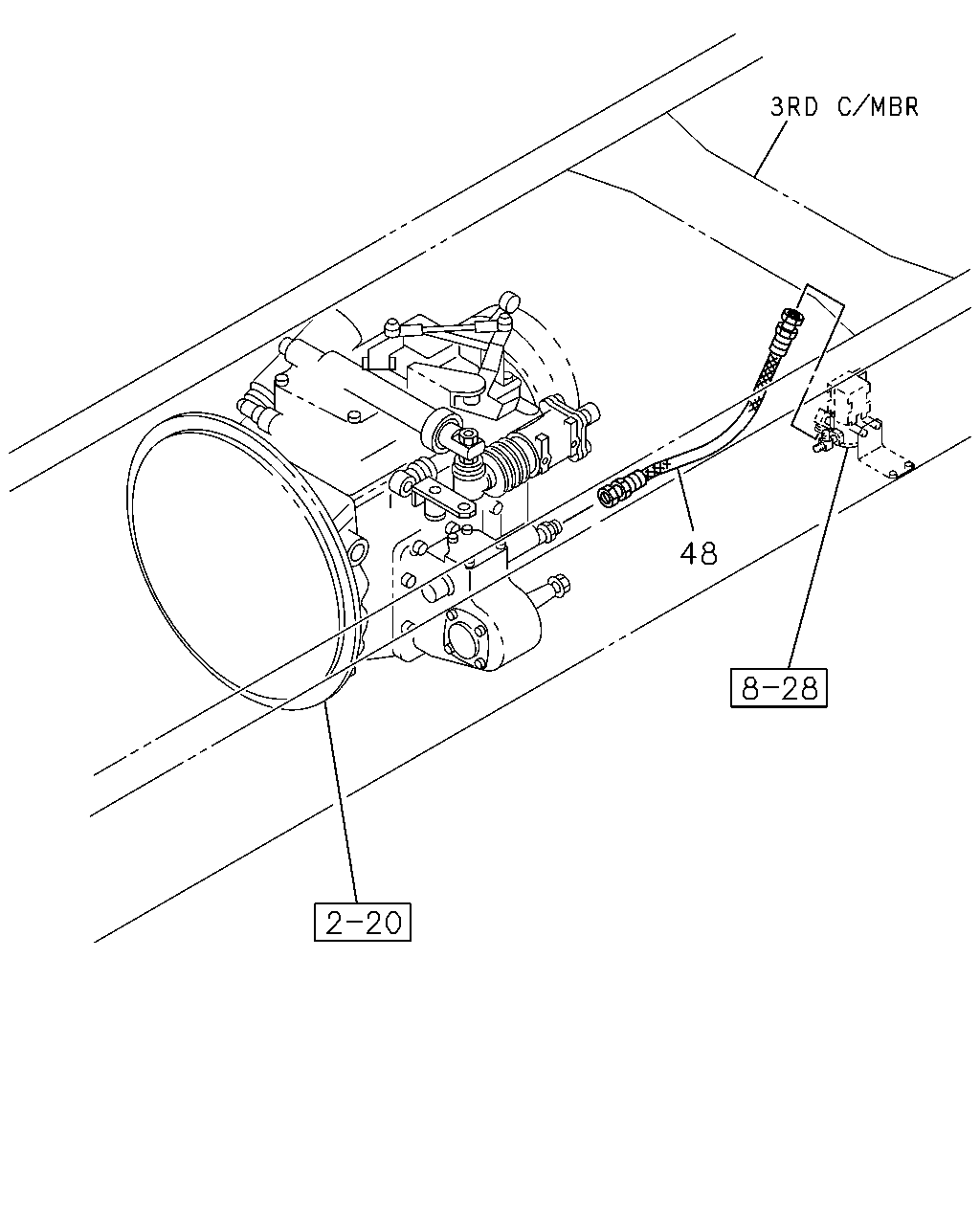

çizim 193351
48
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=220 		1-09363-645-0 01 1 0907- ● ●
48 HOSE; FLEX,PTO
MLD6Q M/T(X5J) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=230 		1-09363-784-0 01 1 0806-0806 ● ●
48 HOSE; FLEX,PTO
PTO CONTROL<SV6> L=340 		1-09363-617-0 01 1 0712-0802 ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=210 		1-09363-614-0 01 1 0803-0811 ● ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW),MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=210 		1-09363-614-0 01 1 0812- ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW),MLD6Q M/T(X5J) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=210 		1-09363-614-0 01 1 0812- ●

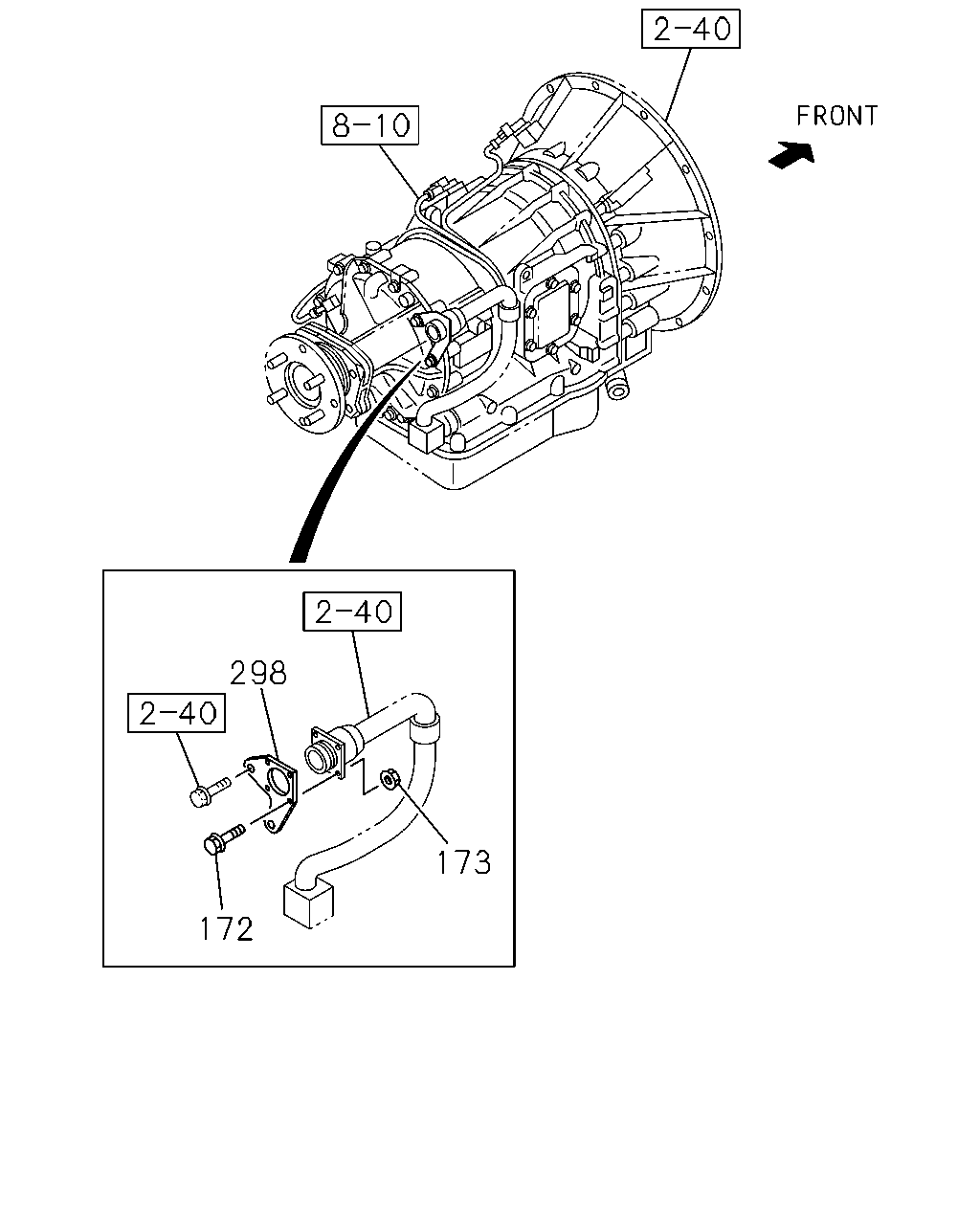

çizim 193469
298 173 172
BalonParca AdiParca NoAdetTipApplied Date A B
172 BOLT; BRKT
LCT2000 A/T ALLISON(Y4F) M4X16 		9-03494-416-0 04 1 1003- ●
173 NUT; BRKT
LCT2000 A/T ALLISON(Y4F) M4 FLANGE 		8-97368-853-0 04 1 1003- ●
298 BRACKET; HARNESS
LCT2000 A/T ALLISON(Y4F) 		8-98081-822-0 01 1 1003- ●
