2-75 — TRANSFER CONTROL (#66700) — 214 parça

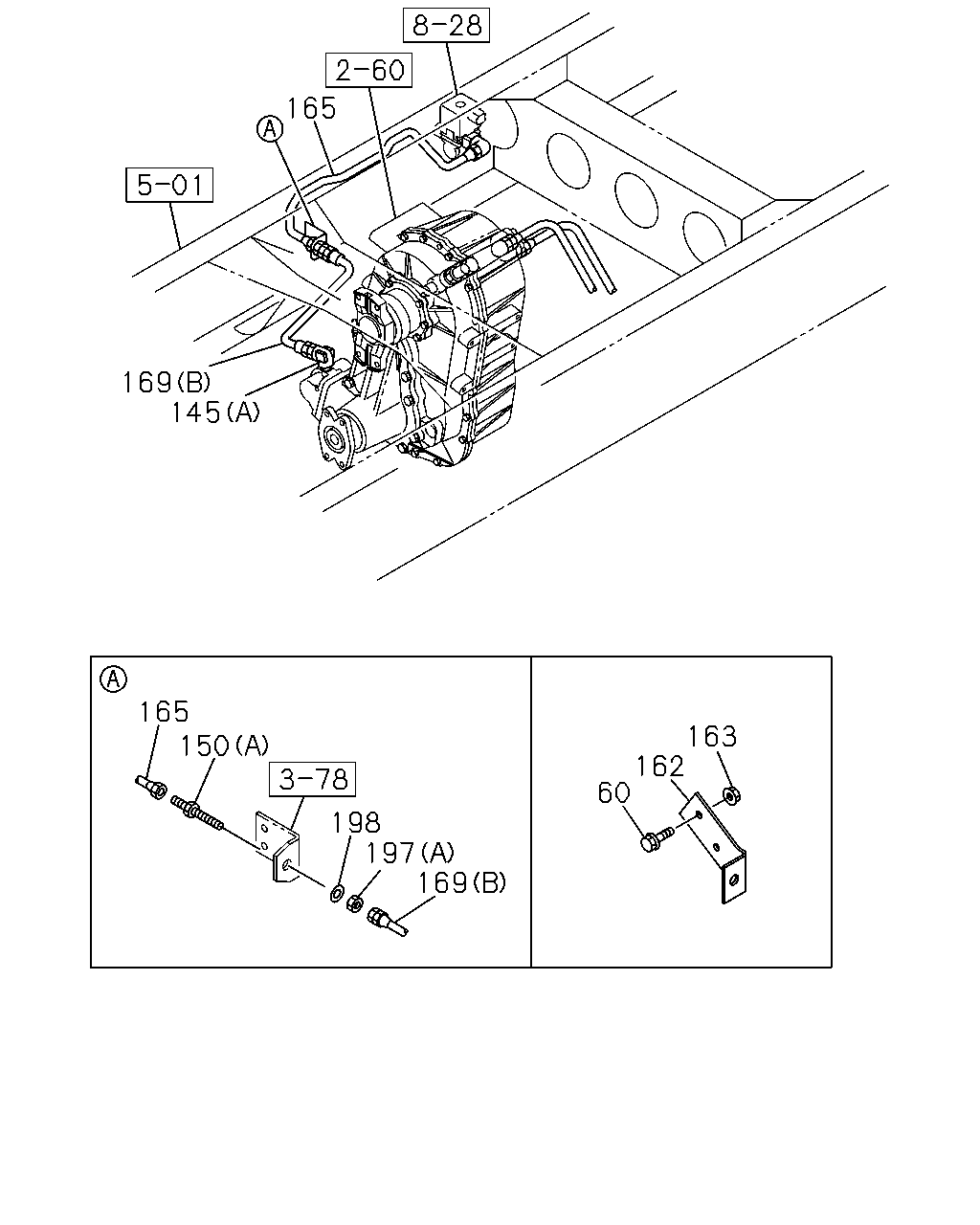

çizim 114572
165 169 145 165 150 163 162 60 198 197 169
BalonParca AdiParca NoAdetTipApplied Date A B
60 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ●
145 CONNECTOR; TRANSFER
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712-0802 ●
145 CONNECTOR; TRANSFER
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0802 ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (E) 		0-92138-206-0 01 1 1003-1006 ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (E) M12 		0-92138-306-0 01 1 1007- ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> EXC. DIFF LOCK<C3N> (F) M12 3WAY 		1-09654-137-2 01 1 1003-1011 ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (F) M12 3WAY 		1-09654-137-2 01 1 1012- ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> EXC. DIFF LOCK<C3N> (F) M12 3WAY 		1-09654-137-2 01 1 1012- ●
150 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 01 1 0712-0802 ●
150 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 01 1 0803- ● ●
150 UNION; AIR PIPE
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712-0802 ●
150 UNION; AIR PIPE
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0802 ●
150 UNION; AIR PIPE
(D) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
162 BRACKET; FLEX HOSE,TRANSFER 8-98084-381-0 01 1 0712-0802 ●
162 BRACKET; FLEX HOSE,TRANSFER 8-98115-642-0 01 1 0803- ● ●
163 NUT; BRKT,FLEX HOSE
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
REARWARD INNER SINGLE TIRE<YK3> L=769 SERVICED BY L=800 		1-47428-812-0 01 1 1003-1011 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> L=769 SERVICED BY L=800 		1-47428-812-0 01 1 1012- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
REARWARD INNER SINGLE TIRE<YK3> L=769 SERVICED BY L=800 		1-47428-812-0 01 1 1012- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=738 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=752 SERVICED BY L=800 		1-47428-812-0 01 1 0803-0811 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=801 SERVICED BY L=900 		1-47428-813-0 01 1 0812-1002 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. REARWARD INNER SINGLE TIRE<YK3> L=801 SERVICED BY L=900 		1-47428-813-0 01 1 1003-1011 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=801 SERVICED BY L=900 		1-47428-813-0 01 1 1003-1011 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. PAKISTAN EQUIPMENT(CK1),REARWARD INNER SINGLETIRE<YK3> L=801 SERVICED BY L=900 		1-47428-813-0 01 1 1012- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=801 SERVICED BY L=900 		1-47428-813-0 01 1 1012- ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) L=360 		1-09363-637-0 02 1 1003-1011 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (A) L=360 		1-09363-637-0 02 1 1012- ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) L=360 		1-09363-637-0 02 1 1012- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=420 		1-09363-615-0 02 1 0712-0901 ● ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0902-0906 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0902-0906 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0907- ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0907- ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=340 		1-09363-617-0 01 1 0712- ● ●
197 NUT; UNION
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (B) M12 		0-91111-512-0 01 1 1003-1011 ●
197 NUT; UNION
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (B) M12 		0-91111-512-0 01 1 1012- ●
197 NUT; UNION
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (B) M12 		0-91111-512-0 01 1 1012- ●
197 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0712-0802 ●
197 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0803- ● ●
197 NUT; UNION
(A) M12 		0-91111-512-0 01 1 0712-0802 ●
198 WASHER; LK,UNION
ID=12.2 		0-91510-812-0 01 1 0712-0802 ● ●

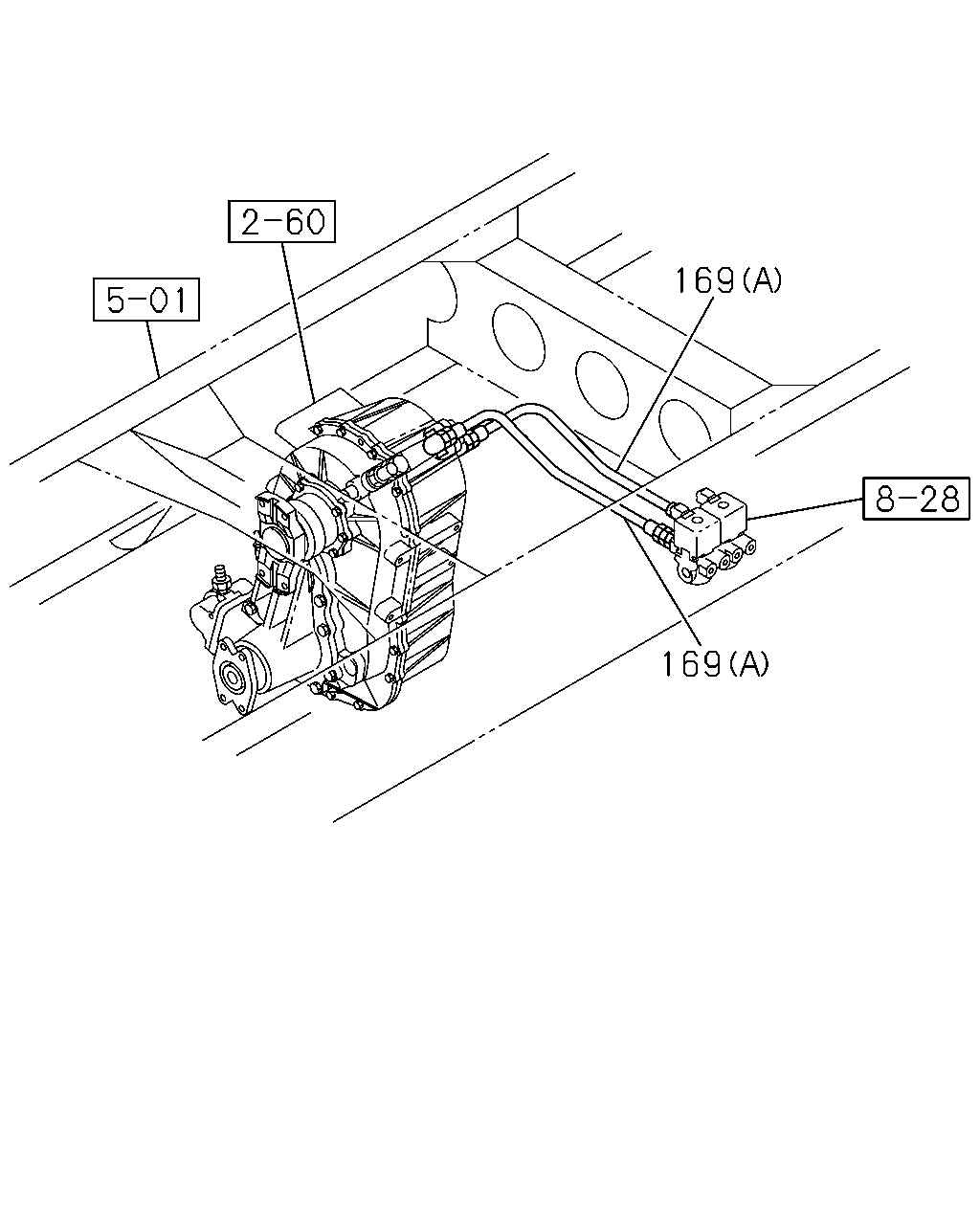

çizim 114647
169 169
BalonParca AdiParca NoAdetTipApplied Date A B
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) L=360 		1-09363-637-0 02 1 1003-1011 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (A) L=360 		1-09363-637-0 02 1 1012- ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) L=360 		1-09363-637-0 02 1 1012- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=420 		1-09363-615-0 02 1 0712-0901 ● ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0902-0906 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0902-0906 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0907- ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0907- ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=340 		1-09363-617-0 01 1 0712- ● ●

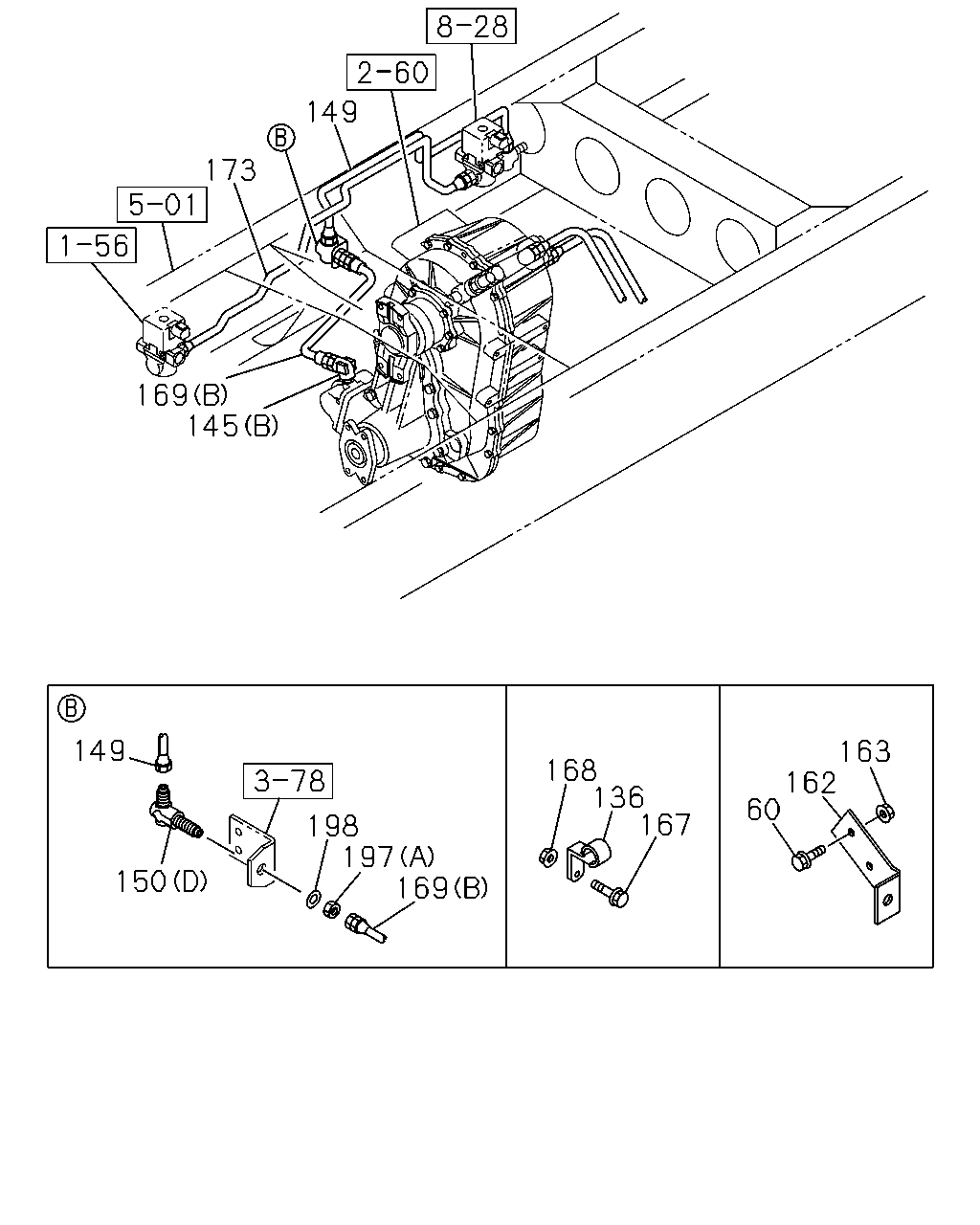

çizim 114682
149 173 169 145 149 163 162 60 168 136 167 198 197 169 150
BalonParca AdiParca NoAdetTipApplied Date A B
60 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ●
136 CLIP; AIR PIPE
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> ID=6.35 		1-09701-247-1 01 1 1003-1011 ●
136 CLIP; AIR PIPE
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> ID=6.35 		1-09701-247-1 01 1 1012- ●
136 CLIP; AIR PIPE
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> ID=6.35 		1-09701-247-1 01 1 1012- ●
136 CLIP; AIR PIPE
ID=6.35 & 6.35 		1-09709-273-1 01 1 0712-0802 ●
136 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 0712-0802 ●
145 CONNECTOR; TRANSFER
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712-0802 ●
145 CONNECTOR; TRANSFER
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0802 ●
149 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> L=358 		8-98152-687-0 01 1 1003-1011 ●
149 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> L=358 		8-98152-687-0 01 1 1012- ●
149 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> L=358 		8-98152-687-0 01 1 1012- ●
149 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 3600MM(36W) EXC. BRAKE REGULATION ADR<TDU> L=1085 SERVICED BY L=1100 		1-47428-815-0 01 1 0812-1207 ●
149 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 3600MM(36W) EXC. BRAKE REGULATION ADR<TDU> L=1102 SERVICED BY L=1200 		1-47428-816-0 01 1 1208- ●
149 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> L=1277 SERVICED BY L=1370 		1-47428-818-0 01 1 0812- ●
149 PIPE; AIR,MAG VLV TO UNION
L=1502 SERVICED BY L=1620 		1-47428-820-0 01 1 0712-0802 ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (E) 		0-92138-206-0 01 1 1003-1006 ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (E) M12 		0-92138-306-0 01 1 1007- ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> EXC. DIFF LOCK<C3N> (F) M12 3WAY 		1-09654-137-2 01 1 1003-1011 ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (F) M12 3WAY 		1-09654-137-2 01 1 1012- ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> EXC. DIFF LOCK<C3N> (F) M12 3WAY 		1-09654-137-2 01 1 1012- ●
150 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 01 1 0712-0802 ●
150 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 01 1 0803- ● ●
150 UNION; AIR PIPE
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712-0802 ●
150 UNION; AIR PIPE
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0802 ●
150 UNION; AIR PIPE
(D) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
162 BRACKET; FLEX HOSE,TRANSFER 8-98084-381-0 01 1 0712-0802 ●
162 BRACKET; FLEX HOSE,TRANSFER 8-98115-642-0 01 1 0803- ● ●
163 NUT; BRKT,FLEX HOSE
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
168 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) L=360 		1-09363-637-0 02 1 1003-1011 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (A) L=360 		1-09363-637-0 02 1 1012- ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) L=360 		1-09363-637-0 02 1 1012- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=420 		1-09363-615-0 02 1 0712-0901 ● ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0902-0906 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0902-0906 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0907- ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0907- ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=340 		1-09363-617-0 01 1 0712- ● ●
173 PIPE; AIR,MAG VALVE TO VALVE
L=1226 SERVICED BY L=1250 		1-47428-817-0 01 1 0712-0802 ●
197 NUT; UNION
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (B) M12 		0-91111-512-0 01 1 1003-1011 ●
197 NUT; UNION
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (B) M12 		0-91111-512-0 01 1 1012- ●
197 NUT; UNION
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (B) M12 		0-91111-512-0 01 1 1012- ●
197 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0712-0802 ●
197 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0803- ● ●
197 NUT; UNION
(A) M12 		0-91111-512-0 01 1 0712-0802 ●
198 WASHER; LK,UNION
ID=12.2 		0-91510-812-0 01 1 0712-0802 ● ●

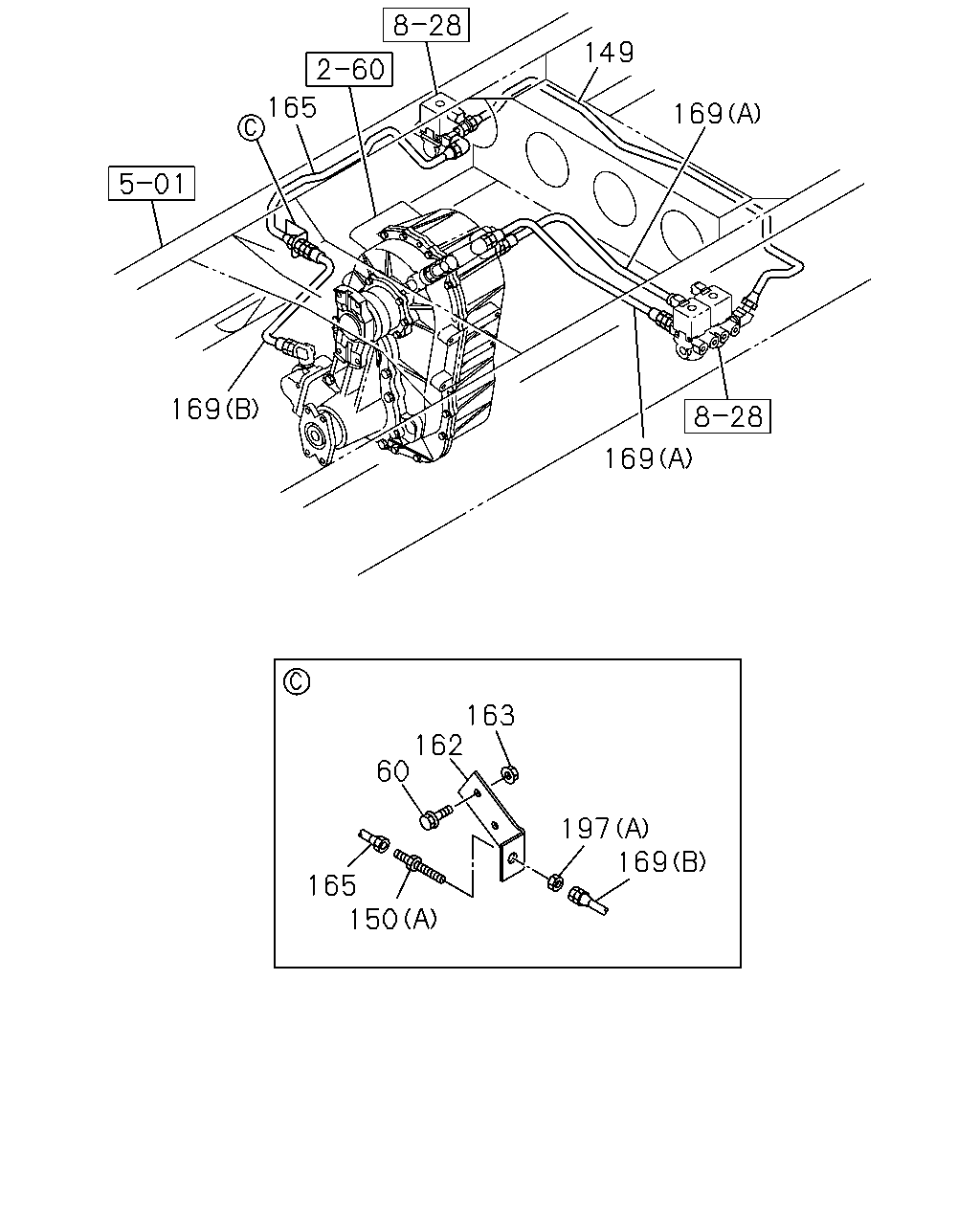

çizim 114683
149 165 169 169 169 163 162 60 197 169 165 150
BalonParca AdiParca NoAdetTipApplied Date A B
60 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ●
149 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> L=358 		8-98152-687-0 01 1 1003-1011 ●
149 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> L=358 		8-98152-687-0 01 1 1012- ●
149 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> L=358 		8-98152-687-0 01 1 1012- ●
149 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 3600MM(36W) EXC. BRAKE REGULATION ADR<TDU> L=1085 SERVICED BY L=1100 		1-47428-815-0 01 1 0812-1207 ●
149 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 3600MM(36W) EXC. BRAKE REGULATION ADR<TDU> L=1102 SERVICED BY L=1200 		1-47428-816-0 01 1 1208- ●
149 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> L=1277 SERVICED BY L=1370 		1-47428-818-0 01 1 0812- ●
149 PIPE; AIR,MAG VLV TO UNION
L=1502 SERVICED BY L=1620 		1-47428-820-0 01 1 0712-0802 ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (E) 		0-92138-206-0 01 1 1003-1006 ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (E) M12 		0-92138-306-0 01 1 1007- ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> EXC. DIFF LOCK<C3N> (F) M12 3WAY 		1-09654-137-2 01 1 1003-1011 ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (F) M12 3WAY 		1-09654-137-2 01 1 1012- ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> EXC. DIFF LOCK<C3N> (F) M12 3WAY 		1-09654-137-2 01 1 1012- ●
150 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 01 1 0712-0802 ●
150 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 01 1 0803- ● ●
150 UNION; AIR PIPE
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712-0802 ●
150 UNION; AIR PIPE
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0802 ●
150 UNION; AIR PIPE
(D) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
162 BRACKET; FLEX HOSE,TRANSFER 8-98084-381-0 01 1 0712-0802 ●
162 BRACKET; FLEX HOSE,TRANSFER 8-98115-642-0 01 1 0803- ● ●
163 NUT; BRKT,FLEX HOSE
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
REARWARD INNER SINGLE TIRE<YK3> L=769 SERVICED BY L=800 		1-47428-812-0 01 1 1003-1011 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> L=769 SERVICED BY L=800 		1-47428-812-0 01 1 1012- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
REARWARD INNER SINGLE TIRE<YK3> L=769 SERVICED BY L=800 		1-47428-812-0 01 1 1012- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=738 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=752 SERVICED BY L=800 		1-47428-812-0 01 1 0803-0811 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=801 SERVICED BY L=900 		1-47428-813-0 01 1 0812-1002 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. REARWARD INNER SINGLE TIRE<YK3> L=801 SERVICED BY L=900 		1-47428-813-0 01 1 1003-1011 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=801 SERVICED BY L=900 		1-47428-813-0 01 1 1003-1011 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. PAKISTAN EQUIPMENT(CK1),REARWARD INNER SINGLETIRE<YK3> L=801 SERVICED BY L=900 		1-47428-813-0 01 1 1012- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=801 SERVICED BY L=900 		1-47428-813-0 01 1 1012- ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) L=360 		1-09363-637-0 02 1 1003-1011 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (A) L=360 		1-09363-637-0 02 1 1012- ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) L=360 		1-09363-637-0 02 1 1012- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=420 		1-09363-615-0 02 1 0712-0901 ● ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0902-0906 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0902-0906 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0907- ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0907- ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=340 		1-09363-617-0 01 1 0712- ● ●
197 NUT; UNION
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (B) M12 		0-91111-512-0 01 1 1003-1011 ●
197 NUT; UNION
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (B) M12 		0-91111-512-0 01 1 1012- ●
197 NUT; UNION
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (B) M12 		0-91111-512-0 01 1 1012- ●
197 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0712-0802 ●
197 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0803- ● ●
197 NUT; UNION
(A) M12 		0-91111-512-0 01 1 0712-0802 ●

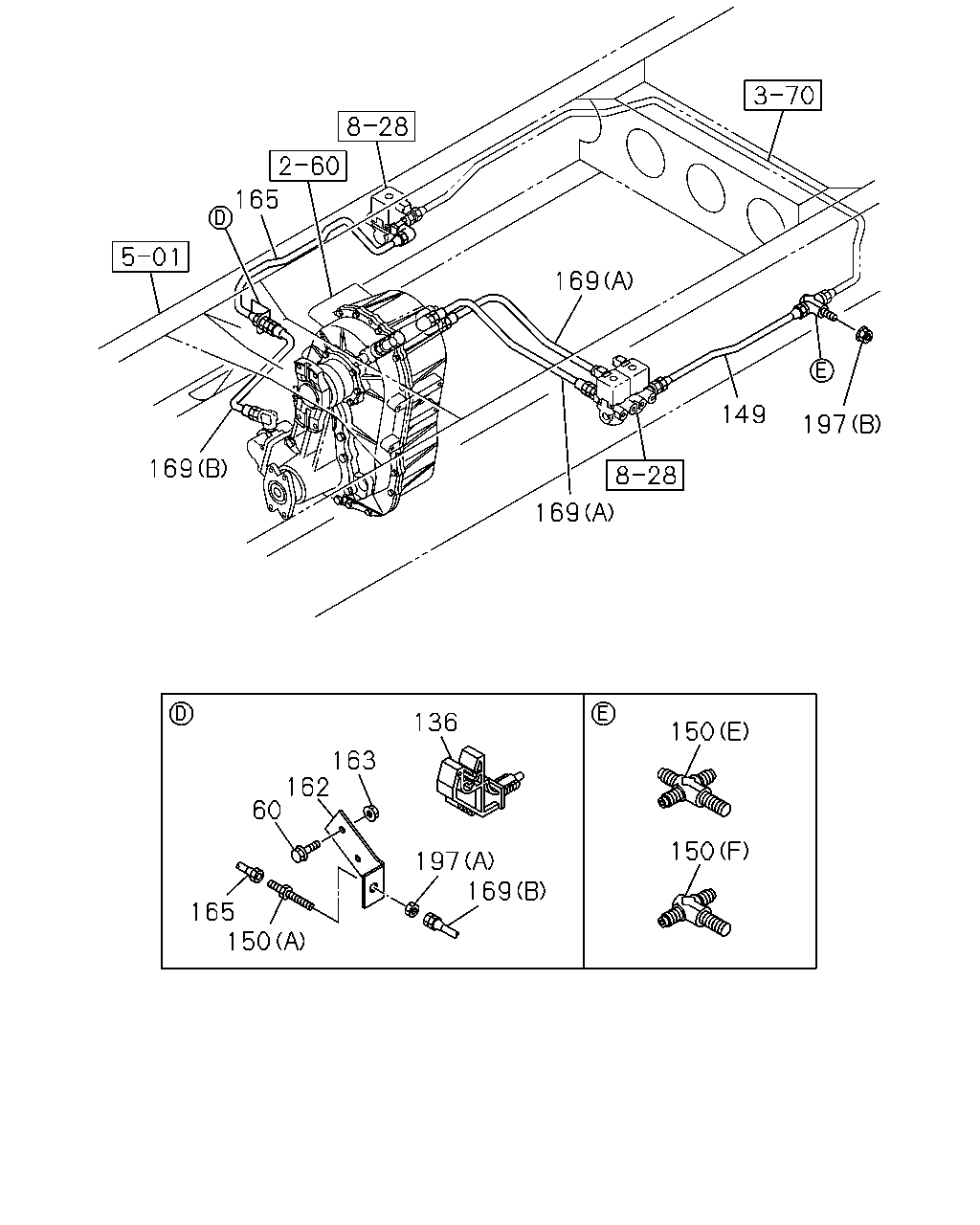

çizim 114715
165 169 149 197 169 169 136 150 163 162 60 150 197 169 165 150
BalonParca AdiParca NoAdetTipApplied Date A B
60 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ●
136 CLIP; AIR PIPE
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> ID=6.35 		1-09701-247-1 01 1 1003-1011 ●
136 CLIP; AIR PIPE
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> ID=6.35 		1-09701-247-1 01 1 1012- ●
136 CLIP; AIR PIPE
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> ID=6.35 		1-09701-247-1 01 1 1012- ●
136 CLIP; AIR PIPE
ID=6.35 & 6.35 		1-09709-273-1 01 1 0712-0802 ●
136 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 0712-0802 ●
149 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> L=358 		8-98152-687-0 01 1 1003-1011 ●
149 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> L=358 		8-98152-687-0 01 1 1012- ●
149 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> L=358 		8-98152-687-0 01 1 1012- ●
149 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 3600MM(36W) EXC. BRAKE REGULATION ADR<TDU> L=1085 SERVICED BY L=1100 		1-47428-815-0 01 1 0812-1207 ●
149 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 3600MM(36W) EXC. BRAKE REGULATION ADR<TDU> L=1102 SERVICED BY L=1200 		1-47428-816-0 01 1 1208- ●
149 PIPE; AIR,MAG VLV TO UNION
WHEEL BASE 4200MM(42W) EXC. BRAKE REGULATION ADR<TDU> L=1277 SERVICED BY L=1370 		1-47428-818-0 01 1 0812- ●
149 PIPE; AIR,MAG VLV TO UNION
L=1502 SERVICED BY L=1620 		1-47428-820-0 01 1 0712-0802 ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (E) 		0-92138-206-0 01 1 1003-1006 ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (E) M12 		0-92138-306-0 01 1 1007- ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> EXC. DIFF LOCK<C3N> (F) M12 3WAY 		1-09654-137-2 01 1 1003-1011 ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (F) M12 3WAY 		1-09654-137-2 01 1 1012- ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> EXC. DIFF LOCK<C3N> (F) M12 3WAY 		1-09654-137-2 01 1 1012- ●
150 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 01 1 0712-0802 ●
150 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 01 1 0803- ● ●
150 UNION; AIR PIPE
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712-0802 ●
150 UNION; AIR PIPE
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0802 ●
150 UNION; AIR PIPE
(D) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
162 BRACKET; FLEX HOSE,TRANSFER 8-98084-381-0 01 1 0712-0802 ●
162 BRACKET; FLEX HOSE,TRANSFER 8-98115-642-0 01 1 0803- ● ●
163 NUT; BRKT,FLEX HOSE
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
REARWARD INNER SINGLE TIRE<YK3> L=769 SERVICED BY L=800 		1-47428-812-0 01 1 1003-1011 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> L=769 SERVICED BY L=800 		1-47428-812-0 01 1 1012- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
REARWARD INNER SINGLE TIRE<YK3> L=769 SERVICED BY L=800 		1-47428-812-0 01 1 1012- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=738 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=752 SERVICED BY L=800 		1-47428-812-0 01 1 0803-0811 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=801 SERVICED BY L=900 		1-47428-813-0 01 1 0812-1002 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. REARWARD INNER SINGLE TIRE<YK3> L=801 SERVICED BY L=900 		1-47428-813-0 01 1 1003-1011 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=801 SERVICED BY L=900 		1-47428-813-0 01 1 1003-1011 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. PAKISTAN EQUIPMENT(CK1),REARWARD INNER SINGLETIRE<YK3> L=801 SERVICED BY L=900 		1-47428-813-0 01 1 1012- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=801 SERVICED BY L=900 		1-47428-813-0 01 1 1012- ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) L=360 		1-09363-637-0 02 1 1003-1011 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (A) L=360 		1-09363-637-0 02 1 1012- ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) L=360 		1-09363-637-0 02 1 1012- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=420 		1-09363-615-0 02 1 0712-0901 ● ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0902-0906 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0902-0906 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0907- ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0907- ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=340 		1-09363-617-0 01 1 0712- ● ●
197 NUT; UNION
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (B) M12 		0-91111-512-0 01 1 1003-1011 ●
197 NUT; UNION
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (B) M12 		0-91111-512-0 01 1 1012- ●
197 NUT; UNION
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (B) M12 		0-91111-512-0 01 1 1012- ●
197 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0712-0802 ●
197 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0803- ● ●
197 NUT; UNION
(A) M12 		0-91111-512-0 01 1 0712-0802 ●

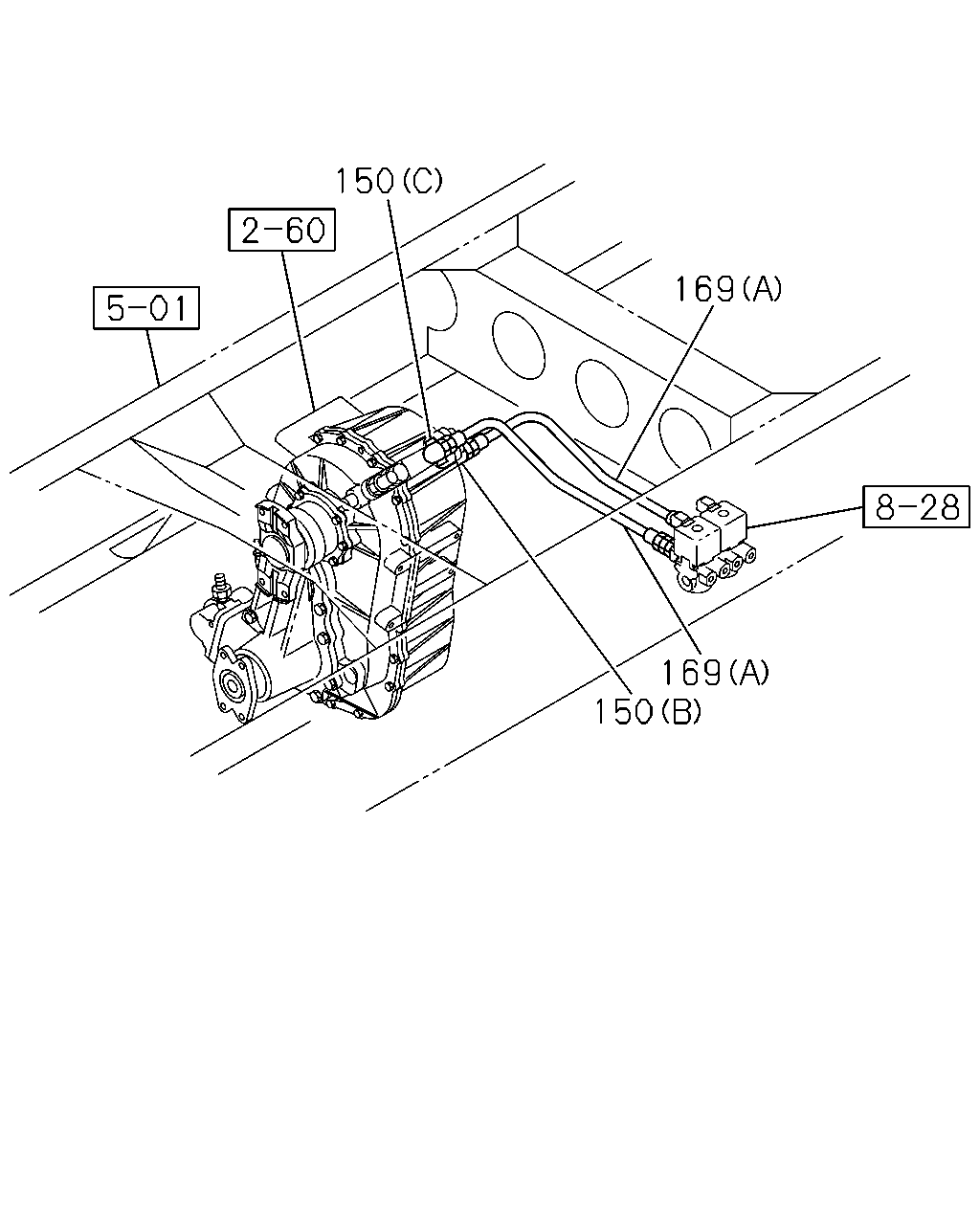

çizim 193318
150 169 169 150
BalonParca AdiParca NoAdetTipApplied Date A B
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (E) 		0-92138-206-0 01 1 1003-1006 ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (E) M12 		0-92138-306-0 01 1 1007- ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> EXC. DIFF LOCK<C3N> (F) M12 3WAY 		1-09654-137-2 01 1 1003-1011 ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (F) M12 3WAY 		1-09654-137-2 01 1 1012- ●
150 UNION; AIR PIPE
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> EXC. DIFF LOCK<C3N> (F) M12 3WAY 		1-09654-137-2 01 1 1012- ●
150 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 01 1 0712-0802 ●
150 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 01 1 0803- ● ●
150 UNION; AIR PIPE
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712-0802 ●
150 UNION; AIR PIPE
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0802 ●
150 UNION; AIR PIPE
(D) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) L=360 		1-09363-637-0 02 1 1003-1011 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (A) L=360 		1-09363-637-0 02 1 1012- ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) L=360 		1-09363-637-0 02 1 1012- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=420 		1-09363-615-0 02 1 0712-0901 ● ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0902-0906 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0902-0906 ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0907- ●
169 HOSE; FLEX,TRANSFER CONT
WHEEL BASE 4200MM(42W) (A) L=420 		1-09363-615-0 02 1 0907- ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=340 		1-09363-617-0 01 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
