Isuzu WW
▶
TRUCKS
▶
FTR
▶
10781 - FTR(THAI)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

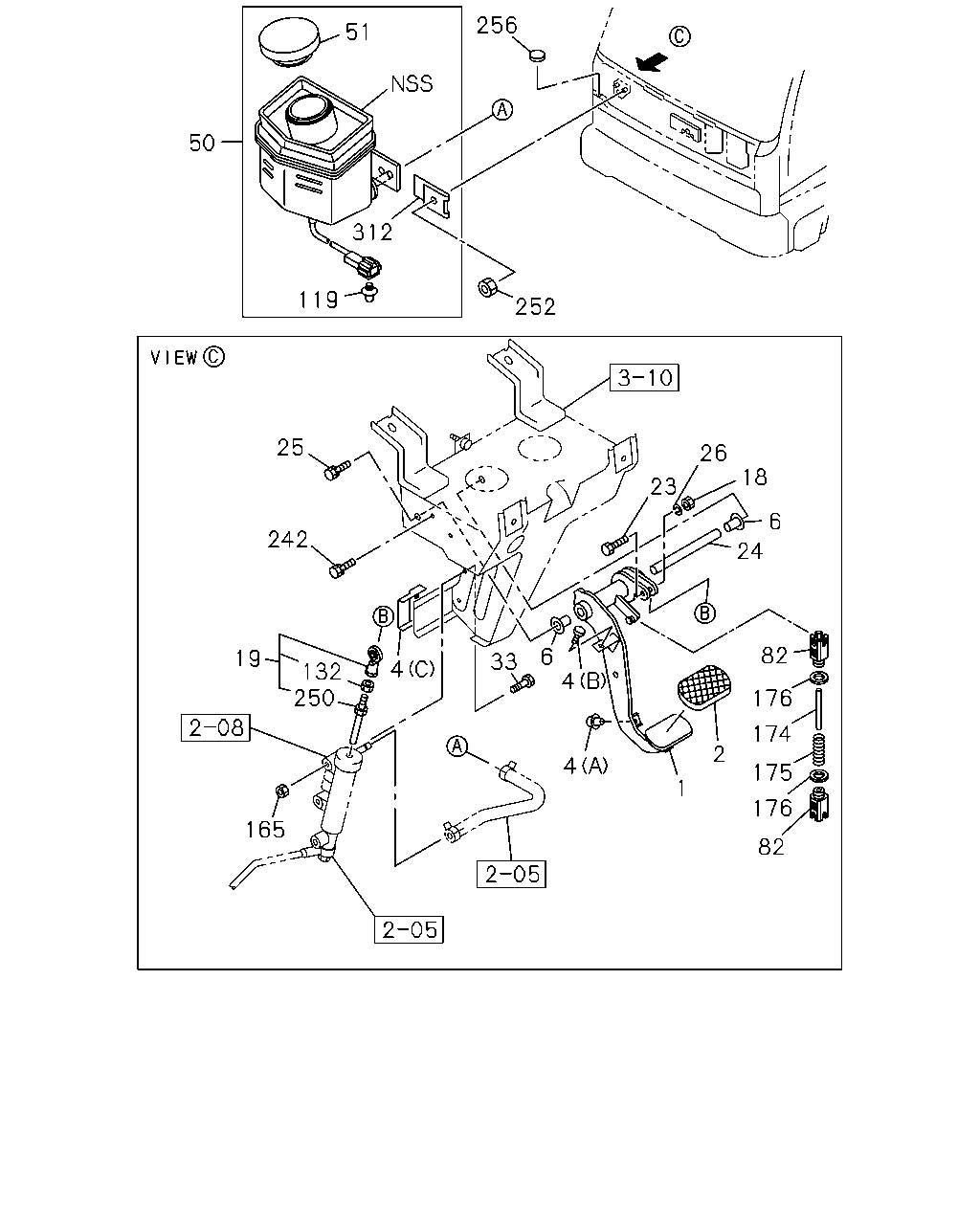

2-03 — CLUTCH PEDAL AND CONTROL
(#6670) — 28 parça
Tümü
A - FTR5MC
B - FTR5MF
256
51
50
312
119
252
25
26
18
23
6
242
24
82
6
4
19
33
4
132
250
176
174
2
4
175
1
176
165
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PEDAL; CLU
THA
8-97915-955-1
01
1
0011-
●
●
2
COVER; CLU PEDAL
THA
8-94204-810-0
01
1
0011-0103
●
●
2
COVER; CLU PEDAL
8-97893-618-1
01
1
0104-
●
●
4
STOPPER; CLU PEDAL
(A) THA
1-47319-014-1
04
1
0011-
●
●
4
STOPPER; CLU PEDAL
(B) THA
1-73908-088-1
01
1
0011-
●
●
4
STOPPER; CLU PEDAL
(C) THA
5-31419-003-0
01
1
0011-
●
●
6
BUSHING; CLU PEDAL
THA
1-09330-045-0
02
1
0011-
●
●
18
NUT; PUSH ROD
M8
9-09110-508-0
01
1
0011-
●
●
19
ROD ASM; PUSH,CLU
THA
1-73908-332-0
01
1
0011-
●
●
23
BOLT; PUSH ROD
M8X43.7 THA
1-73908-333-0
01
1
0011-
●
●
24
SHAFT; CLU PEDAL
THA
1-73998-936-1
01
1
0011-
●
●
25
BOLT; PEDAL
M10X25 W/LK WASHER
0-50051-025-0
02
1
0011-
●
●
26
WASHER; LK,PUSH ROD
ID=8.2
9-09150-608-0
01
1
0011-
●
●
33
BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE
0-28081-060-0
02
1
0011-
●
●
50
TANK; OIL,CLU
1-47530-182-0
01
1
0011-
●
●
51
CAP; OIL TANK,CLU
8-94136-483-1
01
1
0011-
●
●
82
CLEVIS; HELPER,CLU PEDAL
THA
1-73998-472-1
02
1
0011-
●
●
119
CLIP; CONNECTOR
OD=7 H=1.2
8-94364-750-0
01
1
0011-
●
●
132
NUT; LK,PUSH ROD
M8
9-09110-408-0
01
1
0011-
●
●
165
NUT; CLU M/CYL
M10 FLANGE
0-91150-210-0
02
1
0011-
●
●
174
PIN; STRAIGHT,CLU PEDAL
THA
1-73998-474-0
01
1
0011-
●
●
175
SPRING; HELPER
THA
1-73908-052-0
01
1
0011-
●
●
176
SEAT; SPRING
THA
1-09503-114-0
02
1
0011-
●
●
242
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
0-50040-616-0
02
1
0011-
●
●
250
ROD; PUSH,CLU
THA
1-73996-219-0
01
1
0011-
●
●
252
NUT; OIL TANK
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0011-
●
●
256
SEAL; HOLE
OD=25 BLACK THA
1-76798-019-0
01
1
0011-
●
●
312
PLATE; OIL TANK,CLU
1-21249-007-1
01
1
0011-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
