8-52 — PIPING; AIR CONDITIONING (#667) — 40 parça

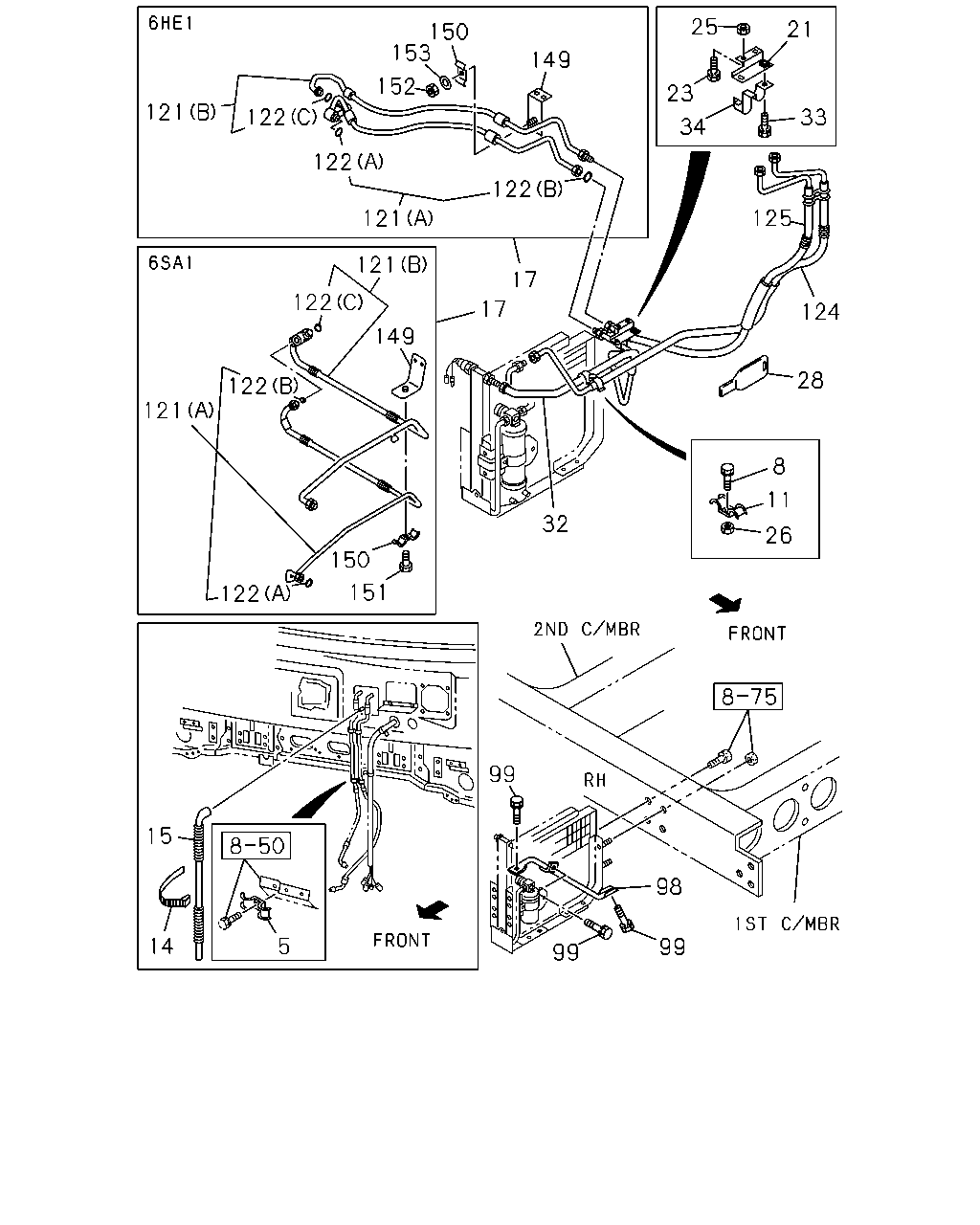

çizim 28144
121 122 121 121 122 122 152 153 150 149 122 34 23 25 21 33 125 124 28 8 11 26 32 17 17 149 122 121 150 151 122 15 14 5 99 98 99 99
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; FLEX HOSE,A/C
AIR CON MANUAL CONTROL(C60) 		1-83574-194-0 01 1 9202- ● ●
8 BOLT; CLIP
AIR CON MANUAL CONTROL(C60) M8X25 FLANGE 		0-28080-825-0 01 1 9202- ● ●
11 CLIP; COOLER PIPE
AIR CON MANUAL CONTROL(C60) 		1-83574-193-0 01 1 9202- ● ●
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CON MANUAL CONTROL(C60) L=250 		5-09707-030-0 01 1 9202- ● ●
15 HOSE; DRAIN
AIR CON MANUAL CONTROL(C60) 		1-83566-376-2 01 1 9202- ● ●
17 HOSE; FLEX,CMPR TO PIPE
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) 		1-83566-827-0 01 1 9202-9301 ● ●
17 HOSE; FLEX,CMPR TO PIPE
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) 		1-83566-982-0 01 1 9302- ● ●
17 HOSE; FLEX,CMPR TO PIPE
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) 		1-83566-771-1 01 1 9202-9301 ●
17 HOSE; FLEX,CMPR TO PIPE
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) 		1-83566-981-0 01 1 9302- ●
21 BRACKET; COOLER HOSE
AIR CON MANUAL CONTROL(C60) 		1-83571-768-1 01 1 9202- ● ●
23 BOLT; BRKT
AIR CON MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 02 1 9202- ● ●
25 NUT; BRKT
AIR CON MANUAL CONTROL(C60) M8 		9-09110-408-0 02 1 9202- ● ●
26 NUT; PIPE CLIP
AIR CON MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9202- ● ●
28 CLIP; PIPE,HOSE A/C
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) L=158 		1-83574-031-0 01 1 9202- ● ●
32 PIPE; COOLER,HOSE TO CONDENSER
AIR CON MANUAL CONTROL(C60) 		1-83567-433-1 01 1 9202-9301 ● ●
32 PIPE; COOLER,HOSE TO CONDENSER
AIR CON MANUAL CONTROL(C60) 		1-83567-491-0 01 1 9302- ● ●
33 BOLT; CLIP
AIR CON MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9202- ● ●
34 CLIP; COOLER PIPE
AIR CON MANUAL CONTROL(C60) 		1-83574-166-1 01 1 9202- ● ●
98 STAY; CONDENSER
AIR CON MANUAL CONTROL(C60) 		1-83571-774-0 01 1 9202- ● ●
99 BOLT; STAY FIX
AIR CON MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 02 1 9202- ● ●
99 BOLT; STAY FIX
AIR CON MANUAL CONTROL(C60) M10X25 W/LK&PL WASHER 		9-01961-025-0 01 1 9202-9204 ● ●
99 BOLT; STAY FIX
AIR CON MANUAL CONTROL(C60) M10X25 W/LK&PL WASHER 		0-50141-025-0 01 1 9205- ● ●
121 HOSE; COOLER
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) (A) 		1-83566-990-0 01 1 9302- ● ●
121 HOSE; COOLER
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) (B) 		1-83566-991-0 01 1 9302- ● ●
121 HOSE; COOLER
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) (A) 		1-83566-988-0 01 1 9302- ●
121 HOSE; COOLER
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) (B) 		1-83566-989-0 01 1 9302- ●
122 GASKET
AIR CON MANUAL CONTROL(C60) (A) 		1-09623-514-0 01 1 9202- ● ●
122 GASKET
AIR CON MANUAL CONTROL(C60) (C) 		1-09623-515-0 01 1 9202- ● ●
122 GASKET
AIR CON MANUAL CONTROL(C60) (B) 		1-09623-517-0 01 1 9202- ● ●
124 HOSE; FLEX,TANK TO UNIT
AIR CON MANUAL CONTROL(C60) 		1-83566-781-1 01 1 9202-9301 ● ●
124 HOSE; FLEX,TANK TO UNIT
AIR CON MANUAL CONTROL(C60) 		1-83566-999-0 01 1 9302- ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CON MANUAL CONTROL(C60) 		1-83566-779-0 01 1 9202-9301 ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CON MANUAL CONTROL(C60) 		1-83572-004-0 01 1 9302- ● ●
149 BRACKET; COOLER HOSE
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) 		1-83571-793-0 01 1 9202- ● ●
149 BRACKET; COOLER HOSE
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) 		1-83571-600-1 01 1 9202- ●
150 CLIP; HOSE
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) ID=12.2 & 16.2 		1-83574-157-0 01 1 9202- ● ●
150 CLIP; HOSE
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) 		1-83574-165-0 01 1 9202- ●
151 BOLT; CLIP FIX,COOLER HOSE
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 01 1 9202- ● ●
152 NUT; CLIP
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) M6 		9-09110-406-0 01 1 9202- ●
153 WASHER
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) ID=6.1 		9-09150-506-0 01 1 9202- ●
