2-66 — MANUAL TRANSFER GEAR; OUTPUT (#66699) — 56 parça

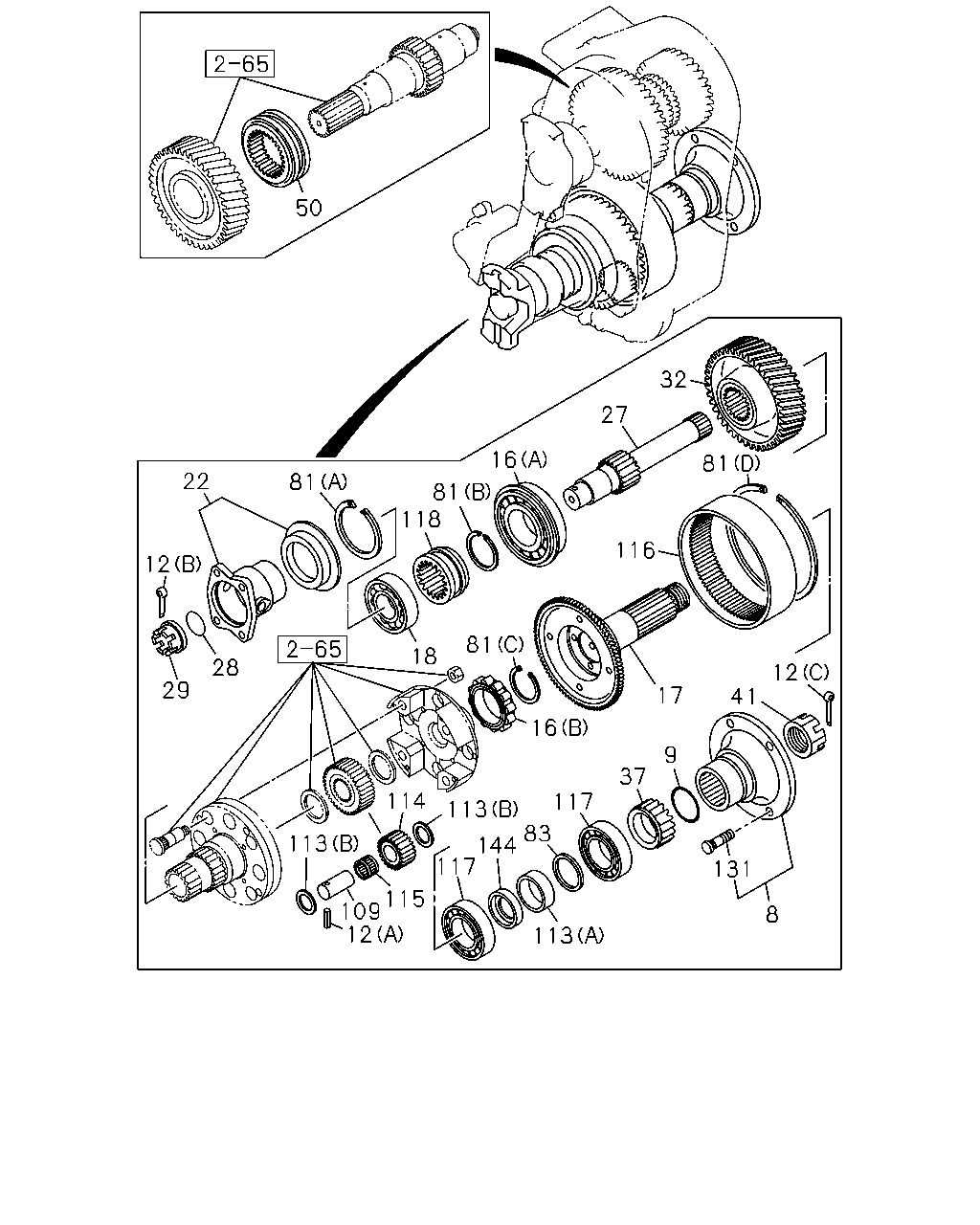

çizim 193324
50 32 27 16 81 22 81 81 118 116 12 81 18 28 12 29 17 41 16 9 37 114 117 113 83 144 117 113 131 115 109 12 8 113
BalonParca AdiParca NoAdetTipApplied Date A B
8 FLANGE; OUTPUT 1-37243-306-0 01 1 0712-0805 ● ●
8 FLANGE; OUTPUT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-37243-306-0 01 1 0806- ●
8 FLANGE; OUTPUT 1-37243-306-0 01 1 0806- ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-385-0 01 1 0712- ● ●
12 PIN
(A) L=25 OD=5 		8-94135-771-0 04 1 0712- ● ●
12 PIN
(B) 		9-08116-050-0 01 1 0712- ● ●
12 PIN
(C) 		9-08116-060-0 01 1 0712- ● ●
16 BEARING; OUTPUT GEAR
(A) NTN 		1-09810-164-0 01 1 0712- ● ●
16 BEARING; OUTPUT GEAR
(A) NSK 		1-09810-185-0 01 1 0712- ● ●
16 BEARING; OUTPUT GEAR
(B) NTN 		1-09810-200-0 01 1 0712- ● ●
16 BEARING; OUTPUT GEAR
(B) JTEKT 		1-09810-226-0 01 1 0712- ● ●
17 SHAFT; OUTPUT 1-36351-044-0 01 1 0712- ● ●
18 BEARING; BALL,OUTPUT,FRT
NSK 		1-09800-249-0 01 1 0712- ● ●
18 BEARING; BALL,OUTPUT,FRT
NTN 		1-09800-250-0 01 1 0712- ● ●
22 FLANGE; OUTPUT,FRT 8-98096-538-0 01 1 0712- ● ●
27 GEAR; OUTPUT,FRT 1-36311-022-0 01 1 0712- ● ●
28 GASKET; SHAFT
ALSO INCLUDED IN REPAIR KIT(T/F). ID=42 		9-09921-116-0 01 1 0712- ● ●
29 NUT; FLANGE 1-09440-017-0 01 1 0712- ● ●
32 GEAR; OUTPUT,TRANSFER
Z=41 		1-36371-011-0 01 1 0712- ● ●
37 GEAR; DRIVE,SPD,TRANSFER
Z=18 		1-33371-052-0 01 1 0712- ● ●
41 NUT; FLANGE LK,OUTPUT
PARKING BRAKE DRUM 10"(B1T) M42 		9-09844-217-1 01 1 0806- ●
41 NUT; FLANGE LK,OUTPUT 1-09440-090-0 01 1 0712-0805 ● ●
41 NUT; FLANGE LK,OUTPUT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09440-090-0 01 1 0806- ●
41 NUT; FLANGE LK,OUTPUT 1-09440-090-0 01 1 0806- ●
50 SLEEVE; HIGH & LOW,TRANSFER
Z=28 		1-36262-010-1 01 1 0712- ● ●
81 RING; SNAP
(A) 		1-09587-023-0 01 1 0712- ● ●
81 RING; SNAP
(B) ID=66 T=2.53 WHITE 		1-09588-131-0 AR 1 0712- ● ●
81 RING; SNAP
(B) ID=66 T=2.56 YELLOW 		1-09588-132-0 AR 1 0712- ● ●
81 RING; SNAP
(B) ID=66 T=2.60 BLUE 		1-09588-133-0 AR 1 0712- ● ●
81 RING; SNAP
(B) ID=66 T=2.64 GREEN 		1-09588-134-0 AR 1 0712- ● ●
81 RING; SNAP
(C) ID=60.8 		9-09180-065-0 01 1 0712- ● ●
81 RING; SNAP
(D) 		9-09950-200-0 01 1 0712- ● ●
83 SHIM; OUTPUT SHAFT
T=3.25 		1-33235-086-0 AR 1 0712- ● ●
83 SHIM; OUTPUT SHAFT
T=3.30 		1-33235-087-0 AR 1 0712- ● ●
83 SHIM; OUTPUT SHAFT
T=3.40 		1-33235-088-0 AR 1 0712- ● ●
83 SHIM; OUTPUT SHAFT
T=3.50 		1-33235-089-0 AR 1 0712- ● ●
83 SHIM; OUTPUT SHAFT
T=3.55 		1-33235-090-0 AR 1 0712- ● ●
83 SHIM; OUTPUT SHAFT
T=3.60 		1-33235-091-0 AR 1 0712- ● ●
83 SHIM; OUTPUT SHAFT
T=3.65 		1-33235-092-0 AR 1 0712- ● ●
83 SHIM; OUTPUT SHAFT
T=3.70 		1-33235-093-0 AR 1 0712- ● ●
83 SHIM; OUTPUT SHAFT
T=3.90 		1-33235-094-0 AR 1 0712- ● ●
83 SHIM; OUTPUT SHAFT
T=4.00 		1-33235-097-0 AR 1 0712- ● ●
109 SHAFT; PLANETARY 1-36383-003-0 04 1 0712- ● ●
113 PIECE; DISTANCE
(A) 		1-36355-065-0 01 1 0712- ● ●
113 PIECE; DISTANCE
(B) 		1-36389-002-0 08 1 0712- ● ●
114 GEAR; PLANETARY
Z=23 		1-36381-001-0 04 1 0712- ● ●
115 BEARING; NEEDLE
NTN 		1-09811-364-0 04 1 0712- ● ●
115 BEARING; NEEDLE
NSK 		1-09811-369-0 04 1 0712- ● ●
116 GEAR; RING
Z=84 		1-36381-004-0 01 1 0712- ● ●
117 BEARING; TAPER
NSK 		1-09812-199-0 02 1 0712- ● ●
117 BEARING; TAPER
NTN 		1-09812-200-0 02 1 0712- ● ●
118 SLEEVE; DIFF LOCK
Z=18 		1-36262-023-0 01 1 0712- ● ●
131 BOLT; FLANGE
M16X51 W/MARK 		1-46219-086-0 04 1 0712-0805 ● ●
131 BOLT; FLANGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X51 W/MARK 		1-46219-086-0 04 1 0806- ●
131 BOLT; FLANGE
M16X51 W/MARK 		1-46219-086-0 04 1 0806- ●
144 CATCHER; OIL 1-36359-035-0 01 1 0712- ● ●
