Isuzu WW
▶
TRUCKS
▶
FTS
▶
11128 - FTS(RHD)EURO2/4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-65 - MANUAL TRANSFER GEAR; INPUT AND IDLE
▶

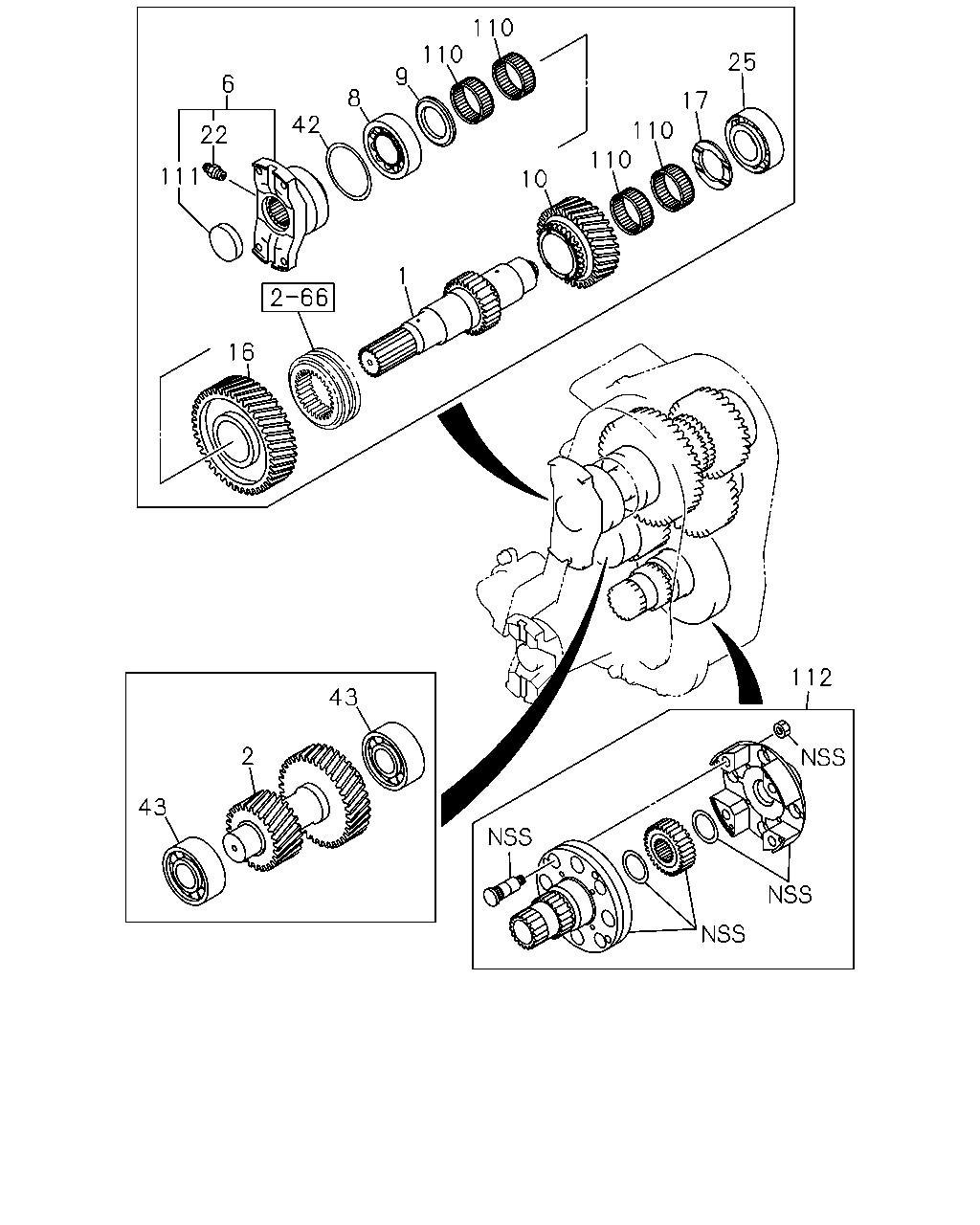

2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE
(#66698) — 23 parça
Tümü
A - FGS5MS
B - FGS5WS
110
110
25
9
6
8
17
42
110
110
22
111
10
1
16
112
43
2
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SHAFT; GEAR,INPUT
1-36211-030-0
01
1
0712-
●
●
2
SHAFT; GEAR,IDLE
1-36251-027-0
01
1
0712-
●
●
6
FLANGE; INPUT
1-37243-134-0
01
1
0712-
●
●
8
BEARING; ROLLER,INPUT SHAFT
NSK
1-09812-199-0
01
1
0712-
●
●
8
BEARING; ROLLER,INPUT SHAFT
NTN
1-09812-200-0
01
1
0712-
●
●
9
WASHER; THRUST,FRT
1-36255-010-0
01
1
0712-
●
●
10
GEAR; INPUT,LOW
Z=30
1-36231-029-0
01
1
0712-
●
●
16
GEAR; INPUT,HIGH
Z=41
1-36231-028-0
01
1
0712-
●
●
17
WASHER; THRUST,RR
1-36255-010-0
01
1
0712-
●
●
22
NIPPLE; GREASE
PT1/8 STRAIGHT
0-90301-410-0
01
1
0712-
●
●
25
BEARING; BALL,INPUT SHAFT
NSK
1-09812-199-0
01
1
0712-
●
●
25
BEARING; BALL,INPUT SHAFT
NTN
1-09812-200-0
01
1
0712-
●
●
42
SHIM; IDLE SHAFT BRG
T=0.10
1-33156-018-0
AR
1
0712-
●
●
42
SHIM; IDLE SHAFT BRG
T=0.15
1-33156-019-0
AR
1
0712-
●
●
42
SHIM; IDLE SHAFT BRG
T=0.20
1-33156-020-0
AR
1
0712-
●
●
42
SHIM; IDLE SHAFT BRG
T=0.40
1-33156-021-0
AR
1
0712-
●
●
42
SHIM; IDLE SHAFT BRG
T=0.65
1-33156-022-0
AR
1
0712-
●
●
42
SHIM; IDLE SHAFT BRG
T=0.80
1-33156-023-0
AR
1
0712-
●
●
43
BEARING; ROLLER,IDLE SHAFT
NSK
1-09810-198-0
02
1
0712-
●
●
43
BEARING; ROLLER,IDLE SHAFT
NTN
1-09810-199-0
02
1
0712-
●
●
110
BEARING; NEEDLE
1-09811-432-0
04
1
0712-
●
●
111
PLUG
1-09600-047-0
01
1
0712-
●
●
112
CARRIER ASM
1-36350-007-0
01
1
0712-
●
●
