◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-61 - TRANSFER CASE AND GEAR SHIFTER ▶
2-61 — TRANSFER CASE AND GEAR SHIFTER (#66697) — 75 parça

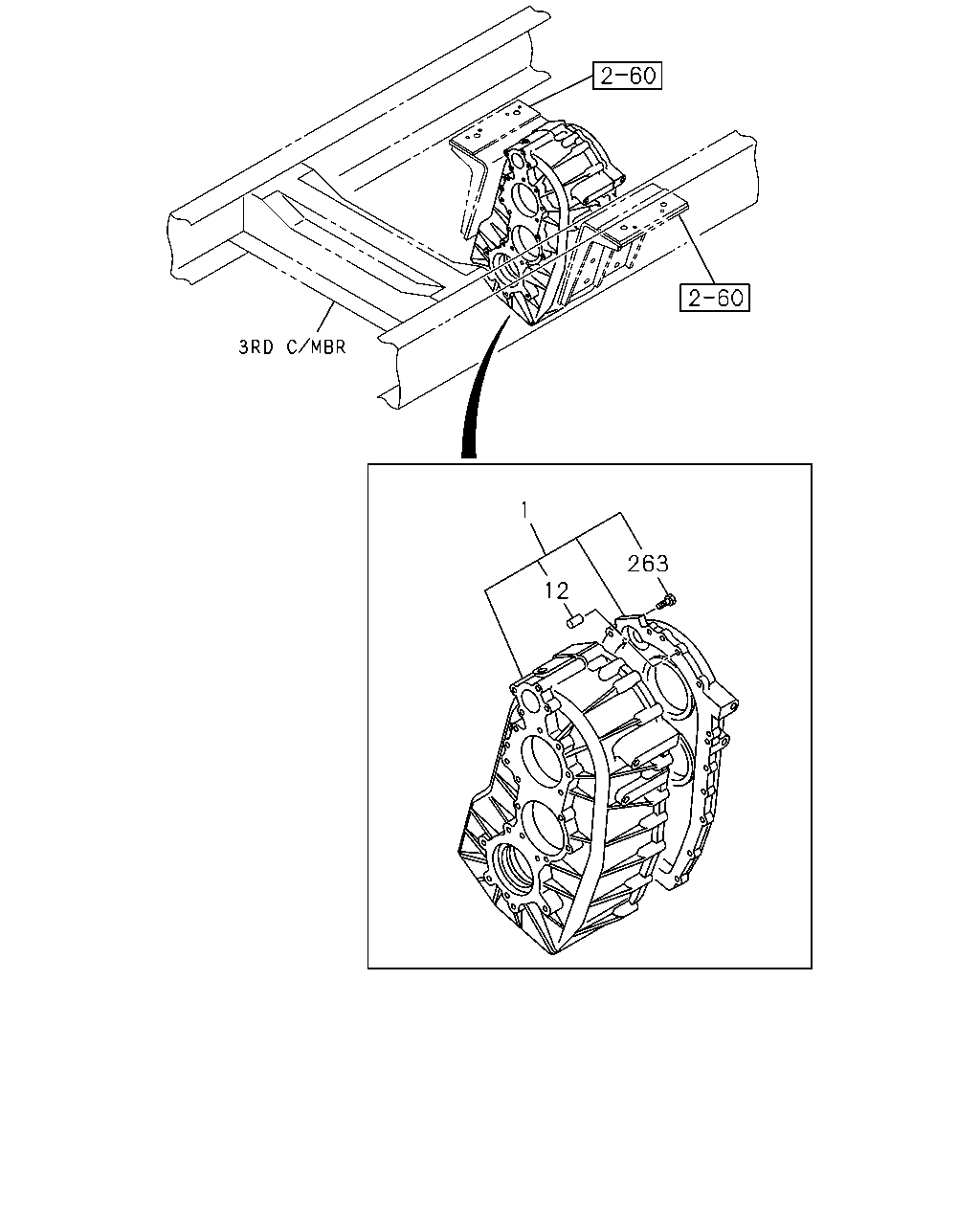

çizim 114403
1 263 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TRANSFER 1-36111-081-0 01 1 0712- ● ●
12 PIN; STRAIGHT,TRANSFER CASE
OD=12 L=20 		9-08161-220-0 02 1 0712- ● ●
263 BOLT; TRANSFER CASE
M10X30 FLANGE 		0-28151-030-0 21 1 0712- ● ●

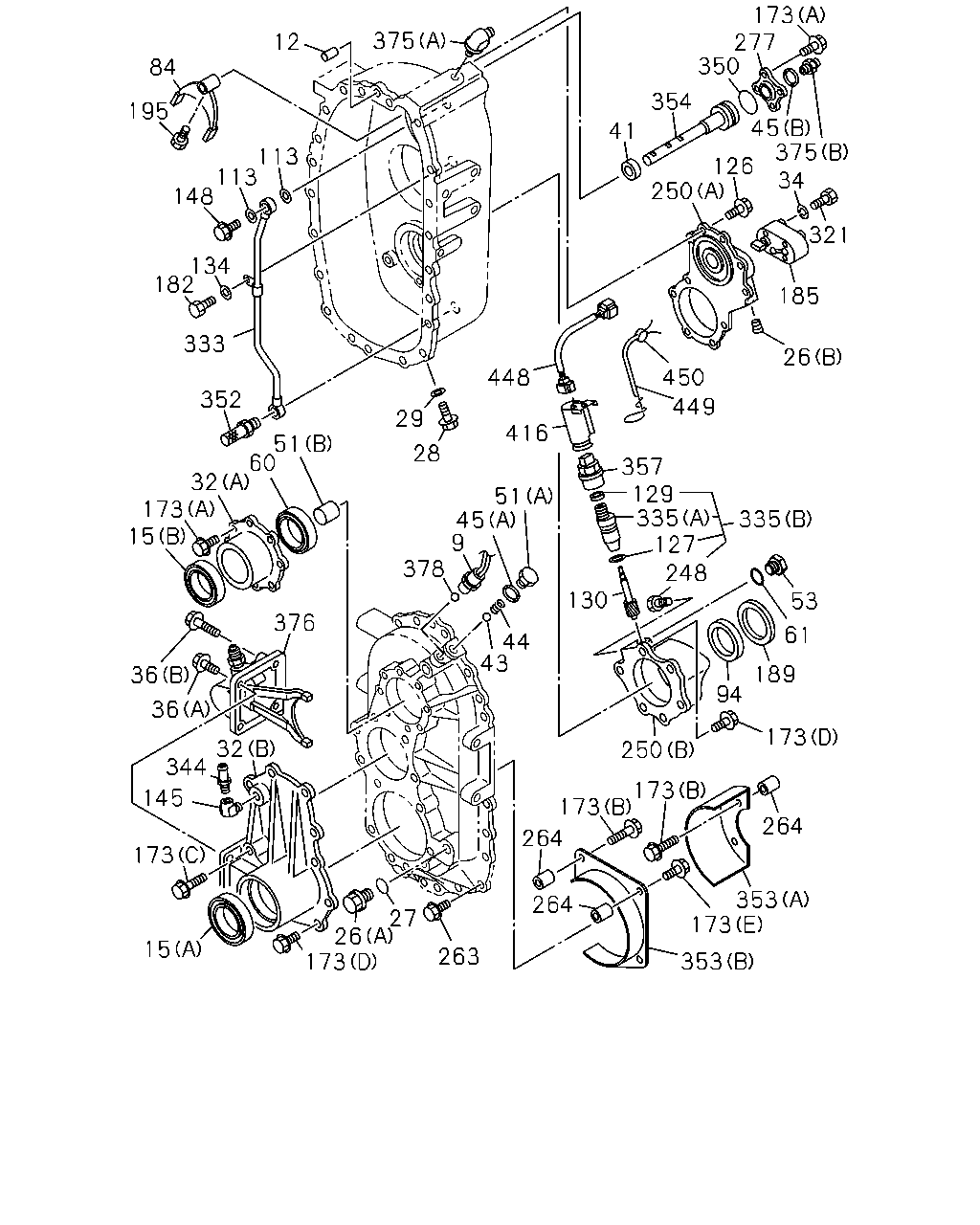

çizim 193328
173 277 350 375 12 84 45 375 34 354 195 41 113 113 148 126 250 321 134 182 185 333 26 448 450 352 449 29 416 51 60 28 357 129 335 127 248 32 173 15 51 45 9 378 335 130 53 376 61 44 43 189 36 94 36 32 344 173 250 173 173 145 264 264 173 264 353 173 27 26 173 15 263 353
BalonParca AdiParca NoAdetTipApplied Date A B
9 SWITCH; TRANSFER 1-82340-534-0 01 1 0712- ● ●
12 PIN; STRAIGHT,TRANSFER CASE
OD=12 L=20 		9-08161-220-0 02 1 0712- ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). (A) 		1-09625-549-0 01 1 0712- ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). (B) 		1-09625-552-0 01 1 0712- ● ●
26 PLUG; FILLER,TRANSFER CASE
(A) M24X17 FLANGE 		1-09604-023-0 01 1 0712- ● ●
26 PLUG; FILLER,TRANSFER CASE
(B) PT1/8 		1-09605-050-0 02 1 0712- ● ●
27 GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 0712- ● ●
28 PLUG; DRAIN,TRANSFER CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0712- ● ●
29 GASKET; DRAIN PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 0712- ● ●
32 COVER; TRANSFER CASE,FRT
(A) 		1-36121-029-0 01 1 0712- ● ●
32 COVER; TRANSFER CASE,FRT
(B) 		1-36121-030-0 01 1 0712- ● ●
34 WASHER; LK,COVER
ID=8.2 		0-91510-508-0 04 1 0712- ● ●
36 BOLT; SHIFT UNIT
(A) M10X25 FLANGE 		0-28151-025-0 03 1 0712- ● ●
36 BOLT; SHIFT UNIT
(B) M10X60 FLANGE 		0-28151-060-0 01 1 0712- ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-650-0 01 1 0712- ● ●
43 BALL; LK,SHIFT ROD 9-00097-013-0 01 1 0712- ● ●
44 SPRING; COIL,LK 9-09940-323-0 01 1 0712- ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). (B) 		1-09623-689-0 01 1 0712- ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). (A) ID=20.5 OD=28.0 		9-09571-420-0 01 1 0712- ● ●
51 PLUG; SHIFT ROD
(A) 		9-09862-175-0 01 1 0712- ● ●
51 PLUG; SHIFT ROD
(B) OD=24 L=31 		9-33545-011-1 01 1 0712- ● ●
53 PLUG; COVER
M16X12 		1-09604-009-0 01 1 0712- ● ●
60 SEAL; OIL,FRT COVER,UPR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-548-0 01 1 0712- ● ●
61 GASKET; COVER
ID=16.2 OD=24 		9-09571-416-0 01 1 0712- ● ●
84 FORK; SHIFT,LOW & HIGH 1-36561-011-2 01 1 0712- ● ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-553-0 01 1 0712- ● ●
113 GASKET; OIL,TRANSFER
ID=12.2 		1-09630-084-0 02 1 0712-1312 ● ●
113 GASKET; OIL,TRANSFER
ID=12.2 		8-98251-344-0 02 1 1401- ● ●
126 BOLT; RR COVER
M8X25 FLANGE 		0-28050-825-0 12 1 0712- ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-246-0 01 1 0712- ● ●
129 SEAL; OIL,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-510-0 01 1 0712- ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
Z=15 		1-33372-147-4 01 1 0712- ● ●
134 WASHER; PL
ID=10.5 OD=22 		0-91614-610-0 01 1 0712- ● ●
145 CONNECTOR; OIL PIPE,TRANSFER
PT1/4 2WAY 		1-09660-693-0 01 1 0712- ● ●
148 BOLT; EYE,OIL PIPE
M12X27 FLANGE 		1-09675-085-0 01 1 0712- ● ●
173 BOLT; COVER
(A) M8X25 FLANGE 		0-28050-825-0 12 1 0712- ● ●
173 BOLT; COVER
(B) M10X45 FLANGE 		0-28151-045-0 03 1 0712- ● ●
173 BOLT; COVER
(C) M12X100 FLANGE 		0-28151-200-0 02 1 0712- ● ●
173 BOLT; COVER
(D) M12X30 FLANGE 		0-28151-230-0 15 1 0712- ● ●
173 BOLT; COVER
(E) M10X20 W/LK WASHER 		0-50551-020-0 02 1 0712- ● ●
182 BOLT; OIL PIPE,TRANSFER
M10X20 W/LK WASHER 		0-50551-020-0 01 1 0712- ● ●
185 PUMP ASM; OIL,TRANSFER 1-34150-071-1 01 1 0712- ● ●
189 COVER; DUST,OIL SEAL 1-33139-011-1 01 1 0712- ● ●
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 01 1 0712- ● ●
248 BOLT
M6X12.5 FLANGE 		1-09044-063-0 01 1 0712-0805 ● ●
248 BOLT
M6X12.5 FLANGE 		8-98014-141-0 01 1 0806- ● ●
250 COVER; OIL PUMP,TRANSFER
(A) 		1-36121-028-0 01 1 0712- ● ●
250 COVER; OIL PUMP,TRANSFER
(B) 		1-36121-031-0 01 1 0712- ● ●
263 BOLT; TRANSFER CASE
M10X30 FLANGE 		0-28151-030-0 21 1 0712- ● ●
264 SPACER
L=28 		8-97108-653-0 03 1 0712- ● ●
277 COVER; SHIFT ROD,TRANSFER 1-36135-006-0 01 1 0712- ● ●
321 BOLT; PUMP HSG
M8X50 		0-10855-850-0 04 1 0712- ● ●
333 PIPE; OIL,TRANSFER 1-36161-029-0 01 1 0712- ● ●
335 BUSHING
(A) 		1-33373-074-0 01 1 0712- ● ●
335 BUSHING
(B) 		1-33373-076-0 01 1 0712- ● ●
344 CONNECTOR
L=45 		8-94338-874-0 01 1 0712- ● ●
350 RING; SNAP,RING GEAR 1-09623-688-0 01 1 0712- ● ●
352 FILTER; OIL 1-36289-001-0 01 1 0712- ● ●
353 BAFFLE
(A) 		1-36379-007-0 01 1 0712- ● ●
353 BAFFLE
(B) 		1-36379-008-0 01 1 0712- ● ●
354 ROD; AIR SHIFTER 1-36564-037-0 01 1 0712- ● ●
357 SENSOR; SPEED
25 PULSE 		1-80240-029-0 01 1 0712-1301 ● ●
357 SENSOR; SPEED
25 PULSE 		8-98234-167-0 01 1 1302- ● ●
375 NIPPLE
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712- ● ●
375 NIPPLE
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712- ● ●
376 SHIFT UNIT; DIFF LOCK 1-48260-083-0 01 1 0712- ● ●
378 BALL; CONT SWITCH 9-00097-013-0 01 1 0712- ● ●
416 PROTECTOR; SENSOR 8-97168-308-0 01 1 0712-0808 ● ●
416 PROTECTOR; SENSOR 8-98119-901-0 01 1 0809- ● ●
448 HARNESS; SPEED SENSOR 1-82670-078-0 01 1 0712- ● ●
449 WIRE; LEAD SEAL 1-80249-010-0 01 1 0712- ● ●
450 SEAL; REED 1-15739-008-0 01 1 0712- ● ●
