◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#66688) — 74 parça

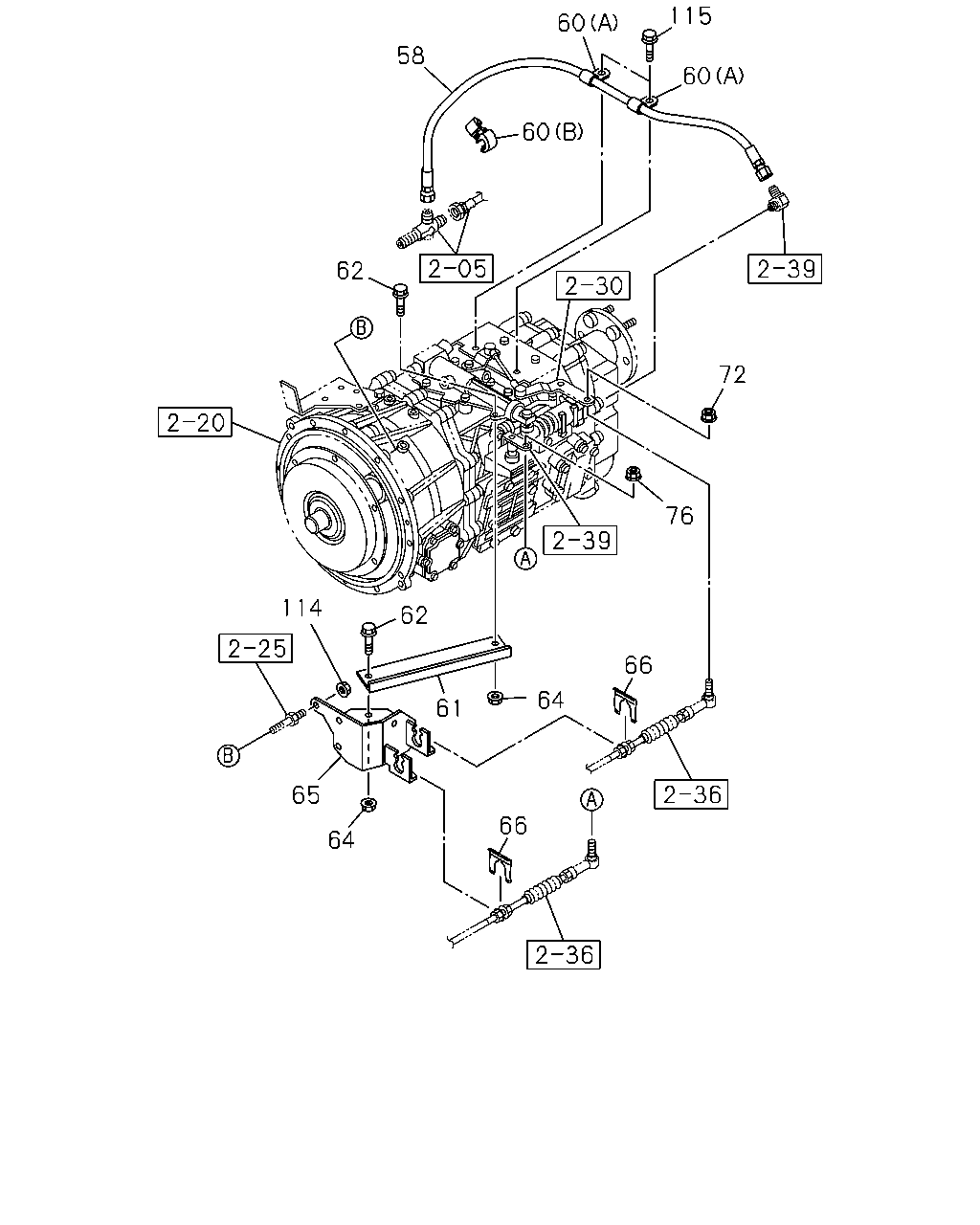

çizim 113801
115 60 58 60 60 62 72 76 114 62 66 64 61 65 66 64
BalonParca AdiParca NoAdetTipApplied Date A B
58 HOSE; FLEX,POWER ASSISTOR
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> L=740 		1-09363-675-0 01 1 0806-0811 ●
58 HOSE; FLEX,POWER ASSISTOR
MLD6Q M/T(X5J) L=740 		1-09363-675-0 01 1 0806-0811 ●
58 HOSE; FLEX,POWER ASSISTOR
MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=740 		1-09363-675-0 01 1 0812- ●
58 HOSE; FLEX,POWER ASSISTOR
MLD6Q M/T(X5J) L=740 		1-09363-675-0 01 1 0812- ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=640 		1-09363-626-1 01 1 0712-0906 ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW) L=640 		1-09363-626-1 01 1 0712-0906 ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640 		1-09363-626-1 01 1 0907- ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=640 		1-09363-626-1 01 1 0907- ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20 		0-95235-235-0 02 1 0712-0906 ●
60 CLIP; FLEX HOSE
(A) ID=13 L=20 		0-95235-235-0 02 1 0712-0906 ●
60 CLIP; FLEX HOSE
MANUAL TRANSMISSION<X9C> ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20 		0-95235-235-0 02 1 0907- ●
60 CLIP; FLEX HOSE
(A) ID=13 L=20 		0-95235-235-0 02 1 0907- ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10 		1-09709-277-1 01 1 0712-0906 ●
60 CLIP; FLEX HOSE
(B) ID=10 & 10 		1-09709-277-1 01 1 0712-0906 ●
60 CLIP; FLEX HOSE
MANUAL TRANSMISSION<X9C> ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10 		1-09709-277-1 01 1 0907- ●
60 CLIP; FLEX HOSE
(B) ID=10 & 10 		1-09709-277-1 01 1 0907- ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 0806-0811 ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 0812- ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 0712-0805 ● ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW) 		1-33657-267-0 01 1 0806-0811 ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 0806-0811 ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 0806-0811 ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW) 		1-33657-267-0 01 1 0812-0906 ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 0812-0906 ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 0812-0906 ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		1-33657-267-0 01 1 0907- ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 0907- ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 0907- ●
62 BOLT; STAY
MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 0806-0811 ●
62 BOLT; STAY
MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 0812- ●
62 BOLT; STAY
MANUAL TRANSMISSION<X9C> M10X30 FLANGE 		0-28651-030-0 02 1 0712-0804 ● ●
62 BOLT; STAY
MZX6P M/T(RSW) M10X30 FLANGE 		0-28651-030-0 02 1 0805-0805 ● ●
62 BOLT; STAY
MZX6P M/T(RSW) M10X30 FLANGE 		0-28651-030-0 02 1 0806-0811 ●
62 BOLT; STAY
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 02 1 0806-0811 ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 02 1 0806-0811 ●
62 BOLT; STAY
MZX6P M/T(RSW) M10X30 FLANGE 		0-28651-030-0 02 1 0812-0906 ●
62 BOLT; STAY
MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 02 1 0812-0906 ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 02 1 0812-0906 ●
62 BOLT; STAY
MZX6P M/T(RSW),MZW6P M/T(RSZ) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ●
62 BOLT; STAY
MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 02 1 0907- ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 02 1 0907- ●
64 NUT; STAY
MANUAL TRANSMISSION<X9C> M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98117-611-0 01 1 0905- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98117-611-0 01 1 0905- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98125-513-0 01 1 0808-0906 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98125-513-0 01 1 0808-0906 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98125-513-0 01 1 0907- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98125-513-0 01 1 0907- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-677-0 01 1 0806-0811 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J) 		1-33657-677-0 01 1 0806-0811 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-677-0 01 1 0812-0904 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J) 		1-33657-677-0 01 1 0812-0904 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33657-677-0 01 1 0905- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33657-677-0 01 1 0905- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-672-1 01 1 0806-0811 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J),MLD6W M/T(Y2C) MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-672-1 01 1 0812-1002 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-672-1 01 1 1003- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> 		8-98010-160-0 01 1 0712-0807 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) 		8-98010-160-0 01 1 0712-0807 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98010-160-0 01 1 0808-0906 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98010-160-0 01 1 0808-0906 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98010-160-0 01 1 0907- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98010-160-0 01 1 0907- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98017-428-0 01 1 0712-0906 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98017-428-0 01 1 0907- ●
66 CLIP; SELECT BRKT
MANUAL TRANSMISSION<X9C> ID=22.2 		1-09701-209-1 02 1 0712- ● ●
72 NUT; TRANS CONT,SELECT
MANUAL TRANSMISSION<X9C> M8 FLANGE 		1-09440-049-0 01 1 0712- ● ●
76 NUT; BALL JOINT,SELECT WIRE
MANUAL TRANSMISSION<X9C> M8 FLANGE 		1-09440-049-0 01 1 0712- ● ●
114 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712-1002 ● ●
114 NUT; BRKT
MANUAL TRANSMISSION<X9C> M10 FLANGE 		0-91180-210-0 02 1 1003- ● ●
115 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 02 1 0712-0906 ●
115 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0712-0906 ●
115 BOLT; CLIP
MANUAL TRANSMISSION<X9C> ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 02 1 0907- ●
115 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0907- ●
