Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#66687) — 228 parça

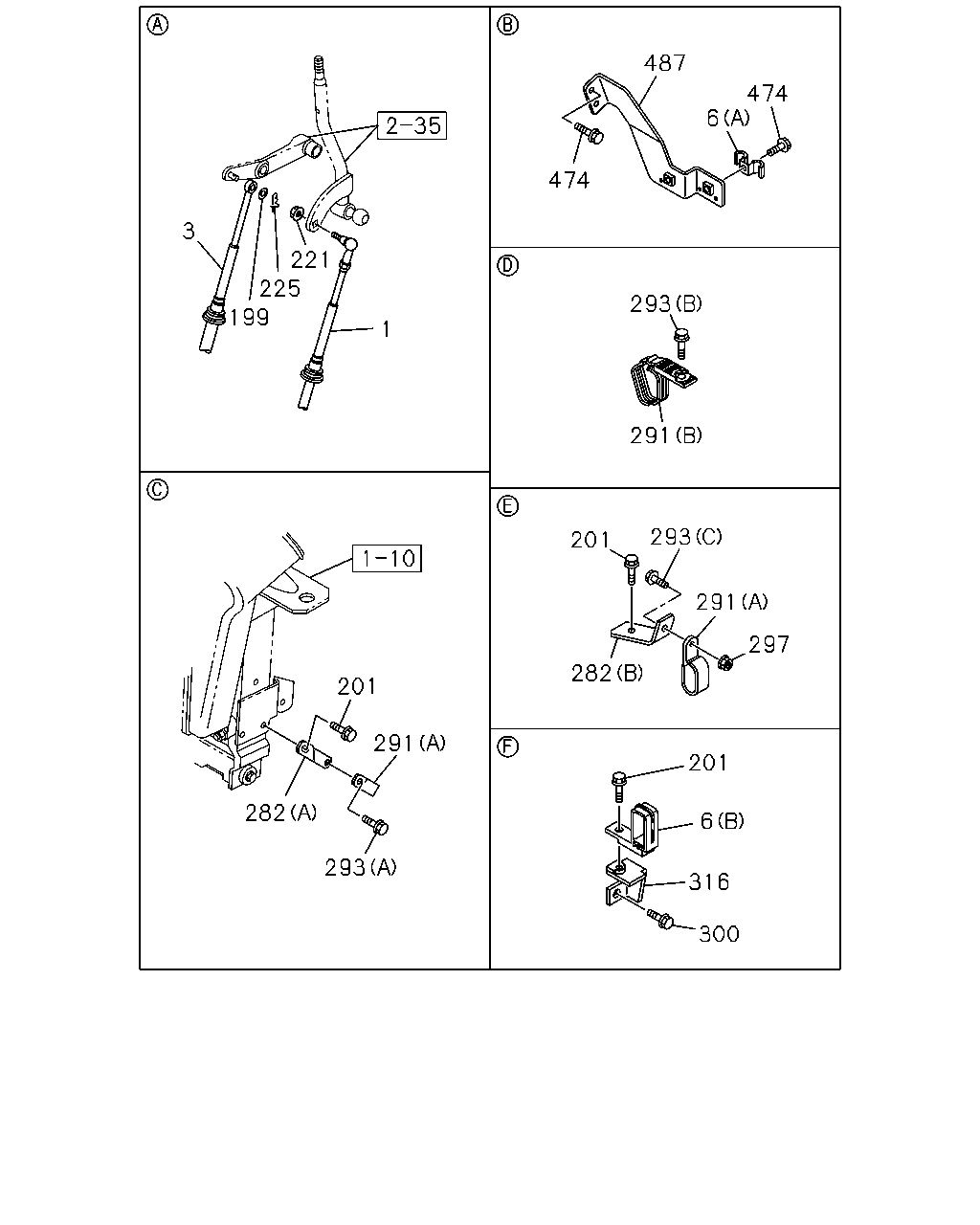

487 474 6 474 3 221 225 293 199 1 291 293 201 291 297 282 201 291 201 282 6 293 316 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) L=3670	8-98122-025-0	01	1	0806-0811	●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) L=3670	8-98122-025-0	01	1	0806-0811		●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) L=3670	8-98122-025-0	01	1	0812-0904	●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) L=3670	8-98122-025-0	01	1	0812-0904		●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) L=3670	8-98145-495-2	01	1	0905-	●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) L=3670	8-98145-495-2	01	1	0905-		●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3615	8-98122-023-1	01	1	0806-0811	●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3615	8-98122-023-1	01	1	0806-0811		●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3615	8-98122-023-2	01	1	0812-	●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3615	8-98122-023-2	01	1	0812-		●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) L=3660	8-98122-027-1	01	1	0806-0811	●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) L=3660	8-98122-027-4	01	1	0812-	●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) L=3570	8-98074-060-2	01	1	0712-0807	●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) L=3570	8-98074-060-2	01	1	0712-0807		●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) L=3630	8-98125-510-1	01	1	0808-0906	●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) L=3630	8-98125-510-1	01	1	0808-0906		●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) L=3630	8-98125-510-2	01	1	0907-	●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) L=3630	8-98125-510-2	01	1	0907-		●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3515	8-98050-357-3	01	1	0712-0906	●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3515	8-98050-357-3	01	1	0712-0906		●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3515	8-98050-357-5	01	1	0907-	●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3515	8-98050-357-5	01	1	0907-		●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) L=3540	8-98050-356-3	01	1	0712-0906	●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) L=3540	8-98050-356-6	01	1	0907-	●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) L=3775	8-98122-026-1	01	1	0806-0811	●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) L=3775	8-98122-026-1	01	1	0806-0811		●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) L=3775	8-98122-026-1	01	1	0812-	●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) L=3775	8-98122-026-1	01	1	0812-		●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720	8-98122-024-1	01	1	0806-0811	●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720	8-98122-024-1	01	1	0806-0811		●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720	8-98122-024-1	01	1	0812-	●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720	8-98122-024-1	01	1	0812-		●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) L=3770	8-98122-028-1	01	1	0806-0811	●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) L=3770	8-98122-028-3	01	1	0812-	●
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) L=3775	8-98074-066-3	01	1	0712-0906	●	●
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) L=3775	8-98074-066-3	01	1	0907-	●	●
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720	8-98050-361-3	01	1	0712-0906	●	●
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720	8-98050-361-3	01	1	0907-	●	●
6	CLIP; CABLE LCT2000 A/T ALLISON(Y4F) (C) ID=13 L=20	0-95235-236-0	01	1	1003-	●
6	CLIP; CABLE ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0712-0804	●
6	CLIP; CABLE (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0712-0804		●
6	CLIP; CABLE MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0805-0805	●
6	CLIP; CABLE MZX6P M/T(RSW) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0805-0805		●
6	CLIP; CABLE MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0806-0811	●	●
6	CLIP; CABLE MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0806-0811	●
6	CLIP; CABLE MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0812-0906	●	●
6	CLIP; CABLE MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0812-0906	●
6	CLIP; CABLE MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0907-	●	●
6	CLIP; CABLE MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0907-	●
6	CLIP; CABLE MANUAL TRANSMISSION<X9C> (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0712-	●	●
199	WASHER; PL,SELECT MANUAL TRANSMISSION<X9C> ID=8.4 OD=16	0-91614-508-0	01	1	0712-	●	●
201	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0712-0804	●	●
201	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0712-0804	●
201	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0712-0804		●
201	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0805-0805	●	●
201	BOLT; BRKT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0805-0805	●
201	BOLT; BRKT MZX6P M/T(RSW) M8X16 FLANGE	0-28050-816-0	01	1	0805-0805		●
201	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0806-0806	●	●
201	BOLT; BRKT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0806-0806	●
201	BOLT; BRKT MLD6Q M/T(X5J) M8X16 FLANGE	0-28050-816-0	01	1	0806-0806	●
201	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0806-0806		●
201	BOLT; BRKT MANUAL TRANSMISSION<X9C> M8X16 FLANGE	0-28050-816-0	01	1	0806-0811	●	●
201	BOLT; BRKT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0806-0811	●	●
201	BOLT; BRKT MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0806-0811	●
201	BOLT; BRKT MANUAL TRANSMISSION<X9C> M8X16 FLANGE	0-28050-816-0	01	1	0812-0906	●	●
201	BOLT; BRKT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0812-0906	●	●
201	BOLT; BRKT MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0812-0906	●
201	BOLT; BRKT MANUAL TRANSMISSION<X9C> M8X16 FLANGE	0-28050-816-0	01	1	0907-	●	●
201	BOLT; BRKT MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0907-	●	●
201	BOLT; BRKT MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0907-	●
201	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	0712-0805	●	●
201	BOLT; BRKT MANUAL TRANSMISSION<X9C> M8X20 FLANGE	0-28050-820-0	01	1	0806-	●	●
221	NUT; SHIFT WIRE TO LEVER MANUAL TRANSMISSION<X9C> M8 FLANGE	1-09440-049-0	01	1	0712-1011	●	●
221	NUT; SHIFT WIRE TO LEVER MANUAL TRANSMISSION<X9C> M8 FLANGE	1-09440-062-1	01	1	1012-	●	●
225	PIN; SELECT CABLE MANUAL TRANSMISSION<X9C> L=27.7	8-94111-137-0	01	1	0712-	●	●
282	BRACKET; TRANS SIDE MANUAL TRANSMISSION<X9C> (A)	8-98010-419-0	01	1	0712-0712	●	●
282	BRACKET; TRANS SIDE MANUAL TRANSMISSION<X9C> (A)	8-98098-265-2	01	1	0712-	●	●
282	BRACKET; TRANS SIDE MANUAL TRANSMISSION<X9C> (B)	1-82699-199-0	01	1	0712-	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	01	1	0712-0805	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	01	1	0712-0805	●	●
291	CLIP; SHIFT TO SELECT,FRAME MANUAL TRANSMISSION<X9C> (A) ID=11X2 L=16	0-95325-026-0	01	1	0806-	●	●
291	CLIP; SHIFT TO SELECT,FRAME MANUAL TRANSMISSION<X9C> (A) ID=11X2 L=16	0-95325-026-0	01	1	0806-	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0712-0805	●	●
291	CLIP; SHIFT TO SELECT,FRAME MANUAL TRANSMISSION<X9C> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0806-1002	●	●
291	CLIP; SHIFT TO SELECT,FRAME MANUAL TRANSMISSION<X9C> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1003-	●	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2000 A/T ALLISON(Y4F) (C) ID=13 L=24	0-95235-245-0	02	1	1003-	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2000 A/T ALLISON(Y4F) (D) ID=13 L=28	0-95235-255-0	01	1	1003-	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2000 A/T ALLISON(Y4F) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1003-	●
293	BOLT; CLIP,SHIFT TO SELECT (C) M8X20 FLANGE	0-28650-820-0	01	1	0802-0805	●	●
293	BOLT; CLIP,SHIFT TO SELECT MANUAL TRANSMISSION<X9C> (C) M8X20 FLANGE	0-28650-820-0	01	1	0806-	●	●
293	BOLT; CLIP,SHIFT TO SELECT (A) M8X16 FLANGE	0-28050-816-0	01	1	0712-	●	●
293	BOLT; CLIP,SHIFT TO SELECT (B) M8X20 FLANGE	0-28050-820-0	02	1	0712-0801	●	●
293	BOLT; CLIP,SHIFT TO SELECT (B) M8X20 FLANGE	0-28050-820-0	01	1	0802-0805	●	●
293	BOLT; CLIP,SHIFT TO SELECT MANUAL TRANSMISSION<X9C> (B) M8X20 FLANGE	0-28050-820-0	01	1	0806-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2000 A/T ALLISON(Y4F) (B) M8X16 FLANGE	0-28050-816-0	01	1	1003-	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2000 A/T ALLISON(Y4F) (A) M8X20 FLANGE	0-28050-820-0	01	1	1003-	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2000 A/T ALLISON(Y4F) (C) M8X20 FLANGE	0-28650-820-0	01	1	1003-	●
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-	●	●
300	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	01	1	0712-0804	●
300	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-0804		●
300	BOLT; CLIP MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	01	1	0805-0805	●
300	BOLT; CLIP MZX6P M/T(RSW) M8X20 FLANGE	0-28650-820-0	01	1	0805-0805		●
300	BOLT; CLIP MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	01	1	0806-0811	●	●
300	BOLT; CLIP MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	01	1	0806-0811	●
300	BOLT; CLIP MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	01	1	0812-0906	●	●
300	BOLT; CLIP MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	01	1	0812-0906	●
300	BOLT; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	01	1	0907-	●	●
300	BOLT; CLIP MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	01	1	0907-	●
316	BRACKET; CLIP MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98086-439-0	01	1	0806-0811	●
316	BRACKET; CLIP MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98086-439-0	01	1	0812-	●
316	BRACKET; CLIP ASSISTOR SHIFT CONTROL<WX8>	8-98073-017-1	01	1	0712-0804	●
316	BRACKET; CLIP	8-98073-017-1	01	1	0712-0804		●
316	BRACKET; CLIP ASSISTOR SHIFT CONTROL<WX8>	8-98073-017-1	01	1	0805-0805	●
316	BRACKET; CLIP	8-98073-017-1	01	1	0805-0805		●
316	BRACKET; CLIP MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8>	8-98073-017-1	01	1	0806-0906	●
316	BRACKET; CLIP MZX6P M/T(RSW)	8-98073-017-1	01	1	0806-0906		●
316	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98073-017-1	01	1	0907-	●
316	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ)	8-98073-017-1	01	1	0907-		●
474	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) M8X25 W/WASHER	0-51640-825-0	02	1	1003-	●
474	BOLT; BRKT M8X25 W/WASHER	0-51640-825-0	03	1	0712-0805	●	●
474	BOLT; BRKT MANUAL TRANSMISSION<X9C> M8X25 W/WASHER	0-51640-825-0	03	1	0806-	●	●
487	BRACKET; CONT CABLE	8-98021-920-2	01	1	0712-1012	●	●
487	BRACKET; CONT CABLE	8-98183-009-0	01	1	1101-	●	●

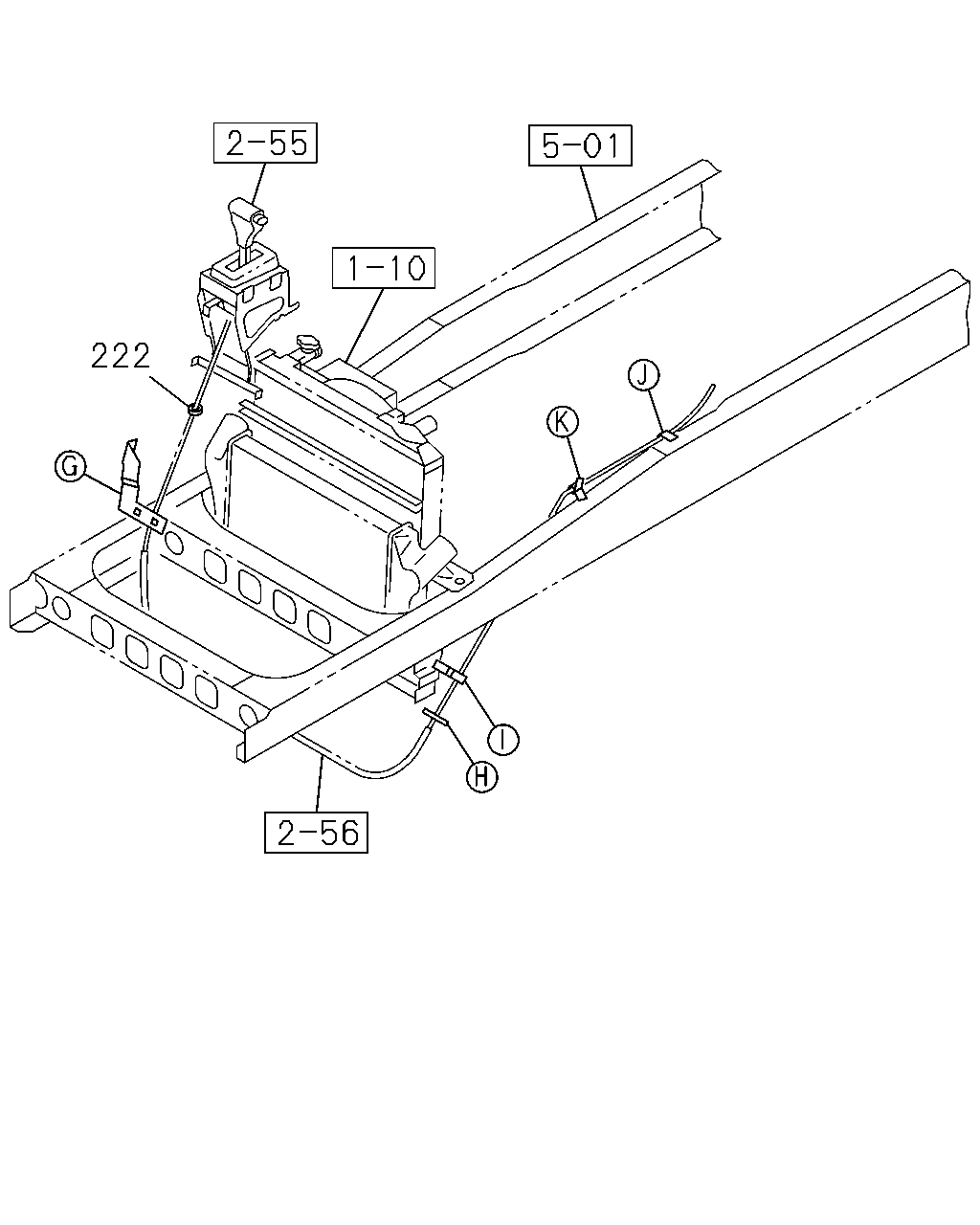

222

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	222	GROMMET; CABLE LCT2000 A/T ALLISON(Y4F)	8-98043-470-0	01	1	1003-	●

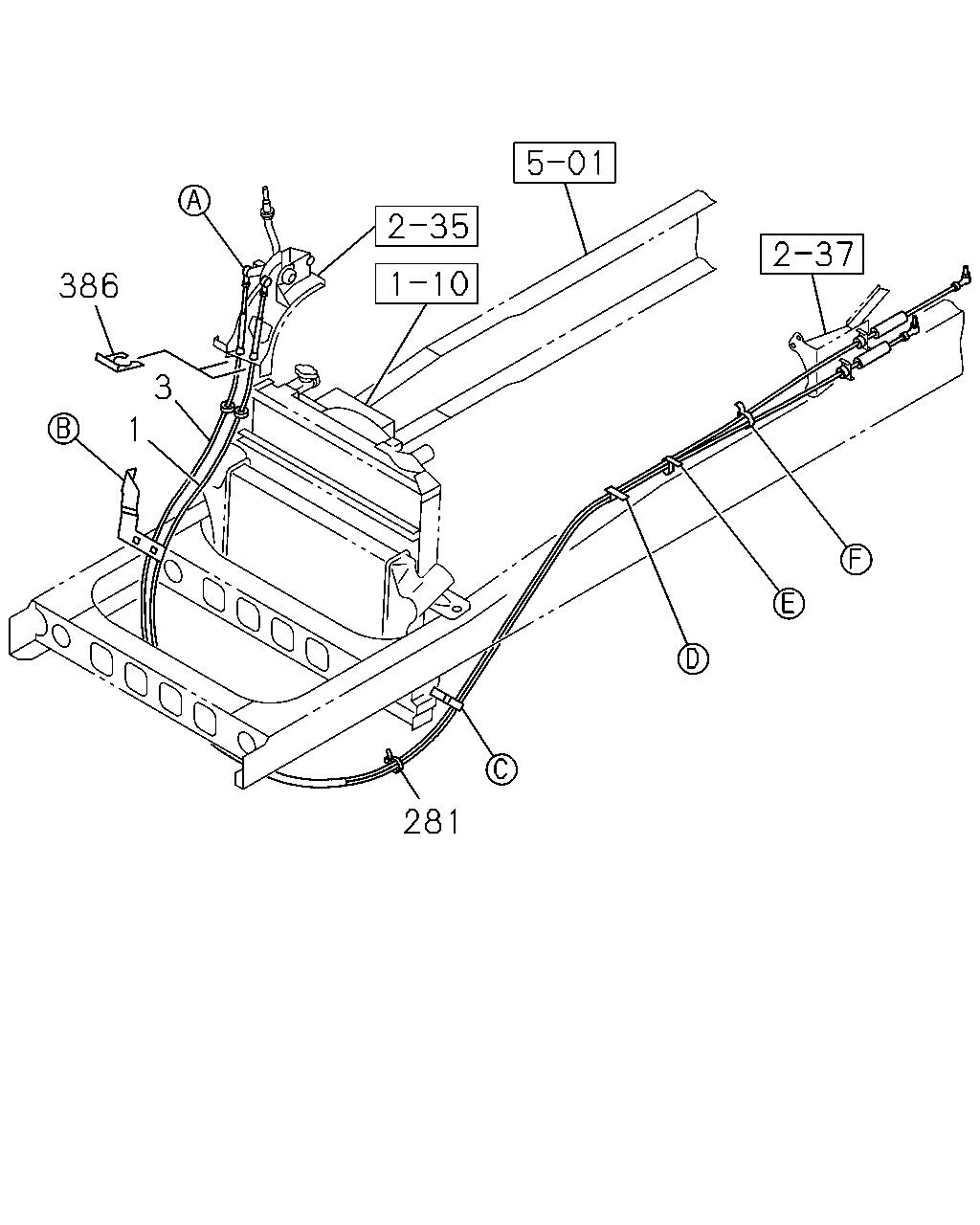

281 474 275 487 293 6 291 293 291 201 297 282 293 291 282 488 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	CLIP; CABLE LCT2000 A/T ALLISON(Y4F) (C) ID=13 L=20	0-95235-236-0	01	1	1003-	●
6	CLIP; CABLE ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0712-0804	●
6	CLIP; CABLE (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0712-0804		●
6	CLIP; CABLE MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0805-0805	●
6	CLIP; CABLE MZX6P M/T(RSW) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0805-0805		●
6	CLIP; CABLE MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0806-0811	●	●
6	CLIP; CABLE MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0806-0811	●
6	CLIP; CABLE MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0812-0906	●	●
6	CLIP; CABLE MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0812-0906	●
6	CLIP; CABLE MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0907-	●	●
6	CLIP; CABLE MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0907-	●
6	CLIP; CABLE MANUAL TRANSMISSION<X9C> (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0712-	●	●
201	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0712-0804	●	●
201	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0712-0804	●
201	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0712-0804		●
201	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0805-0805	●	●
201	BOLT; BRKT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0805-0805	●
201	BOLT; BRKT MZX6P M/T(RSW) M8X16 FLANGE	0-28050-816-0	01	1	0805-0805		●
201	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0806-0806	●	●
201	BOLT; BRKT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0806-0806	●
201	BOLT; BRKT MLD6Q M/T(X5J) M8X16 FLANGE	0-28050-816-0	01	1	0806-0806	●
201	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0806-0806		●
201	BOLT; BRKT MANUAL TRANSMISSION<X9C> M8X16 FLANGE	0-28050-816-0	01	1	0806-0811	●	●
201	BOLT; BRKT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0806-0811	●	●
201	BOLT; BRKT MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0806-0811	●
201	BOLT; BRKT MANUAL TRANSMISSION<X9C> M8X16 FLANGE	0-28050-816-0	01	1	0812-0906	●	●
201	BOLT; BRKT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0812-0906	●	●
201	BOLT; BRKT MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0812-0906	●
201	BOLT; BRKT MANUAL TRANSMISSION<X9C> M8X16 FLANGE	0-28050-816-0	01	1	0907-	●	●
201	BOLT; BRKT MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0907-	●	●
201	BOLT; BRKT MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0907-	●
201	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	0712-0805	●	●
201	BOLT; BRKT MANUAL TRANSMISSION<X9C> M8X20 FLANGE	0-28050-820-0	01	1	0806-	●	●
275	BOLT; CONT CABLE CLIP LCT2000 A/T ALLISON(Y4F) M8X25 W/WASHER	0-51640-825-0	01	1	1003-	●
281	CLIP; BAND L=300	1-09707-001-1	01	1	0712-	●	●
282	BRACKET; TRANS SIDE MANUAL TRANSMISSION<X9C> (A)	8-98010-419-0	01	1	0712-0712	●	●
282	BRACKET; TRANS SIDE MANUAL TRANSMISSION<X9C> (A)	8-98098-265-2	01	1	0712-	●	●
282	BRACKET; TRANS SIDE MANUAL TRANSMISSION<X9C> (B)	1-82699-199-0	01	1	0712-	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	01	1	0712-0805	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	01	1	0712-0805	●	●
291	CLIP; SHIFT TO SELECT,FRAME MANUAL TRANSMISSION<X9C> (A) ID=11X2 L=16	0-95325-026-0	01	1	0806-	●	●
291	CLIP; SHIFT TO SELECT,FRAME MANUAL TRANSMISSION<X9C> (A) ID=11X2 L=16	0-95325-026-0	01	1	0806-	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0712-0805	●	●
291	CLIP; SHIFT TO SELECT,FRAME MANUAL TRANSMISSION<X9C> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0806-1002	●	●
291	CLIP; SHIFT TO SELECT,FRAME MANUAL TRANSMISSION<X9C> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1003-	●	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2000 A/T ALLISON(Y4F) (C) ID=13 L=24	0-95235-245-0	02	1	1003-	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2000 A/T ALLISON(Y4F) (D) ID=13 L=28	0-95235-255-0	01	1	1003-	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2000 A/T ALLISON(Y4F) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1003-	●
293	BOLT; CLIP,SHIFT TO SELECT (C) M8X20 FLANGE	0-28650-820-0	01	1	0802-0805	●	●
293	BOLT; CLIP,SHIFT TO SELECT MANUAL TRANSMISSION<X9C> (C) M8X20 FLANGE	0-28650-820-0	01	1	0806-	●	●
293	BOLT; CLIP,SHIFT TO SELECT (A) M8X16 FLANGE	0-28050-816-0	01	1	0712-	●	●
293	BOLT; CLIP,SHIFT TO SELECT (B) M8X20 FLANGE	0-28050-820-0	02	1	0712-0801	●	●
293	BOLT; CLIP,SHIFT TO SELECT (B) M8X20 FLANGE	0-28050-820-0	01	1	0802-0805	●	●
293	BOLT; CLIP,SHIFT TO SELECT MANUAL TRANSMISSION<X9C> (B) M8X20 FLANGE	0-28050-820-0	01	1	0806-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2000 A/T ALLISON(Y4F) (B) M8X16 FLANGE	0-28050-816-0	01	1	1003-	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2000 A/T ALLISON(Y4F) (A) M8X20 FLANGE	0-28050-820-0	01	1	1003-	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2000 A/T ALLISON(Y4F) (C) M8X20 FLANGE	0-28650-820-0	01	1	1003-	●
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-	●	●
474	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) M8X25 W/WASHER	0-51640-825-0	02	1	1003-	●
474	BOLT; BRKT M8X25 W/WASHER	0-51640-825-0	03	1	0712-0805	●	●
474	BOLT; BRKT MANUAL TRANSMISSION<X9C> M8X25 W/WASHER	0-51640-825-0	03	1	0806-	●	●
487	BRACKET; CONT CABLE	8-98021-920-2	01	1	0712-1012	●	●
487	BRACKET; CONT CABLE	8-98183-009-0	01	1	1101-	●	●
488	NUT; CABLE LCT2000 A/T ALLISON(Y4F)	5-09400-048-0	02	1	1003-	●

386 3 1 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) L=3670	8-98122-025-0	01	1	0806-0811	●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) L=3670	8-98122-025-0	01	1	0806-0811		●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) L=3670	8-98122-025-0	01	1	0812-0904	●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) L=3670	8-98122-025-0	01	1	0812-0904		●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) L=3670	8-98145-495-2	01	1	0905-	●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) L=3670	8-98145-495-2	01	1	0905-		●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3615	8-98122-023-1	01	1	0806-0811	●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3615	8-98122-023-1	01	1	0806-0811		●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3615	8-98122-023-2	01	1	0812-	●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3615	8-98122-023-2	01	1	0812-		●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) L=3660	8-98122-027-1	01	1	0806-0811	●
1	CABLE; SHIFT,TRANS CONT MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) L=3660	8-98122-027-4	01	1	0812-	●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) L=3570	8-98074-060-2	01	1	0712-0807	●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) L=3570	8-98074-060-2	01	1	0712-0807		●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) L=3630	8-98125-510-1	01	1	0808-0906	●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) L=3630	8-98125-510-1	01	1	0808-0906		●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) L=3630	8-98125-510-2	01	1	0907-	●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) L=3630	8-98125-510-2	01	1	0907-		●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3515	8-98050-357-3	01	1	0712-0906	●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3515	8-98050-357-3	01	1	0712-0906		●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3515	8-98050-357-5	01	1	0907-	●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3515	8-98050-357-5	01	1	0907-		●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) L=3540	8-98050-356-3	01	1	0712-0906	●
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) L=3540	8-98050-356-6	01	1	0907-	●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) L=3775	8-98122-026-1	01	1	0806-0811	●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) L=3775	8-98122-026-1	01	1	0806-0811		●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) L=3775	8-98122-026-1	01	1	0812-	●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) L=3775	8-98122-026-1	01	1	0812-		●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720	8-98122-024-1	01	1	0806-0811	●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720	8-98122-024-1	01	1	0806-0811		●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720	8-98122-024-1	01	1	0812-	●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720	8-98122-024-1	01	1	0812-		●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) L=3770	8-98122-028-1	01	1	0806-0811	●
3	CABLE; SELECT,TRANS CONT MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) L=3770	8-98122-028-3	01	1	0812-	●
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) L=3775	8-98074-066-3	01	1	0712-0906	●	●
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) L=3775	8-98074-066-3	01	1	0907-	●	●
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720	8-98050-361-3	01	1	0712-0906	●	●
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720	8-98050-361-3	01	1	0907-	●	●
281	CLIP; BAND L=300	1-09707-001-1	01	1	0712-	●	●
386	CLIP; CONT CABLE & TUBE MANUAL TRANSMISSION<X9C>	1-09700-966-1	02	1	0712-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
