Sayfa 2-35 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶

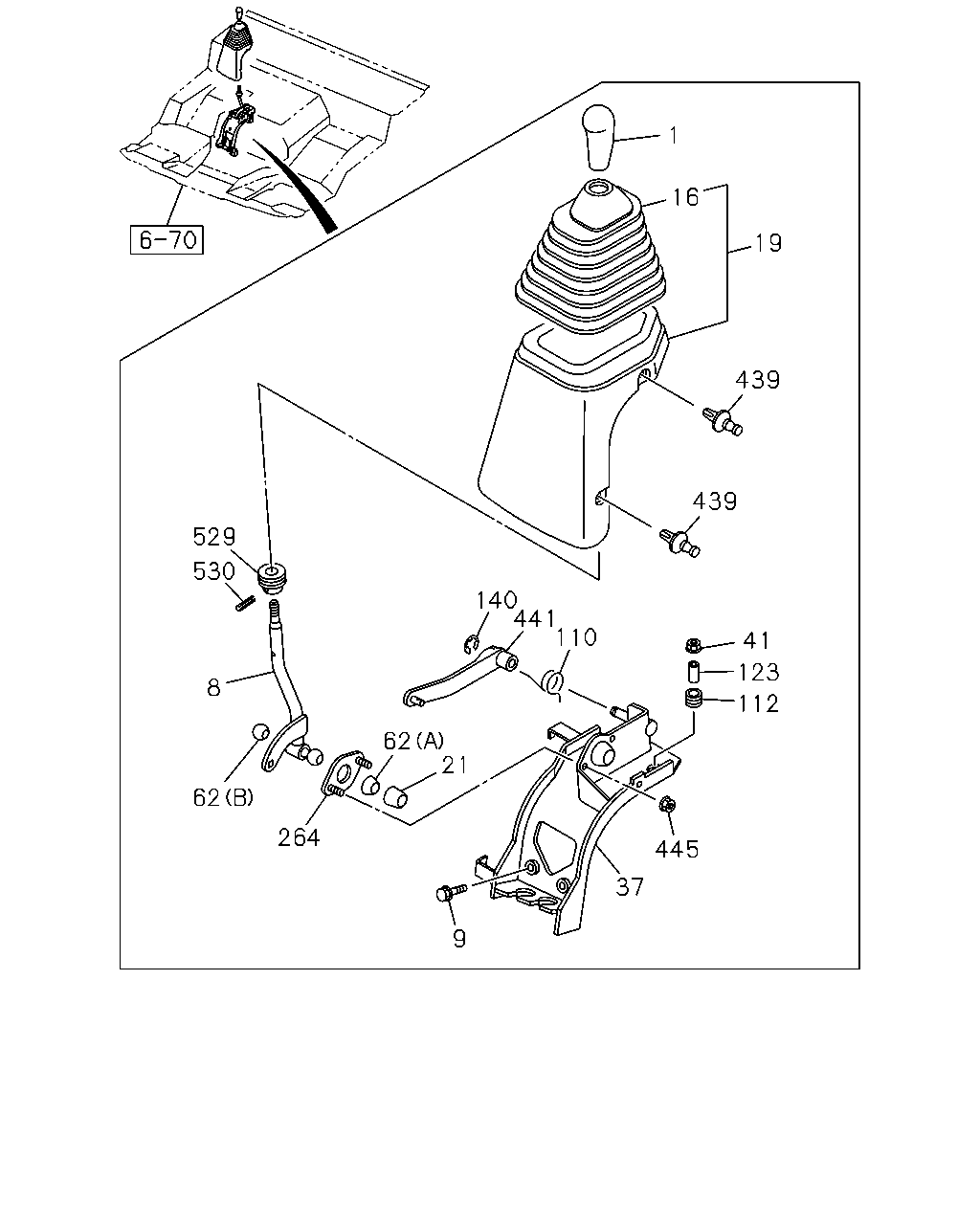

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#66686) — 66 parça

1 16 19 439 439 529 530 140 441 110 41 123 8 112 62 21 62 264 445 37 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	KNOB; CHANGE LEVER MANUAL TRANSMISSION<X9C>	1-33611-070-1	01	1	0712-	●	●
8	LEVER; CHANGE ASSISTOR SHIFT CONTROL<WX8>	8-98071-303-0	01	1	0712-0805	●
8	LEVER; CHANGE	8-98071-303-0	01	1	0712-0805		●
8	LEVER; CHANGE ASSISTOR SHIFT CONTROL<WX8>	8-98071-282-0	01	1	0806-0906	●
8	LEVER; CHANGE	8-98071-282-0	01	1	0806-0906		●
8	LEVER; CHANGE MANUAL TRANSMISSION<X9C> ASSISTOR SHIFT CONTROL<WX8>	8-98071-282-0	01	1	0907-1112	●
8	LEVER; CHANGE	8-98071-282-0	01	1	0907-1112		●
8	LEVER; CHANGE MZX6P M/T(RSW),MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C>	8-98071-282-0	01	1	1201-	●
8	LEVER; CHANGE MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C>	8-98071-282-0	01	1	1201-	●
8	LEVER; CHANGE	8-98071-282-0	01	1	1201-		●
8	LEVER; CHANGE EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-457-0	01	1	0712-0805	●
8	LEVER; CHANGE EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-455-0	01	1	0806-0906	●
8	LEVER; CHANGE MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-455-0	01	1	0907-1112	●
8	LEVER; CHANGE MLD6Q M/T(X5J),MLD6W M/T(Y2C) MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-455-0	01	1	1201-	●
9	BOLT; CHANGE LEVER MANUAL TRANSMISSION<X9C> M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	0712-	●	●
16	BOOT; CHANGE LEVER MANUAL TRANSMISSION<X9C>	1-79998-751-4	01	1	0712-	●	●
19	COVER; CHANGE LEVER MANUAL TRANSMISSION<X9C> GRAY	8-97407-954-0	01	1	0712-	●	●
21	SEAT; CHANGE LEVER MANUAL TRANSMISSION<X9C>	1-33619-429-0	01	1	0712-	●	●
37	BRACKET; CHANGE LEVER SUPPORT ASSISTOR SHIFT CONTROL<WX8>	8-98071-302-0	01	1	0712-0906	●
37	BRACKET; CHANGE LEVER SUPPORT	8-98071-302-0	01	1	0712-0906		●
37	BRACKET; CHANGE LEVER SUPPORT MANUAL TRANSMISSION<X9C> ASSISTOR SHIFT CONTROL<WX8>	8-98071-302-0	01	1	0907-1112	●
37	BRACKET; CHANGE LEVER SUPPORT	8-98071-302-0	01	1	0907-1112		●
37	BRACKET; CHANGE LEVER SUPPORT MZX6P M/T(RSW),MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C>	8-98071-302-0	01	1	1201-	●
37	BRACKET; CHANGE LEVER SUPPORT MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C>	8-98071-302-0	01	1	1201-	●
37	BRACKET; CHANGE LEVER SUPPORT	8-98071-302-0	01	1	1201-		●
37	BRACKET; CHANGE LEVER SUPPORT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-444-0	01	1	0712-0906	●
37	BRACKET; CHANGE LEVER SUPPORT MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-444-0	01	1	0907-1112	●
37	BRACKET; CHANGE LEVER SUPPORT MLD6Q M/T(X5J),MLD6W M/T(Y2C) MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-444-0	01	1	1201-	●
41	NUT; CHANGE LEVER MANUAL TRANSMISSION<X9C> M8 W/DISHED WASHER	8-97329-625-0	02	1	0712-	●	●
62	SEAT; BALL,CHANGE LEVER MANUAL TRANSMISSION<X9C> (A)	1-33619-427-0	01	1	0712-	●	●
62	SEAT; BALL,CHANGE LEVER MANUAL TRANSMISSION<X9C> (B)	8-97049-147-0	01	1	0712-	●	●
110	SPRING; RETURN,CHANGE LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33619-586-0	01	1	0712-0906	●
110	SPRING; RETURN,CHANGE LEVER	1-33619-586-0	01	1	0712-0906		●
110	SPRING; RETURN,CHANGE LEVER MANUAL TRANSMISSION<X9C> ASSISTOR SHIFT CONTROL<WX8>	1-33619-586-0	01	1	0907-1112	●
110	SPRING; RETURN,CHANGE LEVER	1-33619-586-0	01	1	0907-1112		●
110	SPRING; RETURN,CHANGE LEVER MZX6P M/T(RSW),MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C>	1-33619-586-0	01	1	1201-	●
110	SPRING; RETURN,CHANGE LEVER MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C>	1-33619-586-0	01	1	1201-	●
110	SPRING; RETURN,CHANGE LEVER	1-33619-586-0	01	1	1201-		●
110	SPRING; RETURN,CHANGE LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-435-0	01	1	0712-0906	●
110	SPRING; RETURN,CHANGE LEVER MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-435-0	01	1	0907-1112	●
110	SPRING; RETURN,CHANGE LEVER MLD6Q M/T(X5J),MLD6W M/T(Y2C) MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-435-0	01	1	1201-	●
112	RUBBER; CUSHION MANUAL TRANSMISSION<X9C>	1-33619-442-0	04	1	0712-	●	●
123	COLLAR; DIST,CHANGE LEVER MANUAL TRANSMISSION<X9C>	1-33619-443-0	04	1	0712-	●	●
140	RING; SNAP MANUAL TRANSMISSION<X9C> ID=10	0-91805-510-0	01	1	0712-	●	●
264	PLATE; COVER MANUAL TRANSMISSION<X9C>	1-33619-430-0	01	1	0712-	●	●
439	FASTENER; COVER LCT2000 A/T ALLISON(Y4F) GRAY	8-97407-955-0	05	1	1003-	●
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	0712-1002	●	●
439	FASTENER; COVER EXC. A/T<X9D> GRAY	8-97407-955-0	04	1	1003-	●
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	1003-		●
441	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	8-98071-283-0	01	1	0712-0906	●
441	LEVER; SELECT	8-98071-283-0	01	1	0712-0906		●
441	LEVER; SELECT MANUAL TRANSMISSION<X9C> ASSISTOR SHIFT CONTROL<WX8>	8-98071-283-0	01	1	0907-1112	●
441	LEVER; SELECT	8-98071-283-0	01	1	0907-1112		●
441	LEVER; SELECT MZX6P M/T(RSW),MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C>	8-98071-283-0	01	1	1201-	●
441	LEVER; SELECT MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C>	8-98071-283-0	01	1	1201-	●
441	LEVER; SELECT	8-98071-283-0	01	1	1201-		●
441	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-449-0	01	1	0712-0906	●
441	LEVER; SELECT MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-449-0	01	1	0907-1112	●
441	LEVER; SELECT MLD6Q M/T(X5J),MLD6W M/T(Y2C) MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-449-0	01	1	1201-	●
445	NUT; PLATE MANUAL TRANSMISSION<X9C> M6 FLANGE	0-91180-106-0	02	1	0712-	●	●
529	RING; BOOT MANUAL TRANSMISSION<X9C>	1-33619-504-0	01	1	0712-	●	●
530	PIN; SPRING MANUAL TRANSMISSION<X9C>	1-33619-505-0	01	1	0712-	●	●

439 439

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
439	FASTENER; COVER LCT2000 A/T ALLISON(Y4F) GRAY	8-97407-955-0	05	1	1003-	●
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	0712-1002	●	●
439	FASTENER; COVER EXC. A/T<X9D> GRAY	8-97407-955-0	04	1	1003-	●
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	1003-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
