Sayfa 2-20A - Isuzu EPC

2-20A — MANUAL TRANSMISSION ASM AND CASE (#66681) — 276 parça

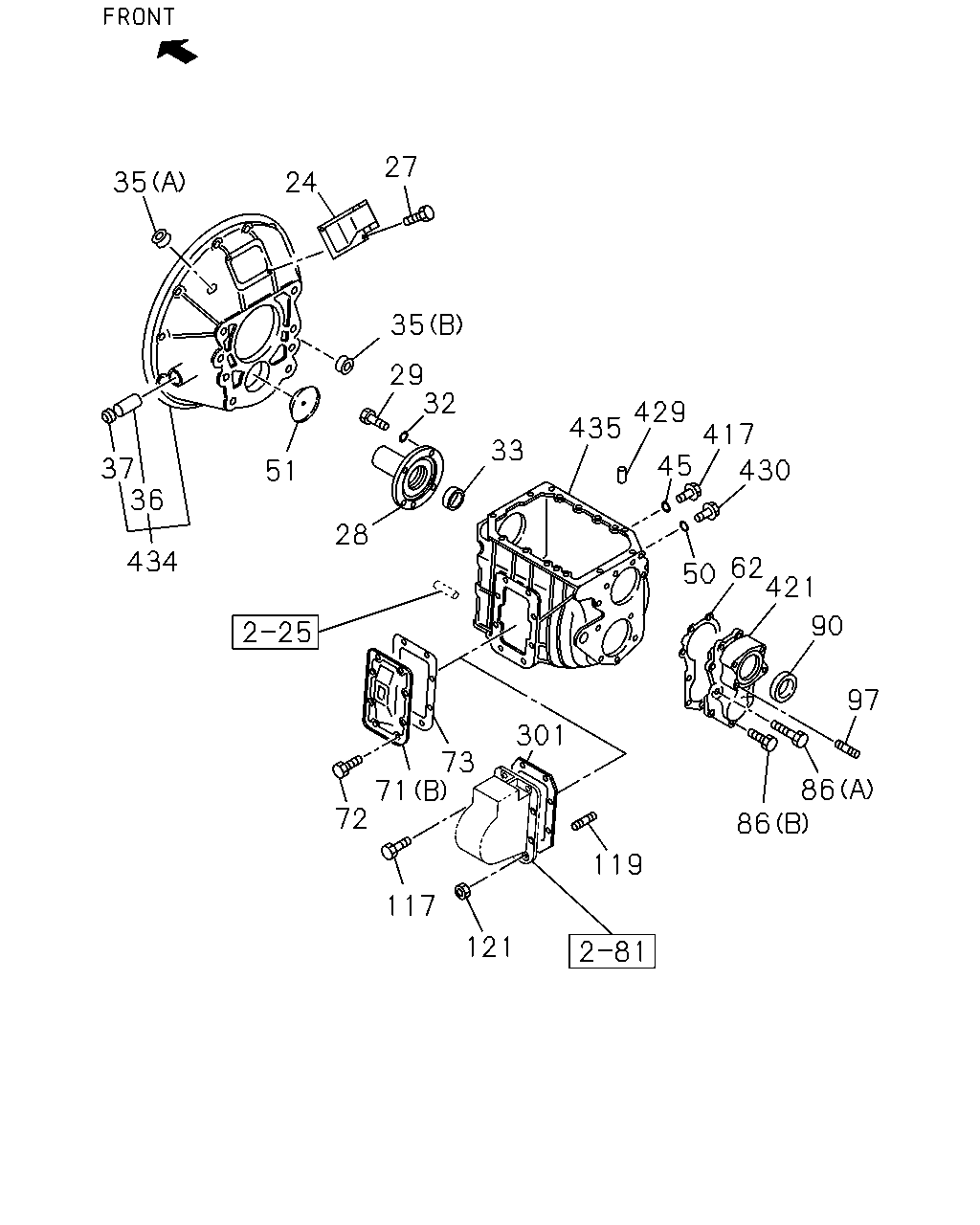

27 24 35 35 29 32 429 435 417 45 33 37 36 430 51 28 434 62 421 50 90 97 301 73 71 72 86 86 119 117 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0712-0805			●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0806-0811	●		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0812-0906	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0907-1410	●	●	●	●
24	COVER; CHECK HOLE,DUST	8-98283-062-0	01	1	1411-			●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0806-0811	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0812-1410	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0712-0906			●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0907-1410			●	●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	0806-0811	●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	0812-	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-0811	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0812-	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0806-0811	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0812-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0806-0811	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0812-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0712-0906			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0907-			●	●
35	GROMMET; CLU HSG (B) OD=15 T=6.6	8-97037-246-0	01	1	0806-0811	●
35	GROMMET; CLU HSG (B) OD=15 T=6.6	8-97037-246-0	01	1	0812-	●	●
35	GROMMET; CLU HSG (A)	9-09575-796-0	01	1	0806-0811	●
35	GROMMET; CLU HSG (A)	9-09575-796-0	01	1	0812-	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0806-0811	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0812-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0806-0811	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0812-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-0811	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0812-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0712-0906			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-			●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-				●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-0811	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0812-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0712-0906			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1404			●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-			●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0806-0811	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0812-	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0806-0811	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0812-	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	0907-1408				●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-1	01	1	1409-				●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0806-0811	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0812-	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97377-949-0	01	1	0712-0901			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	0902-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0806-0811	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0812-	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	08	1	0712-0803			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0804-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0804-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0804-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	0907-				●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-320-0	01	1	0907-0908				●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0712-0805			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0806-0811	●		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0812-	●	●	●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	08	1	0806-0811	●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	08	1	0812-	●	●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0806-0811	●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0812-	●	●
86	BOLT; RR COVER (C) M10X40 FLANGE	8-98045-397-0	14	1	0712-0906			●
86	BOLT; RR COVER (C) M10X40 FLANGE	8-98045-397-0	14	1	0907-			●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-			●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0712-0805			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0806-0811	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0812-0906	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0907-1103	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-	●	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0712-0805			●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0806-0811	●		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0812-0906	●	●	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-	●	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	0907-				●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0806-0811	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0812-	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0712-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	0907-				●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0806-0811	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0812-	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0712-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0907-				●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0712-0805			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0806-0811	●		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0812-	●	●	●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-037-0	01	1	0806-0811	●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-037-0	01	1	0812-	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0806-0811	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0812-	●	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0712-0906			●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-			●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0806-0811	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0812-	●	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0712-0906			●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0907-			●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0806-0811	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0812-	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-				●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0806-0811	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0812-	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0712-0906			●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1404			●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-			●
434	HOUSING; CLU	1-31110-169-0	01	1	0806-0811	●
434	HOUSING; CLU	1-31110-169-0	01	1	0812-	●	●
434	HOUSING; CLU	8-98004-506-2	01	1	0712-0906			●
434	HOUSING; CLU	8-98004-506-2	01	1	0907-			●	●
435	CASE; TRANS	8-98123-098-1	01	1	0907-1108				●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404				●
435	CASE; TRANS	8-98236-421-1	01	1	1405-				●
435	CASE; TRANS	1-33111-355-0	01	1	0806-0811	●
435	CASE; TRANS	1-33111-355-0	01	1	0812-	●	●
435	CASE; TRANS	8-97388-872-4	01	1	0712-			●

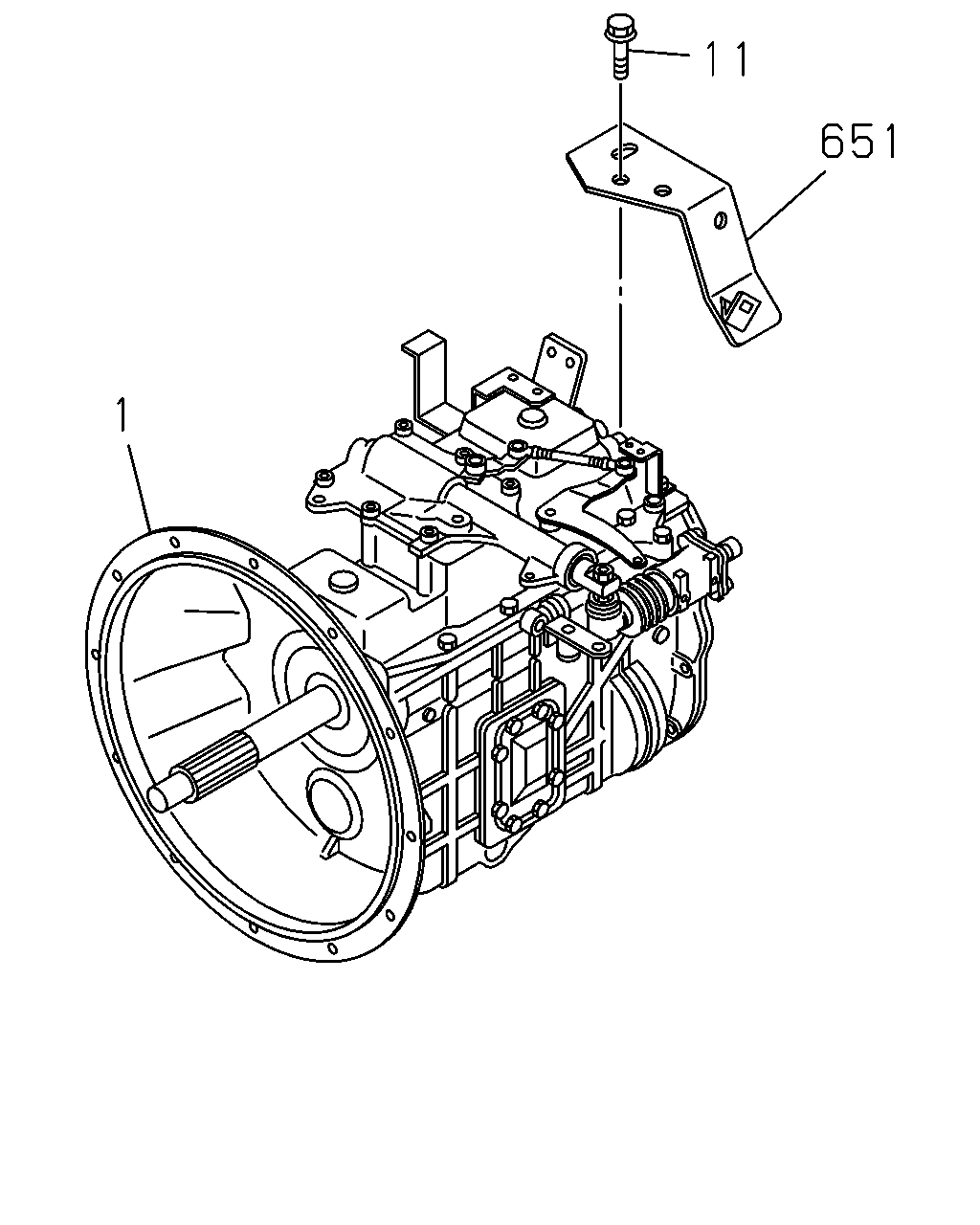

11 651 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

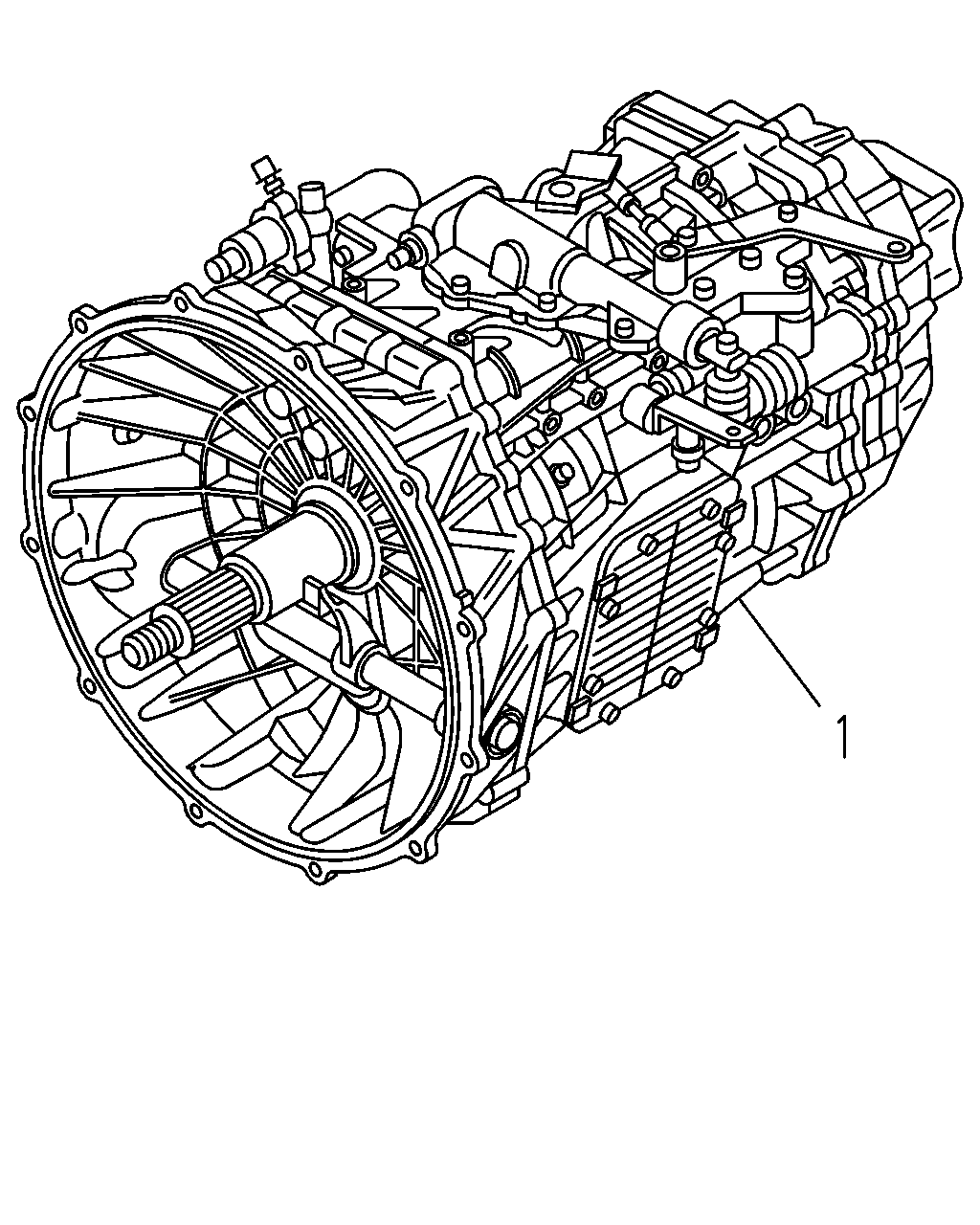

1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-520-0	01	1	0907-				●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-				●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	0907-				●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-				●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-299-0	01	1	0812-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-342-0	01	1	0812-		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-299-0	01	1	0812-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33044-342-0	01	1	0812-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-279-0	01	1	0806-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-340-0	01	1	0806-	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-279-0	01	1	0806-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33044-340-0	01	1	0806-	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-819-0	01	1	0712-0803			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-532-0	01	1	0804-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98041-819-0	01	1	0712-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0712-			●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0712-0803			●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98115-543-0	01	1	0804-			●
11	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0806-0811	●
11	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0812-	●	●
651	BRACKET; T/M HARNESS PARKING BRAKE DRUM 10"(B1T)	8-98120-315-0	01	1	0806-0811	●
651	BRACKET; T/M HARNESS PARKING BRAKE DRUM 10"(B1T)	8-98120-315-0	01	1	0812-	●	●
651	BRACKET; T/M HARNESS EXC. PARKING BRAKE DRUM 10"(B1T)	8-97627-300-0	01	1	0806-0811	●
651	BRACKET; T/M HARNESS EXC. PARKING BRAKE DRUM 10"(B1T)	8-97627-300-0	01	1	0812-	●	●

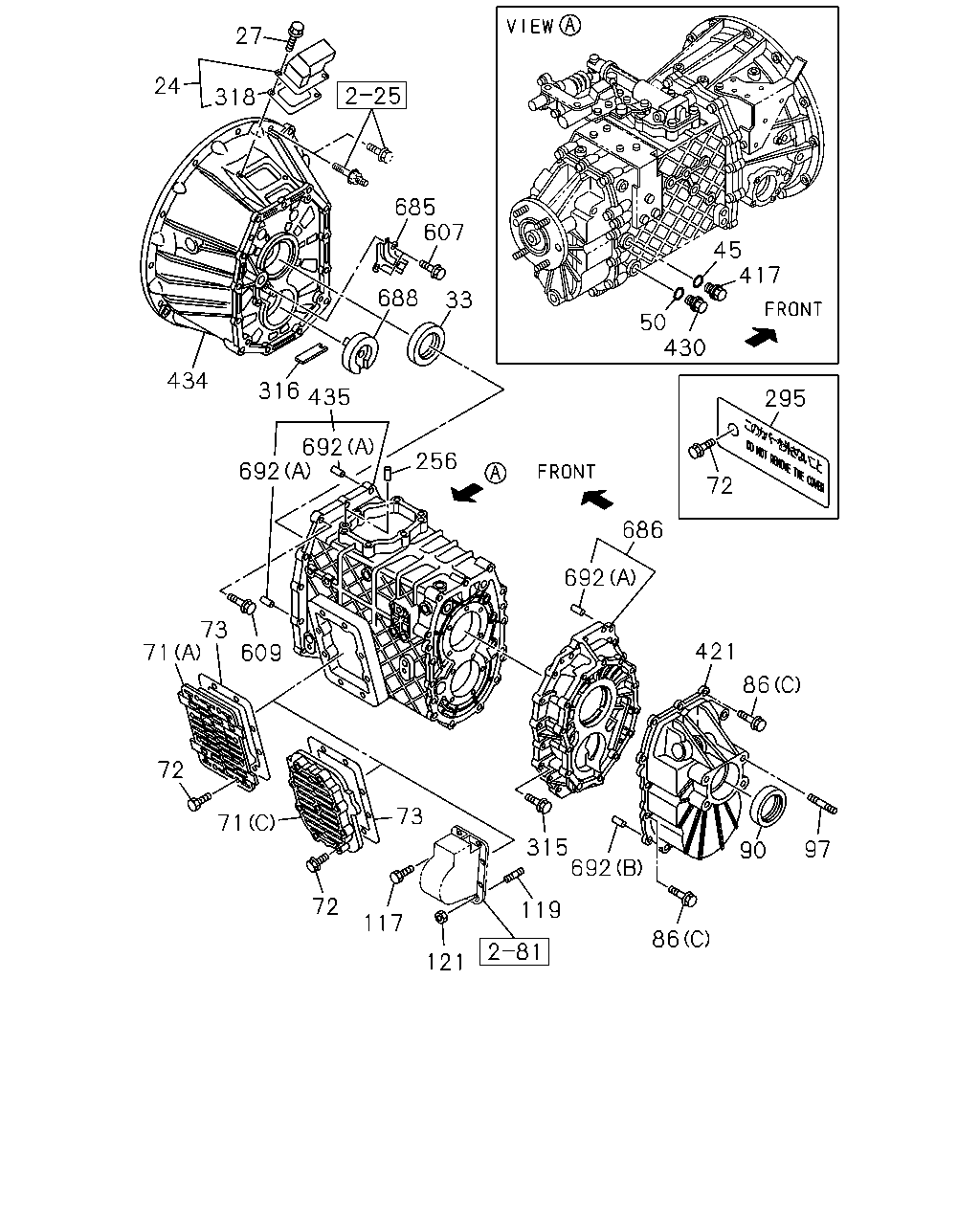

86 90 97 86 421 692 315 119 121 117 73 72 71 72 71 609 73 692 692 256 686 692 72 295 417 45 50 430 33 688 435 316 434 607 685 27 24 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0712-0805			●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0806-0811	●		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0812-0906	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0907-1410	●	●	●	●
24	COVER; CHECK HOLE,DUST	8-98283-062-0	01	1	1411-			●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0806-0811	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0812-1410	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0712-0906			●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0907-1410			●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0806-0811	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0812-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0712-0906			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0907-			●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-0811	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0812-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0712-0906			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-			●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-				●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-0811	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0812-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0712-0906			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1404			●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	0907-1408				●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-1	01	1	1409-				●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0806-0811	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0812-	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97377-949-0	01	1	0712-0901			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	0902-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0806-0811	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0812-	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	08	1	0712-0803			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0804-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0804-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0804-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	0907-				●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-320-0	01	1	0907-0908				●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0712-0805			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0806-0811	●		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0812-	●	●	●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	08	1	0806-0811	●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	08	1	0812-	●	●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0806-0811	●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0812-	●	●
86	BOLT; RR COVER (C) M10X40 FLANGE	8-98045-397-0	14	1	0712-0906			●
86	BOLT; RR COVER (C) M10X40 FLANGE	8-98045-397-0	14	1	0907-			●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-			●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0712-0805			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0806-0811	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0812-0906	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0907-1103	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-	●	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0712-0805			●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0806-0811	●		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0812-0906	●	●	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-	●	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	0907-				●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0806-0811	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0812-	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0712-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	0907-				●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0806-0811	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0812-	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0712-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0907-				●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0712-0805			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0806-0811	●		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0812-	●	●	●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0712-0906			●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0907-			●	●
295	PLATE; COVER,PTO EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-575-0	01	1	0804-			●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0712-0906			●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0907-			●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0712-0906			●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0907-			●	●
318	GASKET; COVER	1-31139-023-0	01	1	1411-			●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0806-0811	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0812-	●	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0712-0906			●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-			●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0806-0811	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0812-	●	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0712-0906			●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0907-			●	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-				●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0806-0811	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0812-	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0712-0906			●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1404			●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-			●
434	HOUSING; CLU	1-31110-169-0	01	1	0806-0811	●
434	HOUSING; CLU	1-31110-169-0	01	1	0812-	●	●
434	HOUSING; CLU	8-98004-506-2	01	1	0712-0906			●
434	HOUSING; CLU	8-98004-506-2	01	1	0907-			●	●
435	CASE; TRANS	8-98123-098-1	01	1	0907-1108				●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404				●
435	CASE; TRANS	8-98236-421-1	01	1	1405-				●
435	CASE; TRANS	1-33111-355-0	01	1	0806-0811	●
435	CASE; TRANS	1-33111-355-0	01	1	0812-	●	●
435	CASE; TRANS	8-97388-872-4	01	1	0712-			●
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0712-0906			●
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0907-			●	●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0712-0906			●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0907-			●	●
685	COVER; OIL PORT	8-98018-864-1	01	1	0712-0906			●
685	COVER; OIL PORT	8-98018-864-1	01	1	0907-			●	●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0712-0906			●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0907-			●	●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0712-0906			●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0907-1110			●	●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1111-1508			●	●
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-			●	●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	0712-0906			●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	0907-			●	●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	0712-0906			●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	0907-			●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-520-0	01	1	0907-				●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-				●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	0907-				●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-				●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-299-0	01	1	0812-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-342-0	01	1	0812-		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-299-0	01	1	0812-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33044-342-0	01	1	0812-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-279-0	01	1	0806-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-340-0	01	1	0806-	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-279-0	01	1	0806-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33044-340-0	01	1	0806-	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-819-0	01	1	0712-0803			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-532-0	01	1	0804-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98041-819-0	01	1	0712-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0712-			●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0712-0803			●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98115-543-0	01	1	0804-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
