◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-10A - REPAIR KIT; TRANSMISSION OVERHAUL ▶
2-10A — REPAIR KIT; TRANSMISSION OVERHAUL (#66680) — 20 parça

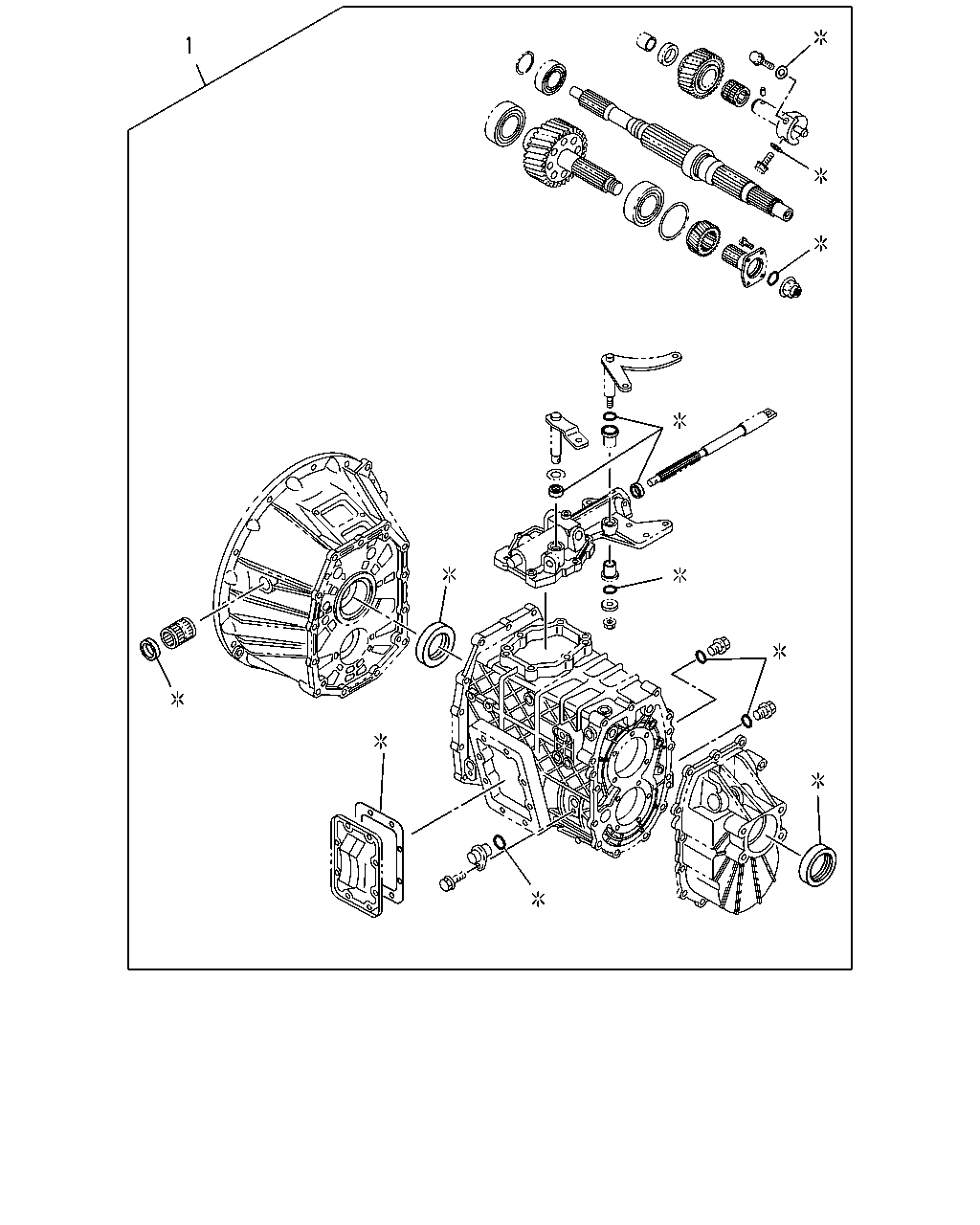

çizim 193316
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GASKET SET; TRANS OVERHAUL 5-87832-230-0 01 1 0907-0908 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-242-0 01 1 0909-0912 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-236-0 01 1 1001-1404 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-334-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87831-359-0 01 1 0806-0811 ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87831-359-0 01 1 0812- ● ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87831-372-0 01 1 0806-0811 ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87831-372-0 01 1 0812- ● ●
1 GASKET SET; TRANS OVERHAUL 5-87832-213-1 01 1 0712-0912 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-240-0 01 1 1001- ●

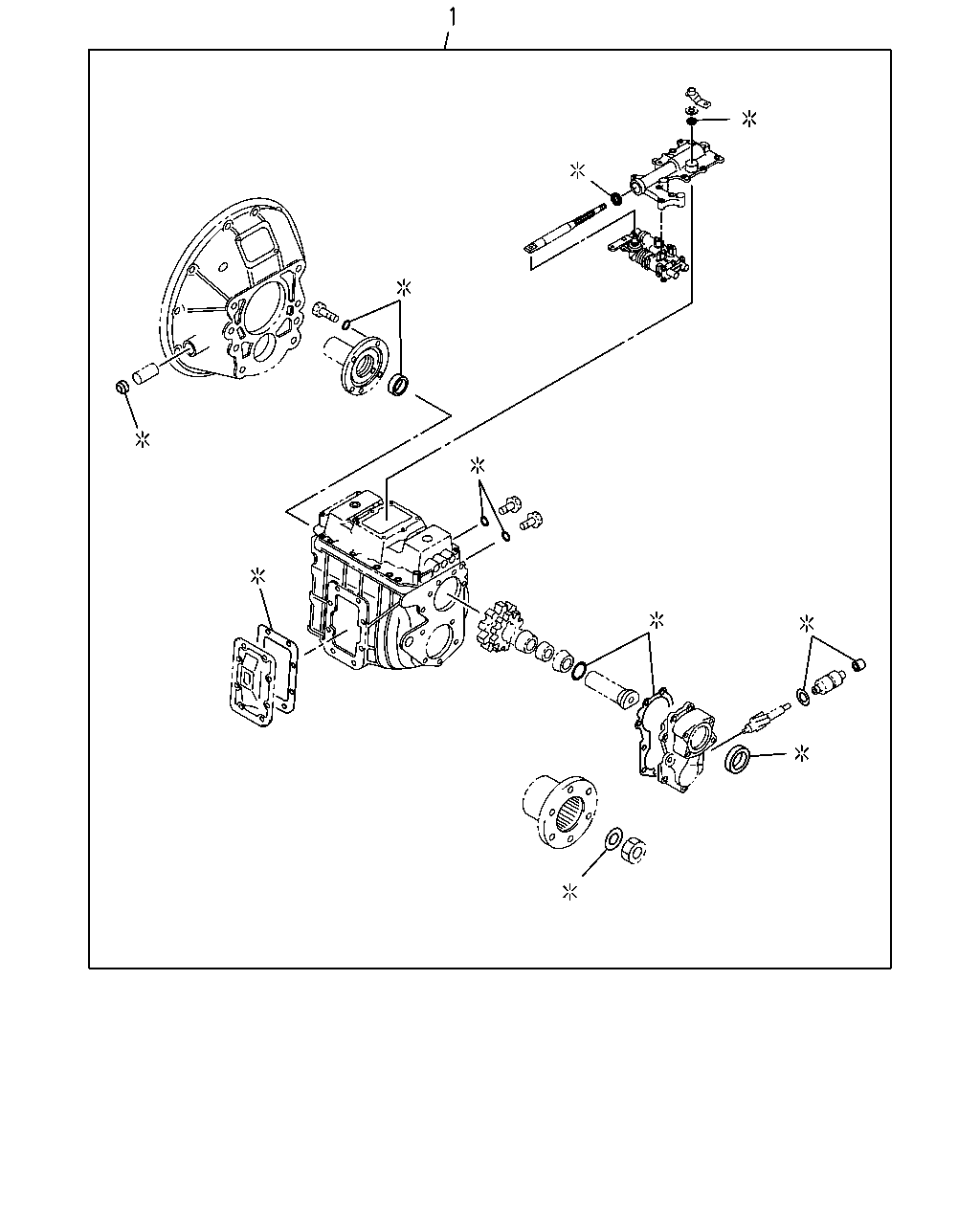

çizim 193429
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GASKET SET; TRANS OVERHAUL 5-87832-230-0 01 1 0907-0908 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-242-0 01 1 0909-0912 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-236-0 01 1 1001-1404 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-334-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87831-359-0 01 1 0806-0811 ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87831-359-0 01 1 0812- ● ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87831-372-0 01 1 0806-0811 ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87831-372-0 01 1 0812- ● ●
1 GASKET SET; TRANS OVERHAUL 5-87832-213-1 01 1 0712-0912 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-240-0 01 1 1001- ●
