Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#66677) — 267 parça

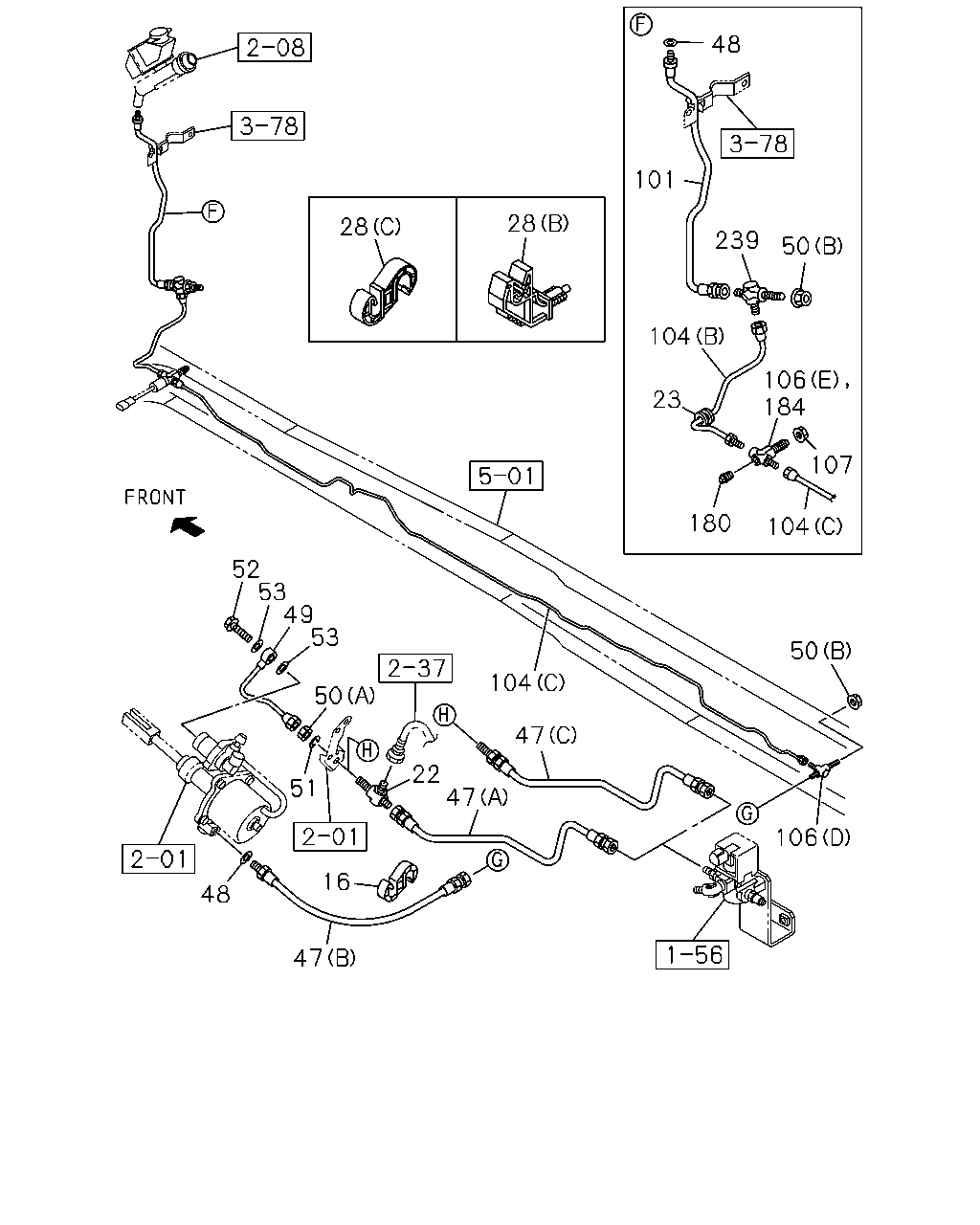

52 53 49 53 48 47 50 51 47 22 48 43 42 44 104 106 28 28 26 29 234 106 101 104 93 107 207 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> ID=10 & 12	1-09709-278-1	01	1	0807-	●	●
16	CLIP; FLEX HOSE ID=16 L=28	1-09700-872-0	01	1	0712-0802		●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0712-	●
22	UNION; CLU PIPE M12 3WAY	0-92138-706-0	01	1	0712-		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0712-0802		●
28	CLIP; OIL PIPE (B) ID=6.35	1-09701-247-1	03	1	0712-0802	●
28	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (B) ID=6.35	1-09701-247-1	03	1	0803-0810	●	●
28	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (B) ID=6.35	1-09701-247-1	04	1	0811-	●	●
28	CLIP; OIL PIPE (A) ID=6 H=20 L=20	1-09700-603-0	03	1	0712-0802		●
28	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (C) ID=45 H=31 L=35	1-09701-273-0	01	1	0803-0806	●	●
28	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (C) ID=6.35 & 6.35	1-09709-273-1	01	1	0807-	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	03	1	0712-0802		●
42	BRACKET; FLEX HOSE,CLU CONT (A)	8-98037-610-0	01	1	0712-0802	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-97615-747-0	01	1	0712-0802		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0712-0802	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0712-0802	●	●
47	HOSE; FLEX,CLU CONT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=590	8-98072-352-0	01	1	0804-0805		●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=590	8-98072-352-0	01	1	0806-		●
47	HOSE; FLEX,CLU CONT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	0803-0803	●	●
47	HOSE; FLEX,CLU CONT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	0804-0805	●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	0804-0805		●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	0806-	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	0806-		●
47	HOSE; FLEX,CLU CONT (A) L=400	1-09363-743-0	01	1	0712-0802	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320	1-09363-625-0	01	1	0803-0805	●
47	HOSE; FLEX,CLU CONT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320	1-09363-625-0	01	1	0803-0805		●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320	1-09363-625-0	01	1	0806-0806	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320	1-09363-625-0	01	1	0806-0806		●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=340	1-09363-617-0	01	1	0807-	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=340	1-09363-617-0	01	1	0807-		●
47	HOSE; FLEX,CLU CONT (B) L=460	1-09364-264-0	01	1	0712-0802	●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=420	1-09363-633-0	01	1	0803-0805	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=420	1-09363-633-0	01	1	0806-	●
47	HOSE; FLEX,CLU CONT (A) L=390	1-09363-616-0	01	1	0712-0802		●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=280	1-09363-672-0	01	1	0803-0805	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> POWER TAKE OFF-FLYWHEEL(6SZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=280	1-09363-672-0	01	1	0806-0806	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=280	1-09363-672-0	01	1	0807-	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=280	1-09363-672-0	01	1	0807-		●
47	HOSE; FLEX,CLU CONT (B) L=440	8-98072-346-0	01	1	0712-0802		●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=480	8-98072-349-0	01	1	0803-0803	●	●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=480	8-98072-349-0	01	1	0804-0805	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=480	8-98072-349-0	01	1	0806-	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0712-0802	●
48	GASKET; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0	9-09571-410-0	02	1	0803-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0712-0802		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 15" CLUTCH(RE9) L=239	1-49117-401-0	01	1	0712-	●	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0712-0802	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0712-0802	●
50	NUT; UNION MANUAL TRANSMISSION<X9C> (B) M12	0-91111-512-0	01	1	0803-	●	●
50	NUT; UNION MANUAL TRANSMISSION<X9C> (B) M12	0-91111-512-0	01	1	0803-	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	0712-0802	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	0712-0802		●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	0712-0802		●
50	NUT; UNION MANUAL TRANSMISSION<X9C> (A) M12	9-09840-280-0	01	1	0803-	●	●
51	WASHER; LK EXC. ASSISTOR SHIFT CONTROL<WX8> D=12	8-94333-466-0	01	1	0803-0908	●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0712-0908	●
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	0712-0908		●
51	WASHER; LK MANUAL TRANSMISSION<X9C> ID=12.2	0-91510-512-0	01	1	0909-	●	●
52	BOLT; EYE,AIR PIPE 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	0712-	●	●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	0712-1312	●	●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	0-91510-812-0	01	1	0712-0802		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=470	8-98072-353-0	01	1	0712-0802	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MANUAL TRANSMISSION<X9C> L=440	8-98072-346-0	01	1	0803-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (C) L=2582 SERVICED BY L=2650	1-47428-743-0	01	1	0804-0804		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (C) L=2674 SERVICED BY L=2900	1-47428-744-0	01	1	0805-0805		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2674 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0811		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2674 SERVICED BY L=2900	1-47428-744-0	01	1	0812-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (B) L=411	8-97623-318-0	01	1	0712-0802	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (B) L=541 SERVICED BY L=550	1-47428-724-0	01	1	0803-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (C) L=2915	8-98098-196-0	01	1	0712-0802	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2656 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0803	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (C) L=2656 SERVICED BY L=2900	1-47428-744-0	01	1	0804-0805	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2656 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0811	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2703 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0812	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2708 SERVICED BY L=2900	1-47428-744-0	01	1	0901-0908	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2824 SERVICED BY L=2900	1-47428-744-0	01	1	0909-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (A) L=2930	8-97614-531-0	01	1	0712-0802		●
106	UNION; OIL PIPE (A)	1-09656-751-0	01	1	0712-0802		●
106	UNION; OIL PIPE (C)	8-98067-169-0	01	1	0712-0802	●
106	UNION; OIL PIPE MANUAL TRANSMISSION<X9C> (E) M12 3WAY	8-98051-113-0	01	1	0803-0910	●	●
106	UNION; OIL PIPE (B) M12 ELBOW	0-92125-206-0	01	1	0712-0802		●
106	UNION; OIL PIPE MANUAL TRANSMISSION<X9C> (D) M12 2WAY	1-09654-059-2	01	1	0803-	●	●
107	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-0802	●
107	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0712-0802		●
107	NUT; UNION,OIL PIPE MANUAL TRANSMISSION<X9C> M12	0-91111-512-0	01	1	0803-	●	●
207	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0712-0802		●
234	CONNECTOR; ELBOW (C) PT1/8 ELBOW	8-94338-418-1	01	1	0712-0802		●
234	CONNECTOR; ELBOW (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0802	●
234	CONNECTOR; ELBOW (B) PT1/4 2WAY	1-09660-693-0	01	1	0712-0802	●

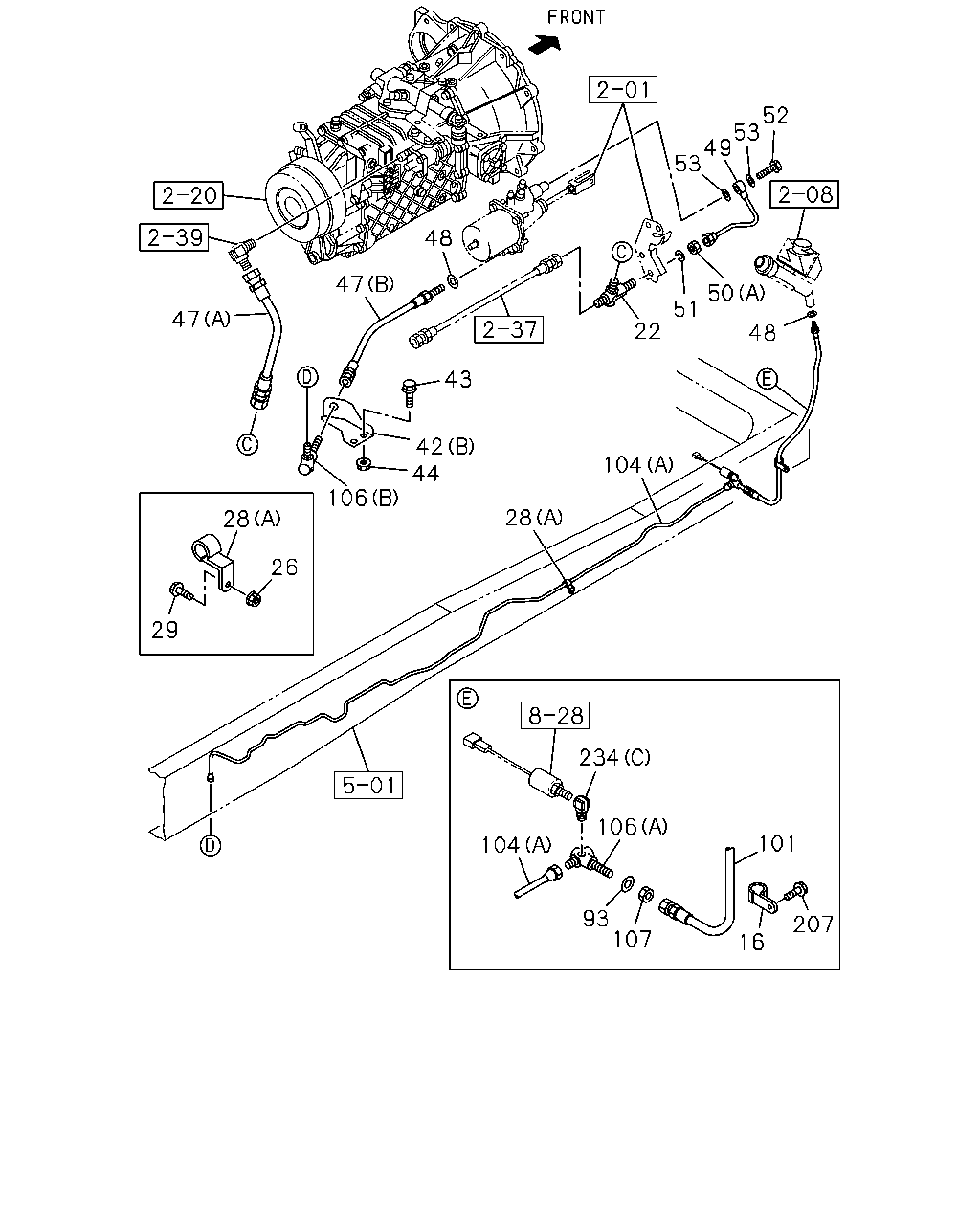

48 101 50 239 104 107 106 23 104 234 52 53 49 53 234 104 180 50 51 237 22 47 48 43 50 44 28 42 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0712-	●
22	UNION; CLU PIPE M12 3WAY	0-92138-706-0	01	1	0712-		●
23	GROMMET; CLU PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0712-0802	●
23	GROMMET; CLU PIPE MANUAL TRANSMISSION<X9C> ID=28 OD=35 T=17	9-09956-256-2	01	1	0803-	●	●
28	CLIP; OIL PIPE (B) ID=6.35	1-09701-247-1	03	1	0712-0802	●
28	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (B) ID=6.35	1-09701-247-1	03	1	0803-0810	●	●
28	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (B) ID=6.35	1-09701-247-1	04	1	0811-	●	●
28	CLIP; OIL PIPE (A) ID=6 H=20 L=20	1-09700-603-0	03	1	0712-0802		●
28	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (C) ID=45 H=31 L=35	1-09701-273-0	01	1	0803-0806	●	●
28	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (C) ID=6.35 & 6.35	1-09709-273-1	01	1	0807-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	8-98037-610-0	01	1	0712-0802	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-97615-747-0	01	1	0712-0802		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0712-0802	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0712-0802	●	●
47	HOSE; FLEX,CLU CONT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=590	8-98072-352-0	01	1	0804-0805		●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=590	8-98072-352-0	01	1	0806-		●
47	HOSE; FLEX,CLU CONT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	0803-0803	●	●
47	HOSE; FLEX,CLU CONT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	0804-0805	●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	0804-0805		●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	0806-	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	0806-		●
47	HOSE; FLEX,CLU CONT (A) L=400	1-09363-743-0	01	1	0712-0802	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320	1-09363-625-0	01	1	0803-0805	●
47	HOSE; FLEX,CLU CONT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320	1-09363-625-0	01	1	0803-0805		●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320	1-09363-625-0	01	1	0806-0806	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320	1-09363-625-0	01	1	0806-0806		●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=340	1-09363-617-0	01	1	0807-	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=340	1-09363-617-0	01	1	0807-		●
47	HOSE; FLEX,CLU CONT (B) L=460	1-09364-264-0	01	1	0712-0802	●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=420	1-09363-633-0	01	1	0803-0805	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=420	1-09363-633-0	01	1	0806-	●
47	HOSE; FLEX,CLU CONT (A) L=390	1-09363-616-0	01	1	0712-0802		●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=280	1-09363-672-0	01	1	0803-0805	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> POWER TAKE OFF-FLYWHEEL(6SZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=280	1-09363-672-0	01	1	0806-0806	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=280	1-09363-672-0	01	1	0807-	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=280	1-09363-672-0	01	1	0807-		●
47	HOSE; FLEX,CLU CONT (B) L=440	8-98072-346-0	01	1	0712-0802		●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=480	8-98072-349-0	01	1	0803-0803	●	●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=480	8-98072-349-0	01	1	0804-0805	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=480	8-98072-349-0	01	1	0806-	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0712-0802	●
48	GASKET; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0	9-09571-410-0	02	1	0803-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0712-0802		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 15" CLUTCH(RE9) L=239	1-49117-401-0	01	1	0712-	●	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0712-0802	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0712-0802	●
50	NUT; UNION MANUAL TRANSMISSION<X9C> (B) M12	0-91111-512-0	01	1	0803-	●	●
50	NUT; UNION MANUAL TRANSMISSION<X9C> (B) M12	0-91111-512-0	01	1	0803-	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	0712-0802	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	0712-0802		●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	0712-0802		●
50	NUT; UNION MANUAL TRANSMISSION<X9C> (A) M12	9-09840-280-0	01	1	0803-	●	●
51	WASHER; LK EXC. ASSISTOR SHIFT CONTROL<WX8> D=12	8-94333-466-0	01	1	0803-0908	●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0712-0908	●
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	0712-0908		●
51	WASHER; LK MANUAL TRANSMISSION<X9C> ID=12.2	0-91510-512-0	01	1	0909-	●	●
52	BOLT; EYE,AIR PIPE 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	0712-	●	●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	0712-1312	●	●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=470	8-98072-353-0	01	1	0712-0802	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MANUAL TRANSMISSION<X9C> L=440	8-98072-346-0	01	1	0803-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (C) L=2582 SERVICED BY L=2650	1-47428-743-0	01	1	0804-0804		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (C) L=2674 SERVICED BY L=2900	1-47428-744-0	01	1	0805-0805		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2674 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0811		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2674 SERVICED BY L=2900	1-47428-744-0	01	1	0812-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (B) L=411	8-97623-318-0	01	1	0712-0802	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (B) L=541 SERVICED BY L=550	1-47428-724-0	01	1	0803-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (C) L=2915	8-98098-196-0	01	1	0712-0802	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2656 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0803	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (C) L=2656 SERVICED BY L=2900	1-47428-744-0	01	1	0804-0805	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2656 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0811	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2703 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0812	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2708 SERVICED BY L=2900	1-47428-744-0	01	1	0901-0908	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2824 SERVICED BY L=2900	1-47428-744-0	01	1	0909-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (A) L=2930	8-97614-531-0	01	1	0712-0802		●
106	UNION; OIL PIPE (A)	1-09656-751-0	01	1	0712-0802		●
106	UNION; OIL PIPE (C)	8-98067-169-0	01	1	0712-0802	●
106	UNION; OIL PIPE MANUAL TRANSMISSION<X9C> (E) M12 3WAY	8-98051-113-0	01	1	0803-0910	●	●
106	UNION; OIL PIPE (B) M12 ELBOW	0-92125-206-0	01	1	0712-0802		●
106	UNION; OIL PIPE MANUAL TRANSMISSION<X9C> (D) M12 2WAY	1-09654-059-2	01	1	0803-	●	●
107	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-0802	●
107	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0712-0802		●
107	NUT; UNION,OIL PIPE MANUAL TRANSMISSION<X9C> M12	0-91111-512-0	01	1	0803-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0712-0802	●
180	PLUG; PIPE MANUAL TRANSMISSION<X9C>	9-09204-510-0	01	1	0803-0910	●	●
234	CONNECTOR; ELBOW (C) PT1/8 ELBOW	8-94338-418-1	01	1	0712-0802		●
234	CONNECTOR; ELBOW (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0802	●
234	CONNECTOR; ELBOW (B) PT1/4 2WAY	1-09660-693-0	01	1	0712-0802	●
237	WASHER; BRKT ID=12.2	0-91510-812-0	01	1	0712-0802	●
239	UNION; CLU HOSE M12 3WAY	1-09654-137-2	01	1	0712-0802	●
239	UNION; CLU HOSE MANUAL TRANSMISSION<X9C> M12 2WAY	1-09654-059-2	01	1	0803-	●	●

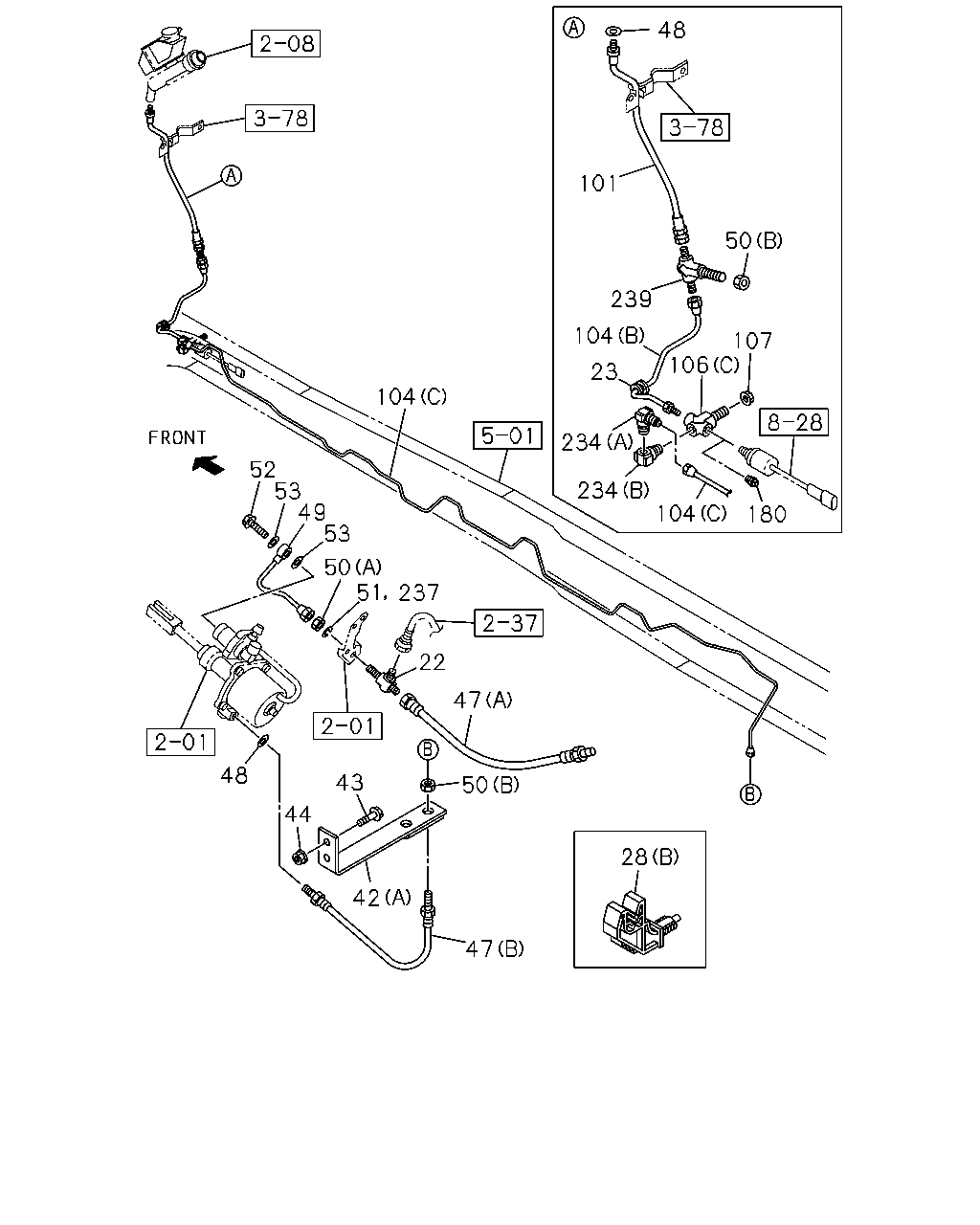

48 101 28 28 239 50 104 106 184 23 107 180 104 52 53 49 53 50 104 50 47 22 47 51 106 16 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> ID=10 & 12	1-09709-278-1	01	1	0807-	●	●
16	CLIP; FLEX HOSE ID=16 L=28	1-09700-872-0	01	1	0712-0802		●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0712-	●
22	UNION; CLU PIPE M12 3WAY	0-92138-706-0	01	1	0712-		●
23	GROMMET; CLU PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0712-0802	●
23	GROMMET; CLU PIPE MANUAL TRANSMISSION<X9C> ID=28 OD=35 T=17	9-09956-256-2	01	1	0803-	●	●
28	CLIP; OIL PIPE (B) ID=6.35	1-09701-247-1	03	1	0712-0802	●
28	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (B) ID=6.35	1-09701-247-1	03	1	0803-0810	●	●
28	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (B) ID=6.35	1-09701-247-1	04	1	0811-	●	●
28	CLIP; OIL PIPE (A) ID=6 H=20 L=20	1-09700-603-0	03	1	0712-0802		●
28	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (C) ID=45 H=31 L=35	1-09701-273-0	01	1	0803-0806	●	●
28	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (C) ID=6.35 & 6.35	1-09709-273-1	01	1	0807-	●	●
47	HOSE; FLEX,CLU CONT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=590	8-98072-352-0	01	1	0804-0805		●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=590	8-98072-352-0	01	1	0806-		●
47	HOSE; FLEX,CLU CONT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	0803-0803	●	●
47	HOSE; FLEX,CLU CONT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	0804-0805	●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	0804-0805		●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	0806-	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	0806-		●
47	HOSE; FLEX,CLU CONT (A) L=400	1-09363-743-0	01	1	0712-0802	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320	1-09363-625-0	01	1	0803-0805	●
47	HOSE; FLEX,CLU CONT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320	1-09363-625-0	01	1	0803-0805		●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320	1-09363-625-0	01	1	0806-0806	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320	1-09363-625-0	01	1	0806-0806		●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=340	1-09363-617-0	01	1	0807-	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=340	1-09363-617-0	01	1	0807-		●
47	HOSE; FLEX,CLU CONT (B) L=460	1-09364-264-0	01	1	0712-0802	●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=420	1-09363-633-0	01	1	0803-0805	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=420	1-09363-633-0	01	1	0806-	●
47	HOSE; FLEX,CLU CONT (A) L=390	1-09363-616-0	01	1	0712-0802		●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=280	1-09363-672-0	01	1	0803-0805	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> POWER TAKE OFF-FLYWHEEL(6SZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=280	1-09363-672-0	01	1	0806-0806	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=280	1-09363-672-0	01	1	0807-	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=280	1-09363-672-0	01	1	0807-		●
47	HOSE; FLEX,CLU CONT (B) L=440	8-98072-346-0	01	1	0712-0802		●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=480	8-98072-349-0	01	1	0803-0803	●	●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=480	8-98072-349-0	01	1	0804-0805	●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=480	8-98072-349-0	01	1	0806-	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0712-0802	●
48	GASKET; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0	9-09571-410-0	02	1	0803-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0712-0802		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 15" CLUTCH(RE9) L=239	1-49117-401-0	01	1	0712-	●	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0712-0802	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0712-0802	●
50	NUT; UNION MANUAL TRANSMISSION<X9C> (B) M12	0-91111-512-0	01	1	0803-	●	●
50	NUT; UNION MANUAL TRANSMISSION<X9C> (B) M12	0-91111-512-0	01	1	0803-	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	0712-0802	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	0712-0802		●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	0712-0802		●
50	NUT; UNION MANUAL TRANSMISSION<X9C> (A) M12	9-09840-280-0	01	1	0803-	●	●
51	WASHER; LK EXC. ASSISTOR SHIFT CONTROL<WX8> D=12	8-94333-466-0	01	1	0803-0908	●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0712-0908	●
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	0712-0908		●
51	WASHER; LK MANUAL TRANSMISSION<X9C> ID=12.2	0-91510-512-0	01	1	0909-	●	●
52	BOLT; EYE,AIR PIPE 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	0712-	●	●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	0712-1312	●	●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=470	8-98072-353-0	01	1	0712-0802	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MANUAL TRANSMISSION<X9C> L=440	8-98072-346-0	01	1	0803-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (C) L=2582 SERVICED BY L=2650	1-47428-743-0	01	1	0804-0804		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (C) L=2674 SERVICED BY L=2900	1-47428-744-0	01	1	0805-0805		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2674 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0811		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2674 SERVICED BY L=2900	1-47428-744-0	01	1	0812-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (B) L=411	8-97623-318-0	01	1	0712-0802	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (B) L=541 SERVICED BY L=550	1-47428-724-0	01	1	0803-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (C) L=2915	8-98098-196-0	01	1	0712-0802	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2656 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0803	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (C) L=2656 SERVICED BY L=2900	1-47428-744-0	01	1	0804-0805	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2656 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0811	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2703 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0812	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2708 SERVICED BY L=2900	1-47428-744-0	01	1	0901-0908	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2824 SERVICED BY L=2900	1-47428-744-0	01	1	0909-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (A) L=2930	8-97614-531-0	01	1	0712-0802		●
106	UNION; OIL PIPE (A)	1-09656-751-0	01	1	0712-0802		●
106	UNION; OIL PIPE (C)	8-98067-169-0	01	1	0712-0802	●
106	UNION; OIL PIPE MANUAL TRANSMISSION<X9C> (E) M12 3WAY	8-98051-113-0	01	1	0803-0910	●	●
106	UNION; OIL PIPE (B) M12 ELBOW	0-92125-206-0	01	1	0712-0802		●
106	UNION; OIL PIPE MANUAL TRANSMISSION<X9C> (D) M12 2WAY	1-09654-059-2	01	1	0803-	●	●
107	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-0802	●
107	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0712-0802		●
107	NUT; UNION,OIL PIPE MANUAL TRANSMISSION<X9C> M12	0-91111-512-0	01	1	0803-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0712-0802	●
180	PLUG; PIPE MANUAL TRANSMISSION<X9C>	9-09204-510-0	01	1	0803-0910	●	●
184	UNION; FLEX HOSE MANUAL TRANSMISSION<X9C>	8-98150-865-0	01	1	0911-	●	●
239	UNION; CLU HOSE M12 3WAY	1-09654-137-2	01	1	0712-0802	●
239	UNION; CLU HOSE MANUAL TRANSMISSION<X9C> M12 2WAY	1-09654-059-2	01	1	0803-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
