◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#66676) — 35 parça

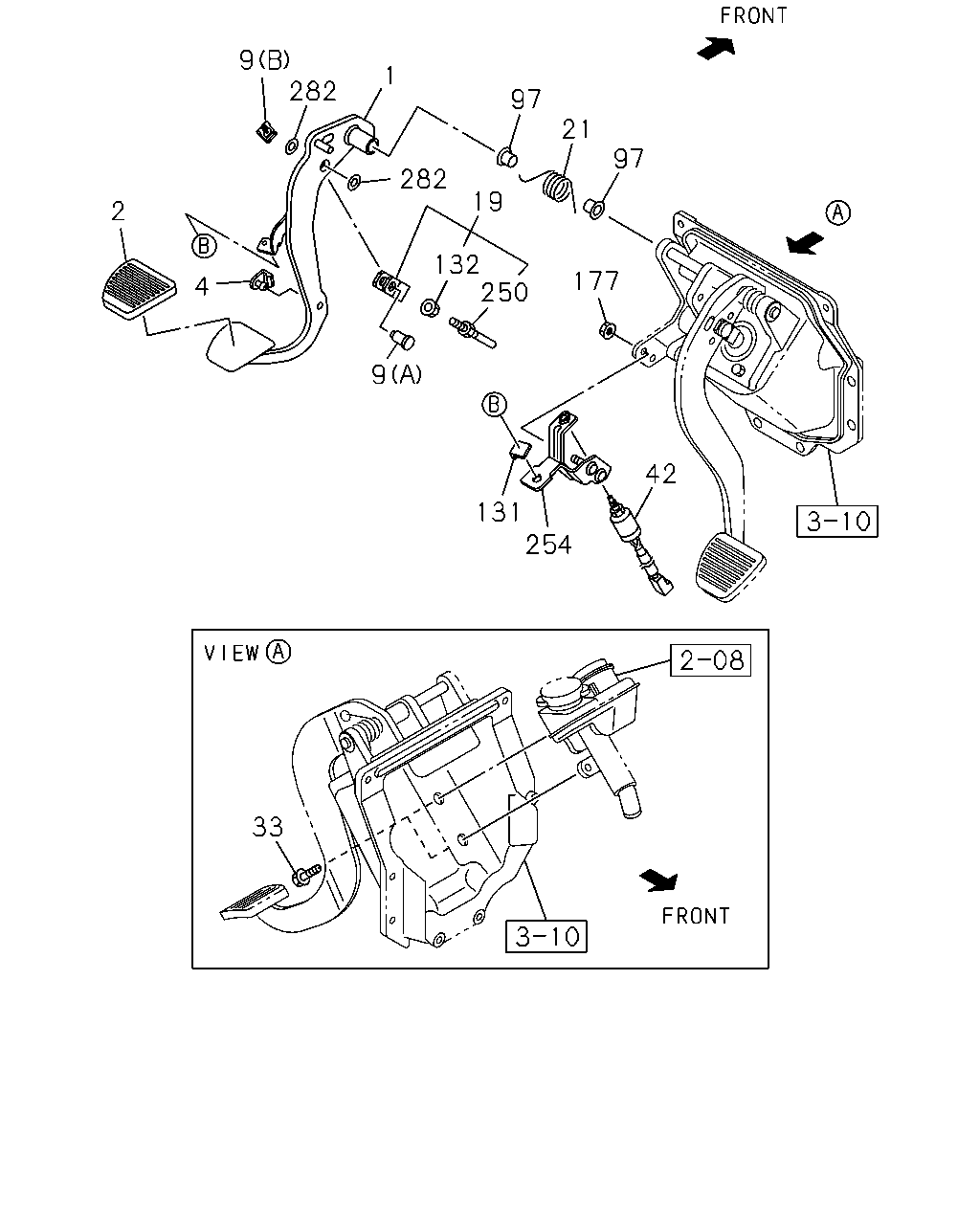

çizim 99143
9 282 1 97 21 97 282 19 2 132 250 177 4 9 42 131 254 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU 8-98057-123-0 01 1 0712-1002 ● ●
1 PEDAL; CLU
MANUAL TRANSMISSION<X9C> 		8-98057-123-0 01 1 1003- ● ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 0712-1002 ● ●
2 COVER; CLU PEDAL
MANUAL TRANSMISSION<X9C> 		8-98056-865-0 01 1 1003- ● ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 0712-1002 ● ●
4 STOPPER; CLU PEDAL
MANUAL TRANSMISSION<X9C> 		8-98079-251-0 01 1 1003- ● ●
9 PIN; CLU PEDAL
(A) 		8-97387-230-0 01 1 0712-1002 ● ●
9 PIN; CLU PEDAL
MANUAL TRANSMISSION<X9C> (A) 		8-97387-230-0 01 1 1003-1007 ● ●
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1008- ● ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 0712-1002 ● ●
9 PIN; CLU PEDAL
MANUAL TRANSMISSION<X9C> (B) 		8-98007-161-0 01 1 1003- ● ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 0712-1002 ● ●
19 ROD ASM; PUSH,CLU
MANUAL TRANSMISSION<X9C> 		8-98021-406-1 01 1 1003- ● ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 0712-1002 ● ●
21 SPRING; RETURN,CLU PEDAL
MANUAL TRANSMISSION<X9C> 		8-98021-560-0 01 1 1003- ● ●
33 BOLT; CLU M/CYL TO BRKT
MZX6P M/T(RSW) M12X20 FLANGE 		0-28051-220-0 02 1 0712-0805 ● ●
33 BOLT; CLU M/CYL TO BRKT
MZX6P M/T(RSW),MLD6Q M/T(X5J) M12X20 FLANGE 		0-28051-220-0 02 1 0806-0811 ● ●
33 BOLT; CLU M/CYL TO BRKT
MZX6P M/T(RSW),MLD6Q M/T(X5J),MLD6W M/T(Y2C) M12X20 FLANGE 		0-28051-220-0 02 1 0812-0906 ● ●
33 BOLT; CLU M/CYL TO BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) M12X20 FLANGE 		0-28051-220-0 02 1 0907- ● ●
42 SWITCH; CLU 8-97620-841-0 01 1 0712-1002 ● ●
42 SWITCH; CLU
MANUAL TRANSMISSION<X9C> 		8-97620-841-0 01 1 1003- ● ●
97 BUSHING; CLU PEDAL SHAFT 8-94238-596-0 02 1 0712-1002 ● ●
97 BUSHING; CLU PEDAL SHAFT
MANUAL TRANSMISSION<X9C> 		8-94238-596-0 02 1 1003- ● ●
131 STOPPER; CLU SW 8-97302-305-0 02 1 0712-1002 ● ●
131 STOPPER; CLU SW
MANUAL TRANSMISSION<X9C> 		8-97302-305-0 02 1 1003- ● ●
132 NUT; LK,PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 0712-1002 ● ●
132 NUT; LK,PUSH ROD
MANUAL TRANSMISSION<X9C> M8 FLANGE 		0-91180-108-0 01 1 1003- ● ●
177 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712-1002 ● ●
177 NUT; BRKT
MANUAL TRANSMISSION<X9C> M8 FLANGE 		0-91180-108-0 02 1 1003- ● ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 0712-1002 ● ●
250 ROD; PUSH,CLU
MANUAL TRANSMISSION<X9C> 		8-97615-589-0 01 1 1003- ● ●
254 BRACKET; CLU SENSOR 8-98057-131-1 01 1 0712-1002 ● ●
254 BRACKET; CLU SENSOR
MANUAL TRANSMISSION<X9C> 		8-98057-131-1 01 1 1003- ● ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 0712-1002 ● ●
282 SPACER; CLU PEDAL
MANUAL TRANSMISSION<X9C> 		8-98070-329-0 02 1 1003- ● ●
