Sayfa 2-01A - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01A - CLUTCH ▶

2-01A — CLUTCH (#66675) — 181 parça

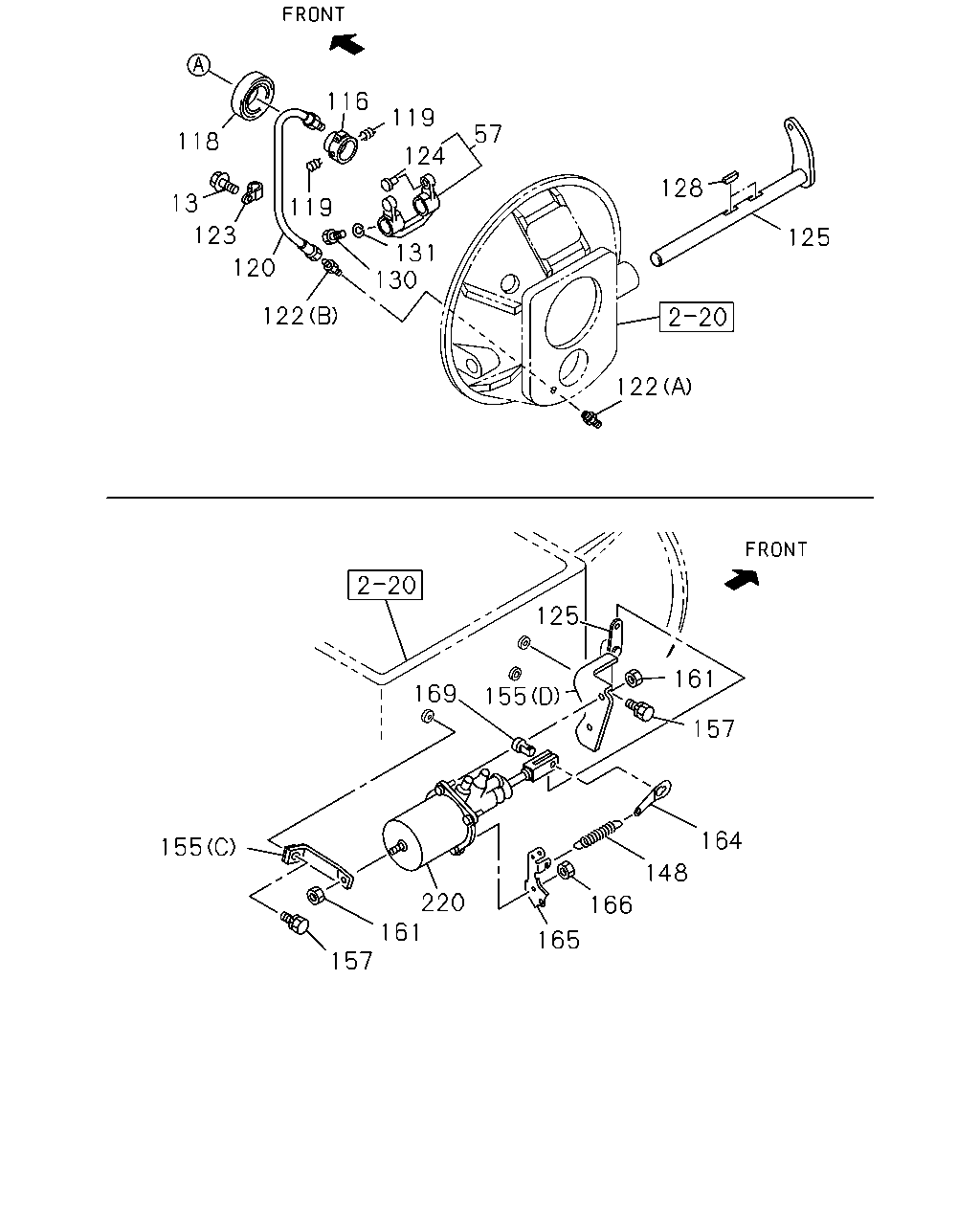

116 119 57 118 124 128 13 119 131 130 123 125 120 122 122 125 161 155 169 157 164 155 148 220 161 157 166 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0806-0811	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0812-	●	●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0806-0811	●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0812-1306	●	●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-	●	●
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	0712-0906			●
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	0907-			●	●
116	BLOCK; SHIFT,CLU	1-31321-075-0	01	1	0806-0811	●
116	BLOCK; SHIFT,CLU	1-31321-075-1	01	1	0812-1204	●	●
116	BLOCK; SHIFT,CLU	1-31321-113-0	01	1	1205-1306	●	●
116	BLOCK; SHIFT,CLU	1-31321-114-0	01	1	1307-	●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	0907-			●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0907-	●	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0806-0811	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0812-	●	●
118	BEARING; CLU RELEASE	1-31310-017-1	01	1	0712-0806			●
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	0807-0906			●
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	0907-			●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	0806-0811	●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	0812-	●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	0806-0811	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	0812-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0806-0811	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0812-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0806-0811	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0812-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0806-0811	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0812-	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0806-0811	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0812-	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0806-0811	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0812-	●	●
125	SHAFT; CLU	1-31342-343-0	01	1	0806-0811	●
125	SHAFT; CLU	1-31342-343-0	01	1	0812-	●	●
125	SHAFT; CLU	1-31342-335-0	01	1	0712-0906			●
125	SHAFT; CLU	1-31342-335-0	01	1	0907-			●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0712-0805			●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0806-0811	●		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0812-0906	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0907-	●	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0712-0805			●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0806-0811	●		●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0812-0906	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0907-	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0712-0805			●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0806-0811	●		●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0812-0906	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0907-	●	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0712-0805			●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0806-0811	●		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0812-0906	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0907-	●	●	●	●
155	BRACKET; MINIPACK (C)	1-31429-507-0	01	1	0806-0811	●
155	BRACKET; MINIPACK (C)	1-31429-507-0	01	1	0812-	●	●
155	BRACKET; MINIPACK (D)	1-31429-508-0	01	1	0806-0811	●
155	BRACKET; MINIPACK (D)	1-31429-508-0	01	1	0812-	●	●
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	0712-0906			●
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	0907-			●	●
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	0712-0906			●
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	0907-			●	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0712-0805			●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0806-0811	●		●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0812-0906	●	●	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0907-	●	●	●	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0806-0811	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0812-	●	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	0712-0906			●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	0907-			●	●
164	EYE; SPRING	1-31426-041-0	01	1	0712-0805			●
164	EYE; SPRING	1-31426-041-0	01	1	0806-0811	●		●
164	EYE; SPRING	1-31426-041-0	01	1	0812-0906	●	●	●
164	EYE; SPRING	1-31426-041-0	01	1	0907-	●	●	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0712-0805			●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0806-0811	●		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0812-0906	●	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0907-	●	●	●	●
166	NUT; SPRING EYE M10 FLANGE	0-91180-210-0	02	1	0806-0811	●
166	NUT; SPRING EYE M10 FLANGE	0-91180-210-0	02	1	0812-	●	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0806-0811	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0812-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	0907-	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-516-0	01	1	0806-0811	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-516-1	01	1	0812-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-1	01	1	0712-0906			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-2	01	1	0907-			●	●

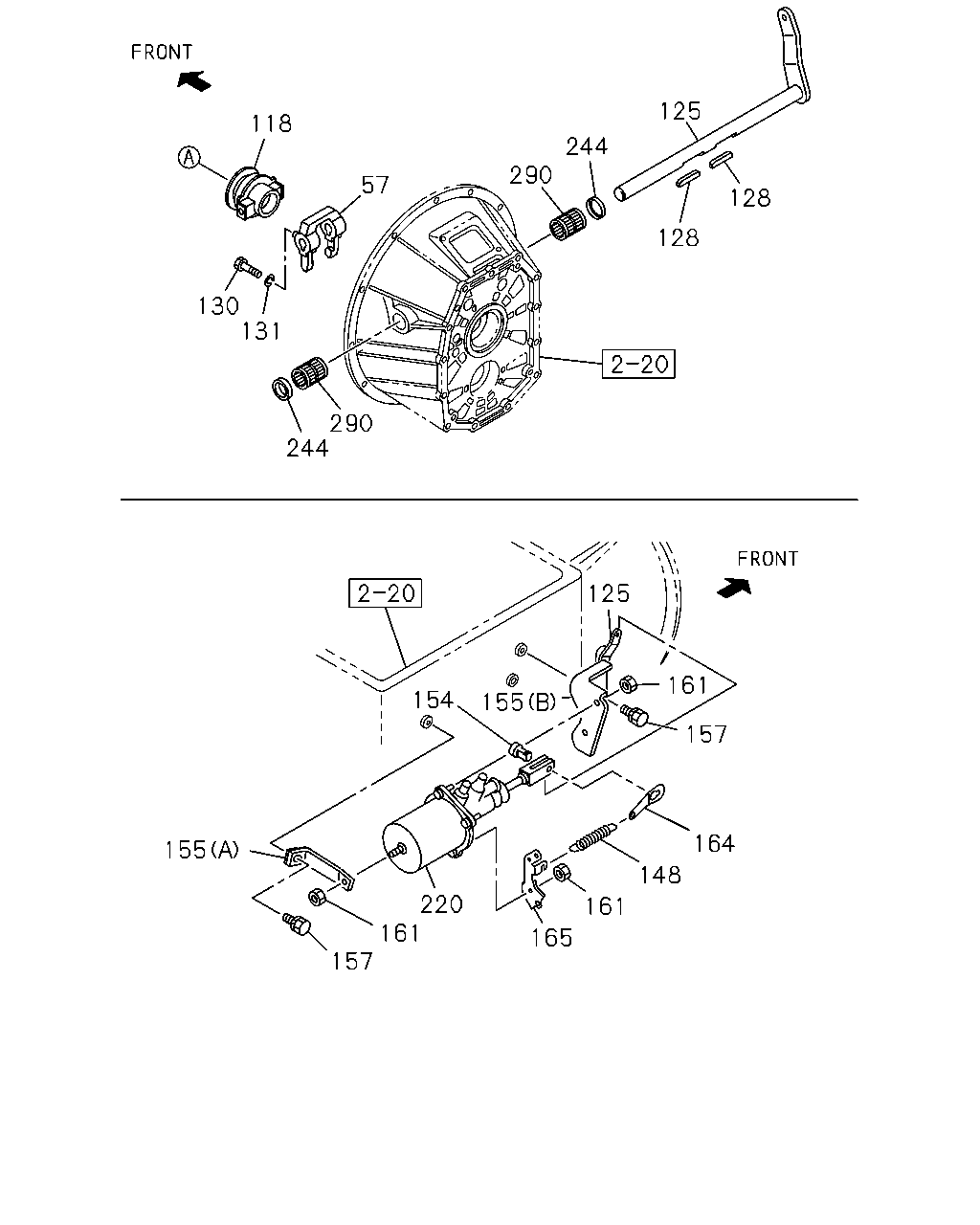

125 118 244 290 57 128 128 130 131 290 244 125 161 155 154 157 164 155 148 220 161 157 161 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0806-0811	●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0812-1306	●	●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-	●	●
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	0712-0906			●
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	0907-			●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	0907-			●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0907-	●	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0806-0811	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0812-	●	●
118	BEARING; CLU RELEASE	1-31310-017-1	01	1	0712-0806			●
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	0807-0906			●
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	0907-			●	●
125	SHAFT; CLU	1-31342-343-0	01	1	0806-0811	●
125	SHAFT; CLU	1-31342-343-0	01	1	0812-	●	●
125	SHAFT; CLU	1-31342-335-0	01	1	0712-0906			●
125	SHAFT; CLU	1-31342-335-0	01	1	0907-			●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0712-0805			●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0806-0811	●		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0812-0906	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0907-	●	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0712-0805			●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0806-0811	●		●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0812-0906	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0907-	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0712-0805			●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0806-0811	●		●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0812-0906	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0907-	●	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0712-0805			●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0806-0811	●		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0812-0906	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0907-	●	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0712-0906			●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0907-			●	●
155	BRACKET; MINIPACK (C)	1-31429-507-0	01	1	0806-0811	●
155	BRACKET; MINIPACK (C)	1-31429-507-0	01	1	0812-	●	●
155	BRACKET; MINIPACK (D)	1-31429-508-0	01	1	0806-0811	●
155	BRACKET; MINIPACK (D)	1-31429-508-0	01	1	0812-	●	●
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	0712-0906			●
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	0907-			●	●
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	0712-0906			●
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	0907-			●	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0712-0805			●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0806-0811	●		●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0812-0906	●	●	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0907-	●	●	●	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0806-0811	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0812-	●	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	0712-0906			●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	0907-			●	●
164	EYE; SPRING	1-31426-041-0	01	1	0712-0805			●
164	EYE; SPRING	1-31426-041-0	01	1	0806-0811	●		●
164	EYE; SPRING	1-31426-041-0	01	1	0812-0906	●	●	●
164	EYE; SPRING	1-31426-041-0	01	1	0907-	●	●	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0712-0805			●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0806-0811	●		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0812-0906	●	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0907-	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	0907-	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-516-0	01	1	0806-0811	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-516-1	01	1	0812-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-1	01	1	0712-0906			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-2	01	1	0907-			●	●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0712-0906			●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0907-			●	●
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	0712-0906			●
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	0907-			●	●

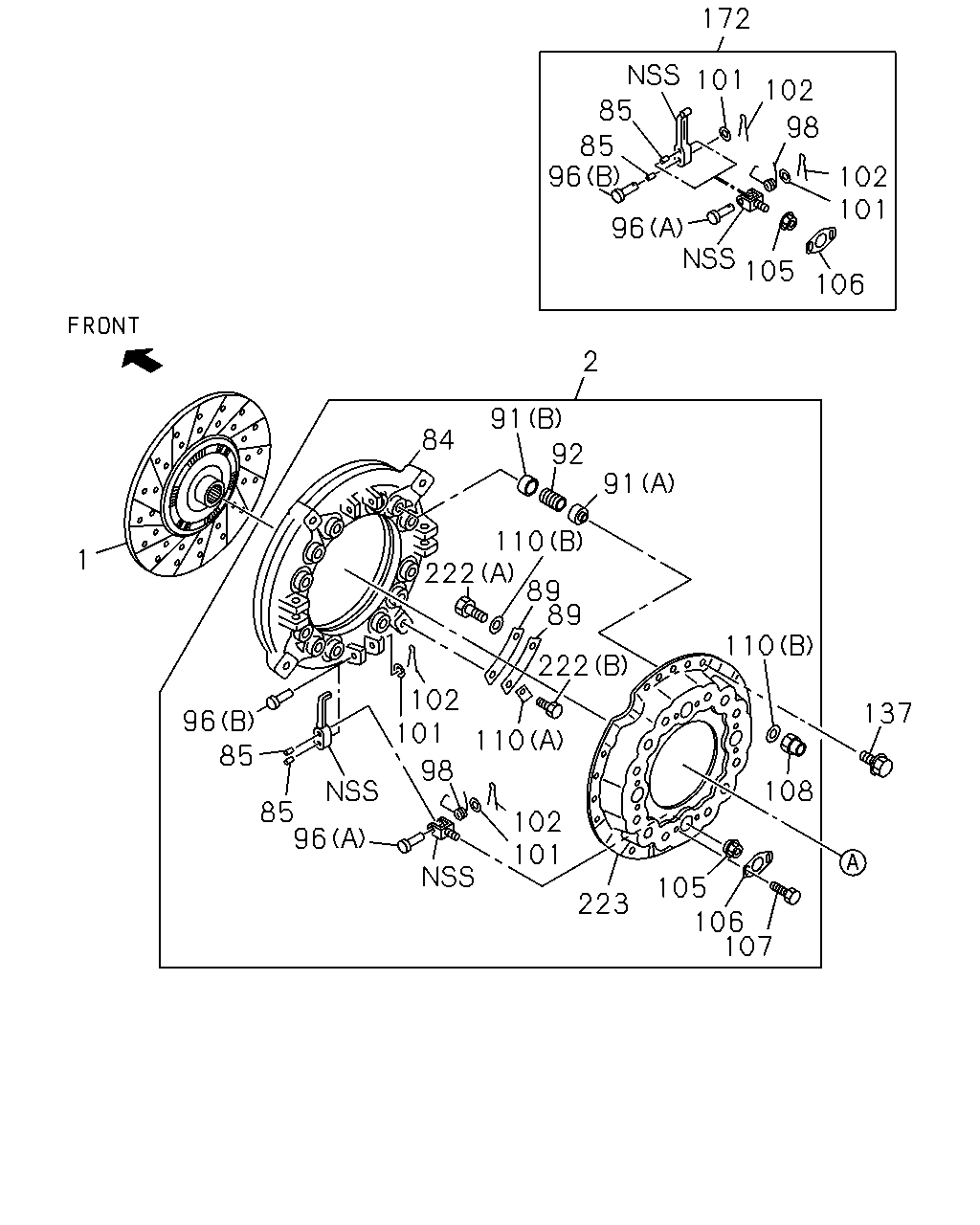

172 101 102 85 98 85 96 102 101 96 105 106 2 91 84 92 91 110 222 89 89 1 222 110 102 101 137 96 85 110 98 108 85 96 102 101 105 106 107 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DISC; CLUTCH 15"	1-31240-851-2	01	1	0712-	●	●	●	●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-119-0	01	1	0907-	●	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	0712-1009	●	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	1010-	●	●	●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-146-0	01	1	0907-1009	●	●	●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-120-0	01	1	1010-	●	●	●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0712-	●	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0712-	●	●	●	●
89	PLATE; STRAP	1-31229-050-0	16	1	0712-	●	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0712-	●	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0712-	●	●	●	●
92	SPRING; CLU	1-31214-066-0	12	1	0712-1009	●	●	●	●
92	SPRING; CLU	1-31214-086-0	12	1	1010-	●	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0712-	●	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0712-	●	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0712-	●	●	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0712-	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0712-	●	●	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0712-	●	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0712-	●	●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0712-	●	●	●	●
108	NUT; STRAP	1-09449-036-0	04	1	0712-	●	●	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0712-	●	●	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0712-	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0712-	●	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0712-	●	●	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0712-	●	●	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0712-	●	●	●	●
223	COVER; CLU	1-31211-019-1	01	1	0712-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
