Isuzu WW
▶
TRUCKS
▶
FTS
▶
11128 - FTS(RHD)EURO2/4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶

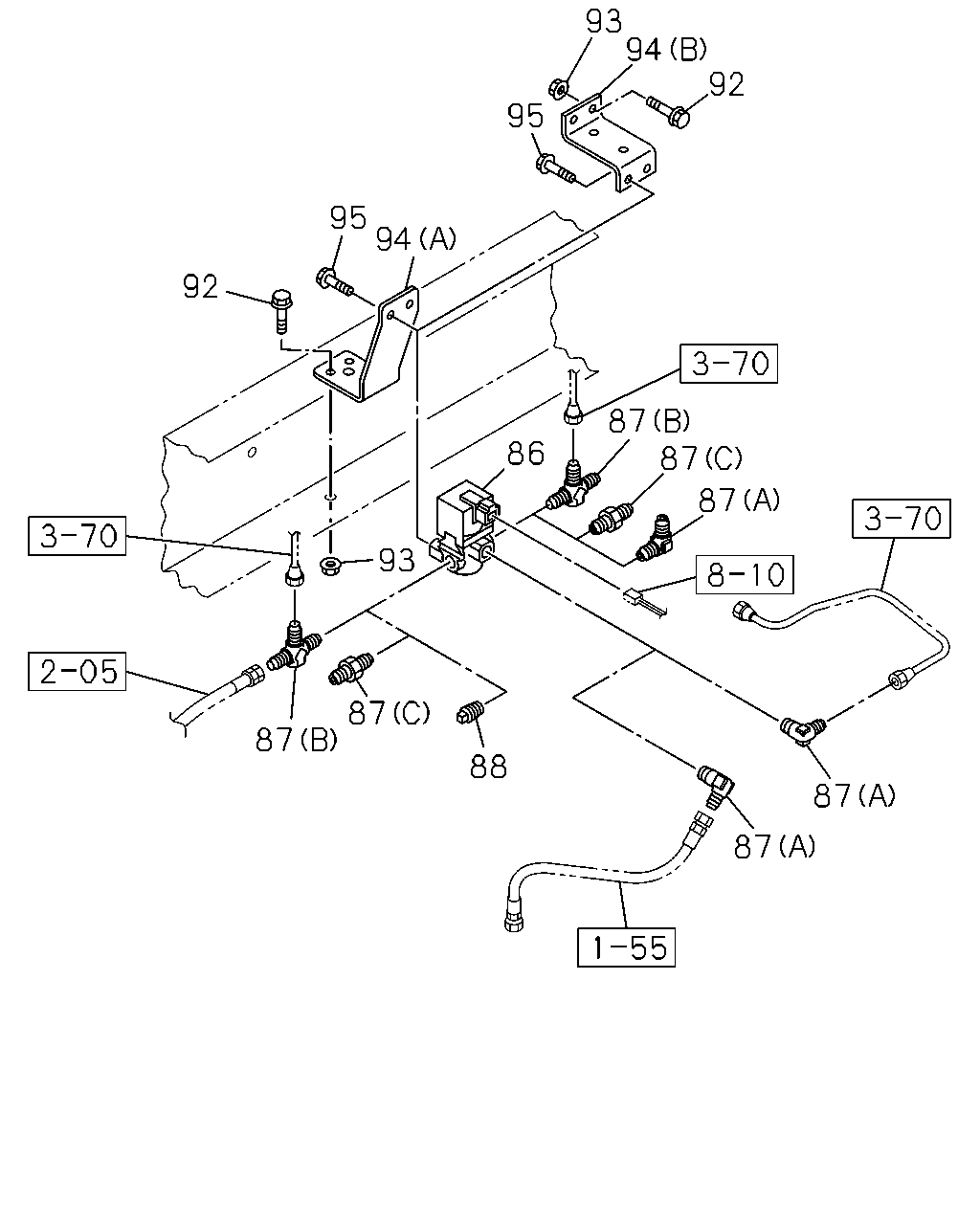

1-56 — EXHAUST BRAKE SYSTEM
(#66674) — 25 parça
93
94
92
95
95
94
92
87
87
86
87
93
87
87
88
87
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
86
VALVE; MAG,EXH BRK
1-82563-871-2
01
1
0712-
87
CONNECTOR
FTS WIDE SGL CAB(FG**M*) EXC. BRAKE REGULATION ADR<TDU> (A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0803-0811
87
CONNECTOR
FTS WIDE SGL CAB(FG**M*) EXC. BRAKE REGULATION ADR<TDU> (C) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0812-1002
87
CONNECTOR
FTS WIDE SGL CAB(FG**M*) EXC. BRAKE REGULATION ADR<TDU>,A/T<X9D> (C) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1003-
87
CONNECTOR
(A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0712-0802
87
CONNECTOR
(C) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0803-0811
87
CONNECTOR
(A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0812-0906
87
CONNECTOR
(A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0907-
87
CONNECTOR
FTS WIDE SGL CAB(FG**M*) (C) M12 & PT1/4 STRAIGHT
1-09650-074-1
02
1
0712-0802
87
CONNECTOR
FTS WIDE SGL CAB(FG**M*) BRAKE REGULATION ADR<TDU> (A) M12 & PT1/4 ELBOW
1-09650-430-0
02
1
0803-0811
87
CONNECTOR
FTS WIDE DBL CAB(FG**W*) (A) M12 & PT1/4 ELBOW
1-09650-430-0
02
1
0803-0811
87
CONNECTOR
FTS WIDE SGL CAB(FG**M*) BRAKE REGULATION ADR<TDU> (C) M12 & PT1/4 STRAIGHT
1-09650-074-1
02
1
0812-
87
CONNECTOR
FTS WIDE DBL CAB(FG**W*) (C) M12 & PT1/4 STRAIGHT
1-09650-074-1
02
1
0812-
87
CONNECTOR
FTS WIDE DBL CAB(FG**W*) (B) M12X2 & PT1/4 3WAY
1-09656-230-1
02
1
0712-0802
87
CONNECTOR
FTS WIDE SGL CAB(FG**M*) EXC. BRAKE REGULATION ADR<TDU> (B) M12X2 & PT1/4 3WAY
1-09656-230-1
01
1
0803-1002
87
CONNECTOR
FTS WIDE SGL CAB(FG**M*) EXC. BRAKE REGULATION ADR<TDU> (B) M12X2 & PT1/4 3WAY
1-09656-230-1
01
1
1003-
88
PLUG
FTS WIDE SGL CAB(FG**M*) A/T<X9D> EXC. BRAKE REGULATION ADR<TDU> PT1/4
9-99204-513-0
01
1
1003-
92
BOLT; MAG VLV
M8X30 FLANGE
0-28650-830-0
02
1
0712-
93
NUT; MAG VLV
M8 FLANGE
0-91180-108-0
02
1
0712-
94
BRACKET; MAG VLV,EXH BRAKE
FTS WIDE SGL CAB(FG**M*) (B)
1-47471-374-0
01
1
0712-0802
94
BRACKET; MAG VLV,EXH BRAKE
(B)
1-47471-374-1
01
1
0803-0906
94
BRACKET; MAG VLV,EXH BRAKE
(B)
1-47471-374-1
01
1
0907-1004
94
BRACKET; MAG VLV,EXH BRAKE
(B)
8-98154-633-0
01
1
1005-
94
BRACKET; MAG VLV,EXH BRAKE
FTS WIDE DBL CAB(FG**W*) (A)
8-98021-181-0
01
1
0712-0802
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE
0-28650-820-0
02
1
0712-
