Sayfa 1-41 - Isuzu EPC

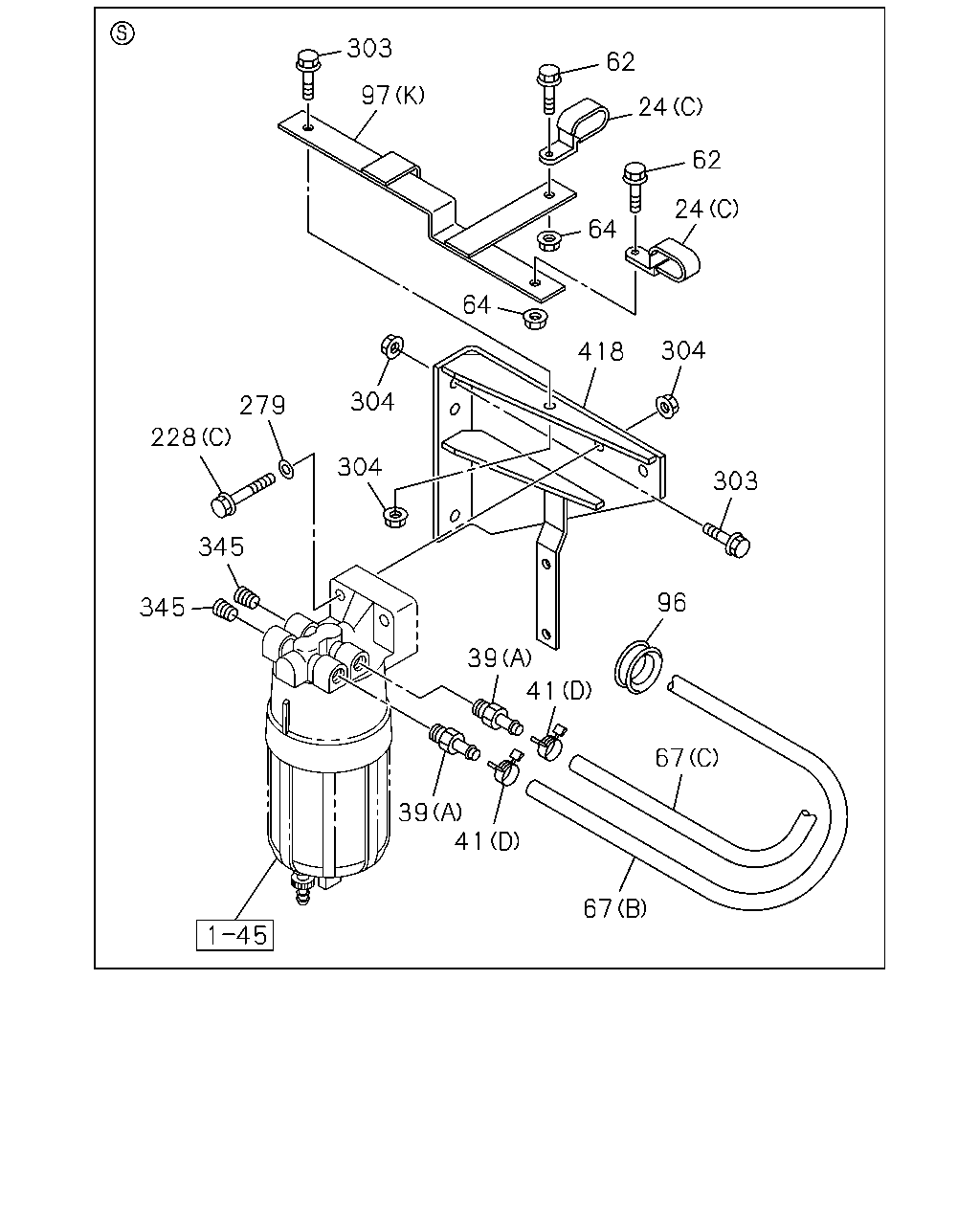

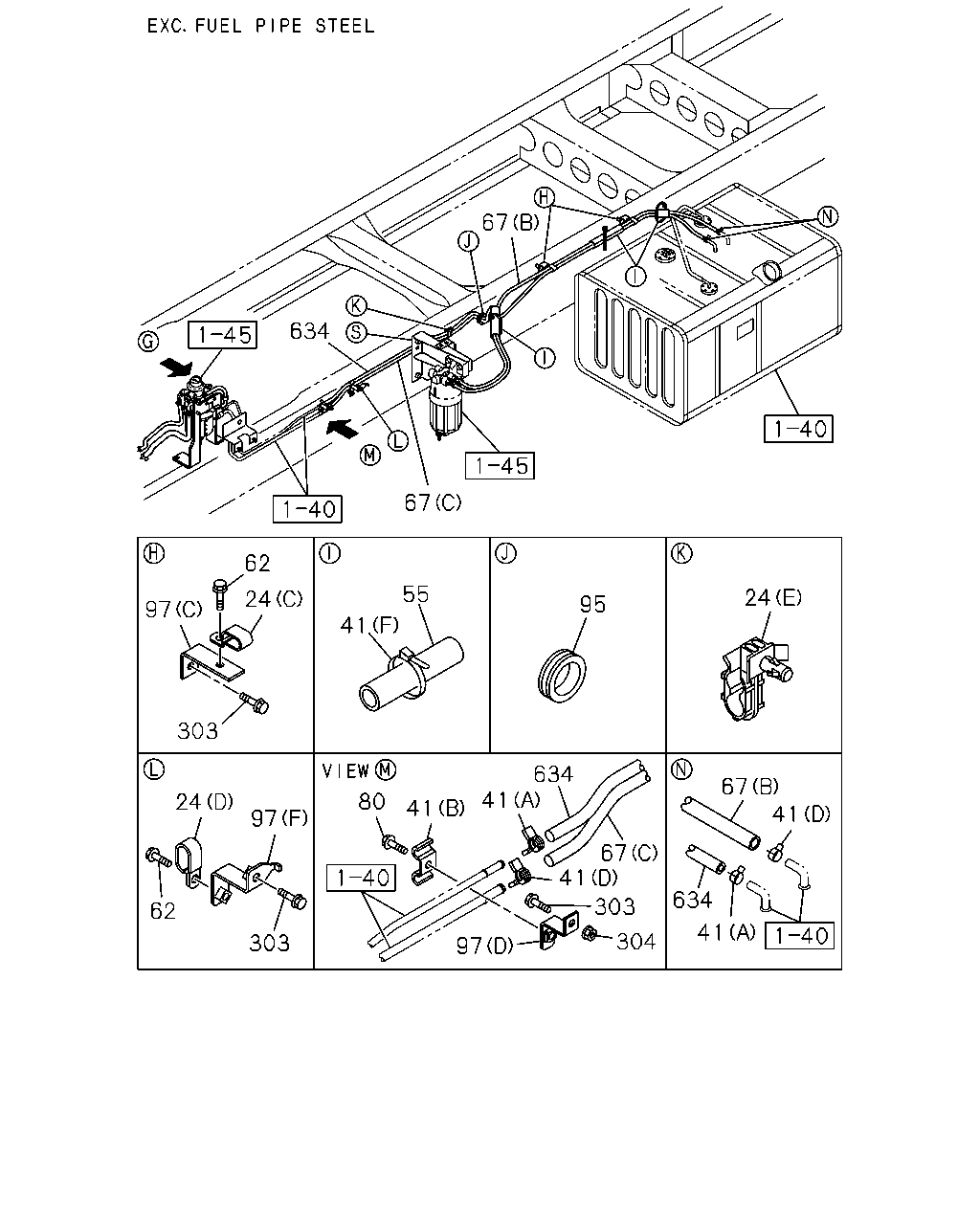

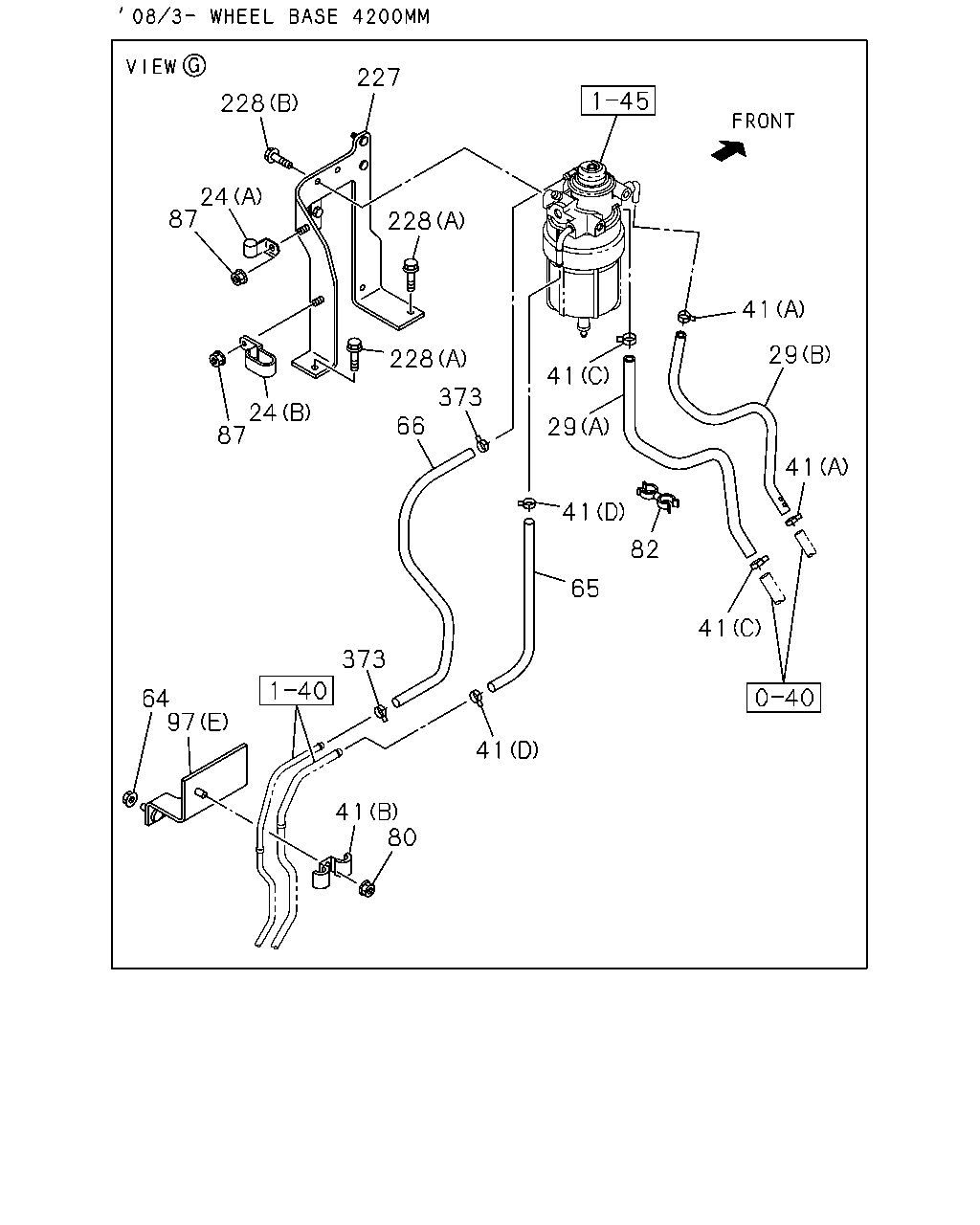

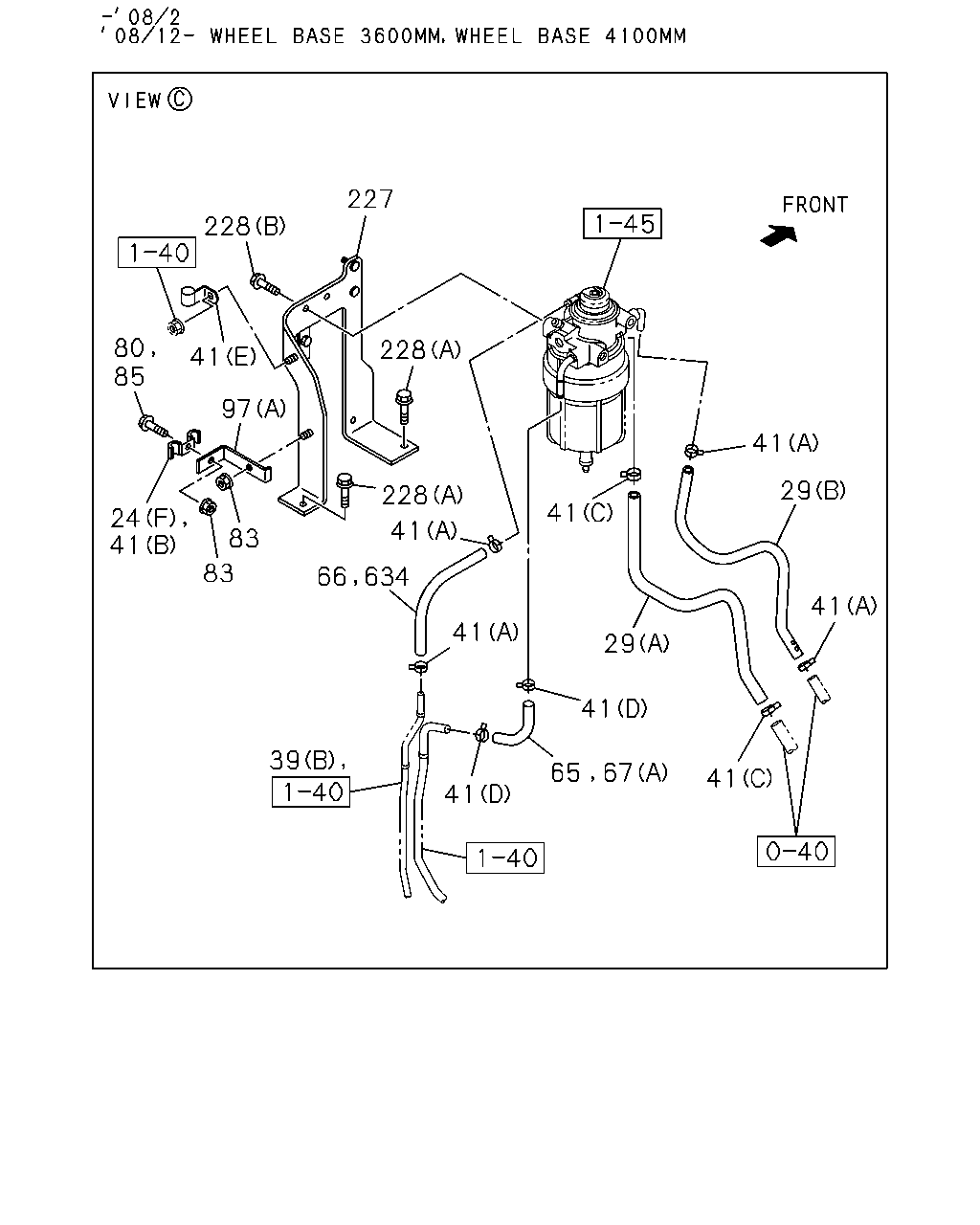

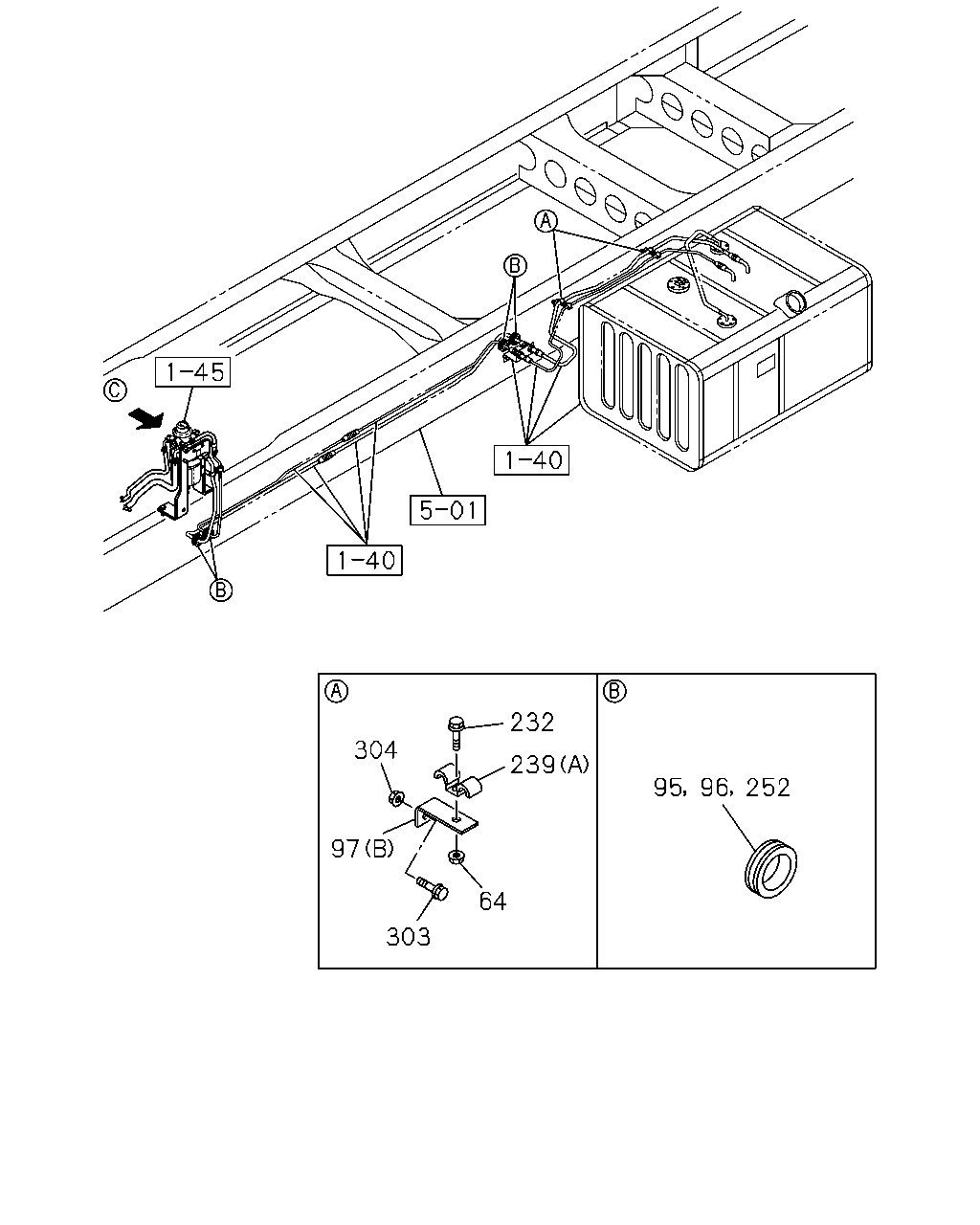

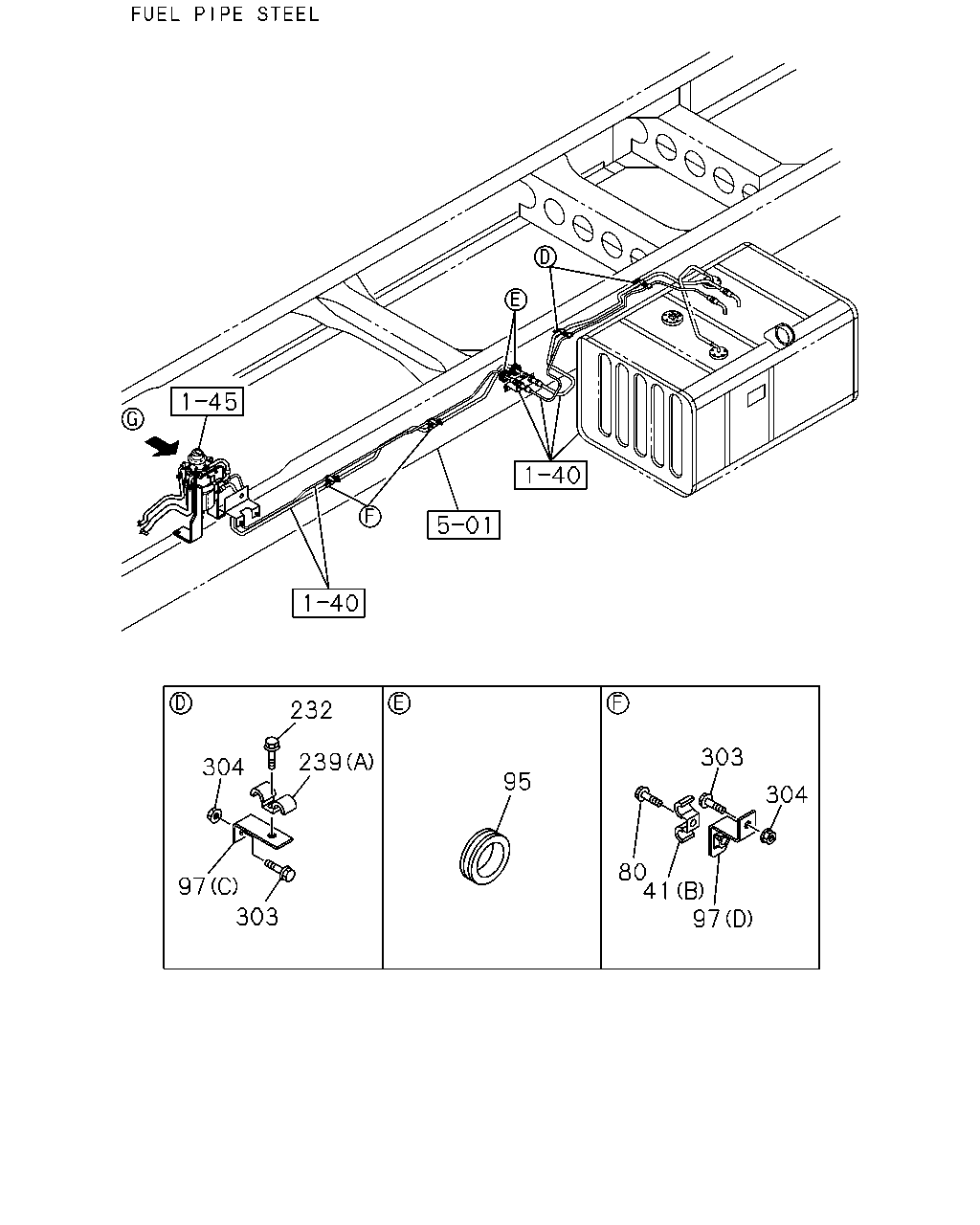

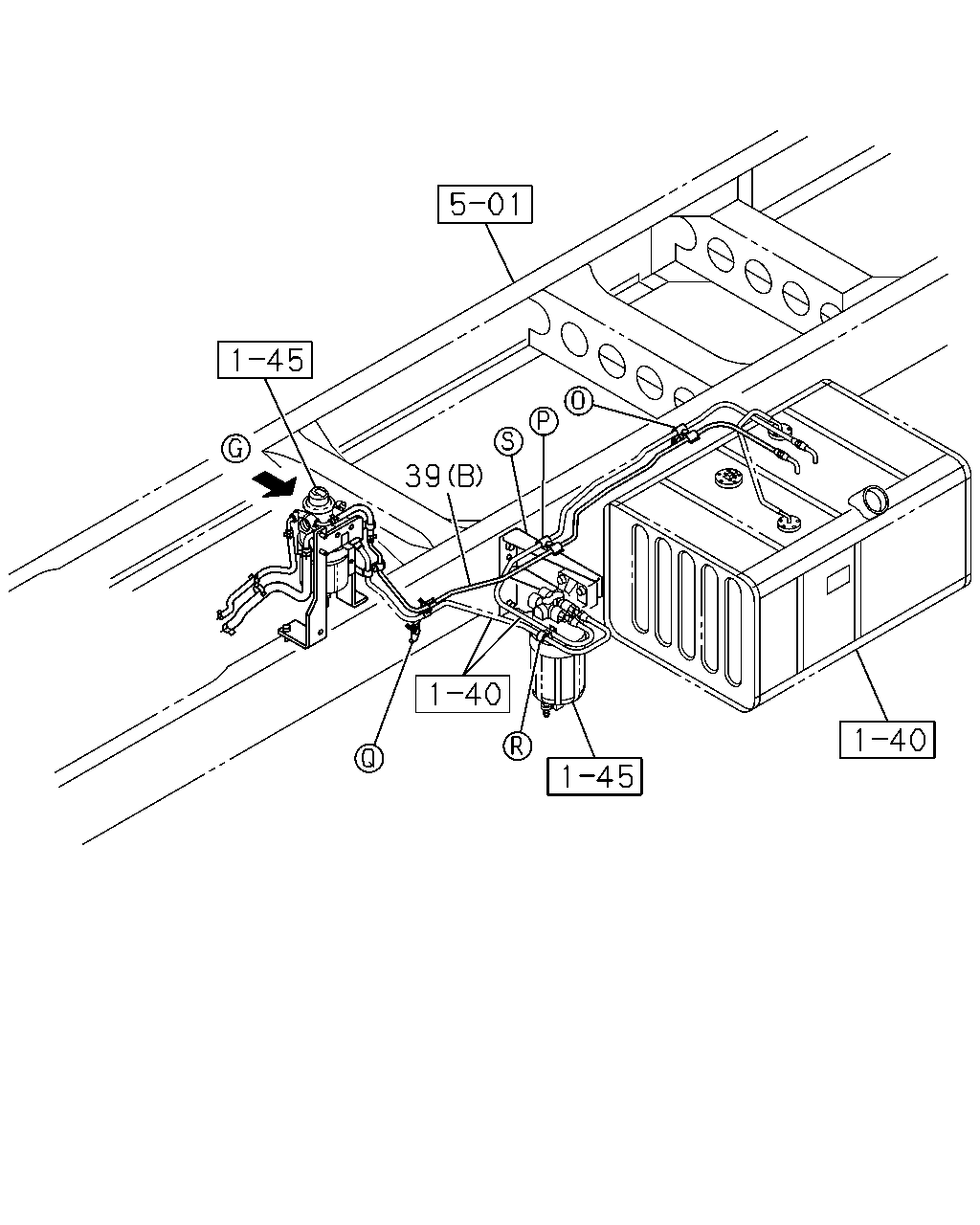

1-41 — FUEL PIPING; CHASSIS (#66670) — 848 parça

232 304 239 95 96 252 97 64 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	NUT; CLIP WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1502-	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	02	1	0812-0812	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	03	1	0901-0908	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	0909-1002	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	0909-1002	●
64	NUT; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1003-1003	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1003-1003	●
64	NUT; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	03	1	1004-	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0812	●	●
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0901-1002	●
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1003-1003	●
64	NUT; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1003-1003	●
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1004-1302	●
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1303-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0712-0802	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	0803-0810	●	●
95	BUSHING; PIPE,FUEL TANK FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	02	1	0811-0811	●	●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	02	1	0812-	●	●
96	GROMMET; PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	01	1	0811-0811	●
96	GROMMET; PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	01	1	0812-	●	●
96	GROMMET; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0712-0802	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (K)	8-98204-698-0	01	1	1304-	●
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1003-1003	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1004-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (G)	1-47475-427-1	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	0901-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	1003-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (H)	1-47477-648-0	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (H)	1-47477-648-0	01	1	0901-1003	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (A)	8-98053-654-0	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	0901-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1003-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (I)	8-98053-655-0	01	1	0812-0912	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (I)	8-98158-192-0	01	1	1001-1001	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (J)	8-98164-234-0	01	1	1002-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) (J)	8-98164-234-0	01	1	1003-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0811-0811	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0812-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0811-0811	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0812-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0803-0811	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (E)	8-98115-316-1	01	1	0812-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0812-		●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0712-0802	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0803-0810	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	02	1	0811-	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0811-		●
97	BRACKET; CLIP (B) L=65	1-47479-064-0	02	1	0712-0802	●
97	BRACKET; CLIP (D)	1-47478-981-0	02	1	0803-0810	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0811-0811	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0812-	●	●
232	BOLT; CLIP,PIPE M8X16 FLANGE	0-28050-816-0	02	1	0712-0802	●
232	BOLT; CLIP,PIPE M8X20 FLANGE	0-28050-820-0	02	1	0803-0811	●	●
232	BOLT; CLIP,PIPE FUEL PIPE STEEL<E2N> EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28050-820-0	02	1	0812-	●
232	BOLT; CLIP,PIPE FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28050-820-0	02	1	0812-		●
239	CLIP; FUEL PIPE WHEEL BASE 3600MM(36W) (B) ID=10 & 10	1-09709-277-1	01	1	0812-0812	●
239	CLIP; FUEL PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) ID=10 & 10	1-09709-277-1	01	1	0901-1002	●
239	CLIP; FUEL PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=10 & 10	1-09709-277-1	01	1	1003-	●
239	CLIP; FUEL PIPE (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0712-0802	●
239	CLIP; FUEL PIPE (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0803-0811	●	●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> EURO4 SPECIFICATION<NT4> (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-	●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-		●
252	GROMMET ID=28 OD=35 T=17	9-09956-256-2	02	1	0712-0802	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0812-1303	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	04	1	1304-	●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0811-0811	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0812-	●	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-		●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0810	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0810	●	●
303	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0811-0811	●	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0811-0811	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0811-0811		●
303	BOLT; BRKT WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28650-825-0	01	1	0812-0812	●
303	BOLT; BRKT WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	0901-1002	●
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	1003-	●
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1304-	●
304	NUT; BRKT WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	03	1	0909-	●
304	NUT; BRKT WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	01	1	0812-0812	●
304	NUT; BRKT WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0901-0909	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	04	1	0812-1001	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1002-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1002-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0803-0908	●	●
304	NUT; BRKT WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	04	1	0909-0909	●
304	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	04	1	0909-0909	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0909-0909		●
304	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	04	1	0910-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0910-		●

67 634 67 62 24 97 303 41 55 95 24 24 97 62 303 80 41 97 41 634 41 67 303 304 67 41 634 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W) (F) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812	●
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (F) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002	●
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (F) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0811-0812	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=14X29 H=15 L=20	1-09700-744-0	03	1	0901-1302	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=14X29 H=15 L=20	1-09700-744-0	04	1	1303-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (D) ID=16X2 L=20	0-95325-536-0	02	1	0811-0811	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D) ID=16X2 L=20	0-95325-536-0	02	1	0812-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (E) ID=14.5 & 14.5	1-09701-246-1	01	1	0811-0811	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) ID=14.5 & 14.5	1-09701-246-1	01	1	0812-	●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-0908	●	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0909-	●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0909-		●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0803-0811	●	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0812-	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0812-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	03	1	0812-1302	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	02	1	1303-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	03	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0811-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0811-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	02	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0811-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	0811-	●
55	COVER; PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0811-0811	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0812-1302	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1303-	●
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0811-0812	●
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	03	1	0901-1302	●
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	04	1	1303-	●
62	BOLT; CLIP FIX EXC. FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	02	1	0811-0811	●
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	02	1	0812-	●
67	HOSE; FUEL,DELIVERY (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0802	●
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	0811-0812	●
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0901-1302	●
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	1303-	●
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0811-0812	●
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	0901-1302	●
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1303-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28650-825-0	02	1	0812-0812	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0901-1002	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	1003-	●
80	BOLT; CLIP,FUEL TANK EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	01	1	0811-0811	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	01	1	0812-	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	01	1	0712-0802	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	02	1	0803-0810	●	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0811-0811	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0812-	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0712-0802	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	0803-0810	●	●
95	BUSHING; PIPE,FUEL TANK FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	02	1	0811-0811	●	●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	02	1	0812-	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (K)	8-98204-698-0	01	1	1304-	●
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1003-1003	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1004-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (G)	1-47475-427-1	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	0901-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	1003-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (H)	1-47477-648-0	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (H)	1-47477-648-0	01	1	0901-1003	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (A)	8-98053-654-0	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	0901-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1003-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (I)	8-98053-655-0	01	1	0812-0912	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (I)	8-98158-192-0	01	1	1001-1001	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (J)	8-98164-234-0	01	1	1002-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) (J)	8-98164-234-0	01	1	1003-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0811-0811	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0812-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0811-0811	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0812-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0803-0811	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (E)	8-98115-316-1	01	1	0812-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0812-		●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0712-0802	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0803-0810	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	02	1	0811-	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0811-		●
97	BRACKET; CLIP (B) L=65	1-47479-064-0	02	1	0712-0802	●
97	BRACKET; CLIP (D)	1-47478-981-0	02	1	0803-0810	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0811-0811	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0812-	●	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0812-1303	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	04	1	1304-	●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0811-0811	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0812-	●	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-		●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0810	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0810	●	●
303	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0811-0811	●	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0811-0811	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0811-0811		●
303	BOLT; BRKT WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28650-825-0	01	1	0812-0812	●
303	BOLT; BRKT WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	0901-1002	●
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	1003-	●
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1304-	●
304	NUT; BRKT WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	03	1	0909-	●
304	NUT; BRKT WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	01	1	0812-0812	●
304	NUT; BRKT WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0901-0909	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	04	1	0812-1001	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1002-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1002-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0803-0908	●	●
304	NUT; BRKT WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	04	1	0909-0909	●
304	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	04	1	0909-0909	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0909-0909		●
304	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	04	1	0910-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0910-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0811-	●
634	HOSE; RUBBER RETURN L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0712-0802	●

232 303 239 304 95 304 80 41 97 97 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	03	1	0812-1302	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	02	1	1303-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	03	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0811-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0811-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	02	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0811-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	0811-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28650-825-0	02	1	0812-0812	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0901-1002	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	1003-	●
80	BOLT; CLIP,FUEL TANK EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	01	1	0811-0811	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	01	1	0812-	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	01	1	0712-0802	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	02	1	0803-0810	●	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0811-0811	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0812-	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0712-0802	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	0803-0810	●	●
95	BUSHING; PIPE,FUEL TANK FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	02	1	0811-0811	●	●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	02	1	0812-	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (K)	8-98204-698-0	01	1	1304-	●
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1003-1003	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1004-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (G)	1-47475-427-1	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	0901-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	1003-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (H)	1-47477-648-0	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (H)	1-47477-648-0	01	1	0901-1003	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (A)	8-98053-654-0	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	0901-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1003-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (I)	8-98053-655-0	01	1	0812-0912	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (I)	8-98158-192-0	01	1	1001-1001	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (J)	8-98164-234-0	01	1	1002-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) (J)	8-98164-234-0	01	1	1003-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0811-0811	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0812-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0811-0811	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0812-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0803-0811	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (E)	8-98115-316-1	01	1	0812-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0812-		●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0712-0802	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0803-0810	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	02	1	0811-	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0811-		●
97	BRACKET; CLIP (B) L=65	1-47479-064-0	02	1	0712-0802	●
97	BRACKET; CLIP (D)	1-47478-981-0	02	1	0803-0810	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0811-0811	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0812-	●	●
232	BOLT; CLIP,PIPE M8X16 FLANGE	0-28050-816-0	02	1	0712-0802	●
232	BOLT; CLIP,PIPE M8X20 FLANGE	0-28050-820-0	02	1	0803-0811	●	●
232	BOLT; CLIP,PIPE FUEL PIPE STEEL<E2N> EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28050-820-0	02	1	0812-	●
232	BOLT; CLIP,PIPE FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28050-820-0	02	1	0812-		●
239	CLIP; FUEL PIPE WHEEL BASE 3600MM(36W) (B) ID=10 & 10	1-09709-277-1	01	1	0812-0812	●
239	CLIP; FUEL PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) ID=10 & 10	1-09709-277-1	01	1	0901-1002	●
239	CLIP; FUEL PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=10 & 10	1-09709-277-1	01	1	1003-	●
239	CLIP; FUEL PIPE (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0712-0802	●
239	CLIP; FUEL PIPE (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0803-0811	●	●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> EURO4 SPECIFICATION<NT4> (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-	●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-		●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0812-1303	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	04	1	1304-	●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0811-0811	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0812-	●	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-		●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0810	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0810	●	●
303	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0811-0811	●	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0811-0811	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0811-0811		●
303	BOLT; BRKT WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28650-825-0	01	1	0812-0812	●
303	BOLT; BRKT WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	0901-1002	●
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	1003-	●
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1304-	●
304	NUT; BRKT WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	03	1	0909-	●
304	NUT; BRKT WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	01	1	0812-0812	●
304	NUT; BRKT WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0901-0909	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	04	1	0812-1001	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1002-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1002-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0803-0908	●	●
304	NUT; BRKT WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	04	1	0909-0909	●
304	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	04	1	0909-0909	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0909-0909		●
304	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	04	1	0910-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0910-		●

227 228 24 87 228 41 29 228 41 373 24 87 66 29 41 41 82 65 41 373 64 97 41 41 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W) (F) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812	●
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (F) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002	●
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (F) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0811-0812	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=14X29 H=15 L=20	1-09700-744-0	03	1	0901-1302	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=14X29 H=15 L=20	1-09700-744-0	04	1	1303-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (D) ID=16X2 L=20	0-95325-536-0	02	1	0811-0811	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D) ID=16X2 L=20	0-95325-536-0	02	1	0812-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (E) ID=14.5 & 14.5	1-09701-246-1	01	1	0811-0811	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) ID=14.5 & 14.5	1-09701-246-1	01	1	0812-	●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-0908	●	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0909-	●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0909-		●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0803-0811	●	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0812-	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0812-		●
29	HOSE; FUEL (A)	8-98078-196-1	01	1	0712-0802	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0803-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0712-0802	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	03	1	0812-1302	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	02	1	1303-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	03	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0811-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0811-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	02	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0811-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	0811-	●
64	NUT; CLIP WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1502-	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	02	1	0812-0812	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	03	1	0901-0908	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	0909-1002	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	0909-1002	●
64	NUT; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1003-1003	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1003-1003	●
64	NUT; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	03	1	1004-	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0812	●	●
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0901-1002	●
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1003-1003	●
64	NUT; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1003-1003	●
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1004-1302	●
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1303-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3600MM(36W) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0812-0812	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0901-1002	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1003-	●
65	HOSE; FUEL,DELIVERY PIPE L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0803-0806	●	●
65	HOSE; FUEL,DELIVERY PIPE L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0807-0811	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4200MM(42W) L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0812-	●
65	HOSE; FUEL,DELIVERY PIPE L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0812-		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0812-0812	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0901-0908	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0909-1002	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1003-	●
66	HOSE; FUEL,RETURN PIPE L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0803-0806	●	●
66	HOSE; FUEL,RETURN PIPE L=450 SERVICED BY L=3000	0-01558-300-0	01	1	0807-0811	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4200MM(42W) L=450 SERVICED BY L=3000	0-01558-300-0	01	1	0812-	●
66	HOSE; FUEL,RETURN PIPE L=450 SERVICED BY L=3000	0-01558-300-0	01	1	0812-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28650-825-0	02	1	0812-0812	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0901-1002	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	1003-	●
80	BOLT; CLIP,FUEL TANK EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	01	1	0811-0811	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	01	1	0812-	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	01	1	0712-0802	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	02	1	0803-0810	●	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0811-0811	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0812-	●	●
82	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2> ID=13 & 16.5	8-94169-028-0	01	1	0812-	●
87	NUT; CLIP,FUEL HOSE WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	0909-	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	0909-		●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	0803-0908	●	●
87	NUT; CLIP,FUEL HOSE WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	01	1	0909-1002	●
87	NUT; CLIP,FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) M8 FLANGE	0-91180-108-0	01	1	1003-	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (K)	8-98204-698-0	01	1	1304-	●
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1003-1003	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1004-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (G)	1-47475-427-1	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	0901-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	1003-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (H)	1-47477-648-0	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (H)	1-47477-648-0	01	1	0901-1003	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (A)	8-98053-654-0	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	0901-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1003-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (I)	8-98053-655-0	01	1	0812-0912	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (I)	8-98158-192-0	01	1	1001-1001	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (J)	8-98164-234-0	01	1	1002-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) (J)	8-98164-234-0	01	1	1003-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0811-0811	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0812-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0811-0811	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0812-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0803-0811	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (E)	8-98115-316-1	01	1	0812-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0812-		●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0712-0802	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0803-0810	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	02	1	0811-	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0811-		●
97	BRACKET; CLIP (B) L=65	1-47479-064-0	02	1	0712-0802	●
97	BRACKET; CLIP (D)	1-47478-981-0	02	1	0803-0810	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0811-0811	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0812-	●	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0712-	●	●
228	BOLT; BRKT,SEDIMENTER EURO2 SPECIFICATION<NT2> (C) M10X50 FLANGE	0-28051-050-0	02	1	0812-	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0712-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
373	CLAMP; HOSE,FUEL ID=13	8-94238-571-0	02	1	0803-	●	●

303 97 62 24 62 24 64 304 418 303 96 67 67 41 39 41 39 345 345 228 279 304 304 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W) (F) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812	●
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (F) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002	●
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (F) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0811-0812	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=14X29 H=15 L=20	1-09700-744-0	03	1	0901-1302	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=14X29 H=15 L=20	1-09700-744-0	04	1	1303-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (D) ID=16X2 L=20	0-95325-536-0	02	1	0811-0811	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D) ID=16X2 L=20	0-95325-536-0	02	1	0812-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (E) ID=14.5 & 14.5	1-09701-246-1	01	1	0811-0811	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) ID=14.5 & 14.5	1-09701-246-1	01	1	0812-	●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-0908	●	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0909-	●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0909-		●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0803-0811	●	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0812-	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0812-		●
39	PIPE; FUEL WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-238-0	01	1	1003-1003	●
39	PIPE; FUEL WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-238-0	01	1	1004-	●
39	PIPE; FUEL FUEL PIPE STEEL<E2N> EURO2 SPECIFICATION<NT2> (A) M16 & NPT3/8	1-09650-327-1	02	1	0904-	●
39	PIPE; FUEL WHEEL BASE 3600MM(36W) (B)	8-98133-821-0	01	1	0812-0812	●
39	PIPE; FUEL WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B)	8-98133-821-0	01	1	0901-1003	●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> (A)	8-97358-699-0	02	1	0812-0903	●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> EXC. FUEL PIPE STEEL<E2N> (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	03	1	0812-1302	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	02	1	1303-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	03	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0811-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0811-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	02	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0811-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	0811-	●
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0811-0812	●
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	03	1	0901-1302	●
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	04	1	1303-	●
62	BOLT; CLIP FIX EXC. FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	02	1	0811-0811	●
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	02	1	0812-	●
64	NUT; CLIP WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1502-	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	02	1	0812-0812	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	03	1	0901-0908	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	0909-1002	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	0909-1002	●
64	NUT; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1003-1003	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1003-1003	●
64	NUT; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	03	1	1004-	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0812	●	●
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0901-1002	●
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1003-1003	●
64	NUT; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1003-1003	●
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1004-1302	●
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1303-	●
67	HOSE; FUEL,DELIVERY (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0802	●
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	0811-0812	●
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0901-1302	●
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	1303-	●
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0811-0812	●
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	0901-1302	●
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1303-	●
96	GROMMET; PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	01	1	0811-0811	●
96	GROMMET; PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	01	1	0812-	●	●
96	GROMMET; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0712-0802	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (K)	8-98204-698-0	01	1	1304-	●
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1003-1003	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1004-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (G)	1-47475-427-1	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	0901-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	1003-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (H)	1-47477-648-0	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (H)	1-47477-648-0	01	1	0901-1003	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (A)	8-98053-654-0	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	0901-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1003-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (I)	8-98053-655-0	01	1	0812-0912	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (I)	8-98158-192-0	01	1	1001-1001	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (J)	8-98164-234-0	01	1	1002-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) (J)	8-98164-234-0	01	1	1003-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0811-0811	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0812-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0811-0811	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0812-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0803-0811	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (E)	8-98115-316-1	01	1	0812-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0812-		●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0712-0802	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0803-0810	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	02	1	0811-	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0811-		●
97	BRACKET; CLIP (B) L=65	1-47479-064-0	02	1	0712-0802	●
97	BRACKET; CLIP (D)	1-47478-981-0	02	1	0803-0810	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0811-0811	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0812-	●	●
228	BOLT; BRKT,SEDIMENTER EURO2 SPECIFICATION<NT2> (C) M10X50 FLANGE	0-28051-050-0	02	1	0812-	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0712-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
279	WASHER EURO2 SPECIFICATION<NT2> ID=10.5 OD=26	0-91614-710-0	02	1	0812-	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0812-1303	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	04	1	1304-	●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0811-0811	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0812-	●	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-		●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0810	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0810	●	●
303	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0811-0811	●	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0811-0811	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0811-0811		●
303	BOLT; BRKT WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28650-825-0	01	1	0812-0812	●
303	BOLT; BRKT WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	0901-1002	●
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	1003-	●
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1304-	●
304	NUT; BRKT WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	03	1	0909-	●
304	NUT; BRKT WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	01	1	0812-0812	●
304	NUT; BRKT WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0901-0909	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	04	1	0812-1001	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1002-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1002-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0803-0908	●	●
304	NUT; BRKT WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	04	1	0909-0909	●
304	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	04	1	0909-0909	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0909-0909		●
304	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	04	1	0910-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0910-		●
345	PLUG EURO2 SPECIFICATION<NT2> NPTF3/8-18	8-97329-623-0	02	1	0812-	●
418	BRACKET; PRE FUEL FILTER EURO2 SPECIFICATION<NT2>	8-98096-915-0	01	1	0812-0812	●
418	BRACKET; PRE FUEL FILTER EURO2 SPECIFICATION<NT2>	8-98136-381-0	01	1	0901-	●

228 227 228 41 97 80 85 24 41 83 83 228 41 634 66 41 41 41 29 41 41 29 41 41 67 65 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W) (F) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812	●
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (F) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002	●
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (F) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0811-0812	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=14X29 H=15 L=20	1-09700-744-0	03	1	0901-1302	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=14X29 H=15 L=20	1-09700-744-0	04	1	1303-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (D) ID=16X2 L=20	0-95325-536-0	02	1	0811-0811	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D) ID=16X2 L=20	0-95325-536-0	02	1	0812-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (E) ID=14.5 & 14.5	1-09701-246-1	01	1	0811-0811	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) ID=14.5 & 14.5	1-09701-246-1	01	1	0812-	●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-0908	●	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0909-	●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0909-		●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0803-0811	●	●
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0812-	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0812-		●
29	HOSE; FUEL (A)	8-98078-196-1	01	1	0712-0802	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0803-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0712-0802	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0803-	●	●
39	PIPE; FUEL WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-238-0	01	1	1003-1003	●
39	PIPE; FUEL WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-238-0	01	1	1004-	●
39	PIPE; FUEL FUEL PIPE STEEL<E2N> EURO2 SPECIFICATION<NT2> (A) M16 & NPT3/8	1-09650-327-1	02	1	0904-	●
39	PIPE; FUEL WHEEL BASE 3600MM(36W) (B)	8-98133-821-0	01	1	0812-0812	●
39	PIPE; FUEL WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B)	8-98133-821-0	01	1	0901-1003	●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> (A)	8-97358-699-0	02	1	0812-0903	●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> EXC. FUEL PIPE STEEL<E2N> (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	03	1	0812-1302	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	02	1	1303-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	03	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0811-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0811-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	02	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0811-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	0811-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3600MM(36W) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0812-0812	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0901-1002	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1003-	●
65	HOSE; FUEL,DELIVERY PIPE L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0803-0806	●	●
65	HOSE; FUEL,DELIVERY PIPE L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0807-0811	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4200MM(42W) L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0812-	●
65	HOSE; FUEL,DELIVERY PIPE L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0812-		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0812-0812	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0901-0908	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0909-1002	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1003-	●
66	HOSE; FUEL,RETURN PIPE L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0803-0806	●	●
66	HOSE; FUEL,RETURN PIPE L=450 SERVICED BY L=3000	0-01558-300-0	01	1	0807-0811	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4200MM(42W) L=450 SERVICED BY L=3000	0-01558-300-0	01	1	0812-	●
66	HOSE; FUEL,RETURN PIPE L=450 SERVICED BY L=3000	0-01558-300-0	01	1	0812-		●
67	HOSE; FUEL,DELIVERY (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0802	●
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	0811-0812	●
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0901-1302	●
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	1303-	●
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0811-0812	●
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	0901-1302	●
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1303-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28650-825-0	02	1	0812-0812	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0901-1002	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	1003-	●
80	BOLT; CLIP,FUEL TANK EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	01	1	0811-0811	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	01	1	0812-	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	01	1	0712-0802	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	02	1	0803-0810	●	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0811-0811	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0812-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
85	BOLT; CLIP,FUEL HOSE WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28650-825-0	01	1	0812-0812	●
85	BOLT; CLIP,FUEL HOSE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	0901-1002	●
85	BOLT; CLIP,FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	1003-	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (K)	8-98204-698-0	01	1	1304-	●
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1003-1003	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1004-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (G)	1-47475-427-1	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	0901-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	1003-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (H)	1-47477-648-0	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (H)	1-47477-648-0	01	1	0901-1003	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (A)	8-98053-654-0	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	0901-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1003-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (I)	8-98053-655-0	01	1	0812-0912	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (I)	8-98158-192-0	01	1	1001-1001	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (J)	8-98164-234-0	01	1	1002-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) (J)	8-98164-234-0	01	1	1003-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0811-0811	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0812-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0811-0811	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0812-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0803-0811	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (E)	8-98115-316-1	01	1	0812-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0812-		●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0712-0802	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0803-0810	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	02	1	0811-	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0811-		●
97	BRACKET; CLIP (B) L=65	1-47479-064-0	02	1	0712-0802	●
97	BRACKET; CLIP (D)	1-47478-981-0	02	1	0803-0810	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0811-0811	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0812-	●	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0712-	●	●
228	BOLT; BRKT,SEDIMENTER EURO2 SPECIFICATION<NT2> (C) M10X50 FLANGE	0-28051-050-0	02	1	0812-	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0712-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0811-	●
634	HOSE; RUBBER RETURN L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0712-0802	●

171 103 171 41 309 97 97 64 303 64 97 97 309 80 303 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	03	1	0812-1302	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	02	1	1303-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	03	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0811-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0812-0812	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0901-1002	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1003-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0811-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	02	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0811-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	0811-	●
64	NUT; CLIP WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1502-	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	02	1	0812-0812	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	03	1	0901-0908	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	0909-1002	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	0909-1002	●
64	NUT; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1003-1003	●
64	NUT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1003-1003	●
64	NUT; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	03	1	1004-	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0812	●	●
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0901-1002	●
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1003-1003	●
64	NUT; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1003-1003	●
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1004-1302	●
64	NUT; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1303-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28650-825-0	02	1	0812-0812	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0901-1002	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	1003-	●
80	BOLT; CLIP,FUEL TANK EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	01	1	0811-0811	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	01	1	0812-	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	01	1	0712-0802	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	02	1	0803-0810	●	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0811-0811	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0812-	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (K)	8-98204-698-0	01	1	1304-	●
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1003-1003	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1004-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (G)	1-47475-427-1	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	0901-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (G)	1-47475-427-1	01	1	1003-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (H)	1-47477-648-0	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (H)	1-47477-648-0	01	1	0901-1003	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (A)	8-98053-654-0	01	1	0812-0812	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	0901-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1003-	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (I)	8-98053-655-0	01	1	0812-0912	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (I)	8-98158-192-0	01	1	1001-1001	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W) (J)	8-98164-234-0	01	1	1002-1002	●
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) (J)	8-98164-234-0	01	1	1003-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0811-0811	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0812-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0811-0811	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0812-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0803-0811	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (E)	8-98115-316-1	01	1	0812-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0812-		●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0712-0802	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0803-0810	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	02	1	0811-	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0811-		●
97	BRACKET; CLIP (B) L=65	1-47479-064-0	02	1	0712-0802	●
97	BRACKET; CLIP (D)	1-47478-981-0	02	1	0803-0810	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0811-0811	●	●
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0812-	●	●
103	NUT; BRKT WHEEL BASE 3600MM(36W) M8 FLANGE	0-91180-108-0	01	1	0812-0812	●
103	NUT; BRKT WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0901-1002	●
103	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1003-	●
171	BOLT; CLIP WHEEL BASE 3600MM(36W) (B) M8X20 FLANGE	0-28650-820-0	01	1	0812-0812	●
171	BOLT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) M8X20 FLANGE	0-28650-820-0	01	1	0901-1002	●
171	BOLT; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) M8X20 FLANGE	0-28650-820-0	01	1	1003-	●
171	BOLT; CLIP WHEEL BASE 3600MM(36W) (A) M8X40 FLANGE	0-28650-840-0	01	1	0812-0812	●
171	BOLT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A) M8X40 FLANGE	0-28650-840-0	01	1	0901-1002	●
171	BOLT; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8X40 FLANGE	0-28650-840-0	01	1	1003-	●
239	CLIP; FUEL PIPE WHEEL BASE 3600MM(36W) (B) ID=10 & 10	1-09709-277-1	01	1	0812-0812	●
239	CLIP; FUEL PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B) ID=10 & 10	1-09709-277-1	01	1	0901-1002	●
239	CLIP; FUEL PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=10 & 10	1-09709-277-1	01	1	1003-	●
239	CLIP; FUEL PIPE (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0712-0802	●
239	CLIP; FUEL PIPE (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0803-0811	●	●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> EURO4 SPECIFICATION<NT4> (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-	●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-		●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0812-1303	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	04	1	1304-	●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0811-0811	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0812-	●	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-		●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0810	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0810	●	●
303	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0811-0811	●	●
303	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0811-0811	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0811-0811		●
303	BOLT; BRKT WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28650-825-0	01	1	0812-0812	●
303	BOLT; BRKT WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	0901-1002	●
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	1003-	●
309	CLIP; PIPE WHEEL BASE 3600MM(36W) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-0812	●
309	CLIP; PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0901-1002	●
309	CLIP; PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1003-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
39	PIPE; FUEL WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-238-0	01	1	1003-1003	●
39	PIPE; FUEL WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-238-0	01	1	1004-	●
39	PIPE; FUEL FUEL PIPE STEEL<E2N> EURO2 SPECIFICATION<NT2> (A) M16 & NPT3/8	1-09650-327-1	02	1	0904-	●
39	PIPE; FUEL WHEEL BASE 3600MM(36W) (B)	8-98133-821-0	01	1	0812-0812	●
39	PIPE; FUEL WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (B)	8-98133-821-0	01	1	0901-1003	●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> (A)	8-97358-699-0	02	1	0812-0903	●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> EXC. FUEL PIPE STEEL<E2N> (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
