1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#6667) — 50 parça
◀

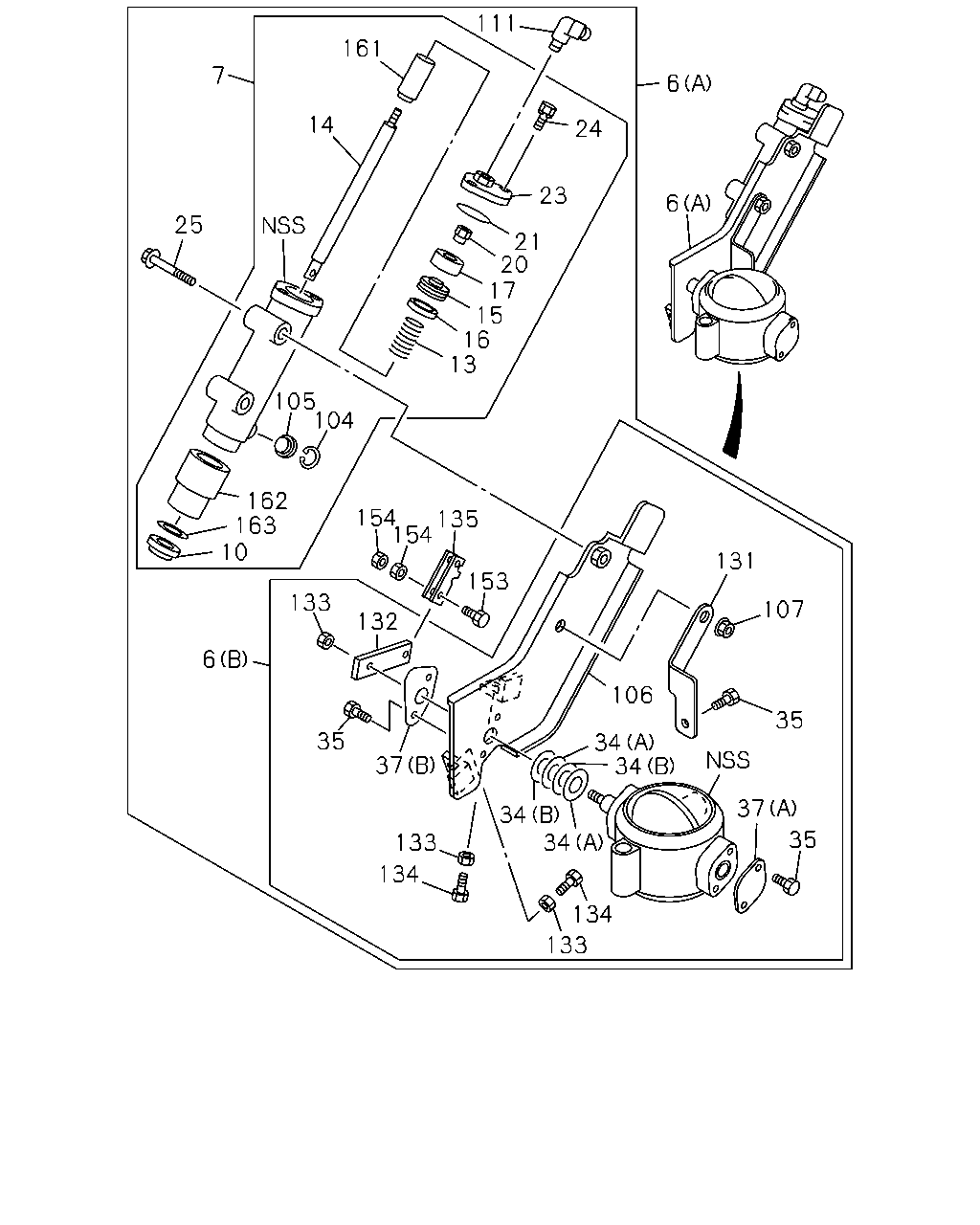

[155A] COMPONENT (39 parça)

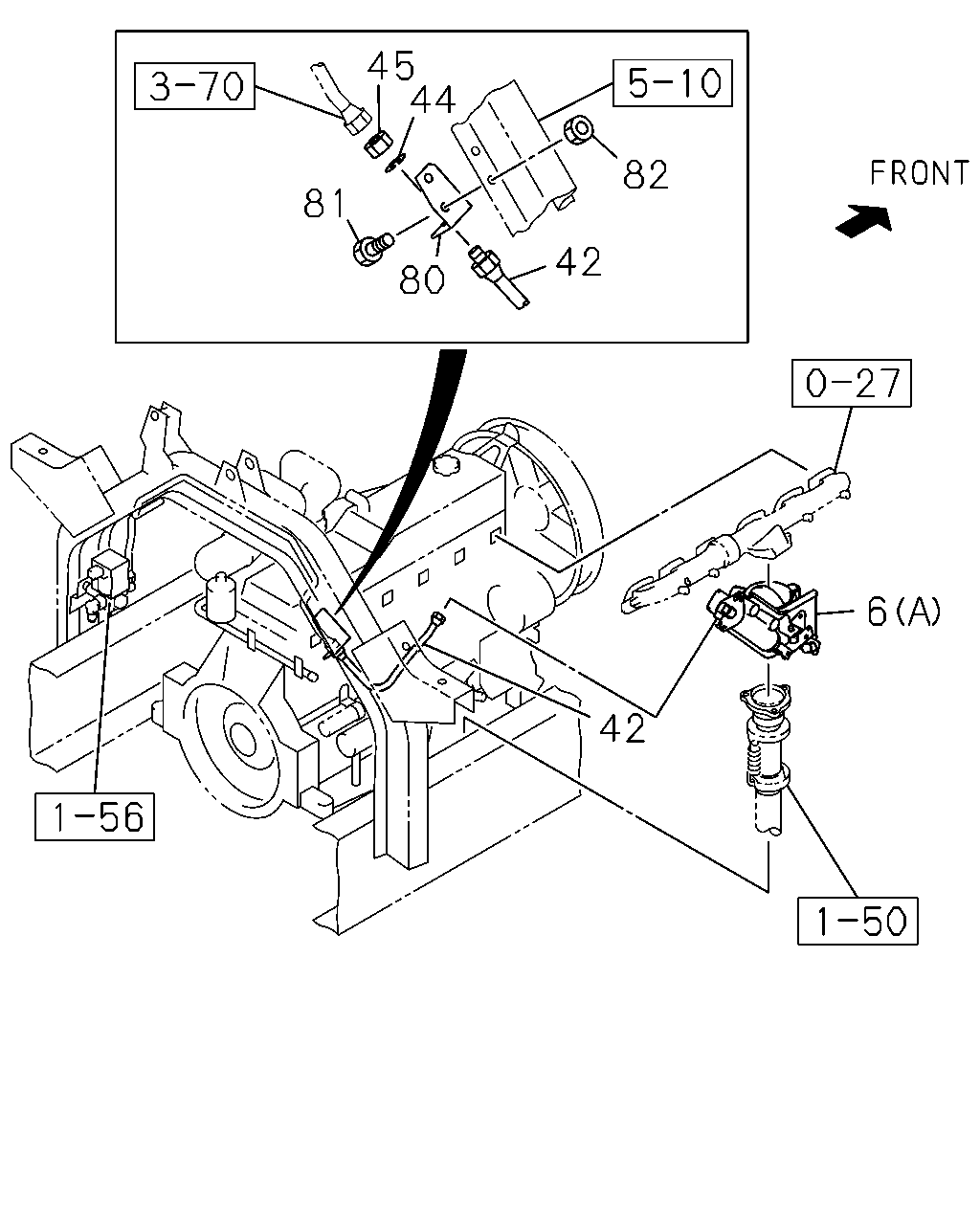

[155A] VALVE AND HOSE (11 parça)
▶
111
161
7
6
14
24
23
6
25
21
20
17
15
16
13
105
104
162
163
10
154
135
154
131
153
133
107
132
6
106
35
35
34
34
37
37
34
34
35
133
134
134
133
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
VALVE; EXH BRAKE
(B)
1-22181-158-0
01
1
0011-0211
6
VALVE; EXH BRAKE
(B)
8-97600-870-0
01
1
0212-
6
VALVE; EXH BRAKE
(A)
8-94391-043-1
01
1
0011-0211
6
VALVE; EXH BRAKE
(A)
8-97602-529-0
01
1
0212-
7
CYLINDER ASM; CONT
1-22190-655-0
01
1
0011-0211
7
CYLINDER ASM; CONT
1-22190-656-0
01
1
0212-
10
SEAL; DUST,CONT
1-22199-071-0
01
1
0011-
13
SPRING; CONT CYL
1-09580-517-0
01
1
0011-
14
SHAFT; CONT CYL
1-22199-145-0
01
1
0011-
15
PLATE; CONT CYL
8-97600-316-0
01
1
0011-
16
RING; WEAR,CONT CYL
8-97600-317-0
01
1
0011-
17
GASKET; CONT CYL
8-97600-318-0
01
1
0011-
20
NUT; CONT CYL
M8 FLANGE
0-91150-108-0
01
1
0011-
21
GASKET; COVER
1-22199-072-0
01
1
0011-
23
COVER; CONT CYL
8-97600-319-0
01
1
0011-
24
BOLT; COVER
1-22199-174-0
02
1
0011-
25
BOLT; CONT CYL
M10X60 FLANGE
1-22199-160-0
02
1
0011-
34
RING; SEAL
(A) ID=15
8-94397-184-0
02
1
0011-
34
RING; SEAL
(B) ID=13.7
9-22189-124-0
02
1
0011-
35
BOLT; PLATE FIX
1-22199-174-0
05
1
0011-
37
COVER; BODY
(B)
1-22199-130-0
01
1
0011-
37
COVER; BODY
(A)
9-22189-160-0
01
1
0011-
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW THA
1-09650-430-0
01
1
0212-
104
RING; RET
9-88510-331-0
01
1
0011-
105
FILTER; CONT CYL
9-88510-330-0
01
1
0011-
106
BRACKET; CONT CYL
8-97600-313-0
01
1
0011-0211
106
BRACKET; CONT CYL
8-97600-869-0
01
1
0212-
107
NUT; CONT CYL
M10 FLANGE
0-91150-110-0
01
1
0011-
111
ELBOW; CONT CYL
1-09650-358-1
01
1
0011-0211
131
PLATE; BODY
8-94391-039-0
01
1
0011-
132
LEVER; BRK VLV
8-94397-185-0
01
1
0011-
133
NUT; LK
M8 FLANGE
0-91150-108-0
03
1
0011-
134
BOLT; STOPPER
M8X30
1-09000-112-1
02
1
0011-
135
CLEVIS; CONT CYL
1-22199-053-0
01
1
0011-
153
BOLT; CLEVIS,CONT CYL
8-97600-320-0
02
1
0011-
154
NUT; CLEVIS,CONT CYL
M6
9-09110-406-0
04
1
0011-
161
PROTECTOR; CONT CYL
1-22199-146-0
01
1
0011-
162
GUIDE; CONT CYL
1-22199-147-0
01
1
0011-
163
WASHER; CONT CYL
1-22199-148-0
01
1
0011-
45
44
82
80
81
42
6
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
VALVE; EXH BRAKE
(B)
1-22181-158-0
01
1
0011-0211
6
VALVE; EXH BRAKE
(B)
8-97600-870-0
01
1
0212-
6
VALVE; EXH BRAKE
(A)
8-94391-043-1
01
1
0011-0211
6
VALVE; EXH BRAKE
(A)
8-97602-529-0
01
1
0212-
42
HOSE; FLEX,EXH BRK
L=300
1-09363-608-0
01
1
0011-
44
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
01
1
0011-
45
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
0011-
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW THA
1-09650-430-0
01
1
0212-
80
BRACKET; FLEX HOSE
THA
1-47476-355-0
01
1
0011-
81
BOLT; HOSE BRKT
M8X25 FLANGE
0-28680-825-0
02
1
0011-
82
NUT; HOSE BRKT
M8 FLANGE
0-91150-108-0
02
1
0011-
