◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#66667) — 201 parça

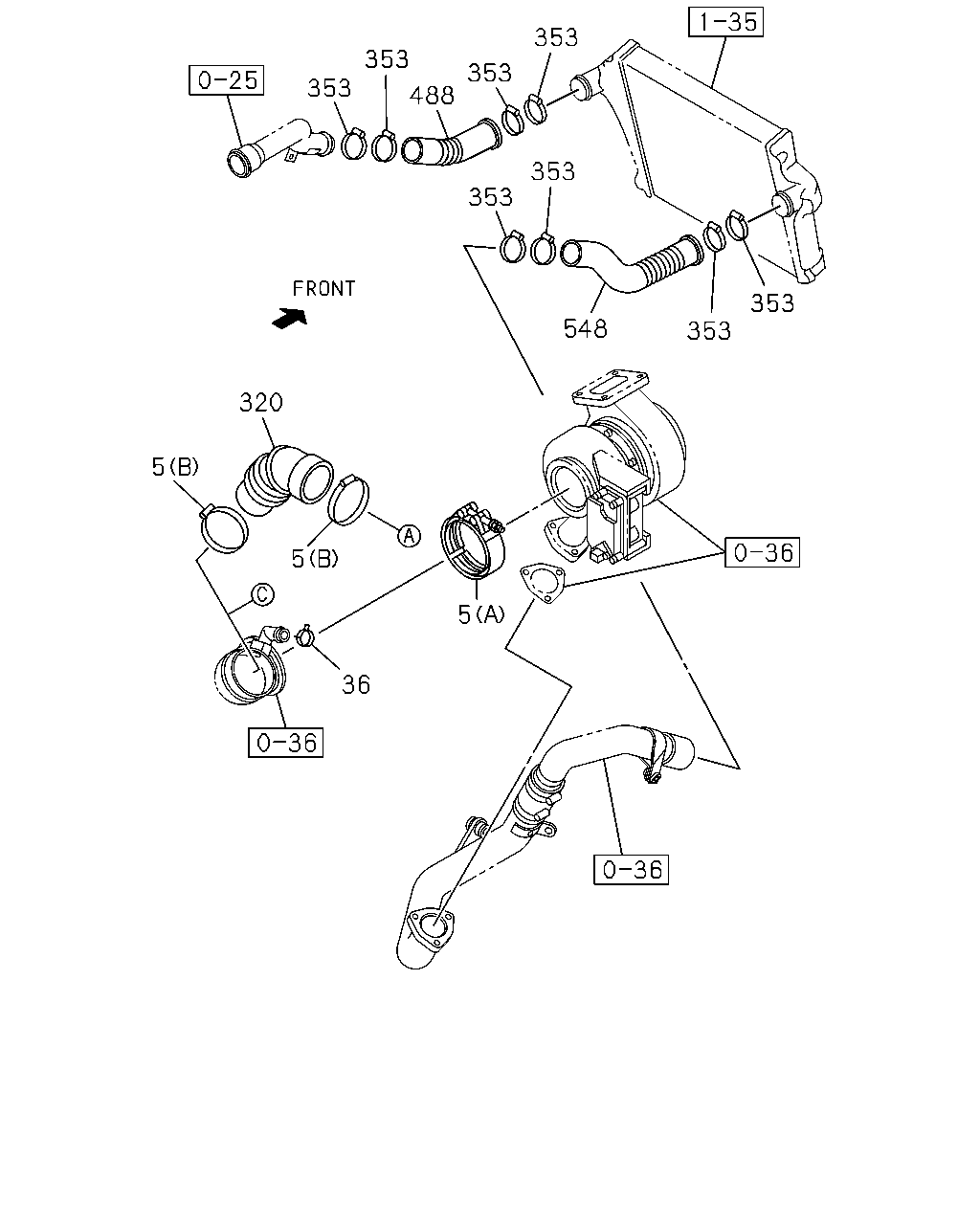

çizim 92012
353 353 353 353 488 353 353 353 548 353 320 5 5 5 36
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=87-116 		1-09707-138-0 01 1 1002-
5 CLIP; AIR DUCT
FTS WIDE SGL CAB(FG**M*) EURO2 SPECIFICATION<NT2> (B) ID=90-110 		8-98133-365-0 01 1 0812-1001
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=90-110 		8-98133-365-0 01 1 1002-
5 CLIP; AIR DUCT
(A) ID=114 		8-15178-030-0 01 1 0712-0811
5 CLIP; AIR DUCT
EURO4 SPECIFICATION<NT4> (A) ID=114 		8-15178-030-0 01 1 0812-
5 CLIP; AIR DUCT
FTS WIDE SGL CAB(FG**M*) (B) ID=104-139 		1-09707-200-0 02 1 0712-0811
5 CLIP; AIR DUCT
FTS WIDE SGL CAB(FG**M*) EURO4 SPECIFICATION<NT4> (B) ID=104-139 		1-09707-200-0 02 1 0812-0812
5 CLIP; AIR DUCT
FTS WIDE SGL CAB(FG**M*) EURO4 SPECIFICATION<NT4> (B) ID=100-120 		8-98133-366-0 01 1 0901-1001
5 CLIP; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (B) ID=100-120 		8-98133-366-0 01 1 0901-1001
5 CLIP; AIR DUCT
FTS WIDE SGL CAB(FG**M*) EXC. KD PREPARATORY PACK<6HF> (B) ID=104-142 		1-09707-139-0 01 1 1002-
5 CLIP; AIR DUCT
FTS WIDE SGL CAB(FG**M*) EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (B) ID=104-142 		1-09707-139-0 01 1 1002-
5 CLIP; AIR DUCT
FTS WIDE SGL CAB(FG**M*) (B) ID=104-139 		1-09707-200-0 01 1 0712-0812
5 CLIP; AIR DUCT
FTS WIDE SGL CAB(FG**M*) (B) ID=110-130 		8-98133-359-0 01 1 0901-1001
5 CLIP; AIR DUCT
FTS WIDE SGL CAB(FG**M*) KD PREPARATORY PACK<6HF> (B) ID=110-130 		8-98133-359-0 01 1 1002-
5 CLIP; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (B) ID=104-139 		1-09707-200-0 04 1 0712-0812
5 CLIP; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (B) ID=110-130 		8-98133-359-0 03 1 0901-1001
5 CLIP; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (B) ID=104-142 		1-09707-139-0 04 1 1002-
36 COVER; INT DUCT
ID=22 		8-94382-401-0 01 1 0712-0712
320 HOSE; CONN,ACL
FTS WIDE SGL CAB(FG**M*) EURO2 SPECIFICATION<NT2> 		8-98073-260-0 01 1 0812-
320 HOSE; CONN,ACL
FTS WIDE SGL CAB(FG**M*) 		8-97616-752-1 01 1 0712-0811
320 HOSE; CONN,ACL
FTS WIDE SGL CAB(FG**M*) EURO4 SPECIFICATION<NT4> 		8-97616-752-1 01 1 0812-
320 HOSE; CONN,ACL
FTS WIDE DBL CAB(FG**W*) 		8-98092-944-1 01 1 0712-
353 CLIP; RUBBER HOSE
FTS WIDE SGL CAB(FG**M*) EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 08 1 1002-
353 CLIP; RUBBER HOSE
FTS WIDE DBL CAB(FG**W*) ID=58-79 		1-09707-136-0 08 1 1002-
353 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 08 1 0712-0811
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 08 1 0812-1001
353 CLIP; RUBBER HOSE
FTS WIDE SGL CAB(FG**M*) KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 08 1 1002-
488 HOSE; RUBBER,PIPE 8-98050-686-0 01 1 0712-
548 HOSE; RUBBER,TURBO TO INL PIPE
FTS WIDE SGL CAB(FG**M*) EURO2 SPECIFICATION<NT2> 		8-98181-975-1 01 1 1102-
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98050-685-0 01 1 0712-1101
548 HOSE; RUBBER,TURBO TO INL PIPE
FTS WIDE SGL CAB(FG**M*) EXC. EURO2 SPECIFICATION<NT2> 		8-98050-685-0 01 1 1102-
548 HOSE; RUBBER,TURBO TO INL PIPE
FTS WIDE DBL CAB(FG**W*) 		8-98050-685-0 01 1 1102-

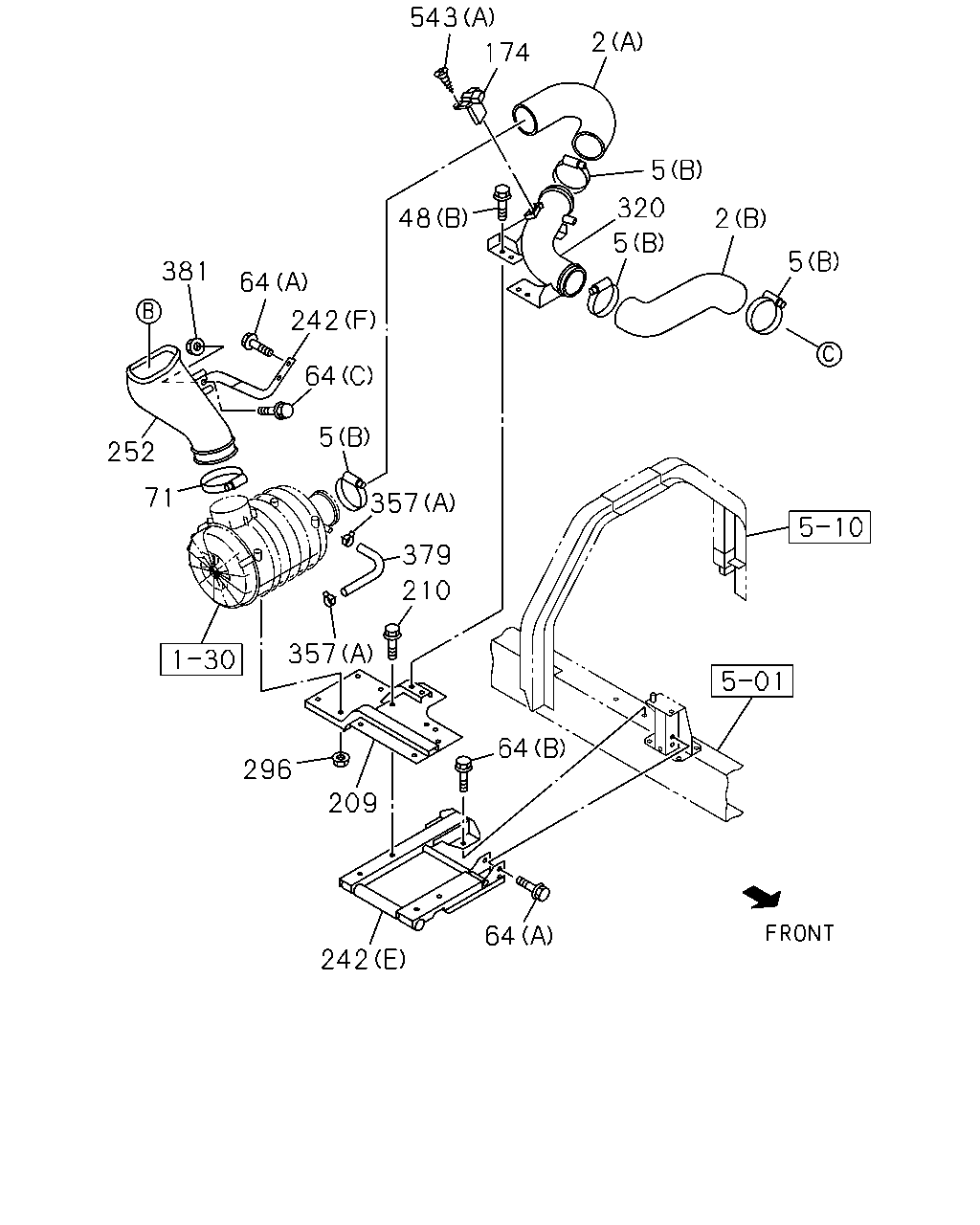

çizim 92112
543 2 174 5 320 48 2 5 5 381 64 242 64 5 252 71 357 379 210 357 64 296 209 64 242
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL
FTS WIDE DBL CAB(FG**W*) (A) 		8-98050-682-0 01 1 0712-
2 HOSE; ACL
FTS WIDE DBL CAB(FG**W*) (B) 		8-98050-684-0 01 1 0712-
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=87-116 		1-09707-138-0 01 1 1002-
5 CLIP; AIR DUCT
FTS WIDE SGL CAB(FG**M*) EURO2 SPECIFICATION<NT2> (B) ID=90-110 		8-98133-365-0 01 1 0812-1001
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=90-110 		8-98133-365-0 01 1 1002-
5 CLIP; AIR DUCT
(A) ID=114 		8-15178-030-0 01 1 0712-0811
5 CLIP; AIR DUCT
EURO4 SPECIFICATION<NT4> (A) ID=114 		8-15178-030-0 01 1 0812-
5 CLIP; AIR DUCT
FTS WIDE SGL CAB(FG**M*) (B) ID=104-139 		1-09707-200-0 02 1 0712-0811
5 CLIP; AIR DUCT
FTS WIDE SGL CAB(FG**M*) EURO4 SPECIFICATION<NT4> (B) ID=104-139 		1-09707-200-0 02 1 0812-0812
5 CLIP; AIR DUCT
FTS WIDE SGL CAB(FG**M*) EURO4 SPECIFICATION<NT4> (B) ID=100-120 		8-98133-366-0 01 1 0901-1001
5 CLIP; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (B) ID=100-120 		8-98133-366-0 01 1 0901-1001
5 CLIP; AIR DUCT
FTS WIDE SGL CAB(FG**M*) EXC. KD PREPARATORY PACK<6HF> (B) ID=104-142 		1-09707-139-0 01 1 1002-
5 CLIP; AIR DUCT
FTS WIDE SGL CAB(FG**M*) EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (B) ID=104-142 		1-09707-139-0 01 1 1002-
5 CLIP; AIR DUCT
FTS WIDE SGL CAB(FG**M*) (B) ID=104-139 		1-09707-200-0 01 1 0712-0812
5 CLIP; AIR DUCT
FTS WIDE SGL CAB(FG**M*) (B) ID=110-130 		8-98133-359-0 01 1 0901-1001
5 CLIP; AIR DUCT
FTS WIDE SGL CAB(FG**M*) KD PREPARATORY PACK<6HF> (B) ID=110-130 		8-98133-359-0 01 1 1002-
5 CLIP; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (B) ID=104-139 		1-09707-200-0 04 1 0712-0812
5 CLIP; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (B) ID=110-130 		8-98133-359-0 03 1 0901-1001
5 CLIP; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (B) ID=104-142 		1-09707-139-0 04 1 1002-
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 0712-1002
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1003-
48 BOLT; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 0712-
64 BOLT; BRKT,AIR DUCT
FTS WIDE DBL CAB(FG**W*) (A) M10X25 FLANGE 		0-28651-025-0 02 1 0712-
64 BOLT; BRKT,AIR DUCT
FTS WIDE DBL CAB(FG**W*) (A) M10X25 FLANGE 		0-28651-025-0 03 1 0712-
64 BOLT; BRKT,AIR DUCT
FTS WIDE DBL CAB(FG**W*) (B) M10X35 FLANGE 		0-28651-035-0 02 1 0712-
64 BOLT; BRKT,AIR DUCT
FTS WIDE DBL CAB(FG**W*) (C) M8X25 W/LK&PL WASHER 		1-09030-074-0 01 1 0712-0805
64 BOLT; BRKT,AIR DUCT
FTS WIDE DBL CAB(FG**W*) (C) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 0806-
71 CLIP; AIR DUCT
ID=104-139 		1-09707-200-0 01 1 0712-0812
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 0901-
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0712-0811
174 SENSOR; AIR FLOW CONT
FTS WIDE SGL CAB(FG**M*) EURO4 SPECIFICATION<NT4> 		8-97601-967-0 01 1 0812-
174 SENSOR; AIR FLOW CONT
FTS WIDE DBL CAB(FG**W*) 		8-97601-967-0 01 1 0812-
209 BRACKET; ACL
FTS WIDE SGL CAB(FG**M*) 		8-98021-995-1 01 1 0712-
209 BRACKET; ACL
FTS WIDE DBL CAB(FG**W*) 		8-98089-455-1 01 1 0712-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712-
242 BRACKET; AIR DUCT
(A) 		8-98019-301-3 01 1 0712-
242 BRACKET; AIR DUCT
FTS WIDE SGL CAB(FG**M*) (B) 		8-98019-302-1 01 1 0712-
242 BRACKET; AIR DUCT
FTS WIDE SGL CAB(FG**M*) (C) 		8-98019-304-1 01 1 0712-
242 BRACKET; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (D) 		8-98050-679-1 01 1 0712-
242 BRACKET; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (E) 		8-98089-457-1 01 1 0712-
242 BRACKET; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (F) 		8-98092-772-0 01 1 0712-
252 DUCT; AIR INT
FTS WIDE SGL CAB(FG**M*) 		8-98012-861-1 01 1 0712-
252 DUCT; AIR INT
FTS WIDE DBL CAB(FG**W*) 		8-98050-681-0 01 1 0712-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0712-
320 HOSE; CONN,ACL
FTS WIDE SGL CAB(FG**M*) EURO2 SPECIFICATION<NT2> 		8-98073-260-0 01 1 0812-
320 HOSE; CONN,ACL
FTS WIDE SGL CAB(FG**M*) 		8-97616-752-1 01 1 0712-0811
320 HOSE; CONN,ACL
FTS WIDE SGL CAB(FG**M*) EURO4 SPECIFICATION<NT4> 		8-97616-752-1 01 1 0812-
320 HOSE; CONN,ACL
FTS WIDE DBL CAB(FG**W*) 		8-98092-944-1 01 1 0712-
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 0712-
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 0712-
379 HOSE; RUBBER
FTS WIDE SGL CAB(FG**M*) 		8-97619-196-0 01 1 0712-
379 HOSE; RUBBER
FTS WIDE DBL CAB(FG**W*) 		8-98073-021-0 01 1 0712-0805
379 HOSE; RUBBER
FTS WIDE DBL CAB(FG**W*) 		8-98124-699-0 01 1 0806-
381 NUT; BRKT,AIR DUCT
FTS WIDE DBL CAB(FG**W*) M8 FLANGE 		0-91180-108-0 01 1 0712-
543 SCREW; SENSOR
FTS WIDE SGL CAB(FG**M*) EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 0812-
543 SCREW; SENSOR
FTS WIDE SGL CAB(FG**M*) EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0812-
543 SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0712-0811
543 SCREW; SENSOR
FTS WIDE SGL CAB(FG**M*) EURO4 SPECIFICATION<NT4> (A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0812-
543 SCREW; SENSOR
FTS WIDE DBL CAB(FG**W*) (A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0812-

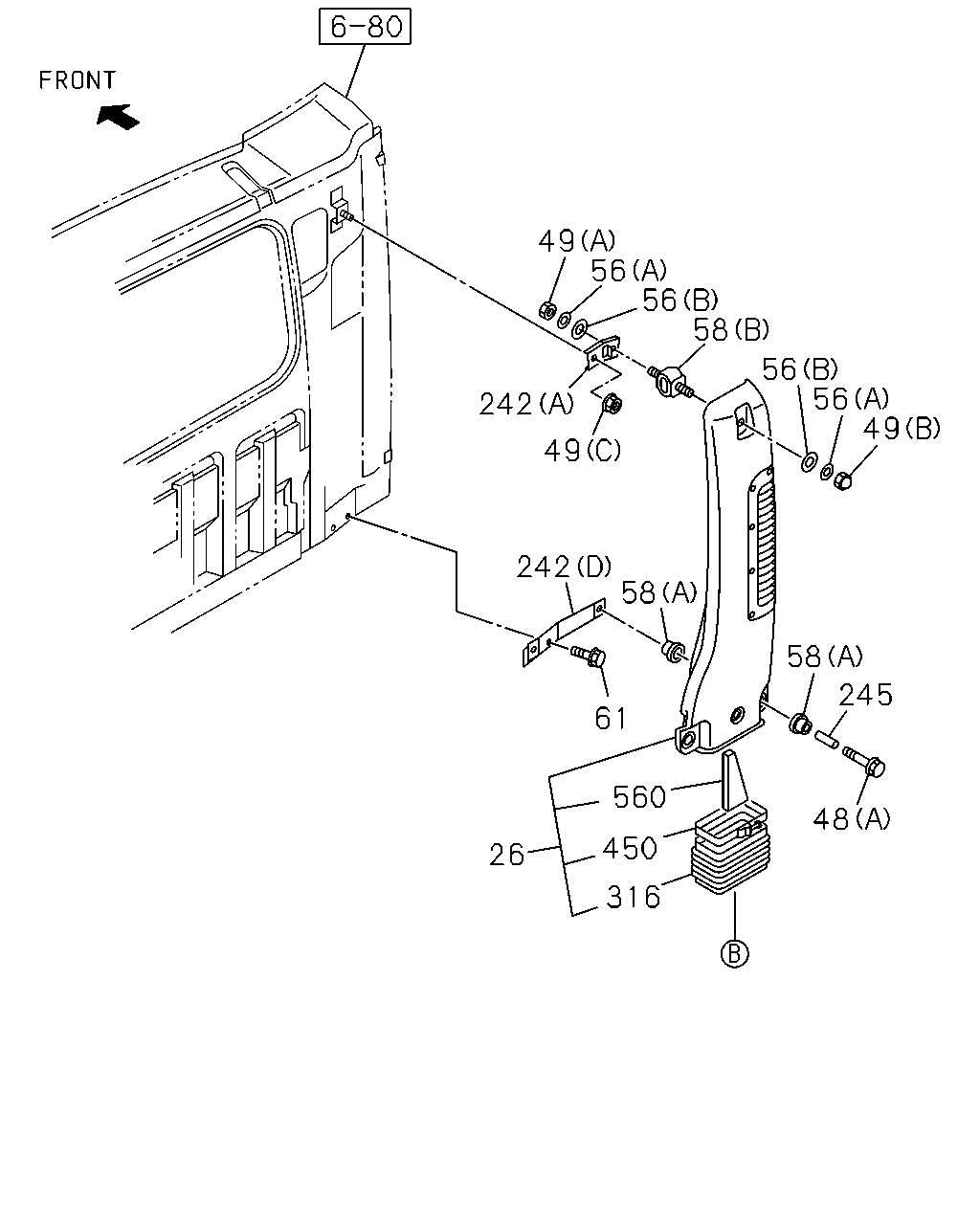

çizim 92205
49 56 56 58 56 56 49 242 49 242 58 58 245 61 560 48 450 26 316
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 0712-1002
26 DUCT; AIR INT 8-98010-361-2 01 1 1003-
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 0712-1002
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1003-
48 BOLT; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 0712-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-122-0 01 1 0712-1002
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-122-0 01 1 1003-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-126-0 01 1 0712-1002
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-126-0 01 1 1003-
49 NUT; AIR DUCT
FTS WIDE SGL CAB(FG**M*) (C) M8 FLANGE 		8-94279-517-0 02 1 0712-
49 NUT; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (C) M8 FLANGE 		8-94279-517-0 01 1 0712-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0712-1002
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1003-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0712-1002
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1003-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0712-
58 SUPPORT; AIR INL DUCT
(B) 		1-14119-452-0 01 1 0712-0810
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 0811-
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 0712-0807
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0808-
242 BRACKET; AIR DUCT
(A) 		8-98019-301-3 01 1 0712-
242 BRACKET; AIR DUCT
FTS WIDE SGL CAB(FG**M*) (B) 		8-98019-302-1 01 1 0712-
242 BRACKET; AIR DUCT
FTS WIDE SGL CAB(FG**M*) (C) 		8-98019-304-1 01 1 0712-
242 BRACKET; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (D) 		8-98050-679-1 01 1 0712-
242 BRACKET; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (E) 		8-98089-457-1 01 1 0712-
242 BRACKET; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (F) 		8-98092-772-0 01 1 0712-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0712-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 0908-
450 CLAMP; HOSE 9-09915-504-1 01 1 0712-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 0907-
560 FILTER; VERTICAL DUCT 8-98061-675-0 02 1 0712-0906
çizim 193309
112 558 558 558 558 415
BalonParca AdiParca NoAdetTipApplied Date
112 BOLT; CLIP
FTS WIDE SGL CAB(FG**M*) EXC. ANTI LOCK BRAKE<JE5> M8X25 FLANGE 		0-28650-825-0 03 1 1003-
112 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0712-0804
112 BOLT; CLIP
FTS WIDE SGL CAB(FG**M*) M8X25 FLANGE 		0-28650-825-0 03 1 0805-1002
112 BOLT; CLIP
FTS WIDE SGL CAB(FG**M*) ANTI LOCK BRAKE<JE5> M8X25 FLANGE 		0-28650-825-0 02 1 1003-
415 NUT; CLIP
FTS WIDE SGL CAB(FG**M*) EXC. ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 03 1 1003-
415 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0712-0804
415 NUT; CLIP
FTS WIDE SGL CAB(FG**M*) M8 FLANGE 		0-91180-108-0 03 1 0805-1002
415 NUT; CLIP
FTS WIDE SGL CAB(FG**M*) ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 02 1 1003-
558 CLIP; AIR FLOW SENSOR
FTS WIDE SGL CAB(FG**M*) EXC. ANTI LOCK BRAKE<JE5> (D) ID=15 L=28 		1-09701-216-0 03 1 1003-
558 CLIP; AIR FLOW SENSOR
FTS WIDE SGL CAB(FG**M*) EXC. ANTI LOCK BRAKE<JE5> (B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1003-
558 CLIP; AIR FLOW SENSOR
(D) ID=15 L=28 		1-09701-216-0 03 1 0712-0804
558 CLIP; AIR FLOW SENSOR
FTS WIDE SGL CAB(FG**M*) (D) ID=15 L=28 		1-09701-216-0 03 1 0805-1002
558 CLIP; AIR FLOW SENSOR
FTS WIDE SGL CAB(FG**M*) ANTI LOCK BRAKE<JE5> (D) ID=15 L=28 		1-09701-216-0 02 1 1003-
558 CLIP; AIR FLOW SENSOR
(C) ID=10 & 15 		1-09709-279-1 01 1 0712-0804
558 CLIP; AIR FLOW SENSOR
FTS WIDE SGL CAB(FG**M*) (C) ID=10 & 15 		1-09709-279-1 01 1 0805-
558 CLIP; AIR FLOW SENSOR
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 0712-0804
558 CLIP; AIR FLOW SENSOR
FTS WIDE SGL CAB(FG**M*) (B) ID=5-12 L=14.5 		1-09987-221-0 01 1 0805-1002
558 CLIP; AIR FLOW SENSOR
FTS WIDE SGL CAB(FG**M*) ANTI LOCK BRAKE<JE5> (B) ID=5-12 L=14.5 		1-09987-221-0 03 1 1003-
558 CLIP; AIR FLOW SENSOR
(A) L=600 		1-09707-107-1 01 1 0712-0905
558 CLIP; AIR FLOW SENSOR
(A) L=250 		5-09707-030-1 01 1 0712-0803
çizim 193311
49 242 58 56 49 56 56 58 56 49 242 242 245 61 58 48 58 26 560 49 252 450 316 71 543 368 543 480 174 564 543 225 424 159 357 357 379 209 296 210
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 0712-1002
26 DUCT; AIR INT 8-98010-361-2 01 1 1003-
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 0712-1002
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1003-
48 BOLT; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 0712-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-122-0 01 1 0712-1002
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-122-0 01 1 1003-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-126-0 01 1 0712-1002
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-126-0 01 1 1003-
49 NUT; AIR DUCT
FTS WIDE SGL CAB(FG**M*) (C) M8 FLANGE 		8-94279-517-0 02 1 0712-
49 NUT; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (C) M8 FLANGE 		8-94279-517-0 01 1 0712-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0712-1002
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1003-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0712-1002
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1003-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0712-
58 SUPPORT; AIR INL DUCT
(B) 		1-14119-452-0 01 1 0712-0810
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 0811-
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 0712-0807
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0808-
71 CLIP; AIR DUCT
ID=104-139 		1-09707-200-0 01 1 0712-0812
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 0901-
159 BOLT; AIR PIPE
FTS WIDE SGL CAB(FG**M*) M6X16 FLANGE 		0-28050-616-0 02 1 0712-
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0712-0811
174 SENSOR; AIR FLOW CONT
FTS WIDE SGL CAB(FG**M*) EURO4 SPECIFICATION<NT4> 		8-97601-967-0 01 1 0812-
174 SENSOR; AIR FLOW CONT
FTS WIDE DBL CAB(FG**W*) 		8-97601-967-0 01 1 0812-
209 BRACKET; ACL
FTS WIDE SGL CAB(FG**M*) 		8-98021-995-1 01 1 0712-
209 BRACKET; ACL
FTS WIDE DBL CAB(FG**W*) 		8-98089-455-1 01 1 0712-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0712-
225 GASKET; AIR PIPE
FTS WIDE SGL CAB(FG**M*) ID=24.4 		1-09623-057-0 01 1 0712-0801
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 0802-
242 BRACKET; AIR DUCT
(A) 		8-98019-301-3 01 1 0712-
242 BRACKET; AIR DUCT
FTS WIDE SGL CAB(FG**M*) (B) 		8-98019-302-1 01 1 0712-
242 BRACKET; AIR DUCT
FTS WIDE SGL CAB(FG**M*) (C) 		8-98019-304-1 01 1 0712-
242 BRACKET; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (D) 		8-98050-679-1 01 1 0712-
242 BRACKET; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (E) 		8-98089-457-1 01 1 0712-
242 BRACKET; AIR DUCT
FTS WIDE DBL CAB(FG**W*) (F) 		8-98092-772-0 01 1 0712-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0712-
252 DUCT; AIR INT
FTS WIDE SGL CAB(FG**M*) 		8-98012-861-1 01 1 0712-
252 DUCT; AIR INT
FTS WIDE DBL CAB(FG**W*) 		8-98050-681-0 01 1 0712-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0712-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 0908-
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 0712-
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 0712-
368 SENSOR; TEMP
FTS WIDE SGL CAB(FG**M*) EURO2 SPECIFICATION<NT2> 		8-98065-377-0 01 1 0812-
379 HOSE; RUBBER
FTS WIDE SGL CAB(FG**M*) 		8-97619-196-0 01 1 0712-
379 HOSE; RUBBER
FTS WIDE DBL CAB(FG**W*) 		8-98073-021-0 01 1 0712-0805
379 HOSE; RUBBER
FTS WIDE DBL CAB(FG**W*) 		8-98124-699-0 01 1 0806-
424 PIPE; AIR,INL
FTS WIDE SGL CAB(FG**M*) 		8-98081-834-0 01 1 0712-
450 CLAMP; HOSE 9-09915-504-1 01 1 0712-
480 ADAPTER
FTS WIDE SGL CAB(FG**M*) EURO2 SPECIFICATION<NT2> 		8-98086-417-0 01 1 0812-
543 SCREW; SENSOR
FTS WIDE SGL CAB(FG**M*) EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 0812-
543 SCREW; SENSOR
FTS WIDE SGL CAB(FG**M*) EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0812-
543 SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0712-0811
543 SCREW; SENSOR
FTS WIDE SGL CAB(FG**M*) EURO4 SPECIFICATION<NT4> (A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0812-
543 SCREW; SENSOR
FTS WIDE DBL CAB(FG**W*) (A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0812-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 0907-
560 FILTER; VERTICAL DUCT 8-98061-675-0 02 1 0712-0906
564 GASKET; ADAPTER
FTS WIDE SGL CAB(FG**M*) EURO2 SPECIFICATION<NT2> 		8-98071-416-0 01 1 0812-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
