1-10 — RADIATOR (#66664) — 94 parça

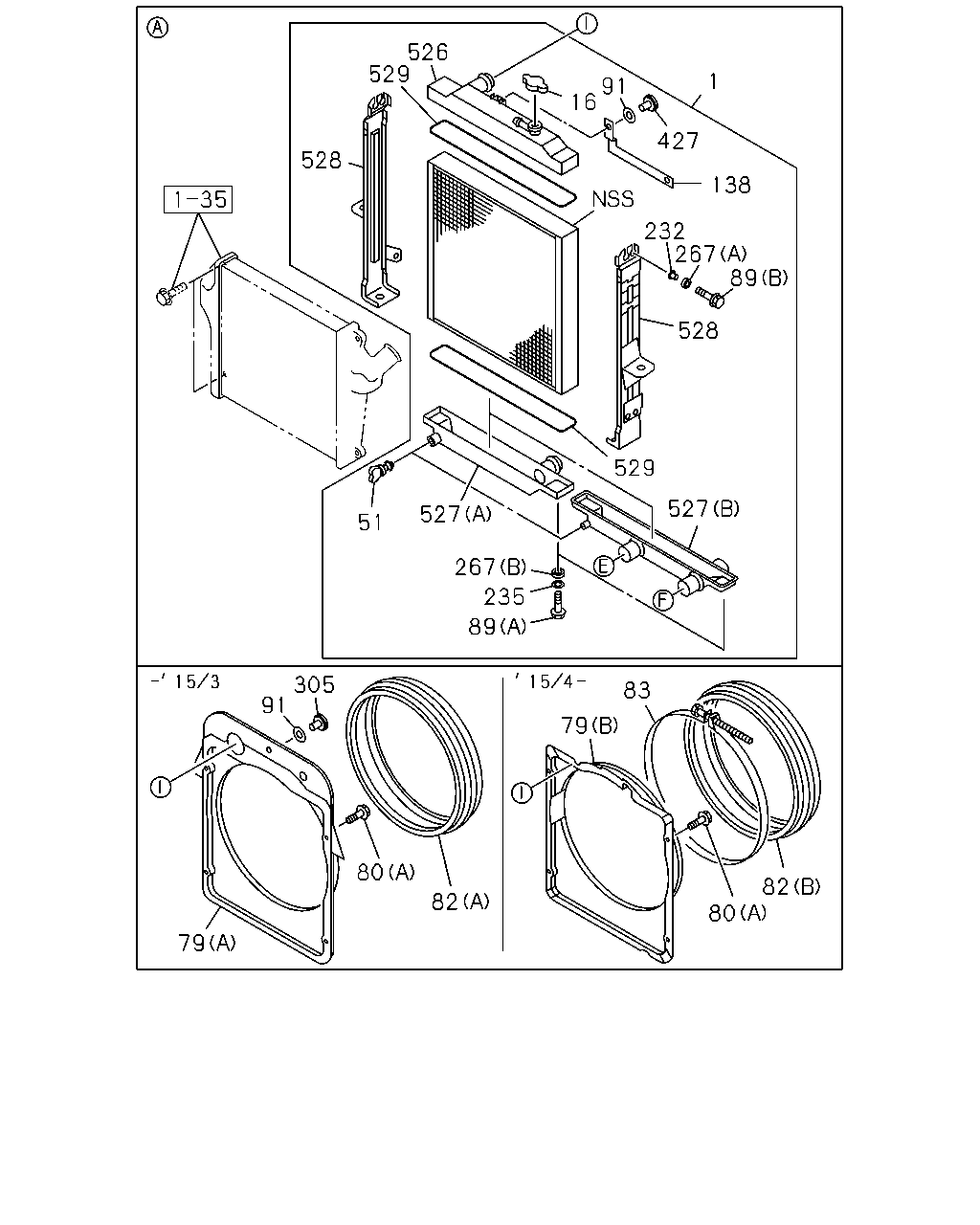

çizim 85549
89 232 138 1 427 91 16 526 529 528 527 51 267 235 529 527 528 83 82 80 79 82 80 305 91 79 89 267
BalonParca AdiParca NoAdetTipApplied Date
1 RADIATOR ASM
A/T<X9D> 		8-98098-557-0 01 1 1003-1107
1 RADIATOR ASM
A/T<X9D> 		8-98190-404-0 01 1 1108-1503
1 RADIATOR ASM
A/T<X9D> 		8-98309-947-0 01 1 1504-
1 RADIATOR ASM 8-98010-360-4 01 1 0712-0712
1 RADIATOR ASM 8-98098-561-0 01 1 0801-1002
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> 		8-98098-561-0 01 1 1003-1107
1 RADIATOR ASM 8-98190-403-0 01 1 1108-1503
1 RADIATOR ASM 8-98309-945-0 01 1 1504-
16 CAP; RAD
A/T<X9D> 		8-97239-187-0 01 1 1003-
16 CAP; RAD 8-97239-187-0 01 1 0712-0712
16 CAP; RAD 8-98096-226-0 01 1 0801-1002
16 CAP; RAD
MANUAL TRANSMISSION<X9C> 		8-98096-226-0 01 1 1003-
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0712-
79 GUIDE; FAN,RAD
(A) 		8-98053-097-0 01 1 0712-1107
79 GUIDE; FAN,RAD
(A) 		8-98190-310-0 01 1 1108-1503
79 GUIDE; FAN,RAD
(B) 		8-98273-633-0 01 1 1504-
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 0712-
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0712-
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 0712-1503
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1504-
83 CLIP; FAN COVER 1-09707-177-2 01 1 1504-
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0907-
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0907-
91 WASHER; PL 1-21469-111-0 02 1 1108-1503
138 BRACKET; CLIP 8-98190-314-0 01 1 1108-1503
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0907-
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0907-
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0907-
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0907-
305 CLIP; FAN COVER TO FAN GUIDE 1-09470-009-0 01 1 1108-1503
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1108-1503
526 TANK; UPR,RADIATOR CORE
A/T<X9D> 		8-98010-366-2 01 1 1003-
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 0712-1002
526 TANK; UPR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> 		8-98004-202-2 01 1 1003-
527 TANK; LWR,RADIATOR CORE
A/T<X9D> (B) 		8-98038-558-2 01 1 1003-
527 TANK; LWR,RADIATOR CORE
(A) 		8-98004-203-0 01 1 0712-1002
527 TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> (A) 		8-98004-203-0 01 1 1003-
528 PLATE; SIDE,RADIATOR CORE 8-98010-371-3 01 1 0712-0712
528 PLATE; SIDE,RADIATOR CORE 8-98098-554-0 01 1 0801-
528 PLATE; SIDE,RADIATOR CORE 8-98010-372-4 01 1 0712-
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0712-
çizim 89167
167 148 167 167 167
BalonParca AdiParca NoAdetTipApplied Date
148 HOSE; WATER,BYPASS,SUB RAD
A/T<X9D> 		8-98116-256-0 01 1 1003-1204
148 HOSE; WATER,BYPASS,SUB RAD
A/T<X9D> 		8-98218-296-1 01 1 1205-
167 CLIP; BYPASS HOSE
A/T<X9D> (C) ID=13.2 & 11.5 		8-97230-081-0 01 1 1205-
167 CLIP; BYPASS HOSE
A/T<X9D> (B) ID=14-12 		8-94379-592-0 01 1 1003-
167 CLIP; BYPASS HOSE
A/T<X9D> (A) ID=11.5 		8-97375-638-0 02 1 1003-

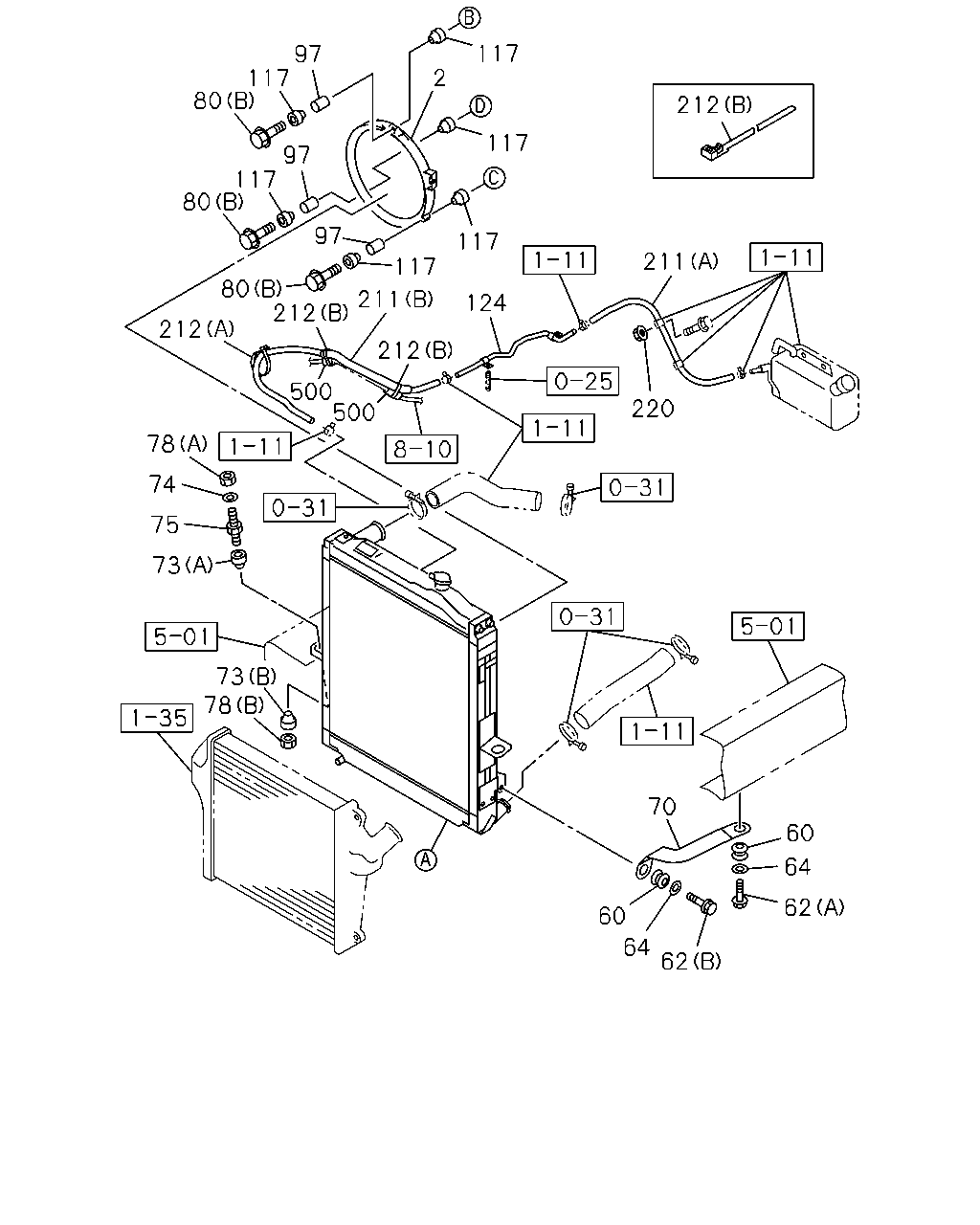

çizim 193307
117 97 117 80 2 212 117 97 117 80 97 117 211 117 80 211 212 124 212 212 500 500 220 78 74 75 73 73 78 70 60 64 62 60 64 62
BalonParca AdiParca NoAdetTipApplied Date
2 GUIDE; FAN 8-94393-779-1 01 1 0712-
60 GROMMET 1-09332-117-0 04 1 0712-
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 0712-
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 0712-
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0712-
70 STAY; RAD 8-98055-806-0 01 1 0712-
70 STAY; RAD 8-98055-807-0 01 1 0712-
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0712-
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0712-
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0712-
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0712-
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-110-0 02 1 0712-0712
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0801-
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0712-
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 0712-
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0712-
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0712-
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 0712-
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 0712-
211 HOSE; RAD TO PIPE
FTS WIDE DBL CAB(FG**W*) (A) L=1100 SERVICED BY L=3000 		0-03557-300-0 01 1 0712-0712
211 HOSE; RAD TO PIPE
FTS WIDE DBL CAB(FG**W*) (A) L=1050 SERVICED BY L=3000 		0-03557-300-0 01 1 0801-0801
211 HOSE; RAD TO PIPE
FTS WIDE DBL CAB(FG**W*) (A) 		8-98113-442-0 01 1 0802-0805
211 HOSE; RAD TO PIPE
FTS WIDE DBL CAB(FG**W*) (A) 		8-98119-761-0 01 1 0806-
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 0712-
211 HOSE; RAD TO PIPE
FTS WIDE SGL CAB(FG**M*) (A) 		8-98067-261-2 01 1 0712-0805
211 HOSE; RAD TO PIPE
FTS WIDE SGL CAB(FG**M*) (A) L=560 		8-98119-375-0 01 1 0806-
212 CLIP; HOSE
FTS WIDE SGL CAB(FG**M*) EURO4 SPECIFICATION<NT4> (B) L=140 		5-09707-031-1 02 1 0812-
212 CLIP; HOSE
FTS WIDE DBL CAB(FG**W*) (B) L=140 		5-09707-031-1 02 1 0812-
212 CLIP; HOSE
FTS WIDE SGL CAB(FG**M*) EURO4 SPECIFICATION<NT4> (A) L=250 		5-09707-030-1 01 1 0812-
212 CLIP; HOSE
FTS WIDE DBL CAB(FG**W*) (A) L=250 		5-09707-030-1 01 1 0812-
212 CLIP; HOSE
FTS WIDE DBL CAB(FG**W*) (A) L=250 		5-09707-030-1 01 1 0812-
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 01 1 0712-0811
212 CLIP; HOSE
FTS WIDE SGL CAB(FG**M*) EURO2 SPECIFICATION<NT2> (A) L=250 		5-09707-030-1 02 1 0812-
212 CLIP; HOSE
(B) L=140 		5-09707-031-1 02 1 0712-0811
212 CLIP; HOSE
FTS WIDE SGL CAB(FG**M*) EURO2 SPECIFICATION<NT2> (B) L=140 		5-09707-031-1 01 1 0812-
220 NUT; CLIP
FTS WIDE DBL CAB(FG**W*) M8 FLANGE 		0-91180-108-0 02 1 0712-
220 NUT; CLIP
FTS WIDE SGL CAB(FG**M*) M8 FLANGE 		0-91180-108-0 01 1 0712-
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 02 1 0712-0811
500 SLEEVE; RUBBER
FTS WIDE SGL CAB(FG**M*) EURO4 SPECIFICATION<NT4> ID=17 OD=21 L=40 		1-09337-012-0 02 1 0812-
500 SLEEVE; RUBBER
FTS WIDE DBL CAB(FG**W*) ID=17 OD=21 L=40 		1-09337-012-0 02 1 0812-

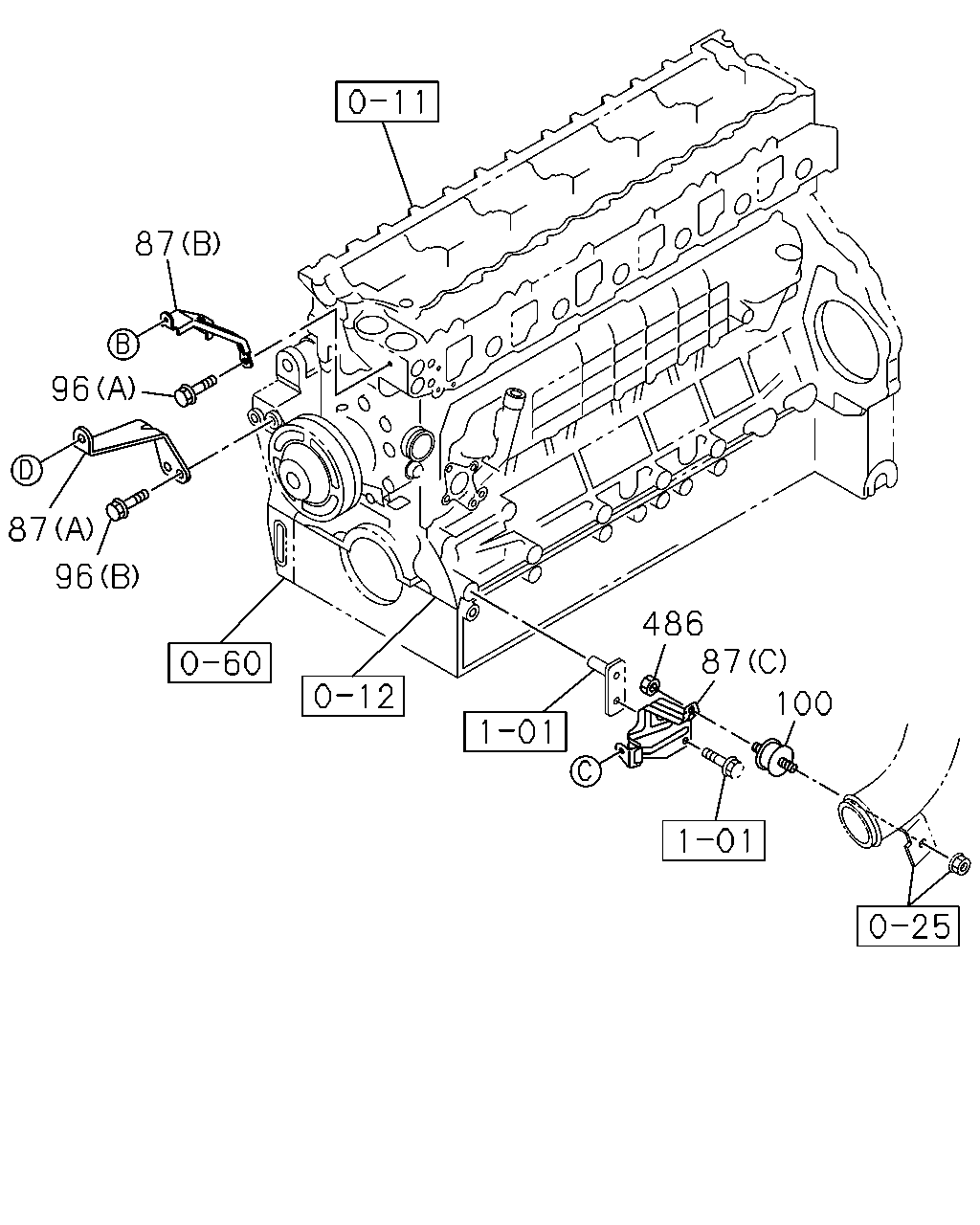

çizim 193308
87 96 87 96 486 87 100
BalonParca AdiParca NoAdetTipApplied Date
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 0712-
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 0712-
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 0712-
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0712-
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 0712-
100 RUBBER; MTG 8-94394-268-1 01 1 0712-0910
100 RUBBER; MTG 8-98148-109-0 01 1 0911-
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0712-
