Sayfa 1-50 - Isuzu EPC

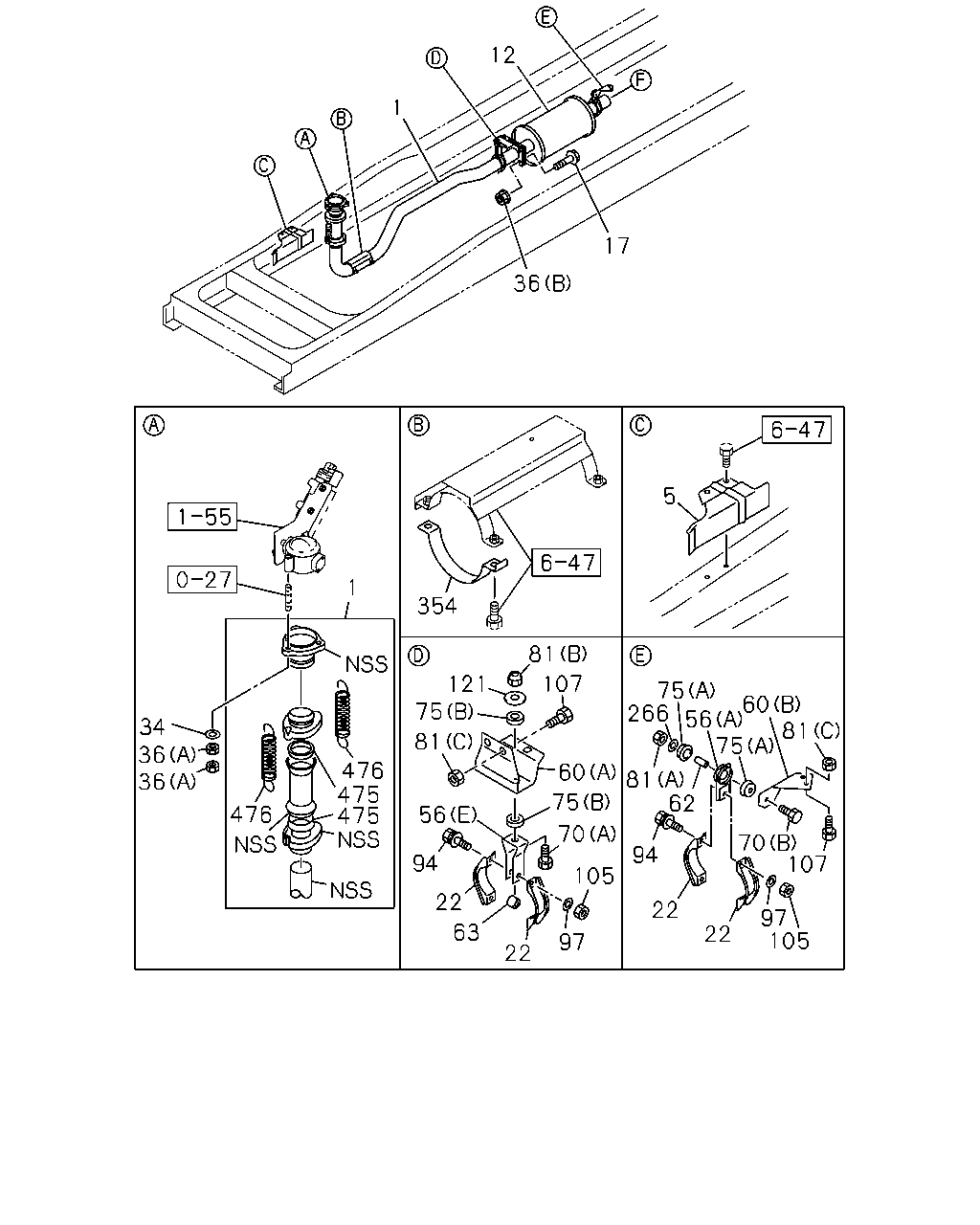

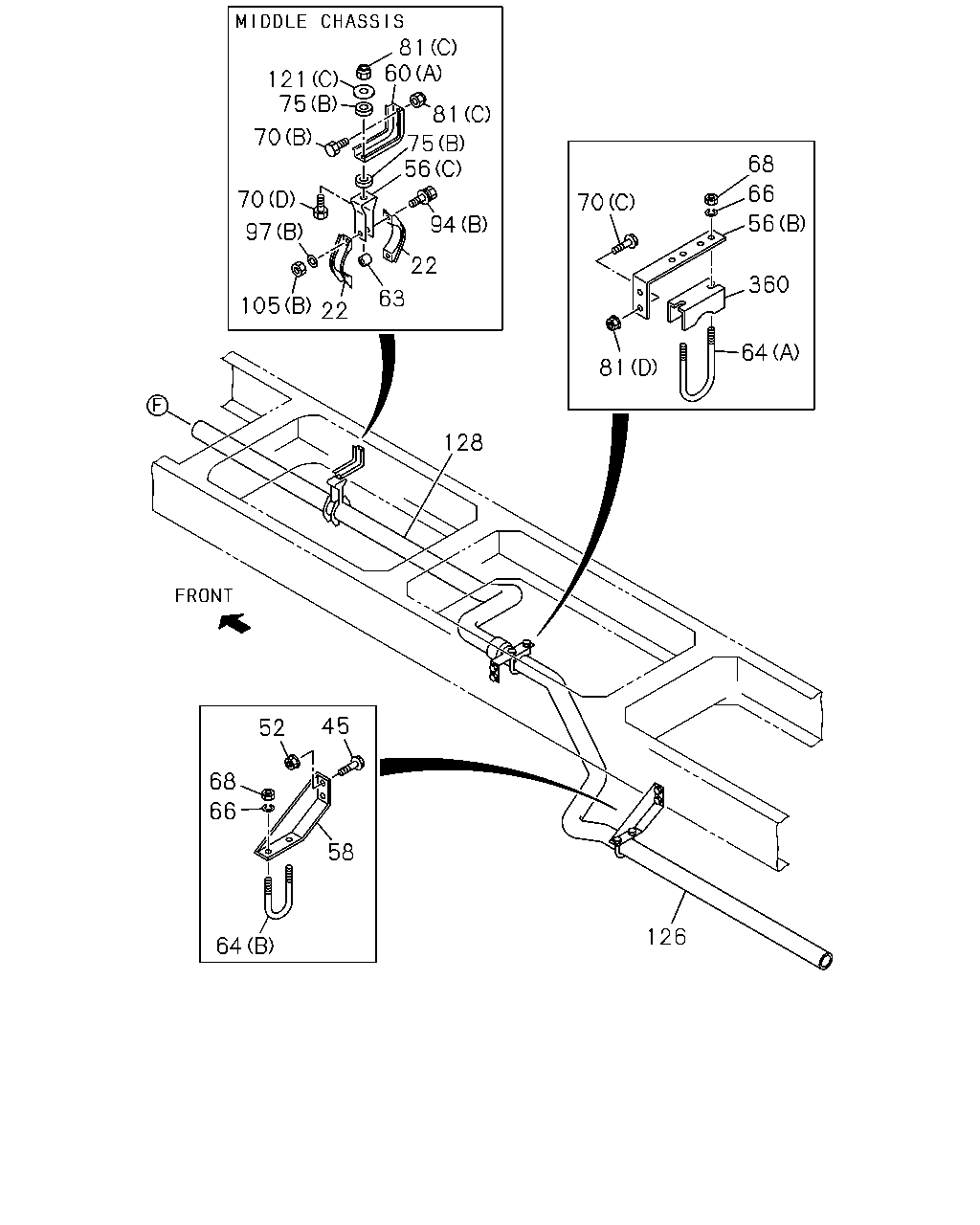

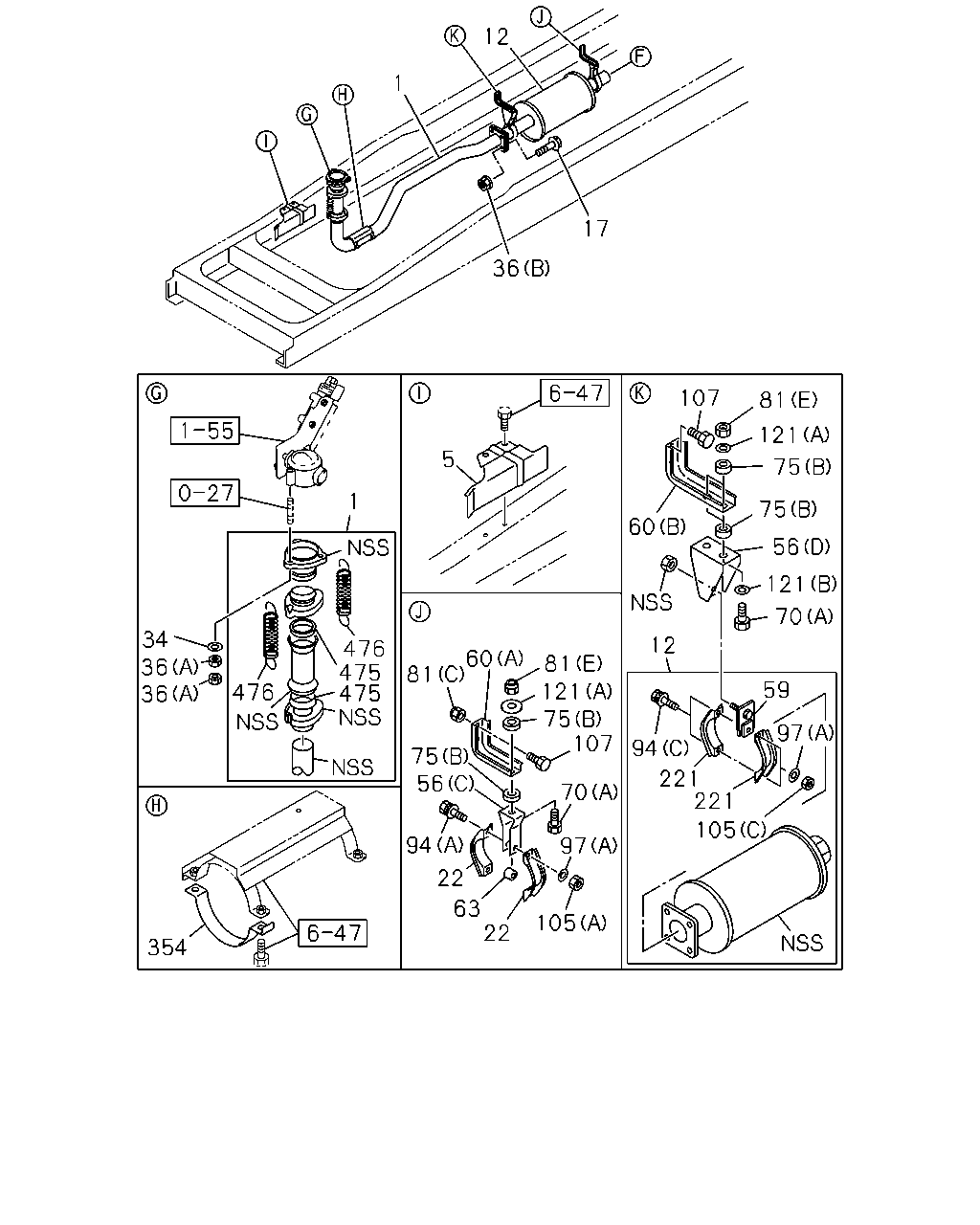

1-50 — EXHAUST PIPE AND SILENCER (#6666) — 284 parça

12 1 17 36 107 81 121 5 75 1 75 60 56 121 70 34 36 36 12 476 475 475 60 81 81 121 75 107 59 476 97 94 75 56 221 221 70 105 94 97 22 63 22 105 354

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH THA	8-97917-924-1	01	1	0011-
5	PROTECTOR; HEAT THA	1-33659-182-1	01	1	0011-
12	SILENCER ASM; EXH SHORT CHASSIS<FT***C> THA	8-97915-016-1	01	1	0011-
12	SILENCER ASM; EXH MIDDLE CHASSIS<FT***F> THA	8-97917-926-1	01	1	0011-
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	0011-
22	CLAMP; EXH PIPE SHORT CHASSIS<FT***C> ID=80-84 THA	8-97915-977-0	08	1	0011-0012
22	CLAMP; EXH PIPE ID=80-84 THA	8-97915-977-1	04	1	0101-
22	CLAMP; EXH PIPE MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> ID=80-84 THA	8-97915-977-1	04	1	0101-
22	CLAMP; EXH PIPE MIDDLE CHASSIS<FT***F> ID=80-84 THA	8-97915-977-1	04	1	0011-0012
22	CLAMP; EXH PIPE MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> ID=80-84 THA	8-97915-977-1	04	1	0011-0012
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	0011-0410
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0411-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	0011-
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	0011-
56	BRACKET; CLAMP,EXH PIPE (B) THA	8-97915-971-1	01	1	0011-
56	BRACKET; CLAMP,EXH PIPE (C) THA	8-97916-049-0	02	1	0011-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (C) THA	8-97916-049-0	02	1	0011-
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS<FT***C> (E) THA	8-97916-046-0	02	1	0011-0012
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS<FT***C> THA	8-97916-046-1	01	1	0101-
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS<FT***C> (A) THA	8-97917-961-0	01	1	0011-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> THA	8-97916-049-0	04	1	0011-0012
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> THA	8-97916-049-0	03	1	0101-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> (D) THA	8-97917-723-1	02	1	0011-0205
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> THA	8-97917-723-2	01	1	0206-
59	BRACKET; EXH SILENCER,FRT MIDDLE CHASSIS<FT***F> THA	8-97917-954-1	01	1	0011-
60	BRACKET; FRAME TO BRKT SHORT CHASSIS<FT***C> (A) THA	8-97917-952-0	01	1	0011-
60	BRACKET; FRAME TO BRKT SHORT CHASSIS<FT***C> (B) THA	8-97917-959-0	01	1	0011-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS<FT***F> (A) THA	8-97915-987-1	02	1	0011-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) THA	8-97915-987-1	02	1	0011-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS<FT***F> (B) THA	8-97917-722-2	01	1	0011-
63	TUBE; DIST,BRKT THA	8-97915-989-0	01	1	0011-
63	TUBE; DIST,BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA	8-97915-989-0	01	1	0011-
63	TUBE; DIST,BRKT SHORT CHASSIS<FT***C> THA	8-97917-953-0	02	1	0011-0012
63	TUBE; DIST,BRKT SHORT CHASSIS<FT***C> THA	8-97917-953-2	01	1	0101-
63	TUBE; DIST,BRKT MIDDLE CHASSIS<FT***F> THA	8-97915-989-0	02	1	0011-
70	BOLT; BRKT (C) M8X25 W/LK WASHER	9-01910-825-0	02	1	0011-0311
70	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0312-
70	BOLT; BRKT SHORT CHASSIS<FT***C> (A) M10X45	0-10806-045-0	01	1	0011-0012
70	BOLT; BRKT SHORT CHASSIS<FT***C> M10X50	0-10806-050-0	01	1	0101-0205
70	BOLT; BRKT SHORT CHASSIS<FT***C> M10X50	0-10806-050-0	02	1	0206-
70	BOLT; BRKT SHORT CHASSIS<FT***C> (B) M10X55	0-10806-055-0	01	1	0011-0205
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> M10X50	0-10806-050-0	04	1	0011-
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-893-0	02	1	0011-
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (D) THA	8-97916-895-0	01	1	0011-
75	RUBBER; SUPPORT,BRKT SHORT CHASSIS<FT***C> (A) OD=40 THA	1-22159-193-0	02	1	0011-
75	RUBBER; SUPPORT,BRKT SHORT CHASSIS<FT***C> (B) THA	8-97916-904-0	02	1	0011-
75	RUBBER; SUPPORT,BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-904-0	02	1	0011-
75	RUBBER; SUPPORT,BRKT MIDDLE CHASSIS<FT***F> THA	8-97916-904-0	08	1	0011-
81	NUT; BRKT (C) THA	8-97916-605-0	03	1	0011-
81	NUT; BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (C) THA	8-97916-605-0	03	1	0011-
81	NUT; BRKT (D) M8	9-09110-408-0	02	1	0011-
81	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0111-0205
81	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0206-
81	NUT; BRKT SHORT CHASSIS<FT***C> M10 FLANGE	0-91150-210-0	01	1	0206-
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0111-
81	NUT; BRKT SHORT CHASSIS<FT***C> (A) M10	9-09110-510-0	01	1	0011-0205
81	NUT; BRKT SHORT CHASSIS<FT***C> (B) M10 LOCK NUT	9-09131-510-0	01	1	0011-
81	NUT; BRKT SHORT CHASSIS<FT***C> M10 FLANGE	0-91150-210-0	03	1	0111-
81	NUT; BRKT MIDDLE CHASSIS<FT***F> (C) THA	8-97916-605-0	02	1	0011-
81	NUT; BRKT MIDDLE CHASSIS<FT***F> M10 LOCK NUT	9-09131-510-0	04	1	0011-
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	0011-0012
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0101-0110
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0111-0205
94	BOLT; CLAMP SHORT CHASSIS<FT***C> M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0111-0205
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0206-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> (C) M10X40 FLANGE	0-28081-040-0	02	1	0011-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> THA	8-97916-896-0	02	1	0206-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA	8-97916-896-0	02	1	0206-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-896-0	02	1	0011-0012
94	BOLT; CLAMP THA	8-97916-896-0	02	1	0101-0205
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA	8-97916-896-0	02	1	0101-0205
94	BOLT; CLAMP SHORT CHASSIS<FT***C> THA	8-97916-896-0	04	1	0206-
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	0011-0012
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0101-
97	WASHER; PL,CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) ID=10.5 OD=18	9-09160-510-0	02	1	0011-0012
97	WASHER; PL,CLAMP ID=10.5 OD=18	9-09160-510-0	02	1	0101-
97	WASHER; PL,CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> ID=10.5 OD=18	9-09160-510-0	02	1	0101-
105	NUT; CLAMP M10	9-09110-510-0	04	1	0011-0012
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> M10	9-09110-510-0	02	1	0101-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> (C) M10 FLANGE	0-91150-210-0	02	1	0011-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> THA	8-97916-605-0	02	1	0101-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA	8-97916-605-0	02	1	0101-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-605-0	02	1	0011-0012
105	NUT; CLAMP SHORT CHASSIS<FT***C> THA	8-97916-605-0	04	1	0101-
107	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0011-
107	BOLT; BRKT MIDDLE CHASSIS<FT***F> M10X30 FLANGE	0-28681-030-0	02	1	0011-
107	BOLT; BRKT SHORT CHASSIS<FT***C> M10X30 FLANGE	0-28681-030-0	03	1	0011-
121	WASHER; PL,BRKT SHORT CHASSIS<FT***C> ID=10.5 OD=32	9-09164-810-0	01	1	0011-
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> (B) ID=10.5 OD=18	9-09160-510-0	02	1	0011-
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> ID=10.5 OD=32	9-09164-810-0	04	1	0011-
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (C) THA	8-97916-892-0	01	1	0011-
221	CLAMP; EXH SILENCER MIDDLE CHASSIS<FT***F> ID=80-84 THA	8-97915-977-1	02	1	0011-
354	CLAMP; HEAT PROTECTOR THA	8-97917-224-0	02	1	0011-
475	BEARING; SEAL,VIBNON,EXH PIPE OD=100.4 THA	1-22119-374-0	02	1	0011-
476	SPRING; VIBNON,EXH PIPE THA	1-09583-298-0	02	1	0011-

12 1 17 36 5 1 354 81 121 75 107 75 266 60 56 81 75 34 36 36 81 476 475 475 60 81 62 75 476 56 70 70 107 94 94 105 22 22 97 105 63 22 97 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH THA	8-97917-924-1	01	1	0011-
5	PROTECTOR; HEAT THA	1-33659-182-1	01	1	0011-
12	SILENCER ASM; EXH SHORT CHASSIS<FT***C> THA	8-97915-016-1	01	1	0011-
12	SILENCER ASM; EXH MIDDLE CHASSIS<FT***F> THA	8-97917-926-1	01	1	0011-
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	0011-
22	CLAMP; EXH PIPE SHORT CHASSIS<FT***C> ID=80-84 THA	8-97915-977-0	08	1	0011-0012
22	CLAMP; EXH PIPE ID=80-84 THA	8-97915-977-1	04	1	0101-
22	CLAMP; EXH PIPE MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> ID=80-84 THA	8-97915-977-1	04	1	0101-
22	CLAMP; EXH PIPE MIDDLE CHASSIS<FT***F> ID=80-84 THA	8-97915-977-1	04	1	0011-0012
22	CLAMP; EXH PIPE MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> ID=80-84 THA	8-97915-977-1	04	1	0011-0012
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	0011-0410
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0411-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	0011-
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	0011-
56	BRACKET; CLAMP,EXH PIPE (B) THA	8-97915-971-1	01	1	0011-
56	BRACKET; CLAMP,EXH PIPE (C) THA	8-97916-049-0	02	1	0011-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (C) THA	8-97916-049-0	02	1	0011-
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS<FT***C> (E) THA	8-97916-046-0	02	1	0011-0012
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS<FT***C> THA	8-97916-046-1	01	1	0101-
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS<FT***C> (A) THA	8-97917-961-0	01	1	0011-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> THA	8-97916-049-0	04	1	0011-0012
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> THA	8-97916-049-0	03	1	0101-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> (D) THA	8-97917-723-1	02	1	0011-0205
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> THA	8-97917-723-2	01	1	0206-
60	BRACKET; FRAME TO BRKT SHORT CHASSIS<FT***C> (A) THA	8-97917-952-0	01	1	0011-
60	BRACKET; FRAME TO BRKT SHORT CHASSIS<FT***C> (B) THA	8-97917-959-0	01	1	0011-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS<FT***F> (A) THA	8-97915-987-1	02	1	0011-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) THA	8-97915-987-1	02	1	0011-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS<FT***F> (B) THA	8-97917-722-2	01	1	0011-
62	TUBE; DIST,BRKT SHORT CHASSIS<FT***C> THA	8-97917-668-2	01	1	0011-
63	TUBE; DIST,BRKT THA	8-97915-989-0	01	1	0011-
63	TUBE; DIST,BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA	8-97915-989-0	01	1	0011-
63	TUBE; DIST,BRKT SHORT CHASSIS<FT***C> THA	8-97917-953-0	02	1	0011-0012
63	TUBE; DIST,BRKT SHORT CHASSIS<FT***C> THA	8-97917-953-2	01	1	0101-
63	TUBE; DIST,BRKT MIDDLE CHASSIS<FT***F> THA	8-97915-989-0	02	1	0011-
70	BOLT; BRKT (C) M8X25 W/LK WASHER	9-01910-825-0	02	1	0011-0311
70	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0312-
70	BOLT; BRKT SHORT CHASSIS<FT***C> (A) M10X45	0-10806-045-0	01	1	0011-0012
70	BOLT; BRKT SHORT CHASSIS<FT***C> M10X50	0-10806-050-0	01	1	0101-0205
70	BOLT; BRKT SHORT CHASSIS<FT***C> M10X50	0-10806-050-0	02	1	0206-
70	BOLT; BRKT SHORT CHASSIS<FT***C> (B) M10X55	0-10806-055-0	01	1	0011-0205
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> M10X50	0-10806-050-0	04	1	0011-
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-893-0	02	1	0011-
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (D) THA	8-97916-895-0	01	1	0011-
75	RUBBER; SUPPORT,BRKT SHORT CHASSIS<FT***C> (A) OD=40 THA	1-22159-193-0	02	1	0011-
75	RUBBER; SUPPORT,BRKT SHORT CHASSIS<FT***C> (B) THA	8-97916-904-0	02	1	0011-
75	RUBBER; SUPPORT,BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-904-0	02	1	0011-
75	RUBBER; SUPPORT,BRKT MIDDLE CHASSIS<FT***F> THA	8-97916-904-0	08	1	0011-
81	NUT; BRKT (C) THA	8-97916-605-0	03	1	0011-
81	NUT; BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (C) THA	8-97916-605-0	03	1	0011-
81	NUT; BRKT (D) M8	9-09110-408-0	02	1	0011-
81	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0111-0205
81	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0206-
81	NUT; BRKT SHORT CHASSIS<FT***C> M10 FLANGE	0-91150-210-0	01	1	0206-
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0111-
81	NUT; BRKT SHORT CHASSIS<FT***C> (A) M10	9-09110-510-0	01	1	0011-0205
81	NUT; BRKT SHORT CHASSIS<FT***C> (B) M10 LOCK NUT	9-09131-510-0	01	1	0011-
81	NUT; BRKT SHORT CHASSIS<FT***C> M10 FLANGE	0-91150-210-0	03	1	0111-
81	NUT; BRKT MIDDLE CHASSIS<FT***F> (C) THA	8-97916-605-0	02	1	0011-
81	NUT; BRKT MIDDLE CHASSIS<FT***F> M10 LOCK NUT	9-09131-510-0	04	1	0011-
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	0011-0012
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0101-0110
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0111-0205
94	BOLT; CLAMP SHORT CHASSIS<FT***C> M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0111-0205
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0206-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> (C) M10X40 FLANGE	0-28081-040-0	02	1	0011-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> THA	8-97916-896-0	02	1	0206-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA	8-97916-896-0	02	1	0206-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-896-0	02	1	0011-0012
94	BOLT; CLAMP THA	8-97916-896-0	02	1	0101-0205
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA	8-97916-896-0	02	1	0101-0205
94	BOLT; CLAMP SHORT CHASSIS<FT***C> THA	8-97916-896-0	04	1	0206-
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	0011-0012
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0101-
97	WASHER; PL,CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) ID=10.5 OD=18	9-09160-510-0	02	1	0011-0012
97	WASHER; PL,CLAMP ID=10.5 OD=18	9-09160-510-0	02	1	0101-
97	WASHER; PL,CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> ID=10.5 OD=18	9-09160-510-0	02	1	0101-
105	NUT; CLAMP M10	9-09110-510-0	04	1	0011-0012
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> M10	9-09110-510-0	02	1	0101-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> (C) M10 FLANGE	0-91150-210-0	02	1	0011-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> THA	8-97916-605-0	02	1	0101-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA	8-97916-605-0	02	1	0101-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-605-0	02	1	0011-0012
105	NUT; CLAMP SHORT CHASSIS<FT***C> THA	8-97916-605-0	04	1	0101-
107	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0011-
107	BOLT; BRKT MIDDLE CHASSIS<FT***F> M10X30 FLANGE	0-28681-030-0	02	1	0011-
107	BOLT; BRKT SHORT CHASSIS<FT***C> M10X30 FLANGE	0-28681-030-0	03	1	0011-
121	WASHER; PL,BRKT SHORT CHASSIS<FT***C> ID=10.5 OD=32	9-09164-810-0	01	1	0011-
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> (B) ID=10.5 OD=18	9-09160-510-0	02	1	0011-
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> ID=10.5 OD=32	9-09164-810-0	04	1	0011-
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (C) THA	8-97916-892-0	01	1	0011-
266	WASHER; LK,BRKT SHORT CHASSIS<FT***C> ID=10.2	9-09150-510-0	01	1	0011-0110
266	WASHER; LK,BRKT SHORT CHASSIS<FT***C> ID=10.2	9-09150-510-0	01	1	0111-0205
266	WASHER; LK,BRKT SHORT CHASSIS<FT***C> ID=10.2	9-09150-510-0	01	1	0111-0205
354	CLAMP; HEAT PROTECTOR THA	8-97917-224-0	02	1	0011-
475	BEARING; SEAL,VIBNON,EXH PIPE OD=100.4 THA	1-22119-374-0	02	1	0011-
476	SPRING; VIBNON,EXH PIPE THA	1-09583-298-0	02	1	0011-

81 60 121 75 81 70 75 56 68 66 70 70 56 94 97 22 360 63 105 22 64 81 128 45 52 68 66 58 126 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE SHORT CHASSIS<FT***C> ID=80-84 THA	8-97915-977-0	08	1	0011-0012
22	CLAMP; EXH PIPE ID=80-84 THA	8-97915-977-1	04	1	0101-
22	CLAMP; EXH PIPE MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> ID=80-84 THA	8-97915-977-1	04	1	0101-
22	CLAMP; EXH PIPE MIDDLE CHASSIS<FT***F> ID=80-84 THA	8-97915-977-1	04	1	0011-0012
22	CLAMP; EXH PIPE MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> ID=80-84 THA	8-97915-977-1	04	1	0011-0012
45	BOLT; BRKT M8X25 W/LK WASHER	9-01910-825-0	02	1	0011-0311
45	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0312-
52	NUT; BRKT M8	9-09110-408-0	02	1	0011-
56	BRACKET; CLAMP,EXH PIPE (B) THA	8-97915-971-1	01	1	0011-
56	BRACKET; CLAMP,EXH PIPE (C) THA	8-97916-049-0	02	1	0011-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (C) THA	8-97916-049-0	02	1	0011-
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS<FT***C> (E) THA	8-97916-046-0	02	1	0011-0012
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS<FT***C> THA	8-97916-046-1	01	1	0101-
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS<FT***C> (A) THA	8-97917-961-0	01	1	0011-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> THA	8-97916-049-0	04	1	0011-0012
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> THA	8-97916-049-0	03	1	0101-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> (D) THA	8-97917-723-1	02	1	0011-0205
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> THA	8-97917-723-2	01	1	0206-
58	BRACKET; EXH PIPE,RR THA	8-97915-698-0	01	1	0011-
60	BRACKET; FRAME TO BRKT SHORT CHASSIS<FT***C> (A) THA	8-97917-952-0	01	1	0011-
60	BRACKET; FRAME TO BRKT SHORT CHASSIS<FT***C> (B) THA	8-97917-959-0	01	1	0011-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS<FT***F> (A) THA	8-97915-987-1	02	1	0011-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) THA	8-97915-987-1	02	1	0011-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS<FT***F> (B) THA	8-97917-722-2	01	1	0011-
63	TUBE; DIST,BRKT THA	8-97915-989-0	01	1	0011-
63	TUBE; DIST,BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA	8-97915-989-0	01	1	0011-
63	TUBE; DIST,BRKT SHORT CHASSIS<FT***C> THA	8-97917-953-0	02	1	0011-0012
63	TUBE; DIST,BRKT SHORT CHASSIS<FT***C> THA	8-97917-953-2	01	1	0101-
63	TUBE; DIST,BRKT MIDDLE CHASSIS<FT***F> THA	8-97915-989-0	02	1	0011-
64	U-BOLT; EXH PIPE,RR (A) THA	8-97915-981-0	01	1	0011-
64	U-BOLT; EXH PIPE,RR (B) THA	8-97916-891-0	01	1	0011-
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	04	1	0011-
68	NUT; U BOLT M8	9-09110-408-0	04	1	0011-
70	BOLT; BRKT (C) M8X25 W/LK WASHER	9-01910-825-0	02	1	0011-0311
70	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0312-
70	BOLT; BRKT SHORT CHASSIS<FT***C> (A) M10X45	0-10806-045-0	01	1	0011-0012
70	BOLT; BRKT SHORT CHASSIS<FT***C> M10X50	0-10806-050-0	01	1	0101-0205
70	BOLT; BRKT SHORT CHASSIS<FT***C> M10X50	0-10806-050-0	02	1	0206-
70	BOLT; BRKT SHORT CHASSIS<FT***C> (B) M10X55	0-10806-055-0	01	1	0011-0205
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> M10X50	0-10806-050-0	04	1	0011-
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-893-0	02	1	0011-
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (D) THA	8-97916-895-0	01	1	0011-
75	RUBBER; SUPPORT,BRKT SHORT CHASSIS<FT***C> (A) OD=40 THA	1-22159-193-0	02	1	0011-
75	RUBBER; SUPPORT,BRKT SHORT CHASSIS<FT***C> (B) THA	8-97916-904-0	02	1	0011-
75	RUBBER; SUPPORT,BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-904-0	02	1	0011-
75	RUBBER; SUPPORT,BRKT MIDDLE CHASSIS<FT***F> THA	8-97916-904-0	08	1	0011-
81	NUT; BRKT (C) THA	8-97916-605-0	03	1	0011-
81	NUT; BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (C) THA	8-97916-605-0	03	1	0011-
81	NUT; BRKT (D) M8	9-09110-408-0	02	1	0011-
81	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0111-0205
81	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0206-
81	NUT; BRKT SHORT CHASSIS<FT***C> M10 FLANGE	0-91150-210-0	01	1	0206-
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0111-
81	NUT; BRKT SHORT CHASSIS<FT***C> (A) M10	9-09110-510-0	01	1	0011-0205
81	NUT; BRKT SHORT CHASSIS<FT***C> (B) M10 LOCK NUT	9-09131-510-0	01	1	0011-
81	NUT; BRKT SHORT CHASSIS<FT***C> M10 FLANGE	0-91150-210-0	03	1	0111-
81	NUT; BRKT MIDDLE CHASSIS<FT***F> (C) THA	8-97916-605-0	02	1	0011-
81	NUT; BRKT MIDDLE CHASSIS<FT***F> M10 LOCK NUT	9-09131-510-0	04	1	0011-
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	0011-0012
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0101-0110
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0111-0205
94	BOLT; CLAMP SHORT CHASSIS<FT***C> M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0111-0205
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0206-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> (C) M10X40 FLANGE	0-28081-040-0	02	1	0011-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> THA	8-97916-896-0	02	1	0206-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA	8-97916-896-0	02	1	0206-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-896-0	02	1	0011-0012
94	BOLT; CLAMP THA	8-97916-896-0	02	1	0101-0205
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA	8-97916-896-0	02	1	0101-0205
94	BOLT; CLAMP SHORT CHASSIS<FT***C> THA	8-97916-896-0	04	1	0206-
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	0011-0012
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0101-
97	WASHER; PL,CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) ID=10.5 OD=18	9-09160-510-0	02	1	0011-0012
97	WASHER; PL,CLAMP ID=10.5 OD=18	9-09160-510-0	02	1	0101-
97	WASHER; PL,CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> ID=10.5 OD=18	9-09160-510-0	02	1	0101-
105	NUT; CLAMP M10	9-09110-510-0	04	1	0011-0012
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> M10	9-09110-510-0	02	1	0101-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> (C) M10 FLANGE	0-91150-210-0	02	1	0011-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> THA	8-97916-605-0	02	1	0101-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA	8-97916-605-0	02	1	0101-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-605-0	02	1	0011-0012
105	NUT; CLAMP SHORT CHASSIS<FT***C> THA	8-97916-605-0	04	1	0101-
121	WASHER; PL,BRKT SHORT CHASSIS<FT***C> ID=10.5 OD=32	9-09164-810-0	01	1	0011-
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> (B) ID=10.5 OD=18	9-09160-510-0	02	1	0011-
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> ID=10.5 OD=32	9-09164-810-0	04	1	0011-
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (C) THA	8-97916-892-0	01	1	0011-
126	PIPE; EXH,RR THA	8-97915-699-1	01	1	0011-
128	PIPE; EXH,RR SHORT CHASSIS<FT***C> THA	8-97910-536-0	01	1	0011-
128	PIPE; EXH,RR MIDDLE CHASSIS<FT***F> WHEEL BASE 4200MM<42W> THA	8-97910-537-0	01	1	0011-
128	PIPE; EXH,RR MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W> THA	8-97910-538-0	01	1	0011-
128	PIPE; EXH,RR MIDDLE CHASSIS<FT***F> WHEEL BASE 5500MM<55W> THA	8-97910-539-0	01	1	0011-
360	PIECE; DIST,EXH PIPE THA	8-97916-890-1	01	1	0011-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
