◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#66658) — 120 parça

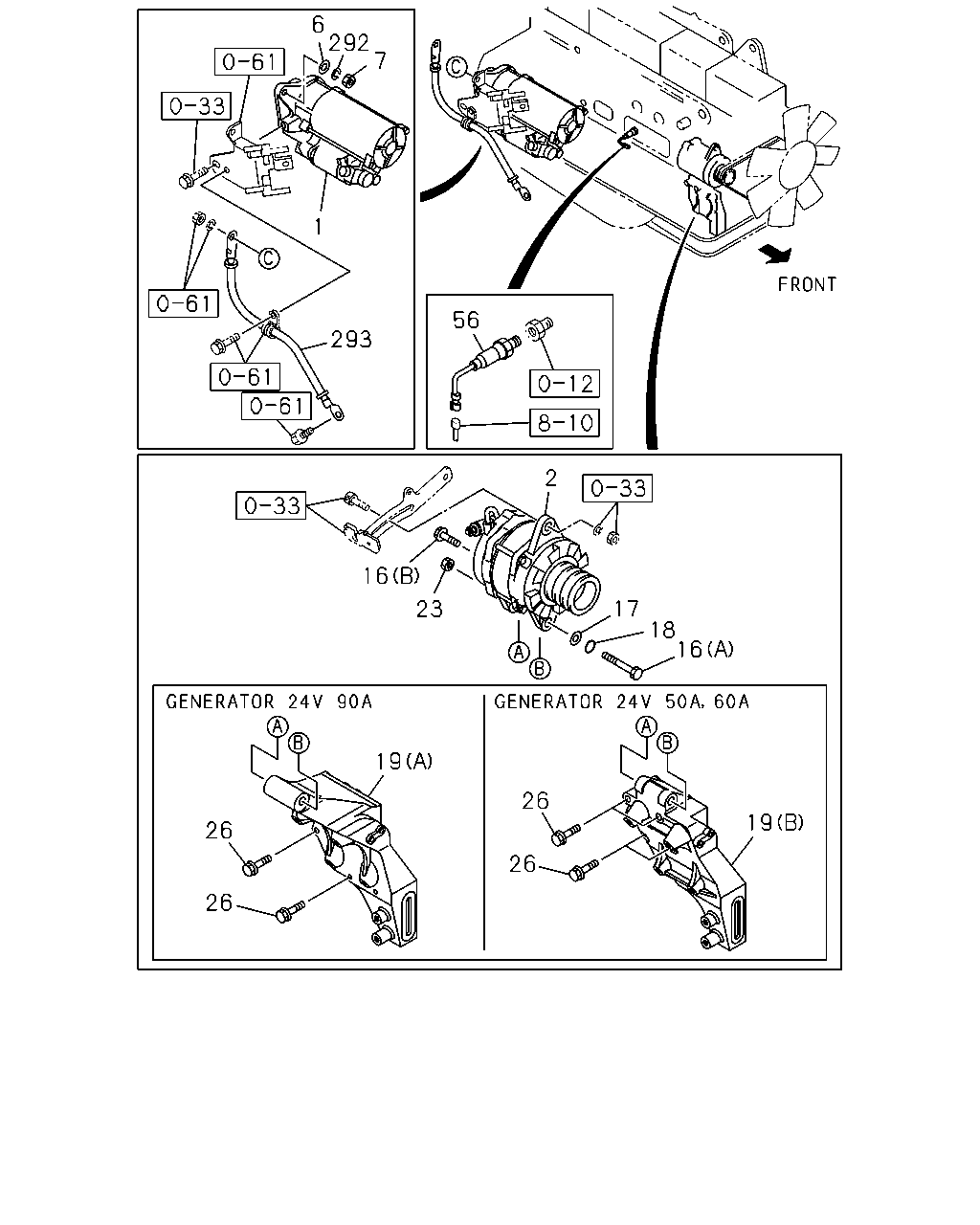

çizim 72524
6 292 7 293 56 2 16 23 17 18 16 26 26 19 26 26 19 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98060-854-0 01 1 0712-0909 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 0910-1409 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98261-669-0 01 1 1410- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-3 01 1 0712-1311 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EURO4 SPECIFICATION<NT4> 24V 50A NIKKO 		8-98013-461-5 01 1 1312- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EURO2 SPECIFICATION<NT2> GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-5 01 1 1312- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-5 01 1 0712- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98013-463-3 01 1 0712-1508 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98330-087-0 01 1 1509- ● ●
6 WASHER; PL,STARTER
ID=15 		0-91610-514-0 01 1 0712- ● ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0712- ● ●
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO2 SPECIFICATION<NT2> (B) M6X10 FLANGE 		0-28050-610-0 03 1 0910- ●
16 BOLT; GEN
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE 		0-28050-610-0 01 1 0712-0811 ● ●
16 BOLT; GEN
EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE 		0-28050-610-0 01 1 0812-0909 ● ●
16 BOLT; GEN
EURO2 SPECIFICATION<NT2> AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE 		0-28050-610-0 01 1 0812-0909 ● ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE 		0-28050-610-0 01 1 0910- ● ●
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE 		0-28050-610-0 02 1 0712-0811 ●
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 02 1 0712-0811 ●
16 BOLT; GEN
EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE 		0-28050-610-0 02 1 0812- ● ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 0712- ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0712- ● ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0712- ● ●
19 BRACKET; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-97609-149-0 01 1 0712-0803 ● ●
19 BRACKET; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98082-615-1 01 1 0804-1311 ● ●
19 BRACKET; GEN
GENERATOR 24V60A(KG2) GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (B) 		8-98082-615-1 01 1 1312- ● ●
19 BRACKET; GEN
EURO2 SPECIFICATION<NT2> (B) 		8-98082-615-1 01 1 1312- ●
19 BRACKET; GEN
GENERATOR 24V90A(K44) (A) 		8-98082-617-0 01 1 0712- ● ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0712- ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 02 1 0712- ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0712- ● ●
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) M10X25 FLANGE 		0-28151-025-0 01 1 0712- ● ●
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) M10X135 		8-94397-139-1 01 1 0712- ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0712- ● ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 01 1 0712- ● ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<NT2> 		8-98131-713-0 01 1 0812- ●
293 CABLE; STARTER EARTH
L=410 		8-97621-358-0 01 1 0712-0811 ● ●
293 CABLE; STARTER EARTH
EURO4 SPECIFICATION<NT4> L=410 		8-97621-358-0 01 1 0812- ●
293 CABLE; STARTER EARTH
L=410 		8-97621-358-0 01 1 0812- ●

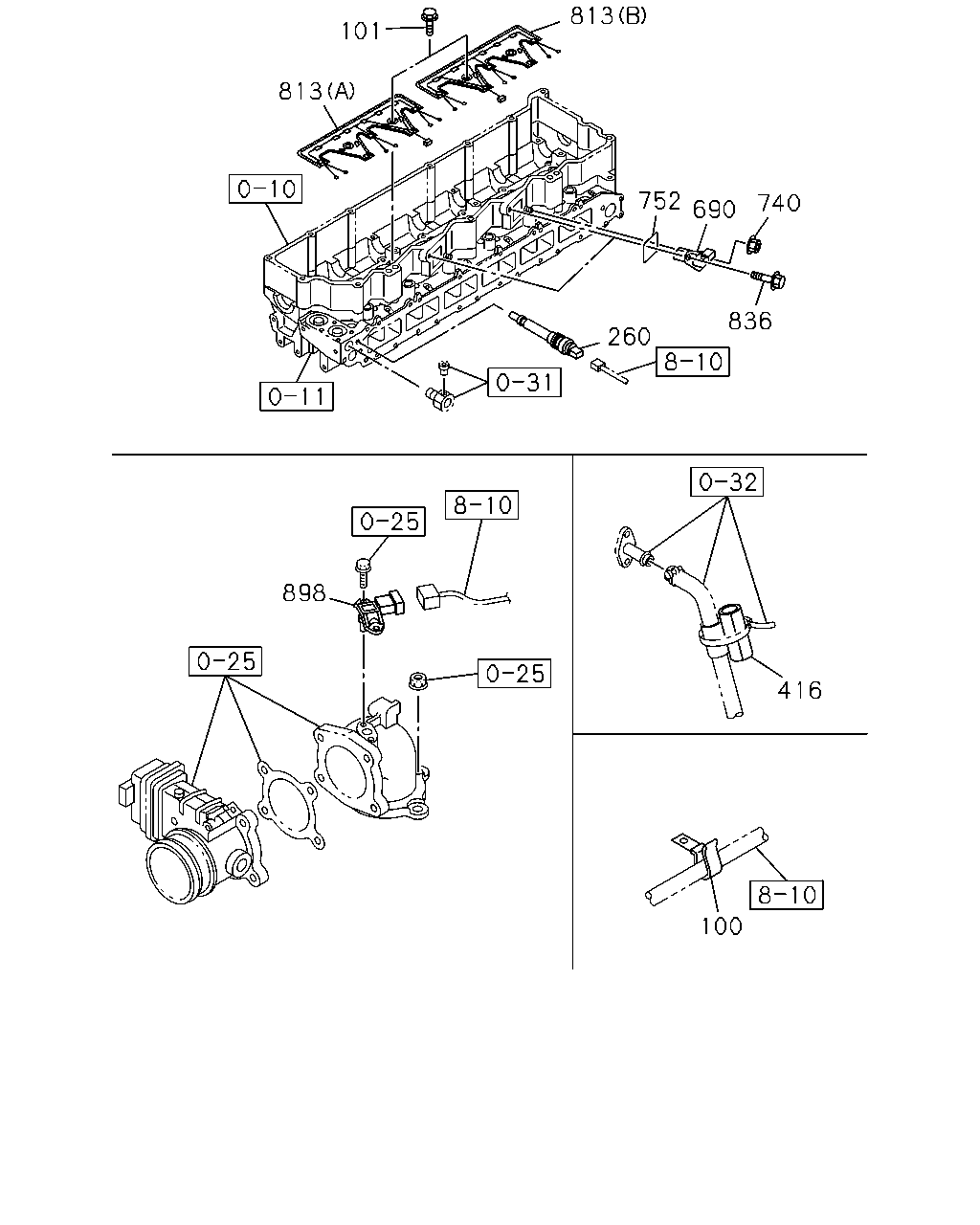

çizim 72636
813 101 813 752 740 690 836 260 898 416 100
BalonParca AdiParca NoAdetTipApplied Date A B
100 CLIP; HARNESS
DIFF LOCK<C3N> ID=10 L=25 		8-94208-375-0 01 1 1003- ●
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 0712- ● ●
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 0712-1503 ● ●
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1504- ● ●
416 SLEEVE; RUBBER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0712-0811 ● ●
416 SLEEVE; RUBBER
EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0812- ● ●
690 CONNECTOR 8-94390-858-1 02 1 0712- ● ●
740 NUT
M8 FLANGE 		0-91180-108-0 04 1 0712-1011 ● ●
740 NUT
M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 0712- ● ●
813 HARNESS; INJECTOR
(A) FRONT 		8-97602-748-2 01 1 0712-1008 ● ●
813 HARNESS; INJECTOR
(A) FRONT 		8-98177-447-0 01 1 1009-1112 ● ●
813 HARNESS; INJECTOR
(A) FRONT 		8-98204-717-0 01 1 1201- ● ●
813 HARNESS; INJECTOR
(B) REAR 		8-97602-749-2 01 1 0712-1008 ● ●
813 HARNESS; INJECTOR
(B) REAR 		8-98177-448-0 01 1 1009-1112 ● ●
813 HARNESS; INJECTOR
(B) REAR 		8-98204-718-0 01 1 1201- ● ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1012- ● ●
898 SENSOR; BOOST 8-98009-418-0 01 1 0712- ● ●

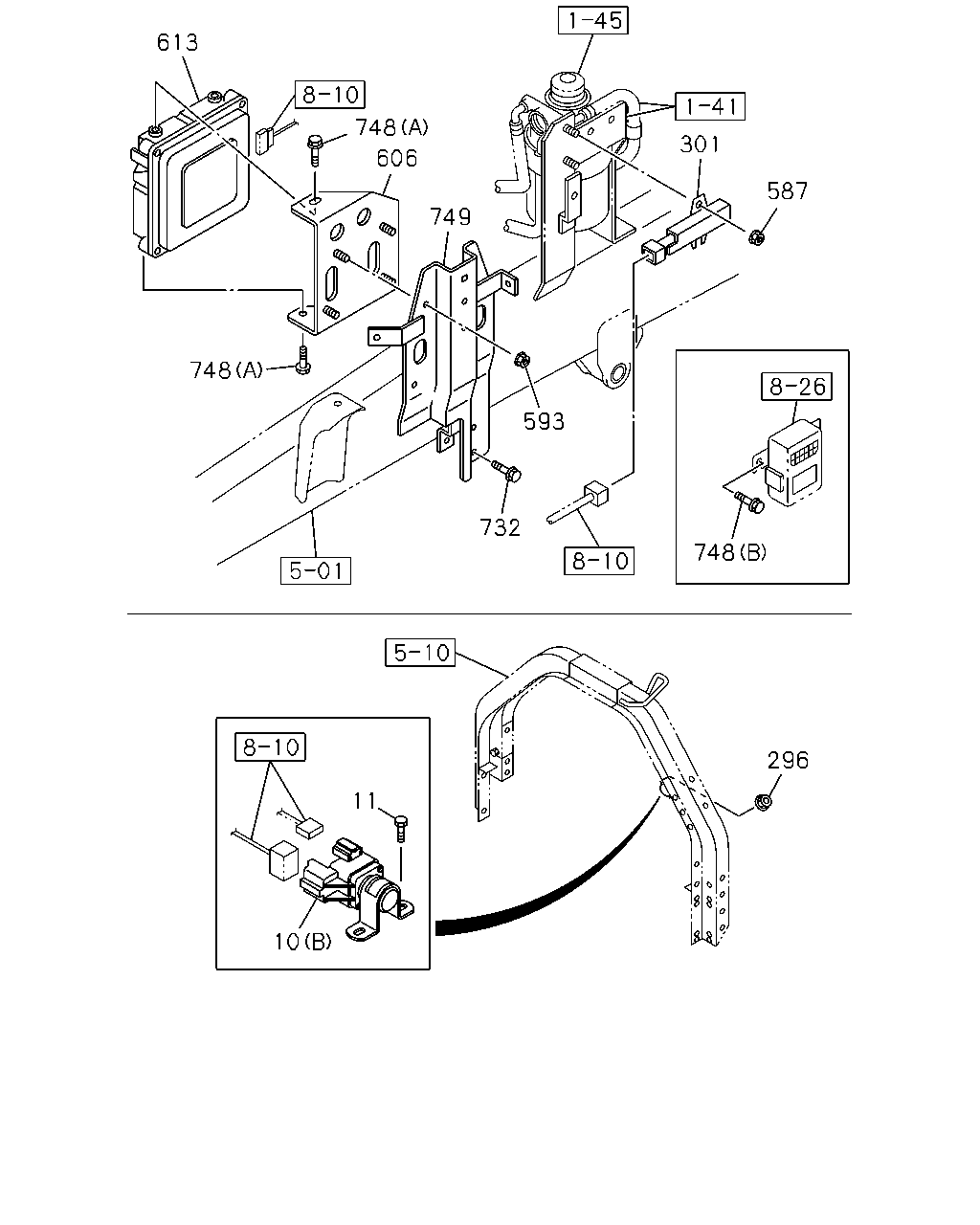

çizim 72949
613 748 749 606 748 593 732 301 587 748 11 296 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0712-1005 ● ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1006- ● ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 0712- ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
301 RESISTOR; DROPPING 8-97357-613-0 01 1 0712-0811 ● ●
301 RESISTOR; DROPPING
CATALYSIS CONTROL WITH DPD<8JM> 		8-97357-613-0 01 1 0812- ●
301 RESISTOR; DROPPING 8-97357-613-0 01 1 0812- ●
587 NUT; RESISTOR & RELAY
M6 FLANGE 		0-91180-106-0 02 1 0712-0811 ● ●
587 NUT; RESISTOR & RELAY
CATALYSIS CONTROL WITH DPD<8JM> M6 FLANGE 		0-91180-106-0 02 1 0812- ●
587 NUT; RESISTOR & RELAY
M6 FLANGE 		0-91180-106-0 02 1 0812- ●
593 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 0712- ● ●
606 BRACKET; CONT UNIT 1-53194-675-0 01 1 0712- ● ●
613 CONTROL UNIT; ENG
LCT2000 A/T ALLISON(Y4F) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) A/T<X9D> GLOW SYSTEM DELETE<7RK> EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), IMMOBILIZER SYSTEM<7KC> 		8-98257-215-0 01 1 1312- ●
613 CONTROL UNIT; ENG
LCT2000 A/T ALLISON(Y4F) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) A/T<X9D> EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), IMMOBILIZER SYSTEM<7KC>,GLOW SYSTEM DELETE<7RK> 		8-98216-181-0 01 1 1312- ●
613 CONTROL UNIT; ENG
LCT2000 A/T ALLISON(Y4F) EURO2 SPECIFICATION<NT2> A/T<X9D> GLOW SYSTEM DELETE<7RK> EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), INJPUMP Q SET SPECIAL +5%Q(T1A),IMMOBILIZER SYSTEM<7KC> 		8-98257-217-0 01 1 1312- ●
613 CONTROL UNIT; ENG
LCT2000 A/T ALLISON(Y4F) EURO2 SPECIFICATION<NT2> A/T<X9D> EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), INJPUMP Q SET SPECIAL +5%Q(T1A),IMMOBILIZER SYSTEM<7KC>,GLOW SYSTEM DELETE<7RK> 		8-98216-182-0 01 1 1312- ●
613 CONTROL UNIT; ENG
LCT2000 A/T ALLISON(Y4F) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) A/T<X9D> EXC. SPEED LIMITER 100KM(NMU),IMMOBILIZER SYSTEM<7KC> 		8-98092-934-3 01 1 1003-1008 ●
613 CONTROL UNIT; ENG
LCT2000 A/T ALLISON(Y4F) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) A/T<X9D> EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), IMMOBILIZER SYSTEM<7KC> 		8-98092-934-4 01 1 1009-1311 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) EURO2 SPECIFICATION<NT2> MANUAL TRANSMISSION<X9C> GLOW SYSTEM DELETE<7RK> EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), INJPUMP Q SET SPECIAL +5%Q(T1A),IMMOBILIZER SYSTEM<7KC> 		8-98257-207-0 01 1 1312- ●
613 CONTROL UNIT; ENG
LCT2000 A/T ALLISON(Y4F) EURO2 SPECIFICATION<NT2> A/T<X9D> EXC. SPEED LIMITER 100KM(NMU),INJ PUMP Q SET SPECIAL +5%Q(T1A),IMMOBILIZER SYSTEM<7KC> 		8-98092-935-0 01 1 1003-1311 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) EURO2 SPECIFICATION<NT2> MANUAL TRANSMISSION<X9C> EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), INJPUMP Q SET SPECIAL +5%Q(T1A),IMMOBILIZER SYSTEM<7KC>,GLOW SYSTEM DELETE<7RK> 		8-98216-177-0 01 1 1312- ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) AUSTRALIA EQUIPMENT(B13) AUTO CRUISE<K30> SPEED LIMITER 100KM(NMU) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> IMMOBILIZER SYSTEM<7KC> 		8-98160-233-0 01 1 0911-1004 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) AUSTRALIA EQUIPMENT(B13) AUTO CRUISE<K30> SPEED LIMITER 100KM(NMU) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> IMMOBILIZER SYSTEM<7KC> 		8-98163-642-1 01 1 1005- ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) AUTO CRUISE<K30> MANUAL TRANSMISSION<X9C> 		8-98160-232-0 01 1 0911-1004 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) AUTO CRUISE<K30> MANUAL TRANSMISSION<X9C> 		8-98163-643-1 01 1 1005- ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MLD6Q M/T(X5J),MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13),SPEED LIMITER 100KM(NMU),IMMOBILIZER SYSTEM<7KC> 		8-98074-888-3 01 1 0812-0906 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13),SPEED LIMITER 100KM(NMU),IMMOBILIZER SYSTEM<7KC> 		8-98074-888-3 01 1 0907-1008 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), IMMOBILIZER SYSTEM<7KC> 		8-98074-888-3 01 1 1009-1009 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), IMMOBILIZER SYSTEM<7KC> 		8-98181-060-1 01 1 1010-1311 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), IMMOBILIZER SYSTEM<7KC>,GLOW SYSTEM DELETE<7RK> 		8-98181-060-1 01 1 1312- ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MLD6Q M/T(X5J),MLD6W M/T(Y2C) EURO2 SPECIFICATION<NT2> MANUAL TRANSMISSION<X9C> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13),SPEED LIMITER 100KM(NMU),INJ PUMP Q SET SPECIAL +5%Q(T1A),IMMOBILIZER SYSTEM<7KC> 		8-98092-680-3 01 1 0812-0906 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) EURO2 SPECIFICATION<NT2> MANUAL TRANSMISSION<X9C> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13),SPEED LIMITER 100KM(NMU),INJ PUMP Q SET SPECIAL +5%Q(T1A),IMMOBILIZER SYSTEM<7KC> 		8-98092-680-4 01 1 0907-1311 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> GLOW SYSTEM DELETE<7RK> EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), IMMOBILIZER SYSTEM<7KC> 		8-98257-216-0 01 1 1312- ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) SPEED LIMITER 100KM(NMU) INJ PUMP Q SET SPECIAL +5%Q(T1A) IMMOBILIZER SYSTEM<7KC> 		8-98080-868-2 01 1 0712-0804 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW) AUSTRALIA EQUIPMENT(B13) SPEED LIMITER 100KM(NMU) INJ PUMP Q SET SPECIAL +5%Q(T1A) IMMOBILIZER SYSTEM<7KC> 		8-98105-547-0 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MLD6Q M/T(X5J) AUSTRALIA EQUIPMENT(B13) SPEED LIMITER 100KM(NMU) INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> IMMOBILIZER SYSTEM<7KC> 		8-98105-547-0 01 1 0806-0811 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MLD6Q M/T(X5J),MLD6W M/T(Y2C) AUSTRALIA EQUIPMENT(B13) SPEED LIMITER 100KM(NMU) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> IMMOBILIZER SYSTEM<7KC> 		8-98105-547-1 01 1 0812-0906 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) AUSTRALIA EQUIPMENT(B13) SPEED LIMITER 100KM(NMU) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> IMMOBILIZER SYSTEM<7KC> 		8-98105-547-1 01 1 0907-0910 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) AUSTRALIA EQUIPMENT(B13) SPEED LIMITER 100KM(NMU) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE<K30> 		8-98105-547-1 01 1 0911-1004 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) AUSTRALIA EQUIPMENT(B13) SPEED LIMITER 100KM(NMU) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE<K30> 		8-98163-602-1 01 1 1005- ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW) NEW ZEALAND EQUIPMENT(E13) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 100KM(NMU),IMMOBILIZER SYSTEM<7KC> 		8-98087-619-2 01 1 0712-0804 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW) NEW ZEALAND EQUIPMENT(E13) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 100KM(NMU),IMMOBILIZER SYSTEM<7KC> 		8-98105-545-0 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MLD6Q M/T(X5J) NEW ZEALAND EQUIPMENT(E13) INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> EXC. SPEED LIMITER 100KM(NMU),IMMOBILIZER SYSTEM<7KC> 		8-98105-545-0 01 1 0806-0811 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MLD6Q M/T(X5J),MLD6W M/T(Y2C) NEW ZEALAND EQUIPMENT(E13) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> EXC. SPEED LIMITER 100KM(NMU),IMMOBILIZER SYSTEM<7KC> 		8-98105-545-1 01 1 0812-0906 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) NEW ZEALAND EQUIPMENT(E13) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> EXC. SPEED LIMITER 100KM(NMU),IMMOBILIZER SYSTEM<7KC> 		8-98105-545-1 01 1 0907-1004 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) NEW ZEALAND EQUIPMENT(E13) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) MANUAL TRANSMISSION<X9C> EXC. SPEED LIMITER 100KM(NMU),IMMOBILIZER SYSTEM<7KC> 		8-98163-600-0 01 1 1005- ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW) 		8-98074-866-2 01 1 0712-0804 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW) 		8-98105-549-0 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MLD6Q M/T(X5J) MANUAL TRANSMISSION<X9C> 		8-98105-549-1 01 1 0806-0906 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) MANUAL TRANSMISSION<X9C> 		8-98105-549-1 01 1 0907-0910 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) MANUAL TRANSMISSION<X9C> EXC. AUTO CRUISE<K30> 		8-98105-549-1 01 1 0911-1004 ●
613 CONTROL UNIT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) MANUAL TRANSMISSION<X9C> EXC. AUTO CRUISE<K30> 		8-98163-604-1 01 1 1005- ●
732 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 0712- ● ●
748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 03 1 0712- ● ●
748 BOLT; CONT UNIT
(B) M6X16 FLANGE 		0-28650-616-0 02 1 0712-0803 ● ●
749 STAY; CONT UNIT 1-53194-595-3 01 1 0712- ● ●

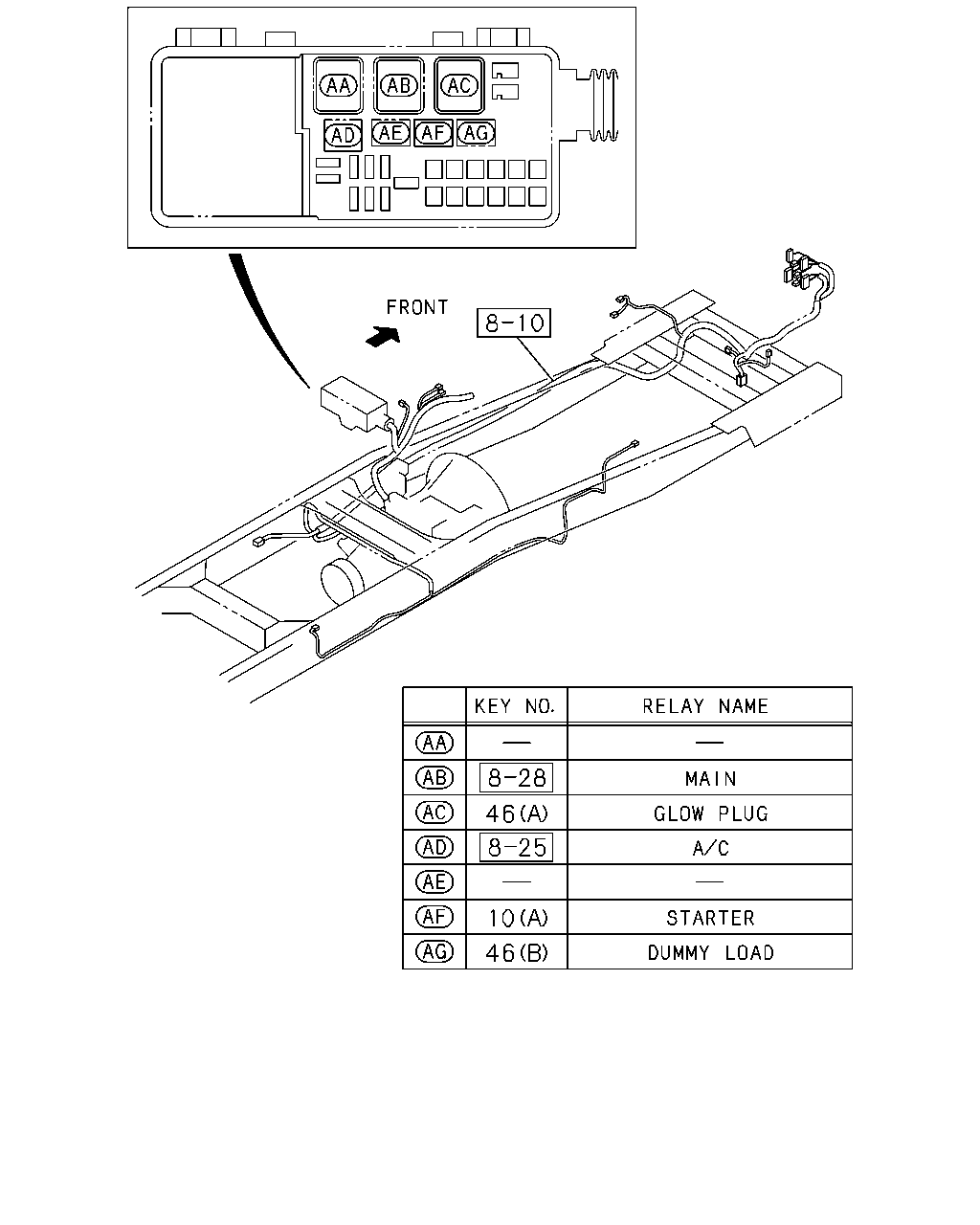

çizim 193304
46 10 46
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0712-1005 ● ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1006- ● ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 0712- ● ●
46 RELAY; GLOW PLUG
LAMPS EXP PACKAGE<WL5> (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1003- ●
46 RELAY; GLOW PLUG
(A) 24V 50A 		8-97173-947-0 01 1 0712-1311 ● ●
46 RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> (A) 24V 50A 		8-97173-947-0 01 1 1312- ●
46 RELAY; GLOW PLUG
(A) 24V 50A 		8-97173-947-0 01 1 1312- ●
