0-57 — EMISSION PIPING (#66657) — 75 parça

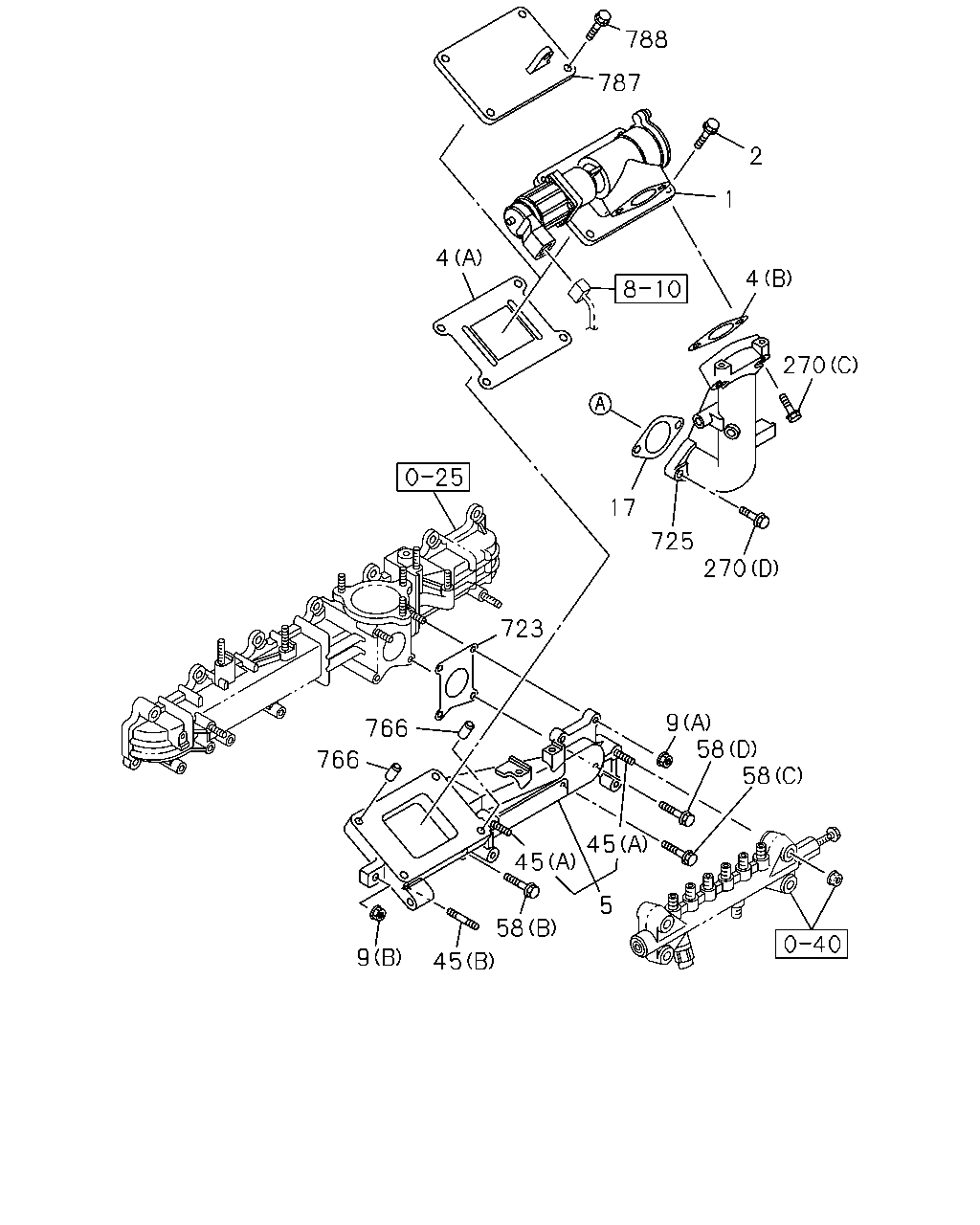

çizim 65106
788 787 2 1 4 4 270 17 725 270 723 9 58 58 766 766 45 45 5 58 9 45
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; EGR 8-97383-005-4 01 1 0712-0811
1 VALVE; EGR
EURO4 SPECIFICATION<NT4> 		8-97383-005-9 01 1 0812-
2 BOLT; EGR VLV
M10X35 FLANGE 		0-28751-035-0 04 1 0712-0811
2 BOLT; EGR VLV
EURO4 SPECIFICATION<NT4> M10X35 FLANGE 		0-28751-035-0 04 1 0812-
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=47 		8-97603-282-0 01 1 0712-0811
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=47 		8-97603-282-0 01 1 0812-
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97608-423-0 01 1 0712-
5 ADAPTER ASM 8-97606-201-3 01 1 0712-1305
5 ADAPTER ASM 8-98240-157-0 01 1 1306-
9 NUT; EGR ADAPTER
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-
9 NUT; EGR ADAPTER
(B) M10 FLANGE 		0-91180-110-0 02 1 0712-
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.5 		8-97601-144-0 02 1 0712-0811
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> ID=44.5 		8-97601-144-0 02 1 0812-
45 STUD; ADAPTER,EGR
(B) M10X30 L=45 		0-44011-030-0 01 1 0712-
45 STUD; ADAPTER,EGR
(A) M10X50 L=65 		0-44011-050-0 02 1 0712-
58 BOLT; PIPE
(A) M8X60 FLANGE 		0-28050-860-0 02 1 0712-0811
58 BOLT; PIPE
EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE 		0-28050-860-0 02 1 0812-
58 BOLT; PIPE
(B) M10X30 FLANGE 		0-28151-030-0 04 1 0712-0808
58 BOLT; PIPE
(B) M10X30 FLANGE 		0-28151-030-0 01 1 0809-
58 BOLT; PIPE
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0712-
58 BOLT; PIPE
(E) M10X35 FLANGE 		0-28751-035-0 03 1 0712-0811
58 BOLT; PIPE
EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE 		0-28751-035-0 03 1 0812-
58 BOLT; PIPE
(D) M8X30 FLANGE 		8-98034-764-0 01 1 0712-
270 BOLT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 0712-0811
270 BOLT
EURO4 SPECIFICATION<NT4> (D) M8X25 FLANGE 		0-28050-825-0 02 1 0812-
270 BOLT
(B) M8X35 FLANGE 		0-28050-835-0 02 1 0712-0811
270 BOLT
EURO4 SPECIFICATION<NT4> (B) M8X35 FLANGE 		0-28050-835-0 02 1 0812-
270 BOLT
(C) M10X45 FLANGE 		0-28151-045-0 02 1 0712-0811
270 BOLT
EURO4 SPECIFICATION<NT4> (C) M10X45 FLANGE 		0-28151-045-0 02 1 0812-
270 BOLT
(A) M8X28 FLANGE 		8-98043-528-0 03 1 0712-0811
270 BOLT
EURO4 SPECIFICATION<NT4> (A) M8X28 FLANGE 		8-98043-528-0 03 1 0812-
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=52 		8-97605-995-0 01 1 0712-
725 DUCT; EGR VLV 8-97604-972-2 01 1 0712-0811
725 DUCT; EGR VLV
EURO4 SPECIFICATION<NT4> 		8-97604-972-2 01 1 0812-1305
725 DUCT; EGR VLV
EURO4 SPECIFICATION<NT4> 		8-98240-120-0 01 1 1306-
766 DOWEL; EGR VLV
OD=14 L=10 		9-11319-065-3 02 1 0712-0811
766 DOWEL; EGR VLV
EURO4 SPECIFICATION<NT4> OD=14 L=10 		9-11319-065-3 02 1 0812-
787 COVER; DUCT,EGR VLV
EURO2 SPECIFICATION<NT2> 		8-98058-709-0 01 1 0812-1402
787 COVER; DUCT,EGR VLV
EURO2 SPECIFICATION<NT2> 		8-98238-416-0 01 1 1403-
788 BOLT; COVER
EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28751-035-0 04 1 0812-1402
788 BOLT; COVER
EURO2 SPECIFICATION<NT2> M10X25 FLANGE 		0-28751-025-0 04 1 1403-

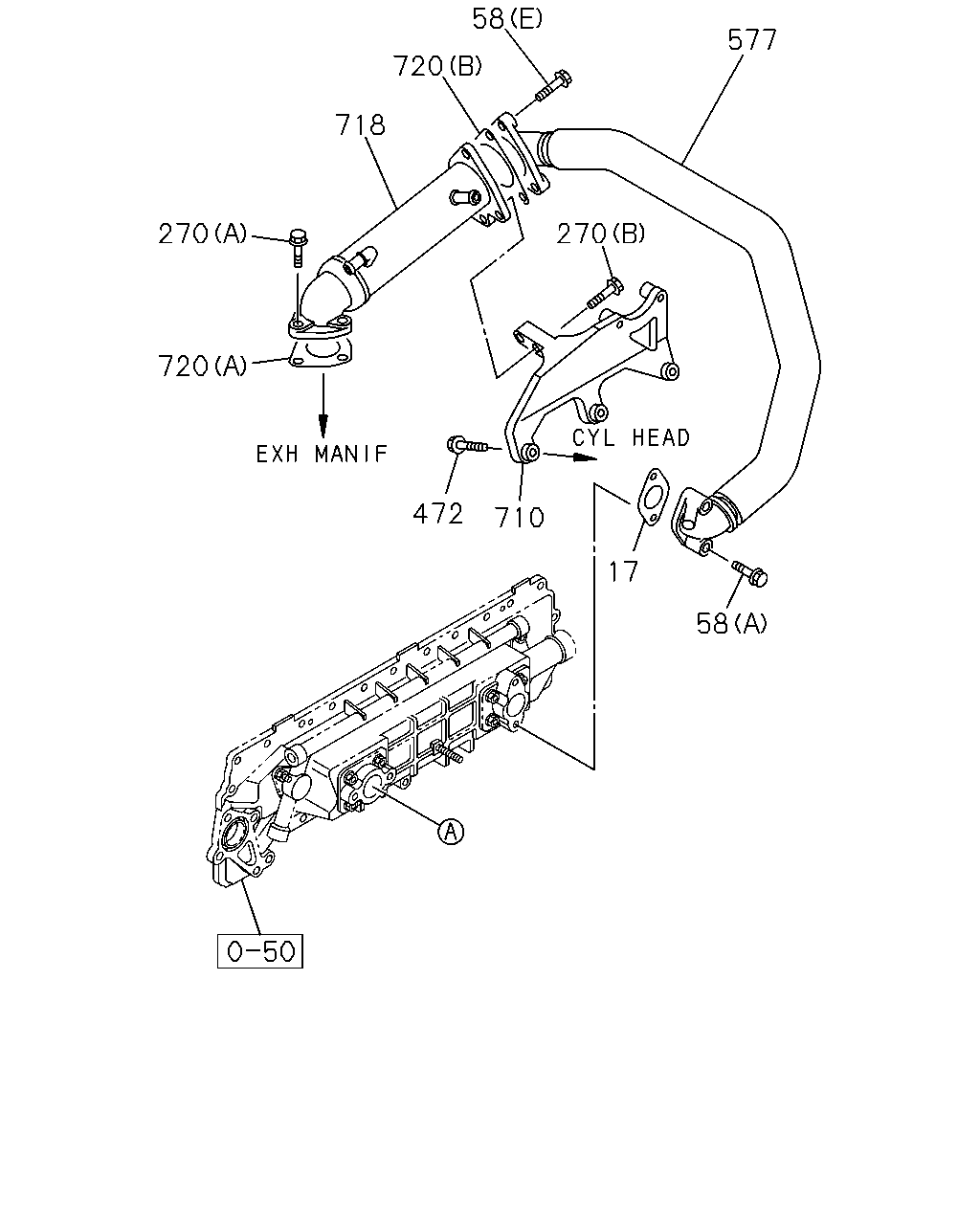

çizim 193303
58 577 720 718 270 270 720 472 710 17 58
BalonParca AdiParca NoAdetTipApplied Date
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.5 		8-97601-144-0 02 1 0712-0811
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> ID=44.5 		8-97601-144-0 02 1 0812-
58 BOLT; PIPE
(A) M8X60 FLANGE 		0-28050-860-0 02 1 0712-0811
58 BOLT; PIPE
EURO4 SPECIFICATION<NT4> (A) M8X60 FLANGE 		0-28050-860-0 02 1 0812-
58 BOLT; PIPE
(B) M10X30 FLANGE 		0-28151-030-0 04 1 0712-0808
58 BOLT; PIPE
(B) M10X30 FLANGE 		0-28151-030-0 01 1 0809-
58 BOLT; PIPE
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0712-
58 BOLT; PIPE
(E) M10X35 FLANGE 		0-28751-035-0 03 1 0712-0811
58 BOLT; PIPE
EURO4 SPECIFICATION<NT4> (E) M10X35 FLANGE 		0-28751-035-0 03 1 0812-
58 BOLT; PIPE
(D) M8X30 FLANGE 		8-98034-764-0 01 1 0712-
270 BOLT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 0712-0811
270 BOLT
EURO4 SPECIFICATION<NT4> (D) M8X25 FLANGE 		0-28050-825-0 02 1 0812-
270 BOLT
(B) M8X35 FLANGE 		0-28050-835-0 02 1 0712-0811
270 BOLT
EURO4 SPECIFICATION<NT4> (B) M8X35 FLANGE 		0-28050-835-0 02 1 0812-
270 BOLT
(C) M10X45 FLANGE 		0-28151-045-0 02 1 0712-0811
270 BOLT
EURO4 SPECIFICATION<NT4> (C) M10X45 FLANGE 		0-28151-045-0 02 1 0812-
270 BOLT
(A) M8X28 FLANGE 		8-98043-528-0 03 1 0712-0811
270 BOLT
EURO4 SPECIFICATION<NT4> (A) M8X28 FLANGE 		8-98043-528-0 03 1 0812-
472 BOLT; BRKT
M8X35 FLANGE 		0-28060-835-0 03 1 0712-0811
472 BOLT; BRKT
EURO4 SPECIFICATION<NT4> M8X35 FLANGE 		0-28060-835-0 03 1 0812-
577 PIPE; AIR,EGR 8-98031-049-0 01 1 0712-0811
577 PIPE; AIR,EGR
EURO4 SPECIFICATION<NT4> 		8-98031-049-0 01 1 0812-0909
577 PIPE; AIR,EGR
EURO4 SPECIFICATION<NT4> 		8-98147-787-0 01 1 0910-
710 BRACKET; EGR COOLER 8-98030-581-0 01 1 0712-0810
710 BRACKET; EGR COOLER 8-98125-359-0 01 1 0811-0811
710 BRACKET; EGR COOLER
EURO4 SPECIFICATION<NT4> 		8-98125-359-0 01 1 0812-1202
710 BRACKET; EGR COOLER
EURO4 SPECIFICATION<NT4> 		8-98186-437-0 01 1 1203-
718 COOLER; EGR 8-98030-582-3 01 1 0712-0811
718 COOLER; EGR
EURO4 SPECIFICATION<NT4> 		8-98030-582-3 01 1 0812-1401
718 COOLER; EGR
EURO4 SPECIFICATION<NT4> 		8-98250-860-0 01 1 1402-
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=80 		8-97603-889-0 01 1 0712-0811
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B) ID=80 		8-97603-889-0 01 1 0812-
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=51.5 		8-98046-192-1 01 1 0712-0811
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=51.5 		8-98046-192-1 01 1 0812-
