Sayfa 0-38 - Isuzu EPC

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#66650) — 187 parça

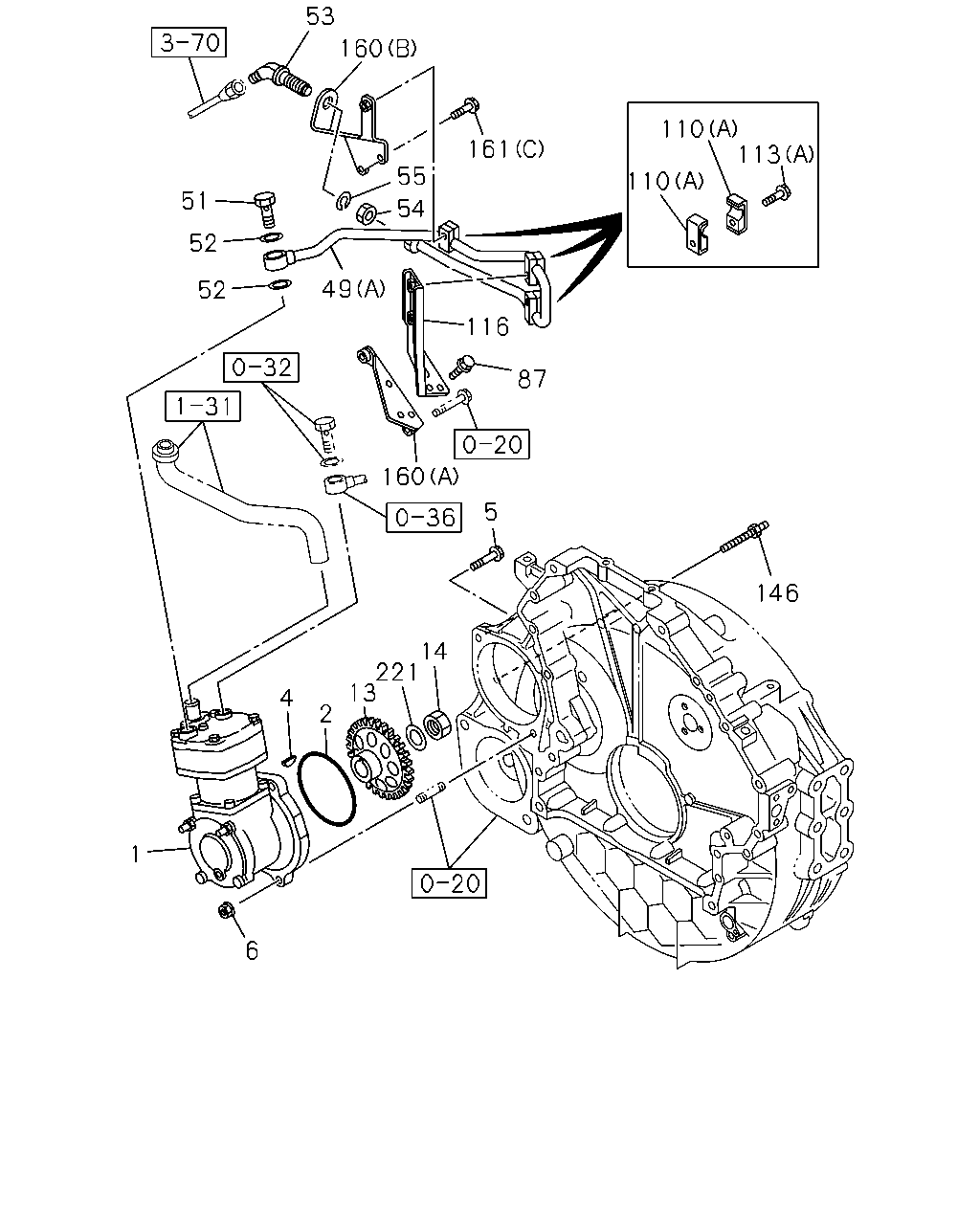

53 160 110 113 161 55 110 51 54 52 49 52 116 87 160 5 146 14 221 13 4 2 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-97619-244-2	01	1	0812-1107
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1108-
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98055-879-0	01	1	0712-0811
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO4 SPECIFICATION<NT4>	8-98055-879-2	01	1	0812-1107
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO4 SPECIFICATION<NT4>	8-98187-303-0	01	1	1108-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0712-
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0712-
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	0712-
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0712-
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0712-
14	NUT; GEAR M20	0-91110-520-0	01	1	0712-
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> (C)	8-97618-722-0	01	1	0812-
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98052-016-0	01	1	0712-0811
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98052-016-0	01	1	0812-
49	PIPE; AIR,CHARGE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98042-002-0	01	1	0712-0811
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98042-002-0	01	1	0812-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0712-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0712-
53	UNION; CHARGE PIPE POWER TAKE OFF-FLYWHEEL(6SZ)	8-98008-887-2	01	1	0712-0811
53	UNION; CHARGE PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ)	8-98008-887-2	01	1	0812-
53	UNION; CHARGE PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0712-0811
53	UNION; CHARGE PIPE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0812-
54	NUT; PIPE UNION POWER TAKE OFF-FLYWHEEL(6SZ) M26	8-98049-390-0	01	1	0712-0811
54	NUT; PIPE UNION EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) M26	8-98049-390-0	01	1	0812-
54	NUT; PIPE UNION EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M22	0-91111-522-0	01	1	0712-0811
54	NUT; PIPE UNION EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M22	0-91111-522-0	01	1	0812-
55	WASHER; LK,PIPE UNION POWER TAKE OFF-FLYWHEEL(6SZ) ID=27.5	0-91510-527-0	01	1	0712-0811
55	WASHER; LK,PIPE UNION EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) ID=27.5	0-91510-527-0	01	1	0812-
55	WASHER; LK,PIPE UNION EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=22.5	0-91510-522-0	01	1	0712-0811
55	WASHER; LK,PIPE UNION EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=22.5	0-91510-522-0	01	1	0812-
87	BOLT; BRKT FIX EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X20 FLANGE	0-28050-820-0	03	1	0712-0811
87	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X20 FLANGE	0-28050-820-0	03	1	0812-
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-94393-037-0	01	1	0812-
110	CLIP; AIR PIPE (A) ID=17 L=17	1-09701-284-0	06	1	0712-0811
110	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (A) ID=17 L=17	1-09701-284-0	06	1	0812-
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (B) M6X40 FLANGE	0-28050-640-0	01	1	0812-
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (C) M6X40 FLANGE	0-28650-640-0	01	1	0812-
113	BOLT; CLIP,AIR PIPE (A) M8X45 FLANGE	0-28050-845-0	03	1	0712-0811
113	BOLT; CLIP,AIR PIPE EURO4 SPECIFICATION<NT4> (A) M8X45 FLANGE	0-28050-845-0	03	1	0812-
116	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-97614-183-1	01	1	0712-0811
116	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-97614-183-1	01	1	0812-
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	0712-
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97614-182-2	01	1	0812-
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (A)	8-97614-182-2	01	1	0812-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D)	8-98047-336-2	01	1	0712-0811
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (D)	8-98047-336-2	01	1	0812-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (E)	8-98052-613-1	01	1	0712-0811
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (E)	8-98052-613-1	01	1	0812-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98052-614-0	01	1	0712-0811
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98052-614-0	01	1	0812-
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97614-182-2	01	1	0712-0811
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (F)	8-98074-255-0	01	1	0812-
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98042-844-1	01	1	0712-0811
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98042-844-1	01	1	0812-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) M10X30 FLANGE	0-28151-030-0	02	1	0712-0811
161	BOLT; BRKT,AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A) M10X30 FLANGE	0-28151-030-0	02	1	0812-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X185	8-94393-483-0	01	1	0712-0811
161	BOLT; BRKT,AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X185	8-94393-483-0	01	1	0812-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X128	8-94399-252-0	01	1	0712-0811
161	BOLT; BRKT,AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X128	8-94399-252-0	01	1	0812-
161	BOLT; BRKT,AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE	0-28050-816-0	02	1	0712-0811
161	BOLT; BRKT,AIR PIPE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE	0-28050-816-0	02	1	0812-
161	BOLT; BRKT,AIR PIPE EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	02	1	0812-
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0712-

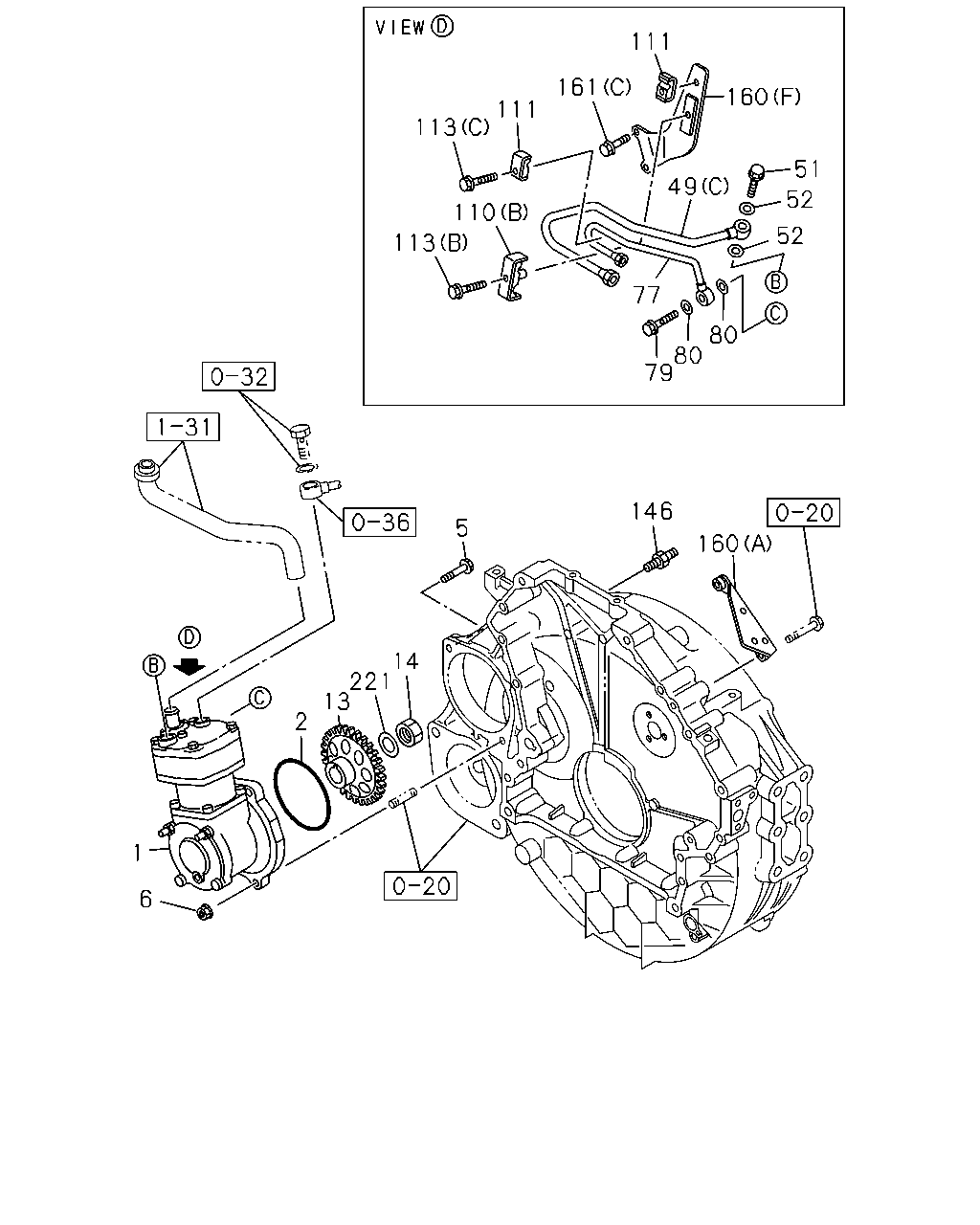

111 161 160 111 113 51 49 52 110 52 113 77 80 80 79 146 5 160 14 221 13 2 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-97619-244-2	01	1	0812-1107
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1108-
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98055-879-0	01	1	0712-0811
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO4 SPECIFICATION<NT4>	8-98055-879-2	01	1	0812-1107
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO4 SPECIFICATION<NT4>	8-98187-303-0	01	1	1108-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0712-
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	0712-
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0712-
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0712-
14	NUT; GEAR M20	0-91110-520-0	01	1	0712-
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> (C)	8-97618-722-0	01	1	0812-
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98052-016-0	01	1	0712-0811
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98052-016-0	01	1	0812-
49	PIPE; AIR,CHARGE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98042-002-0	01	1	0712-0811
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98042-002-0	01	1	0812-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0712-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0712-
77	PIPE; AIR,GOV EURO2 SPECIFICATION<NT2>	8-97618-724-0	01	1	0812-
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<NT2> M10X23	8-98037-824-0	01	1	0812-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ID=10.2 OD=15.2	1-09630-083-0	02	1	0812-
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-94393-037-0	01	1	0812-
110	CLIP; AIR PIPE (A) ID=17 L=17	1-09701-284-0	06	1	0712-0811
110	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (A) ID=17 L=17	1-09701-284-0	06	1	0812-
111	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> ID=5.5 L=10.5	8-98029-953-1	02	1	0812-
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (B) M6X40 FLANGE	0-28050-640-0	01	1	0812-
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (C) M6X40 FLANGE	0-28650-640-0	01	1	0812-
113	BOLT; CLIP,AIR PIPE (A) M8X45 FLANGE	0-28050-845-0	03	1	0712-0811
113	BOLT; CLIP,AIR PIPE EURO4 SPECIFICATION<NT4> (A) M8X45 FLANGE	0-28050-845-0	03	1	0812-
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	0712-
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97614-182-2	01	1	0812-
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (A)	8-97614-182-2	01	1	0812-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D)	8-98047-336-2	01	1	0712-0811
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (D)	8-98047-336-2	01	1	0812-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (E)	8-98052-613-1	01	1	0712-0811
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (E)	8-98052-613-1	01	1	0812-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98052-614-0	01	1	0712-0811
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98052-614-0	01	1	0812-
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97614-182-2	01	1	0712-0811
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (F)	8-98074-255-0	01	1	0812-
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98042-844-1	01	1	0712-0811
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98042-844-1	01	1	0812-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) M10X30 FLANGE	0-28151-030-0	02	1	0712-0811
161	BOLT; BRKT,AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A) M10X30 FLANGE	0-28151-030-0	02	1	0812-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X185	8-94393-483-0	01	1	0712-0811
161	BOLT; BRKT,AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X185	8-94393-483-0	01	1	0812-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X128	8-94399-252-0	01	1	0712-0811
161	BOLT; BRKT,AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X128	8-94399-252-0	01	1	0812-
161	BOLT; BRKT,AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE	0-28050-816-0	02	1	0712-0811
161	BOLT; BRKT,AIR PIPE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE	0-28050-816-0	02	1	0812-
161	BOLT; BRKT,AIR PIPE EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	02	1	0812-
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0712-

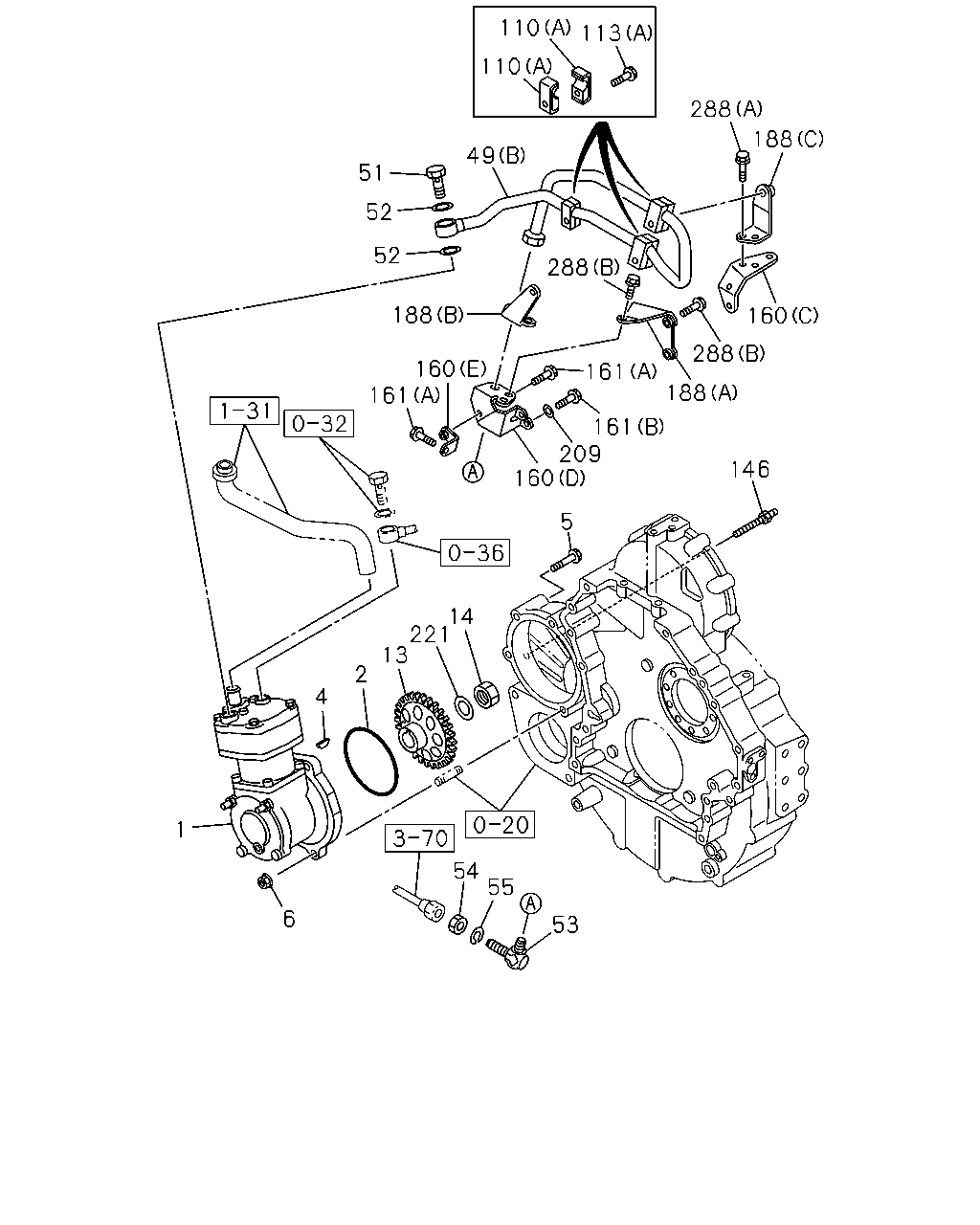

110 113 110 288 188 49 51 52 52 288 188 160 288 160 161 161 188 161 209 160 146 5 14 221 13 2 4 1 54 55 6 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-97619-244-2	01	1	0812-1107
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1108-
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98055-879-0	01	1	0712-0811
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO4 SPECIFICATION<NT4>	8-98055-879-2	01	1	0812-1107
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO4 SPECIFICATION<NT4>	8-98187-303-0	01	1	1108-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0712-
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0712-
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	0712-
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0712-
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0712-
14	NUT; GEAR M20	0-91110-520-0	01	1	0712-
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> (C)	8-97618-722-0	01	1	0812-
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98052-016-0	01	1	0712-0811
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98052-016-0	01	1	0812-
49	PIPE; AIR,CHARGE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98042-002-0	01	1	0712-0811
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98042-002-0	01	1	0812-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0712-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0712-
53	UNION; CHARGE PIPE POWER TAKE OFF-FLYWHEEL(6SZ)	8-98008-887-2	01	1	0712-0811
53	UNION; CHARGE PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ)	8-98008-887-2	01	1	0812-
53	UNION; CHARGE PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0712-0811
53	UNION; CHARGE PIPE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0812-
54	NUT; PIPE UNION POWER TAKE OFF-FLYWHEEL(6SZ) M26	8-98049-390-0	01	1	0712-0811
54	NUT; PIPE UNION EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) M26	8-98049-390-0	01	1	0812-
54	NUT; PIPE UNION EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M22	0-91111-522-0	01	1	0712-0811
54	NUT; PIPE UNION EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M22	0-91111-522-0	01	1	0812-
55	WASHER; LK,PIPE UNION POWER TAKE OFF-FLYWHEEL(6SZ) ID=27.5	0-91510-527-0	01	1	0712-0811
55	WASHER; LK,PIPE UNION EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) ID=27.5	0-91510-527-0	01	1	0812-
55	WASHER; LK,PIPE UNION EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=22.5	0-91510-522-0	01	1	0712-0811
55	WASHER; LK,PIPE UNION EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=22.5	0-91510-522-0	01	1	0812-
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-94393-037-0	01	1	0812-
110	CLIP; AIR PIPE (A) ID=17 L=17	1-09701-284-0	06	1	0712-0811
110	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> (A) ID=17 L=17	1-09701-284-0	06	1	0812-
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (B) M6X40 FLANGE	0-28050-640-0	01	1	0812-
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (C) M6X40 FLANGE	0-28650-640-0	01	1	0812-
113	BOLT; CLIP,AIR PIPE (A) M8X45 FLANGE	0-28050-845-0	03	1	0712-0811
113	BOLT; CLIP,AIR PIPE EURO4 SPECIFICATION<NT4> (A) M8X45 FLANGE	0-28050-845-0	03	1	0812-
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	0712-
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97614-182-2	01	1	0812-
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (A)	8-97614-182-2	01	1	0812-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D)	8-98047-336-2	01	1	0712-0811
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (D)	8-98047-336-2	01	1	0812-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (E)	8-98052-613-1	01	1	0712-0811
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (E)	8-98052-613-1	01	1	0812-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98052-614-0	01	1	0712-0811
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98052-614-0	01	1	0812-
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97614-182-2	01	1	0712-0811
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (F)	8-98074-255-0	01	1	0812-
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98042-844-1	01	1	0712-0811
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98042-844-1	01	1	0812-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) M10X30 FLANGE	0-28151-030-0	02	1	0712-0811
161	BOLT; BRKT,AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A) M10X30 FLANGE	0-28151-030-0	02	1	0812-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X185	8-94393-483-0	01	1	0712-0811
161	BOLT; BRKT,AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X185	8-94393-483-0	01	1	0812-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X128	8-94399-252-0	01	1	0712-0811
161	BOLT; BRKT,AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X128	8-94399-252-0	01	1	0812-
161	BOLT; BRKT,AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE	0-28050-816-0	02	1	0712-0811
161	BOLT; BRKT,AIR PIPE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE	0-28050-816-0	02	1	0812-
161	BOLT; BRKT,AIR PIPE EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	02	1	0812-
188	STAY; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98052-615-1	01	1	0712-0811
188	STAY; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98052-615-1	01	1	0812-
188	STAY; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98053-882-0	01	1	0712-0811
188	STAY; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98053-882-0	01	1	0812-
188	STAY; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98053-883-0	01	1	0712-0811
188	STAY; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98053-883-0	01	1	0812-
209	WASHER; PL POWER TAKE OFF-FLYWHEEL(6SZ) ID=12.5 OD=22	8-94393-140-1	02	1	0712-0811
209	WASHER; PL EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) ID=12.5 OD=22	8-94393-140-1	02	1	0812-
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0712-
288	BOLT; STAY FIX POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE	0-28050-820-0	03	1	0712-0811
288	BOLT; STAY FIX EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE	0-28050-820-0	03	1	0812-
288	BOLT; STAY FIX POWER TAKE OFF-FLYWHEEL(6SZ) (B) M10X45 FLANGE	0-28151-045-0	02	1	0712-0811
288	BOLT; STAY FIX EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B) M10X45 FLANGE	0-28151-045-0	02	1	0812-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
