Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#66648) — 192 parça

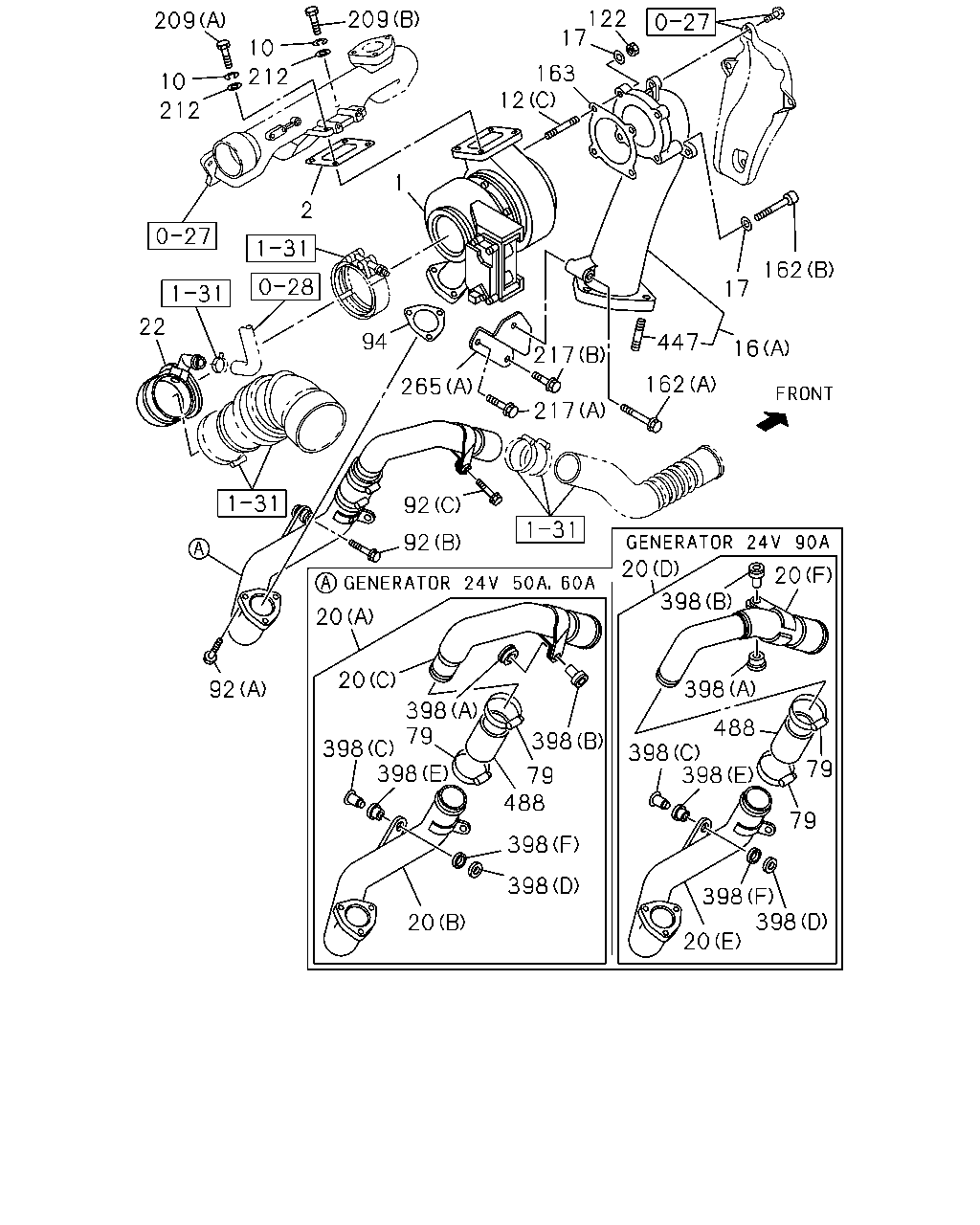

209 10 10 212 212 209 2 1 12 163 17 122 22 94 265 217 447 17 162 16 162 217 92 92 92 20 20 398 488 398 398 79 79 398 20 398 398 20 398 398 488 79 398 398 79 398 398 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	0812-
1	TURBOCHARGER ASM	8-97604-975-5	01	1	0712-0811
1	TURBOCHARGER ASM EURO4 SPECIFICATION<NT4>	8-97604-975-9	01	1	0812-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>	8-94390-044-0	01	1	0812-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97024-124-0	01	1	0712-0811
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>	8-97024-124-0	01	1	0812-
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<NT2> T=2.2	1-09556-015-0	02	1	0812-
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	04	1	0712-0811
10	WASHER; LK,TURBOCHARGER EURO4 SPECIFICATION<NT4> T=2.2	1-09556-015-0	04	1	0812-
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (A) M8X25	9-04130-825-0	01	1	0812-
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (B) M10X80	9-04731-080-0	02	1	0812-
12	STUD; TURBOCHARGER (C) M8X25 L=36	8-94476-282-0	02	1	0712-0811
12	STUD; TURBOCHARGER EURO4 SPECIFICATION<NT4> (C) M8X25 L=36	8-94476-282-0	02	1	0812-
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-98069-083-0	01	1	0812-
16	ADAPTER; EXH PIPE (A)	8-98018-241-1	01	1	0712-0811
16	ADAPTER; EXH PIPE EURO4 SPECIFICATION<NT4> (A)	8-98018-241-1	01	1	0812-
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<NT2> T=1.9	5-09500-012-0	06	1	0812-
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	04	1	0712-0811
17	WASHER; PL,ADAPTER EURO4 SPECIFICATION<NT4> T=1.9	5-09500-012-0	04	1	0812-
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (G)	8-97606-675-1	01	1	0812-
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (H)	8-97618-726-2	01	1	0812-1408
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (H)	8-98251-577-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (I)	8-97618-734-0	01	1	0812-
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (D)	8-97617-214-2	01	1	0712-1002
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) EURO4 SPECIFICATION<NT4> (D)	8-97617-214-2	01	1	1003-1408
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (D)	8-98251-580-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (E)	8-97617-215-0	01	1	0712-
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (F)	8-97617-216-0	01	1	0712-
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)	8-98046-167-3	01	1	0712-0811
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (A)	8-98046-167-4	01	1	0812-1408
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (A)	8-98251-581-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-98046-168-1	01	1	0712-0811
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (B)	8-98046-168-1	01	1	0812-
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C)	8-98046-169-1	01	1	0712-0811
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (C)	8-98046-169-2	01	1	0812-
22	DUCT; INL,ACL TO TURBOCHARGER	8-98036-164-0	01	1	0712-0811
22	DUCT; INL,ACL TO TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-98036-164-1	01	1	0812-
79	CLIP; RUBBER HOSE ID=58-76	1-09707-203-0	02	1	0712-0811
79	CLIP; RUBBER HOSE ID=55-75	8-98133-349-0	02	1	0812-0902
79	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	02	1	0903-
79	CLIP; RUBBER HOSE ID=55-75	8-98133-349-0	02	1	0811-0811
92	BOLT; INL PIPE (A) M8X30 FLANGE	0-28650-830-0	03	1	0712-0811
92	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	03	1	0812-
92	BOLT; INL PIPE (B) M8X35 FLANGE	0-28650-835-0	01	1	0712-
92	BOLT; INL PIPE (C) M8X40 FLANGE	0-28650-840-0	01	1	0712-
94	GASKET; INL PIPE	8-98053-830-0	01	1	0712-0811
94	GASKET; INL PIPE EURO4 SPECIFICATION<NT4>	8-98053-830-0	01	1	0812-
122	NUT; ADAPTER EURO2 SPECIFICATION<NT2> M8	1-09400-118-1	01	1	0812-
122	NUT; ADAPTER M8	1-09400-118-1	02	1	0712-0811
122	NUT; ADAPTER EURO4 SPECIFICATION<NT4> M8	1-09400-118-1	02	1	0812-
162	BOLT; ADAPTER EURO2 SPECIFICATION<NT2> (C) M8X57	5-09000-275-0	05	1	0812-
162	BOLT; ADAPTER (A) M10X60 FLANGE	0-28051-060-0	01	1	0712-0811
162	BOLT; ADAPTER EURO4 SPECIFICATION<NT4> (A) M10X60 FLANGE	0-28051-060-0	01	1	0812-
162	BOLT; ADAPTER (B) M8X60	1-09000-464-0	02	1	0712-0811
162	BOLT; ADAPTER EURO4 SPECIFICATION<NT4> (B) M8X60	1-09000-464-0	02	1	0812-0910
162	BOLT; ADAPTER EURO4 SPECIFICATION<NT4> (B) M8X60	8-98158-604-0	02	1	0911-
163	GASKET; ADAPTER TO EXH PIPE	8-94392-553-0	01	1	0712-0811
163	GASKET; ADAPTER TO EXH PIPE EURO4 SPECIFICATION<NT4>	8-94392-553-2	01	1	0812-
209	BOLT; BRACE,TURBOCHARGER (B) M10X80	8-98049-825-0	02	1	0712-0811
209	BOLT; BRACE,TURBOCHARGER EURO4 SPECIFICATION<NT4> (B) M10X80	8-98049-825-0	02	1	0812-
209	BOLT; BRACE,TURBOCHARGER (A) M10X40	9-09604-007-0	02	1	0712-0811
209	BOLT; BRACE,TURBOCHARGER EURO4 SPECIFICATION<NT4> (A) M10X40	9-09604-007-1	02	1	0812-
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0712-
217	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M12X30	8-94394-324-0	03	1	0812-
217	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0811
217	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	01	1	0812-
217	BOLT; BRKT (B) M10X25 FLANGE	0-28751-025-0	01	1	0712-0811
217	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE	0-28751-025-0	01	1	0812-
265	BRACKET; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-94395-764-2	01	1	0812-
265	BRACKET; EXH PIPE (A)	8-97609-517-1	01	1	0712-0811
265	BRACKET; EXH PIPE EURO4 SPECIFICATION<NT4> (A)	8-97609-517-1	01	1	0812-0906
265	BRACKET; EXH PIPE EURO4 SPECIFICATION<NT4> (A)	8-98260-415-0	01	1	0907-
398	MOUNTING (F) ID=19 OD=26	8-94160-177-0	01	1	0712-
398	MOUNTING (C) OD=28	8-94390-551-1	01	1	0712-
398	MOUNTING (D) ID=13 OD=28	8-94394-504-0	01	1	0712-
398	MOUNTING (E) OD=26	8-94394-529-0	01	1	0712-
398	MOUNTING (A) OD=32	8-94395-766-0	01	1	0712-
398	MOUNTING (B) OD=23	8-97105-689-6	01	1	0712-
447	STUD; ADAPTER M12X30 L=48	0-44011-230-0	03	1	0712-0811
447	STUD; ADAPTER EURO4 SPECIFICATION<NT4> M12X30 L=48	0-44011-230-0	03	1	0812-
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	1-09360-797-1	01	1	0812-1408
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	8-98245-240-0	01	1	1409-
488	HOSE; RUBBER	8-98046-356-0	01	1	0712-0811
488	HOSE; RUBBER EURO4 SPECIFICATION<NT4>	8-98046-356-0	01	1	0812-1408
488	HOSE; RUBBER EURO4 SPECIFICATION<NT4> ID=52.5 L=70	8-98245-242-0	01	1	1409-

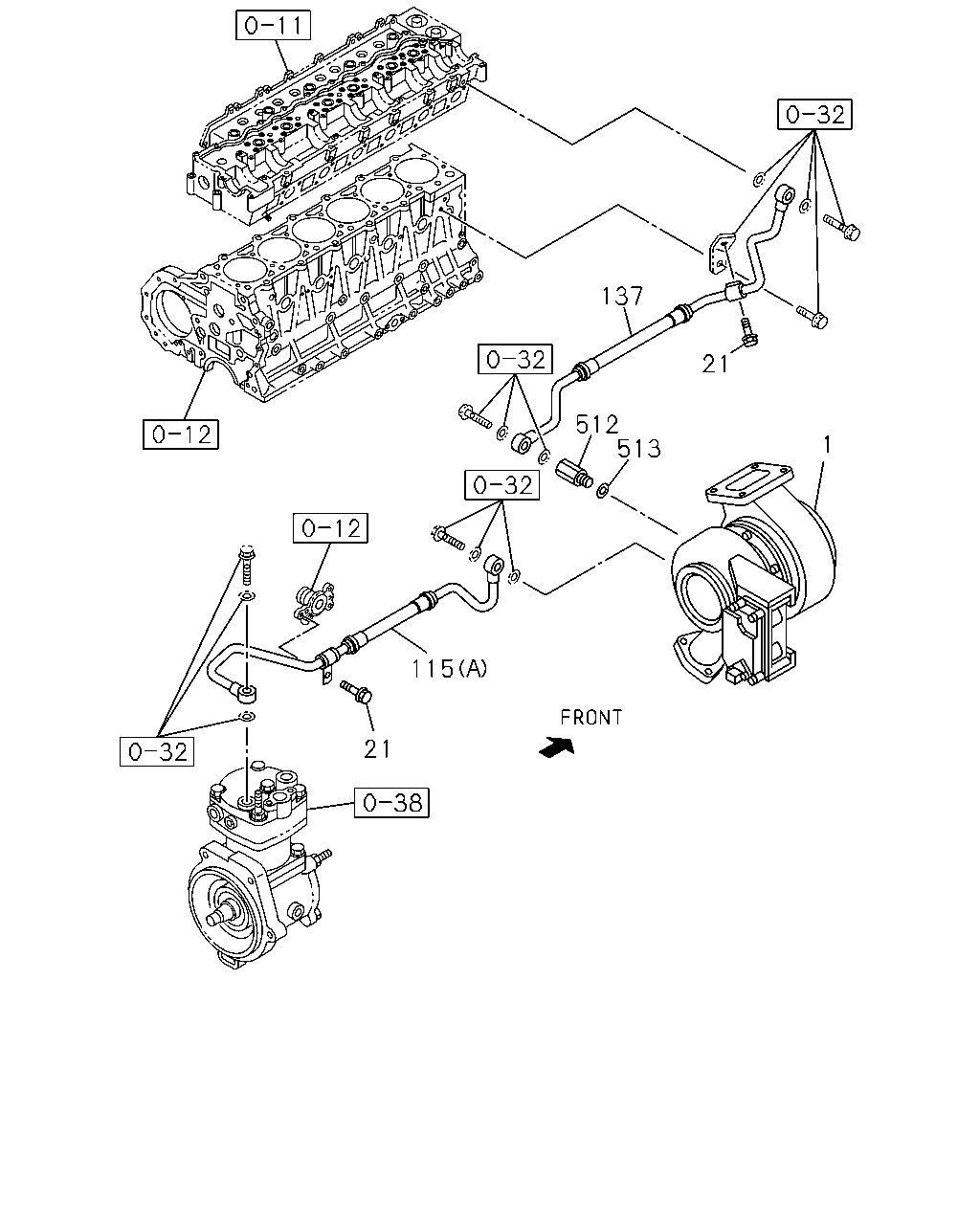

137 21 512 513 1 115 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	0812-
1	TURBOCHARGER ASM	8-97604-975-5	01	1	0712-0811
1	TURBOCHARGER ASM EURO4 SPECIFICATION<NT4>	8-97604-975-9	01	1	0812-
21	BOLT; PIPE M8X16 FLANGE	0-28050-816-0	02	1	0712-0811
21	BOLT; PIPE EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	02	1	0812-
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (B)	8-94392-950-0	01	1	0812-
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (C)	8-94395-454-4	01	1	0812-
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (D)	8-97618-808-0	01	1	0812-
115	PIPE; WATER,TURBOCHARGER OUT (A)	8-97615-877-0	01	1	0712-0811
115	PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION<NT4> (A)	8-97615-877-0	01	1	0812-
137	PIPE; WATER,TURBOCHARGER IN	8-98046-783-0	01	1	0712-0811
137	PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION<NT4>	8-98046-783-0	01	1	0812-
512	CONNECTOR; TURBO	8-98031-856-0	01	1	0712-0811
512	CONNECTOR; TURBO EURO4 SPECIFICATION<NT4>	8-98031-856-0	01	1	0812-
513	GASKET; CONNECTOR ID=14.2 OD=19.2	1-09630-085-0	01	1	0712-0811
513	GASKET; CONNECTOR EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2	1-09630-085-0	01	1	0812-1312
513	GASKET; CONNECTOR EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-

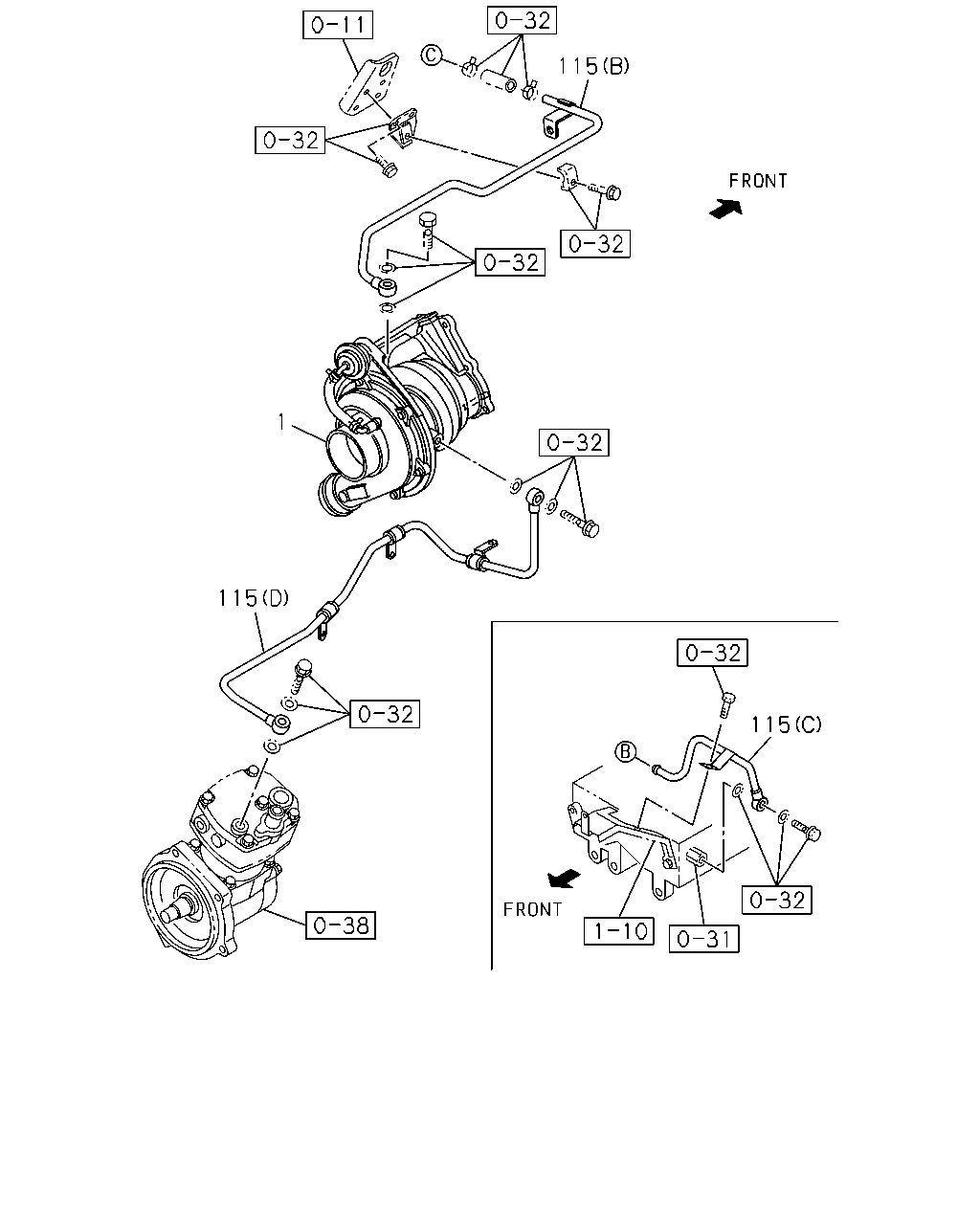

115 1 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	0812-
1	TURBOCHARGER ASM	8-97604-975-5	01	1	0712-0811
1	TURBOCHARGER ASM EURO4 SPECIFICATION<NT4>	8-97604-975-9	01	1	0812-
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (B)	8-94392-950-0	01	1	0812-
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (C)	8-94395-454-4	01	1	0812-
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (D)	8-97618-808-0	01	1	0812-
115	PIPE; WATER,TURBOCHARGER OUT (A)	8-97615-877-0	01	1	0712-0811
115	PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION<NT4> (A)	8-97615-877-0	01	1	0812-

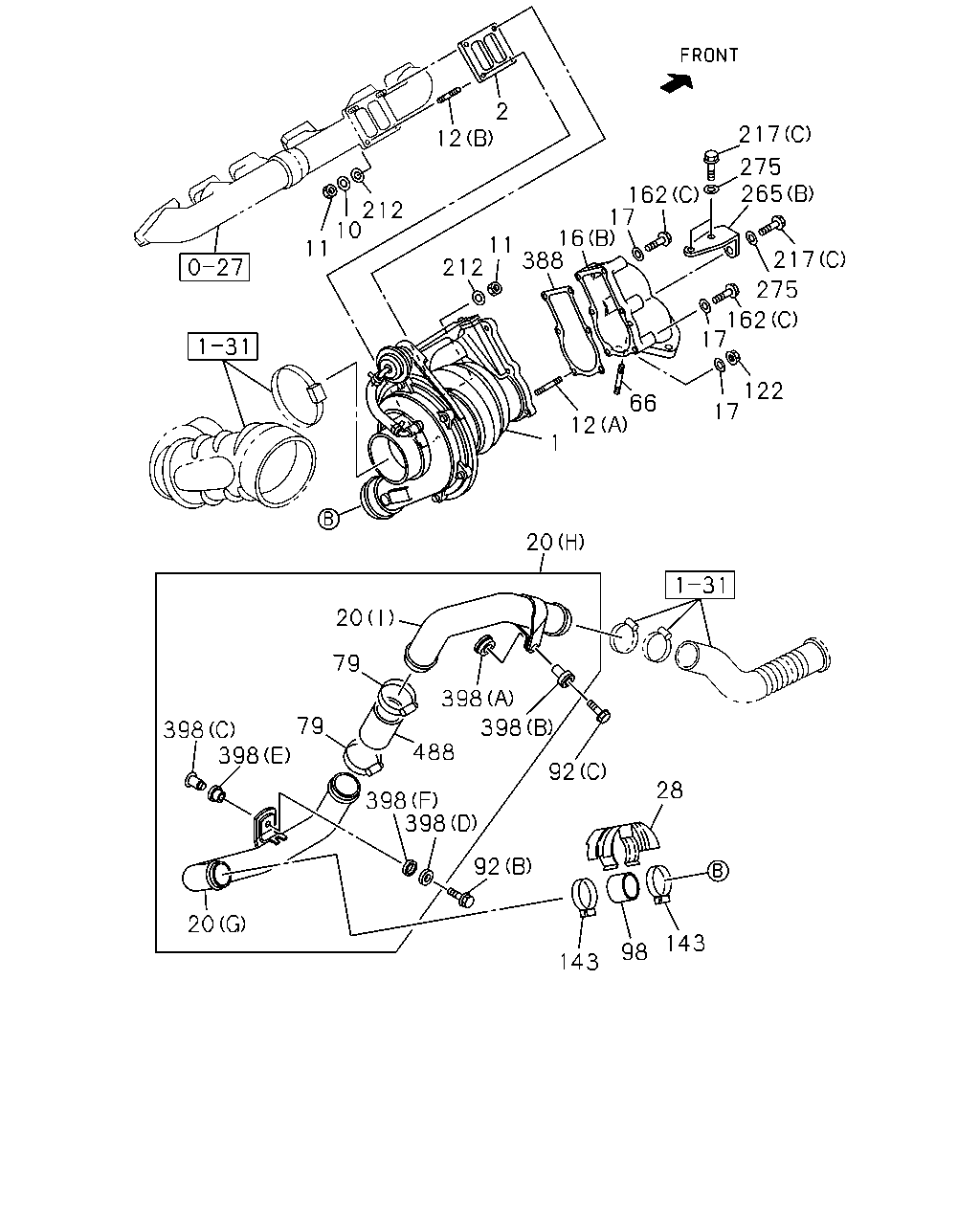

2 12 217 275 265 162 17 16 388 212 10 11 212 11 217 275 162 17 122 17 66 12 1 20 20 79 398 79 398 398 398 488 92 28 398 398 92 20 143 98 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	0812-
1	TURBOCHARGER ASM	8-97604-975-5	01	1	0712-0811
1	TURBOCHARGER ASM EURO4 SPECIFICATION<NT4>	8-97604-975-9	01	1	0812-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>	8-94390-044-0	01	1	0812-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97024-124-0	01	1	0712-0811
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>	8-97024-124-0	01	1	0812-
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<NT2> T=2.2	1-09556-015-0	02	1	0812-
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	04	1	0712-0811
10	WASHER; LK,TURBOCHARGER EURO4 SPECIFICATION<NT4> T=2.2	1-09556-015-0	04	1	0812-
11	NUT; TURBOCHARGER EURO2 SPECIFICATION<NT2> M10	1-09420-005-0	04	1	0812-
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (A) M8X25	9-04130-825-0	01	1	0812-
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (B) M10X80	9-04731-080-0	02	1	0812-
12	STUD; TURBOCHARGER (C) M8X25 L=36	8-94476-282-0	02	1	0712-0811
12	STUD; TURBOCHARGER EURO4 SPECIFICATION<NT4> (C) M8X25 L=36	8-94476-282-0	02	1	0812-
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-98069-083-0	01	1	0812-
16	ADAPTER; EXH PIPE (A)	8-98018-241-1	01	1	0712-0811
16	ADAPTER; EXH PIPE EURO4 SPECIFICATION<NT4> (A)	8-98018-241-1	01	1	0812-
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<NT2> T=1.9	5-09500-012-0	06	1	0812-
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	04	1	0712-0811
17	WASHER; PL,ADAPTER EURO4 SPECIFICATION<NT4> T=1.9	5-09500-012-0	04	1	0812-
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (G)	8-97606-675-1	01	1	0812-
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (H)	8-97618-726-2	01	1	0812-1408
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (H)	8-98251-577-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (I)	8-97618-734-0	01	1	0812-
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (D)	8-97617-214-2	01	1	0712-1002
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) EURO4 SPECIFICATION<NT4> (D)	8-97617-214-2	01	1	1003-1408
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (D)	8-98251-580-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (E)	8-97617-215-0	01	1	0712-
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (F)	8-97617-216-0	01	1	0712-
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)	8-98046-167-3	01	1	0712-0811
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (A)	8-98046-167-4	01	1	0812-1408
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (A)	8-98251-581-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-98046-168-1	01	1	0712-0811
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (B)	8-98046-168-1	01	1	0812-
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C)	8-98046-169-1	01	1	0712-0811
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (C)	8-98046-169-2	01	1	0812-
28	PROTECTOR; HEAT,HOSE,AIR DUCT EURO2 SPECIFICATION<NT2>	8-94393-182-0	01	1	0812-
66	STUD; EXH PIPE EURO2 SPECIFICATION<NT2> M12X30 L=48	8-98059-951-0	03	1	0812-
79	CLIP; RUBBER HOSE ID=58-76	1-09707-203-0	02	1	0712-0811
79	CLIP; RUBBER HOSE ID=55-75	8-98133-349-0	02	1	0812-0902
79	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	02	1	0903-
79	CLIP; RUBBER HOSE ID=55-75	8-98133-349-0	02	1	0811-0811
92	BOLT; INL PIPE (A) M8X30 FLANGE	0-28650-830-0	03	1	0712-0811
92	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	03	1	0812-
92	BOLT; INL PIPE (B) M8X35 FLANGE	0-28650-835-0	01	1	0712-
92	BOLT; INL PIPE (C) M8X40 FLANGE	0-28650-840-0	01	1	0712-
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<NT2> ID=62 L=70	1-09360-797-1	01	1	0812-1408
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<NT2> ID=62 L=70	8-98245-240-0	01	1	1409-
122	NUT; ADAPTER EURO2 SPECIFICATION<NT2> M8	1-09400-118-1	01	1	0812-
122	NUT; ADAPTER M8	1-09400-118-1	02	1	0712-0811
122	NUT; ADAPTER EURO4 SPECIFICATION<NT4> M8	1-09400-118-1	02	1	0812-
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<NT2> ID=58-76	1-09707-203-0	02	1	0812-0902
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<NT2> ID=58-79	8-94126-771-0	02	1	0903-
162	BOLT; ADAPTER EURO2 SPECIFICATION<NT2> (C) M8X57	5-09000-275-0	05	1	0812-
162	BOLT; ADAPTER (A) M10X60 FLANGE	0-28051-060-0	01	1	0712-0811
162	BOLT; ADAPTER EURO4 SPECIFICATION<NT4> (A) M10X60 FLANGE	0-28051-060-0	01	1	0812-
162	BOLT; ADAPTER (B) M8X60	1-09000-464-0	02	1	0712-0811
162	BOLT; ADAPTER EURO4 SPECIFICATION<NT4> (B) M8X60	1-09000-464-0	02	1	0812-0910
162	BOLT; ADAPTER EURO4 SPECIFICATION<NT4> (B) M8X60	8-98158-604-0	02	1	0911-
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0712-
217	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M12X30	8-94394-324-0	03	1	0812-
217	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0811
217	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	01	1	0812-
217	BOLT; BRKT (B) M10X25 FLANGE	0-28751-025-0	01	1	0712-0811
217	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE	0-28751-025-0	01	1	0812-
265	BRACKET; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-94395-764-2	01	1	0812-
265	BRACKET; EXH PIPE (A)	8-97609-517-1	01	1	0712-0811
265	BRACKET; EXH PIPE EURO4 SPECIFICATION<NT4> (A)	8-97609-517-1	01	1	0812-0906
265	BRACKET; EXH PIPE EURO4 SPECIFICATION<NT4> (A)	8-98260-415-0	01	1	0907-
275	WASHER; PL EURO2 SPECIFICATION<NT2> ID=12.2	1-09503-008-0	03	1	0812-
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>	8-94394-248-2	01	1	0812-
398	MOUNTING (F) ID=19 OD=26	8-94160-177-0	01	1	0712-
398	MOUNTING (C) OD=28	8-94390-551-1	01	1	0712-
398	MOUNTING (D) ID=13 OD=28	8-94394-504-0	01	1	0712-
398	MOUNTING (E) OD=26	8-94394-529-0	01	1	0712-
398	MOUNTING (A) OD=32	8-94395-766-0	01	1	0712-
398	MOUNTING (B) OD=23	8-97105-689-6	01	1	0712-
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	1-09360-797-1	01	1	0812-1408
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	8-98245-240-0	01	1	1409-
488	HOSE; RUBBER	8-98046-356-0	01	1	0712-0811
488	HOSE; RUBBER EURO4 SPECIFICATION<NT4>	8-98046-356-0	01	1	0812-1408
488	HOSE; RUBBER EURO4 SPECIFICATION<NT4> ID=52.5 L=70	8-98245-242-0	01	1	1409-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
